Aaeon EMB-9458T User manual

Mini-ITX EMB-9458T
EMB-9458T
Intel
® CoreTM 2 Duo/CoreTM Duo/
Celeron®M Processor,
Mini-ITX
Intel®82573L Ethernet
TPM 1.2
AC97Audio&MiniPCI
EMB-9458T Manual Rev.A3rd Ed.
May 2012

Mini-ITX EMB-9458T
Copyright Notice
This document is copyrighted, 2012. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.
i

Mini-ITX EMB-9458T
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
Award is a trademark of Award Software International, Inc.
CompactFlash™is a trademark of the Compact Flash
Association.
Intel®, CoreTM 2 Duo/ CoreTM Duo and Celeron®M are
trademarks of Intel®Corporation.
Microsoft Windows®is a registered trademark of Microsoft
Corp.
ITE is a trademark of Integrated Technology Express, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
SoundBlaster is a trademark of Creative Labs, Inc.
Please be notified that all other products’ name or trademarks
not be mentioned above are properties of their respective
owners.
ii

Mini-ITX EMB-9458T
Packing List
Before you begin installing your card, please make sure that
the following materials have been shipped:
1 1701400453 IDE Cable
1 9657666600 Jumper Cap
1 1709070500 Serial ATA Cable
1 1702150150 Serial ATA Power Cable
1 Quick Installation Guide
1 Utility CD
1 EMB-9458T
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.
iii

Mini-ITX EMB-9458T
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions ..................................................2-2
2.2 Location of Connectors and Jumpers ......................2-3
2.3 Mechanical Drawing ................................................2-5
2.4 List of Jumpers ........................................................2-7
2.5 List of Connectors .....................................................2-8
2.6 Setting Jumpers .....................................................2-10
2.7 COM2 Ring/ +5V/ +12V Selection (JP2).................2-11
2.8 LCD INVERTER Voltage Selection (JP3)...............2-11
2.9 LCD Voltage Selection (JP4) ..................................2-11
2.10 Clear CMOS (JP5) ................................................2-11
2.11 ATX Power Simulate AT Power (JP6)...................2-11
2.12 COM1 RS-232 & COM2 RS-232/422/485 Connector
(CN2).............................................................................2-12
2.13 Audio 5.1 Channel/ SPDIF Connector (CN3)........2-12
2.14 LCD Inverter Connector (CN7)..............................2-13
2.15 CD-In Connector (CN8).........................................2-13
2.16 Internal Keyboard Connector (CN9) ....................2-13
iv

Mini-ITX EMB-9458T
2.17 Internal Mouse Connector (CN10)........................2-14
2.18 LVDS-LCD Connector (CN11) ............................2-14
2.19 SDVO Connector (CN12)......................................2-15
2.20 System Fan Connector (CN13) ...........................2-16
2.21 RTC Battery Connector (CN14)............................2-16
2.22 RS-232 TTL/GPS Connector (CN15)....................2-16
2.23 ATX Power Connector (CN16)..............................2-16
2.24 LPT Port Connector (CN17)..................................2-17
2.25 AT Power Connector (CN18)................................2-18
2.26 PCI-Express Slot (CN19)…………………………...2-18
2.27 USB Connector (CN20 & CN21)...........................2-19
2.28 Digital I/O Connector(CN22).................................2-20
2.29 COM4 RS-232 Serial Port Connector (CN23) ......2-21
2.30 COM3 RS-232 Serial Port Connector (CN24) ......2-21
2.31 COM6 RS-232 Serial Port Connector (CN25) ......2-21
2.32 IrDA Connector (CN26).........................................2-22
2.33 CPU FAN Connector (CN27)................................2-22
2.34 Front Panel Connector (CN28) .............................2-22
2.35 Audio Speaker Output (CN30)..............................2-23
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation……………………………………………..4-3
v

Mini-ITX EMB-9458T
vi
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 IT 8712 Watchdog Timer Initial Program...............A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 Memory Address Map............................................B-3
B.3 IRQ Mapping Chart................................................B-4
B.4 DMA Channel Assignments.……………………….B-4
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2

Mini-ITX EMB-9458T
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Mini-ITX EMB-9458T
Chapter 1 General Information 1-2
1.1 Introduction
The EMB-9458T adopts the latest Intel®Core™ 2 Duo / Core™
Duo/ Celeron®M processor and Intel®945GME+ICH7M chipset
for better power-management capabilities and enhanced
performance.
The system memory of EMB-9458T features two 240-pin DIMM
and DDRII 400/533/667 up to 4GB. The LCD interface is
18/24-bit dual-channel LVDS TFT LCD and 2nd 18/24-bit
dual-channel LVDS through optional SDVO Card
(TF-PER-V04B-A10)
The EMB-9458T features one PCI slot, two optional PCI-E［x1］
slot, one Mini PCI slot, four RS-232 ports, one RS-232 TTL
only/GPS port, one RS-232/422/485 port, eight USB 2.0 ports,
multiple Digital I/O ports, and Type II CFD storage, providing
versatile expansion options for many embedded applications.
EMB-9458T with mobile-optimized Intel dual-core processors is
the latest embedded motherboard designed to cope with
increasingly heavily work-loaded embedded systems found in
POS (Point-of-Sale) machines, automated kiosks, medical
instruments, advanced automation for buildings and homes,
and gaming machines.

Mini-ITX EMB-9458T
Chapter 1 General Information 1-3
1.2 Features
• Intel® Core™ 2 Duo / Core™ Duo/ Celeron M
Processor
• DDRII 400/533/667 DIMM Memory Up to 4GB
• 18/24-bit Dual-channel LVDS TFT LCD, DVI, LVDS,
TV-out, SDVO x 1 for 2nd 18/24-bit Dual-channel DVI/
LVDS
• Intel®82573L Gigabit Ethernet
• CompactFlash™ Type II Slot, Two SATA (Optional
RAID 0 & RAID 1)
• Two PCI-E［x1］Slots (Optional), One PCI, and One
Mini PCI Socket
• Six COM Ports (RS-232 x 4, RS-232 TTL only/ GPS x
1, RS-232/422/485 x 1), Eight USB 2.0 Ports, and
Digital I/O 8-bit
• Optional TPM 1.2

Mini-ITX EMB-9458T
Chapter 1 General Information 1-4
1.3 Specifications
System
 Processor Supports Intel®CoreTM 2
Duo/ CoreTM Duo/ Celeron®
M processor
 System Memory 240-pin DIMM x 2, DDRII
400/533/667 up to 4GB
 Chipset Intel®945GME + ICH7M (-DH
optional for RAID)
 I/O Chipset ICH7-M (-DH optional for
RAID) + IT8712F-KX
 Ethernet Intel®82573L
10/100/1000Base-TX, RJ-45
x 2
 BIOS Award Plug & Play BIOS –
1MB ROM
 Watchdog Timer Generates a time-out system
reset
 H/W Status Monitoring Supports power supply
voltages, fan speed and
temperature monitoring
 Expansion Interface PCI x 1, PCI-E［x1］x 2
(Optional), Mini PCI x 1
 Power Requirement ATX (+3.3V, +5V, +5VSB,

Mini-ITX EMB-9458T
Chapter 1 General Information 1-5
 Power Consumption
(Typical)
+12V) or AT (+5V, +12V)
T7400 2.16GHz, DDRII 667
2 GB：2.24A@+12V, 3.6A@
+5V
 Board Size 6.7”(L) x 6.7”(W) (170 mm x
170 mm)
 Operating Temperature
 Storage Temperature
 Operating Humidity
 MTBF (Hours)
32˚F~ 140˚F (0˚C ~ 60˚C)
-40˚F~ 176˚F (-40˚C ~ 80˚C)
0%~90% relative humidity,
non-condensing
60,000
Display: Supports CRT/LCD, CRT/TV, LCD/TV, LCD/DVI and
CRT/DVI simultaneous/ dual view display
 Chipset
 Memory
 LCD Interface
Intel®945GME
Shared system memory up to
224MB w/ DVMT3.0
18/24-bit dual-channel LVDS
TFT LCD, 2nd 18/24-bit
dual-channel LVDS through
an optional SDVO card
(TF-PER-V04B-A10)
 TV-out Supports NTSC and PAL
standard, S-Terminal and
Composite Video

Mini-ITX EMB-9458T
Chapter 1 General Information 1-6
 DVI
 TPM
Yes, 2nd DVI through an
optional SDVO card
(TF-PER-V03B-A10)
Optional
I/O
 Storage
 Serial Port
EIDE x 1 (UDMA100), SATA II x
2, Type II CompactFlash x 1
RS-232 x 4, RS-232 TTL only/
GPS x1, RS-232/422/485 x 1
 IrDA One IrDATx/Rx header
 Audio MIC-In, Line-In, Line-out, CD-in,
Stereo amplifier included
 USB USB 2.0 x 8
 Parallel Port Supports SPP/ EPP/ ECP mode
 K/B and Mouse PS/2 Keyboard x 1, and PS/2
Mouse x1
 Digital I/O Supports 8-bit (Programmable)

Mini-ITX EMB-9458T
Chapter 2 Quick Installation Guide 2-1
Quick
Installation
Chapter
2
Guide

Mini-ITX EMB-9458T
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Mini-ITX EMB-9458T
Chapter2QuickInstallationGuide2 - 3

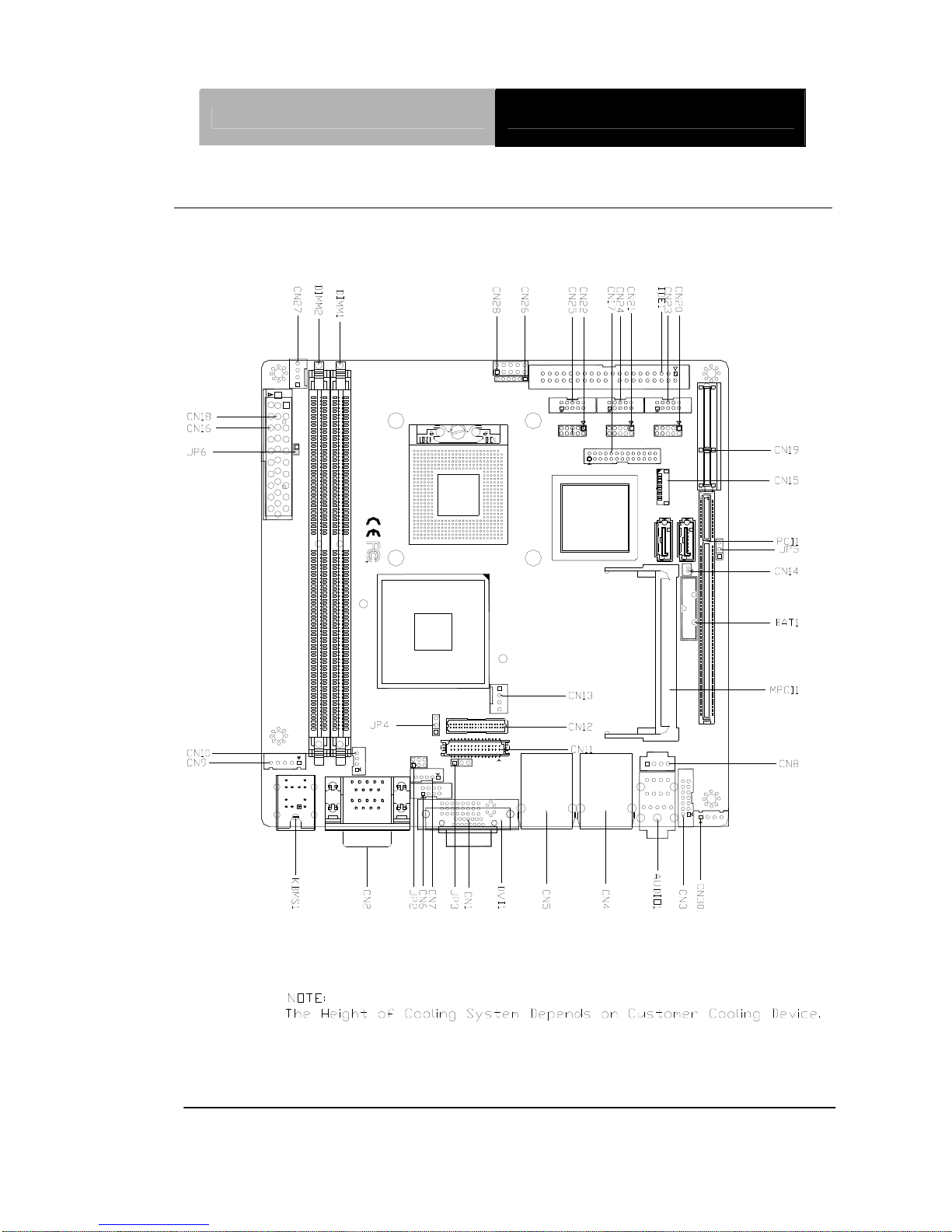

2.2 Location of Connectors and Jumpers
Component Side

Mini-ITX EMB-9458T
Chapter 2 Quick Installation Guide 2 - 4

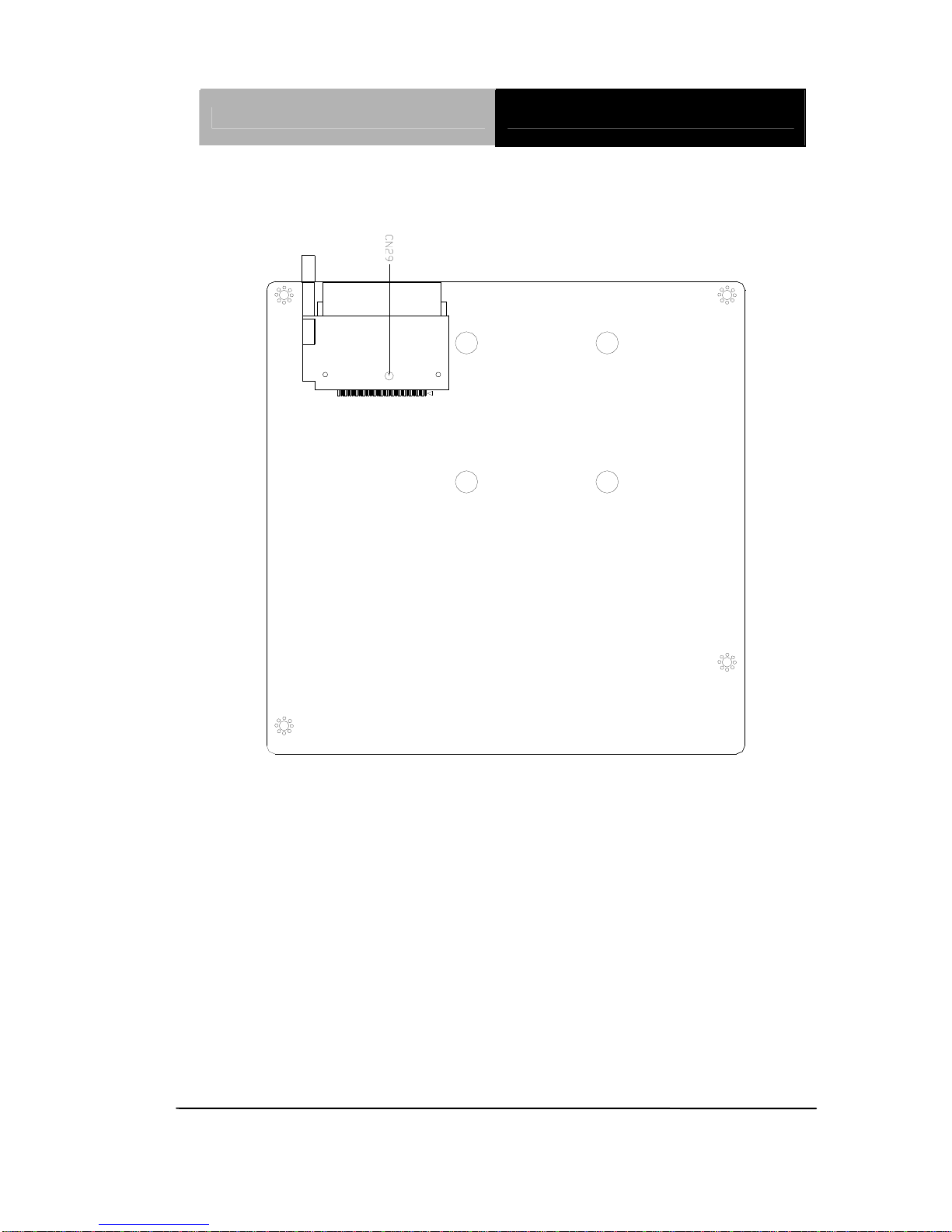

Solder Side

Mini-ITX EMB-9458T
Chapter2QuickInstallationGuide2 - 5

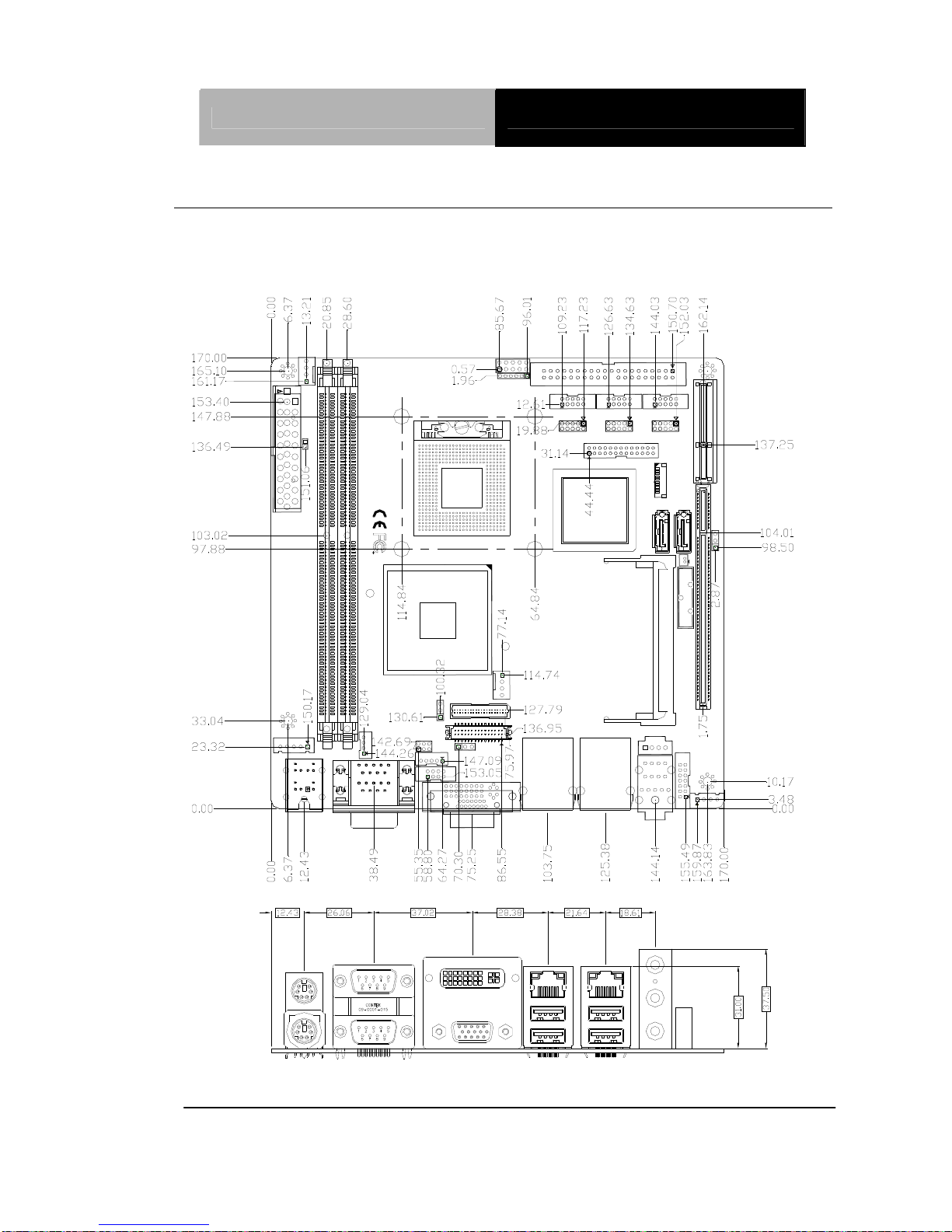

2.3 Mechanical Drawing
Component Side

Mini-ITX EMB-9458T
Chapter 2 Quick Installation Guide 2 - 6
Solder Side

Mini-ITX EMB-9458T
Chapter2QuickInstallationGuide2 - 7
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Label Function
JP2 COM2 Ring/+5V/+12V Selection
JP3 LCD INVERTER Voltage Selection
JP4 LVDS Voltage Selection
JP5 Clear CMOS
JP6 ATX Power simulate AT Power
