Aaeon PCM-6892 Rev.B User manual

PCM-6892
All-in-One Single Board Computer
onboard VIA C3 EBGA CPU with LCD,
LVDS, TV-out, Audio, Dual Ethernet,
CFD, PCMCIA, & 4 USBs
Cover & Preface.pmd 2003/10/21,09:10上午1

FCC STATEMENT
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERA-
TION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)
THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2)
THISDEVICEMUSTACCEPTANYINTERFERENCERECEIVED
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO
COMPLY WITH THE LIMITS FOR A CLASS "A" DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE
PROTECTION AGAINTST HARMFUL INTERFERENCE WHEN
THE EQUIPMENT IS OPERATED IN A COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND
CAN RADIATE RADIO FREQUENCY ENERGY AND , IF NOT
INSTATLLED AND USED IN ACCORDANCE WITH THE
INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTER-
FERENCE TO RADIO COMMUNICATIONS. OPERATION OF
THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO
CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE
USER WILL BE REQUIRED TO CORRECT THE INTERFER-
ENCE AT HIS OWN EXPENSE.
Cover & Preface.pmd 2003/10/21,09:10上午2

Copyright Notice
This document is copyrighted, 2003. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.
Acknowledgements
AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.
Award is a trademark of Award Software International, Inc.
Cyrix is a trademark of Cyrix Corporation.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium II are trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
SiS is a trademark of Silicon Integrated Systems Corp.
VIA is a trademark of VIA Technology, Inc.
All other product names or trademarks are properties of their
respective owners.
Manual PCM-6892 3rd Edition
Prepared in Taiwan Oct 2003
Cover & Preface.pmd 2003/10/21,09:10上午3

A Message to the Customer
AAEON Customer Services
Each and every AAEON product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new AAEON equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name AAEON has
come to be known.
Your satisfaction is our primary concern. Here is a guide toAAEON
customer services. To ensure you get the full benefit of our
services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products.
So if you run into technical difficulties, we are here to help. For the
most frequently asked questions, you can easily find answers in
your product documentation. These answers are normally a lot
more detailed than the ones we can give over the phone.
So please consult this manual first. If you still cannot find the
answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our
dealers are well trained and ready to give you the support you need
to get the most from your AAEON products. In fact, most problems
reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from AAEON
engineers every business day. We are always ready to give advice
on application requirements or specific information on the installa-
tion and operation of any of our products.
Cover & Preface.pmd 2003/10/21,09:10上午4

Product Warranty
AAEON warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for
two years from the date of purchase.
This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel autho-
rized by AAEON, or which have been subject to misuse, abuse,
accident or improper installation. AAEON assumes no liability
under the terms of this warranty as a consequence of such events.
Because of AAEON high quality-control standards and rigorous
testing, most of our customers never need to use our repair service.
If an AAEON product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs,
you will be billed according to the cost of replacement materials,
service time, and freight. Please consult your dealer for more
details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, CPU type and speed, AAEON products used, other
hardware and software used, etc.) Note anything abnormal and
list any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your
manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA
(return material authorization) number from your dealer. This
allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair
and Replacement Order Card and a photocopy proof of pur-
chase date (such as your sales receipt) in a shippable container.
A product returned without proof of the purchase date is not
eligible for warranty service.
5. Write the RMA number visibly on the outside of the package
and ship it prepaid to your dealer.
Cover & Preface.pmd 2003/10/21,09:10上午5

Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
1.PCM-6892 All-in-One Single Board Computer
2.Quick Installation Guide
3.CD-ROM contains the followings:
lUser Manual (this manual in PDF file)
lSystem drivers and utilities
lEthernet drivers and utilities
lVGA drivers and utilities
lAudio drivers and utilities
lShort Copper Kit
lJumper Cap
The PCM-6892 requires several cables for operation. You can make
them yourself or purchase an optional cable kit, PCM-10489-6 .
If any of these items are missing or damaged, contact your distri-
buitor or sales represntative immediately.
Cover & Preface.pmd 2003/10/21,09:10上午6

Notice
Dear Customer,
Thank you for purchasing the PCM-6892 board. This user manual is
designed to help you to get the most out of the PCM-6892, please
read it thoroughly before you install and use the board. The
product that you have purchased comes with an two-year limited
warranty, but AAEON will not be responsible for misuse of the
product. Therefore, we strongly urge you to firstread the manual
before using the product.
To receive the lastest version of the user manual, please visit our
Web site at:
http://www.aaeon.com.tw
Cover & Preface.pmd 2003/10/21,09:10上午7

Contents
Chapter 1: General Information.............................. 1
Introduction..................................................................... 2
Features............................................................................3
Specifications ....................................................................4
Chapter 2: Quick Installation Guide ........................ 7

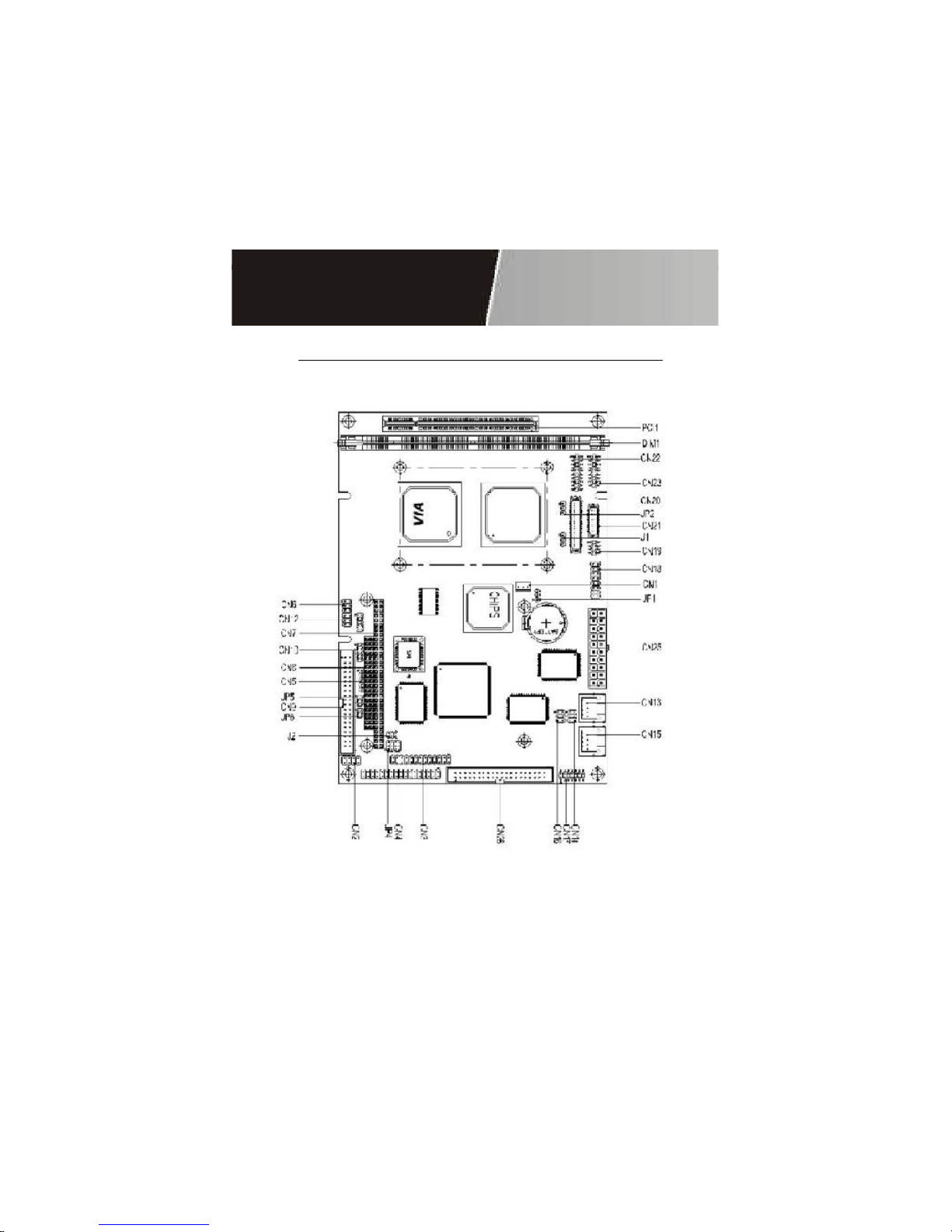

Locating Jumpers & Connectors ....................................8
Mechanical Drawing .......................................................10
Jumpers and Connectors ...............................................12
Clear CMOS(JP1) ..........................................................14
LCD Voltage Select(JP2) ...............................................14
Serial Port 2 Status Setup(JP4 & J2).............................15
Serial Port 3 RING Status Setup(JP5) ...........................15
Serial Port 4 RING Status Setup(JP6) ...........................16
LCD Shift Clock Setting(J1) ..........................................16
CPU Fan Connector(CN1) .............................................17
K/B & PS2 Mouse Connector(CN2) .............................17
LPT Connector(CN3).....................................................18
FDD Connector(CN4) .....................................................18
IR Connector(CN5)........................................................19
Front Panel Connector(CN6) .........................................20
IDE Hard Drive Connector(CN9) ..................................20
USB Connector(Port 0, Port 1)(CN10) ..........................22
USB Connector(Port 2, Port 3)(CN12) ..........................22
Compact Flash Connector(CN11) ..................................23
LAN1 Port(CN13) ..........................................................24
LAN1 Status Connector(LED)(CN14)...........................24
LAN2 Port(CN15) ..........................................................24
LAN2 Status Connector(LED)(CN16)...........................24
Cover & Preface.pmd 2003/10/21,09:10上午8

Audio Connector(CN17) ............................................... 25
VGA Port(CN18)............................................................ 25
TV-out Connector(CN19).............................................. 26
TTL LCD Connector(CN20) ......................................... 26
TTL LCD Connector(CN21) ......................................... 27
LVDS Connector(CN22)................................................ 27
LVDS Connector(CN23)................................................ 28
AT Power Connector(CN24)......................................... 28
ATX Power Connector(CN25) ...................................... 29
COM1, COM2, COM3, & COM4(CN26) ................... 30
Card Bus Connector(CN27) ......................................... 31
Chapter 3: Award BIOS Setup .............................. 33
Starting setup ................................................................ 34
Setup keys ..................................................................... 35
Getting help ................................................................... 36
Main Setup Menu.......................................................... 37
Standard CMOS Features ............................................. 40
Advanced BIOS Features ............................................. 45
Advanced Chipset Features .......................................... 51
Integrated Peripherals .................................................. 56
Power Management Setup ............................................ 62
PnP/PCI Configurations ................................................ 67
PC Health Status ........................................................... 70
Frequency/Voltage Control ........................................... 71
Load Fail-Safe Defaults .................................................. 72
Optimized Defaults ........................................................ 73
Set Supervisor Password ............................................... 74
Set User Password......................................................... 75
Save & Exit Setup ......................................................... 76
Exit Without Saving ....................................................... 77
Chapter 4:Drivers Installation............................... 79
System Driver Installation............................................. 80
VGA Driver Installation................................................. 81
Audio Driver Installation............................................... 85
Cover & Preface.pmd 2003/10/21,09:10上午9

Ethernet Driver Installation...........................................88
Appendix A: WatchDog Timer .............................. 91
Appendix B: Optional Extras ................................ 99
Cover & Preface.pmd 2003/10/21,09:10上午10

Chapter 1 General Information 1
1
General
Information
This chapter gives background informa-
tion on the PCM-6892.
Sections include:
•Board Introduction
•Board Features
•Board Specifications
CHAPTER

2PCM-6892 User Manual
AAEON new compact size board PCM-6892 targets home automa-
tion, POS, Networking, and Kiosk/POI markets. To fulfill the critical
demand of the above markets, PCM-6892 features PCMCIA
expansion interface, large size display support ability, low profile
design, dual lan and yet still remains a cost-effective solution.
Onboard VIA Ezra/Eden EBGA mobile CPU is manufactured with
0.13 and 0.18 micron manufacturing process enabling cool process-
ing by minimizing power consumption and heat generation. Built-in
level 1 and level 2 cache accelerate computing performance. With
the embedded 3DNow! and MMX Technology, this CPU is capable
of high-end multi media application. Eden CPU features World
smallest x86 processor die is an ideal choice for your fanless
solution.
The PCM-6892 comes with VIA 8606 Twister T North Bridge
integrated AGP 4X 2D/3D graphics accelerator. With 18 bit/36 bit
dual channel LVDS interface and TTL signal, you can utilize this
board to display CRT.
This board offers two alternatives of power supply type: AT and
ATX. You can select whichever suitable for your application. The
ATX power supply board features power management to minimize
power consumption. It complies with the ACPI standard and
supports two types of power-saving features: Doze mode and
Suspend modes.
Dual 10/100Base-Tx Ethernet controllers provide superior network-
ing access ability. The compact flash will offer a larger memory bank
for data storage of all types. And the integrated AC97 2.0/Sound-
Blaster legacy audio provides better presentation for multimedia
application. Onboard PCMCIA interface on the solder side can be
widely used for IEEE 1394, Modem, Wireless LAN, Storage, Sound
Card and SCSI etc.. Equipped with the above functions, this
versatile board can be easily applied to a variety of fields.
Introduction

Chapter 1 General Information 3
Features
lOnboard VIA Ezra(800MHz)/Eden(400-667MHz) EBGA mobile CPU
lIntegrated AGP 4X 2D/3D Graphics Accelerator
lSupports CRT
lIntegrated AC-97 2.0 / SoundBlaster-compatible legacy audio
lDual channel LVDS interface onboard
lSupports one Type II Compact Flash Memory
lSupports two Type II PCMCIA Slots (Optional)
lTwo 10/100Base-T Fast Ethernet
lSupports UDMA100
l5V only operation
PCM-6892 also includes four high-speed serial ports (three RS-232,
one RS-232/422/485), one multimode (ECP/EPP/SPP) parallel port,
four USB ports, 2 floppy drives, an Ultra DMA/100 Enhanced IDE
controller supporting two devices with data transfer rate up to
100MB per second, and a keyboard/PS/2 mouse interface. This
AAEON embedded PC includes almost everything you need for
fast, worry-free embedded PC performance.

4PCM-6892 User Manual
Specifications
CPU VIA C3 Ezra (800MHz)/Eden(400MHz-667MHz)
EBGA CPU (with system bus frequencies of 66/
100/133 MHz)
BIOS Award 256KB Flash BIOS
Chipset VIAVT8606/VT82C686B
Memory Onboard one 168-pin DIMM socket supports up to
512MB SDRAM
Enhanced IDE Supports up to two IDE devices. Supports Ultra
DMA100 mode with transfer rate up to 100MB/sec.
FDD interface Supports up to two floppy disk drives, 5.25 inch
(360KBand1.2MB) and/or3.5inch(720KB,1.44MB
and 2.88MB)
Parellel Port One bi-directional parallel port. Supports SPP, ECP,
and EPP modes
Serial Port Three RS-232 serial ports and one RS-232/422/
485 serial ports. Ports can be configured as COM1,
COM2, COM3, COM4, or disabled individually.
(16C550 equivalent)
IrDA port Supports one IrDA Tx/Rx header
KB/Mouse connector A 7(4x2-1)-pin header supports PC/AT Keyboard
and PS/2 mouse.
USB connectors Two 10-pin headers onboard support four USB
ports

Chapter 1 General Information 5
Battery Lithium battery for data retention
Watchdog Timer Can generate a system reset. Supports Windows
2000, Windows 98, Windows 95, Windows 3.1.
Software selectable time-out interval (1 sec.~255 sec.)
DMA 7 DMA channels (8237 equivalent)
Interrupt 15 interrupt levels (8259 equivalent)
Power management Supports ATX or AT power supply. Supports PC97
I/Operipheral devicessupportpower savingand doze/
standby/suspend modes. APM 1.2 compliant
Audio Interface
Chipset VIA VT82C686B. Integrated SoundBlaster, Sound
Blaster Pro, and Windows Sound System
Flat Panel/CRT Interface
Chipset VIAVT8606
Display memory Share memory up to 32MB
Display Type Supports 18/36 bit TTL/dual channel LVDS TFT LCD.
Can display CRT and flat panel simultaneeously.
Resolution Up to 1600 x 1200 @ 16bpp colors for CRT
TV output interface VIA 1621 supports NTSC/PAL composite outputs

6PCM-6892 User Manual
Ethernet Interface
Chipset Dual RTL 8139C PCI-bus Ethernet controllers
onboard
Ethernet interface Onboard dual 10/100Base-T RJ-45 connectors
Expansion Interface
PC/104 Connector One 16-bit 104-pin connector onboard
PCI Slot One 32-bit 120-pin PCI slot onboard
PCMCIASlot Two Type II PCMCIA slots on solder side
SDDInterface One type II Compact Flash Socket
Mechanical and Environmental
Power Supply voltage +5V(4.75V to 5.25V), AT or ATX type
Operating temperature 32 to 140 degrees F (0 to 60 degrees C)
Board Size 8 (L) x 5.75 (W) (203mm x 146mm)
Weight 1.2 lb. (0.5Kg)

PCM-6892 Installation Guide 7
PCM-6892
Quick Installation Guide
Notice
The guide is designed for experienced users to
setup the system within the shortest time. For
detailed information, please refer to the elec-
tronic user's manual.
Safety Precautions
PCM-6892
Compact Board onboards VIA C3 Ezra/Eden EBGA CPU
with LCD, LVDS, TV-out, Audio, Dual Ethernet, CFD,
PCMCIA, & 4 USBs
Part no. 2007689212 3rd Ed. Printed in Taiwan Oct, 2003
Warning! Always completely disconnect the power cord
from your chassis whenever you work with the
hardware. Do not make connections while the
power is on. Sensitive electronic components
can be damaged by sudden power surges. Only
experienced electronics personnel should open
the PC chassis.
Caution! Always ground yourself to remove any static
charge before touching the CPU card. Modern
electronic devices are very sensitive to static
electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all
electronic components in a static-dissipative
surface or static-shielded bag when they are not
in the chassis.
Quick Installation Guide
PCM-6892

8PCM-6892 Installation GuideBC-
PCM-6892
Locating Jumpers & Connectors

PCM-6892 Installation Guide 9
PCM-6892
Quick Installation Guide
Locating Jumpers & Connectors

10 PCM-6892 Installation GuideBC-
PCM-6892
Mechanical Drawing
