Aaeon PCM-6894 User manual

Compact Board PCM-6894
PCM-6894
Tualatin / Pentium III / Celeron
Compact Board
With LCD, LVDS, TV-out, Audio,
Dual Ethernet, CFD &
PC/104 Connector
PCM-6894 Rev. A Manual 7th Ed.
May. 2005

Compact Board PCM-6894
i
Copyright Notice
This document is copyrighted, 2005. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its use.
The material inthis document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in this
document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Compact Board PCM-6894
ii
Acknowledgments
All other products’name or trademarks are properties of their respective
owners.
lAward is a trademark of Award Software International, Inc.
lCompactFlash™is a trademark of the Compact Flash Association.
lIntel® ,Pentium® III, and Celeron® are trademarks of Intel®
Corporation.
lMicrosoft Windows®is a registered trademark of Microsoft Corp.
lITE is a trademark of Integrated Technology Express, Inc.
lIBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
lSoundBlaster is a trademark of Creative Labs, Inc.

Compact Board PCM-6894
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
•1 CPU Card
•1 Quick Installation Guide
•1 CD-ROM for manual (in PDF format) and drivers
The PCM-6894 requires several cables for operation. You can make
them yourself or purchase an optional cable kit, PCM-10489-7.
If any of these items should be missing or damaged, please contact your
distributor or sales representative immediately.

Compact Board PCM-6894
iv
Contents
Chapter 1 General Information
1.1Introduction.................................................................................... 1-2
1.2Features............................................................................................ 1-4
1.3Specifications .................................................................................. 1-5
Chapter 2 Quick Installation Guide
2.1 Safety Precautions.......................................................................... 2-2
2.2 Location of Connectors and Jumpers........................................ 2-3
2.3 Mechanical Drawing...................................................................... 2-5
2.4 List of Jumpers............................................................................... 2-7
2.5 List of Connectors......................................................................... 2-8
2.6 Setting Jumpers..............................................................................2-10
2.7 CMOS Status Setup (JBAT1)......................................................2-11
2.8 LVDS Voltage Select (J2).............................................................2-11
2.9 Serial Port 2 Status Setup (J3, J4 & J5)......................................2-11
2.10 Serial Port 3 Ring Status Setup (J6)..........................................2-12
2.11 Serial Port 4 Ring Status Setup (J7)..........................................2-12
2.12 Watchdog Timer Status Setup (J8)...........................................2-12
2.13 LAN Status Setup (J9)................................................................2-13
2.14 TV Output Connector (CN1)...................................................2-13
2.15 CRT Connector (CN2)..............................................................2-14
2.16 LVDS Connector (CN3)............................................................2-14
2.17 10/100 Base-Tx Ethernet 1/2 Connector (CN4, CN5)......2-15

Compact Board PCM-6894
v
2.18 Audio Output Connector (CN7)..............................................2-15
2.19 Inverter Power Supply Connector for LCD (CN8)..............2-16
2.20 LAN1 & LAN2 Status Connector (CN9)...............................2-16
2.21 Keyboard & PS/2 Mouse Connector (CN10).......................2-17
2.22 Serial Port 1/2/3/4 Connector (CN12)..................................2-18
2.23 Front Panel Connector (CN13)................................................2-19
2.24 ATX Power Connector (PWR1A)...........................................2-19
2.25 AT Power Connector (PWR18)...............................................2-20
2.26 CPU Fan Connector (CPU_FAN)...........................................2-20
2.27 Printer Port Connector (LPT1)................................................2-21
2.28 Wake On LAN Connector (WOL1)........................................2-21
2.29 USB Connector (USB1).............................................................2-22
2.30 IrDA Connector (IR1)...............................................................2-22
2.31LCD Connector (LCD1)...........................................................2-23
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization...................................................... 3-2
3.2 Award BIOS Setup........................................................................ 3-3
3.3 Standard CMOS Features............................................................. 3-5
3.4 Advanced BIOS Features............................................................. 3-6
3.5 Advanced Chipset Features.......................................................... 3-7
3.6 Integrated Peripherals.................................................................... 3-8
3.7 Power management Setup............................................................ 3-9
3.8 PnP/PCI configuration................................................................3-10
3.9 PC Health Status...........................................................................3-11
3.10 Load Fail-Safe Defaults..............................................................3-12

Compact Board PCM-6894
vi
3.11 Load Optimized Defaults..........................................................3-13
3.12 Set Supervisor/User Password.................................................3-14
3.13 Save & Exit Setup.......................................................................3-15
3.14 Exit without saving.....................................................................3-16
Chapter 4 Driver Installation
4.1 Installation 1.................................................................................... 4-3
4.2 Installation 2.................................................................................... 4-4
4.3Installation 3.................................................................................... 4-5
Appendix A Programming the WatchDog Timer
A.1 How to program the watchdog timer........................................A-2
Appendix B Optional Extras
B.1 PCM-10489-7 Wiring Kit.............................................................B-2

Compact Board PCM-6894
Chapter 1 General Information 1 -1
General
Information
Chapter
1

Compact Board PCM-6894
Chapter 1 General Information 1 -2
1.1 Introduction
AAEON new compact size board PCM-6894 targets high-end multimedia
and networking applications. This board is supported by Intel Celeron ,
Pentium III and Tualatin CPUs. Easy upgrading allows full utilization of
Intel Development of even-higher speed CPUs. This is a perfect choice for
embedded applications that require cost-effective high computing power
communications Products whether video, voice, or data convergence over
Internet Protocol network infrastructures.
The PCM-6894 features power management to minimize power
consumption. It complies with the ACPI standard and supports three types
of power-saving features: Doze mode, Standby and Suspend modes. The
board watchdog timer automatically resets the system or generates an
interrupt in case the system stops due to a program bug or EMI.
Onboard SMI Lynx3DM+ 722 display chip with embedded 4or 8MB
SGRAM comes with 128-bit 2D/3D Graphics Engine, built-in TV encoder
for NTSC/PAL support, enhanced multi-display and hardware accelerated
MPEG2/DVD playback. For advanced panel display, SMI Lynx3DM+ adds
an integrated LVDS transmitter
Dual RTL 8139C PCI-bus 10/100Base-Tx Ethernet controllers onboard
provide superior networking access ability. The Ethernet interface and
Sound Blaster-compatible audio opens up worlds of possibilities for kiosks,
gaming systems, POS systems, medical and education markets.
The onboard compact flash will offer a larger memory bank for data storage

Compact Board PCM-6894
Chapter 1 General Information 1 -3
of all types. Compact Flash requires a fraction of power used to drive floppy
disk or CD-ROMs, also no battery is required to save the data when the
computer powers down.
PCM-6894 also includes four high-speed serial ports (three RS-232, one
RS-232/422/485), one multimode (ECP/EPP/SPP) parallel port, dual USB
ports, 2 floppy drives, an Ultra DMA/100 Enhanced IDE controller
supporting up to two devices with data transfer rate up to 100MB per
second, and a keyboard/PS/2 mouse interface. This AAEON embedded PC
includes almost everything you need for fast, worry-free embedded PC
performance.
The addition of PCI slot and PC/104 connector will allow a wide selection
of accessory cards to be added to the PCM-6894 such as Ultra Wide 2 SCSI,
fax modem, vehicle power supply, extra DiskOnChip, PCMCIA module,
etc.

Compact Board PCM-6894
Chapter 1 General Information 1 -4
1.2Features
•Supports Intel Tualatin/ Pentium III/ Celeron and
compatible processors
•Onboard VT82C694T/VT82C686B chipset
•SMI Lynx3DM+ SM 722 LCD controller with built-in 4 or
8 MB SGRAM supports 24-bit TFT Panels
•SM 722 integrated single channel LVDS/TTL function
•Two 10/100Base-T Fast Ethernet
•Integrated AC-97 2.2 Compatible 3D Audio
•Supports TV-Out function with RCA and S terminal header
on board
•Supports Type II CompactFlash Memory

Compact Board PCM-6894
Chapter 1 General Information 1 -5
1.3 Specifications
System
lCPU Intel FC-370 Pentium III/Celeron CPU
(with system bus frequencies of
66/100/133MHz)
lCPU Socket Intel socket 370
lBIOS Award 256KB Flash BIOS
lChipset VIA Apollo Pro 133T, VT82C694T
lI/O Chipset VT82C686B. Winbond
83977EF(TF)-AW as 2nd SIO for
COM3, COM4 port.
lMemory Onboard One 168-pin DIMM socket
supports up to 512 MBbytes SDRAM
(PC 100/133 support)
lEnhanced IDE Supports four IDE devices. Two devices
supports Ultra DMA100 mode with
transfer rate up to 100MB/ sec.
lFDD interface Supports up to two floppy disk drives,
5.25 inch (360KB and 1.2 MB) and/or
3.5inch (720KB, 1.44MB and 2.88MB)
lParellel Port One bi-directional parallel port.
Supports SPP, ECP, and EPP modes
lSerialPort Three RS-232 serial ports and one
RS-232/422/485(COM2) can be

Compact Board PCM-6894
Chapter 1 General Information 1 -6
configured as COM1, COM2,
COM3, COM4, or disabled individually.
(16C550 equivalent)
lIrDA port Supports one IrDA Tx/Rx header
lKB/Mouse connector A 7(4*2-1)-pin header supports
PS/2 Keyboard and PS/2 mouse.
lUSB connectors One 5x2-pin header onboard supports
dual USB ports
lBattery Lithium battery for data retention
lWatchdog Timer Generate a system reset. Software
selectable time-out interval.
lPower management Supports ATX or ATpower supply.
Supports PC97, LAN wake up and
modem ring-in functions. I/O
peripheral device support power
saving and doze/standby/suspend
modes. APM 1.2 compliant
Audio Interface
lChipset VIA VT82C686B, ALC65x codec
lAudio Controller AC97 ver. 2.0 compliant interface,
Multi-stream Direct Sound and
Direct Sound 3D acceleration.
lAudio Interface MIC in, line in, line out, CD audio
in.

Compact Board PCM-6894
Chapter 1 General Information 1 -7
Flat Panel/CRT Interface
lChipset SMI Lynx3DM+ SM 722, high
performance 128-bit GUI, 3D
engine
lDisplay memory 4or 8 MB frame buffer on
Lynx3DM+ SM 722 Chip
lDisplay Type Supports non-interlaced CRT and
24bit LVDS/TTL TFT LCD, can
display both CRT and flat panel
(DF-13 1.25V) simultaneously
lResolution Up to 1024 X 768 @ 24bpp colors
lSupports CRT and LCD simultaneous display / LCDs dual
view
lTV output interface Onboard header supports both RCA
jack and S terminal
Ethernet Interface
lChipset Dual RTL 8139C PCI-bus Ethernet
controllers onboard
lEthernet interface Onboard dual 10/100Base-T RJ-45
Connector
Expansion Interface
lPC/104Connector One 16-bit 104-pin connector

Compact Board PCM-6894
Chapter 1 General Information 1 -8
onboard
lPCI Slot One 32-bit PCI slot onboard
lSDD Interface One type II Compact Flash Socket
Mechanical and Environmental
lPower Supply voltage +5V, +12V, AT or ATX type
lOperating temperature 32 to 140 degrees F (0 to 60 degrees
C)
lBoard Size 8 (L) x 5.75 (W) (203mm x
146mm)
lWeight 1.2 lb. (0.5Kg)

Compact Board PCM-6894
Chapter 2 Quick Installation Guide 2 -1
Quick
Installation
Guide
Part No. 2007689417 Printed in Taiwan March. 2005
Notice:
The Quick Installation Guide is derived
from
Chapter 2 of user manual. For other
chapters and
further installation
instructions
, please refer to the user
manual CD-ROM that ca
me with the
product.

Compact Board PCM-6894
Chapter 2 Quick Installation Guide 2 -2
2.1 Safety Precautions
Always completely disconnect the power cord from
your board whenever you are working on it. Do not
make connections while the power is on, because a
sudden rush of power can damage sensitive
electronic components.
Always ground yourself to remove any static charge
before touching the board. Modern electronic
devices are very sensitive to static electric charges.
Use a grounding wrist strap at all times. Place all
electronic components on a static-dissipative
surface or in astatic-shielded bag when they are not
in the chassis

Compact Board PCM-6894
Chapter 2 Quick Installation Guide 2 -3
2.2Location of Connectors and Jumpers
Component Side

Compact Board PCM-6894
Chapter 2 Quick Installation Guide 2 -4
Solder Side

Compact Board PCM-6894
Chapter 2 Quick Installation Guide 2 -5

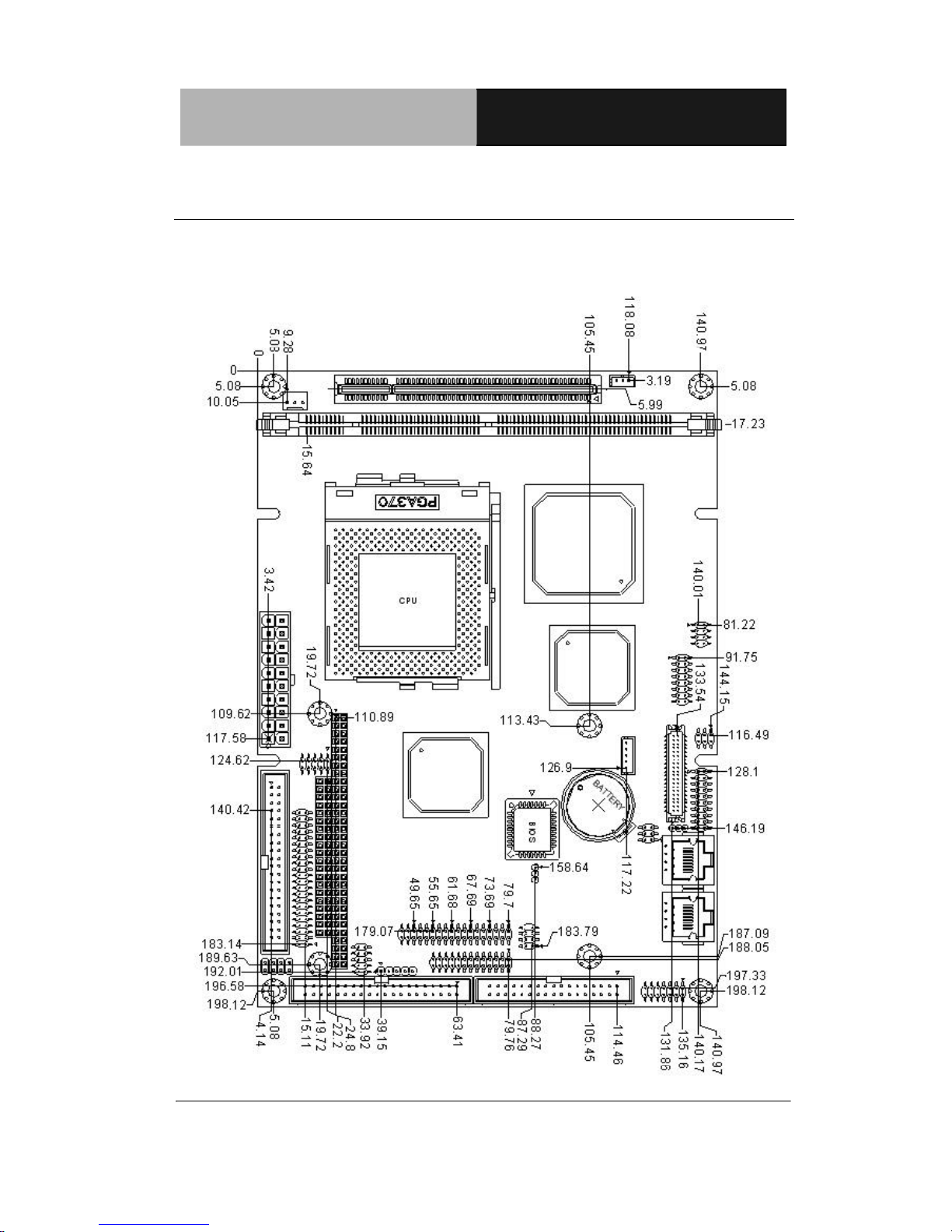

2.3 Mechanical Drawing
Component Side
