1-1
Chapter 1: General information
1.1 Package contents
Check your industrial motherboard package for the following items.
1 x Industrial Motherboard
1 x Cable Kit
1 x I/O Shield
1 x DVD-ROM for manual (in PDF format) and drivers
NOTE: If any of the above items is damaged or missing, contact your
distributor or sales representative immediately.
1.2 Features
Intel®Socket 1155 For 3rd/2nd Generation Core™ i7 / Core™ i5 / Core™ i3 /
Pentium®/ Celeron®Processors
Two 240-pin Dual Channel DDR3 1600 / 1333 / 1066MHz DIMM Up To 16GB
Three Independent Display: VGA x 1, DVI-D x 1, LVDS x 1
10/100/1000Base-TX Ethernet x 2
SATA 3.0 Gb/s x 3, USB2.0 x 8, COM x 13, CFast x 1
PCI-Express[x16] x 1, PCI-Express Mini card x 1
Onboard parallel port connection
EuP/ErP Compliance
•
•
•
•
•
•
•
•
Chapter 1
Product overview

IMBM-H61A
1-2
1.3 Specications
SYSTEM
Form factor uATX
CPU LGA1155 socket for Intel®3rd/2nd Generation Core™ i7 / Core™ i5 /
Core™ i3 / Pentium®/ Celeron®processors
Supports Intel®22nm / 32nm CPU
Supports Intel®Turbo Boost Technology 2.0
• The Intel®Turbo Boost Technology 2.0 support depends on the CPU types.
Memory 2 x DIMM (8GB per DIMM), max. 16GB, DDR3 1600 / 1333 / 1066MHz
Dual-channel memory architecture
Chipset
Intel®H61 Express Chipset
I/O Chipset
Fintek F81866D-I
Ethernet
Realtek®8111F-VB-CG, 10/100/1000Base-TX
2 x RJ-45 ports
BIOS
64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, SM BIOS, ACPI
2.0a
Manageability
WOL by PME, PXE
OS
Windows®XP 32-bit, Windows®7 32/64-bit, Fedora 17
H/W Status Monitor
Monitors CPU/system temperature
Monitors Vcore, 3.3V/5V/12V voltages
Monitors CPU/chassis fan speed
Expansion slot
1 x PCI Express 2.0 x16 slot
1 x PCI Express 2.0 x1 slot
1 x PCI slot
1 x PCI Express Mini Card slot
Battery
Lithium battery
Power requirement
1 x 24-pin ATX connector
1 x 4-pin ATX 12V power connector
1 x CPU fan
1 x Chassis fan
Board size
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Gross weight
1.1 lb (0.5 Kg)
Operating
temperature
32oF~140oF (0oC~60oC)
Storage temperature
-40oF~176oF (-40oC~80oC)
Operating humidity
0%~90% relative humidity, non-condensing
Power compliance
Compliant with Eup/ErP
EMI
CE (include CE-LVD), FCC
(continued on the next page)

1-3
Chapter 1: General information
DISPLAY
Chipset
Intel®H61 Express Chipset
Resolution
Up to 1920x1200@75Hz for VGA
Up to 1920x1200@60Hz for LVDS
Up to 1920x1200@60Hz for DVI-D
Output interface
1 x VGA port
1 x DVI-D port
1 x LVDS connector at midboard
I/O
Storage
3 x SATA 3.0Gb/s ports
Serial port
2 x RS-232/422/485 box header (COM2, COM9)
9 x RS-232 box header (COM1, COM5~8, COM10~13)
2 x RS-232 DB-9 connector (COM3, COM4) on rear I/O
USB
4 x USB2.0 (Box header)
4 x USB2.0 (Type A port) on rear I/O
DIO
8-bit Digital I/O interface (4-in/4-out)
LPT
1 x LPT connector
RTC
Internal RTC
Keyboard/Mouse
1 x PS/2 Keyboard on rear I/O
1 x PS/2 Mouse on rear I/O
Audio
Realtek®ALC8877.1-channelhighdenitionaudioCODEC
Supports Jack-detection and Anti-pop function
• Use a chassis with HD audio module in the front panel to support a 7.1-channel
audio output.
Ethernet
2 x RJ-45 ports on rear I/O
Display
1 x VGA port on rear I/O
1 x DVI-D port on rear I/O
1 x LVDS connector at midboard
Others
1 x CFast slot
1 x Front panel connector (Pin header)
NOTE: Specicationsaresubjecttochangewithoutnotice.

IMBM-H61A
1-4

2-1
Chapter 2: Motherboard information
Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplug the power cord from the wall socket before touching any
component.
• Before handling components, use a grounded wrist strap or touch a safely
grounded object or a metal object, such as the power supply case, to avoid
damaging them due to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
• Before you install or remove any component, ensure that the ATX power
supply is switched off or the power cord is detached from the power
supply. Failure to do so may cause severe damage to the motherboard,
peripherals, or components.
Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that
the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you
should shut down the system and unplug the power cable before removing or
plugging in any motherboard component. The illustration below shows the location
of the onboard LED.
SB_PWR
ON
Standby Power Powered Off
OFF
IMBM-H61A
IMBM-H61A Onboard LED

IMBM-H61A
2-2
IMBM-H61A
PCIEX16
PCI1
DIO
PCIEX1_1
EATXPWR
CPU_FAN
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
BZ1
ALC
887
ASM
1083
EPU
KBMS
SB_PWR
CLRTC
J2
J5
J1
J3
LVDSINV
24.4cm(9.6in)
24.4cm(9.6in)
Intel®
H61
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_3 SATA3G_2 SATA3G_1
CFAST
WLAN
AUDIO
LAN1_USB12
LAN2_USB34
LPT
SPI
DVI_VGA COM3
COM4
LGA1155
F_PANEL
COM6
COM7COM8COM10COM11
COM1COM2COM9
COM12COM13
COM5
RTL
8111F
RTL
8111F
Fintech
81216D-I
CHRONTEL
CH75118-BF
Fintech
81866D-I
EATX12V
USB56 USB78
321 34 5 6 4 2
13141819 16 1520 17
2
11
12
10
7
8
9

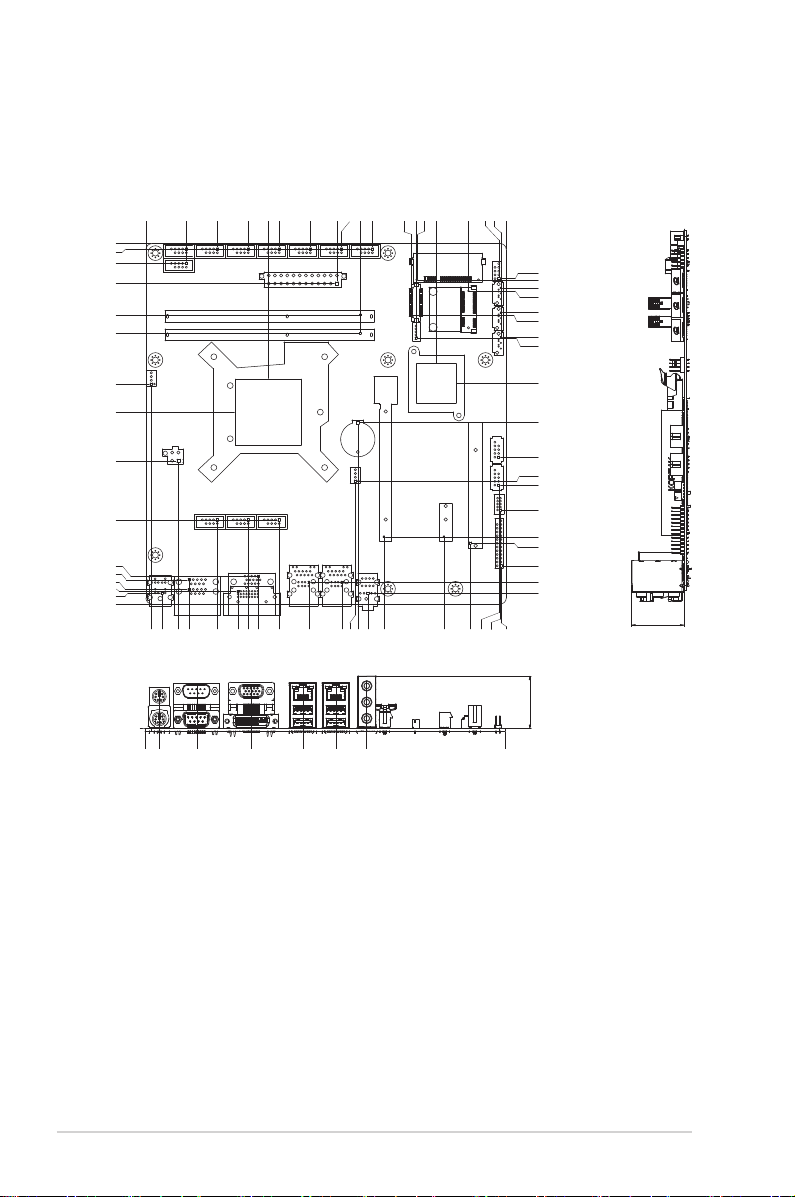

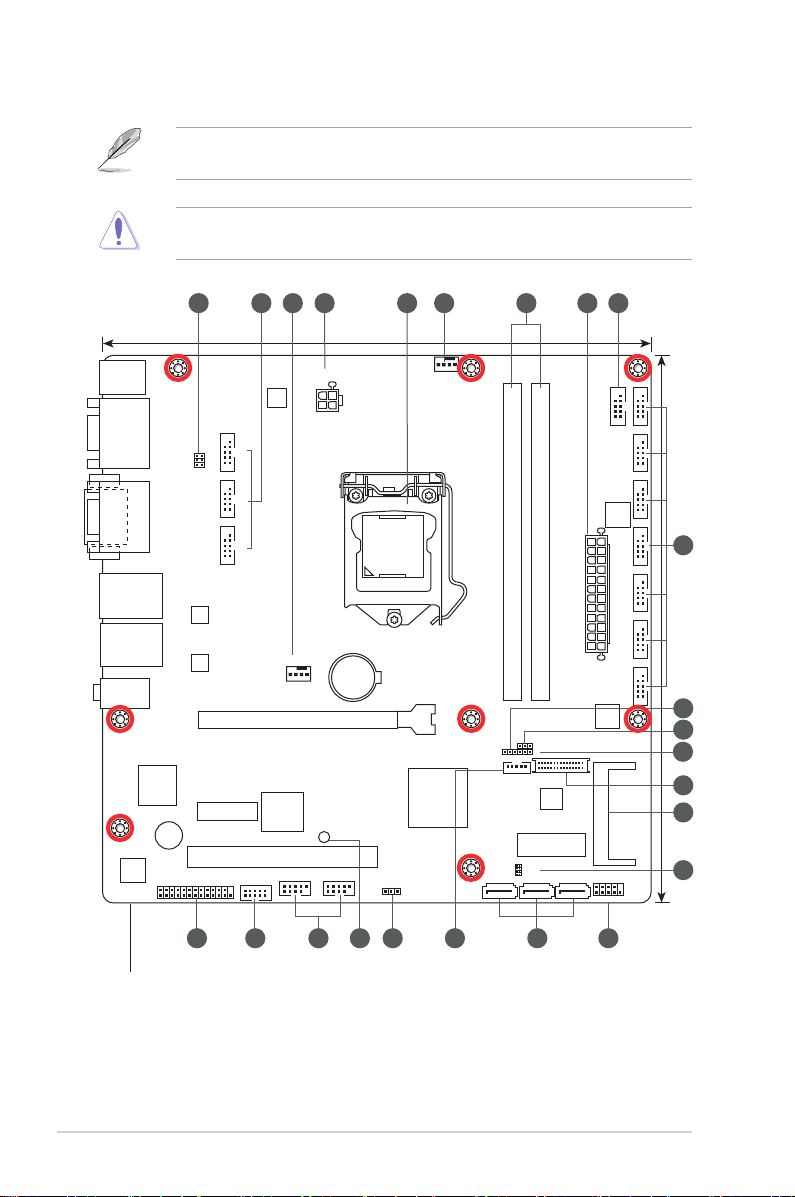

2.2 Motherboard layout
Place this side towards
the rear of the chassis
NOTE: Place eight screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION! Do not overtighten the screws! Doing so can damage the
motherboard.

2-3
Chapter 2: Motherboard information
Connectors/Jumpers/Slots Page
1. COM2 Ring/+5V/+12V selection (6-pin J5) 2-14
2. Serial port connectors (10-1 pin COM1/2, COM5~13) 2-21
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 2-17
4. ATX power connectors (24-pin EATXPWR, 4-pin EATX12V) 2-16
5. Intel®LGA1155 CPU socket 2-6
6. DDR3 DIMM slots 2-11
7. Inverter voltage selection (3-pin J2) 2-13
8. Inverter Back Light Control mode selection (3-pin J3) 2-14
9. LVDS panel voltage selection (3-pin J1) 2-13
10. LVDS connector (30-pin LVDS) 2-19
11. CFast slot (CFAST) 2-22
12. SPI programming connector (10-pin SPI) 2-20
13. System panel connector (10-1 pin F_PANEL) 2-18
14. Intel®H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~3) 2-19
15. Backlight inverter power connector (5-pin INV) 2-22
16. Clear RTC RAM (3-pin CLRTC) 2-12
17. Standby Power LED (SB_PWR) 2-1
18. USB 2.0 connectors (10-pin USB56, USB78) 2-20
19. Digital I/O connector (10-pin DIO) 2-21
20. LPT connector (26-1 pin LPT) 2-17

IMBM-H61A
2-4
2.3 Screw size
2.3.1 Component side
10.98 29.28 62.36 76.21
110.28 132.66 150.20
48.34 69.30 90.25
161.09 201.73 219.49 240.36 238.84
21.99
141.81 143.46
3.64
27.39 48.34 69.30 90.25 111.33 132.41 153.37 129.35 145.11 182.83 238.97 240.34 244.00 0.00 82.88 196.68
240.09
179.53 218.39 183.39
9.70
35.10 71.93
106.80 129.18
150.22
35.51
244.00
0.00
35.51
7.45
9.86
16.47
8.58
18.82
14.75
7.23
45.53
25.86
41.36
63.64
80.47
99.39
83.27
149.31
122.93
180.57
197.33
214.09
220.30
211.97
219.54
195.42
180.23
0.00
56.98
97.02
129.88
148.92
183.23
195.68
216.94
230.59
240.36
244.00

2-5
Chapter 2: Motherboard information
2.3.2 Solder side
10.24
0.00
92.38
111.88
129.88
147.88
167.38
237.57
165.18
165.18
33.10
244.00
244.00
0.00 6.43
163.91 209.63
45.99
6.43
57.07
121.00 118.09
163.91 229.95

IMBM-H61A
2-6
IMPORTANT: Unplug all power cables before installing the CPU.
CAUTION!
• Upon purchase of the motherboard, ensure that the PnP cap is on
the socket and the socket contacts are not bent. Contact your retailer
immediately if the PnP cap is missing, or if you see any damage to the
PnP cap/socket contacts/motherboard components. The manufacturer will
shoulder the cost of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. The manufacturer will
process Return Merchandise Authorization (RMA) requests only if the
motherboard comes with the cap on the LGA1155 socket.
• The product warranty does not cover damage to the socket contacts
resulting from incorrect CPU installation/removal, or misplacement/loss/
incorrect removal of the PnP cap.
2.4 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1155 socket designed for the
Intel®3rd/2nd Generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium®/ Celeron®
processors.
Right
IMBM-H61A

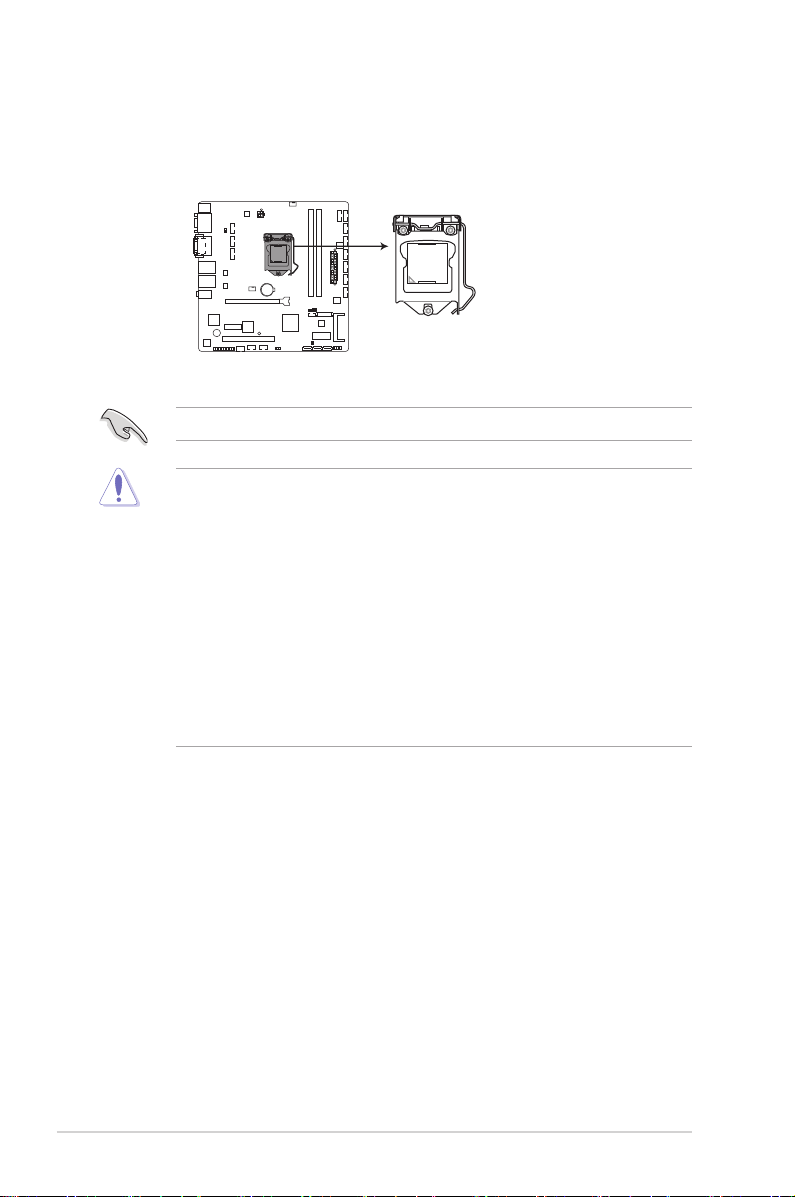

IMBM-H61A CPU socket LGA1155

2-7
Chapter 2: Motherboard information

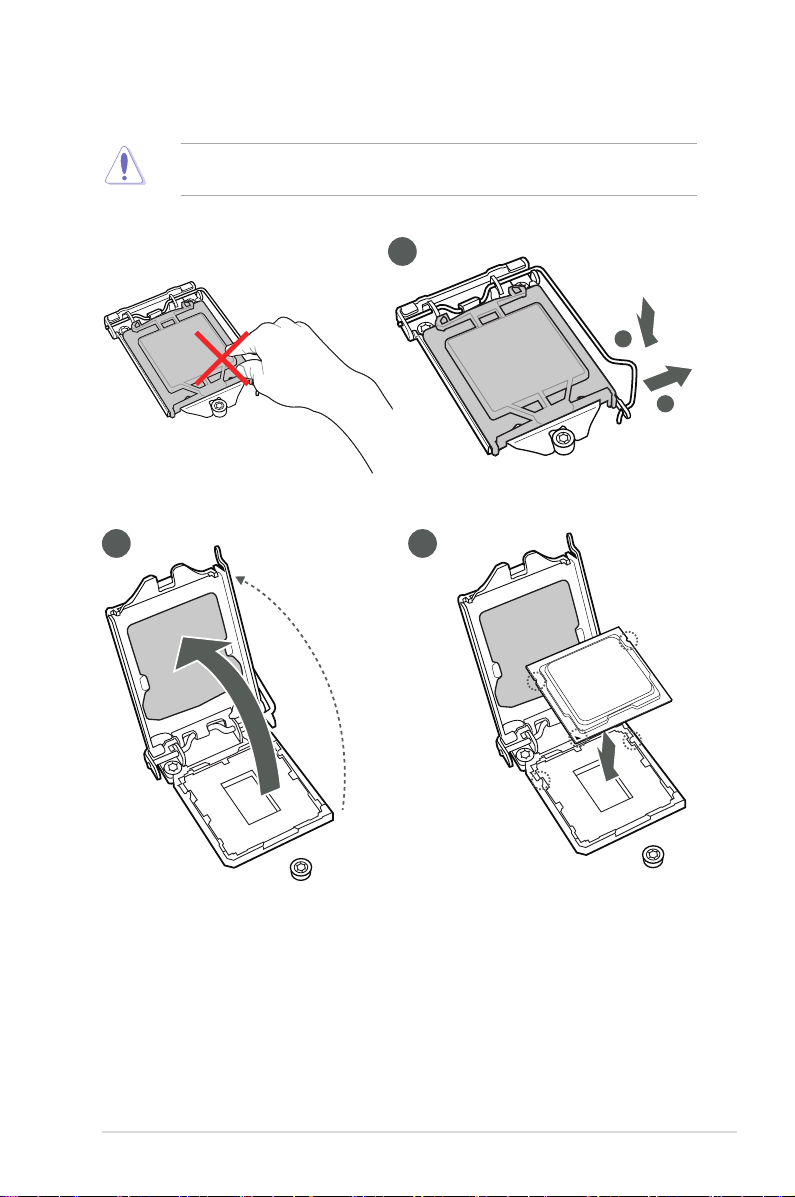

2.4.1 Installing the CPU
1
CAUTION! The LGA1156 CPU is incompatible with the LGA1155 socket. DO
NOT install a LGA1156 CPU on the LGA1155 socket.
A
B
2 3

IMBM-H61A
2-8
A
B
C
4
5

2-9
Chapter 2: Motherboard information
2.4.2 CPU heatsink and fan assembly installation
CAUTION! Apply the Thermal
Interface Material to the CPU
heatsink and CPU before you
install the heatsink and fan if
necessary.
To install the CPU heatsink and fan assembly
B
A
A
B
1
2
3 4

IMBM-H61A
2-10
A
B
B
A

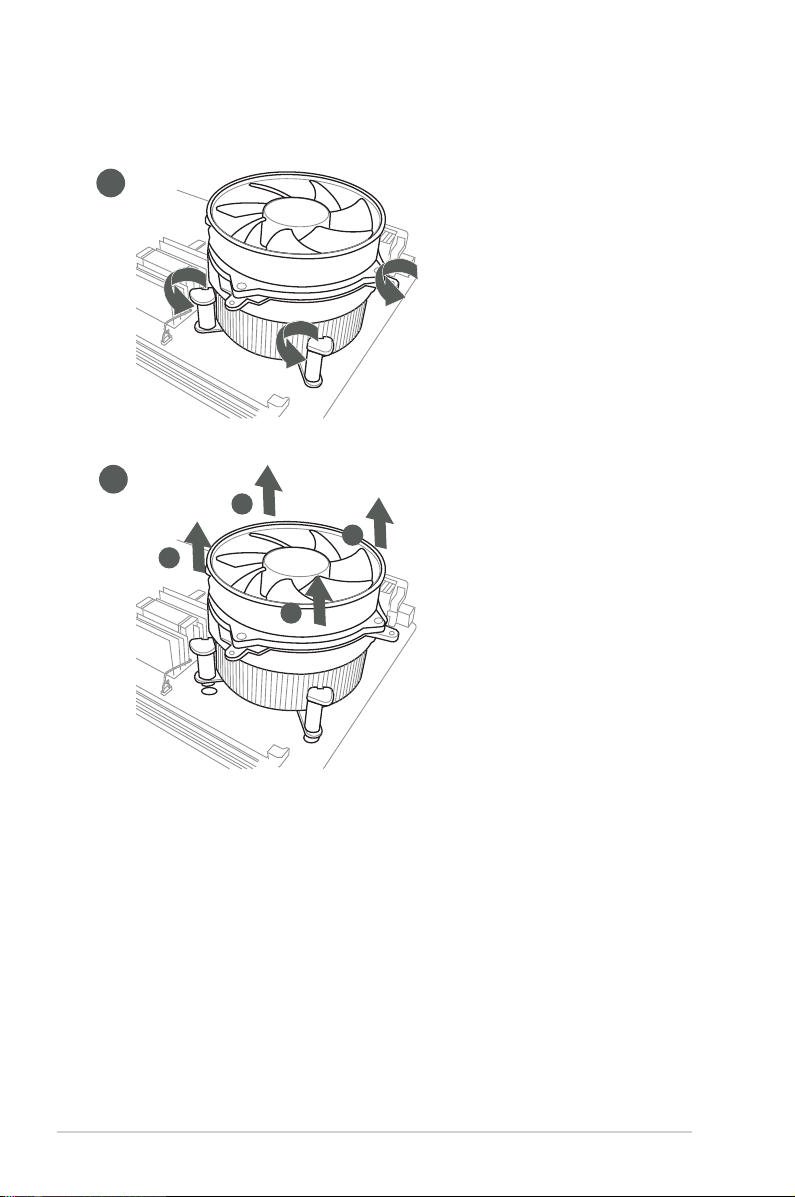

To uninstall the CPU heatsink and fan assembly
2
1

2-11
Chapter 2: Motherboard information
2.5 System memory

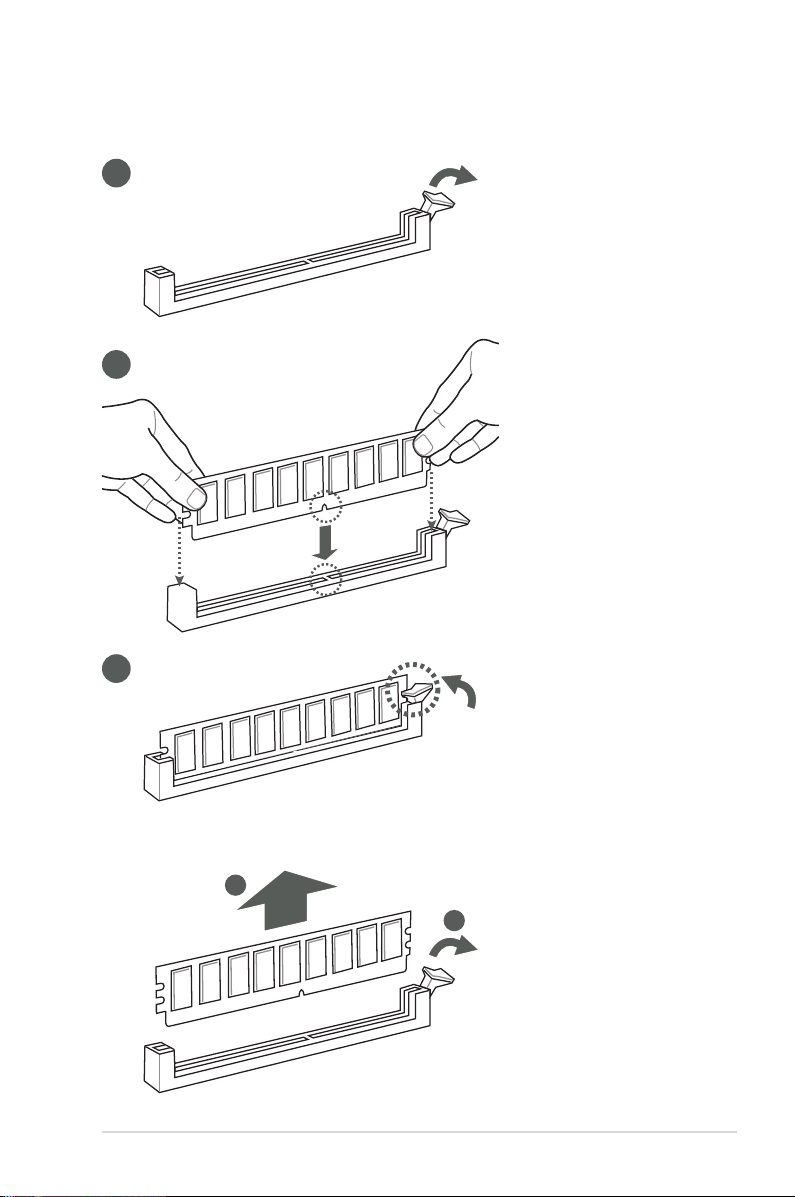

Installing a DIMM
To remove a DIMM
1
2
3
A
B

IMBM-H61A
2-12
2.6 Jumpers
1. Clear RTC RAM (CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in
CMOS. You can clear the CMOS memory of date, time, and system setup
parameters by erasing the CMOS RTC RAM data. The onboard button
cell battery powers the RAM data in CMOS, which include system setup
information such as system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on
pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup
to reenter data.
CAUTION! Except when clearing the RTC RAM, never remove the cap on
CLRTC jumper default position. Removing the cap will cause system boot
failure!
NOTES:
• If the steps above do not help, remove the onboard battery and move the
jumper again to clear the CMOS RTC RAM data. After clearing the CMOS,
reinstall the battery.
• You do not need to clear the RTC when the system hangs due to
overclocking. For system failure due to overclocking, use the CPU
Parameter Recall (C.P.R) feature. Shut down and reboot the system so the
BIOS can automatically reset parameter settings to default values.
IMBM-H61A

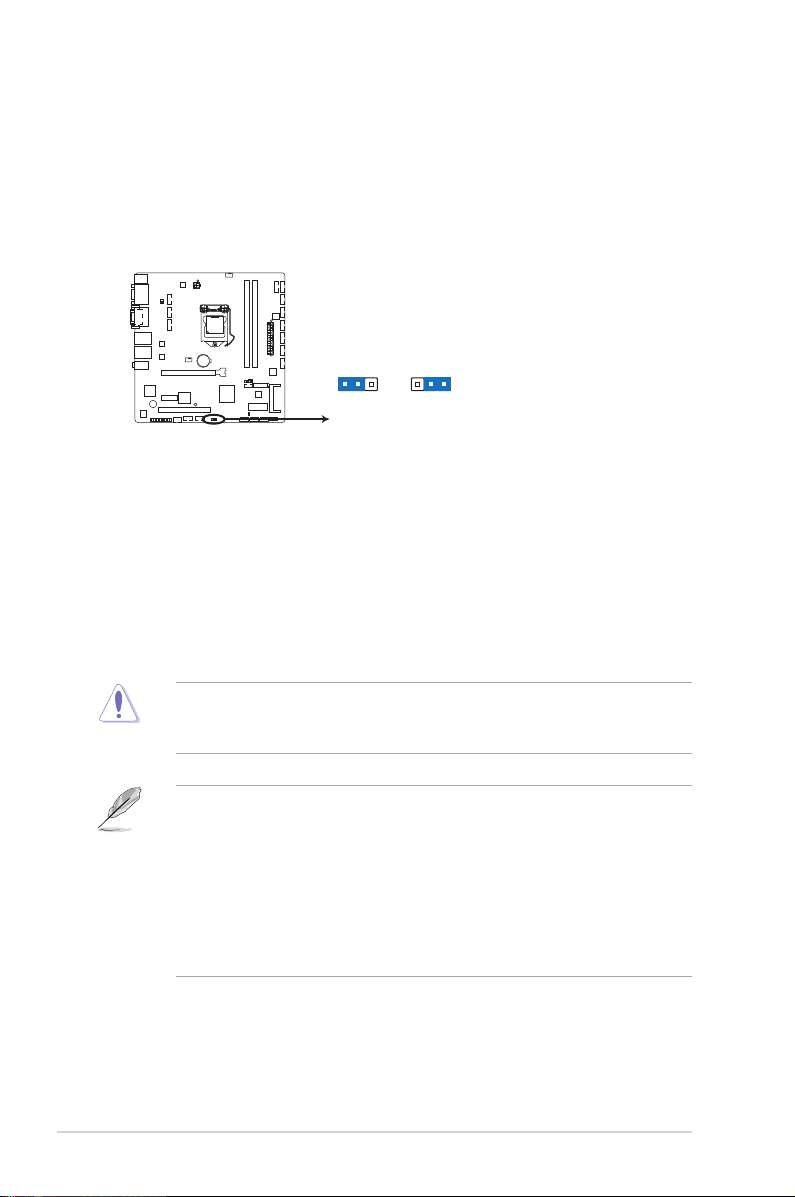

IMBM-H61A Clear RTC RAM
1 2 2 3
Protected
(Default)
Clear
CLRTC
