Aaeon PCM-8500 User manual

Compact Board PCM-8500
PCM-8500
Socket 478 based Pentium®4
/ Pentium® 4 Processor-M
/ Celeron®Processors
Compact Board
With LCD, Ethernet, USB &
PCMCIA / Mini PCI
PCM-8500 Rev. A Manual 4th Ed.
May. 2005

Compact Board PCM-8500
i
Copyright Notice
This document is copyrighted, 2004. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Compact Board PCM-8500
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 Intel®, Pentium® 4 /4 Processor-M and Celeron® are
trademarks of Intel® Corporation.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.

Compact Board PCM-8500
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 PCM-8500 Compact Board
• 1 Quick Installation Guide
• 1 CD-ROM for manual (in PDF format) and drivers
• 1 Jumper Cap
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Compact Board PCM-8500
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-4
1.3 Specifications............................................................1-5
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2

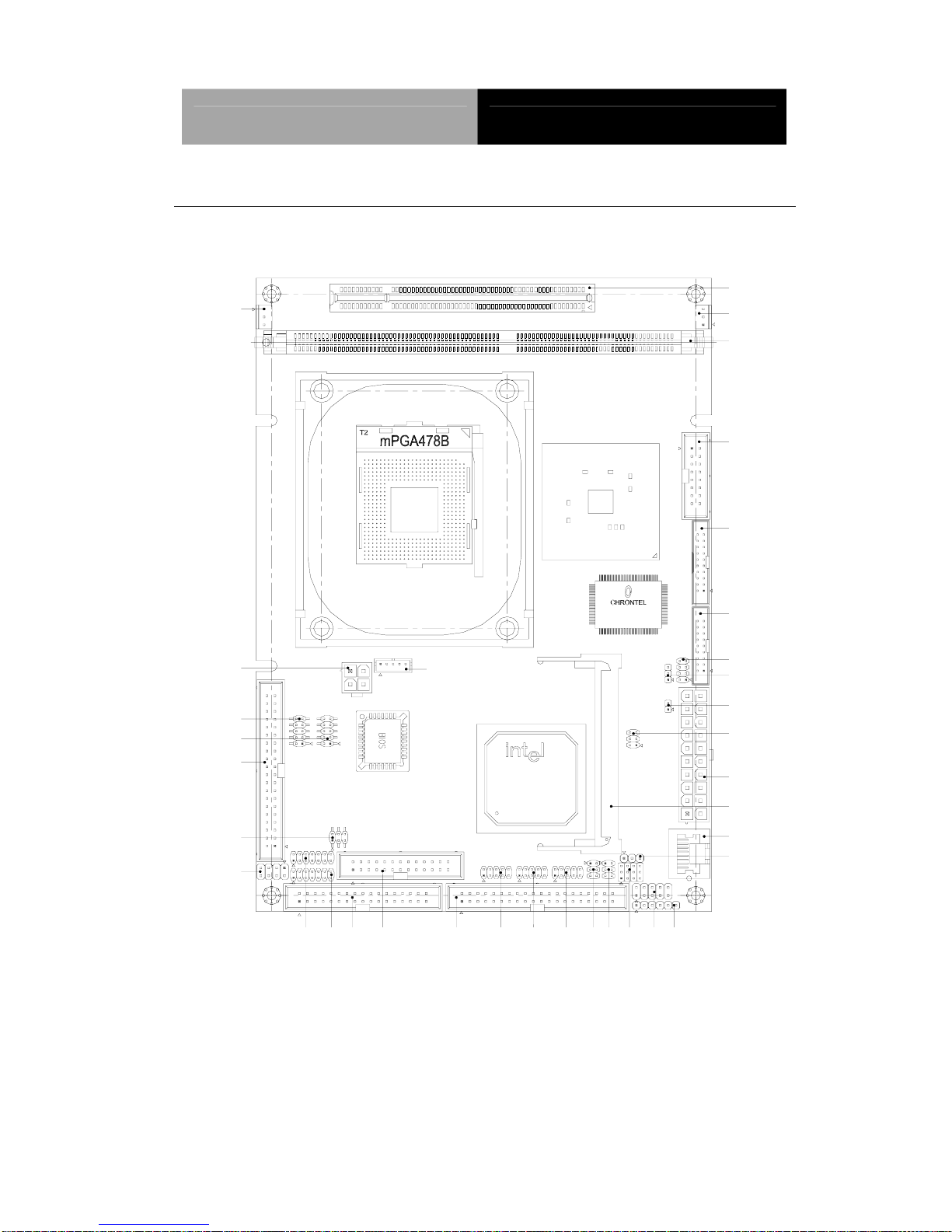

2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-5
2.4 List of Jumpers..........................................................2-8
2.5 List of Connectors .....................................................2-9
2.6 Setting Jumpers ........................................................2-11
2.7 Clear CMOS (JP1) ....................................................2-12
2.8 Audio Out Select (JP2)..............................................2-12
2.9 COM2 Ring/＋5V/＋12V Selection (JP3)..................2-12
2.10 COM2 RS-232/422/485 Select (JP4＆JP5)............2-13
2.11 ATX Power simulate AT Power (JP6).....................2-13
2.12 LCD Voltage Selection (JP7) ..................................2-13
2.13 IDE Connector (CN1)..............................................2-14
2.14 CompactFlash Connector (CN2).............................2-15
2.15 USB1 Connector (CN3)...........................................2-16
2.16 USB2 Connector (CN4)...........................................2-16
2.17 USB3 Connector (CN5)...........................................2-16

Compact Board PCM-8500
v
2.18 Audio 5.1 Channel/SPDIF Connector (CN6)...........2-17
2.19 Audio Connector (CN7)...........................................2-17
2.20 Fan Connector (CN8＆CN24).................................2-18
2.21 LAN LED Connector (CN10)...................................2-18
2.22 10/100Base-TX Ethernet Connector (CN10)..........2-18
2.23 Option PME Connector (CN12)...............................2-19
2.24 Floppy Connector (CN13) .......................................2-19
2.25 LPT Port Connector (CN14)....................................2-20
2.26 IrDA Connector (CN15)...........................................2-20
2.27 COM1~4 RS-232/422/485 Serial Port Connector (CN16)
.........................................................................................2-21
2.28 PS2 Keyboard/Mouse Connector (CN17)...............2-22
2.29 Digital I/O-1 Connector (CN18)...............................2-23
2.30 Digital I/O-2 Connector (CN26)...............................2-24
2.31 TV Out Connector (CN19).......................................2-25
2.32 Channel1 LVDS Connector (CN20)........................2-25
2.33 Channel2 LVDS Connector (CN21)........................2-26
2.34 VGA Display Connector (CN22)..............................2-26
2.35 Front Panel (CN25).................................................2-27
2.36 ATX Power Connector (CN27)................................2-27
2.37 ATX Power 12V Connector (CN28) ........................2-27
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
3.3 Standard CMOS Features.........................................3-6

Compact Board PCM-8500
vi
3.4 Advanced BIOS Features .........................................3-7
3.5 Advanced Chipset Features......................................3-8
3.6 Integrated Peripherals...............................................3-9
3.7 Power management Setup........................................3-10
3.8 PnP/PCI configuration...............................................3-11
3.9 PC Health Status.......................................................3-12
3.10 Frequency/Voltage control......................................3-13
3.11 Load Fail-Safe Defaults...........................................3-14
3.12 Load Optimized Defaults.........................................3-15
3.13 Set Supervisor/User Password...............................3-16
3.14 Save＆Exit Setup....................................................3-17
3.15 Exit without saving...................................................3-18
Chapter 4 Driver Installation
4.1 Installation 1..............................................................4-3
Appendix A I/O Information
A.1 I/O Address Map....................................................A-2
A.2 Memory Address Map............................................A-4
A.3 IRQ Mapping Chart................................................A-5
A.4 DMA Channel Assignments...................................A-5
Appendix B Programming the WatchDog Timer
B.1 Watchdog timer of PCM-8500 ...............................B-2
B.2 Configuring sequence description .........................B-2
B.3 ITE8712 Watchdog timer initial program ...............B-6

Compact Board PCM-8500
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Compact Board PCM-8500
Chapter 1 General Information 1- 2
1.1 Introduction
PCM-8500 is first Pentium® 4 industrial board in AAEON
Compact Board product line. It features a PGA478 socket
that can accommodate Pentium® 4 / Pentium® 4
Processors-M and Celeron® Processor, supporting FSB up
to 400/533MHz.
Best performance for multimedia solution
AAEON's PCM-8500 also supports DDR DRAM up to 1GB,
4X AGP, and 6 channels audio output. It can provide the
strong multimedia functions. Therefore PCM-8500 can be
broadly implemented in several markets, such as Point of
sale, point of information (Kiosk), and gaming markets.
Multi-Function Pentium4 Platform
If you are looking for powerful multi-media applications,
PCM-8500 is the one. PCM-8500 successfully integrates
VGA, Audio and Ethernet function into 5.75” size board;
meanwhile it also supports 6 USB2.0, mini PCI, and PCMCIA
(optional item) slots. PCM-8500 promises you the greatest
expansion possibilities with the most cost-effective
expansion standards, PCMCIA or Mini PCI. With numerous
off-the-shelf PCMCIA/Mini PCI modules, you get easy
access to solutions ranging from IEEE 1394, Modem,
Storage, Sound Card, SCSI card, Audio/Video capture card,

Compact Board PCM-8500
Chapter 1 General Information 1- 3
Wireless LAN module, to Bluetooth module. Especially for
customers whom application is various or changing,
PCM-8500 reserves more than enough flexibility for future
expansion.
More
PCM-8500 provides more CPU options for different
applications. You can choose Pentium® 4 processor up to
3.06G for high performance application or choose Pentium®
4 processor-M for thermal concerned operative environment.
Low-cost Socket 478 Celeron processors are also supported
by PCM-8500 for cost-intensive projects. Most of all
Pentium® 4 Level processors are suitable for PCM-8500.
Talking about the display signal transmission, PCM-8500
integrated 48-bit dual channel LVDS interface onboard,
which allows long distance display signal transmission.
Besides LCD supports, PCM-8500 also allows customer to
show same contents on CRT and LCD at same time. It meets
multi-display demand at most cost-efficient way.

Compact Board PCM-8500
Chapter 1 General Information 1- 4
1.2 Features
• Support Intel Socket 478 Pentium®4 / 4 Processor-M
/ Celeron Processors
• Support Intel Hyper-Threading Technology
• Support 266/333MHz DDR SDRAM
• High Speed AGP 4X for VGA display
• Support 48bit Dual Channel LVDS
• Support TV-Out Function
• Integrated AC-97 5.1 3D Audio
• One 10/100Base-T Fast Ethernet
• Support CompactFlash memory storage
• Six USB 2.0 Ports
• Digital I/O ( 8 in, 8 out as Default, up to 16 in or 16
out )

Compact Board PCM-8500
Chapter 1 General Information 1- 5
1.3 Specifications
System
 CPU Intel®Socket 478 Pentium®4 /
Processor-M / Celeron®
Processor, Hyper-Threading
Technology supported
(Standard Cooler Supported )
 Memory 184pin DIMM ×1, Support
DDR 266/333MHz up to 1GB
 Chipset Intel
®845GV / 82801DB (ICH4)
 I/O Chipset ITE IT8712F
 BIOS AWARD 512 KB FLASH ROM
 Audio ALC 650 CODEC 6 Channel,
AC97
 SSD One Type II CompactFlash Card
 Watchdog timer Generate a system reset
 DMA 7DMA channels (8237
equivalent)
 Interrupt 15 interrupt levels (8259
equivalent)
 Ethernet Intel 82562 10/100 PHY chip
 Expansion Interface PCI slot ×1, Mini PCI slot ×1,
PCMCIA Type II ×2. (Optional)

Compact Board PCM-8500
Chapter 1 General Information 1- 6
 H/W status monitoring
Power supply voltages and
temperatures monitoring
functions
 Battery Lithium battery for data retention
Display
 Memory size Share Memory, Dynamically
Adjusts by OS.
 Resolution Up to 1600 X 1200 for CRT
Up to 1280 X 1024 for TFT
 LCD Interface Up to 48-bit Dual Channel LVDS
TFT LCD (Chrontel 7017)
 TV Out Support NTSC/PAL standard
1024 ×768 ( Chrontel 7017 )
 Dual Display Simultaneous Scan: CRT+ LCD
I/O
 MIO 1 ×EIDE (Ultra DMA100),
1 ×FDD,
1 ×K/B,
1 ×Mouse,
1 ×RS-232/422/485,
3×RS-232,

Compact Board PCM-8500
Chapter 1 General Information 1- 7
1 ×LPT,
1 ×CRT
 Digital I/O port Support 8 in, 8 out as default, up
to 16 in or 16 out.
 IR interface Support one IrDA Tx/Rx header
 Ethernet 1 ×RJ45 Connector
 Audio Mic in, Line in, Line out / Speak
out, CD Audio in, with special
connector for 5.1 channel audio
 USB USB 2.0 ×3sets. Total 6 ports
 TV-Out Support S-terminal and RCA type

Compact Board PCM-8500
Chapter 2 Quick Installation Guide 2 - 1
Quick
Installation
Chapter
2
Notice:
The Quick Installation Guide is derive
from Chapter 2 of user manual. Fo
r
other chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with the
p
roduct.
Guide
Attention:
1. There are two different models of PCM-8500 for
supporting Desktop or Mobile type of Pentium®4
Processors, please make sure appropriated
processor is installed on PCM-8500 before you
turn on the power.
2. The setting of " Advanced Chipset Features \
Speed Step Mode (Pentium®4 Mobile) " in BIOS
should be disabled when desktop version
Pentium®4 or Celeron®are adopted, otherwise
the system cannot boot. Clear CMOS will be
required to rescue your PC from this situation.
For Mobile Pentium®4, this item can be disabled
or enabled to get the best performance or
maximum power saving of the processor.
Part No. 2007850013 Printed in Taiwan May. 2005

Compact Board PCM-8500
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Compact Board PCM-8500
Chapter 2 Quick Installation Guide 2 - 3
2.2 Location of Connectors and Jumpers
Component Side
CN24
CN28 CN12
CN18
CN26
CN1
JP2
CN17
CN7 CN6
CN13 CN14 CN16
CN3 CN4
CN5
JP5
JP3 JP4
CN25 CN15
JP1
CN11
CN27
CN10
JP6
JP7
CN19
CN21
CN20
CN23
CN22
DIMM
CN8
PCI1

Compact Board PCM-8500
Chapter 2 Quick Installation Guide 2 - 4

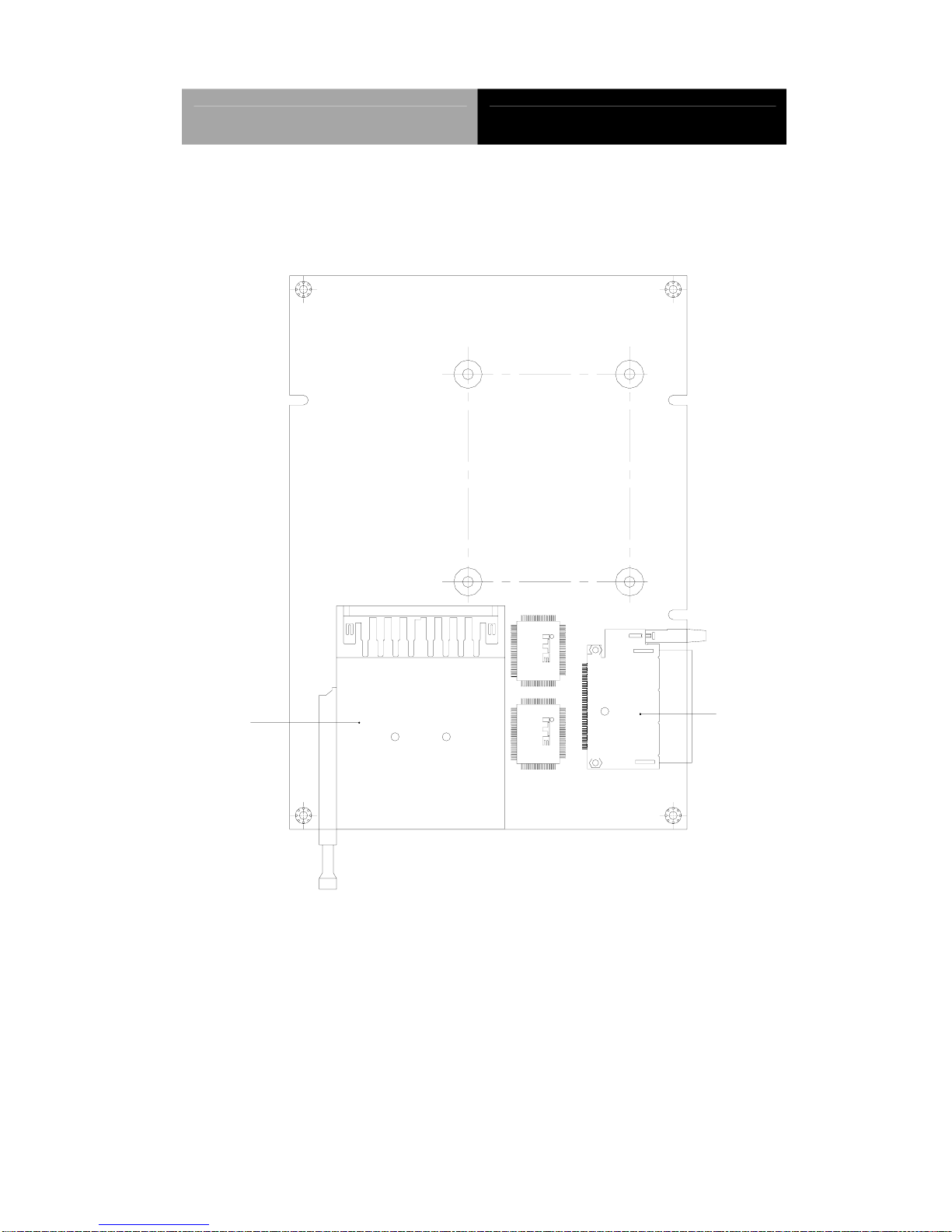

Solder Side
CN2
CN9

Compact Board PCM-8500
Chapter 2 Quick Installation Guide 2 - 5
2.3 Mechanical Drawing
Component Side
0.00
0.00
5.08
5.08 8.89
8.89
5.72
11.18
15.88
17.67
4.13 6.99
19.46 26.04 60.96
67.95
79.38
90.81
102.11
106.93
112.01
112.90 116.84
135.89
0.00
13.39
26.19
48.26
59.69
72.07
97.79
143.51
193.04
183.13
135.89
193.04
0.00
188.21
48.71
71.95
74.30
140.97
198.12
6.35 11.94
10.29
133.16
116.84127.00
127.00
69.22
132.72
9.89
18.7825.21
34.93
2.41
138.30

Compact Board PCM-8500
Chapter 2 Quick Installation Guide 2 - 6
Solder Side
0.00
0.00
193.04
0.00
135.89
193.04
0.00
135.89
