Chapter 1: General information
1.1 Package contents
Check your industrial motherboard package for the following items.
1 x Industrial Motherboard
1 x SATA 6.0Gb/s cable
1 x I/O Shield
1 x Support CD
If any of the above items is damaged or missing, contact your distributor or sales
representative immediately.
1.2 Features
• Intel®7th Generation 14nm KabyLake U FCBGA1356 processor
• 2 x SO-DIMMs, max. 32GB, DDR4 2133 MHz, non-ECC, un-buffered memory
• 2 x SATA 6.0 Gb/s, 4 x USB 3.0, 4 x USB 2.0
• Realtek®ALC887HighDenitionAudioCODEC
• 3 independent display: 1 x VGA, 1 x eDP, 1 x LVDS
• Dual Ethernet LAN: 1 x Intel®PCIe Gb LAN 219V (default) or 1 x Intel®PCIe Gb
LAN 219LM for vPro (i7-7600U/i5-7300U); 1 x Intel®PCIe Gb LAN 211AT
• 1 x PCIe [x1] slot
• 1 x M.2 M Key (default 22 x 80mm / 2240) for PCIe[x4] / SATA storage devices
1 x M.2 E Key (22 x 30mm) for PCIe
Chapter 1
Product overview

MIX-KLUW1
1-2
1.3 Specications
SYSTEM

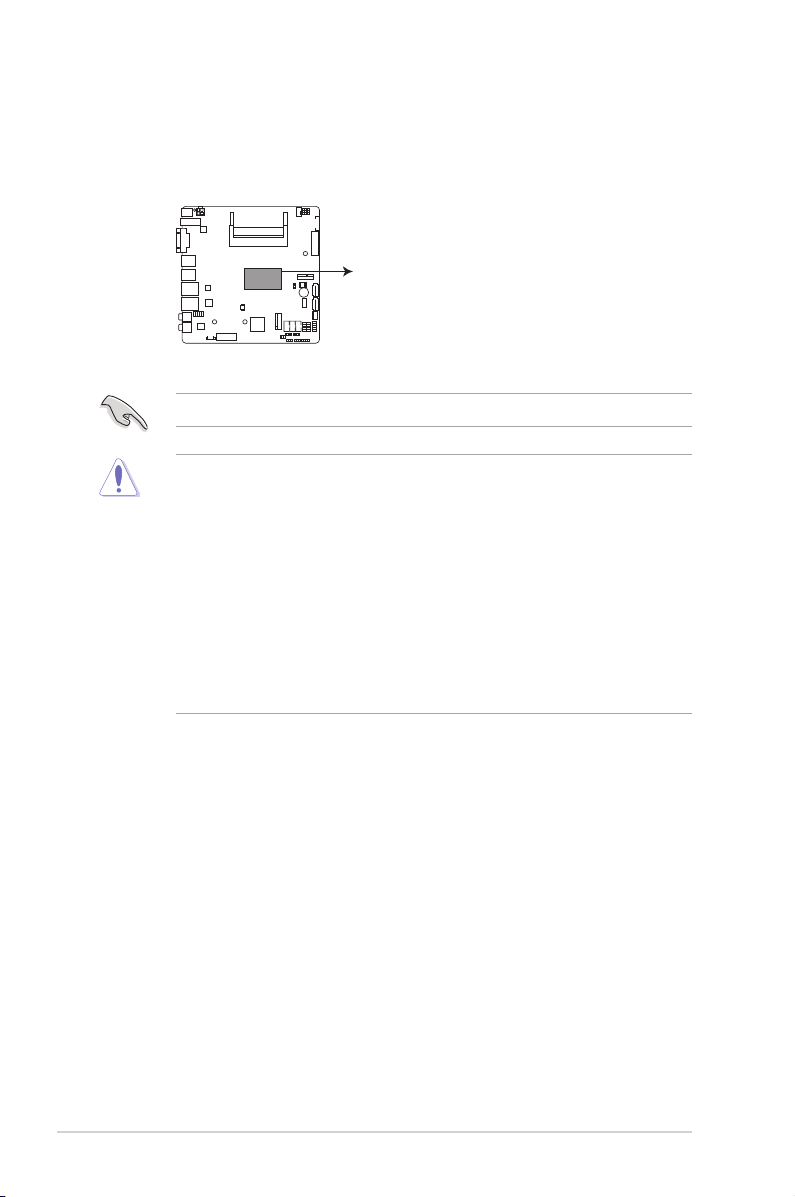

CPU Intel®7th Generation 14nm KabyLake U, FCBGA1356
Core™ i7-7600U, 2C/4C, 2.8/3.9(turbo)GHz, 4M, 300MHz/1.15GHz (Turbo)
GFX, ~15W TDP
Core™ i5-7300U, 2C/4C, 2.6/3.5(turbo)GHz, 3M, 300MHz/1.10GHz (Turbo)
GFX, ~15W TDP
Core™ i3-7100U, 2C/4C, 2.4GHz, 3M, 300MHz/1.00GHz (Turbo) GFX,
~15W TDP
Celeron®3965U, 2C, 2.2GHz, 2M, 300MHz/900MHz (Turbo) GFX, ~15W
TDP
Core™ i5-7200U, 2C/4C, 2.5/3.1(turbo)GHz, 3M, 300MHz/1.00GHz (Turbo)
GFX, ~15W TDP (no long term support)
Chipset Intergrated into SoC

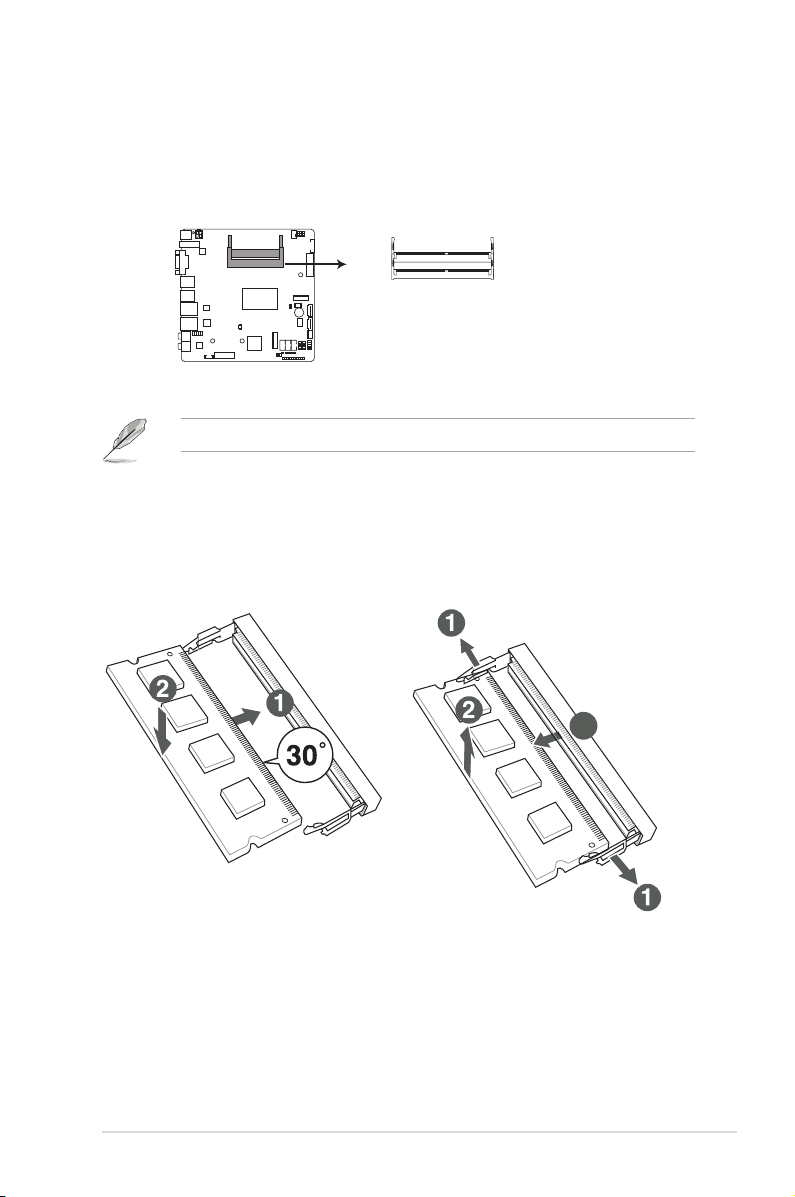

Memory 2 x SO-DIMMs, max. 32GB, DDR4 2133 MHz, non-ECC, un-buffered
memory
Dual channel memory architecture
Graphics Intel®HD Graphics 620
Intel®HD Graphics 610 for 3965U
I/O Chipset NCT6793D
Storage 2 x SATA 6.0Gb/s ports
Ethernet 1 x Intel®PCIe Gb LAN 219V default) or 1 x Intel®PCIe Gb LAN 219LM for
vPro (i7-7600U/i5-7300U)
1 x Intel®PCIe Gb LAN 211AT
Audio Realtek®ALC887
TPM Nuvoton NPCT650ABBYX TPM2.0 onboard (optional)
Expansion slots 1 x M.2 M Key (default 22 x 80mm / 22 x 42mm) for PCIe[x4] / SATA
storage devices
1 x M.2 E Key (22 x 30mm) for PCIe
1 x PCIe [x1] slot
BIOS 128Mbit Flash ROM, AMI BIOS
H/W Status Monitor Monitors CPU/ system temperature
Monitors Vcore/ 5V/ 12V voltages
Monitors CPU/ chassis fan speed
Watchdog Timer 1~255 steps by software program
Smart Fan Control CPU fan/ Chassis fan
Wake On LAN / PXE Yes ( WOL, PXE)
Power States S3, S4, S5
Graphics
Graphics Multi Display 3 independent display
VGA Up to 1920 x 1200 @60 Hz colay with HDMI (default: VGA)
HDMI HDMI 1.4 up to 4096 x 2340 @24Hz colay with VGA (default: VGA)
LVDS Up to 1920 x 1200 @60Hz, Daul Channel 18/24 bit (via CH7511B)
eDP Up to 4096 x 2304 @ 60Hz
Backlight Control Voltage / PWM
(continued on the next page)

1-3
Chapter 1: General information
Environment, Power, and ME
Battery Lithium battery
Power requirement 12~19V DC
Operating
temperature
32oF~131oF (0oC~55oC) @ 7100U/3965U with Heatsink
32oF~140oF (0oC~60oC) @ 7600U/7300U/7200U with Cooler
Operating humidity 0%~90% relative humidity, non-condensing
Certicate CE & FCC Class A
Form factor Mini ITX Form Factor: 6.7”x 6.7” (170mm x 170mm)
Weight 1.1 lb (0.5 Kg)
I/O
Storage 2 x SATA 6.0Gb/s ports
1 x 4-pin SATA power connector (5V, 12V @1A)
USB 4 x USB 3.0 ports (at the rear panel)
4 x USB 2.0 ports (at mid-board)
Display 1 x HDMI (default: No), 1 x LVDS, 1 x eDP, 1 x VGA
Serial port 1 x RS-232/422/485 COM port supports 5V/12V/RI (at mid-board)
1 x RS-232 (at mid-board)
LAN 2 x LAN (RJ-45) ports
Audio Mic-in, Line-out, AAFP, internal speaker
DIO 8-bit Digital I/O interface (4-in/ 4-out)
FAN 1 x 4-pin CPU fan connector
1 x 4-pin Chassis fan connector [Smart Fan(Q Fan)]
Placement

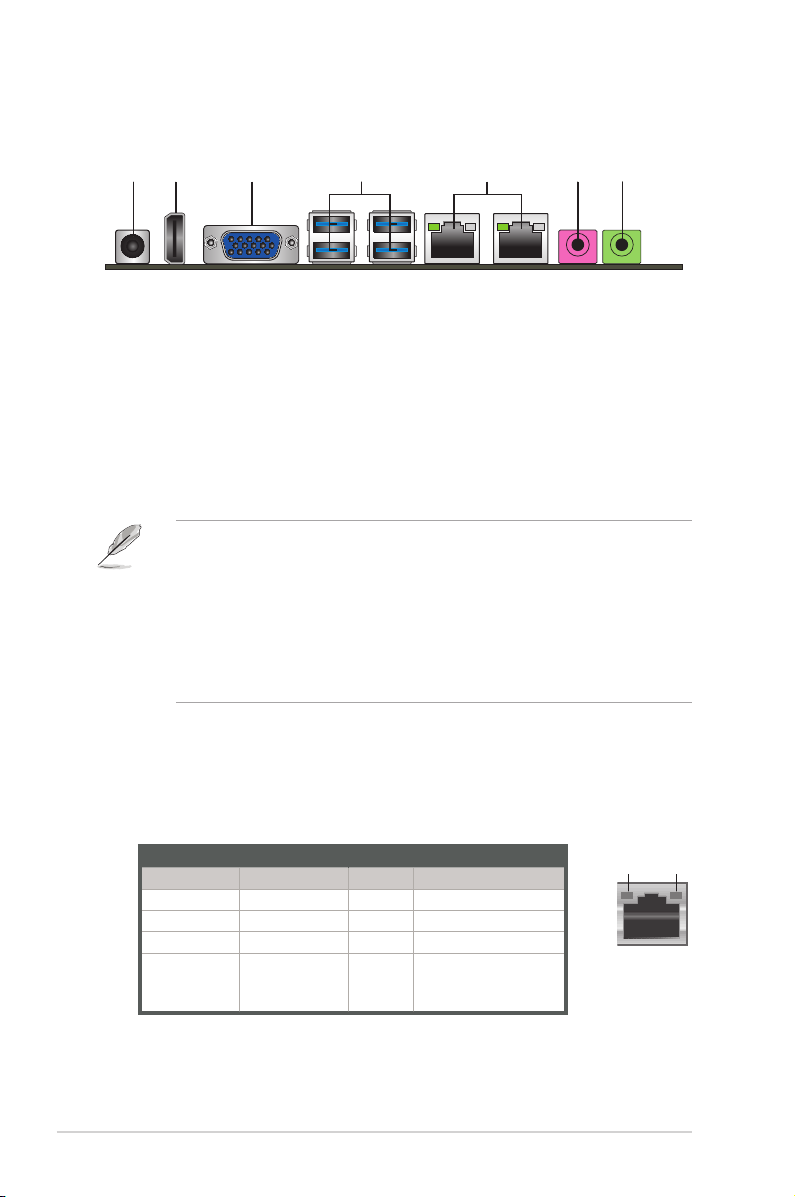

Back Panel I/O Ports 1 x DC Jack
1 x HDMI (vertical type) (default:No)
1 x VGA
4 x USB 3.0 ports
2 x LAN (RJ-45) ports
1 x Pink audio jack (Mic-In) connector
1 x Lime audio jack (Line-Out) connector
(continued on the next page)

MIX-KLUW1
1-4
Internal I/O
Connectors
1 x PCIe[x1] slot
1 x M.2 M-key (22 x 80mm)
1 x M.2 E-key (22 x 30mm)
2 x SATA 6.0Gb/s ports
1 x 4-pin SATA power connector
2 x USB 2.0 pin headers support additional 4 USB ports
1 x 4-pin CPU fan connector
1 x 4-pin Chassis fan connector [Smart Fan(Q Fan)]

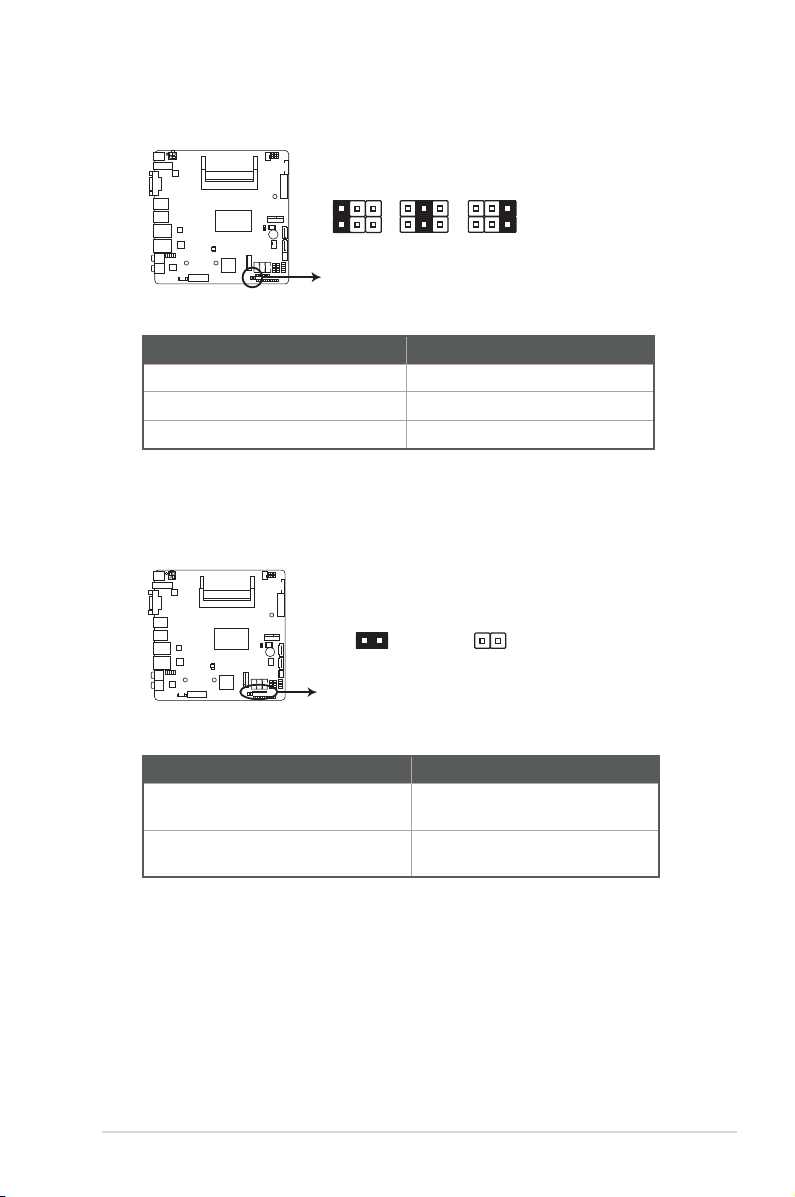

2 x Boxer headers for COM (COM1: RS-232/422/485 supports 5V/12V/RI)
1 x 40-pin LVDS connector
1 x 40-pin eDP connector

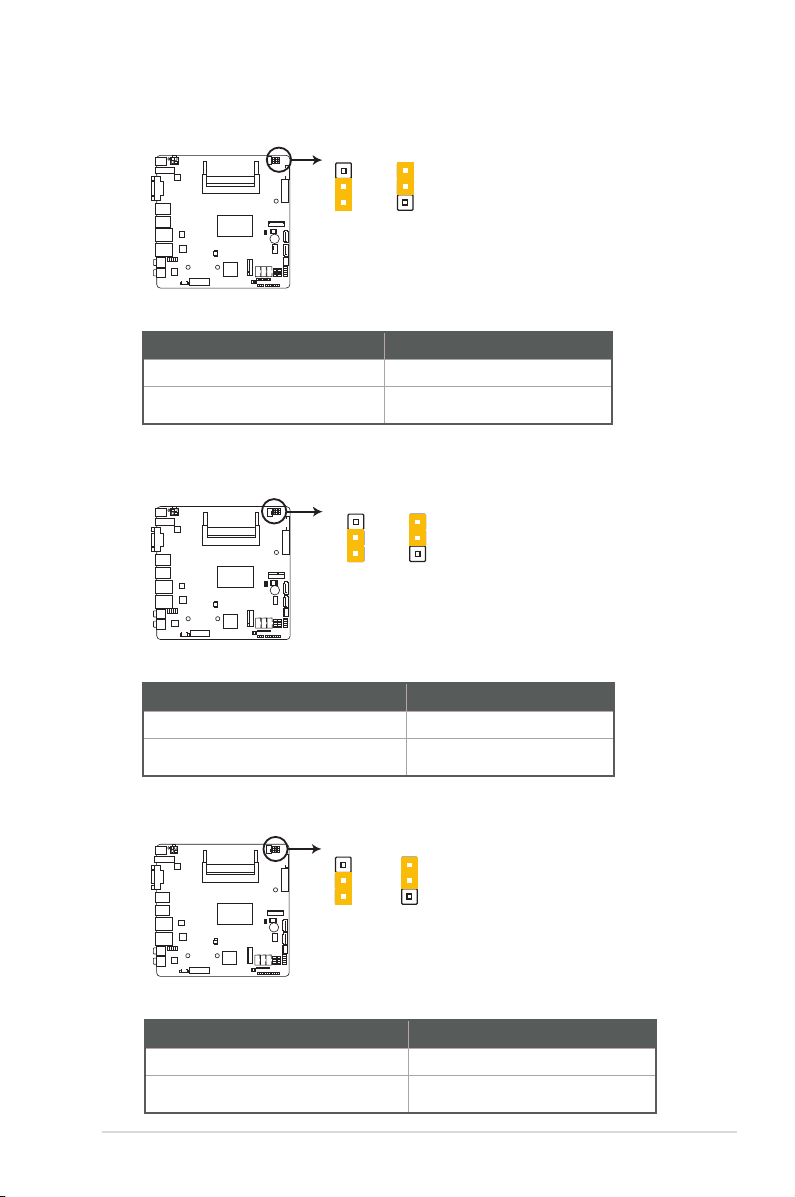

1 x LVDS 3.3V/5V jumper
1 x LCD DC/PWM mode jumper
1 x LCD backlight connector (inverter)
1 x LCD backlight 12V/5V jumper
1 x Digital I/O box header
1 x 4-pin (2x2) internal power connector
1 x 4-pin CPU fan connector
1 x 4-pin Chassis fan connector
1 x System panel connector
1 x AAFP following ASUS pin out
1xSpeakerfor2W@4Ω
1 x Chassis intrusion header
1xBuzzer(2400Hz@40Ω)

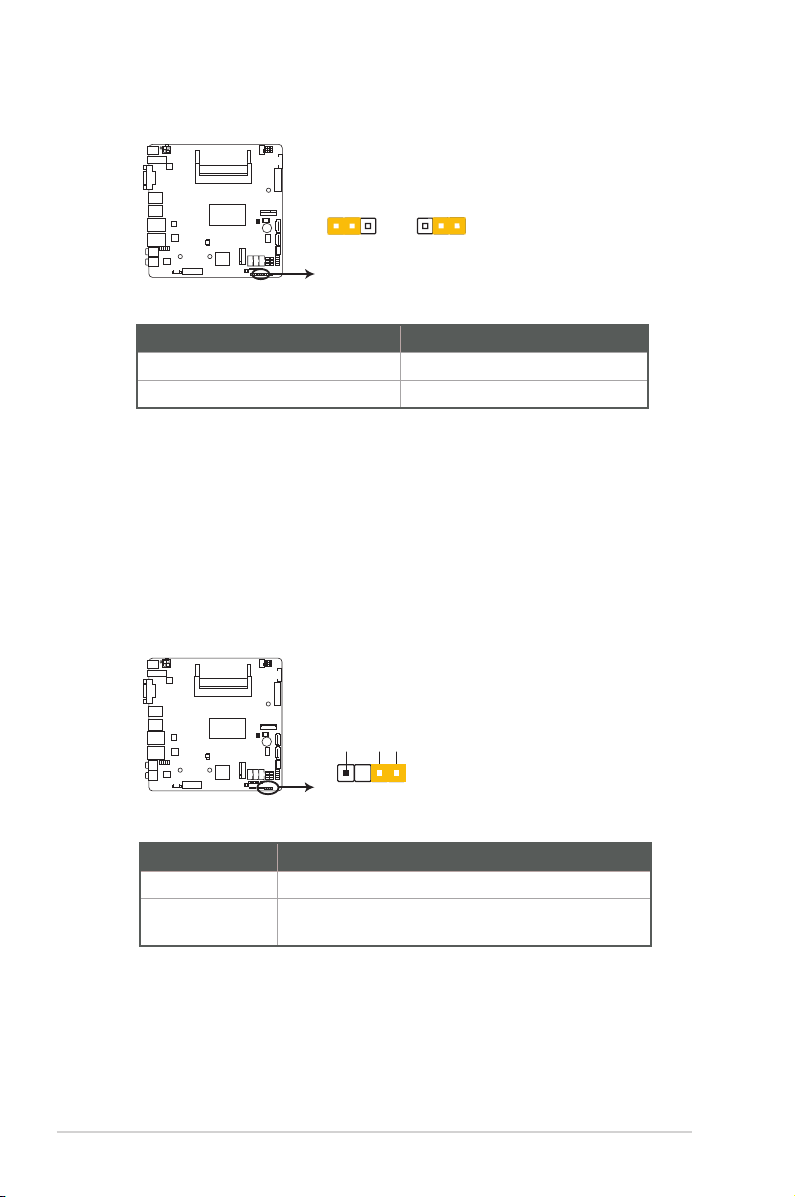

1 x AT/ATX mode select jumper
1 x Clear CMOS jumper
Others
OS support Windows®10 64-bit, Ubuntu 16.04.4 LTS
Accessories 1 x SATA cable
1 x SATA power cable
1 x I/O shield
1 x Support DVD
NOTE: Specicationsaresubjecttochangewithoutnotice.

2-1
Chapter 2: Motherboard information
Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplugthepowercordfromthewallsocketbeforetouchingany
component.
• Beforehandlingcomponents,useagroundedwriststraportouchasafely
groundedobjectorametalobject,suchasthepowersupplycase,toavoid
damaging them due to static electricity.
• HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
• Wheneveryouuninstallanycomponent,placeitonagroundedantistatic
pad or in the bag that came with the component.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpower
supply is switched off or the power cord is detached from the power
supply.Failuretodosomaycauseseveredamagetothemotherboard,
peripherals,orcomponents.

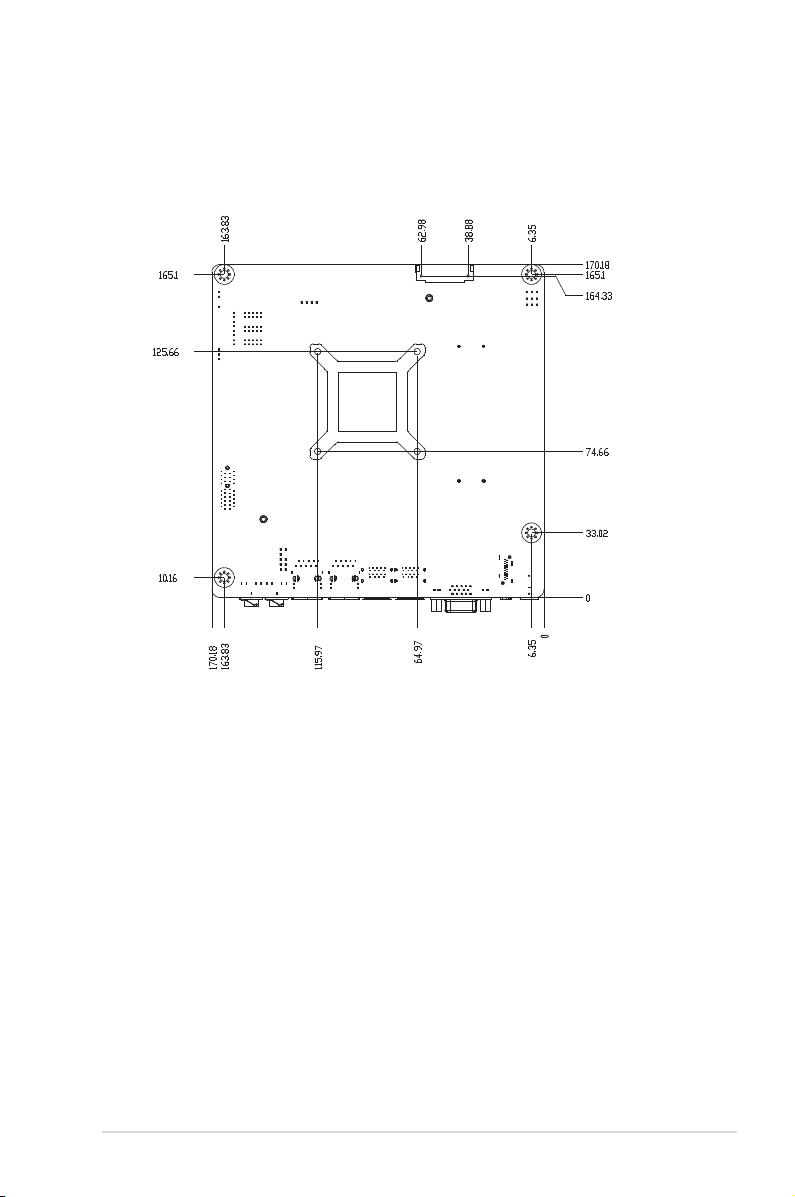

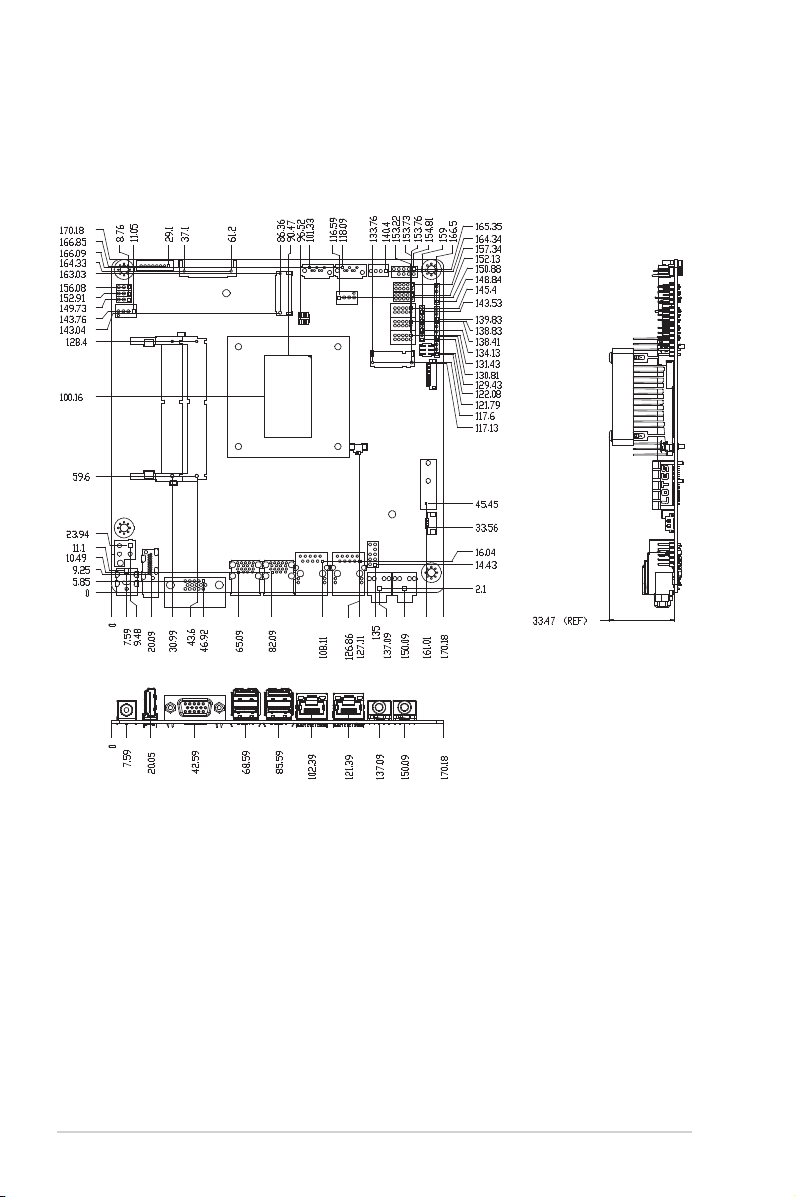

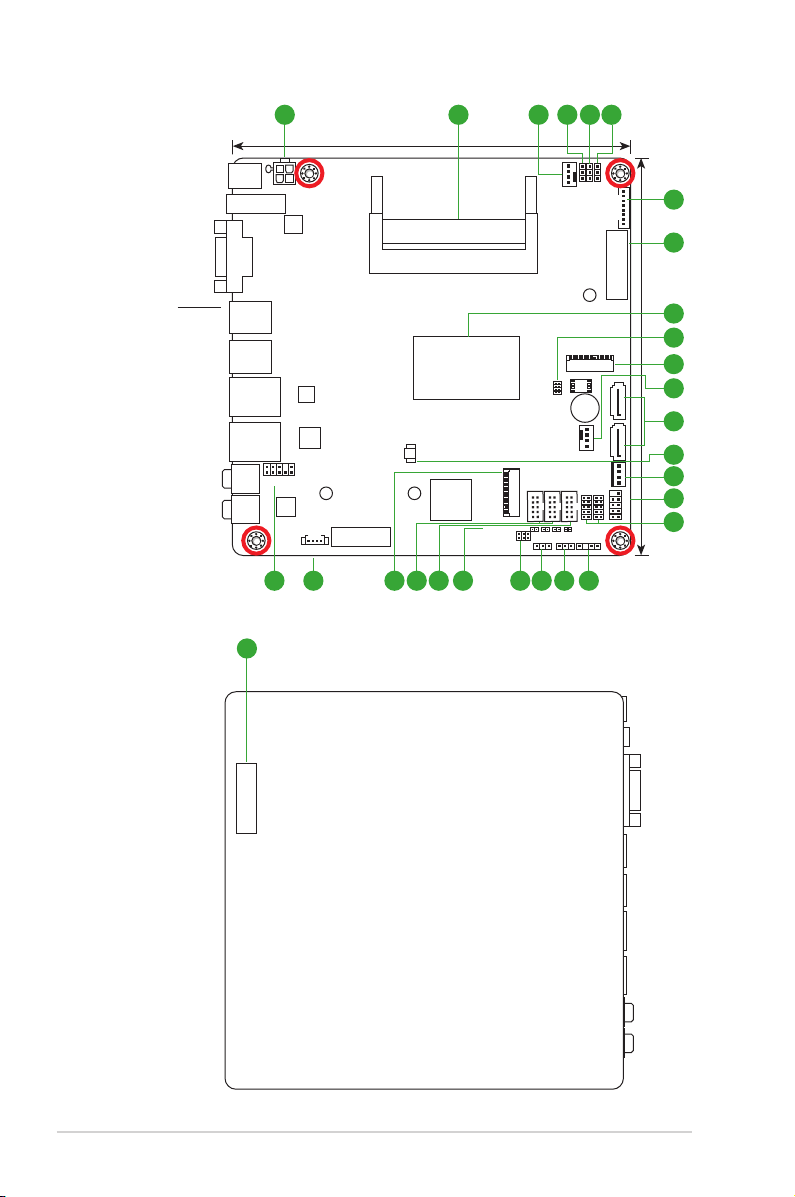

2.2 Motherboard layout
NOTE: Place four screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION!Donotovertightenthescrews!Doingsocandamagethe
motherboard.

MIX-KLUW1
2-2
Place this side
towards the rear
of the chassis
MIX-KLUW1
ASM
1442K
DC_PWR1
DC_PWR2
HDMI
VGA
USB3_34
USB3_12
LAN1
LAN2
LINE-OUT
MIC-IN
CLRTC CHASSIS
COM1_VSET
COM1_J4/J3/J2/J1
ATX_AT
17.0cm(6.7in)
17.0cm(6.7in)
F_PANEL
SATA6G_2 SATA6G_1
PCIEX1
CHA_FAN
CPU_FAN
COM1 COM2
AAFP
DDR4 SO-DIMM_B1 (64bit, 260-pin module)
DDR4 SO-DIMM_A1 (64bit, 260-pin module)
BKL_PWR
INV_CTL
LVDS_PWR
DIO
USB78
USB56
INV
LVDS
SATA_PWR
ALC
887
219LM
211AT
Intel®
SOC1356
Super
I/O
BZ1
128Mb
BIOS
M2_TYPE_E
M2_TYPE_M
22422280
2230
BATTERY
AMP_CON
SPI_1
54 62 31
14
13
15
16
8
7
9
11
10
24
25 18192022 212311 17
12
3
EMB-KLU1
EDP
26
