Aaeon XTX-U15B User manual

XTX CPU Module XTX-U15B
XTX-U15B
Onboard Intel®AtomTM Z530/Z510
Processor
With LCD, Ethernet, PCI, PCI-E,
SDIO, LPC, SMBus, I2C
Audio, SATA, SDVO
XTX-U15B Manual Rev. A 1st Ed.
December 2010

XTX CPU Module XTX-U15B
i
Copyright Notice
This document is copyrighted, 2010. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

XTX CPU Module XTX-U15B
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
zAward is a trademark of Award Software International, Inc.
zIntel®, and AtomTM are trademarks of Intel®Corporation.
zMicrosoft Windows®is a registered trademark of Microsoft Corp.
zITE is a trademark of Integrated Technology Express, Inc.
zIBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
Please be notified that all other products’ name or trademarks not be
mentioned above are properties of their respective owners.

XTX CPU Module XTX-U15B
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
•1 XTX-U15B CPU Module
•1 CD-ROM for manual (in PDF format) and drivers
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

XTX CPU Module XTX-U15B
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-4
2.4 List of Jumpers and Connectors ...............................2-5
2.5 AT Mode & Back Light Selection (JP1) ...................2-6
2.6 SDVO Expansion Slot (CN1) ....................................2-6
2.7 XTX Connector (X1A)................................................2-7
2.8 XTX Connector (X1B)................................................2-8
2.9 XTX Connector (X1C) ...............................................2-10
2.10 XTX Connector (X1D) .............................................2-12
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3

XTX CPU Module XTX-U15B
v
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1st MB Memory Address Map ................................B-3
B.3 IRQ Mapping Chart................................................B-4
B.4 DMA Channel Assignments...................................B-4
Appendix C Running The Path File
C.1 Running the Path File........................................... C-2

XTX CPU Module XTX-U15B
Chapter 1 General Information 1 - 1
General
Chapter
1
Information

XTX CPU Module XTX-U15B
Chapter 1 General Information 1 - 2
1.1 Introduction
XTX-U15B is able to equip with Intel®AtomTM Z530/Z510 processor
and has one 200-pin DDR2 400/533 SODIMM to support system
memory up to 2GB. XTX-U15B adopts Intel®System controller
Hub US15W chipset that implements serial technologies with high
performance. In addition, XTX-U15B accommodates user-friendly
expansion interfaces, ex: 8-bit SDIO, 1 PCI-Express[x1] (or optional
four PCI-Express[x1]), four 32-bit PCI, one LPC, and one SMBus
interface.
For the display specifications, XTX-U15B integrates Intel®System
Controller Hub US15W and shared system memory is up to 256MB.
The display of XTX-U15B supports up to 24-bit single channel
LVDS LCD. Moreover, one SDVO port can be used through the
SDVO connector to provide more flexibility for display function.
Compared to the ETX modules, the ISA bus has been replaced by
SATAand PCI-Express interfaces on XTX modules. If you are
looking for an economic, time-saving and high performance solution,
XTX-U15B definitely is your first choice.

XTX CPU Module XTX-U15B
Chapter 1 General Information 1 - 3
1.2 Features
zOnboard Intel®Atom™ Z530/Z510 Processor
zIntel®System Controller Hub US15W
zSODIMM DDR2 400/533 Memory, Max. 2GB
z10/100Base-TX Ethernet
zUp to 24-bit Single Channel LVDS LCD, SDVO Connector
zAC97 2.3 Codec 2CH Audio
zPATA SSD (Up to 4 GB) x 1, SATA I x 2 or PATA x 1
zUSB2.0 x 6, Micro SD Connector
zPCI-Express[x1] x 1 ( x 4 Optional)
z+5V Only Operation

XTX CPU Module XTX-U15B
Chapter 1 General Information 1 - 4
1.3 Specifications
System
zCPU Onboard Intel®Atom™ Z530/ Z510
Processor
Z530: 1.6 GHz, FSB 533 MHz
Z510: 1.1 GHz, FSB 400 MHz
zMemory 200-pin DDR2 SODIMM x 1, Max. 2 GB
(DDR2 400/533)
zChipset Intel®System Controller Hub US15W
zEthernet Realtek RTL 8139DL (default)/ Intel®
82551IT, 10/100Base-TX
zBIOS Award, PLCC type, 1MB ROM
zWatchdog Timer Generates a Time-out System Reset
zH/W Status Monitoring Supports Power Supply Voltages, Fan
Speed and Temperatures Monitoring
zExpansion Interface 8-bit SDIO
PCI-Express[x1] x 1 ( x 4 optional)
32-bit PCI x 4
LPC interface x 1
SMBus x 1
zBattery Lithium battery
zPower Supply Voltage +5V DC
zPower Consumption Intel®Atom™ Z530 1.6GHz, DDR2 667
2GB

XTX CPU Module XTX-U15B
Chapter 1 General Information 1 - 5
0.26A @ +12V, 2.9A @ +5V
w/ TF-ECB-910M-A10-01
zBoard Size 4.5”(L) x 3.74”(W) (114mm x 95mm)
zGross Weight 0.66lb (0.3kg)
zOperating Temperature 32°F~140°F (0°C~60°C)
zStorage Temperature -40°F~176°F (-40°C~80°C)
zMTBF (Hours) 113,000
Display: Supports LCD/DVI or LCD/LCD (vis SDVO)
simultaneous/ dual view displays
zChipset Intel®System Controller Hub US15W
integrated
zMemory Shared system memory up to 256 MB
zResolution Up to 1336x768 @ 85 Hz (Max. pixel
clock of 112 MHz) for LVDS
Up to 1280x1024 @ 85 Hz (Max. pixel
clock of 160 MHz) for SDVO
zLCD Interface Up to 24-bit single channel LVDS
zSDVO Port SDVO port x 1
I/O
zStorage PATA SSD onboard (Master device),
Max. 4 GB (For TF-XTX-U15-A10-02)
PATA x 1 (one device), SATAI x 1
zSerial Port 2

XTX CPU Module XTX-U15B
Chapter 1 General Information 1 - 6
zParallel Port 1
zUSB USB2.0 x 6
zPS/2 Port Keyboard x 1, Mouse x 1

XTX CPU Module XTX-U15B
Chapter2QuickInstallationGuide 2-1
Quick
Installation
Chapter
2
Guide

XTX CPU Module XTX-U15B
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

XTX CPU Module XTX-U15B
Chapter2QuickInstallationGuide 2-3
2.2 Location of Connectors and Jumpers
Component Side
CN3
JP1
CN2
Solder Side
X1D
X1C
X1B
X1A
CN1

XTX CPU Module XTX-U15B
Chapter 2 Quick Installation Guide 2-4

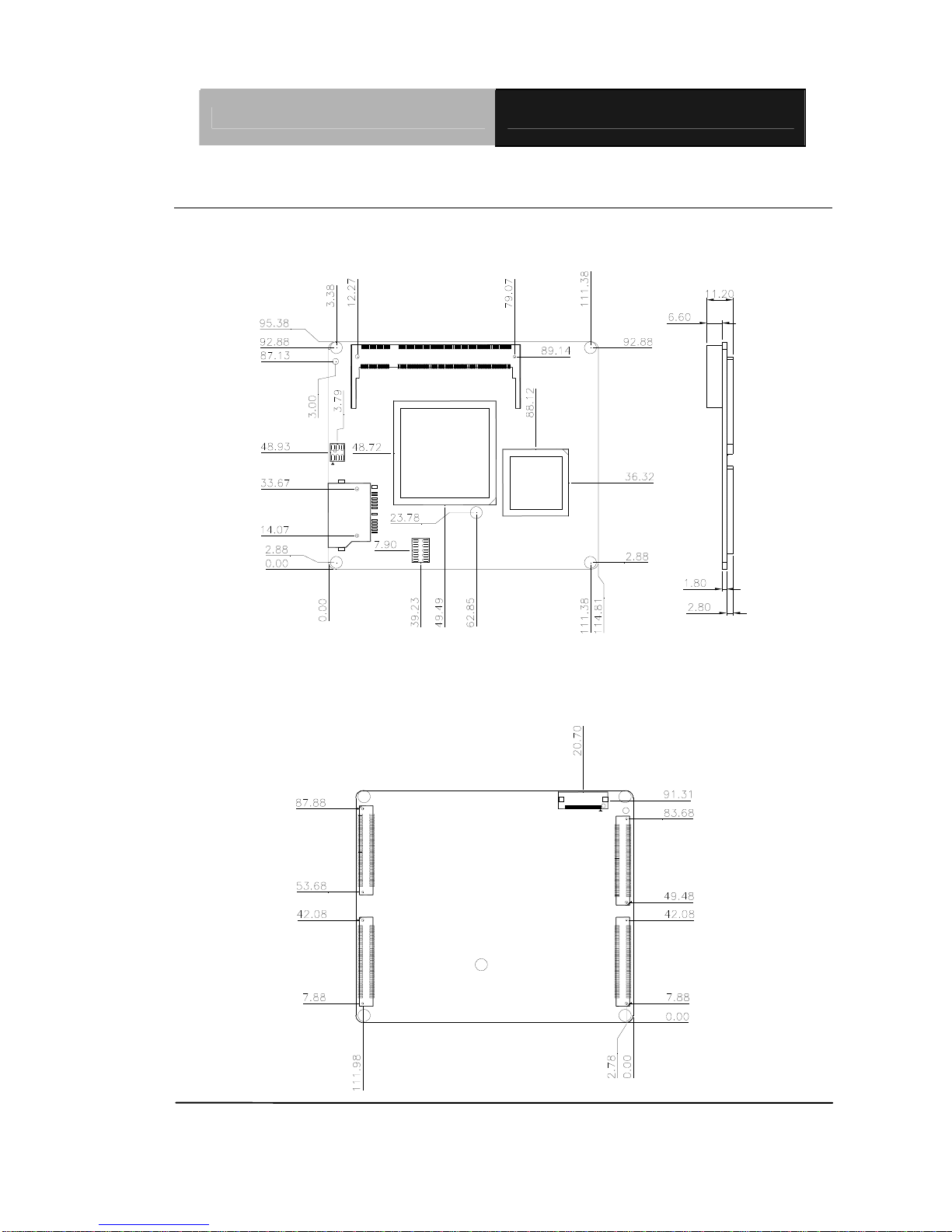

2.3 Mechanical Drawing
Component Side
Solder Side

XTX CPU Module XTX-U15B
Chapter2QuickInstallationGuide 2-5
2.4 List of Jumpers and Connectors
The board has a number of jumpers/Connectors that allow you to
configure your system to suit your application.
The table below shows the function of each of the board's
jumpers/Connectors:
Label Function
JP1 AT Mode & Back Light Selection
CN1 SDVO Extension Slot
CN2 DDR2 SODIMM Slot
X1A PCI / USB / Audio
X1B PCI-Express[x1]/ FAN/ LPC/ SATA/ Power
Management Signals/ AC97 CODEC Signals
X1C VGA/ LCD/ Video Out/ COMs/ LPT/ FDD/ IrDA/
Mouse/ Keyboard
X1D IDE 1/ IDE 2/ Miscellaneous

XTX CPU Module XTX-U15B
Chapter 2 Quick Installation Guide 2-6
2.5 AT Mode & Back Light Selection (JP1)
Auto Power Bottom Selection
JP1 Function
1-3 Auto Mode
3-5 Non Support-(Default)
Back Light Selection
JP1 Function
2-4 High Enable
4-6 Low Enable (Default)
2.6 SDVO Expansion Slot (CN1)
Pin Signal Pin Signal
1 GND 2 SDVO_BCLKN
3 SDVO_BCLKP 4 GND
5 SDVO_GREEN# 6 SDVO_GREEN
7 GND 8 SDVO_INT#
9 SDVO_INT 10 GND
11 SDVO_BLUE# 12 SDVO_BLUE
13 GND 14 SDVO_RED#
15 SDVO_RED 16 GND
17 SDVO_FLDSTALL# 18 SDVO_FLDSTALL
19 GND 20 SDVOCTRL_CLK
21 SDVOCTRL_DATA 22 RESET#
23 +3.3V 24 +2.5V
25 +5V 26 GND
27 NC 28 NC
29 NC 30 NC

XTX CPU Module XTX-U15B
Chapter2QuickInstallationGuide 2-7
2.7 XTX Connector (X1A)
Pin Signal Pin Signal
1 GND 2 GND
3 PCICLK3 4 PCICLK4
5 GND 6 GND
7 PCICLK1 8 PCICLK2
9 REQ#3 10 GNT#3
11 GNT#2 12 VCC3
13 REQ#2 14 GNT#1
15 REQ#1 16 VCC3
17 GNT#0 18 NC
19 VCC 20 VCC
21 SERIRQ 22 REQ#0
23 AD0 24 VCC3
25 AD1 26 AD2
27 AD4 28 AD3
29 AD6 30 AD5
31 CBE#0 32 AD7
33 AD8 34 AD9
35 GND 36 GND
37 AD10 38 AUXAL
39 AD11 40 MIC
41 AD12 42 AUXAR
43 AD13 44 ASVCC
45 AD14 46 SNDL
47 AD15 48 ASGND
49 CBE#1 50 SNDR
51 VCC 52 VCC

XTX CPU Module XTX-U15B
Chapter 2 Quick Installation Guide 2-8
53 PAR 54 SERR#
55 PERR# 56 NC
57 PME# 58 USB2-
59 LOCK# 60 DEVSEL#
61 TRDY# 62 USB3-
63 IRDY# 64 STOP#
65 FRAME# 66 USB2+
67 GND 68 GND
69 AD16 70 CBE#2
71 AD17 72 USB3+
73 AD19 74 AD18
75 AD20 76 USB0-
77 AD22 78 AD21
79 AD23 80 USB1-
81 AD24 82 CBE#3
83 VCC 84 VCC
85 AD25 86 AD26
87 AD28 88 USB0+
89 AD27 90 AD29
91 AD30 92 USB1+
93 PCIRST# 94 AD31
95 INTC# 96 INTD#
97 INTA# 98 INTB#
99 GND 100 GND
2.8 XTX Connector (X1B)
Pin Signal Pin Signal
1 GND 2 GND
