Aaeon IMBM-B75A User manual

Industrial Motherboard IMBM-B75A
IMBM-B75A
Intel® 3rd Generation Core™ i7/i5/i3
Processor
DDR3 1333/1066
2 10/100/1000Base-T Ethernet
1 PCI-E[x16],1 PCI-E[x4], 2 PCI Slots
6 USB2.0, 4 USB3.0, 5 COM
IMBM-B75A Manual Rev.A 1st Ed.
April 2012

Industrial Motherboard IMBM-B75A
i
Copyright Notice
This document is copyrighted, 2012. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Industrial Motherboard IMBM-B75A
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
AMI is a trademark of American Megatrends Inc.
Intel®, Core™ are trademarks of Intel®Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

Industrial Motherboard IMBM-B75A
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
1 Serial Port Cable with one DB-9 connector
2 SATA Cables
1 IMBM-B75A Industrial Motherboard
1 I/O Shield
1 DVD-ROM for manual (in PDF format) and
drivers
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Industrial Motherboard IMBM-B75A
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-4
2.4 List of Jumpers..........................................................2-5
2.5 List of Connectors .....................................................2-5
2.6 Setting Jumpers ........................................................2-8
2.7 Clear CMOS (CLRTC)...............................................2-9
2.8 COM1 Ring/+5V/+12V Selection (COM1_VSET1)...2-9
2.9 Management Engine Update Function Selection (DIS_ME)
.........................................................................................2-9
2.10 Buzzer function Selection (F_PANEL2)..................2-9
2.11 Internal COM Serial Port Connector (COM1 ~ COM5)
.........................................................................................2-9
2.12 FAN Connector (CPU_FAN/CHA_FAN) .................2-10
2.13 Digital I/O Connector (DIO1)...................................2-10
2.14 Front Panel Connector (F_PANEL).........................2-10
2.15 Front Panel Connector (F_PANEL2).......................2-11

Industrial Motherboard IMBM-B75A
v
2.16 BIOS Programmable Connector (F1U2/F2U2).......2-11
2.17 IrDA Connector (IRDA) ...........................................2-11
2.18 PS/2 Keyboard/Mouse Connector (KBMS).............2-12
2.19 1000Base-T Ethernet Connector with Dock USB 3.0
Connector (LAN1_USB3_12)..........................................2-12
2.20 1000Base-T Ethernet Connector with Dock USB 2.0
Connector (LAN2_USB2_12)..........................................2-13
2.21 Internal Parallel Port Connector (LPT)....................2-14
2.22 Internal USB 3.0 Connector (USB3_34) .................2-14
2.23 Internal USB 2.0 Connector (USB34/USB56).........2-15
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 AMI BIOS Setup........................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 ITE8783 Watchdog Timer Initial Program..............A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1st MB Memory Address Map ................................B-5
B.3 IRQ Mapping Chart................................................B-6
B.4 DMA Channel Assignments...................................B-8

Industrial Motherboard IMBM-B75A
vi
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2
Appendix D AHCI Setting
D.1 Setting AHCI......................................................... D-2

Industrial Motherboard IMBM-B75A
Chapter 1 General Information 1-1
General
Chapter
1
Information

Industrial Motherboard IMBM-B75A
Chapter 1 General Information 1-2
1.1 Introduction
The IMBM-B75A AAEON’s Industrial Motherboard which adopts
Intel® 3rd Generation Core™ i7/i5/i3 Processor, and supports
DDR3 1066/1333/1600MHz (1600 for 3rd generation Core™ i
processor). The high-speed system chipset is Intel®B75. The
IMBM-B75A is designed for Industrial Motherboard with μATX
form factor. In addition, the Intel®Turbo Boost Technology 2.0
function will be equipped based on the CPU types.
IMBM-B75A supports three independent display with one VGA
and three HDMI that makes the IMBM-B75A with a great
performance on VGA and HDMI display. Intel integrated Graphics
Engine equipped high graphic performance and is perfect for
gaming industry.
IMBM-B75A promises you off-the-shelf expansion possibilities
with versatile expansion interfaces: PCI and PCI-Express
connectors to extend your onboard features.
The IMBM-B75A is designed to focus on the Industrial Motherboard
market with long-term support services. The IMBM-B75A no doubt
is your best choice.

Industrial Motherboard IMBM-B75A
Chapter 1 General Information 1-3
1.2 Features
Intel®Socket 1155 For 3rd Generation Core™ i7/Core™
i5/Core™ i3 Processors Up To 95W
Four 240-pin Dual Channel DDR3 1066/1333/1600 MHz
(1600 MHz for 3rd Generation Core™ Processors) DIMM Up
To 32GB
Three Independent Display (with 3rd Generation Core
Processor): VGA x 1 , HDMI x 3
10/100/1000Base-T x 2
SATA 6.0 Gb/s x 1, SATA 3.0 Gb/s x 4, USB3.0 x 4, USB2.0 x
6, COM x 5
PCI-Express[x16] x 1, PCI-Express[x4] x 1, PCI x 2
CompactFlashx 1 For CF (IDE) and SATA(CF-SATA)
Support , Onboad TPM Function
EuP/ErP Compliance

Industrial Motherboard IMBM-B75A
Chapter 1 General Information 1-4
1.3 Specifications
System
Form Factor Micro ATX
CPU Intel® Socket 1155 for 3rd generation
Corei7/i5/i3 Processors; Intel® 22nm
CPU up to 95W; Supports Intel® Turbo
Boost Technology 2.0
Note: Intel® Turbo Boost Technology 2.0 function will depend on the CPU
types
System Memory 4 x 240-pin DIMM up to 32GB, DDR3
1066/1333/1600 MHz memory
(1600MHz for 3rd generation processor);
Supports Dual Channel memory
Chipset Intel® B75
Ethernet Realtek RTL8111F-VB-CG,
10/100/1000Base-T x 2
BIOS AMI Plug & Play SPI BIOS – 2 x 64Mb
ROM
TPM Onboard Infineon SLB9635 TT 1.2
Storage SATA 6.0Gb/s x 1, SATA 3.0 Gb/s x 4,
CompactFlash™ x 1 to support
CF-SATA card and CF card
Watchdog Timer 1~255 steps by software program
H/W Status Monitor Supports CPU/System temperature and
overheat alarm, Voltage and Failure

Industrial Motherboard IMBM-B75A
Chapter 1 General Information 1-5
alarm, CPU/System Fan Speed
Monitoring
Expansion Interface PCI-Express[x16] x 1, PCI-Express[x4]
x 1, PCI x 2
RTC Internal RTC
Power Requirement 24-pin ATX connector x 1, 8-pin ATX
12V connector x 1, CPU fan x 1, System
fan x 1 with 4-pin wafer for Smart FAN
support
Operating Temp. 32oF~140oF (0oC~60oC)
Storage Temp. -4oF~158oF (-20oC~70oC)
Board Size 9.6”(L) x9.6” (W) (244mm x 244mm)
Power Compliance Compliant with Eup/ErP
EMI CE/FCC Class A
Display

Chipset Intel 3rd Generation Core i series + B75
Memory Shared system memory up to 1748MB
Resolutions Up to 1920x1200 @ 75Hz for VGA;
1080 @ 60Hz for HDMI
I/O: ITE IT 8783F
Serial Port RS-232/422/485 with box header x 1,
RS-232 with box header x 4
LPT LPT x 1 by pin header

Industrial Motherboard IMBM-B75A
Chapter 1 General Information 1-6
USB USB3.0 x 2 (Type A port ), USB3.0 x 2
(box header); USB2.0 x 2 (Type A port),
USB2.0 x 4 (Pin header)
IrDA Supports one IrDA header
KB/Mouse Mini DIN PS/2 KB and PS/2 MS
connector
DIO 8-bit Digital I/O interface (4-in/4-out)
Audio Realtek ALC887-VD2-CG ,MIC-in/
Line-in/ Line-out/ CD-in

Industrial Motherboard IMBM-B75A
Chapter2QuickInstallationGuide2-1
Quick
Installation
Chapter
2
Guide

Industrial Motherboard IMBM-B75A
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis
Chapter 2 Quick Installation Guide 2-2

Industrial Motherboard IMBM-B75A

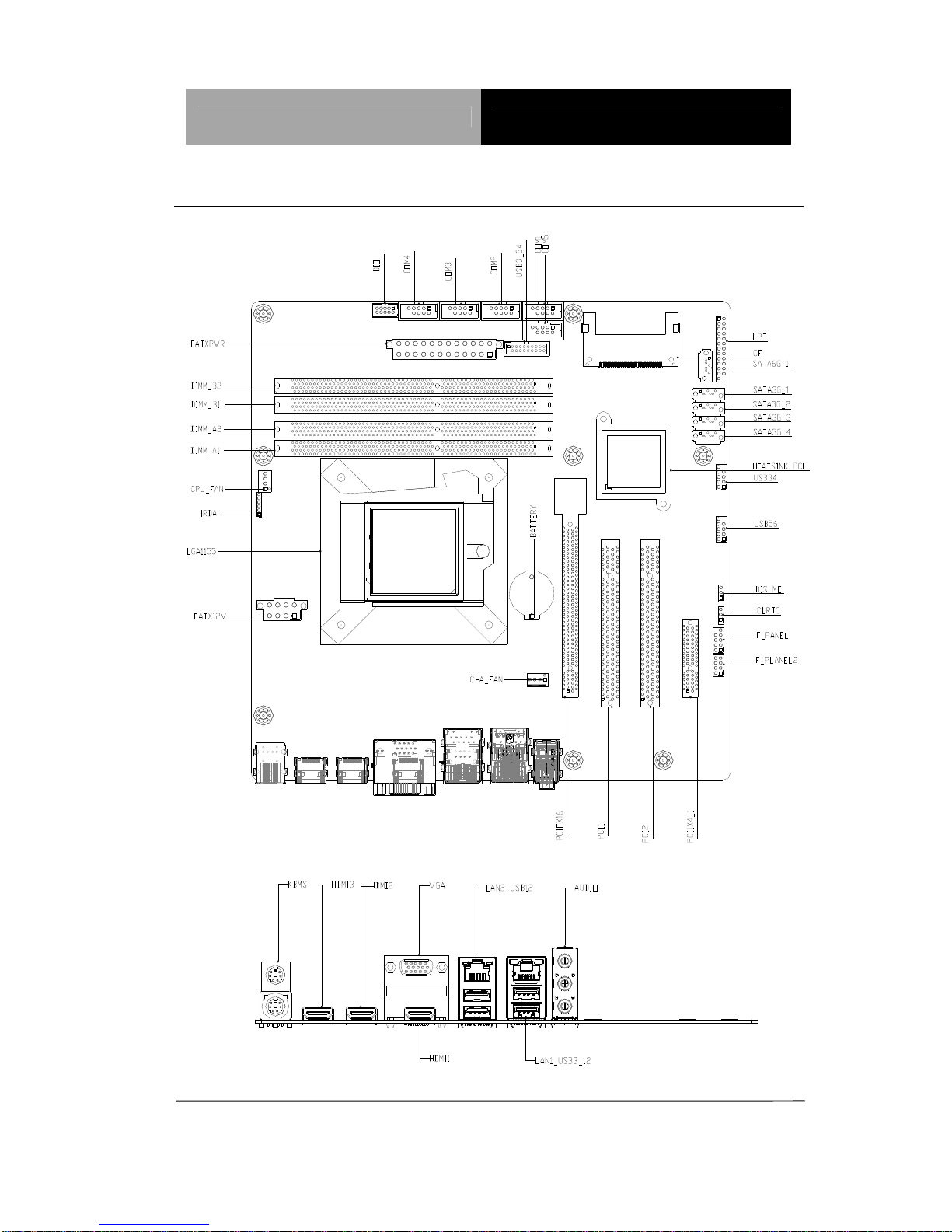

2.2 Location of Connectors and Jumpers
Chapter 2 Quick Installation Guide 2-3

Industrial Motherboard IMBM-B75A
2.3 Mechanical Drawing
Chapter 2 Quick Installation Guide 2-4

Industrial Motherboard IMBM-B75A
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Label Function
CLRTC Clear CMOS
COM1_VSET1 COM1 Ring/+5V/+12V Selection
DIS_ME Management Engine update function selection
F_PANEL2 Buzzer function Selection
2.5 List of Connectors
The board has a number of connectors that allow you to configure
your system to suit your application. The table below shows the
function of each board's connectors:
Label Function
AUDIO Audio jack Connector
BATTERY RTC - Coin Battery Holder
CF Compact Flash Slot
COM1 Internal COM1 RS-232/422/485 Serial Port
Connector
COM2 Internal COM2 RS-232 Serial Port Connector
COM3 Internal COM3 RS-232 Serial Port Connector
COM4 Internal COM4 RS-232 Serial Port Connector
COM5 Internal COM5 RS-232 Serial Port Connector
Chapter 2 Quick Installation Guide 2-5

Industrial Motherboard IMBM-B75A
CPU_FAN CPU FAN Connector
CHA_FAN System FAN Connector
DIMM_A1 DIMM1 Slot
DIMM_A2 DIMM2 Slot
DIMM_B1 DIMM3 Slot
DIMM_B2 DIMM4 Slot
DIO1 Digital I/O Connector
EATX12V ATX 8P POWER Connector
EATXPWR ATX 24P Power Connector
F_PANEL Front Panel Connector
F_PANEL2 Front Panel Connector
F1U2 BIOS Programmable Connector
F2U2 BIOS Programmable Connector
HDMI1 HDMI Connector
HDMI2 HDMI Connector
HDMI3 HDMI Connector
IRDA IrDA Connector
KBMS PS/2 Keyboard/Mouse Connector
LAN1_USB3_12 1000Base-T Ethernet Connector with Dock USB 3.0
Connector
LAN2_USB2_12 1000Base-T Ethernet Connector with Dock USB 2.0
Connector
LGA1155 CPU Socket - LGA-1155P
LPT Internal Parallel Port Connector
PCI1 PCI Slot
PCI2 PCI Slot
Chapter 2 Quick Installation Guide 2-6

Industrial Motherboard IMBM-B75A
PCIEX16 PCI-Express[x16] Slot
PCIEX4_1 PCI-Express[x4] Slot
SATA3G_1 SATA II Connector
SATA3G_2 SATA II Connector
SATA3G_3 SATA II Connector
SATA3G_4 SATA II Connector
SATA6G_1 SATA III Connector
USB3_34 Internal USB 3.0 Connector
USB34 Internal USB 2.0 Connector
USB56 Internal USB 2.0 Connector
VGA CRT Display Connector
Chapter 2 Quick Installation Guide 2-7
