Aaeon FSB-B75H User manual

Full-size SBC FSB-B75H
FSB-B75H
Intel
® CoreTM i7/i5/i3
LGA 1155 Processor
Full-size CPU Card
With DDR3, 2 Gigabit Ethernet
USB 3.0, SATA 6.0Gb/s
FSB-B75H Manual Rev.A 2nd Ed.
July 2013

Full-size SBC FSB-B75H
i
Copyright Notice
This document is copyrighted, 2013. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Full-size SBC FSB-B75H
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
AMI is a trademark of American Megatrends Inc.
Intel®, Core™ are trademarks of Intel®Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

Full-size SBC FSB-B75H
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
1 Serial Port Cable with one DB-9 connector
1 Cable with serial port and LPT port
1 USB Cable
4 SATA Cables
1 DVD-ROM for manual (in PDF format) and
Drivers
1 FSB-B75H
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Full-size SBC FSB-B75H
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-4
2.4 List of Jumpers..........................................................2-5
2.5 List of Connectors .....................................................2-5
2.6 Setting Jumpers ........................................................2-7
2.7 Auto Power Button (JP2)...........................................2-8
2.8 Clear CMOS (JP3) ....................................................2-8
2.9 Front Panel Connector (FP1)....................................2-8
2.10 Front Panel Connector (FP2)..................................2-8
2.11 Digital I/O Pin Header (DIO1)..................................2-9
2.12 USB3.0 Port Pin Header (USB1, USB5).................2-9
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 AMI BIOS Setup........................................................3-3

Full-size SBC FSB-B75H
v
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 W83627DHG Watchdog Timer Initial Program......A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1st MB Memory Address Map ................................B-4
B.3 IRQ Mapping Chart................................................B-5
B.4 DMA Channel Assignments...................................B-7
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2
Appendix D AHCI Settings
D.1 Setting AHCI......................................................... D-2

Full-size SBC FSB-B75H
Chapter 1 General Information 1-1
General
Chapter
1
Information

Full-size SBC FSB-B75H
Chapter 1 General Information 1-2
1.1 Introduction
AAEON, a leading Industrial PC manufacturer, announces the
debut of a high performance full-size Single Board Computer, the
FSB-B75H. AAEON has developed this full-size SBC based on the
latest Intel®B75 chipset and the Intel®3rd generation Core™i7/i5/i3
LGA 1155 processor, to fulfill the increasing demands of multi-core
processing.
In a PICMG 1.3 SHB Express form factor the FSB-B75H system
host board takes full advantage of the Intel®B75 chipset for
enhanced system performance and generous expansion
capabilities. Considerable bandwidth is available with
point-to-point serial PCI-Express via [x16] and [x4] interfaces.
Maximizing the available PCI-Express channels offers the greatest
flexibility to today’s demanding I/O requirements. Two DIMM slots
of dual-channel DDR3 1333/1600 sockets provide ample memory
bus bandwidth for demanding applications. The FSB-B75H has
been designed for users that require high performance and
reliability for critical applications.

Full-size SBC FSB-B75H
Chapter 1 General Information 1-3
1.2 Features
Intel®3rd Generation CoreTM i7/i5/i3 LGA 1155 Processor
Intel®B75 Chipset
Dual-Channel DDR3 1333/1600 DIMM Socket x 2 (Up to
16 GB)
Intel®B75 Integrated Intel®HD Graphics
Gigabit Ethernet x 2
SATA 6.0 Gb/s x 1, SATA3.0 Gb/s x 2 (Backplane x 2),
CFast™ x 1, Floppy Disk Drive x 1
USB3.0 x 4, USB2.0 x 4, COM x 2, LPT x 1
Compliance with PICMG 1.3
ATX 2.1 Power Requirement

Full-size SBC FSB-B75H
Chapter 1 General Information 1-4
1.3 Specification
System
Form Factor PICMG 1.3 Full size SBC
Processor Intel®3rd Generation CoreTM i7/i5/i3 LGA
1155 Processor
System Memory 240-pin Dual-Channel DDR3 1333/1600
DIMM socket x 2, up to 16GB
Chipset Intel®B75
I/O Chipset Winbond W83627DHG-P
Ethernet Realtek 8111E 10/100/1000Base-TX,
RJ-45 x 2 on bracket
BIOS AMI Plug & Play SPI BIOS-128MB ROM
Wake on LAN Yes
H/W Status Monitoring System temperature, voltage and cooling
fan status monitoring
Expansion Interface Follow PICMG 1.3 Regulation
Battery Lithium battery
Power Requirement ATX 2.1
Board Size 13.3” x 5” (339mm x 126mm)
Gross Weight 1.2 lb (0.5 Kg)
Operating
Temperature
32oF ~ 140oF (0oC ~ 60oC)
Storage Temperature -4oF ~ 158oF (-20oC ~ 70oC)
Operating Humidity 5%~90% resistive humidity,

Full-size SBC FSB-B75H
Chapter 1 General Information 1-5
non-condensing
Display
Chipset Intel®B75
Graphic Engine Integrated Intel®HD Graphics
Resolution Up to 2048x1536 @ 75Hz for CRT
Output Interface DVI x 1 on bracket, VGA (optional)
I/O
Storage SATA 6.0 Gb/s x 1, SATA 3.0 Gb/s x 2
(Backplane x 2), CFast™x 1
Serial Port COM x 2 (box headers)
COM1: RS-232
COM2: RS-232/422/485
PS/2 Port Keyboard/Mouse x 1 (4x2 pin header)
USB USB3.0 x 4 (Internal 10x2 pin header x 2)
USB2.0 x 4 (onboard dual type-A
connector x 2, internal 5x2 pin header x
1) (4 USB on backplane)
Parallel Port LPT port x 1
Audio HDAC daughter board (optional) Mic-in/
Line-in/ Line-out
Digital I/O 8-bit programmable (4-in/ 4-out)

Full-size SBC FSB-B75H
Chapter 2 Quick Installation Guide 2-1
Quick
Installation
Chapter
2
Guide

Full-size SBC FSB-B75H
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Full-size SBC FSB-B75H
Chapter2QuickInstallationGuide2 - 3
2.2 Location of Connectors and Jumpers

Full-size SBC FSB-B75H
Chapter 2 Quick Installation Guide 2 - 4

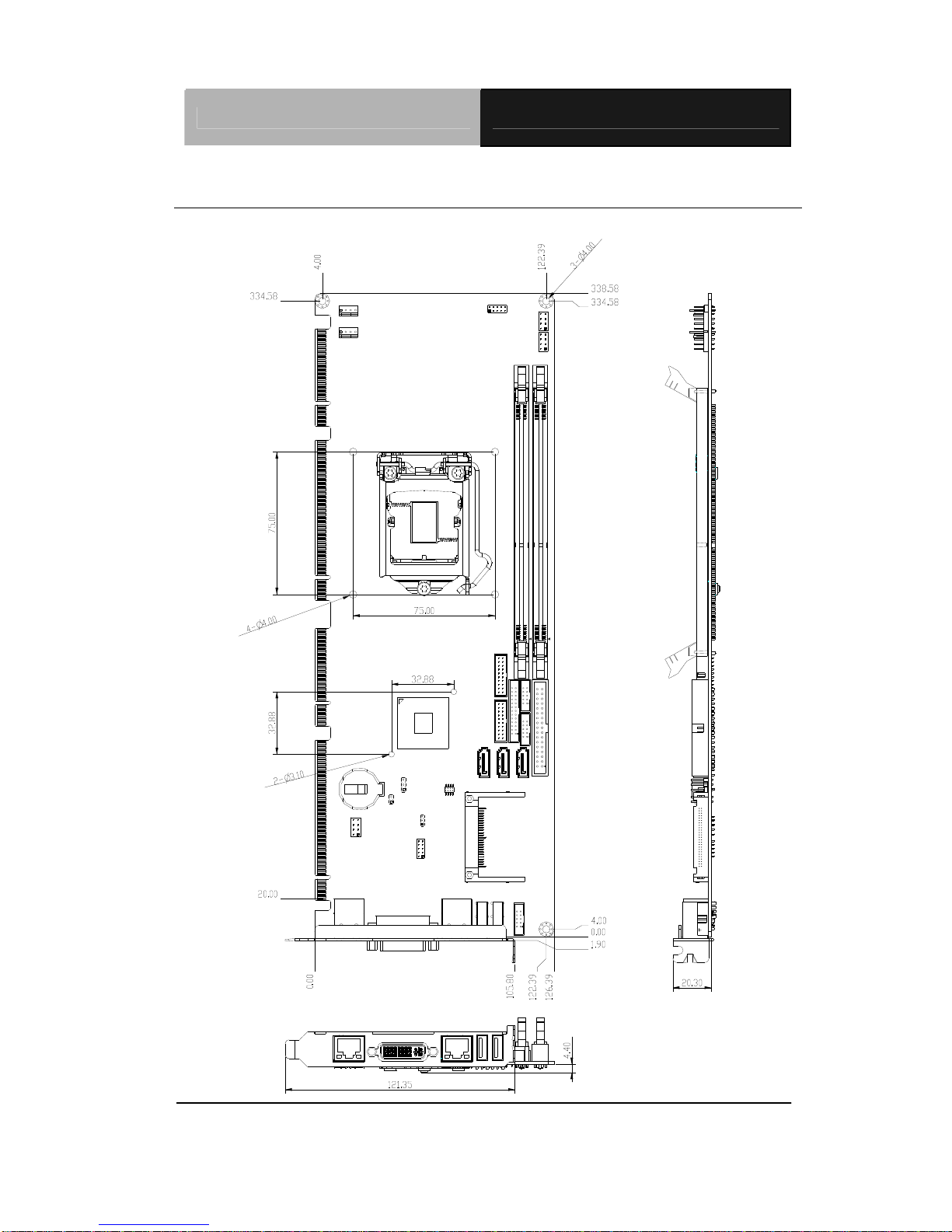

2.3 Mechanical Drawing

Full-size SBC FSB-B75H
Chapter2QuickInstallationGuide2 - 5
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Jumpers
Label Function
JP2 Auto Power Button
JP3 Clear CMOS
2.5 List of Connectors
The board has a number of connectors that allow you to configure
your system to suit your application. The table below shows the
function of each board's connectors:
Label Function
FP1 Front Panel Connector 1
FP2 Front Panel Connector 2
CN1 SPI Flash programmer Connector
CN2 Audio Pin Header
CN4 Case Open Connector
CN5 CFast Connector
CN6 PS2 KB/MS Pin Header
COM1 RS-232 Pin Header
COM2 RS-232/422/485 Pin Header

Full-size SBC FSB-B75H
Chapter 2 Quick Installation Guide 2 - 6
DIO1 Digital I/O Pin Header
FDD1 Floppy Pin Header
LPT1 Parallel Port Pin Header
USB1 USB 3.0 Pin Header
USB2 USB Pin Header
USB4 USB Connector
USB5 USB 3.0 Pin Header
USB6 USB Connector
BT1 Battery
SATA1~SATA3 SATA Connector
LAN1 10/100/1000Base-TX Ethernet Connector
LAN2 10/100/1000Base-TX Ethernet Connector
DIMM1 DDR3 DIMM Slot
DIMM2 DDR3 DIMM Slot
CPU_FAN 4 Pin Fan Connector
SYS_FAN 4 Pin Fan Connector
DVI1 DVI-I Connector

Full-size SBC FSB-B75H
Chapter2QuickInstallationGuide2 - 7
2.6 Setting Jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch. It
consists of two metal pins and a small metal clip (often protected by
a plastic cover) that slides over the pins to connect them. To “close”
a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will
have three pins, labeled 1, 2 and 3. In this case you would connect
either pins 1 and 2 or 2 and 3.

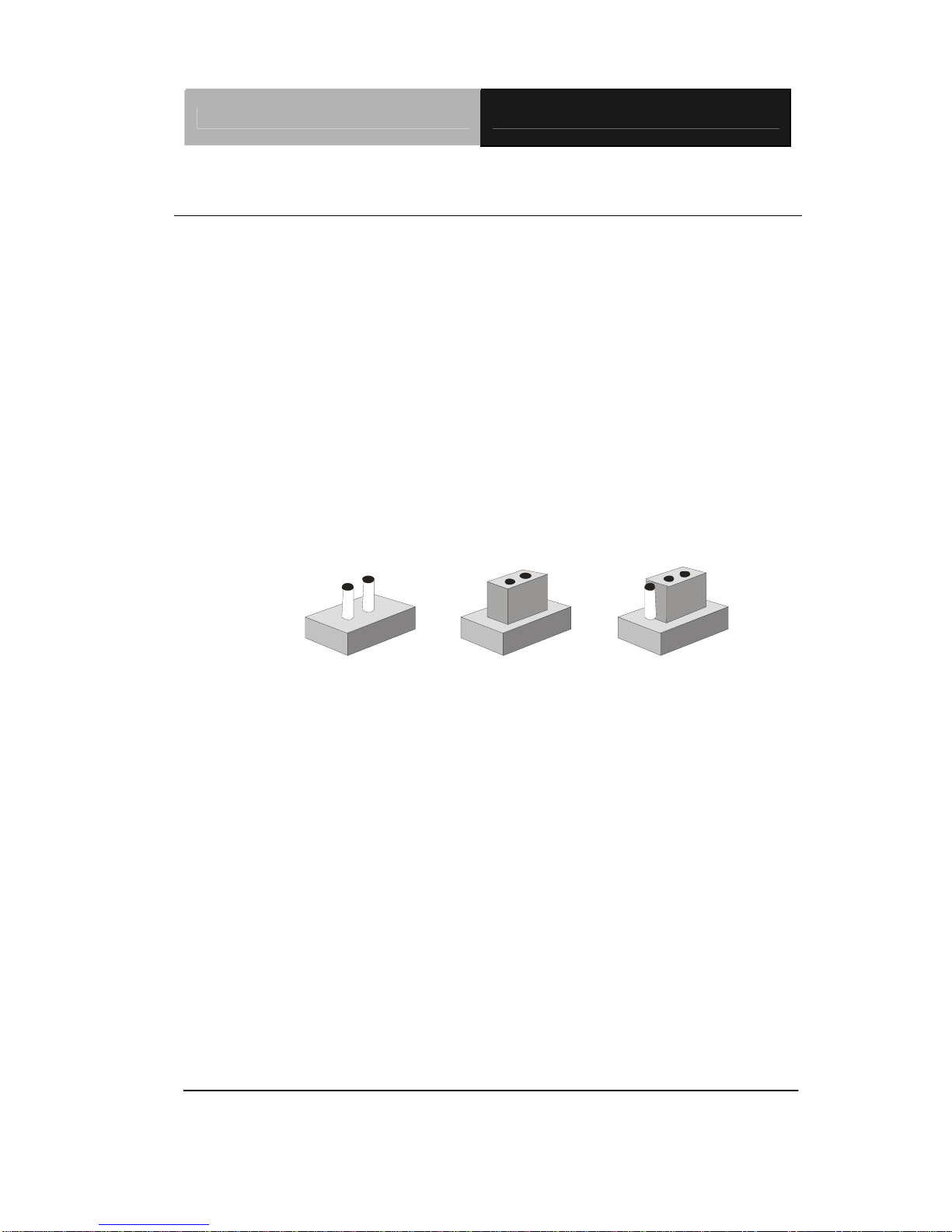

123
Open Closed Closed 2-3
A pair of needle-nose pliers may be helpful when working with
jumpers.
If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales
representative before you make any change.
Generally, you simply need a standard cable to make most
connections.

Full-size SBC FSB-B75H
Chapter 2 Quick Installation Guide 2 - 8
2.7 Auto Power Button (JP2)
JP2 Function
1-2 Power ON by Button (default)
2-3 Auto Power ON
2.8 Clear CMOS (JP3)
JP3 Function
1-2 Protected (default)
2-3 Clear
2.9 Front Panel Connector (FP1)
Pin Signal Pin Signal
1 Power On Button (+) 2 Reset Switch (+)
3 Power On Button (-) 4 Reset Switch (-)
5 HDD LED (+) 6 Power LED (+)
7 HDD LED (-) 8 Power LED (-)
2.10 Front Panel Connector (FP2)
Pin Signal Pin Signal
1 External Speaker (+) 2 Key Board Lock (+)
3 NC 4 GND
5 Internal Buzzer (-) 6 I2C Bus SMB Clock
7 External Speaker (-) 8 I2C Bus SMB Data
Note: Closed Pin 5, 7: Internal Buzzer Enable

Full-size SBC FSB-B75H
Chapter2QuickInstallationGuide2 - 9
2.11 Digital I/O Pin Header (DIO1)
Pin Signal Pin Signal
1 DIO_30 2 DIO_31
3 DIO_32 4 DIO_33
5 DIO_34 6 DIO_35
7 DIO_36 8 DIO_37
9 +5V 10 GND
2.12 USB3.0 Port Pin Header (USB1, USB5)
Pin Signal Pin Signal
1 VCC 20 NC
2 USB3_RX1_DN_C 19 VCC
3 USB3_RX1_DP_C 18 USB3_RX2_DN_C
4 GND 17 USB3_RX2_DP_C
5 USB3_TX1_DN_C 16 GND
6 USB3_TX1_DP_C 15 USB3_TX2_DN_C
7 GND 14 USB3_TX2_DP_C
8 USBP_0N_C 13 GND
9 USBP_0P_C 12 USBP_1N_C
10 NC 11 USBP_1P_C
