A&D AD-8923-CC User manual

1WMPD4002124D

© 2010 A&D Company Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, or translated into any
language in any form by any means without the written permission of A&D Company Ltd.
The contents of this manual and the specifications of the instrument covered by this manual
are subject to change for improvement without notice.

3
CONTENTS
1. INTRODUCTION...................................................................................................................... 4
1.1. Features ......................................................................................................................................... 4
1.2. Applicable Instruments................................................................................................................... 5
2. DESCRIPTION OF EACH PART ............................................................................................. 7
2.1. Display............................................................................................................................................ 8
2.2. Keys................................................................................................................................................ 8
2.3. Connectors ..................................................................................................................................... 8
3. CONNECTION......................................................................................................................... 9
3.1. Setting the weighing instrument and the AD-8923-CC.................................................................. 9
3.2. Connecting the cables.................................................................................................................... 9
3.3. Turning the power on ................................................................................................................... 12
3.4. Operation...................................................................................................................................... 13
3.5. Performing Sensitivity Adjustment with the AD-4212C/F............................................................ 14

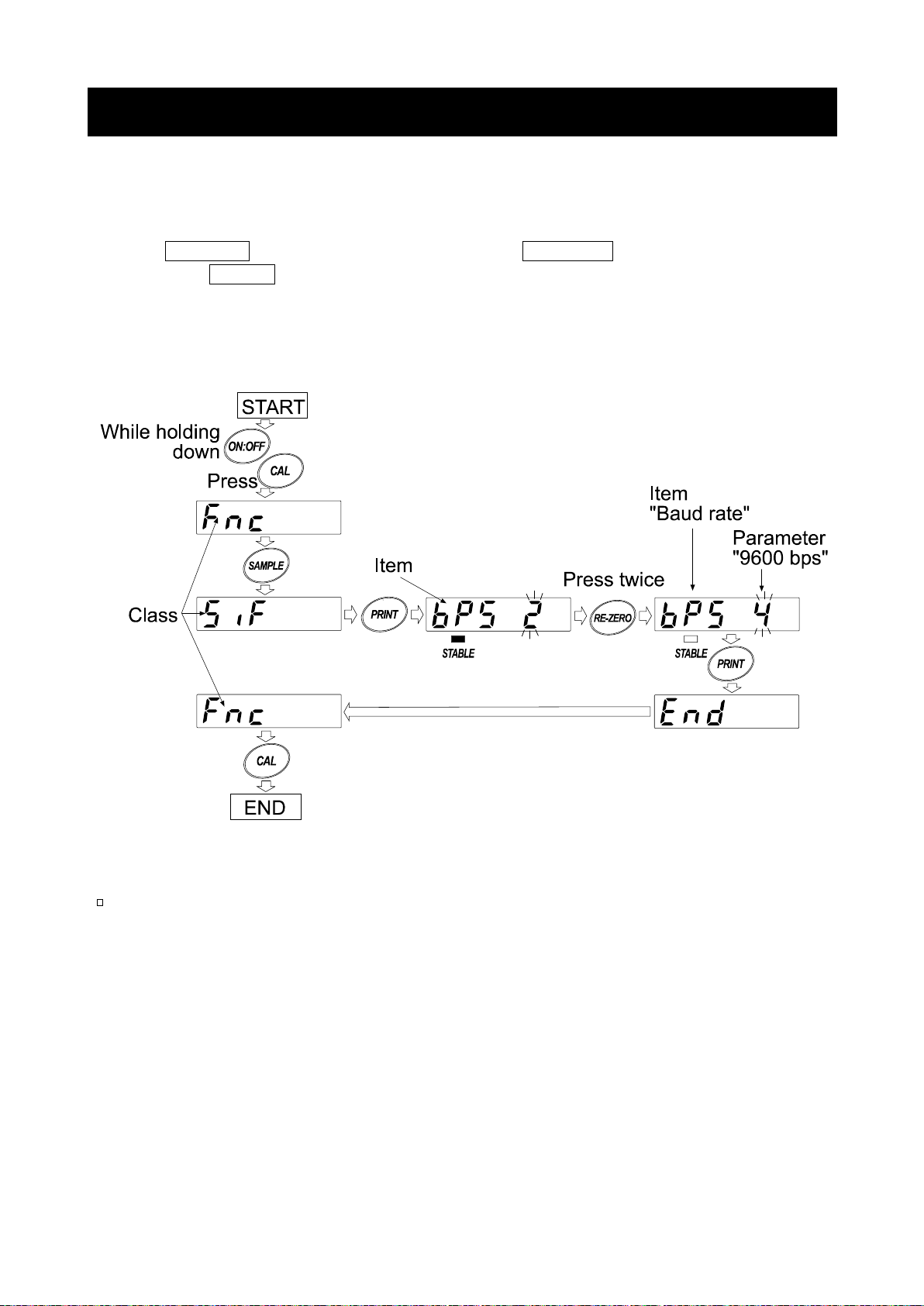

4. FUNCTION SETTING ............................................................................................................ 16
4.1. Display and keys .......................................................................................................................... 17
4.2. Function table............................................................................................................................... 17
4.3. Initializing the AD-8923-CC.......................................................................................................... 18
5. RS-232C CONNECTOR ........................................................................................................ 19
5.1. RS-232C serial interface specifications ....................................................................................... 19

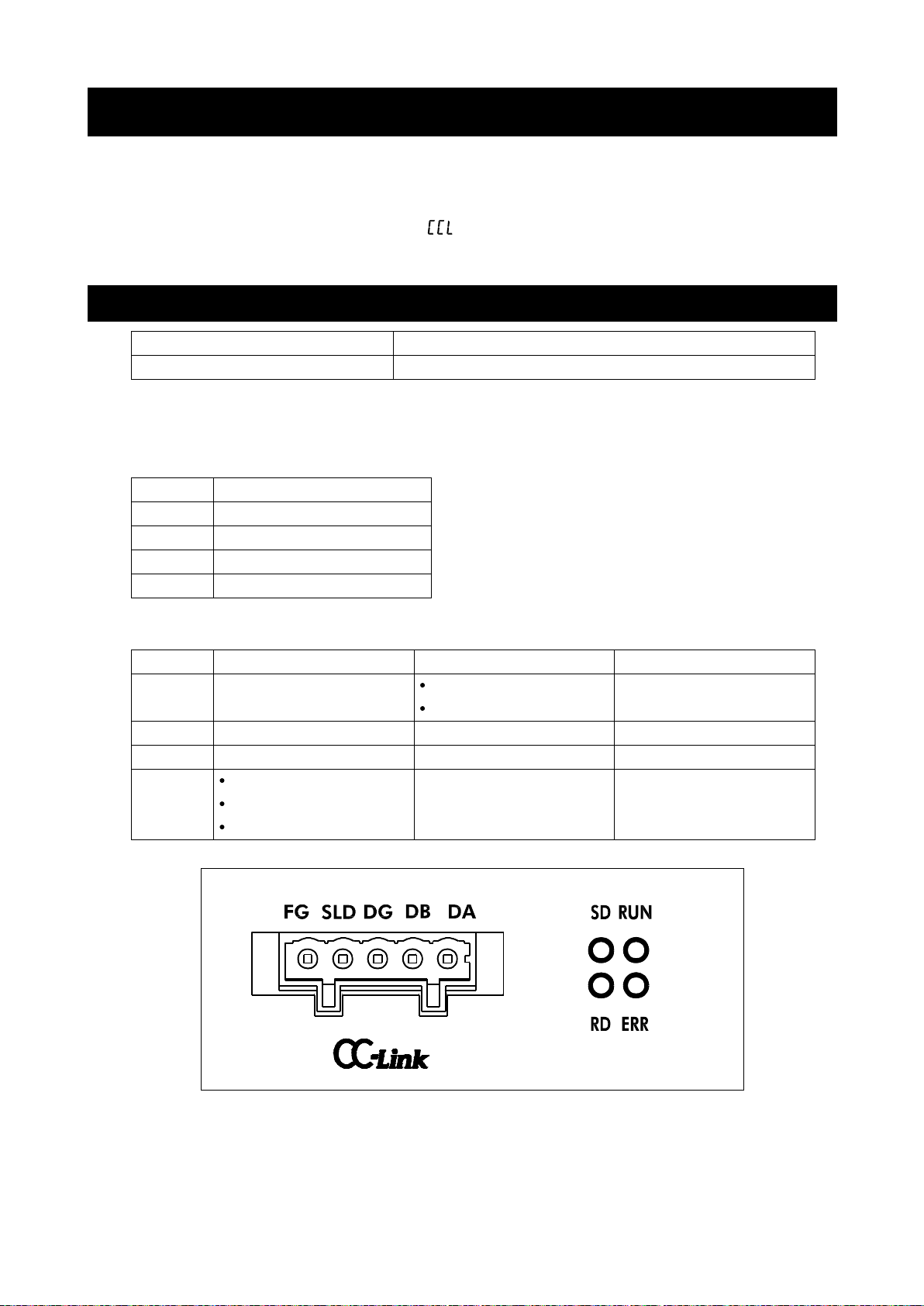

6. CC-LINK CONNECTOR......................................................................................................... 20
6.1. CC-Link interface specifications................................................................................................... 20
6.2. Timing chart.................................................................................................................................. 25
6.3. Fixing the decimal point position.................................................................................................. 27
6.4. Sensitivity adjustment with the AD-4212C/F using the register of the CC-Link .......................... 28
7. TROUBLESHOOTING........................................................................................................... 29
8. SPECIFICATIONS ................................................................................................................. 30
9. EXTERNAL DIMENSIONS .................................................................................................... 31

4
1. INTRODUCTION
This manual describes how the AD-8923-CC remote controller works and how to get the most out of it in
terms of performance.
Read this manual thoroughly before using the AD-8923-CC and keep it at hand for future reference.
1.1. Features
Connecting the AD-8923-CC remote controller to a weighing instrument will enable transmission of RS-
232C weighing data from the weighing instrument to a PLC using CC-Link (⋆1).
Displays the weighing data transmitted from the weighing instrument.
Key operations remotely control the weighing instrument (⋆2).
Using the CC-Link interface, the AD-8923-CC can receive the weighing data or perform re-zeroing of
the weighing instrument.
Note
⋆1 The AD-8923-CC CC-Link is a remote device station of CC-Link ver. 1.10.
⋆2 Entering the function setting mode of the weighing instrument is not available. Available
operations depend on the weighing instrument used. Refer to Table 2 in “1.2. Applicable
Instruments”.
⋆3 CC-Link is a high-speed field network able to simultaneously handle both control and
information data. With a high communication speed of 10 Mbps, CC-Link can achieve a
maximum transmission distance of 100 meters and connect to 64 stations.
When a CC-Link network is configured using the AD-8923-CC, the maximum number of stations
(or units) will be 42.

5
1.2. Applicable Instruments
The AD-8923-CC functions in two ways as follows, depending on the weighing instrument used:
A remote controller that displays the weighing data and remotely controls the weighing instrument.
A remote display that displays the weighing data.
Available key operations depend on the weighing instrument used. (Refer to “Table 2”)
For weighing instruments not listed in this table, please refer to the A&D website.
Table 1 Applicable weighing instruments and what is required
Weighing instrument
What is required to connect to weighing instrument
Option for the instrument
Communication cable (Length: 2 m)
AD-4212C, AD-4212D None (D-sub 9 pin)
None
(Use the cable provided for AD-4212C / D)
*1
AD-4212F
None (D-sub 9 pin)
AX-KO3590-XXX
*2
AD-4212A / B, GX, GF, GX-K, GF-K, MC,
G P, GR
None (D-sub 25 pin) AX-KO1710-200
GX-A, GF-A, GX-M, GF-M, GX-L, GF-L, FZ,
FX, EK-I, EW-i, EK-L, BM, GH,
HR-i, HR-AZ, HR-A
None (D-sub 9 pin) AX-KO2741-180
EJ, HV-C, HV-C P, HW-C, HW-CP
OP-03 (D-sub 9 pin)
AX-KO2741-180
HV-G, HV-WP, HW-G, HW-WP
None (Din 8 pin)
AX-KO1786-200
FG-L, FG-M
OP-23 (Din 8 pin)
AX-KO1786-200
FS-i, SC, SE, SW
OP-03 (Wire)
AX-KO3285-320
*1 When connecting to the AD-4212C/D, use the cable provided as a standard accessory for the
AD-4212C/D.
The part number for standard accessory cable for the AD-4212C is AX-KO3590-1000 (10 m).
The part number for standard accessory cable for the AD-4212D is AX-KO3590-200 (2 m).
*2 For “XXX”, choose from 200 (2 m), 500 (5 m), or 1000 (10 m).

6
Table 2 Applicable weighing instruments and key operations
Weighing instrument
AD-8923-CC keys
ON:OFF
CAL
SAMPLE
PRINT
MODE
RE-ZERO
AD-4212C, AD-4212F
Turns the
weighing
instrument
display on or
off.
(Note 1)
Performs
sensitivity
adjustment
using the
external
weight
(Note 4)
Switches the
readability
(Note 2)
Determines
operation
during
various
settings
Switches the
response
chracteristic
Sets the display
to zero
AD-4212D
Performs
sensitivity
adjustment
using the
internal
weight
GX, GX-A, GX-M, GX-L,
GX-K, G P, GH, FZ, MC,
BM, HR-AZ
Switches the
unit displayed
(Note 3)
GR
GF, GF-A, GF-M, GF-L,
GF-K, AD-4212A
/ B, HR-i,
FX, HR-A
-
EJ, EK-i, EW-i, EK-L,
FG-L, FG-M, FS-i, SW,
HV-G, HV-W P, HW-G,
HW-W P, HV-C, HV-C P,
HW-C, HW-CP
(Note 5)
* "-" in the table indicates that the key operation is not available.
Note 1) Switching the standby or weighing mode is available for the AD-4212C/D/F.
Note 2) Not available for the counting mode or percent mode.
Note 3) Not available for the AD-4212A/B.
Note 4) For weighing instruments other than AD-4212C/D/F, the AD-8923-CC displays " ".
Use the display on the balance.
Note 5) Do not operate by using the key on the AD-8923-CC.
When connected to the following instruments, power can be supplied to both instruments by
plugging the AC adapter into either the weighing instrument or the AD-8923-CC.
(Both instruments can have their AC adapter connected at the same time.)
Compatible models: AD-4212C/D/F, FZ, FX, GX-A, GF-A, GX-M, GF-M, GX-L, GF-L, HR-AZ, HR-A

7
2. DESCRIPTION OF EACH PART
Note
When the AD-8923-CC is to be built into a
weighing system, be sure to ground the FG
terminal.
Please confirm that the AC adapter type is
correct for your local voltage and receptacle
type.
Rear View
AC adapter
input jack
DC input terminal
CC
-Link connector
FG terminal
RS-232C connector
(D
-Sub 9-pin)
Accessories
AD adapter
ID label
CC-Link plug 1 pc.
Connector operation lever 1 pc.
AC adapter 1 pc.
Attach the identification
sticker
for your model to
the AC adapter as shown.
Display
Keys

8
2.1. Display
Displays the weighing data received. When the unit is “g” (gram), the unit indicator turns on. If the
balance outputs RS-232C weighing data that exceeds six digits, the AD-8923-CC does not display the
high-end digits. (2 highest digits for an 8 digit display)
Weight value of the CC-link is output even if it exceeds six digits.
When the weight value is stable (the header of the weighing data received is “ST”), the STABLE
indicator turns on.
If the AD-8923-CC does not receive the weighing data for two seconds or more, is
displayed (Bar display).
When AD-4212C/D/F is connected, displays the AD-4212C/D/F weighing speed that is currently
set, by turning on the weighing speed indicator. When connected to other instruments, the AD-8923-
CC weighing speed indicators have no function.
2.2. Keys
Used to operate the weighing instruments. For details, refer to “3.4. Operation”.
To enter the function setting of the AD-8923-CC, press the CAL key while holding down
the ON:OFF key.
For details, refer to “4. FUNCTION SETTING”.
2.3. Connectors
RS-232C connector...... D-Sub 9-pin (male)
Used for connection to the weighing unit. For the proper cable, refer to the instruction manual for the
weighing instrument used.
CC-Link connector........ 5-pin (male)
Used to connect to other AD-8923-CCs, PLCs or other CC-Link devices. For details, refer to “6. CC-
LINK CONNECTOR”.
DC input terminal (24 DCV)/AC adapter input jack
Either power supply can be used. For details, refer to “3.3. Turning the power on”.
AD-8923
REMOTE CONTROLLER
ON:OFF
CAL
SAMPLE PRINT
MODE
RE-ZERO
STABLE FAST MID.
RESPONSE
SLOW
Weighing speed
indicators
Turns on while the
weighing
instrument is
in the standby mode.
STABLE indicator
Unit indicator

9
3. CONNECTION
3.1. Setting the weighing instrument and the AD-8923-CC
Set the following items so that the weighing instrument and the AD-8923-CC have the same value for
each item.
Item
Weighing instrument
AD-8923-CC
Baud rate
600, 1200, 2400*, 4800, 9600, 19200 bps
Data bits, parity
7 bits EVEN*
Stop bits
1 bit*
Terminator
<CR><LF>*
Data format
A&D standard format
−
Communication control
No RTS/CTS control
−
Data output mode
Stream mode
−
* Factory setting for the AD-8923-CC. The factory setting for the weighing instruments is
the same unless otherwise specified.
3.2. Connecting the cables
Connect the cables using the connectors located on the rear of the AD-8923-CC.
Connection example to the AD-4212C and a PLC
Note
Be sure to ground the AD-4212C and the AD-8923-CC.
PLC
(CC
-Link master station)
AD-8923-CC
RS-232C connector (D-Sub 9-pin)
Connect to the power supply
Turning the power on
CC-Link connector (5-pin)
Ground
CC-Link network
CC-Link network
To other remote stations
such as the AD
-8923-CC.
AD-4212C

10

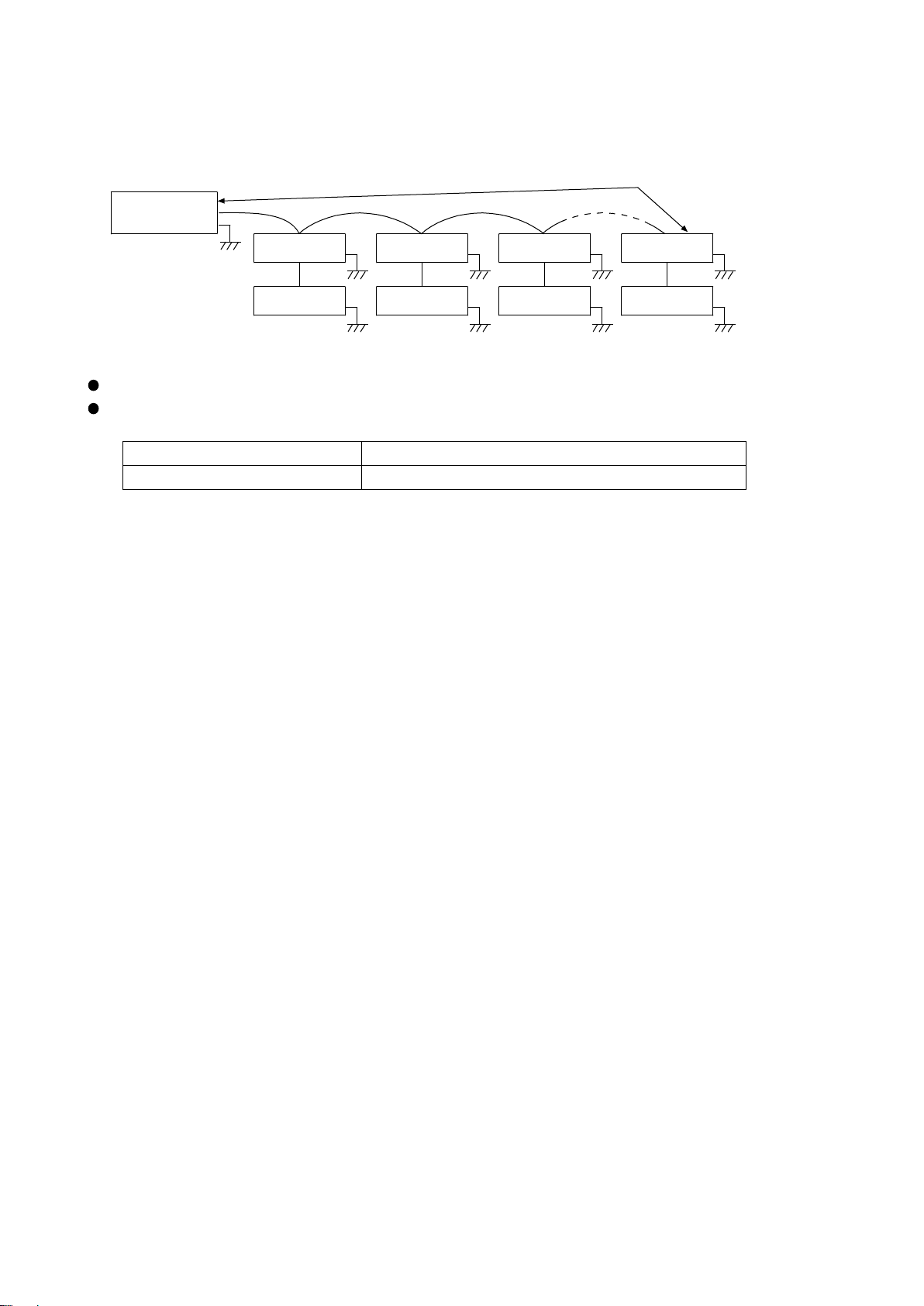

Connection example for the CC-Link network (weighing instruments No.1 through No.4)
The value of the terminating resistor varies depending on the CC-Link cable used.
Use the same resistance value at each end of the network.
Cable
FANC-110SBH
Terminating resistor
110Ω1/2 W
Terminating resistors are not provided.
AD-8923-CC
AD-4212C
AD-8923-CC
AD-4212C
AD-8923-CC
AD-4212C
CC-Link
masterstation
AD-8923-CC
AD-4212C
Connect a terminating resistor
only to the stations at each end of
the network.
(Ground)
Weighing
instrument
No. 1
No. 2
No. 3
No. 4

11

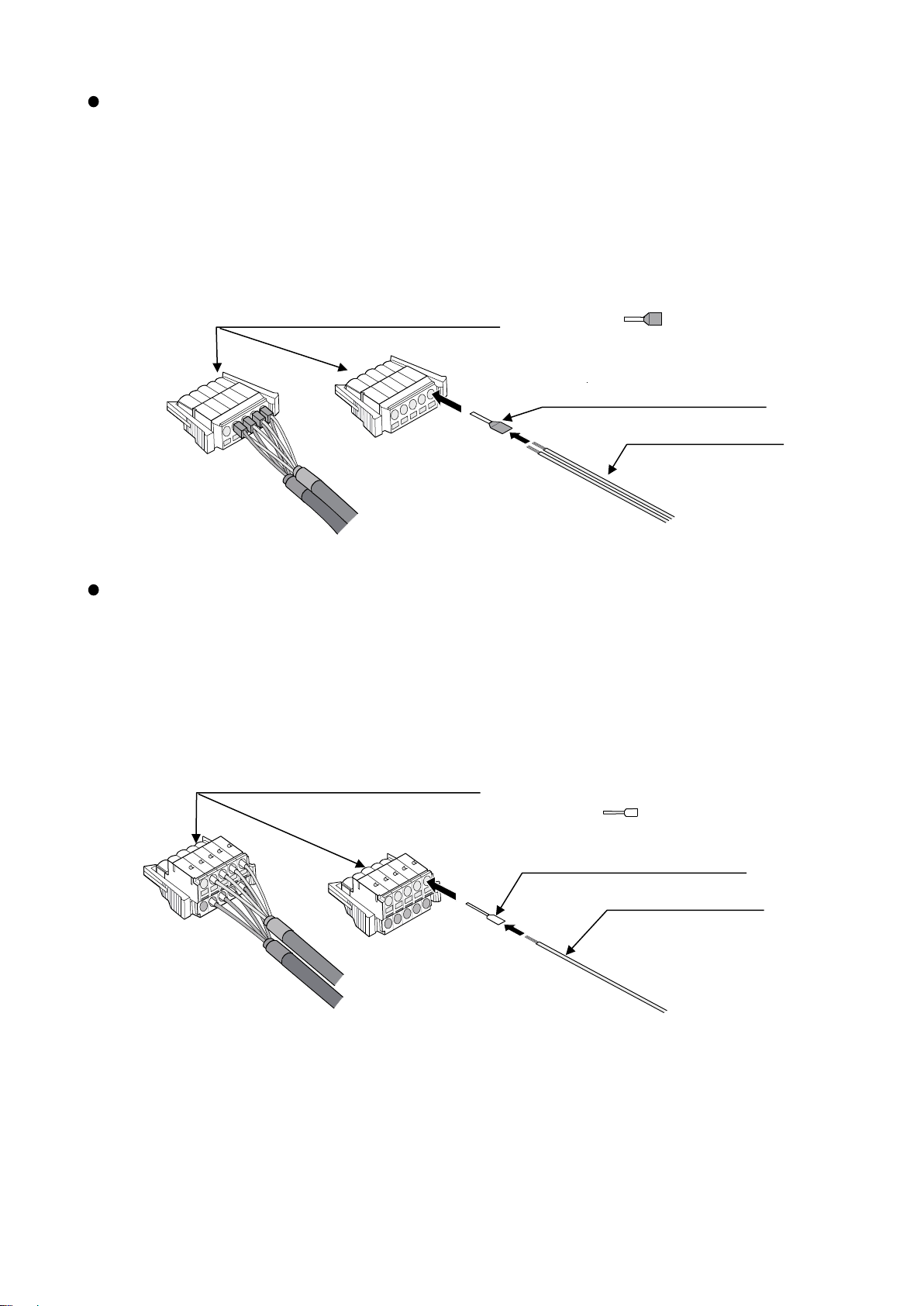

When connecting the AD-8923-CC to the CC-Link network using the connector provided (721-
105/037-000 equivalent), use the ferrule listed below (sold separately).
(Example: When using the FANC-110SBH cable)
Insert the cable into the ferrule and crimp it using the Variocrimp4 206-204 crimping jig, and insert it
into the connector.
A dual cable connection is also available (not provided).
(Example: when using the FANC-110SBH cable)
Insert the cable into the ferrule and crimp it using the Variocrimp4 206-204 crimping jig, and insert it
into the connector.
Connector (provided)
Made by WAGO
Corporation
721
-105/037-000 equivalent
FANC-110SBH
Ferrule
Made by WAGO
Corporation
216
-202W equivalent or
216
-202W-L equivalent
D
ual cable connection connector
Made by WAGO
Corporation
721
-2105
/
037-000 equivalent
FANC
-110SBH
Ferrule
Made by W
AGO Corporation
216
-242 equivalent

12
3.3. Turning the power on
As a power supply, an external 24-VDC power supply (24 VDC±10%/700mA) or a 12-VDC AC adapter
can be used.
When connected to the following instruments, power can be supplied to both instruments by plugging the
AC adapter into either the weighing instrument or the AD-8923-CC.
(Both instruments can have their AC adapter connected at the same time.)
Compatible models: AD-4212C/D/F, FZ, FX, GX-A, GF-A, GX-M, GF-M, GX-L, GF-L, HR-AZ, HR-A
When the external 24-VDC power supply is used
Connect an external 24-VDC power supply to the DC input terminal located on the rear of the AD-8923-CC.
Precautions on using the external power supply
CAUTION
Use a power supply within the rated voltage range (24 VDC±10%).
Never use a power supply with a voltage exceeding the rated range.
It may cause damage or heat buildup.
The AD-8923-CC may not function properly.
Ground the FG terminal of the switching power supply used.
To avoid electrical shock and increase the system safety.
To increase the resistance against noises.
Do not share the power line with other devices.
Strong noises introduced from other devices may cause damage to the AD-8923-CC.
Inrush current from other devices may cause the AD-8923-CC not to start up properly.
Circuit configuration of the AD-8923-CC may affect other devices to prevent them from
functioning properly.
Select a switching power supply with a capacity of approximately 700mA for each AD-8923-CC.
Note that the AD-8923-CC may not start up with a capacity less than 700mA.
If the power supply capacity is not sufficient, the AD-8923-CC may not function properly.
Be sure to add a noise filter on the front end of the switching power supply and ground the FG
terminal.
This will increase the resistance against noises.
Be sure to ground the FG terminal of the AD-8923-CC and weighing instruments.
This will increase the resistance against noises.

13
Cable connection
CAUTION
Before inserting the power line, make sure that the power to the AD-8923-CC is turned off.
(1) Inserting the power line
Press down the release button on the DC
input terminal using a screwdriver and
insert the power line.
The recommended stripping length for the
power line is 10 mm.
Applicable wire range
Single wire: φ1.0 mm (AWG 26) to φ1.2 mm (AWG 16)
Twisted wire: 0.3 mm2(AWG 22) to 0.75 mm2(AWG 20)
Individual wire diameter φ0.18 mm or greater
(2) Securing or removing the power line
To secure the power line, return the release button to the initial position using the screwdriver.
The power line will be locked. To remove the power line, press the release button again using
the screwdriver, unlocking the power line.
When the AC adapter is used
Insert the AC adapter plug into the AC adapter
input jack located on the rear of the AD-8923-CC
and insert the AC adapter into an electrical outlet.
3.4. Operation
Displays the data transmitted by the weighing instrument connected.
The keys on the AD-8923-CC can control the weighing instrument. The key operation depends on the
weighing instrument connected. For details, refer to “Table 2” of “1.2. Applicable Instruments”.
DC input terminal
AD
-8923-CC rear
Release button
Screwdriver
Power line
AC adapter input jack
DC input terminal
AC adapter plug
AD-8923-CC rear

14
3.5. Performing Sensitivity Adjustment with the AD-4212C/F
The following is the sensitivity adjustment procedure when the AD-4212C/F is connected.
(An external weight is used.)
Caution
Do not allow vibration, drafts or temperature change to affect the AD-4212C during sensitivity
adjustment.
Caution on using an external weight
The accuracy of the weight can influence the accuracy of weighing.
Select an appropriate weight as listed below.
A weight of 200 g is provided with the AD-4212C as a standard accessory.
Weighing instrument
Usable weight
AD-4212C-300
AD-4212C-301
50 g, 100 g, 200 g,300 g
AD-4212C-600
50 g, 100 g, 200 g,300 g, 400 g, 500 g, 600 g
AD-4212C-3000
AD-4212C-3100
50 g, 100 g, 200 g, 300 g, 500 g, 1000 g, 2000 g, 3000 g
AD-4212C-6000
200 g, 500 g, 1000 g, 2000 g, 3000 g, 4000 g, 5000 g, 6000 g
AD-4212F-6203D
50 g, 100g, 200 g, 300 g, 500 g, 1000 g, 2000 g, 3000 g, 4000 g,5000 g, 6000 g
AD-4212F-10202
500 g, 1000 g, 2000 g, 3000 g, 4000 g, 5000 g , 6000 g ,7000 g, 8000 g, 9000 g, 10000 g
AD-4212F-22001
1000 g, 2000 g, 5000 g, 10000 g, 20000 g
The weight in bold type: Factory setting
Display
This indicator means “the AD-4212C is measuring sensitivity adjustment
data”. Do not allow vibration, drafts or other external disturbances to
affect AD-4212C while this indicator is displayed.

15
Sensitivity adjustment procedure
Performs sensitivity adjustment with the AD-4212C using an external weight.
Operation
1. Warm up the AD-4212C for 30 minutes or more with nothing on the pan.
2. Press the CAL key. is displayed.
If you want to cancel sensitivity adjustment, press the CAL key.
The display will return to the weighing mode.
If you want to change the weight value, press the SAMPLE key.
Press the RE-ZERO key to select the weight value,
and press the PRINT key to store it. is displayed.
3. Confirm that there is nothing on the pan and press the PRINT key.
The AD-4212C measures the zero point. Do not allow vibration or
drafts to affect the AD-4212C. The weight value is displayed.
4. Place a weight, of the weight value displayed, on the pan and
press the PRINT key. The AD-4212C measures the weight.
Do not allow vibration or drafts to affect the AD-4212C.
5. is displayed. Remove the weight from the pan.
6. The display will automatically return to the weighing mode.
7. Place the weight on the pan and confirm that adjustment was performed
correctly. If not, check the ambient conditions such as drafts or vibration,
and repeat steps 2 through 7.
* It is also possible to carry out sensitivity adjustment described above using the register of the
CC-Link. For details, refer to “6.4. Sensitivity adjustment with the AD-4212C/F using the register
of the CC-Link”.
Press
Weight
Press
Press
STABLE FAST MID.
RESPONSE
SLOW
CAL
STABLE FAST MID.
RESPONSE
SLOW
PRINT
STABLE FAST MID.
RESPONSE
SLOW
STABLE FAST MID.
RESPONSE
SLOW
PRINT
STABLE FAST MID.
RESPONSE
SLOW
STABLE FAST MID.
RESPONSE
SLOW
STABLE FAST MID.
RESPONSE
SLOW

16
4. FUNCTION SETTING
Function setting specifies the AD-8923-CC performance. The parameters are stored in non-volatile
memory, and are maintained even if the power line or AC adapter is removed.
The function setting menu consists of two layers. The first layer is the “Class” and the second layer is the
“Item”. Each item stores a parameter.
Press the SAMPLE key to select an item and press the RE-ZERO key to change the parameter.
Then, press the PRINT key to store the new parameter.
Example
This example sets “Baud rate” to “9600 bps”.
Note
The AD-8923-CC may not function properly, depending on the settings and operating
environment. Check the settings and change them as necessary.

17
4.1. Display and keys
The STABLE indicator turns on to indicate that the parameter displayed is in effect.
Selects a class or item.
Changes the parameter.
When a class is displayed, moves to an item in the class.
When an item is displayed, stores the new parameter and displays the next class.
When an item is displayed, cancels the new parameter and displays the next class.
When a class is displayed, exits the function setting mode and returns to the
weighing mode.
4.2. Function table
Class
Item and Parameter
Description
Environment
Display
Decimal point
position
-Not fixed Displays the decimal point position of the
weighing data received.
Fixed
Fixes the decimal point at the set digit.
Even if the minimum display is switched
using the SAMPLE key, the decimal
point position does not change.
For details, refer to “6.3. Fixing the decimal
point position.”
to
Sample key
function
Disabled
Disables the SAMPLE key function.
Enabled Enables the SAMPLE key function.
Serial
interface
Baud rate
600 bps
Set the same value as that of the
weighing instrument to be connected.
1200 bps
2400 bps
4800 bps
9600 bps
19200 bps
CC-Link
interface
Number of
station
to
Number of
station
CC-Link
baud rate
156 Kbps
Set the same value as that of the
CC-Link master station to be connected.
625 Kbps
2.5 Mbps
5 Mbps
10 Mbps
Factory setting

18
4.3. Initializing the AD-8923-CC
Initialization restores the function settings of the AD-8923-CC to factory settings.
Operation
1. Turn the power on. or weighing mode
display appears.
2. While holding down the ON:OFF key, press
the PRINT key. is displayed.
3. Press the PRINT key.
To cancel this operation, press the CAL key
4. Press the RE-ZERO key to select “ ”.
5. Press the PRINT key to perform initialization.
After initialization, or weighing mode
display appears.
ON:OFF
PRINT
PRINT
RE-ZERO
PRINT
While holding down
Press
Press
Press
Press

19
9876
(Va)
(Vs)
SG
TXD RXD
(CTS)
(RTS)
(DSR)
54321
AD-8923-CC
interior
Inch screw
(#4-40UNC)
To the weighing instrument
5. RS-232C CONNECTOR
5.1. RS-232C serial interface specifications
RS-232C
Transmission system : EIA RS-232C
Transmission form : Asynchronous, bi-directional, half duplex
Data format : Baud rate : 600, 1200, 2400, 4800, 9600, 19200 bps
Data bits : 7 or 8 bits
Parity : EVEN, ODD (Data bits 7 bits)
NONE (Data bits 8 bits)
Stop bits : 1 bit or 2 bits
Code : ASCII
Terminator : <CR> or <CR><LF>
Circuit
Connection to the weighing instrument
D-Sub 9-pin male
Pin
No.
Signal
name
Direction Description
1 (Vs) −Used internally
2 RXD Input Receive data
3 TXD Output Transmit data
4 −−N.C.
5 SG −Signal ground
6 (DSR) Input Used internally
7 (RTS) Output Used internally
8 (CTS) Input Used internally
9 (Va) −Used internally
(The AD-8923-CC is a DTE device.
Connect to a DCE device such as the
weighing instruments using a straight
through cable.)
Note
When the user prepares a cable, do not connect to the pins that are used internally.

20
6. CC-LINK CONNECTOR
The AD-8923-CC CC-Link is a remote device station of CC-Link ver.1.10. When a CC-Link is used, the
AD-8923-CC can be controlled by the PLC remote I/O or remote registers. So, the program can be
simple. And connection to a PLC is simple, thus, a weighing system can be built easily. The setting values
of CC-Link are changed in the function setting .
6.1. CC-Link interface specifications
Number of station
1 to 64
Baud rate
156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps
Communications connector
The connector used can be attached or removed while the power is ON.
The function of each signal line is as follows.
DA
Signal DA
DB
Signal DB
DG
Signal ground
SLD
Shield
FG
Frame ground
Status LEDs
LED
ON
OFF
Blinking
RUN Normal Resetting
No signal
-
SD
Transmitting
-
-
RD
Receiving
-
-
ERR
Setting error
CRC error
Station trouble
Normal When the setting values
are changed
CC-Link connector and LEDs
