ABC Hobby GOOSE User manual

Instruction Manual
Study the instructions thoroughly
before assembly.
・REAR 2 WHEEL DRIVE
・REAR MOUNTED MOTOR
・BELT DRIVE
・DOUBLE DECK CHASSIS
・BALL DIFFERENTIAL
・FULL ADJUSTABLE SUSPENSION
・WHEEL BASE：210mm
・BODY WIDTH：157mm-163mm
・ROAD CLEARANCE：4-10mm
ABC HOBBY ORIGINAL RADIO CONTROL CAR
New Generation Rear Wheel Drive

DIFFERENTIAL
DIFFERENTIAL
+ Philip Driver
+ Philip Driver
Allen Wrench
Allen Wrench
**Don’t tighten too much it
Turn Diff Joint
Cup A to Right
Then, Diff Joint
Cup B turns to
the left.
Repeat 1-2-3 so that
demister moves
smoothly.
- Flat Driver
- Flat Driver
- Flat Driver
- Flat Driver
Ball Stud 4mm
Ball Stud 4mm
Ball Stud 4mm
Ball Stud 4mm
Ball Stud 4mm
Ball Stud 4mm
Steering Shaft
Steering Shaft
Steering Shaft
Steering Shaft
RIGHT
RIGHT
LEFT
LEFT
Steering
Steering
Wiper
Wiper
Right
Right
Steering Wiper
Steering Wiper
Left
Left
!! Direction !!
!! Direction !!
Steering Pipe
Steering Pipe
Steering Post
Steering Post
Fit Hex Shape
Fit Hex Shape
Steering Arm
Steering Arm
Steering Nut
Steering Nut
Steering Bridge
Steering Bridge
Steering Shaft Spacer
Steering Shaft Spacer
Plastic Bearing 3x6F
Plastic Bearing 3x6F
↓
凸
①
②③
④
Nylon Nut
Nylon Nut
Cap Screw
Cap Screw
Thrust Washer
Thrust Washer
Thrust Ball
Thrust Ball
850 Bearing
850 Bearing
1510 Bearing
1510 Bearing
Diff Ball
Diff Ball
Diff Ring
Diff Ring
Diff Spring
Diff Spring
Diff Joint Ring
Diff Joint Ring
850 Bearing
850 Bearing
Diff Joint Cup A
Diff Joint Cup A
Diff Ring
Diff Ring
Diff Ball
Diff Ball
Ball Diff Pulley
Ball Diff Pulley
(35)
(35)
850 Bearing
850 Bearing
Diff Ring
Diff Ring
Diff Joint Cup B
Diff Joint Cup B
Nylon Nut
Nylon Nut
Diff Spring
Diff Spring
Thrust Washer
Thrust Washer
Thrust Ball
Thrust Ball
Thrust Washer
Thrust Washer
Cap Screw
Cap Screw
Diff Pulley Flange
Diff Pulley Flange
1510 Bearing
1510 Bearing
Diff Joint Ring
Diff Joint Ring
Pulley Tensioner
Pulley Tensioner
Hold Pulley.
HOLD A and B, then turn
the diff gear.The gear
must not turn easily
When Put Diff Joint
Ring, Use Pliers.
STEERING COMPONENT
STEERING COMPONENT
3mm E Clip
3mm E Clip
3mm E Clip
3mm E Clip
Nylon Nut (2.5mm)
Nylon Nut (2.5mm)
Nylon Nut (2.5mm)
Nylon Nut (2.5mm)
Nylon Nut (3mm)
Nylon Nut (3mm)
Nylon Nut (3mm)
Nylon Nut (3mm)
Nut (3mm)
Nut (3mm)
Plastic
Plastic
Bearing 4x8
Bearing 4x8
Plastic Bearing 4x8
Plastic Bearing 4x8
Nut (3mm)
Nut (3mm)
Don't over tighten the nylon
Nuts. Rack must move
smoothly without bind.
Smooth
Smooth
1

Steering Wiper
Left
5.5mm 5.5mm
STEERING / ROWER ARM
STEERING / ROWER ARM
3x8mm Button
3x8mm Button
Head Screw
Head Screw
3x8mm Button Head Screw
3x8mm Button Head Screw
Steering Unit
Steering Unit
Suspension
Suspension
Arm Holder B
Arm Holder B
Suspension
Suspension
Arm Holder A
Arm Holder A
Mail Chassis
Mail Chassis
3X10mm
3X10mm
Flat Head Screw
Flat Head Screw
3X10mm
3X10mm
Flat Head Screw
Flat Head Screw
3X10mm
3X10mm
Flat Head Screw
Flat Head Screw
3X10mm
3X10mm
Flat Head Screw
Flat Head Screw
Suspension
Suspension
Arm Holder A
Arm Holder A
Suspension
Suspension
Arm Holder D
Arm Holder D
4mm Ball Stud
4mm Ball Stud
Lower Suspension Arm (Front)
Lower Suspension Arm (Front)
STR Lower Suspension Arm (Rear)
STR Lower Suspension Arm (Rear)
Bumper
Bumper
Lower Suspension Arm
Lower Suspension Arm
STR Lower Suspension Arm
STR Lower Suspension Arm
Sus. Arm Pin Ball
Sus. Arm Pin Ball
Sus. Arm Pin Ball
Sus. Arm Pin Ball
Sus. Arm Pin Ball
Sus. Arm Pin Ball
4mm Ball Stud
4mm Ball Stud
4mm Ball Stud
4mm Ball Stud
STR Ball Stud Base
STR Ball Stud Base
Sus. Arm Pin Ball
Sus. Arm Pin Ball
Hex Cap Screw
Hex Cap Screw
Hex Cap Screw
Hex Cap Screw
Skid Plate
Skid Plate
Skid Plate
Skid Plate
*You can adjust suspension feeling by
*You can adjust suspension feeling by
Skid Plate. You got more effect at
Skid Plate. You got more effect at
bumpy surface such a parking lot.
bumpy surface such a parking lot.
3X10mm
3X10mm
Flat Head Screw
Flat Head Screw
Hex Cap Screw
Hex Cap Screw
4mm Ball Stud
4mm Ball Stud
Lower Arm Shaft
Lower Arm Shaft
Lower Arm Shaft
Lower Arm Shaft
Lower Arm Shaft
Lower Arm Shaft
**All Suspension Arms
must move smoothly
without slack.
4mm Ball Stud
4mm Ball Stud
Smooth
Smooth
Smooth
Smooth
Smooth
Smooth
Smooth
Smooth
2

STR Upper Suspension Arm
Only for Genetic
Check this deference
*Do not use for Goose.
For Goose / Genetic
Center Gear Spacer 5x8x1.6
Center Gear Spacer 5x8x1.6
Center Gear Spacer 5x8x2.3 Center Gear Spacer 5x8x2.3
Center Gear Spacer 5x8x5.7
Center Gear Spacer 5x8x5.7
Pulley Mount
Center Pulley Flange
Center Pulley 17T
MF105 Bearing
Center Gear Shaft

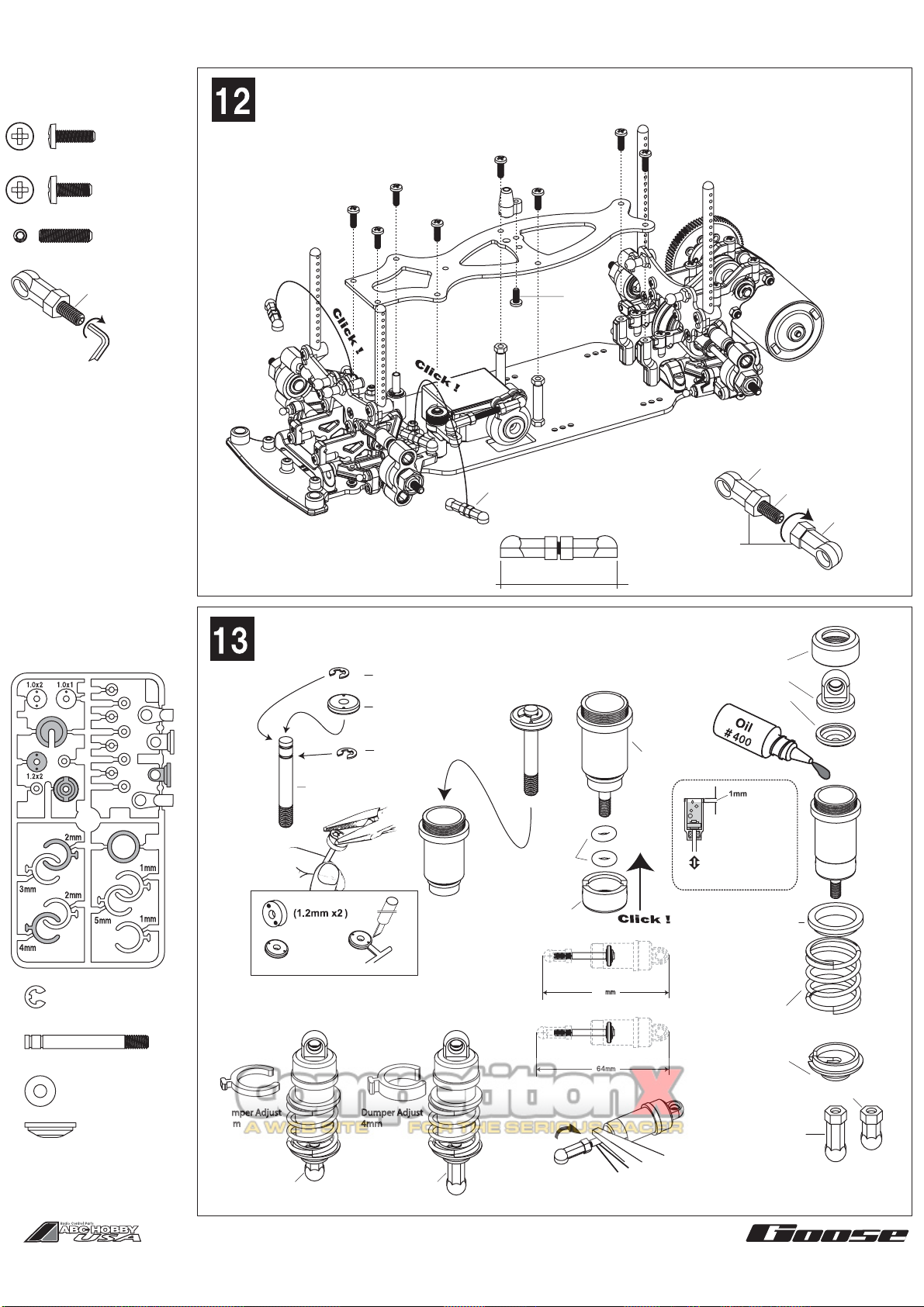

BULKHEAD / SHOCK TOWER
BULKHEAD / SHOCK TOWER
2.6X5mm Binding Screw
2.6X5mm Binding Screw
2.6X5mm Binding Screw
2.6X5mm Binding Screw
3x10mm
3x10mm
Binding Scre
Binding Scre
w
3x8mm
3x8mm
Binding Screw
Binding Screw
3X8mm
3X8mm
Flat Head Screw
Flat Head Screw
3X8mm Flat Head Screw
3X8mm Flat Head Screw
3x3mm Set Screw
3x3mm Set Screw
(For Anti-Roll Bar)
(For Anti-Roll Bar)
3x3mm Set Screw
3x3mm Set Screw
(For Anti-Roll Bar)
(For Anti-Roll Bar)
Ball Stud 6mm
Ball Stud 6mm
Ball Stud 5.8x11mm
Ball Stud 5.8x11mm
Ball Stud 5.8x11mm
Ball Stud 5.8x11mm
Upper
Upper
Suspension Pin
Suspension Pin
(3mm x 24mm)
(3mm x 24mm)
Front Suspension Arm
Front Suspension Arm
2.6X5mm Binding Screw
2.6X5mm Binding Screw
Upper Suspension Pin
Upper Suspension Pin
(3mm x 24mm)
(3mm x 24mm)
Upper Suspension Holder
Upper Suspension Holder
Rear Upper Bulkead
Rear Upper Bulkead
Front Bulkhead
Front Bulkhead
Rear Shock Tower
Rear Shock Tower
3x3mm Set Screw
3x3mm Set Screw
(For Anti-Roll Bar)
(For Anti-Roll Bar)
Anti-Roll Bar Holder
Anti-Roll Bar Holder
3x8mm
3x8mm
Binding Screw
Binding Screw
3x8mm
3x8mm
Binding Screw
Binding Screw
3x8mm
3x8mm
Binding Screw
Binding Screw
3x8mm
3x8mm
Binding Screw
Binding Screw
3x8mm
3x8mm
Binding Screw
Binding Screw
Rear Shock Tower
Rear Shock Tower
Front Shock Tower
Front Shock Tower
Front Bulkhead
Front Bulkhead
Front
Front
Rear
Rear
Ball Stud 6mm
Ball Stud 6mm
Ball Stud 6mm
Ball Stud 6mm
3X8mm
3X8mm
Flat Head Screw
Flat Head Screw
3x10mm
3x10mm
Binding Scre
Binding Scre
w
Suspension Arm (Front)
Suspension Arm (Front)
Suspension Arm
Suspension Arm
(Rear)
(Rear)
3x6mm
3x6mm
Binding Screw
Binding Screw
3x6mm
3x6mm
Binding Screw
Binding Screw

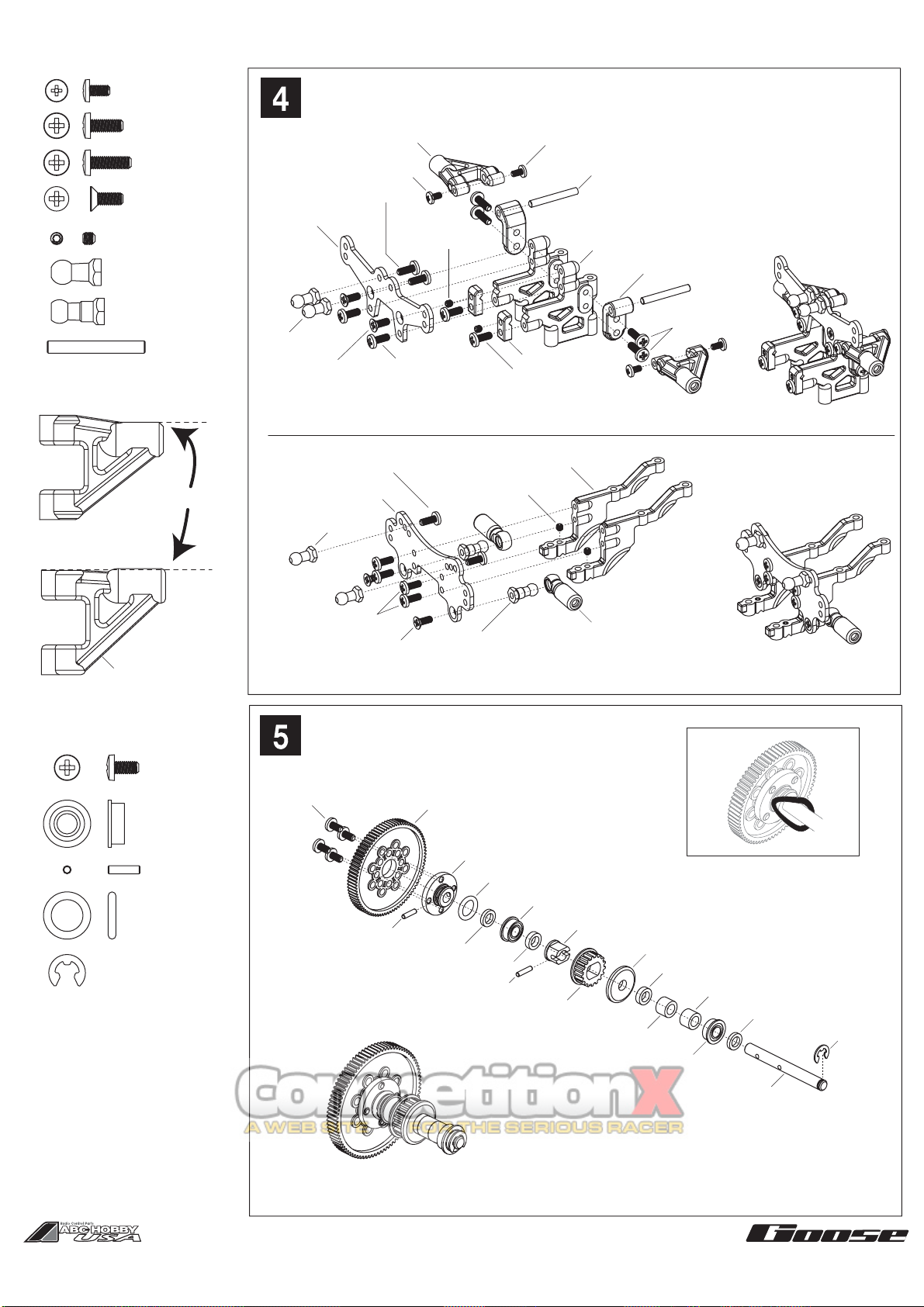

CENTER GEAR UNIT
CENTER GEAR UNIT
2X7.8mm Pin
2X7.8mm Pin
P8 O Ring
P8 O Ring
4 mm E Clip
4 mm E Clip
Spur Gear 84T
Spur Gear 84T
**Install P8 O Ring in slot of
**Install P8 O Ring in slot of
Spur Gear Holder for
Spur Gear Holder for
prevention of falling off
prevention of falling off
of
of
2X7.8mm Pin.
2X7.8mm Pin.
Spur Gear Holder
Spur Gear Holder
P8 O Ring
P8 O Ring
2X7.8mm Pin
2X7.8mm Pin
2X7.8mm Pin
2X7.8mm Pin
MF105 Bearing
MF105 Bearing
4 mm E Clip
4 mm E Clip
Center Gear Unit
Center Gear Unit
3

4 mm E Clip
3X10mm Flat Head Screw
3X10mm Flat Head Screw
Bulkhead Spacer
Bulkhead Spacer
**Through in the Drive Belt
**Through in the Drive Belt
Bulkhead
Bulkhead
Spacer
Spacer
REAR BULKHEAD
REAR BULKHEAD
3X10mm Button Head Screw
3X10mm Button Head Screw
3X10mm Button Head Screw
3X10mm Button Head Screw
3X10mm Button
3X10mm Button
Head Screw
Head Screw
Rear Shock Tower
Rear Shock Tower
Spur Gear
Spur Gear
Drive Belt
Drive Belt
Ball Diff Pulley
Ball Diff Pulley
Rear Lower Bulkhead
Rear Lower Bulkhead
3X10mm Button Head Screw
3X10mm Button Head Screw
3X40mm Flat Head Screw
3X40mm Flat Head Screw
Nylon Nut (3mm)
Nylon Nut (3mm)
3X40mm Flat Head Screw
3X40mm Flat Head Screw
Nylon Nut (3mm)
Nylon Nut (3mm)
Motor Holder
Motor Holder
Standard (Center)
Standard (Center)
Loose
Loose
Tight
Tight
Push the Drive Belt.
Push the Drive Belt.
Best Slackness is 2-3mm.
Best Slackness is 2-3mm.
If Belt tension is tight,
If Belt tension is tight,
make a drag, If loose, gear
make a drag, If loose, gear
will be skip.
will be skip.
**Use same slot for right and left.
**Use same slot for right and left.
MAIN CHASSIS
MAIN CHASSIS
Front Bulkhead
Front Bulkhead
Rear Bulkhead
Rear Bulkhead
3X10mm Flat Head Screw
3X10mm Flat Head Screw
3X10mm Flat Head Screw
3X10mm Flat Head Screw
3X10mm Flat Head Screw
3X10mm Flat Head Screw
Rear Bulkhead
Rear Bulkhead
4

Steering Ball
Steering Ball
Steering Ball
Steering Ball
Steering Ball
Steering Ball
Knuckle Arm
Knuckle Arm
Rear Upright
Rear Upright
Steering Ball Washer
Steering Ball Washer
Steering Ball Washer
Steering Ball Washer
Steering Ball Washer
Steering Ball Washer
Dog Bone
Dog Bone
Axle Shaft
Axle Shaft
7mm Ball Nut
7mm Ball Nut
1510 Bearing
1510 Bearing
1510 Bearing
1510 Bearing
1150 Bearing
1150 Bearing
1150 Bearing
1150 Bearing
Wheel Hub
Wheel Hub
Wheel Hub
Wheel Hub
2x9.8mm Pin
2x9.8mm Pin
2x9.8mm Pin
2x9.8mm Pin
Tighten 7mm Ball Nut in
Tighten 7mm Ball Nut in
4mm Allen Wrench.
4mm Allen Wrench.
Smooth
Smooth
Front
Front
Front
Front
Rear
Rear
Rear
Rear
Smooth
Smooth
Steering
Steering
Ball
Ball
Washer
Washer
**See Direction of
**See Direction of
Steering Ball Washer
Steering Ball Washer
You can adjust front
You can adjust front
tread by position of
tread by position of
Wheel Hub Spacer.
Wheel Hub Spacer.
Flat
Flat
In Side
In Side
Out Side
Out Side
Tapered
Tapered
ASSEMBLE SUSPENSION PARTS
ASSEMBLE SUSPENSION PARTS
Tapered Spacer
Tapered Spacer
Tapered Spacer
Tapered Spacer
Tapered Spacer
Tapered Spacer
Aluminum Spacer
Aluminum Spacer
Aluminum Spacer
Aluminum Spacer
Aluminum Spacer
Aluminum Spacer
3X10mm Button
3X10mm Button
Head Screw
Head Screw
3X10mm Button
3X10mm Button
Head Screw
Head Screw
Fit Dog bone in the slit of Diff
Fit Dog bone in the slit of Diff
joint before tighten Steering
joint before tighten Steering
ball in 2.5mm Allen Wrench..
ball in 2.5mm Allen Wrench..
Tapered
Tapered
Flat
Flat
2mm
STR Upright Pin
(3mmx20mm)
KNUCKLE ARM/REAR UPRIGHT
KNUCKLE ARM/REAR UPRIGHT
7mm Ball Nut
7mm Ball Nut
7mm Ball Nut
7mm Ball Nut
1510 Bearing
1510 Bearing
Front Axle Shaft
Front Axle Shaft
Axle Spacer
Axle Spacer
1150 Bearing
1150 Bearing
1150 Bearing
1150 Bearing
Wheel Hub
Wheel Hub
Wheel Hub Spacer
Wheel Hub Spacer
2x9.8mm Pin
2x9.8mm Pin
2x9.8mm Pin
2x9.8mm Pin
Wheel Hub Spacer
Wheel Hub Spacer
4mm Ball Stud
4mm Ball Stud
Front
Front
Body Post Short
Body Post Short
Body Post Long
Body Post Long
Rear
Rear
3x3mm Set Screw
3x3mm Set Screw
Tapered Spacer
Tapered Spacer
Tapered Spacer
Tapered Spacer
3x3mm Set Screw
3x3mm Set Screw
4mm Ball Stud
4mm Ball Stud
Tighten Steering Ball in 2.5mm Allen Wrench.
Tighten Steering Ball in 2.5mm Allen Wrench.
**Do not too much tight.
**Do not too much tight.
5

3x8mm Button
3x8mm Button
Head Screw
Head Screw
3x8mm Button
3x8mm Button
Head Screw
Head Screw
3x30mm Set Screw
3x30mm Set Screw
3x30mm Set Screw
3x30mm Set Screw
1.5mm Hex Wrench
1.5mm Hex Wrench
Change direction
Change direction
for
for
adjustingangleofthe
adjustingangleofthe
servohorn.
servohorn.
Use this part that
Use this part that
fit for each servo.
fit for each servo.
Use the screw that
comes with Servo.
Servo Rod : 49mm
Servo Rod : 49mm
Ball End Long
Ball End Long
Ball End Long
Ball End Long
Keep symmetrical,
Keep symmetrical,
Right and Left.
Right and Left.
3x30mm Set Screw
3x30mm Set Screw
12
12
When the Power is on, the Servo
Horn should be in the neutral
position as shown in the picture.
90
Change direction
Change direction
foradjusting
foradjusting
angleoftheservohorn.
angleoftheservohorn.
3X6mm
3X6mm
Hex Cap Screw
Hex Cap Screw
3X6mm
3X6mm
Hex Cap Screw
Hex Cap Screw
3x3mm Set Screw
3x3mm Set Screw
3x3mm Set Screw
3x3mm Set Screw
Deck Pillar
Deck Pillar
540 Size Motor
540 Size Motor
Pinion Gear
Pinion Gear
1.5mm Hex Wrench
1.5mm Hex Wrench
SERVO SAVER
SERVO SAVER
4mm Ball Stud
4mm Ball Stud
Servo Mount
Servo Mount
Servo Saver
Servo Saver
Steering Servo
Steering Servo
3mm Washer
3mm Washer
3mm Washer
3mm Washer
4mm Ball Stud
4mm Ball Stud
4mm Ball Stud
4mm Ball Stud
Futaba
Futaba
TAMIYA
TAMIYA
Airtronics
Airtronics
KO
KO
JR
JR
Mini-Servo
Mini-Servo
INSTALLATION SERVO AND MOTOR
INSTALLATIONSERVOANDMOTOR
3x10mm Flat
3x10mm Flat
Head Screw
Head Screw
3x10mm Flat
3x10mm Flat
Head Screw
Head Screw
Adjust the position of the pinion
gear to put the centers of two
gears together. Then fix it with a
set screw.
3X6mm
3X6mm
Hex Cap Screw
Hex Cap Screw
Copy Paper
Copy Paper
To get a perfect gear mesh, place a
piece of paper between the gears
and tighten the motor mount
screws. Adjust motor position for
smooth gear mesh.
6

UPPER DECK
UPPER DECK
SHOCK ABSORBER
SHOCK ABSORBER
2.0mm E-Clip
2.0mm E-Clip
Shock shaft
Shock shaft
Shock shaft
Shock shaft
P3 O Ring
P3 O Ring
P3 O Ring
P3 O Ring
Shock Shield
Shock Shield
2.0mm E-Clip
2.0mm E-Clip
2.0mm E-Clip
2.0mm E-Clip
Dumper Piston
Dumper Piston
(1.2 x 2)
(1.2 x 2)
Shock Cap A
Shock Cap A
Dumper Top
Dumper Top
Shock Shield
Shock Shield
Shock Body
Shock Body
Shock Cap B
Shock Cap B
Fill Shock Oil,when
piston is bottom.
Move the Shock Shaft
up and down slowly to
remove all air bubbles.
Attach Shock Cap A,
when Piston is top.
**Use Hobby Knife
**Use Hobby Knife
Spring Stopper A
Spring Stopper A
Spring Stopper B
Spring Stopper B
Dumper Spring
Dumper Spring
Use masking tape to protect Shock Shaft.
Use masking tape to protect Shock Shaft.
Screw Ball End all of the way onto the Shock Shaft.
Screw Ball End all of the way onto the Shock Shaft.
61
3x8mm
3x8mm
Button Head
Button Head
Screw
Screw
3x10mm Button
3x10mm Button
Head Screw
Head Screw
3x8mm Button
3x8mm Button
Head Screw
Head Screw
3x10mm Button
3x10mm Button
Head Screw
Head Screw
3x10mm Button
3x10mm Button
Head Screw
Head Screw
3x12 Set Screw
3x12 Set Screw
3x12 Set Screw
3x12 Set Screw
1.5mm Hex Wrench
1.5mm Hex Wrench
Steering Tie Rod
Steering Tie Rod
Steering Tie Rod : 28mm
Steering Tie Rod : 28mm
(Make 2 sets)
(Make 2 sets)
Steering Tie Rod
Steering Tie Rod
3x12 Set Screw
3x12 Set Screw
Keep symmetrical,
Keep symmetrical,
Right and Left.
Right and Left.
Ball End Short
Ball End Short
Ball End Short
Ball End Short
Ball End Long for Rear
Ball End Long for Rear
Ball End Short for Front
Ball End Short for Front
Front
Front
Dumper Adjust
Dumper Adjust
2mm
2mm
Ball End Short
Ball End Short
Rear
Rear
Dumper Adjust
Dumper Adjust
4mm
4mm
Ball End Long
Ball End Long
Maximum Length for Front
Maximum Length for Front
Maximum Length for Rear
Maximum Length for Rear
7

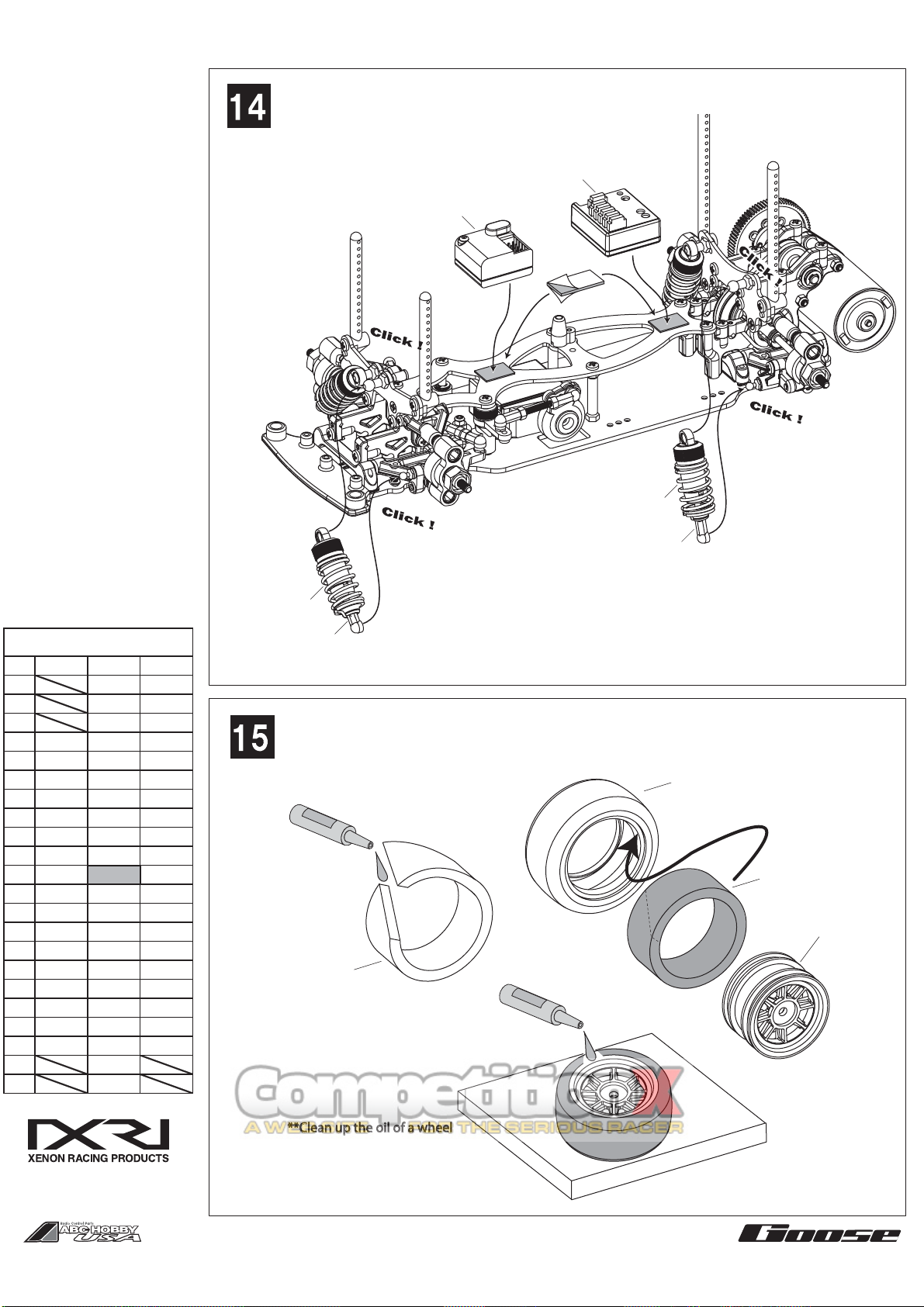

TIRES & WHEELS
TIRES & WHEELS
Foam Insert
Foam Insert
Foam Insert
Foam Insert
Rubber Cement
Rubber Cement
Wheel
Wheel
Tire
Tire
Quick Cement
Quick Cement
**Clean up the oil of a wheel
**Clean up the oil of a wheel
and the tire with a cleaner
and the tire with a cleaner
before gluing tires and wheels.
before gluing tires and wheels.
Spur Gear made by XENON
Spur Gear made by XENON
Gear Ratio
Gear Ratio
(48 Pitch)
(48 Pitch)
81T 84T 87T
22 7.861 8.142
23 7.519 7.788
24 7.206 7.463
25 6.671 6.918 7.165
26 6.414 6.652 6.889
27 6.176 6.405 6.634
28 5.956 6.176 6.397
29 5.751 5.963 6.176
30 5.559 5.765 5.971
31 5.38 5.579 5.778
32 5.211 5.404 5.597
33 5.053 5.241 5.428
34 4.905 5.087 5.268
35 4.765 4.941 5.118
36 4.632 4.804 4.975
37 4.507 4.674 4.841
38 4.389 4.551 4.714
39 4.276 4.434 4.593
40 4.169 4.324 4.478
41 4.067 4.218 4.369
42 4.118
43 4.022
Ball End Short
Ball End Short
Front Shock
Front Shock
SHOCK / RC ELECTRONICS
SHOCK / RC ELECTRONICS
Rear Shock
Rear Shock
Ball End Long
Ball End Long
Receiver
Receiver
Speed Contoroller
Speed Contoroller
Double Tape
Double Tape
8

Body Clip
Body Clip
Body Clip
Body Clip
Body
Body
Body Clip
Body Clip
WHEEL NUT 4mm
WHEEL NUT 4mm
3mm Washer
3mm Washer
**Insert Between Main Chassis and
**Insert Between Main Chassis and
Battery Tray
Battery Tray
3mm Washer
3mm Washer
3mm Washer
3mm Washer
**Adjust Washers by Battery Size
**Adjust Washers by Battery Size
Battery
Battery
7.4V Lipo
7.4V Lipo
7.2V Ni-cd Ni-MH
7.2V Ni-cd Ni-MH
6.6V Li-fe
6.6V Li-fe
3mm Washer
3mm Washer
ANTENNA / BODY
ANTENNA / BODY
Antenna Cap
Antenna Cap
Knife Edge Reamer (#69006)
Knife Edge Reamer (#69006)
or
or
Lexan Hole Punch 7mm (#69002)
Lexan Hole Punch 7mm (#69002)
Antenna Cap
Antenna Cap
Antenna Pipe
Antenna Pipe
Body Post on Front Bumper.
Body Post on Front Bumper.
You can choose from 2 Front
You can choose from 2 Front
Body Post Locations.
Body Post Locations.
TIRES/BATTERY
TIRES/BATTERY
3x10mm Flat
3x10mm Flat
Head Screw
Head Screw
Nylon Nut (3mm)
Nylon Nut (3mm)
Nylon Nut (3mm)
Nylon Nut (3mm)
WHEEL NUT 4mm
WHEEL NUT 4mm
Sub-C Cells
Sub-C Cells
(Seperate
(Seperate
Type)
Type)
Straping Tape
Straping Tape
Battery Tary
Battery Tary
Battery Gate
Battery Gate
3x10mm Flat
3x10mm Flat
Head Screw
Head Screw
3x10mm Flat Head Screw
3x10mm Flat Head Screw
Body Clip
Body Clip
Battery Holder
Battery Holder
3x10mm Flat Head Screw
3x10mm Flat Head Screw
9

Front Toe
Front Toe
Ackermann
Ackermann
Rear Toe
Rear Toe
Front
Front
Droop 3mm
Droop 3mm
Ride Height 5mm
Ride Height 5mm
Rear
Rear
Droop 3mm
Droop 3mm
Ride Height 7mm
Ride Height 7mm
Camber
Camber
Front
Front
Rear
Rear
‑1‑10 0
Toe In 1
Toe In 1
Toe In 3
Toe In 3
You can choose 2 deferent Ackermann setting by
You can choose 2 deferent Ackermann setting by
changing Ball Stud location on Steering Bridge.
changing Ball Stud location on Steering Bridge.
Weight Balance
Weight Balance
You can choose 3 deferent position on Battery Tray.
You can choose 3 deferent position on Battery Tray.
230g Battery on mid position is Standard waight
230g Battery on mid position is Standard waight
Balance Setting.
Balance Setting.
4mm Ball Stud
4mm Ball Stud
Standard
Standard
More Steer on out
More Steer on out
side tire.
side tire.
4mm Ball Stud
4mm Ball Stud
Middle
Middle
Position of
Position of
Battery Tray
Battery Tray
(Standard)
(Standard)
BASIC SETTING
BASIC SETTING
Ride Height /
Ride Height /
Droop
Droop
10

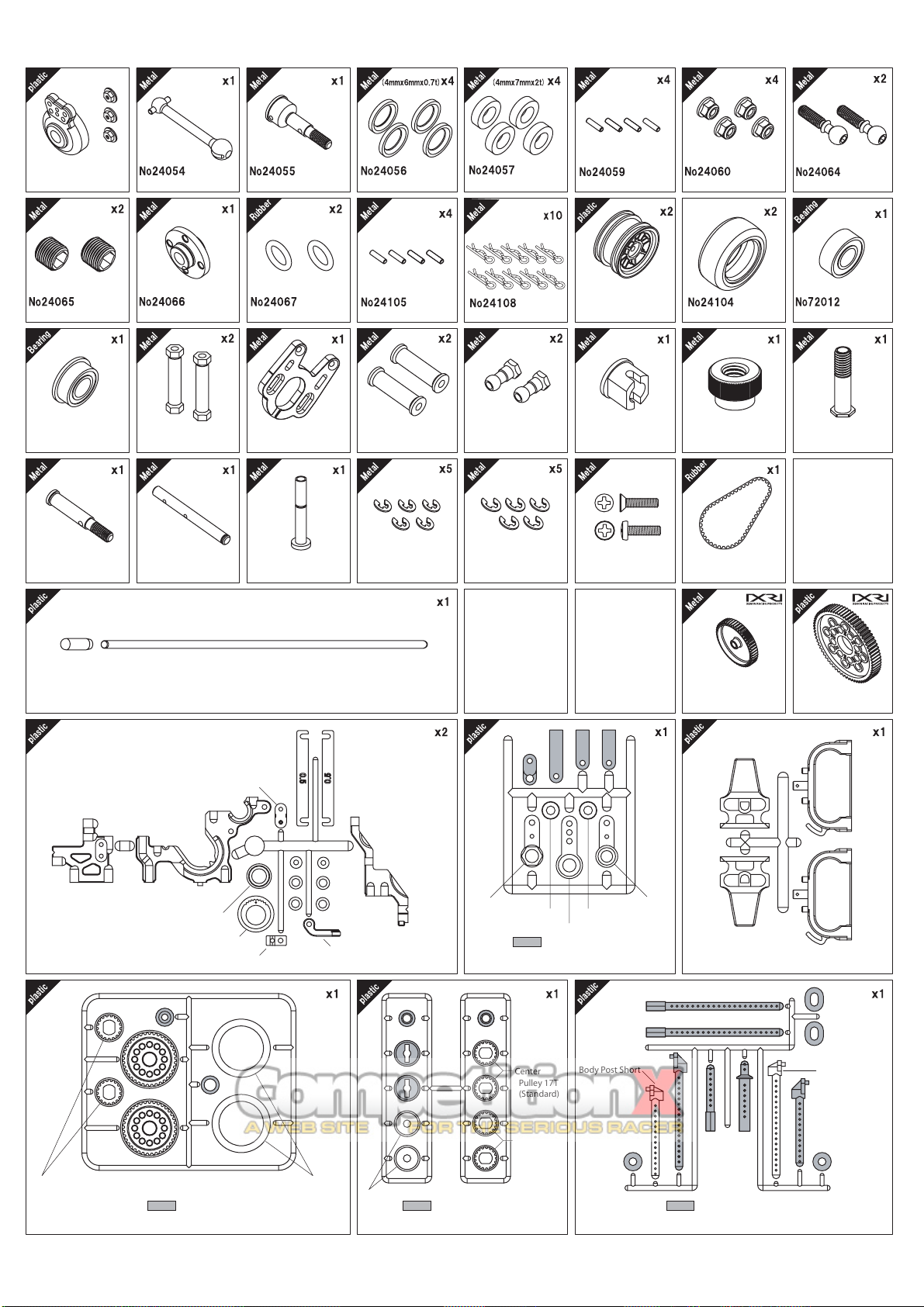

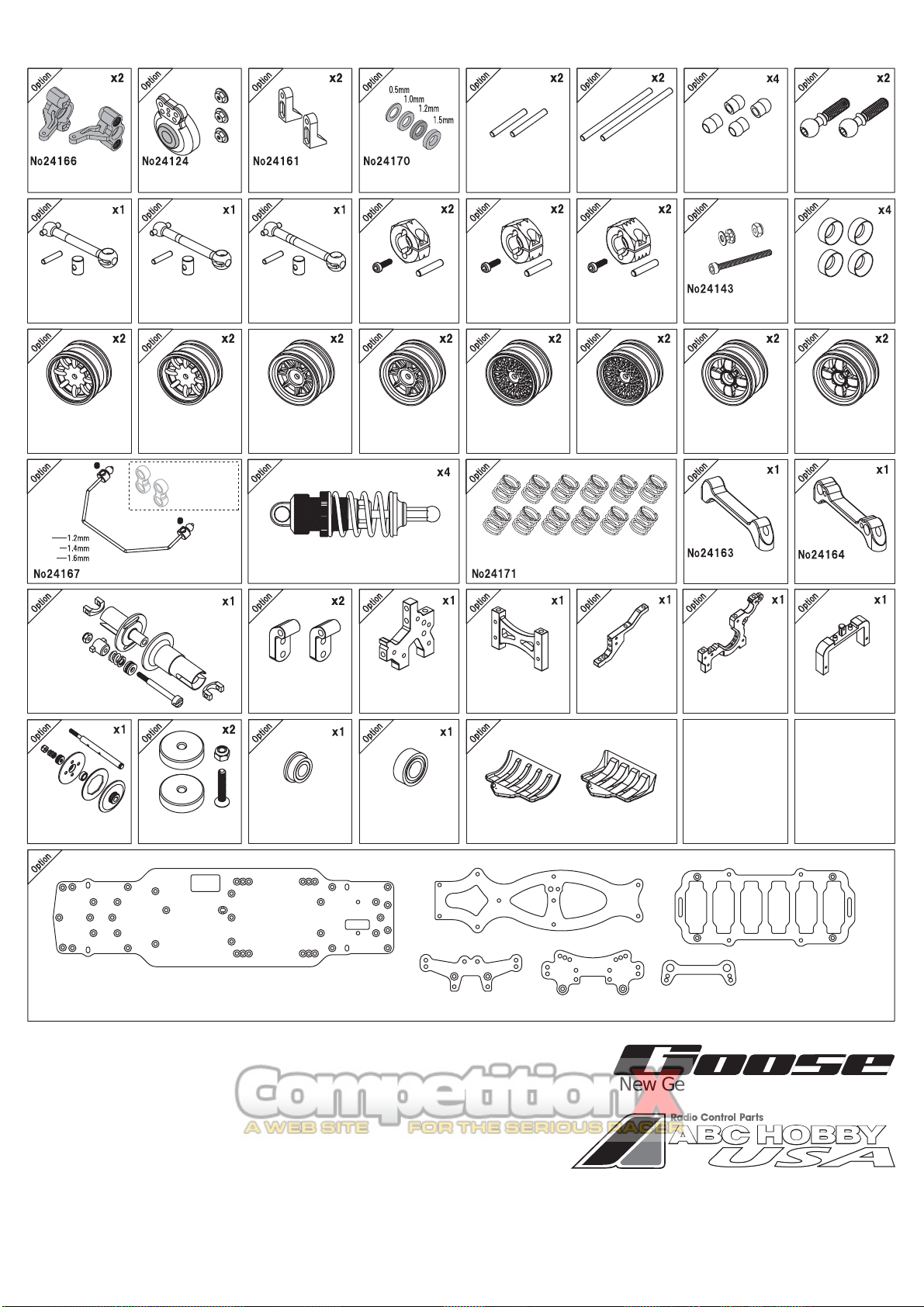

SHOCK PARTS
SHOCK PARTS
BALLCUP
BALLCUP
SHOCK BODY
SHOCK BODY
BUMPER/ BODY MOUNT
BUMPER/ BODY MOUNT
STEERING/ARM HOLDER
STEERING/ARM HOLDER
UPPERARM/ HOLDER
UPPERARM/ HOLDER
Front Shock Tower
Front Shock Tower
DIFF JOINT CUP
DIFF JOINT CUP
1/8" BALL
1/8" BALL
DIFF D CUT RING
DIFF D CUT RING
DIFF SCREW / NUT
DIFF SCREW / NUT
DIFF SPRING
DIFF SPRING
DIFF THRUST
DIFF THRUST
BEARING
BEARING
Ball Bearing 850
Ball Bearing 850
BALL BEARING 1510
BALL BEARING 1510
SHIM
SHIM
DIFF OUT RING
DIFF OUT RING
SHOCK BALL
SHOCK BALL
E-RING 2.0mm
E-RING 2.0mm
Damper Spring
Damper Spring
(Goose Kit Standard)
(Goose Kit Standard)
STEERING ROD
STEERING ROD
SHOCK SHIELD
SHOCK SHIELD
SHOCK SHAFT
SHOCK SHAFT
SHOCK CAP
SHOCK CAP
4MM BALL STUD
4MM BALL STUD
O-RING P3
O-RING P3
Body Post
Body Post
Battery Holder A
Battery Holder A
Anti-Roll Bar Link
Anti-Roll Bar Link
Battery Holder B
Antenna Mount
AntennaMount
Bumper
Bumper
Sus Arm Pin Ball
Sus Arm Pin Ball
Use Anti-Roll Bar Link with #24167
Use Anti-Roll Bar Link with #24167
Servo Mount
Servo Mount
Wheel Hub
Wheel Hub
Arm Holder A
Arm Holder A
Knuckle Arm
Knuckle Arm
Knuckle Arm
Knuckle Arm
Lower Sus Arm
Lower Sus Arm
Lower Sus Arm
Lower Sus Arm
Steering
Steering
Ball Washer
Ball Washer
Steering
Steering
Ball Washer
Ball Washer
1 Set
1 Set
Diff Joint A
Diff Joint A
Diff Joint B
Diff Joint B
Long
Long
Short
Short
Genetic専用
リアアッパーサスアーム
No24173
No25123
No25124
No25120
No25121 No25122
No25125
※ Do not use this part. Rear Sus.Arm / Knuckle set for STR System
Rear Sus.Arm / Knuckle set for STR System
LOWERARM/ KNUCKLE
LOWERARM/ KNUCKLE
Steering Bridge
Steering Bridge
Goose Main Chassis
Goose Main Chassis
LOWERARM PIN
LOWERARM PIN
UPPERARM PIN
UPPERARM PIN
Goose Top Deck
Goose Top Deck
Goose Battery Tray
Goose Battery Tray
Rear Shock Tower
Rear Shock Tower
Arm Holder B
Arm Holder B
Arm Holder D
Arm Holder D
Rear Upright
Rear Upright
Steering Ball Washer
Steering Ball Washer
Rear Lower Sus Arm
Rear Lower Sus Arm
Rear Upper Sus Arm
Rear Upper Sus Arm
Front Upper Arm
Front Upper Arm
※ Do not use this part. ※ Do not use this part.
※ Do not use this part.

1 Set
1 Set
With Insert Foam
With Insert Foam
1 Set
1 Set
No72011
No25107 No25108 No25109 No25110 No25111 No25112
No25100 No25101 No25102 No25103 No25104 No25105 No25106
No24190
No24052
No24070
No25114 No25115
No25117 No25118 No25119
No25116
No25113
①
③
⑤
②
④
⑥
①F63 Plastic Bearing
②Steering Shaft Spacer
③Wheel Hub Spacer
④Center Gear Spacer 5x8x1.6
⑤Center Gear Spacer 5x8x5.7
⑥Center Gear Spacer 5x8x2.3
84 Plastic Bearing
Battery Holder A
Battery Holder B
84 Plastic Bearing
MG SERVO SAVER
MG SERVO SAVER
DOG BONE
DOG BONE
AXLE SHAFT
AXLE SHAFT
4X6X0.7T RING
4X6X0.7T RING
STEERING 7mm RING
STEERING 7mm RING
2X9.8mm PIN
2X9.8mm PIN
WHEEL NUT 4mm
WHEEL NUT 4mm
STEERING BIG BALL
STEERING BIG BALL
STEERING 7mm NUT
STEERING 7mm NUT
GEAR HOLDER
GEAR HOLDER
O-RING P8
O-RING P8
2X7.8mm PIN
2X7.8mm PIN
BODY CLIP
BODY CLIP
TTR Wheel,
TTR Wheel,
HS-White
HS-White
TTR N RACING TIRE
TTR N RACING TIRE
Ball Bearing 1150
Ball Bearing 1150
MF105 Bearing Deck Pillar
Deck Pillar
Motor Holder
Motor Holder
Bulkhead Spacer
Bulkhead Spacer
Ball Stud
Ball Stud
5.8mm x 11mm
5.8mm x 11mm
Pulley Mount
Pulley Mount
Steering Wiper Nut
Steering Wiper Nut
Steering Pipe
Steering Pipe
Goose
Goose


FrontAxle Shaft
FrontAxle Shaft
ANTENNATUBE
ANTENNATUBE
Goose Bulkhead
Goose Bulkhead
Goose Steering Unit
Goose Steering Unit
Goose Straight Battery Holder
Goose Straight Battery Holder
Goose Body Post
Goose Body Post
Goose Small Pulley
Goose Small Pulley
Goose Diff Pulley
Goose Diff Pulley
Center Gear Shaft
Center Gear Shaft
Steering Post
Steering Post
E-Ring 3.0mm
E-Ring 3.0mm
E-Ring 4.0mm
E-Ring 4.0mm
Goose Screw Set
Goose Screw Set
Drive Belt
Drive Belt
No25113
Pinion Gear 32T
Pinion Gear 32T
No25113
Spur Gear 84T
Spur Gear 84T
※ Do not use this part. ※ Do not use this part.※ Do not use this part.
※ Do not use this part.
STR Ball Stud Base
Skid Plate
Rear Upper Bulkhead
Rear Lower Bulkhead
Upper Suspension Holder
Anti-Roll Bar Holder
Belt Tensioner
Axle Spacer
Front Bulkhead
Steering Wiper Right
Steering Arm
Steering Wiper Left
Diff Pulley Franege
Center Pulley Franege
Center Pulley 15T
Diff Pulley 35T
Body Post Short Body Post Long
Center
Pulley 17T
(Standard)

No24100
No25150
No25151
No24151
No24146 No24155 No24156 No24157
Standard +2mm +4mm
No24147 No24148
No24152 No24169
No72003
For Steering Bridge For Right Steering Wiper
No72004
No24168
No24145
No24118 No24128 No24190 No24191 No24193 No24194 No24195 No24196
KNUCKLE /
KNUCKLE /
REINFORCED
REINFORCED
HEAVY DUTY
HEAVY DUTY
SERVO SAVER
SERVO SAVER
ALUM. SERVO
ALUM. SERVO
MOUNT
MOUNT
ADJUSTABLE
ADJUSTABLE
SPACER SET
SPACER SET
Heavy Duty
Heavy Duty
Sus.Arm Pin S
Sus.Arm Pin S
Heavy Duty
Heavy Duty
Sus.Arm Pin L
Sus.Arm Pin L
Metal Sus.Arm
Metal Sus.Arm
Pin Ball
Pin Ball
STEERING BIG
STEERING BIG
BALL/ LONG
BALL/ LONG
REINFORCEDALUM.
REINFORCEDALUM.
DOG BONE S (32.5mm)
DOG BONE S (32.5mm)
REINFORCEDALUM.
REINFORCEDALUM.
DOG BONE M (34.5mm)
DOG BONE M (34.5mm)
REINFORCEDALUM.
REINFORCEDALUM.
DOG BONE L (36.5mm)
DOG BONE L (36.5mm)
ALUM. HUB 5mm
ALUM. HUB 5mm
ALUM. HUB 6mm
ALUM. HUB 6mm
ALUM. HUB 7mm
ALUM. HUB 7mm
UPGRADE DIFF
UPGRADE DIFF
SCREW/NUT
SCREW/NUT
Teflon Steering
Teflon Steering
Ball Washer
Ball Washer
RIMS/ BLACK,
RIMS/ BLACK,
REINFORCED
REINFORCED
ANTI ROLL BAR SET
ANTI ROLL BAR SET
ALUM. DIFF JOINT
ALUM. DIFF JOINT
SLIPPER CLUTCH
SLIPPER CLUTCH
CARBON CHASSIS SET
CARBON CHASSIS SET
Extra Weight
Extra Weight
Ball Bearing 3x6F
Ball Bearing 3x6F
2 Types in Set
2 Types in Set
GOOSE MOTOR GUARD
GOOSE MOTOR GUARD
Skid Type
Skid Type
Diffuser Type
Diffuser Type
Ball Bearing 4x8
Ball Bearing 4x8
ALUM. UPPER
ALUM. UPPER
SUS-HOLDER
SUS-HOLDER
ALUM. FRONT
ALUM. FRONT
BULKHEAD
BULKHEAD
ALUM. CENTER
ALUM. CENTER
BULKHEAD
BULKHEAD
ALUM. REAR
ALUM. REAR
UPPER BULKHEAD
UPPER BULKHEAD
ALUM. REAR
ALUM. REAR
LOWER BULKHEAD
LOWER BULKHEAD
ALUM. BATTERY
ALUM. BATTERY
GATE
GATE
AccuracyAluminum Dumper
AccuracyAluminum Dumper
SHOCK SPRING SET
SHOCK SPRING SET
ALUM.ARM
ALUM.ARM
HOLDERA
HOLDERA
ALUM.ARM
ALUM.ARM
HOLDER B
HOLDER B
RIMS/ WHITE,
RIMS/ WHITE,
REINFORCED
REINFORCED
TTR Wheel,
TTR Wheel,
HS, White
HS, White
TTR Wheel,
TTR Wheel,
HS, Black
HS, Black
TTR Wheel,
TTR Wheel,
S-Mesh, White
S-Mesh, White
TTR Wheel,
TTR Wheel,
S-Mesh, Black
S-Mesh, Black
TTR Wheel,
TTR Wheel,
BRE, White
BRE, White
TTR Wheel,
TTR Wheel,
BRE, Black
BRE, Black
(4 in Set)
(4 in Set)
Use Anti-Roll
Use Anti-Roll
Bar Link from
Bar Link from
#24023
#24023
(Include Kit)
(Include Kit)
Yellow
Yellow
White
White
Blue
Blue
(Goose Kit Stock)
(Goose Kit Stock)
You can use
You can use
front or rear.
front or rear.
Blue Red Copper Purple Yellow
6 Pair Springs in Set
6 Pair Springs in Set
White
(10g x 2)
(10g x 2)
NewGeneration2WeheelDrive
www.abchobbyusa.com
[email protected]
