ABC Hobby Grid User manual

・FRONT WHEEL DRIVE
・NEW STYLE STRUT SUSPENSION
・BATHTUB CHASSIS
・4 BEVEL GEAR DIFFERENTIAL
・FULL ADJUSTABLE SUSPENSION
・UNIVERSAL JOINT
・WHEEL BASE：210mm
・BODY WIDTH：157mm-163mm
Instruction Manual
Study the instructions thoroughly
before assembly.
ABC HOBBY ORIGINAL RADIO CONTROL CAR

2
1KN
䎃
18T Bevel Gear 10T Bevel Gear
Bevel
Cross Pin
5 x 0.3 mm Spacer
3.5 x 0.2 mm spacer
M4 O-ring
2.0 x 9 mm Pin
3 x 4 mm
Button Screw
3 x 8 mm
Button Screw
Counter Gear Shaft
1.6 x 0.8 mm Pin
20T Counter Gear
(48 Pitch)
25T Counter Gear
(48 Pitch)
1.6 x 0.8 mm Pin
Spur Gear Shaft
850 Bearing
3 x 8 mm Flat Head
Screw
Upper Mount Holder
Steering Holder
Diff Outer Joint
2.0 x 9 mm Pin
2 x 8 mm Tapping Screw
Diff Cover
Diff Rubber Pad
2.0 x 9 mm Pin
M4 O Ring
5 x 0.3 mm Spacer
3.5 x 0.2 mm
spacer
M4 O Ring
850 Bearing
850 Bearing
Bevel Cross Pin
Counter Gear Shaft
Diff Gear Box A
Diff Gear Box B
48T Diff Gear
3 x 8 mm Button Screw
Make sure that the gears are
in the right drive orientation.
Make sure that the gears are
in the right drive orientation.
10T Bevel Gear 18T Bevel Gear
2 x 8 mm
Tapping
Screw
Diff Cover
Diff
Rubber Pad
48T
Diff Gear
Tighten the screw equally
Counter Gear Shaft
1.6 x 0.8 mm Pin
20T Counter Gear
3 x 4 mm Button Screw
Diff Gear Box A
1510 Bearing
1510 Bearing
3 x 8 mm
Button Screw
Upper
Mount
Holder
3 x 8 mm
Button Screw
Motor Plate Holder
850
Bearing
850
Bearing
50T/25T
Spur Gear
3 x 4 mm
Button
Screw
25T
Counter Gear
1.6 x 0.8 mm Pin
Spur Gear Shaft
3 x 8 mm Flat
Head Screw
AL Motor Plate A
AL Motor Plate B
AL Motor Plate A
Upper
Mount
Holder
Upper
Mount
Holder 3 x 8 mm
Button Screw
3 x 8 mm
Button Screw
3 x 8 mm
Button Screw
Steering Holder
3 x 8 mm
Button Screw





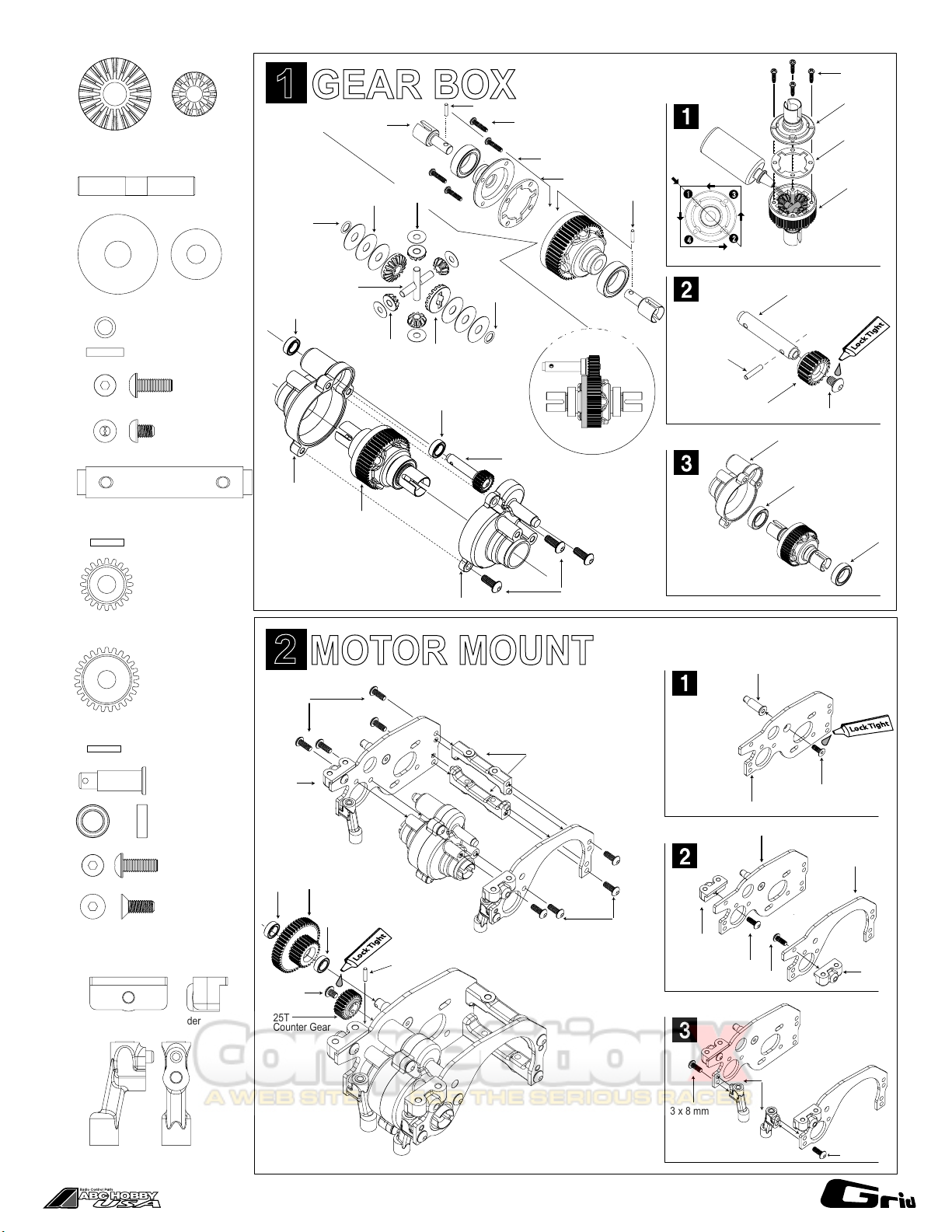

GEAR BOX
1
2
MOTOR MOUNT

3
䎃䎃䎃
䎕䎘䎷䎒䎕䎘䎷䎃䎕䎓䎷䎒䎖䎓䎷
䎕䎔 䎘䎑䎚䎔䎗 䎛䎑䎘䎚䎔
䎕䎕 䎘䎑䎗䎘䎗 䎛䎑䎔䎛䎔
䎕䎖 䎘䎑䎕䎔䎚 䎚䎑䎛䎕䎙
䎕䎗 䎘䎑䎓䎓䎓䎃 䎚䎑䎘䎓䎓
䎕䎘 䎗䎑䎛䎓䎓䎃 䎚䎑䎕䎓䎓
䎕䎙 䎗䎑䎙䎔䎘 䎙䎑䎜䎕䎖
䎕䎚 䎗䎑䎗䎗䎗 䎙䎑䎙䎙䎙
䎕䎛 䎗䎑䎕䎛䎘 䎙䎑䎗䎕䎛
䎕䎜 䎗䎑䎔䎖䎚 䎙䎑䎕䎓䎙
䎖䎓 䎗䎑䎓䎓䎓 䎙䎑䎓䎓䎓
䎖䎔 䎖䎑䎛䎚䎓 䎘䎑䎛䎓䎙


䎥
䎤䎻䎧 䎦䎻䎩 䎨䰉䫹䎪䏈䏄䏕䎃䎵䏄䏗䏌䏒
䎘䎓䎷
䎕䎕䎷 䎻䎕䎘䎷 䎕䎘䎷 䎻䎗䎛䎷 䎕䎓䎷 䰉䫹䎘䎑䎗䎘䎗䎃䎝䎃䎔
䎥
%
䎧
䎨
䎩
4.8 mm Ball Stud
Steering Support
S
m
o
o
t
h
!
!
S
m
o
o
t
h
!
!
S
m
o
o
t
h
!
!
50T/25T Spur Gear
Steering
Crank B Steering
Crank A
Gear Ratio 48 Pitch
Steering Support
Steering
Crank B
Steering
Crank A
3 x 8 mm
Button Screw
3 x 8 mm
Button
Screw
3 x 6 mm
Plastic Spacer
4.8 mm
Ball Stud
Calculation of Gear ratio
Kit Standard
Steering Unit must move smoothly
Steering components
should be free of bind.
50T/25T Spur Gear
25T Counter Gear
20T Counter Gear
22T Pinion Gear
䎤
50T/25T
Spur Gear
48T Diff Gear
3 x 12 mm
Button Screw
3 x 6 mm
Plastic Spacer
3 x 6 mm
Plastic
Spacer
4.8 mm Ball Stud
4 mm King Pin
2.0 x 9 mm Pin
1050 Bearing
Steering Ball
Rear Axle
Ball Stopper
3 x 8 mm
Button Screw
3 x 5 x 0.5 t Washer
3 x 5 x 0.5 t Washer
2 mm Hex Wrench
Wheel Hub
1050 Bearing
1050 Bearing
1050 Bearing
1050 Bearing
1050 Bearing
2.0 x 9 mm Pin
2.0 x 9 mm Pin
2.0 x 9 mm Pin
2.0 x 9 mm Pin
Wheel
Hub
Wheel
Hub
Rear Axle
Universal Joint
REAR
FRONT
Universal Joint must move smoothly
Steering Ball
must move
smoothly
4 mm King Pin
3 x 5 x 0.5 t Washer
4 mm
King Pin
Ball Stopper
Steering Ball
3 x 8 mm
Button
Screw
3 x 8
mm
Button
Screw
Ball Stud 4.8 mm
Insert a kingpin
along the angle
of Knuckle Hole
1050 Bearing
1050 Bearing
Wheel
Hub
3
STEERING UNIT
4
HUB CARRIER

4
䎕䎑䎚䏐䏐
䎧䏒䏗
䎩䏕䏒䏑䏗
Plastic Washer
Sus Arm Pin Sus Arm Holder A
Sus Arm Holder B
Sus Arm Holder B
Sus Arm Holder A
3 x 8 mm
Flat Head Screw
3 x 8 mm
Flat Head Screw
3 x 8 mm
Flat Head
Screw
3 x 8 mm
Button Screw
Sus Arm Holder A
Sus Arm Holder A
Sus Arm Holder A
Sus Arm Holder B
Sus Arm
Holder B
Sus Arm Holder B
4.8 mm Ball Stud
3 x 8 mm
Button Screw
3 x 12 mm
Button Screw
3 x 8 mm
Flat Head Screw
3 x 12 mm
Flat Head Screw
3 x 12 mm
Flat Head Screw
3 x 8 mm
Flat Head Screw
3 x 8 mm
Flat Head Screw
3 x 8 mm
Button
Screw
3 x 12
mm
Button
Screw
Ball Stud 4.8 mm
Back Side
Assemble the right and left arms carefully,
remembering the right and left orientation.
3 x 8 mm
Button
Screw
Front
Right
Front
Left
Rear
Right
Rear
Left
Sus Arm Pin
Sus Arm Pin
䎩䏕䏒䏑䏗
1 mm
Plastic
Washer
1 mm
Plastic
Washer
1 mm
Plastic
Washer
1 mm
Plastic Washer
FRONT SECTION
REAR SECTION
Upper Deck Rear
Bulk
Unit
Rear Bulk Unit
Bumper
Rear
Bulk
Support
Rear Bulk
Rear Bulk Support
3 x 8 mm
Button Screw

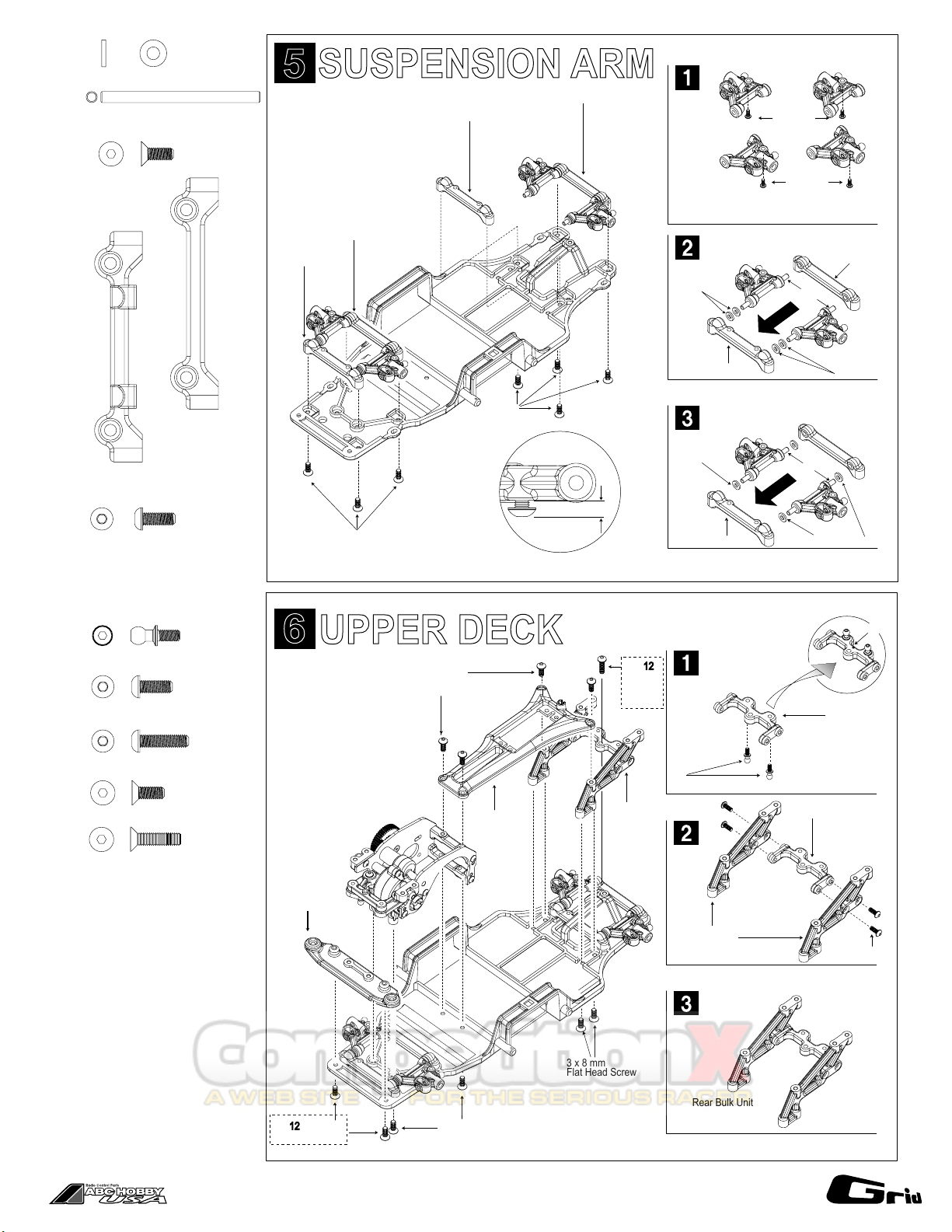

6
UPPER DECK
5
SUSPENSION ARM

5
䎔䎕䏐䏐 䎙䏐䏐
ѳOO
ᵢ
ᶓ
ᶋ
ᶎ
ᶇ
ᶌ
ᶅ
ẅ
ᵥ
ᶐ
ᶃ
ᵿ
ᶑ
ᶃ
䎃
䎃
䎑䮰䮀䮚䮀䎃䎃
Front
Rear
3 x 8 mm Button Screw
3 x 12 mm
Button Screw
2.6 mm x 8 mm
Flat Head Screw
4.8 mm Aluminum Ball
Front Upper Mount Rear Upper Mount
King Pin Ball
King Pin Ball
Front Upper Mount
3 x 8 mm
Button Screw
4.8 mm Aluminum Ball
2.6 mm x 8 mm
Flat Head Screw
3 x 12 mm Button Screw
Steering Rod
Steering
Crank C
3 x 6 mm
Plastic Spacer
S
m
o
o
t
h
!
!
Dumper Sleeve 1/2 Scale
Dumper Remover
Front Piston Rear Piston
Friction Dumper
4.8 mm Ball Stud
3 mm Silicon O-ring
7.0mm
Box Driver
4.8 mm Ball Stud
Friction Dumper Piston
Front Rear
3 mm
Silicon
O-ring
Friction
Dumper
Sleeve
2.6 mm x 10 mm
Capped Screw
No.16862 Fine Fix Wrench
7.0mm Box Driver
(Not included in this kit)
Friction Dumper Piston Friction Dumper Piston
Friction Dumper Sleeve
7.0mm
Box Driver
Click !
Click !
Attach an O-ring to Ball Stud.
After having attached Ball Stud,
attach a damper piston to the
upper mount from bottom.
Because the materials of the
upper mount are stiff, you can
put it on easily when you use
7.0mmBox Driver.
Apply damper grease to a piston.
8
FRICTION DUMPER
7
UPPER MOUNT
Front
Rear

6
䟙䎔䎑䎓䏐䏐
䟙䎔䎑䎘䏐䏐
Rear
Front Rear
Front
2.5mm Hex Wrench
2.5mm Hex Wrench
3 x 8 mm Button Screw
3 x 8 mm
Button Screw
3 x 8 mm
Button Screw
3 x 8 mm
Button Screw
Body Mount A
Body Mount C
Body Mount B
Body Mount A
Body Mount C
Body Mount B
Body Mount B
Extension Plate
Front
Rear
Front
Rear
When you use TAMIYA
body, use Body Mount B in
the Front, in combination
with extension plate and
Body Mount A in the rear.
After chassis completion,
adjust it again.
䎩䏕䏒䏑䏗

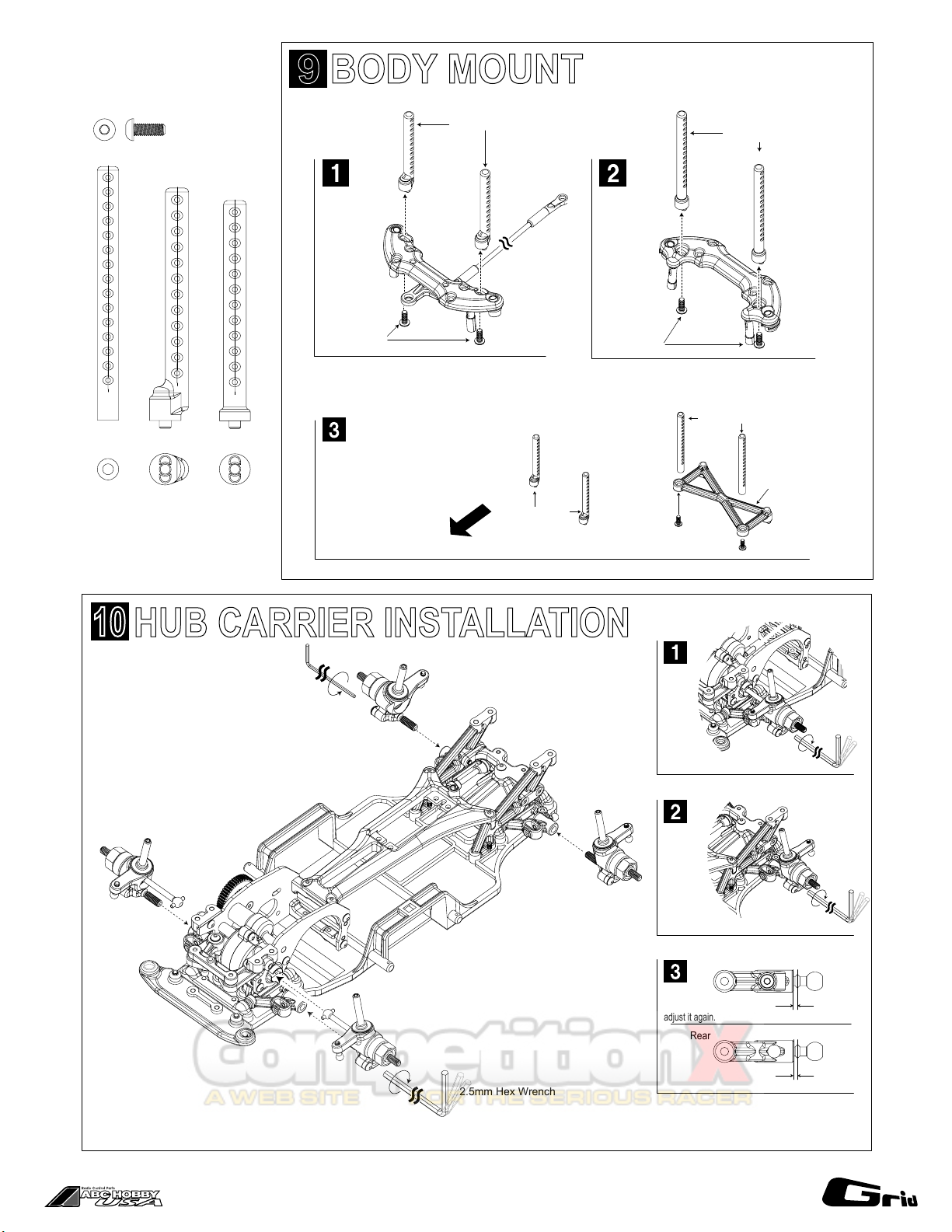

10
HUB CARRIER INSTALLATION
9
BODY MOUNT

7
䎃䎃䎃
䎃䎃䎃
䎃䎃䎃
䎃
Choose the Saver
Serration much
with your servo.
Saver Serration
Use the screw from your servo.
Saver Serration
Servo Horn
Servo Horn
Saver Spring
(Gold)
X 2
Saver Spring
(Silver)
4.8 mm Ball Stud
3 mm Nut
Saver Cap
Saver
Spring
(Silver)
Saver
Spring
(Gold)
90 Degrees
3 mm Nut
4.8 mm Ball Stud
Transmitter
Antenna Wire
Receiver
Switch
Steering Servo Speed Controller
Connect
to Motor
Connector
Battery
Steering Reverse Switch
All electronics stuffs are not included in this kit.
The position of the
reverse switch
varies according to
a transmitter.
**When the power is ON, the servo horn should
be in the neutral position as shown in the picture.
Set the reverse
switch of the
transmitter so that servo
Horn moves in the direction
of the arrow when you operated
a steering to the right.
2
3
RADIO SYSTEM
3 x 8 mm
Button Screw
2523
12
UPPER MOUNT INSTALLATION
Sandwich all springs between
knuckle and kingpin balls.
Insert the dumper piston
with grease applied on
each dumper sleeve.
3 x 8 mm Button Screw
3 x 8 mm
Button Screw
Battery Cover
Tie Rod
Tie Rod
Tie Rod
Battery Cover
Cable Cramp
Click !
Click !
Click !
Click !
11

8
䎜䎓䏲 q䎜䎓䏲䎜䎓䏲
540 Size
Motor
Remove Spur Gear
and bearings.
Attach a motor with 3X6mm Button Screw.
Attach a counter gear, after put on a pinion gear.
After then, attach gear cover with body clip.
To get a perfect gear mesh, place a piece of paper
between the gears and tighten the motor mount
screws. Adjust motor position for smooth gear mesh.
Copy Paper
3 x 6 mm
Button Screw
3 x 6 mm Washer / Silver
22T Pinion Gear
(48 Pitch)
3 x 3 Set Screw
3 x 6 mm
Button Screw
3 x 6 mm Button Screw
22T Pinion Gear
(48 Pitch)
3 x 3 Set Screw
3 x 8 mm
Button Screw
3 x 7 mm Washer / Black
3 x 7 mm Washer / Black
3 x 8 mm Button Screw
Servo Holder
Servo Holder
Servo Holder
Steering L Crank
Steering Rod End
Click !
**When the power is ON, the servo horn should
be in the neutral position as shown in the picture.
STEERING LINKAGE
MOTOR INSTALLATION
14
13

4 mm Wheel Nut
3 x 8 mm
Button Screw
3 x 8 mm
Button Screw
Receiver
Speed Controller
Double Sided Tape
Double
Sided
Tape
Body Mount A Body Mount CBody Mount B
Body
Mount A
Foam Bumper
Cable Cramp
Wheel
Tire
Foam
Insert
Foam Insert
**Wipe an adhesion side with alcohol etc.
CA Cement
Body Clip
Body Clip
4 mm Wheel Nut
Knife Edge Reamer
#69006
(Not included in this kit)
Cut
Cut
Complete !
Rubber
Cement
15 ELECTRONICS INSTALLATION
BODY INSTALLATION
16
Body Clip
9

10
䎎䯹䎎
䯹
䎎䯹䎎
䯹
䮱䮗䭭䮺䮐䬾࿑䬽䭗䬕䬺䮳䮺䮈䬶䎖䏛䎛䏐䏐䮚䮀䬽
㐳䬤䭡િ䬿䬦䬮䭙❗䭐䬮䭙䬦䬵⺞ᢛ䬦䬵䬞䬯䬤䬓䫻
Front Toe Toe Out 1
Rear Toe Toe In 1
Toe Out Toe In
Ride Height /
Droop
Camber
Droop 2mm
Ride Height 5mm
Droop 3mm
Ride Height 5mm
Front
Front
Rear
Rear Negative 1Negative 1
Negative Camber Positive CamberPositive Camber Negative Camber 00
Negative Camber Positive CamberPositive Camber Negative Camber 00
0 0
Camber
Ride Height
Droop
Forward Forward
Toe In :
Movement at the steering operation becomes calm.
Toe Out :
Movement at the steering operation becomes quick.
Toe In :
Increase >> Stability improves.
Decrease >> Rear slide becomes early.
Toe Out :
You must not make the rear toe-out.
Adjust the length of the steering
ball of the lower knuckle, then
Change a camber.
Adjust the length of the steering
ball of the lower knuckle, then
Change a camber.
Attache washer for change ride-height
Turn the 3x8mm screw, them change droop.
Camber : Adjust a traction in the roll.
Increase Negative Camber >> Traction feeling improves. (The excessive negative loses traction, and a tire is worn.)
Positive Camber >> Don`t make this setting by On-road car.
Ride Height :
A horizontal state is a neutral characteristic.
Nose Down >> Movement at the steering operation becomes quick.
Tail Down >> Rear slide becomes early.
Droop :
Adjust a traction in the roll.
Decrease Front Droop >> Movement at the steering operation
becomes quick.
Decrease Rear Droop >> Rear slide becomes early.
17
BASIC SETTING

11
‴⁗⁓⁤⁛⁠⁙
‿⁗󱀇⁓⁞
‴⁗⁓⁤⁛⁠⁙
‴⁗⁓⁤⁛⁠⁙
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞ ‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞ ‿⁗󱀇⁓⁞ ‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞ ‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
‿⁗󱀇⁓⁞
⁄󱀈⁔⁔⁗⁤
⁄󱀈⁔⁔⁗⁤
⁄󱀈⁔⁔⁗⁤
⁄󱀈⁔⁔⁗⁤
⁄󱀈⁔⁔⁗⁤
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕ ⁂⁞⁓⁥󱀇⁛⁕ ⁂⁞⁓⁥󱀇⁛⁕ ⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕ ⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕ ⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕ ⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
⁂⁞⁓⁥󱀇⁛⁕
䎱䏒䎕䎘䎙䎘䎓 䎱䏒䎕䎘䎙䎘䎔䎃 䎱䏒䎕䎘䎙䎘䎕 䎱䏒䎕䎘䎔䎙䎚䎃 䎱䏒䎕䎘䎙䎘䎖䎃 䎱䏒䎕䎘䎙䎘䎘䎃 䎱䏒䎕䎘䎙䎘䎙
䎱䏒䎕䎘䎙䎙䎔 䎱䏒䎕䎘䎙䎙䎖䎱䏒䎕䎘䎙䎘䎜
䎱䏒䎕䎘䎙䎘䎗
䎱䏒䎕䎘䎙䎘䎛䎱䏒䎕䎘䎙䎘䎚 䎱䏒䎕䎘䎙䎙䎕 䎱䏒䎕䎘䎙䎙䎗
䎱䏒䎕䎘䎙䎙䎚 䎱䏒䎕䎘䎙䎙䎛䎱䏒䎕䎘䎙䎙䎘䎃
䎱䏒䎕䎘䎙䎜䎜
䎱䏒䎕䎘䎙䎙䎓
䎱䏒䎕䎘䎙䎜䎙
䎱䏒䎕䎘䎙䎙䎜 䎱䏒䎕䎘䎙䎚䎓 䎱䏒䎕䎘䎙䎚䎔 䎱䏒䎕䎘䎙䎚䎕
䎱䏒䎕䎘䎙䎛䎔 䎱䏒䎕䎘䎙䎛䎕 䎱䏒䎕䎘䎙䎛䎖 䎱䏒䎕䎘䎙䎛䎗
䎱䏒䎕䎘䎙䎛䎓䎱䏒䎕䎘䎙䎚䎜䎱䏒䎕䎘䎙䎚䎛䎱䏒䎕䎘䎙䎚䎚䎱䏒䎕䎘䎙䎚䎙䎱䏒䎕䎘䎙䎚䎘䎱䏒䎕䎘䎙䎚䎖
䎱䏒䎕䎘䎙䎜䎗 䎱䏒䎕䎘䎙䎜䎘
⁂⁞⁓⁥󱀇⁛⁕
䎱䏒䎕䎘䎙䎛䎘
⁂⁞⁓⁥󱀇⁛⁕
䎱䏒䎕䎘䎙䎛䎙
䎱䏒䎕䎘䎙䎜䎖䎱䏒䎕䎘䎙䎜䎕
䎱䏒䎕䎘䎙䎜䎔䎱䏒䎕䎘䎙䎛䎛 䎱䏒䎕䎘䎙䎛䎜 䎱䏒䎕䎘䎙䎜䎓
䎱䏒䎕䎘䎙䎛䎚
䎱䏒䎕䎘䎚䎓䎗
䎱䏒䎕䎘䎚䎓䎘 䎱䏒䎕䎘䎚䎓䎙 䎱䏒䎕䎘䎚䎓䎚
䎱䏒䎕䎘䎚䎓䎓 䎱䏒䎕䎘䎚䎓䎔䎱䏒䎕䎘䎙䎜䎛
䎱䏒䎕䎘䎙䎙䎙
䎱䏒䎕䎘䎚䎓䎕
䎱䏒䎕䎘䎙䎚䎗
䎱䏒䎕䎘䎚䎓䎖
䎕䎘䰠
䎘䎓䰠
䎕䎘䰠
ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵒ ᶣᵒ ᶣᵖ
ᶣᵒ ᶣᵒ ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵒ ᶣᵐ ᶣᵏ
ᶣᵏ ᶣᵏ ᶣᵏ ᶣᵏ ᶣᵏ ᶣᵏ
ᶣᵐ ᶣᵐ ᶣᵐ
ᶣᵒ ᶣᵏᵎ ᶣᵏᶣᵏ
䎱䏒䎕䎘䎙䎜䎚
ᶣᵐ
ᶣᵏ ᶣᵐ ᶣᵏ ᶣᵏ ᶣᵏ ᶣᵏ ᶣᵐ
ᵪᵍᵰ ᶣᵐ ᶣᵐ ᶣᵏ
ᶣᵐ ᶣᵐ ᶣᵏ
ᶣᵏ ᶣᵏ
ᶣᵐᶣᵏ ᶣᵏ
䎗䎛䰠
䎕䎓䰠
䎥䏏䏄䏆䏎
䎤
䎥
Universal Joint Bevel Gear Set
P3 O-ring (Silicone) Bevel Cross Pin 3.5x0.2mm Spacer 3.5x0.2mm Spacer
Steering Rod
Suspension ArmPin
4.8mm Ball StudSteering Ball
Knuckle Set L/R King pin Ball
Sus Arm Holder Set Cable Cramp Suspension Sim Set Extension Plate Rear Bulk Set
Grid Main Chassis Friction Dumper Steering Crank Set Grid Sus Arm Set
Motor Mount Plastic Pats set Body Mount Set SB Racing Tires 8S Type Wheels Foam Bumper 1.0mmx5T Spring
Grid Hard Ware Set 1510 Bearing 1050 Bearing 850 Bearing
Antenna Pipe Set Wheel Nuts Body Clip Double Sided Tape Silicone Oil #5000 Dumping Grease
50T/25T Spur Gear Gear Box
Tie-RodSteering Rod End
48T Diff Gear Gear Cover
Servo Saver Upper Deck Front Upper Mount Rear Upper Mount Front Bumper Battery Cover
Spur Gear Shaft
1.6x8mm Pin 4mm King Pin Rear Axle Shaft
Counter Gear Shaft 22T Pinion GearAL Motor Plate
A/B set
1 set
2.0x9mm Pin
Diff Outer Joint
Diff gear Rubber Pad
2x8mm Tapping Screw x 4
48 Pitch Diff Gear
Counter Gear
Counter
Gear
Spur Gear
Upper Mount Holder
2.6x10mm Capped Screw x 4
3x8mm Flat Head Screw x 17
3x12mm Flat Head Screw x 2
3x4mm Button Screw x 2
3x6mm Button Screw x 2
3x8mm Button Screw x 57
3x12mm Button Screw x 4
3x7mm Washer x 4
3mm Nut x 1
2.6x10mm Flat Head Phillip Screw x 4
3x5mm 0.5t Washer x 6
Steering Unit Holder
Motor Plate Holder
4.8mm
Aluminum Ball
P4 O-ring x 2
A/B set 1 set
Rear Bulk
Rear Bulk Support
1 set
1 set
1 set 1 set
1 set
Steering Support
Steering
Crank B
Steering
Crank C
Steering
Crank A
Wheel Hub
3x6 Plastic Spacer
BodyMountA
BodyMountB
BodyMountC
A/B set
1 set 1 set

12
Dumping Grease S
ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵏ ᶣᵏ ᶣᵏ ᶣᵏ
ᶣᵒ ᶣᵒ ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵏ ᶣᵐ
ᶣᵏ ᶣᵏ ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵏ
ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵐ ᶣᵐ
ᶣᵏ ᶣᵏ ᶣᵏ
ᶣᵏ
ᶣᵐ ᶣᵐ
䎱䏒䎕䎘䎚䎙䎚 䎱䏒䎕䎘䎚䎚䎓
䎱䏒䎕䎘䎚䎙䎛
䎱䏒䎕䎘䎚䎙䎜
䎱䏒䎕䎘䎚䎘䎙䎱䏒䎕䎘䎚䎘䎓 䎱䏒䎕䎘䎚䎘䎔 䎱䏒䎕䎘䎚䎘䎕 䎱䏒䎕䎘䎚䎘䎖 䎱䏒䎕䎘䎚䎘䎗 䎱䏒䎕䎘䎚䎘䎘
䎱䏒䎕䎘䎚䎘䎛
䎱䏒䎕䎗䎔䎘䎘 䎱䏒䎕䎗䎔䎘䎙 䎱䏒䎕䎗䎔䎘䎚 䎱䏒䎕䎘䎔䎘䎔
䎱䏒䎕䎗䎔䎕䎗
䎱䏒䎕䎘䎚䎘䎜
䎱䏒䎕䎘䎚䎙䎓
䎱䏒䎕䎘䎚䎙䎔
䎱䏒䎕䎘䎚䎙䎕 䎱䏒䎕䎘䎚䎙䎖
䎱䏒䎕䎘䎚䎙䎗
䎕䎓䰠
䎘䎓䰠
䎖䎓䰠
䎱䏒䎕䎘䎚䎙䎘
䎱䏒䎕䎗䎔䎔䎛 䎱䏒䎕䎗䎔䎕䎛 䎱䏒䎕䎗䎔䎜䎖 䎱䏒䎕䎗䎔䎜䎗 䎱䏒䎕䎗䎔䎜䎘 䎱䏒䎕䎗䎔䎜䎘 䎱䏒䎕䎗䎔䎜䎓 䎱䏒䎕䎗䎔䎜䎔
䎱䏒䎕䎘䎚䎙䎙 䎱䏒䎕䎘䎚䎚䎕
䎱䏒䎕䎘䎚䎚䎔 䎱䏒䎕䎗䎔䎓䎗
䎱䏒䎕䎘䎚䎘䎚
ᶣᵐ

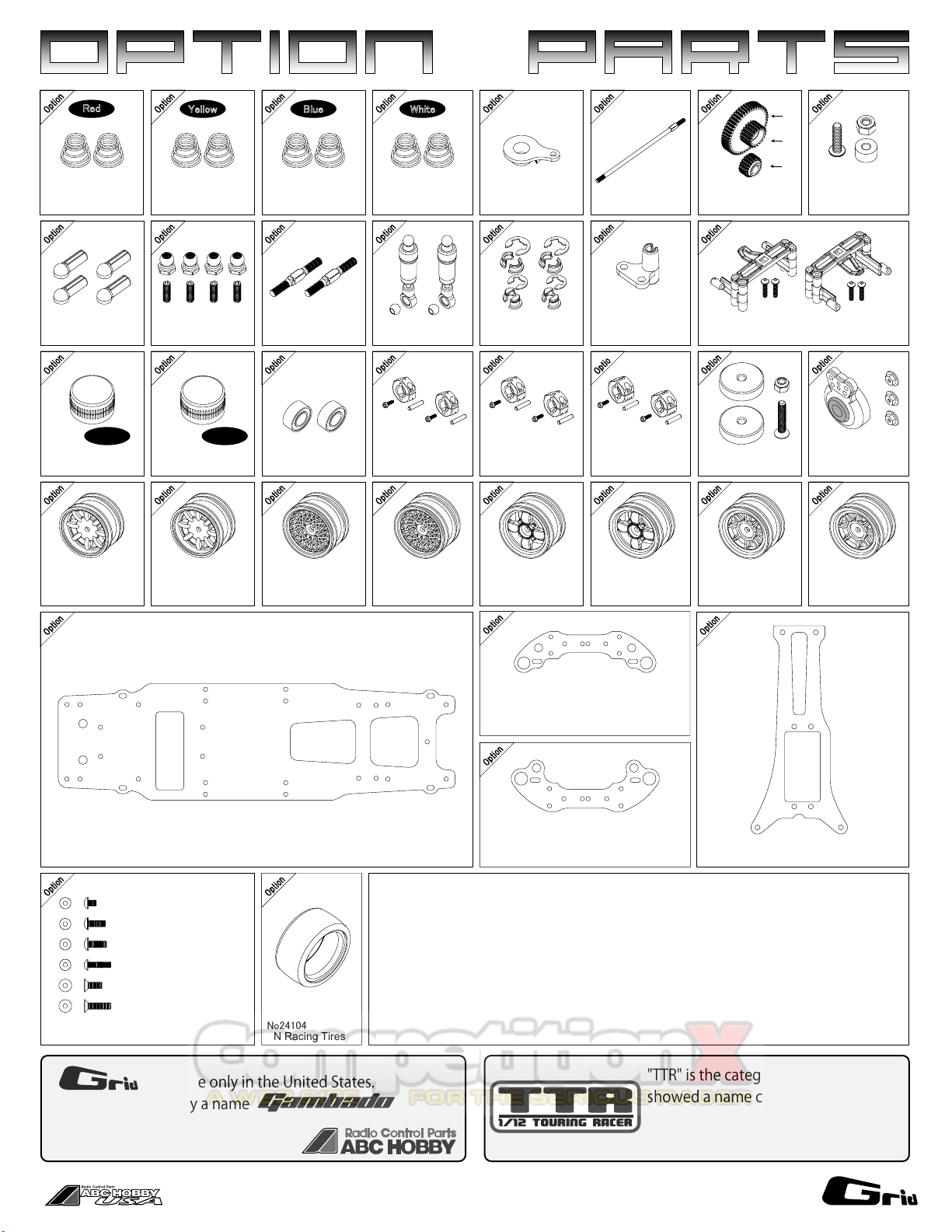

䎼䏈䏏䏏䏒䏚 䎺䏋䏌䏗䏈䎥䏏䏘䏈
䎵䏈䏇 䎥䏏䏘䏈
50/30T Spur Gear Set
Dumping Grease M 630 Bearing
1.1mmx5T Spring0.9mmx5T Spring0.8mmx5T Spring0.7mmx5T Spring AL Steering RodAL Servo Horn
Rod End
Crank Holder
(for CFRP Chassis)
King Pin Ball Holder
(for CFRP Chassis)
Antenna Holder
(for CFRP Chassis)
Heavy Duty
Servo Saver
Extra Weights
(10g x 2)
Battery Holder (for CFRP Chassis)
Titanium
3x25mm Turnbuckles
AL 4.8mm Ball Stud AL Oil Filled Dumper
AL Hub 5mm AL Hub 6mm AL Hub 7mm
TTR Wheel
Reinforced / Black
TTR Wheel
Reinforced / White
TTR Wheel
S-Mesh / White
TTR Wheel
S-Mesh / Black
TTR Wheel
BRE / White
TTR Wheel
BRE / Black
TTR Wheel
HS / White
TTR Wheel
HS / Black
Grid Carbon FRP Main Chassis **You will need #25764. Carbon FRP Rear Upper Mount Carbon FRP Upper Deck
Carbon FRP Front Upper Mount
**You will need #25762.
**You will need
#25762 and #24757.
**You will need
#25763.
N Racing TiresGrid Titanium Screw Set
3x10mm Set Screw Set
䎥䏏䏘䏈
䎰䏈䏇䏌䏘䏐 䎥䏏䏘䏈 䎶䏒䏉䏗
3x8mm Flat Head Screw x 17
3x12mm Flat Head Screw x 2
3x4mm Button Screw x 2
3x6mm Button Screw x 6
3x8mm Button Screw x 56
3x12mm Button Screw x 4
 isanameonlyintheUnitedStates.
ABCHOBBYsellsitbyaname
inJapanandtheforeigncountries.
"TTR"isthecategorynamethat
showedanamecalledconventional
"1/10Mini"byabbreviationof"Twelfth
scaleTouringRacer"clearly.
1 set
