Abilize AETHOS SLE User manual

USER MANUAL | MS01010031

P. 2
1. INTRODUCTION 3
2. IMPORTANT PRECAUTIONS 4
3. SAFETY WARNING & INSTRUCTION LABELS 5
4. IDENTIFICATION OF PARTS 6
4.1 IDENTIFICATION & OPERATION OF CONTROL PANEL 8
4.2 ADJUSTING COMPONENTS 10
5. CHARGING THE BATTERY 12
5.1 CAUTIONS FOR CHARGING 12
5.2 CHARGING 14
5.3 BATTERY GAUGE OPERATION 15
6. DISASSEMBLING YOUR SCOOTER 16
7. TROUBLESHOOTING 18
8. CAUTION 19
9. SAFETY INFOMATION ON ELECTRONIC INTERFERENCE (EMI) 20
10. CARE AND MAINTENANCE 22
11. SPECIFICATIONS 24
12. WARRANTY 25

P. 3
MS01010031
1. INTRODUCTION
Thank you and congratulations on purchasing your new Abilize Mobility Scooter.
Your scooter is designed to provide you with transportation ability, both indoors and
outdoors.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure your
complete satisfaction. We sincerely hope you enjoy your Abilize Mobility Scooter.
Please read and observe all warnings and instructions provided in the owner’s manual before
you operate the various functions of this scooter. Also, please retain this booklet for future
reference.
IF YOU HAVE ANY QUESTIONS, YOU CAN CONTACT:
CareCo (UK) Limited Tel: [phone]
1 Turing Court www.CareCo.co.uk
Great Notley
Braintree
CM77 7AT
England
INFORMATION OF EUROPEAN REPRESENTATION
EMERGO EUROPE
Prinsessegracht 20
2514 AP The Hague
The Netherlands












6 970765 971584

P. 4
2. IMPORTANT PRECAUTIONS
• Only one person at a time can ride the Scooter.
• Maximum load is 136 kg / 300 lbs pounds.
• Turn key o before getting on or o.
• Always drive carefully and be aware of others using the same area.
• Always use pedestrian crossings wherever possible. Take extreme care when crossing
roads.
• Do not drive on slope exceeding 8 degree, and take extreme care when turning on slope.
• Do not use full power when turning to sharp corner.
• Take great care and drive in low speed when backing up, riding downhill or on uneven
surface, and climbing curb.
• Please use the lowest speed when driving through a descending road or uneven terrain. If
speed is too fast, leave your hand o the handle bar, let the scooter stop. Make sure you
are safe and start again.
• The weight capacity limit can be dierent depending on ramp degree.
• A slow speed must always be used when ascending, descending or traversing a slope or
incline and also on uneven terrain, ramps and soft or loose surfaces, such as gravel or
grass.
• To prevent any danger, do not turn around at high speed while ascending or descending a
ramp.
• Scooter may not operate well in high humidity.
• Do not leave the powered scooter in a rain storm of any kind.
• Direct exposure to rain or dampness will cause the scooter to malfunction electrically and
mechanically; may cause the powered scooter to prematurely rust.
• Never put scooter in neutral when staying on slopes.
• Follow trac laws when riding outside.
• When scooter is on moving transport vehicles,
do not sit or stay on scooter.
• Your scooter is designed to support those with reduced mobility transport themselves
around both indoors & outdoors. This scooter is a Class B Scooter.

P. 5
MS01010031
3. SAFETY WARNING & INSTRUCTION LABELS
WARNING STICKER
1. Please read the instruction booklet carefully before using your scooter.
2. Do not drive the scooter on slippery surfaces or on slopes over 8 degrees limit.
3. Do not drive on a highway, crowded roads, or unfamiliar areas.
4. Do not turn at high speed in either forward or reverse.
5. Do no wash with water or leave scooter in humid environment since water can
damage the electronic parts.
INFORMATION LABEL
States the date of manufacture and serial number of the power chair.
Model Number EU Authorized representative European Conformity
Medical Device WEEE Conformity Maximum weight capacity
Serial Number Lithium battery warning UKRP
Date of Manufacture Consult Instructions for Use Warning
Manufacturer UK Conformity Assessed Importer
ARMREST ADJUSTMENT
LIMITS
BATTERY CAPACITY CHARGE
INDICATOR( 30.15AH )
WARNING LABEL KEEP
HANDS AWAY
INSTRUCTION OF BATTERY
LOCK NUT LABEL
POWER WARNING LABEL WIRING DIAGRAM LABEL
N-D LEVER ADJUSTMENT
LABEL
Instructs freewheel mode
operation.
INSTRUCTION LABEL
DISMANTLING THE FRONT
AND REAR FRAME OF
SCOOTER
1
2
3
4
5
6
7
8
9
10
1
4
10 97
58
3
2
6

P. 6
Rear Light
Reectors
Free-Wheeling Lever
Anti-Tip Wheels
4. IDENTIFICATION OF PARTS
Before attempting to drive the scooter unassisted, it is important that you familiarize yourself
with the controls and how to operate them.
Front View
Delta Handlebar
Front Basket
Tiller Angle
adjustment
LED Headlight
Front bumper
& handle
Solid Tyres
Padded Seat
Charging Sockets
Circuit Breaker
Reector
Release Lever
Seat
Rotation Lever
Flip-Up Armrests
Topper
Charging
Socket
Back View
FRONT SECTION & BASKET
14.90kgs
REAR SECTION
10.98kgs
BATTERY BOX
7kgs
SEAT
12.29kgs
Component Weights

P. 7
MS01010031
A
Before operation, please remove Lock Nut (A) and press the button of Circuit Breaker
(B) to activate the system.
MAIN KEY SWITCH (C)
Turn the key to the right to turn the scooter
on.
Turn the key to the left to turn the scooter
and LED light on.
Turn the key to the centre position to turn
the scooter o.
THROTTLE (D AND D1)
1. To move forward, pull the right side of
Throttle (D)
2. To move backwards, pull the left side of
Throttle (D1 ).
3. Release the throttle to engage automatic
brake.
(Throttle (D) and (D1) can be reversed by local
dealers if required.)
SLEEP MODE
The scooter will go into “Sleep Mode” if no throttle activity is detected for 10 minutes.
When the scooter is in “Sleep Mode”, all control panel lights will turn o and the scooter will
be inoperable.
Cycle the power to “Wake Up” the scooter.
CAUTION
• Always ensure that the scooter is powered o before getting on or o the
scooter and before removing any items from the scooter.
• Turning the scooter OFF whilst driving will bring the scooter to an abrupt stop.
• Automatic braking is applied when the throttle is released. The scooter will
continue to travel a short buer distance, so keep a safe distance when
stopping to avoid danger.
D1 D
C

P. 8
4.1 IDENTIFICATION & OPERATION OF CONTROL PANEL
PANEL BACKLIGHT ADJUSTMENT
• Turn [ON] key switch
• Press and hold both acceleration [1] & deceleration [2]
buttons, then turn [OFF] the key switch.
• Wait for 2 seconds. The setting LED will ash.
• Exit the setting mode by pressing [3] or [4].
If no key is pressed within 15 seconds, the scooter will
automatically exit the setting mode.
• Turn [OFF] Key switch
12
34
5
1. Speed Deceleration
Press to decrease speed
2. Speed Acceleration
Press to increase speed
3. Head-light / Tail-light
Switch
Press to turn on headlight
and tail light
4. Horn
Press to sound warning
tone when necessary
5. Battery Gauge / Error
Light Indicator
Showing battery status or
errors

P. 9
MS01010031
CAUTION
• Before using the scooter, set the speed to low
• Drive at a low speed when coming to a downhill slope.
HORN
Press Horn Button [4] to sound a warning tone when
necessary. The sound & light will last until the button is
released.
BATTERY / ERROR LIGHT INDICATOR
The battery light shows the battery level status (See Page 15).
If the scooter has an error, the light indicator will start to ash
(See Page 18).
SPEED CONTROL
• Press the acceleration button to increase the speed.
• Press the deceleration button to decrease the speed.
• There are 3 dierent speed settings for the scooter, 3 High
Speed > 1 Low Speed.
1
2
3
SPEED
HEAD-LIGHT / TAIL-LIGHT
• Press button [3] once to switch on the head-light and
tail - light
• Button [3] will be illuminated on the tiller panel.
• Switch o the Head-Light and Tail-Light by pressing button
[3] on the tiller panel.
The Tail-Light will always illuminate when the scooter speed is
reduced and when the brake is engaged.

P. 10
TILLER ANGLE ADJUSTMENT
• Turn Cap (E) outwards and upwards to disengage the pin.
• Simultaneously, adjust the tiller fore-and-aft to the most comfortable angle. Release Cap (E)
and ensure the pin is fully engaged to lock the tiller into position.
SEAT ROTATION ADJUSTMENT
• Lift Lever (F1) upwards to disengage the pin.
• Simultaneously, rotate Seat (F) to the most comfortable angle. To lock the seat in position,
release Lever (F1) and ensure the pin is fully engaged.
(F1)(F1)
(F)(F)
(E)(E)
CIRCUIT BREAKER
In the event that the scooter’s circuitry becomes overloaded or malfunctions, the circuit
breaker will trip and automatically cut o power to ensure user safety. To reactivate the
scooter, press button of Circuit Breaker (B).
FREE-WHEELING LEVER
The scooter can be pushed, when the Free-Wheeling Lever (G) is disengaged. To engage the
Free-Wheeling Lever (G) - Pull the free-wheeling lever upwards.
To disengage the Free-Wheeling Lever (G) - Push the free-wheeling lever downwards.
(G)(G)
BB
4.2 ADJUSTING COMPONENTS

P. 11
BASKET ASSEMBLING AND DISASSEMBLING
• Attach the Front Basket (H) to the tiller
bracket.
• Remove the Front Basket (H) and place it
aside.
H
I
ARMREST ASSEMBLING AND ANGLE
ADJUSTMENT
Adjust the armrest(s) to the most comfortable
length, then secure by attaching Knob (I).
ANGLE ADJUSTMENT
Hold the armrest and pull up latch (1)
Push downwards on the rear of the armrest (2)
Pivot the armrest backwards to adjust the
angle (3)
1
2
3
HEIGHT ADJUSTMENT
Press and hold the armrest latch (1)
Pull upwards on the armrest (2)
Release the armrest latch to secure the
position.
1
2

P. 12

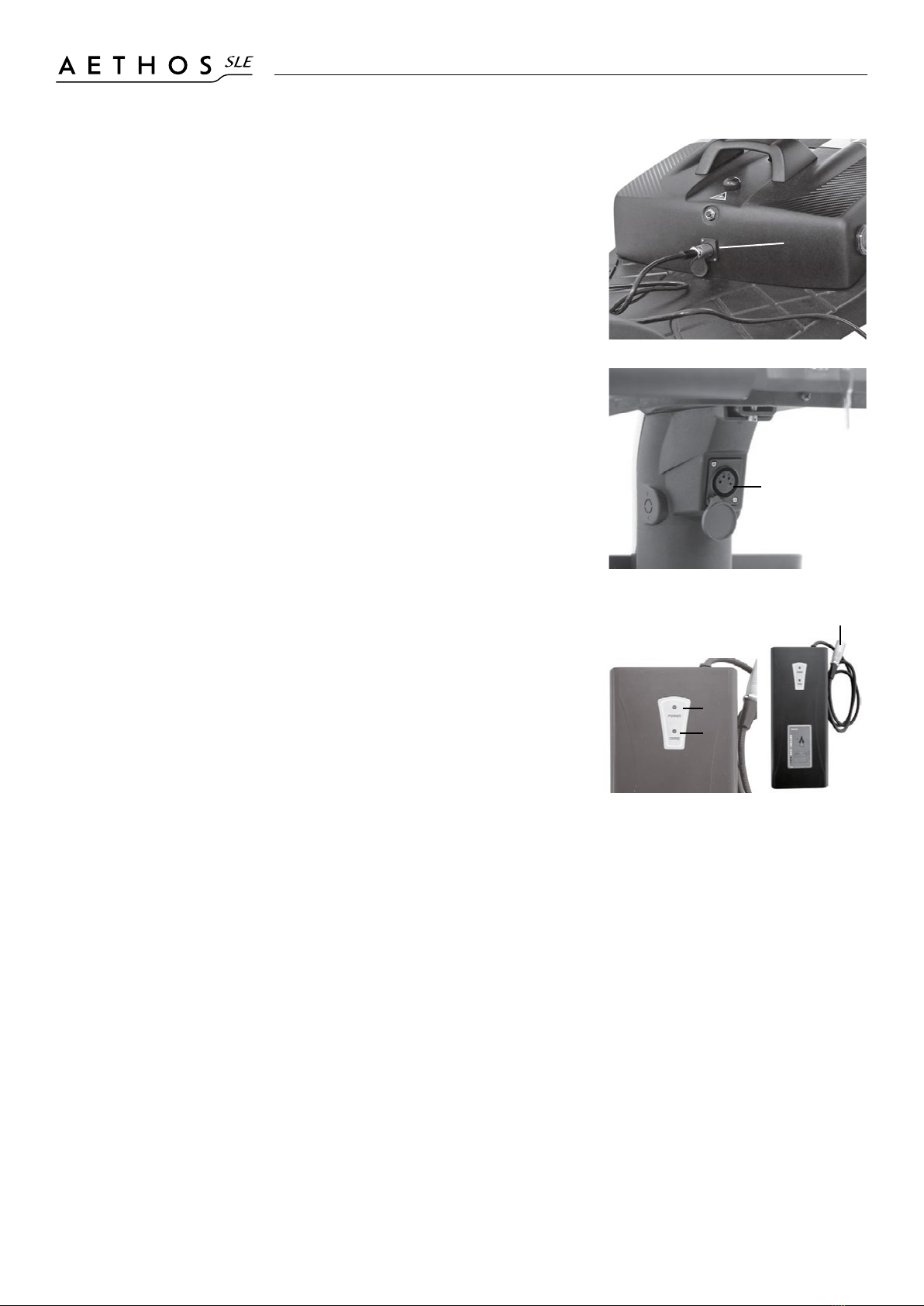

5. CHARGING THE BATTERY
5.1 CAUTIONS FOR CHARGING
• Please read this section thoroughly before charging.
• Turn o the scooter before charging and make sure the throttle lever is in the neutral
position.
• For lithium battery specications, please refer to - Product Specication.
• Do not turn o, remove, or interrupt charging until the charging cycle is complete
(Charging indicator turns green)
• Before using the scooter for the rst time, the battery must be charged.
• Fully charge the battery after daily use.
• The scooter uses a lithium battery. Recommended storage temperature range:
1 year: -20~25°C
3 months: -20~45°C
1 month: -20~60°C
• Cell operating conditions: Charge temperature: 0~45°C,
• Discharge temperature: -20~60°C. Humidity range: 0~60% RH(non-condensing)
• When storing the scooter for long periods of time (more than 3 months), fully charge the
battery and store it in a dry and well ventilated area. The battery should be charged every
3 months if being stored for more than 3 months.
SEAT HEIGHT ADJUSTMENT
• Remove the seat and remove the screw,
nut and washer from the seat post.
• Adjust the seat post to the desired height,
and secure with bolt, nut and washers.
• Reinstall the seat to its original position.
• The seat height is adjustable:
520mm / 545mm / 570mm.

P. 13
MS01010031
WARNING!
• Do not sit on or operate the scooter while it is charging.
• Store the lithium battery and charger in a dry, well-ventilated environment, away
from direct sources of heat, humidity, oil, acid, alkaline, and ozone to prevent
overheating, re, malfunctioning or shortening of lifespan.
• Do not cover the charger with any objects.
• Use the charger in a well-ventilated area. Do not smoke near the charger and
keep away from open ames as charging the battery may produce explosive
gases.
• Use only original batteries and chargers and manage the charging time correctly
to avoid damaging the battery and scooter. Do not use any other brand charger
or connect the charger to an extension cord.
• Do not disassemble the charger, battery box or sealed parts by yourself to avoid
the risk of electric shock or liquid leakage.
• Do not damage or disassemble the battery box to avoid damaging the internal
battery.
• Never short circuit the battery.
• If the lithium battery malfunctions, smells bad, heats up, discolours, or deforms,
remove the battery and contact your dealer.
• To avoid damaging the battery and internals, do not handle roughly, throw, roll,
crush, shake, apply excessive impact, or push out the battery.
• Maintenance and repairs should only be performed by qualied technicians
or authorized dealers. If you need to replace the battery, please contact your
dealer.
Your Atheos scooter is equipped with one, maintenance free 25.2V. 30.15Ah. Rechargeable
battery and one 4A charger. The battery must be charged before using the scooter for the
rst time and should be recharged after daily use. Ensure the power switch is in the OFF
position and the free-wheeling lever is not in freewheel mode.
For safety reasons IATA Packing Instructions, and IATA Provision A67 will be installed in
the scooter. If you need a new battery, contact your dealer. Only 25.2V. 30.15Ah.
Valve-regulated Lithium batteries should be used.
• Battery eciency and life depends on how the battery is used. Improper charging and
improper equipment will shorten the battery life.
• Batteries are subject to disposal and recycling regulations that vary by country and region.
Always check and follow applicable regulations before disposing of batteries.
• We strongly recommend that the user inspects the scooter battery every six months.

P. 14
5.2 CHARGING
CHARGING VIA THE BATTERY PACK CHARGING SOCKET
1. Insert the battery charger cord (B) into Charging Socket
(C) on the battery pack
2. Plug the other end of the Power Cable into a standard
electrical wall outlet.
CHARGING VIA THE TILLER CHARGING SOCKET
1. Insert the battery charger cord (B) into Charging Socket
(C1) on the tiller upper charging socket.
2. Plug the other end of the Power Cable into a standard
electrical wall outlet.
LED INDICATOR
LED (Power) - RED LIGHT ON
LED (Charging) - ORANGE LIGHT ON
LED (Fully Charged) - GREEN LIGHT ON
C
(C1)
(d)
(e)
(a)
(b)
Charge the battery until the charging indicator turns green. For optimal performance, it is
recommended to charge the battery for 24 hours initially and for 8-12 hours after each use.
After the indicator turns green, unplug the battery charger from the scooter and the wall
outlet.
If the battery charger LED ashes green for more than 40 minutes, it indicates that abnormal
charging has occurred. You should check the following:
• Is the charger plug positioned correctly?
• Is the scooter turned o?
• If none of the above apply, please contact your local authorized dealer.

P. 15
MS01010031
CAUTION:
• The time needed to recharge will vary depending on the depletion of the battery.
Charging for longer than necessary will not harm the battery. The battery cannot
be overcharged.
• Please follow the above charging instructions. After the battery is fully charged,
remove the battery charger cord from the battery and unplug the charger from
the wall outlet.
5.3 BATTERY GAUGE OPERATION
Battery Gauge Status
Fully Charged - The battery gauge is at the maximum parameter.
Normal Operation
Normal Operation
Consider charging the battery
The battery needs charging - The battery gauge is at the minimum
parameter.
Low Battery - Flashing Red - Stop in a safe place and charge the battery.
Battery Gauge
Light Indicator
The battery gauge consist of 5 dierent LEDs (1x Red, 2x Orange,
2x Green) above the horn button on the remote module.
The number of LEDs that light up depends on the state of the
battery, as shown below.

P. 16
6. DISASSEMBLING YOUR SCOOTER
CAUTION
• When lifting the battery box, please use correct lifting posture to avoid injury.
Ask for assistance if necessary.
• When inserting the battery box (K1), make sure it is connected securely to
ensure good conductivity.
BATTERY PACK DISASSEMBLING
Pull Battery Pack Handle (K1) to remove
Battery Box (K) from scooter.
SEAT DISASSEMBLING
Remove the seat by lifting Seat Rotation Lever
(F1). Then rotate Seat (F) and lift up and away
from scooter.
(F1)(F1)
(F)
1
2(K)
(K1)
FRONT AND REAR FRAME DISASSEMBLING
Hold the front & rear frame with Release Lever (L) to disassemble the front and rear frame.
(L)

P. 17
MS01010031
TILLER FOLD METHOD
Turn Cap (E) to fold down the Tiller (M) to the
lowest position as shown. When the Tiller (M)
is in the lowest position, it can be locked into
place with the tiller angle adjuster.
ASSEMBLING YOUR SCOOTER
Reassemble the scooter by reversing the above disassembly instructions.
(E)(E)
(M)(M)
DISASSEMBLING
The Scooter can be disassembled into 7 main
parts as shown below.

P. 18
7. TROUBLESHOOTING
There is a self-diagnostic warning light on the
control panel. To check the self-diagnostic
warning light, turn on the power and count
the number of times the warning light
ashes.
Self-Diagnostic
Warning Light
Normal: Solid light
Abnormal: Flashing light
FLASH DESCRIPTION MEANING
1 Low Charge The batteries are running low.
Recharge the batteries for a minimum of 12 hours .
2 Low Battery Voltage The batteries have run out of charge.
Recharge the batteries .
3 High Battery Voltage Battery voltage is too high. This may occur if overcharged &/or
traveling down a long slope.
If traveling down a slope, reduce your speed to minimize the amount of
regenerative charging.
Check the battery and associated connections and wiring.
4 Current Limit Time-Out The motor has been exceeding its maximum current rating for too
long. This may be due to a faulty motor.
Check the motor and associated connections and wiring.
Turn the controller o, leave for a few minutes and turn back on again.
5 Park Brake Fluid Either a park brake release switch is active or the park brake is
faulty.
Check the park brake and associated connections and wiring.
Ensure any associated switches are in their correct positions.
6 Throttle OONAPU The Throttle is out of neutral when turning the controller on.
Ensure the throttle is in neutral when turning the controller on.
The Throttle may require re-calibration .
7 Speed Pot Fault The throttle, speed limit pot or their associated wiring may be
faulty.
Check the throttle and speed pot and associated connections and wiring.
8 Motor Fault The motor or its associated wiring is faulty.
Check the motor and associated connections and wiring.
9 Other Error The controller may have an internal fault.
Check all connections & wiring .

P. 19
MS01010031
Further issues
If the above troubleshooting does not help to resolve the
issue please contact the authorised dealer. Please have your
serial no. to hand to provide to the authorised dealer, which
can be found on the seat post as shown
8. CAUTION
Obstacle Climbing:
• Your scooter can climb obstacles and curbs of up to 40mm / 1.6” in height. Never attempt
tо overcome an obstacle when on an uphill or downhill gradient.
• Always approach obstacles straight on. Ensure that the front wheels and rear wheels pass
the obstacle in one go, do not stop midway.
• The maximum gap the scooter can drive over is 100mm / 4”.
• When riding the scooter on a ramp, adjust your body’s centre of gravity so the scooter is
secure.
Others:
• If the scooter is not used for long periods of time, the battery may lose its charge. The
battery should be charged at least once a month.
• Check the battery gauge before driving to avoid power loss on journeys.
• The battery will naturally age over time, resulting in reduced storage capacity.
• If the battery is ever damaged, place it in a plastic bag and contact your local dealer for
proper disposal.
• Do not disassemble the battery or open sealed parts by yourself, it could result in electric
shocks or burns from acid leakage.
• Adjust the speed to a slow speed when moving o to prevent sudden acceleration.
• Never attempt to drive the scooter downhill backwards.
• Avoid riding the scooter at night, in rain and in bad weather.
• When storing the scooter for long periods of time, (1 month + ), make sure the battery is
fully charged before storing the scooter in a dry location.
• The weight capacity of the front basket is 3kgs (6.5Ibs).

P. 20
9. SAFETY INFORMATION ON ELECTRONIC INTERFERENCE (EMI)
CAUTION:
• It is very important that you read this information regarding the possible eects
of Electromagnetic Interference on your motorized scooter.
Powered wheelchairs and motorized scooters may be susceptible to electromagnetic
interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources
such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and
cellular phones. The interference (from radio wave sources) can cause the motorized
scooter to release its brakes, move by itself, or move in unintended directions. It can also
permanently damage the motorized scooter control system. The intensity of the interfering
EM energy can be measured in volts per meter (V/m). Each motorized scooter can resist EMI
up to certain intensity. This is called its “immunity level.” The higher the immunity level, the
greater the protection. At this time, current technology is capable of achieving at least a 20
V/m immunity level, which would provide useful protection from the more common sources
of radiated EMI. This immunity level of this motorized scooter model is 20 V/m.
There are a number of sources of relatively intense electromagnetic elds in the everyday
environment. Some of these sources are obvious and easy to avoid. Others are not apparent
and exposure is unavoidable. However, we believe that by following the warnings listed
below, your risk to EMI will be minimized.
TILLER ANGLE ADJUSTMENT
• Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios, “walkie
talkie,” security, re, and police transceivers, cellular telephones, and other personal
communication devices.
CAUTION:
• Some cellular telephones and similar devices transmit signals while they are ON,
even when not being used.
