ABSCO SHEDS 3060HK User manual

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
We thank you for choosing an Australian made shed. For further assistance please
visit our detailed instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
[email protected]
6060mm
3100mm
Absco Highlander Shed
Model: 3060HK
Page 1
CONCRETE SLAB
FRONT: 5.96m
SIDE: 3.00m
HEIGHT: 2.3m
FOR CONSTRUCTION IN
NON-CYCLONIC AREAS
WIND RATING: W33N (N2)
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 25mm DEEP AROUND THE PERIMETER
CONCRETE
REBATED EDGE
CHANNEL
CONCRETE SLAB
75mm WIDE
REBATE
THIS WILL HELP
WATER EGRESS FROM
THE BASE OF THE SHED
100mm
日本改定日2021/4/28

Page 2
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS

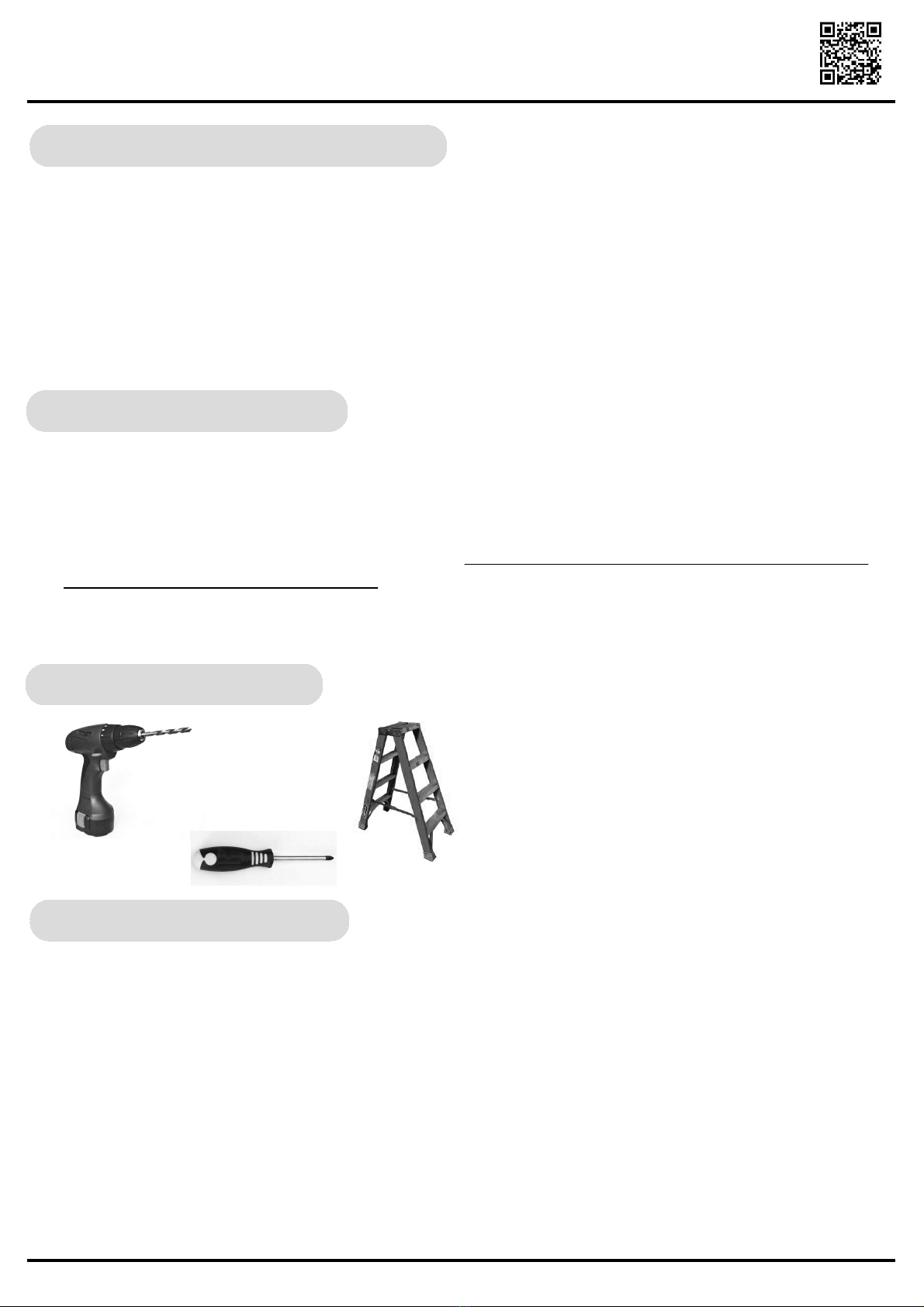

GENERAL INSTRUCTIONS
A NOTE ON SAFETY
・The site for the shed must be level. An uneven surface may result in misalignment of parts.
・It is recommended that the shed be set on a 100mm rebated concrete slab and anchored
down appropriately (refer to last page for details). A flat slab with a chamfered edge can be
used but will not result in optimum results. IF USING A REBATE ENSURE ALL FRAME
UPRIGHTS ARE TRIMMED 25mm.
・Anchor sets are not supplied as standard items with this product as some customers wish
to use their own anchoring systems.
・Before commencing any assembly, read through these instructions in detail to gain a
thorough understanding of assembly methods and associated details.
・Unpack the carton and carefully identify and check off all the parts against the parts
described and illustrated on the following pages.
・Local Authority approval must be obtained prior to construction of the shed. Once you
have selected your site you will need to lodge a site plan to your local council
・Some parts may have sharp edges. It is advisable to wear gloves when handling these
items and safety glasses if drilling holes. Sensible shoes are highly recommended.
・Do not erect your shed in windy conditions, ensure that the shed is securely anchored
to a solid foundation immediately after construction is completed.
・It is highly recommended to erect the shed with two or more people.
TOOLS REQUIRED
Normal: 4mm & 10mm
Masonry: 10mm
OPTIONAL
SITE PREPARATION
Normal: 3mm

PAGE 3
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
SPLIT SHEET H39 INTO H39B SHEETS
・This ABSCO products comes with a perforated sheet (H39) that is designed to be
split into two smaller sheets (H39B)
・THESE SHEETS HAVE SHARP EDGES. ONCE SEPARATED PLEASE USE
APPROPRIATE FOOT AND HAND PROTECTION WHEN HANDLING.
・In order to split the sheet lay it on the ground and lift and fold one end until the
perforations have cleanly snapped.
・Discard the middle piece as scrap when convenient. Fold the scrap piece in half
2-3 times and throw in bin.
SPLITTING SHEET H39
COMPONENT
DESCRIPTION
PART
No.
COMPONENT
DESCRIPTION
PART
No.
QTY QTY
1STEEL SHEET
2034mm X 773mm 2STEEL SHEET
2034mm X 329mm H39B
CHECK SHEET
FOR
PERFORATIONS
FOLD FIRST
SECTION OF
SHEET UNTIL
FREE
FOLD MIDDLE
SECTION OF
SHEET UNTIL
FREE
DISCARD MIDDLE
PIECE
SCRAP
SCRAP
SCRAP
SCRAP
SCRAP
SCRAP
SCRAP
SCRAP
=
H39

PAGE 4
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
2
1
16
2
2
2
STEEL SHEET
1974mm X 773mm
1
1
STEEL SHEET
1974mm X 773mm F
STEEL SHEET
2034mm X 329mm H39B
STEEL SHEET
1546mm X 773mm 45A
STEEL SHEET
1974mm X 711mm H37
STEEL SHEET
2034mm X 731mm H33
GABLE L/H
L=1475mm 16L
GABLE R/H
L=1475mm 16R
2
2
13A
BRACE
L= 393mm
H26
1STEEL SHEET
2034mm X 731mm H32

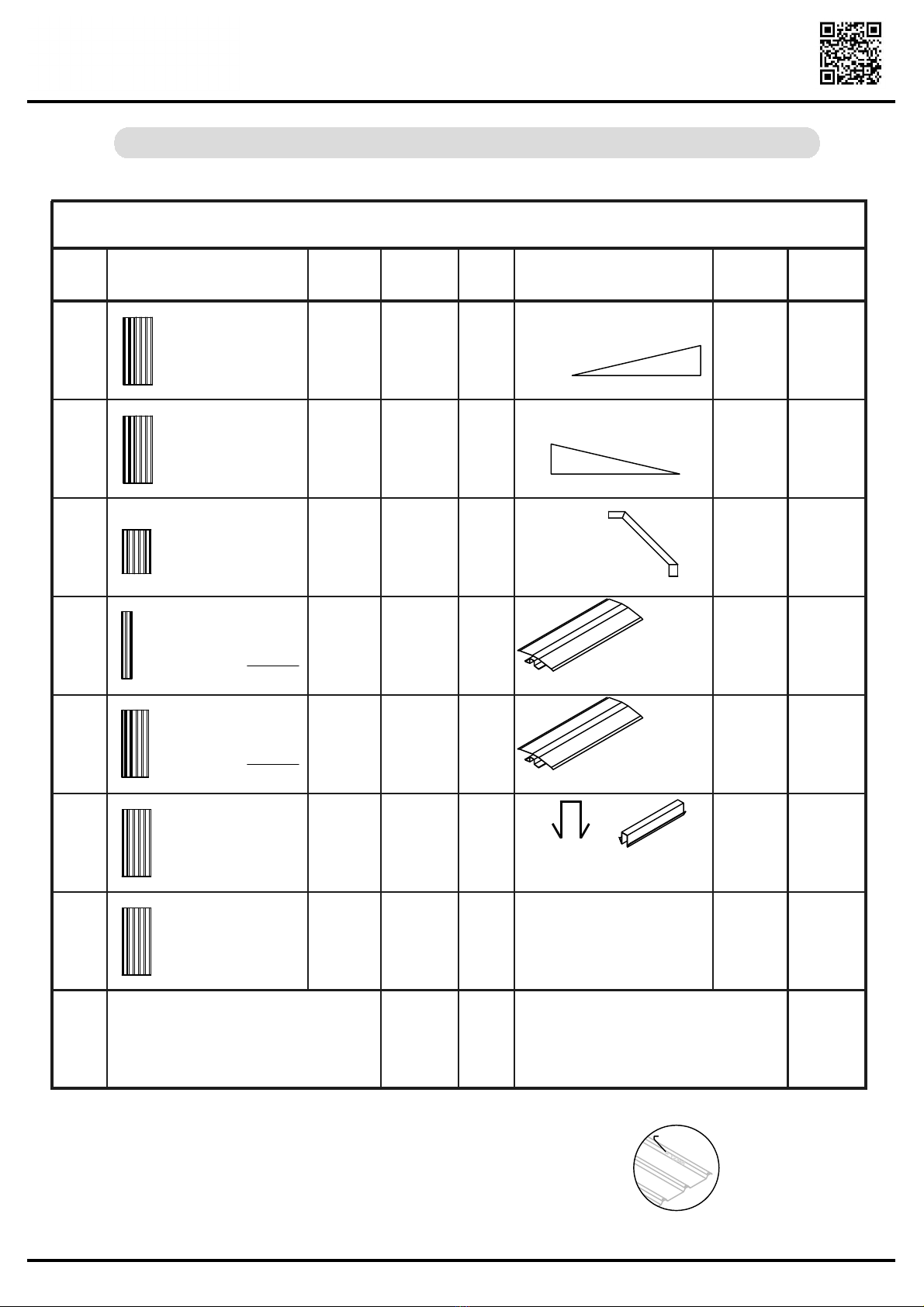

COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
MAIN PACK CARTON (PACK 1 OF 3)
FITTINGS & ACCESSORIES
PACKET (SEE PAGES 6 & 7)
Part No. Here
ALL SHEETS HAVE PART NO.S LOCATED ON
LOWER RIGHT OR UPPER LEFT CORNER OF
COLORED SIDE AS SHOWN
1CHANNEL SET
PACKET (SEE PAGES 4 & 5)
297AL
RIDGE
BEAM
L = 1521mm
297AR
RIDGE
BEAM
L = 1521mm
ZARSP
3RIDGE BEAM JOINER
L: 450mm (17.7")

4
CHANNEL SET
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
1
1
1
3
5
3
81AL
CHANNEL
L = 1496.5mm
1
77CL
CHANNEL
L = 1496.5mm
77BL
CHANNEL
L = 1496.5mm
56AL
CHANNEL
L = 1496.5mm
56BL
CHANNEL
L = 1496.5mm
55BL
CHANNEL
L = 1496.5mm
81BL
CHANNEL
L = 1496.5mm
60AL
CHANNEL
L = 1496.5mm
PAGE 5
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS

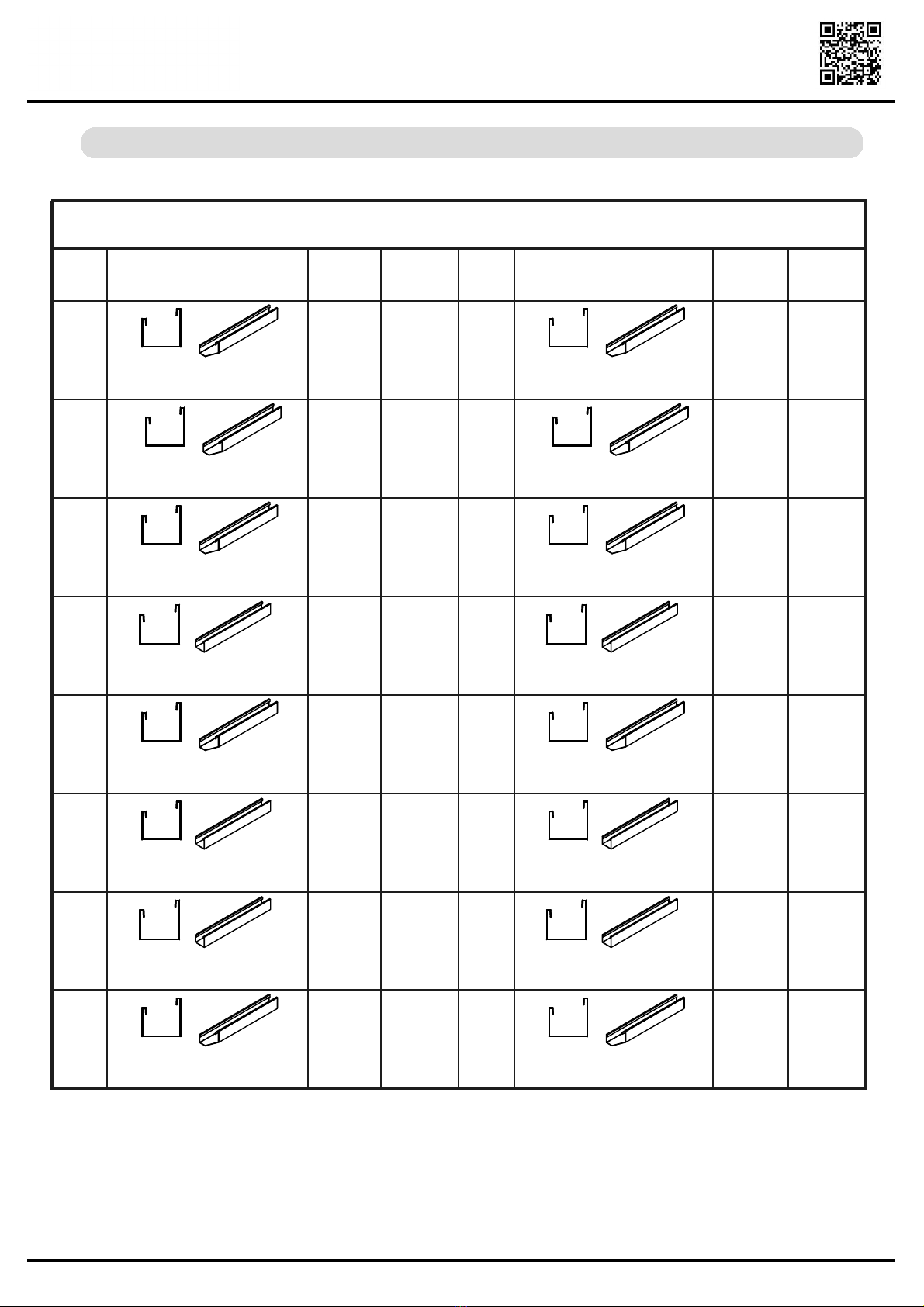

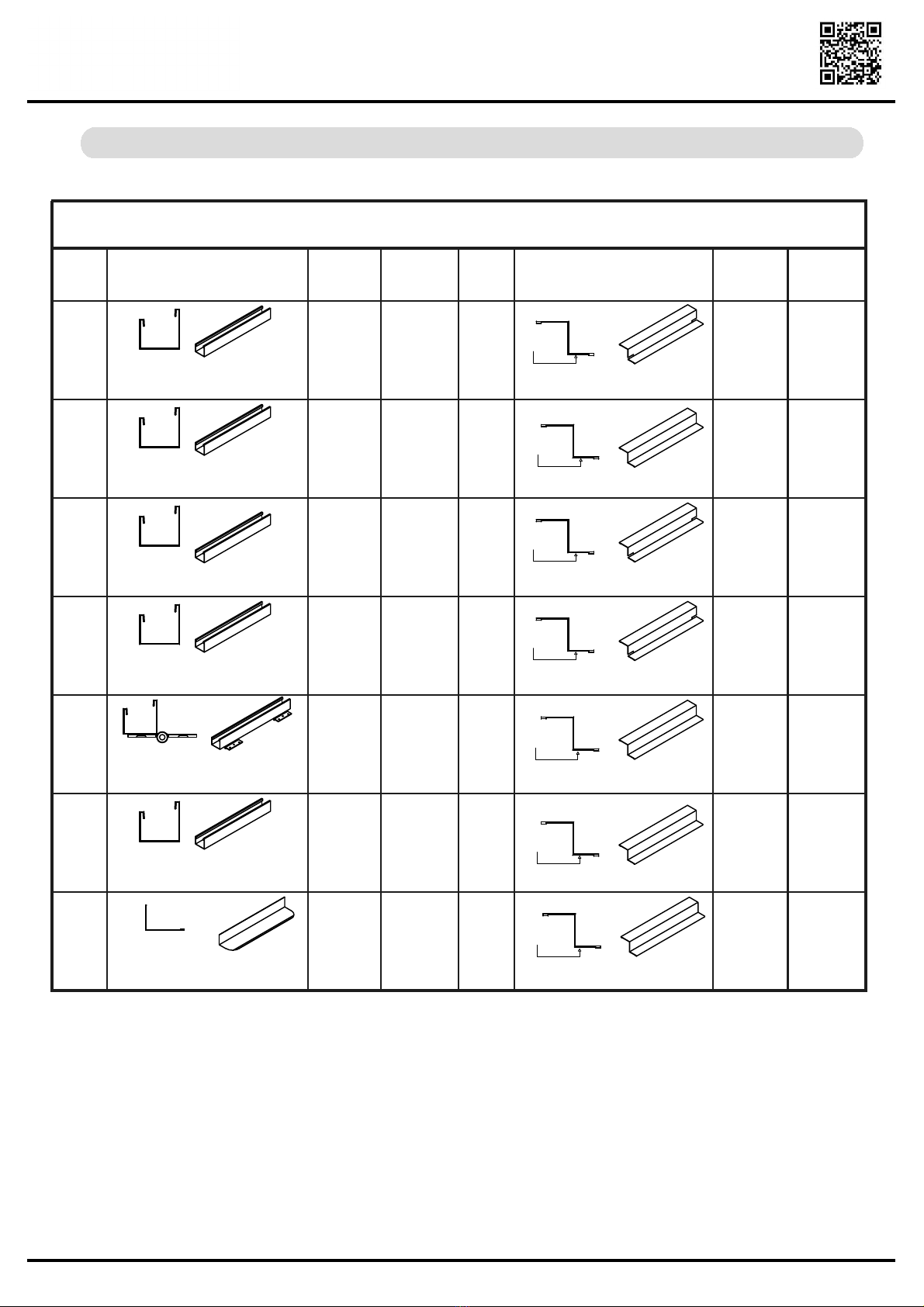

COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS
77C
56A
56B
55B
81A
81B
77B
60A
4
1
1
1
3
5
3
81AR
CHANNEL
L = 1496.5mm
1
77CR
CHANNEL
L = 1496.5mm
77BR
CHANNEL
L = 1496.5mm
56AR
CHANNEL
L = 1496.5mm
56BR
CHANNEL
L = 1496.5mm
55BR
CHANNEL
L = 1496.5mm
81BR
CHANNEL
L = 1496.5mm
60AR
CHANNEL
L = 1496.5mm
77C
56A
56B
55B
81A
81B
77B
60A

2
93L
JAMB L= 1537mm
91A
JAMB L= 1120mm
1
1
4
PAGE 6
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS
90B
JAMB L= 788mm
87A
LIP TRIM L= 1546mm
87A
Part No. Here
Part No. Here
Part No. Here
1
CHANNEL SET (CONTINUED)
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
2
1
2
3
4
79B
CHANNEL
L = 788mm
63A
CHANNEL
L = 1155mm
58C
CHANNEL
L = 773mm
2
81M
CHANNEL
L = 329mm
JAMB L= 2034mm
HC2
CHANNEL
L = 1974mm
CHANNEL WITH HINGES
L = 1974mm
HC1 HJ1
JAMB L= 2034mm HJ2
3
1
JAMB L= 1974mm
HJ3
81M
79B
HC2
HC1
63A
58C
Part No. Here
Part No. Here
Part No. Here
93R
JAMB L= 1537mm
1Part No. Here

PAGE 7
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS
5RBP
RIDGE
PLATES
ASSEMBLY
INSTRUCTIONS
1

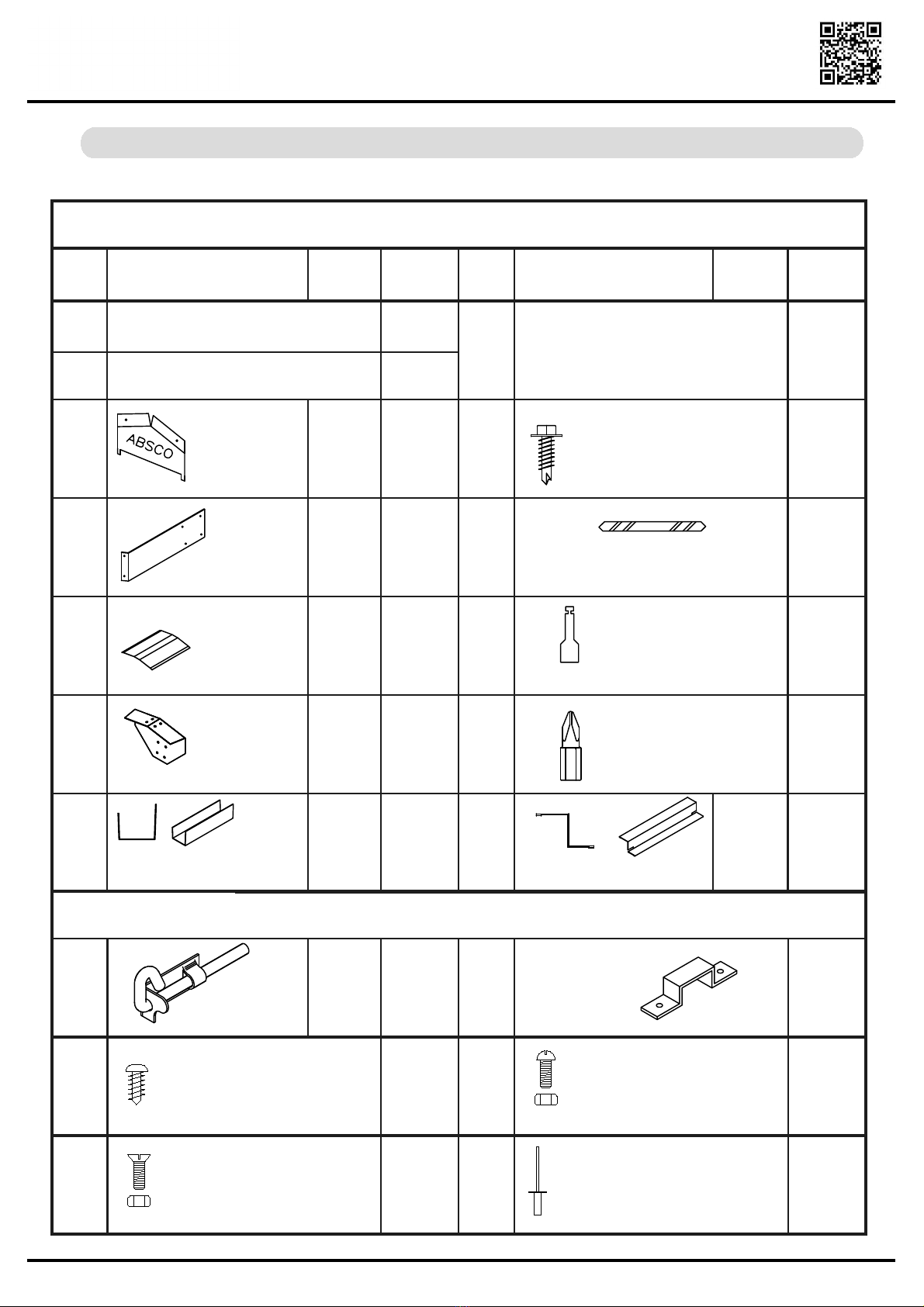

FITTINGS & ACCESSORIES PACKET CONTENTS
3
2
1
12A
DOOR
STRAP
L: 165mm
14A
CAP GABLE
L: 170mm
98A
RIDGE CAP
JOINER
93B
JAMB L= 75mm
4
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
DOOR
PADBOLT
HASP
2
3
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
22A
3/16 COUNTERSUNK
SCREWS & NUTS
12
3/16 ROUND HEAD
BOLTS & NYLOCK NUTS
8
3.2 x 8mm
BLIND POP RIVETS
12
DOUBLE DOOR KIT PACKET CONTENTS
DOUBLE DOOR KIT
(SEE BELOW)
1
SINGLE DOOR KIT
(SEE OVER)
1
3mm (0.12") DRILL BIT
1
HEX TEK SCREW
DRIVER BIT
1
24 SELF DRILLING HEX
HEAD TEK SCREWS (NO
HOLE REQUIRED)
1PHILLIPS
HEAD DRIVER
CSJ
19 CHANNEL JOINER
L= 200mm (7.9")

PAGE 8
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS

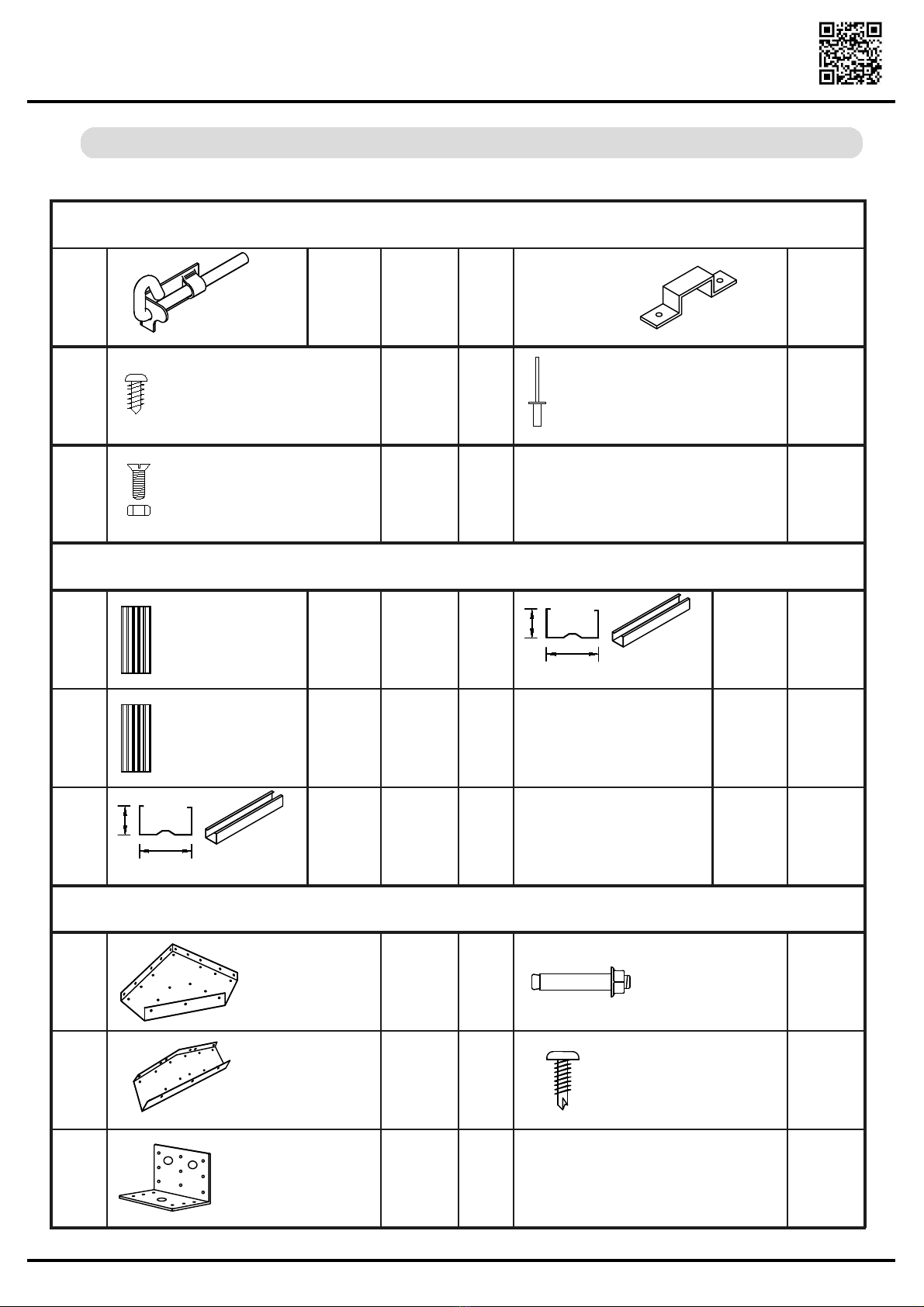

COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS
MAIN PACK CARTON (PACK 2 OF 3)
5
12
4
1HIGH-PORTAL PACK
(SEE BELOW)
4
4
8
300
HIGH-PORTAL FRAME ACCESSORIES
KNEE PLATE
APEX PLATE
10mm
DYNABOLT
16mm TEK
SCREWS
STEEL SHEET
2034mm X 773mm H30
STEEL SHEET
2034mm X 773mm H31
C1482
CHANNEL L = 1482mm
40
80
4C1954
CHANNEL L = 1954mm
40
80
MULTI PURPOSE
BRACKET
4
DOOR
PADBOLT
HASP
1
1
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
22A
3/16 COUNTERSUNK
SCREWS & NUTS
12
3.2 x 8mm
BLIND POP RIVETS
12
SINGLE DOOR KIT PACKET CONTENTS

2
HIGH-FRONT FRAME PACK (PACK 3 OF 3)
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
2
2
2
10
2
2
C2300
N2070
C2034
M1484
K0285
C0240
C0100
CHANNEL L = 2300mm
40
80
CHANNEL L = 2070mm
40
80
CHANNEL L = 2034mm
40
80
CHANNEL L = 1484mm
40
80
CHANNEL L = 100mm
40
80
CHANNEL L = 240mm
40
80
CHANNEL L = 285mm
40
80
PAGE 9
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS
10
11
4
99A
HAT= 2290mm
99B
HAT= 1350mm
MULTI PURPOSE
BRACKET
SMALL TRIANGULAR
PLATE
150
SELF DRILLING
16mm TEK
SCREWS
10mm
DYNABOLTS
6

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
20mm
15mm
QTY = 10pcs.
CHANNEL
(0.79")
(0.59")
PUSH PUSH
CHANNEL
CSJ

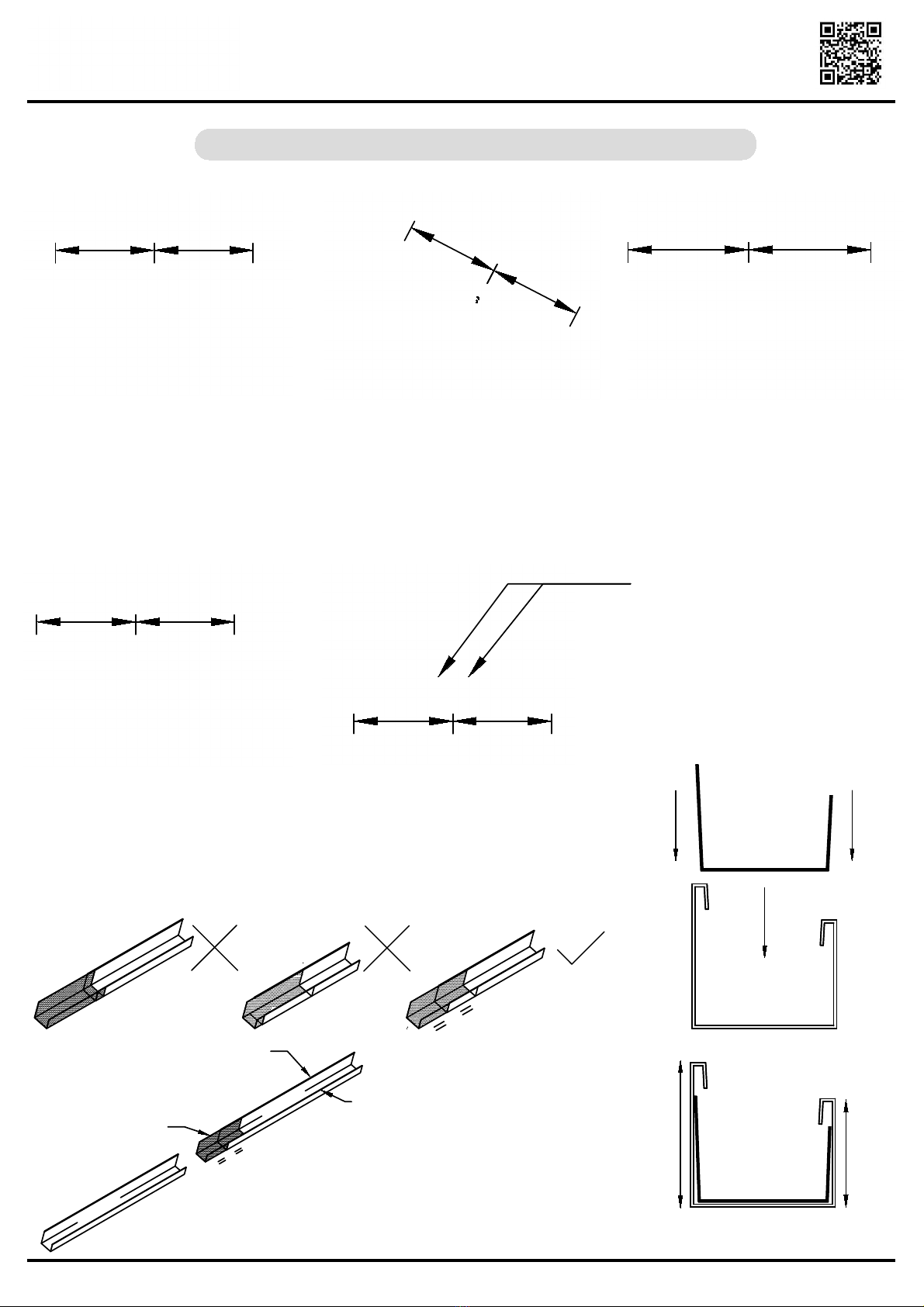

INSTRUCTIONS FOR JOINING SPLICED CHANNELS
CSJ
CSJ
HIGH-SIDE
CHANNEL
LOW-SIDE
CHANNEL
CSJ
CSJ
CSJ
= =
= =
==
=
=
STEP 1.
Position the channels and the CSJ
joiner channel so the center of the
CSJ is in line with the end of each
channel to be joined together.
STEP 2.
Join the first channel to the CSJ by inserting the center
of the CSJ (on an angle) to the end of the channel
where the JOIN>> text is marked. Push down one side
of the CSJ until you hear a 'click'.
STEP 3.
Join the second channel to the CSJ
by positioning the <<JOIN end of the
channel at the center of the CSJ
(on an angle). Push the CSJ into
the channel until you here a 'click'.
=
The joined channels should now
look like the picture above with the
CSJ positioned equally inside of the
joined channels.
FINISHED CHANNEL
=
NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER.
JOIN>> <<JOIN JOIN>>
JOIN>> SJ
JOIN>>
<<JOIN
JOIN>> <<JOIN
J
CSJ
DRILL 4mm (0.16") x 3mm (0.12")
(2 PER A SIDE) HOLES TO
SECURE SECTIONS TOGETHER.
(THESE SCREWS MAY HAVE TO
BE TEMPORARILY REMOVED
AND REPLACED DURING LATER
ASSEMBLY)
PAGE 10

PAGE 11
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
=
=
=
=
4 X 60AR
2993mm (117.8")

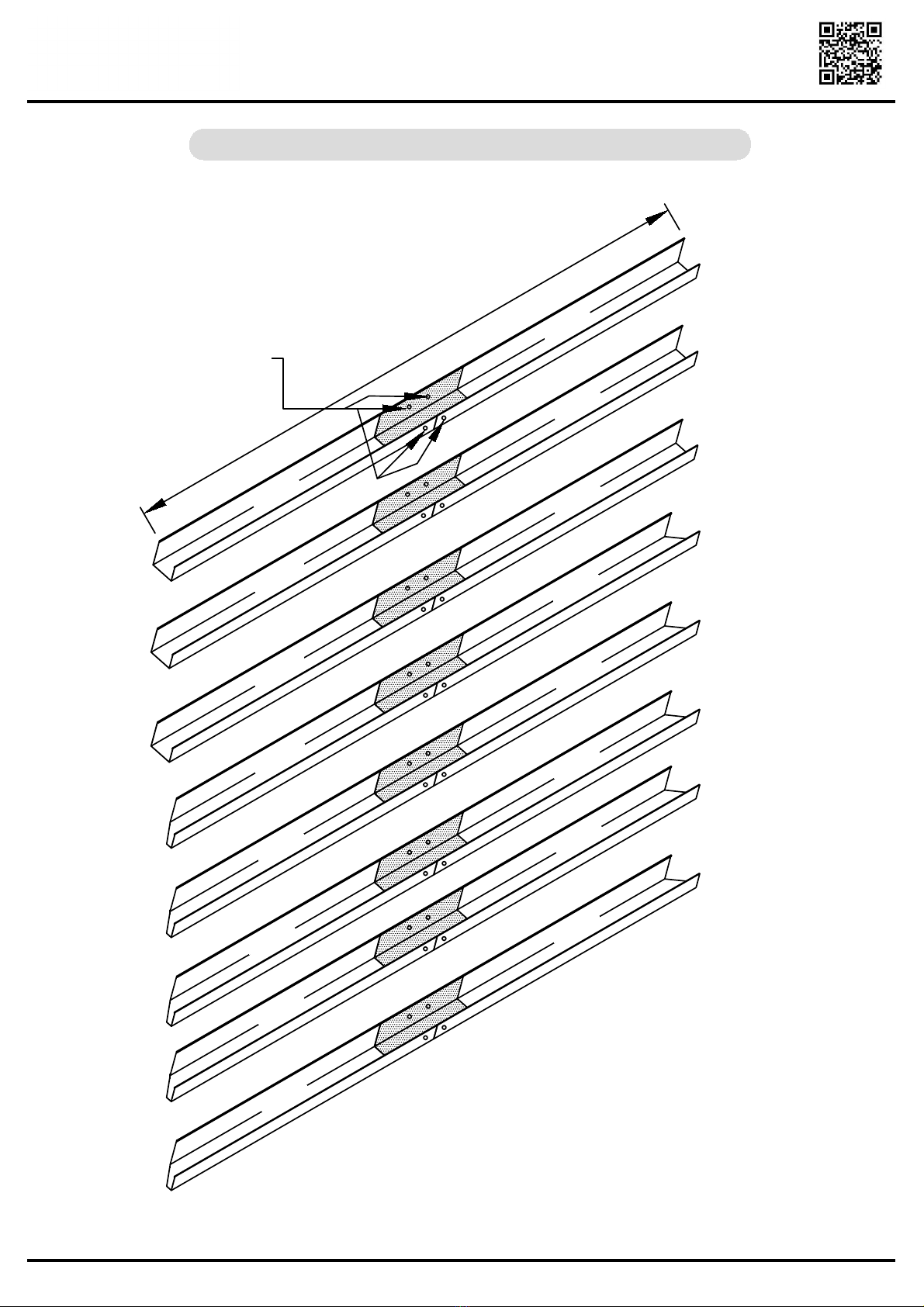

STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS
5 x 81A
4 x 60A
1 x 56A
1 x 56B
NOTE: JOIN TOGETHER 38 X CHANNEL SECTIONS USING 19 X CHANNEL JOINERS (PART CSJ)
56BR
56BL
56AL
56AR
60AR
60AL
81AL
81AR
5 X 81AR
5 X 81AL
4 X 60AL
1 X 56AR
1 X 56AL
1 X 56BR
1 X 56BL
NOTE: SOME CHANNELS HAVE
HOLES IN THEM - YOU WILL
NEED TO RE-DRILL HOLES ON
ANY CHANNEL WHERE THE
CSJ JOINING CHANNEL
COVERS HOLES ON THE
CHANNELS
YOU ARE CONNECTING
=
=
=
3 x 55B
1 x 77B
3 x 81B
81BR
81BL
77BL
77BR
55BR
55BL
3 X 55BR
3 X 55BL
1 X 77BR
1 X 77BL
3 X 81BR
3 X 81BL
=
1 X 77CR
1 x 77C
77CR
77CL
1 X 77CL

PAGE 12
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 50mm OVERLAP
OF THE RIDGE CAP
STAGE 2: INSERT RIDGE CAP JOINER INTO CONNECTED RIDGE CAPS.
MAKE SURE JOINER HAS 225mm IN EACH RIDGE CAP.
STAGE 3:
TURN RIDGE CAP OVER AND MEASURE 250mm FROM THE END OF EACH RIDGE CAP.
PLACE TEK SCREWS IN 50mm INCREMENTS FROM SAID END.
REPEAT THIS PROCESS FOR THE OPPOSING HALF OF RIDGE BEAM
INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM

PAGE 13
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
TEK SCREW DRIVER BIT
QTY. = 1
QTY. = 8
QTY. = 2
QTY. = 1
SELF DRILLING TEK SCREW
PART ZARSP - 450mm (17.7") LONG
ZARSP
RIDGE BEAM 1521mm (59.9")
PARTS 97AL & 97AR

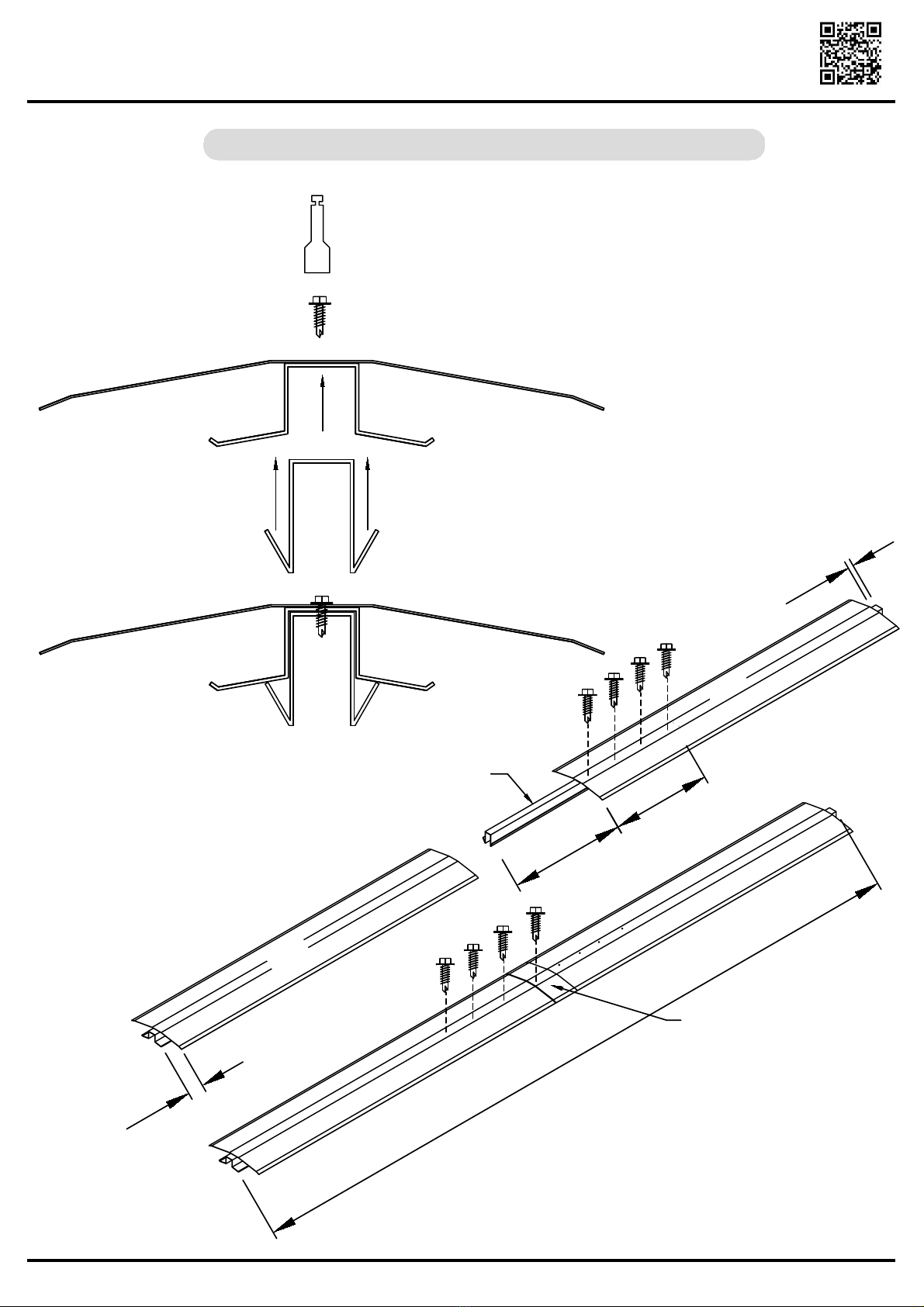

STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM
PUSH PUSH
97AL
97AR
16mm
(0.63")
200mm
(7.9")
250mm
(9.8")
2993mm (117.8") OVERALL LENGTH
(PART 97A)
16mm
(0.63")
THE TOP SECTIONS OF
CAPPING WILL OVERLAP
EACH OTHER AT THE
JOIN BY 50mm (2.0").
2x REQUIRED

87A
87A
81A
60A
60A
97A
14A
45A
45A
45A
45A
45A
45A
45A
45A
81A
98A
60A
60A
97A
87A
87A
14A
45A
45A
45A
45A
45A
45A
45A
45A
81A
81A
VIEW OF ROOF COMPONENTS
PAGE 14
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed Model: 3060HK
RBS
NOTE: ALL PERIMETER CHANNELS
81A & 60A NEED TO BE
SHORTENED BY 16.5mm AS PER
PAGE 20
INSTRUCTIONS
AND VIDEOS

VIEW OF WALL COMPONENTS
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander
Shed Model: 3060HK
PAGE 15
DOOR SHEET
1975mm SINGLE
91A
22A
12A
HC1
58C
F
58C
HC2
NOTE: SOME COMPONENTS ARE
IDENTICAL EXCEPT FOR PRE-PUNCHED
HOLE LOCATIONS. TAKE CARE WHEN
ASSEMBLING COMPONENTS, ENSURING
THAT THE PART NUMBERS MARKED ON
EACH COMPONENT MATCH THOSE NOTED
IN EACH STAGE OF THESE INSTRUCTIONS.
LAY OUT ALL PARTS AS ILLUSTRATED TO
FAMILIARISE YOURSELF WITH COMPONENT
IDENTIFICATION AND THEIR INTENDED
LOCATIONS.
H30
H31
H31
H31
H31
H31
H31
H30 H30
H31
H31
H30
H32
H33
H31
H31
H31
H31
H30
81M
63A
63A
HC2
63A
77C
HC1
81M
HJ3
99B
HC1
93L
H39B
H39B
H37
H37
H26
H26
16L
16R
HJ1
HJ1
55B
16R
16L
55B
81A
56B
81B
79B
HJ2
HJ1
90B
56A
77B
HIGH-PORTAL
FRAMES
HIGH-FRONT
FRAME
81B NOTE: ALL PERIMETER CHANNELS
81B, 56B & 55B NEED TO BE
SHORTENED BY 16.5mm AS PER
PAGE 20
INSTRUCTIONS
AND VIDEOS
93R
99A

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
PAGE 16

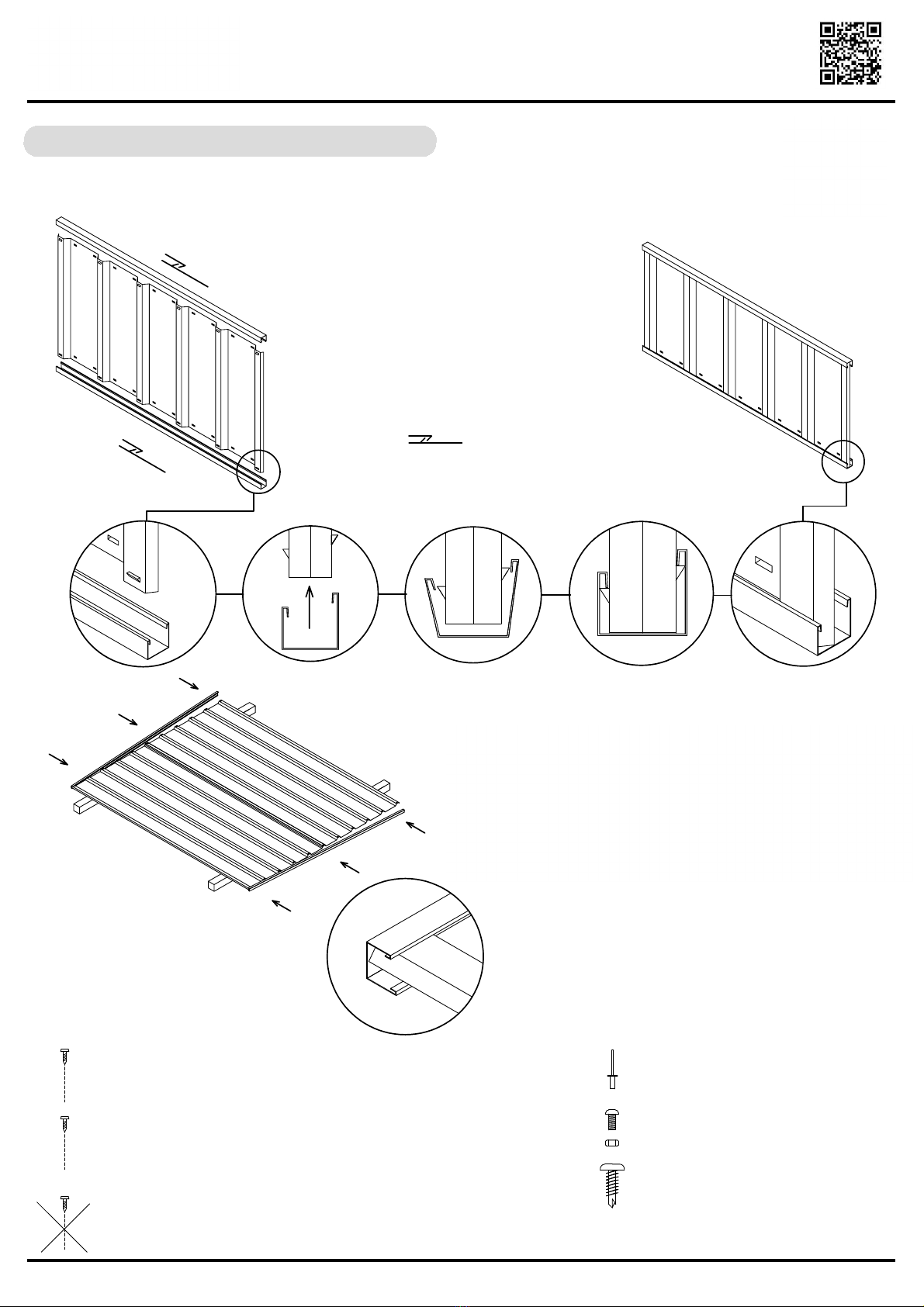

ABSCO ASSEMBLY INTRODUCTION
FASTENING SYMBOLS
The snap-tite assembly system locks most perimeter channels to all roof and wall
sheets without the need for tools and fasteners.
To pre-assemble the four wall panels
and two roof panels, the perimeter
channels are secured to the top and
bottom of each panel using the
snaptite system, as detailed on the
following pages wherever you see
the symbol.
Position sheets on timbers,
trestles or partly over edge of
concrete slab.
Each perimeter channel must finish flush with the
edges of the sheets. the snap-tite system allows
adjustment for this process by simply tapping the
channel along the sheets until each end is neatly flush.
If you need to remove channels from the panels, pull
the channel along the panel from opposing ends. You
may need someone to help with this.
Join components together with one screw at this
location only, as some channel sections have extra
holes that are not required for this model of garden
shed
Do not join components together at this location yet,
as the screw may obstruct further assembly of other
components
4mm NUT & BOLT SET
3mm POP RIVETS
PUSH
PUSH
HIGH SIDE
HIGH SIDE
PUSH
HIGH SIDE
HIGH SIDE
After joining sheets together, position channel over one end of the sheets, gently
tapping it over the snaptite lugs, working along the sheets to the other end.
HIGH SIDE
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
Join components together by pre-drilling the holes
first. Use one component as a template to mark where
the holes are. Drill with 3mm drill bit.
D
SELF DRILLING TEK SCREW
FOR JOINING FRONT AND
CENTRE FRAME COMPONENTS

PAGE 17
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS

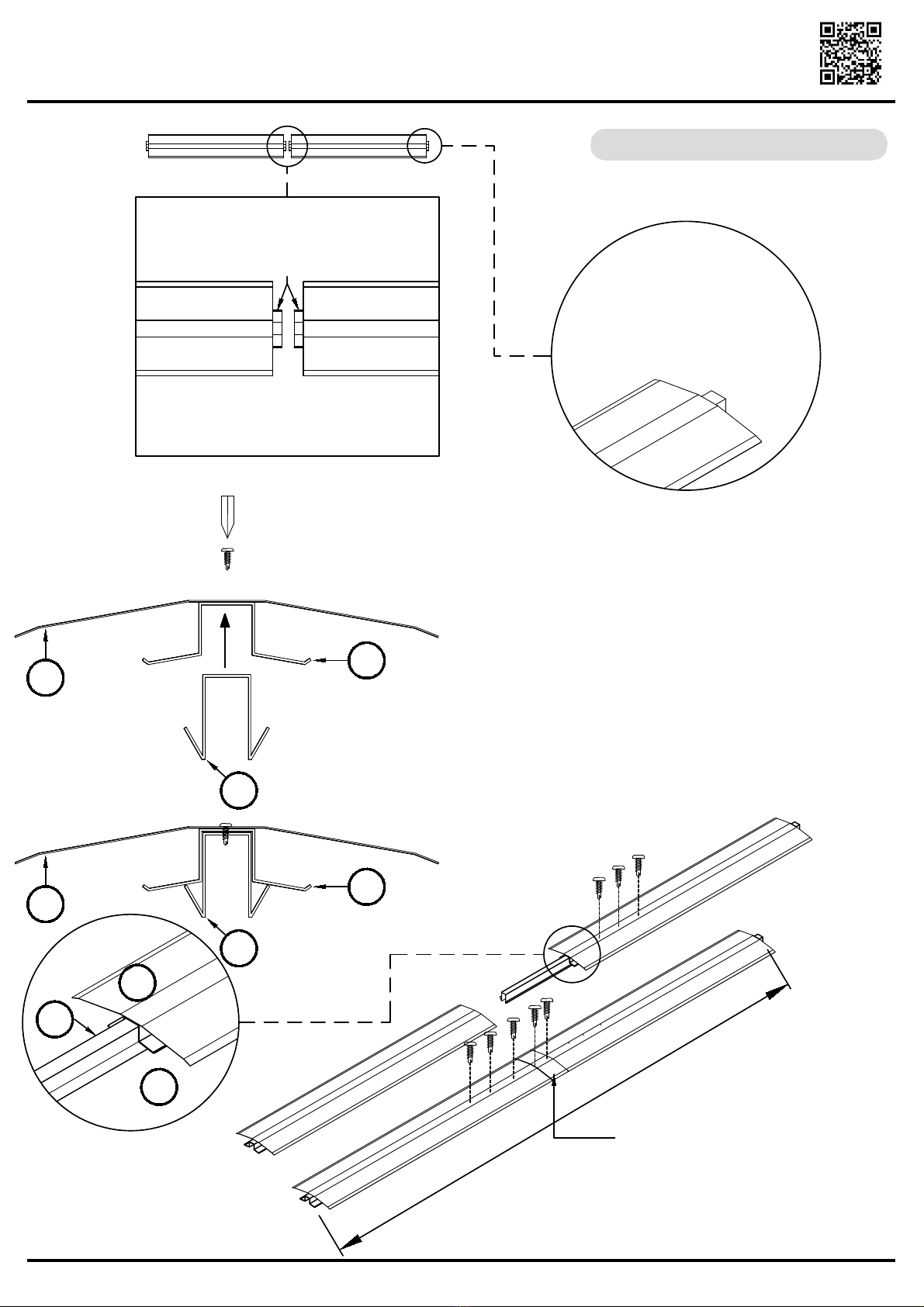

JOINING RIDGE BEAMS
TEK SCREW DRIVER BIT
QTY. = 1
QTY. = 8
QTY. = 2
QTY. = 1
SELF DRILLING TEK SCREW
RIDGE BEAM SPLICE (PART RBS)
RIDGE BEAM
B
C
A
B
C
A
A
B
INSERT THE RIDGE BEAM SPLICE
AT AN EQUAL DISTANCE INTO
EACH RIDGE BEAM. USE A
STRING LINE TO ENSURE THAT
THE BEAM IS STRAIGHT, THEN
SECURE WITH SELF DRILLING
SCREWS AS SHOWN.
(VERY TIGHT FIT, USE A
HAMMER TO TAP INTO POSITION)
SECURE THE CAP
JOINER (PART 98A)
AS SHOWN
5953mm OVERALL LENGTH
DO NOT CUT OFF THE
PROTRUDING SECTION AT
EACH END OF THE FULL
LENGTH RIDGE BEAM
USING A HACKSAW, REMOVE
ONE PROTRUDING SECTION OF
EACH RIDGE BEAM.
THIS WILL ALLOW THE TWO
SECTIONS TO BUTT UP NEATLY
TO EACH OTHER.
C

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS

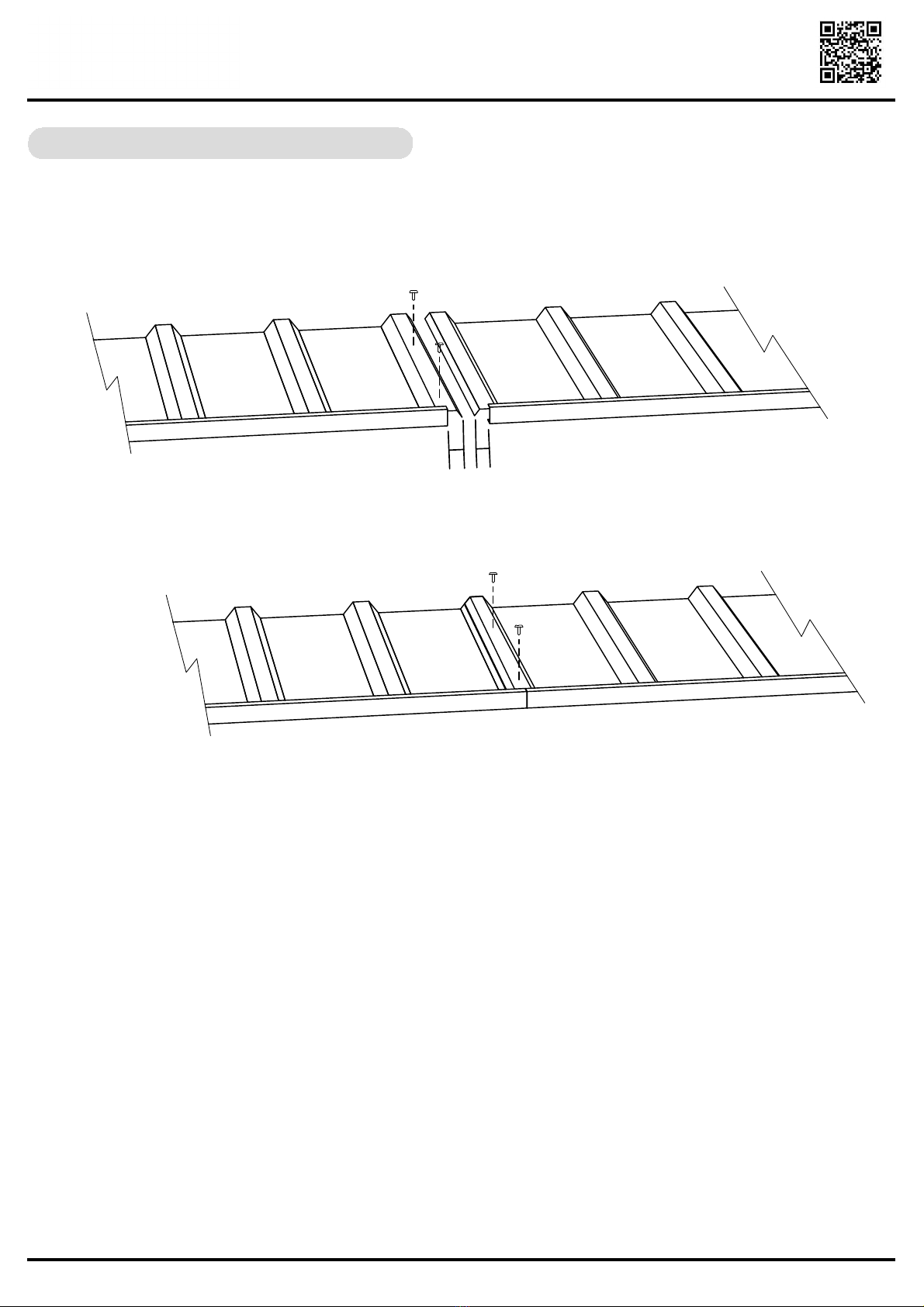

TRIM THE PERIMETER
CHANNELS BY 16.5mm TO
ALLOW EDGE RIBS OF THE
SHEETING TO BE OVERLAPPED.
16.5 16.5
JOINING WALL & ROOF PANELS
THE 2993mm LONG PANELS NOW NEED TO BE JOINED TOGETHER, TO MAKE ONE
CONTINUOUS PANEL, FOR EACH ROOF AND WALL SECTION. THE PERIMETER
CHANNELS WILL HAVE TO BE REDUCED IN LENGTH EQUAL TO THE AMOUNT OF THE
OVERLAP, AS SHOWN BELOW.
OVERLAP THE PANELS AND SECURE WITH SCREWS AS SHOWN.
REFER TO THE PANEL CONSTRUCTION SECTION OF THIS INSTRUCTION FOR FURTHER
DETAILS, AND ENSURE THAT THE PANELS ARE NOT JOINED TOGETHER WITH
PRE-PUNCHED HOLES INCORRECTLY POSITIONED.
THE OVERALL LENGTH OF EACH PANEL SHOULD BE THE SAME
LENGTH AS THE RIDGE BEAM, WHICH IS 5953mm.
RIDGE BEAM/PANEL LENGTH = 2993
LESS CUT OFF SECTION = 16.5
NEW LENGTH = 2976.5
TWO PANELS JOINED: 2976.5 X 2 = 5953mm
IT IS NOT CRITICAL THAT THE OVERALL LENGTH OF 5953mm IS
EXACT, BUT TRY AND MAINTAIN THE LENGTH WITHIN 5mm.
PAGE 18

PAGE 19
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
1. END PANEL ASSEMBLY
H30
H31
H31
H30
SNAP
T TE
i
SNAP
T TE
i
77B
81A
FIT THE TWO LARGE GABLES (16L & 16R) TO
THE INSIDE FACE OF THE TOP CHANNEL
(77B)
INSIDE OF SHED
OUTSIDE
TURN THE PANEL OVER.
OF SHED

PAGE 20
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 3060HK 04/07/16
Absco Highlander Shed
Model: 3060HK
INSTRUCTIONS
AND VIDEOS
ONE REQUIRED
SNAP
T TE
i
SNAP
T TE
i
55B
81B
H31
H31
H31
H30
H30
H31
H31
H31
SHEET TYPE H30
THIS END
TWO REQUIRED
SHEET TYPE H30
THIS END
2. SIDE PANEL ASSEMBLY (Three Required)
SHEET TYPE H30 IS A CORNER
SHEET AND MUST BE ORIENTATED
TOWARDS THE SHEDS CORNERS
WHEN PANELS FINALLY JOINED AS
PER PAGE 20.
NOTE: BE CAREFUL WITH CHANNEL ORIENTATION. THESE
PANELS MUST JOIN TOGETHER AS PER PAGE 20. ENSURE
THAT 55B & 81B MATCH TO THEIR CORRESPONDING CHANNELS
WHEN CONNECTING TO CORRESPONDING PANEL SECTIONS.
