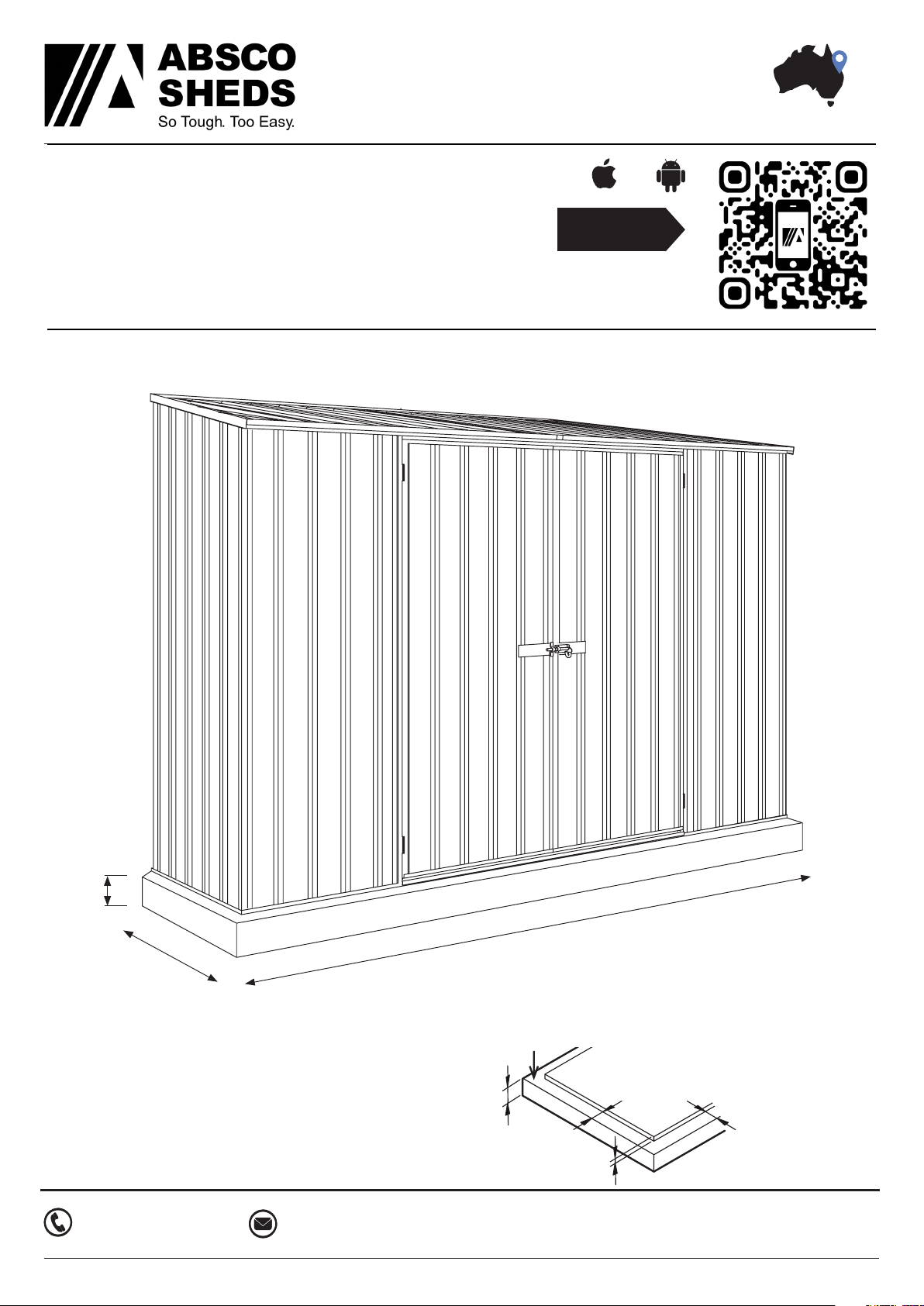

ABSCO SHEDS 30082SK-PTX Installation guide

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 1
Australian Made
CONCRETE
SLAB
+
We highly recommend downloading the Absco Sheds
Assembly App to assist with your build.
ASSEMBLY APP AVAILABLE ON
Scan to
download
STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY
CUSTOMER SERVICE • WARRANTY INFORMATION • COUNCIL FORMS
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
[phone] [email protected]
www.abscogardensheds.com
[phone] PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
[phone] [email protected]
www.abscogardensheds.com
[phone] PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
When laying a concrete slab for your shed, it is
best practise to have a rebated edge to prevent
water ingress.
Rebated section is 1” high and inset 3” on all sides
from the overall slab base dimensions
Overall slab base
dimensions for this
model are as shown
above.
Illustration not to
scale.
1”
3”
RAISED FLOOR
INSIDE SHED
4”
3”
WALLS SIT
ON THIS LEVEL
4”
34.6”
122”

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 2
Australian Made
Approx. 4 hours
15 mins
4+

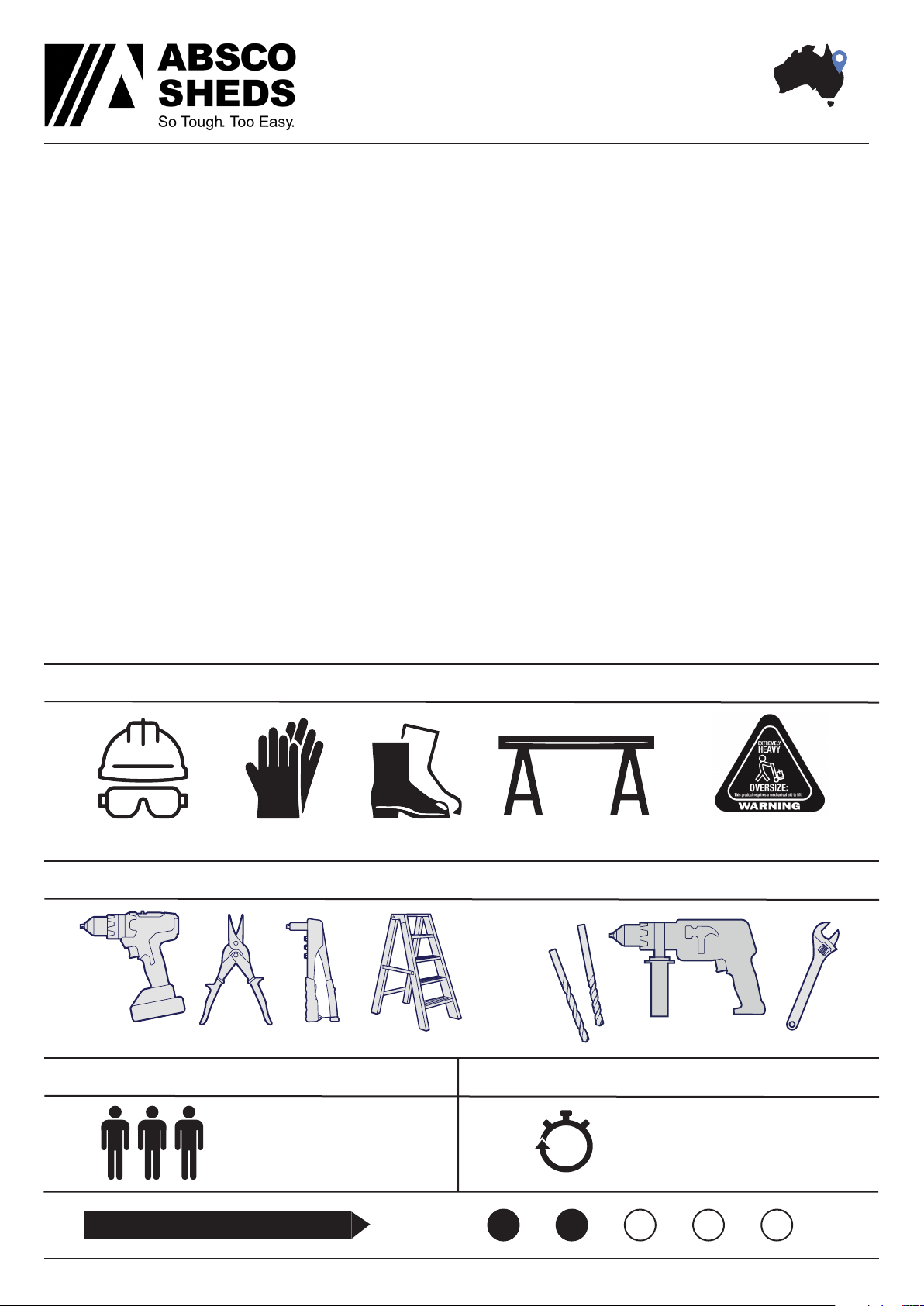

GENERAL INSTRUCTIONS
• Before commencing any assembly, read
through these instructions in detail to gain
a thorough understanding of assembly
methods and associated details.
• Unpack the carton and carefully identify
and check off all the parts against the
parts described and illustrated on
"COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An
uneven surface may result in misalignment
of parts.

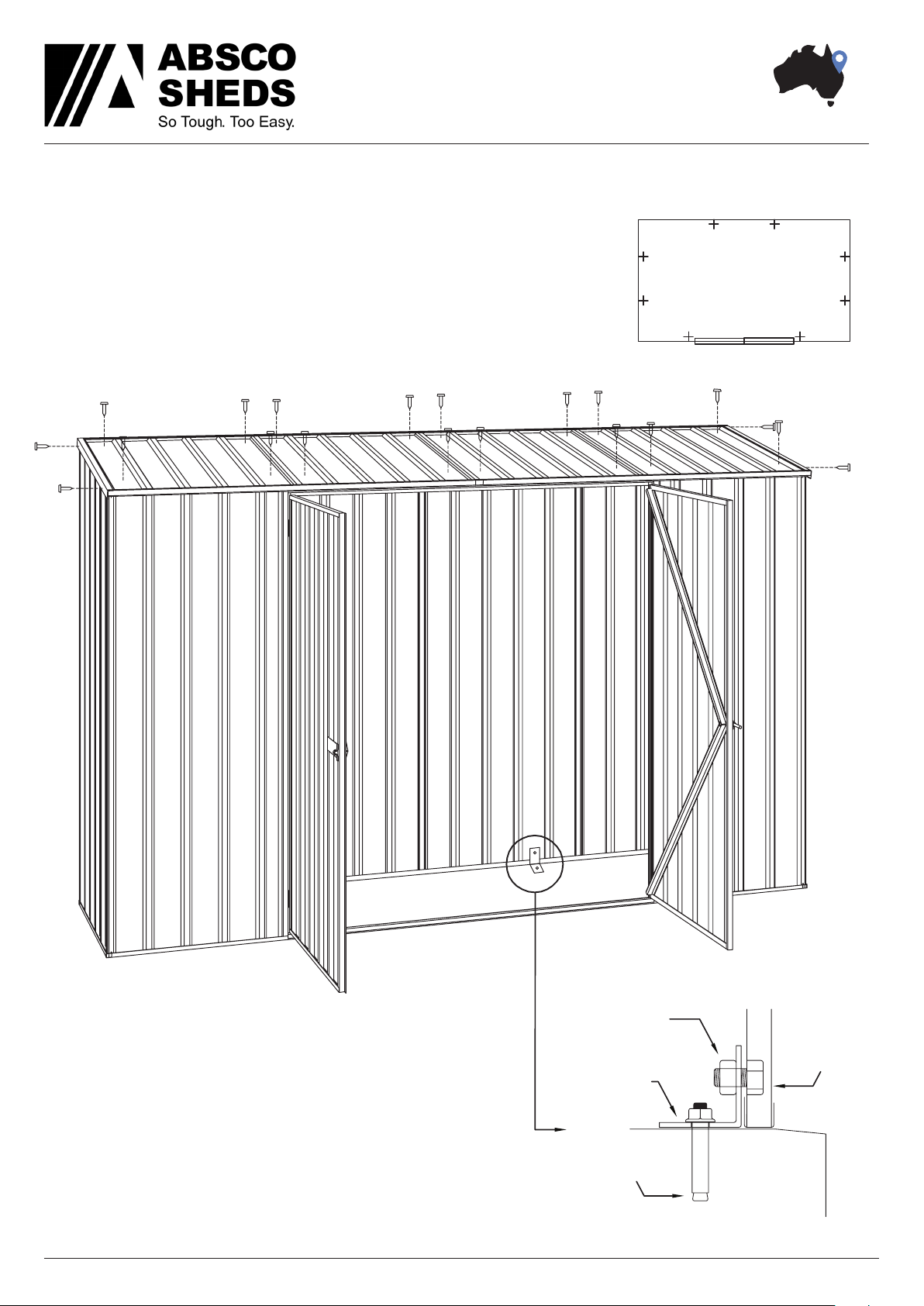

• The shed shall be erected on top of a
reinforced concrete slab and anchored
down appropriately illustrated on “FINAL
CONSTRUCTION” page.
SAFETY NOTES
• Some parts may have sharp edges. It is
advisable to wear gloves when handling these
items and safety glasses if drilling holes.
Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored
to a solid foundation immediately after
construction is completed.
• It is highly recommended to erect the shed
with two or more people.
• Do not sit, stand or walk on the roof of your
shed.
Ladder Hammer drill Shifter
metal & masonry drill bits
to suit anchor fasteners
Pop riveter
SUPPLIED
TinsnipsCordless drill
NUMBER OF HOURS REQUIRED
ASSEMBLY DIFFICULTY
NUMBER OF PEOPLE REQUIRED
Basic Complex
TOOLS REQUIRED
RECOMMENDED
Personal protective
equipment for tools
Hand
Protection
Enclosed
Shoes
Raised work surface. EG
Sawhorses and timbers
Heavy and/or bulky. Multi-
person lift or mechanical aid.
2 - 3 people

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 3
Australian Made
QTY DESCRIPTION PART # CHK
2STEEL SHEET
75.4” x 30.4” 43B
2STEEL SHEET
75.4” x 30.4” 43C
1
STEEL SHEET
72.8” TO MIDPOINT
x 30.4”
X4L
1
STEEL SHEET
72.8” TO MIDPOINT
x 30.4”
X4R
QTY DESCRIPTION PART # CHK
4STEEL SHEET
34” x 30.4” 43D
2STEEL SHEET
70.3” x 28” 34A
1STEEL SHEET
67.9” x 30.4”
DOOR
A
1STEEL SHEET
67.9” x 30.4”
DOOR
B
Nominal sheet widths are shown
+/- 0.08” is within tolerance

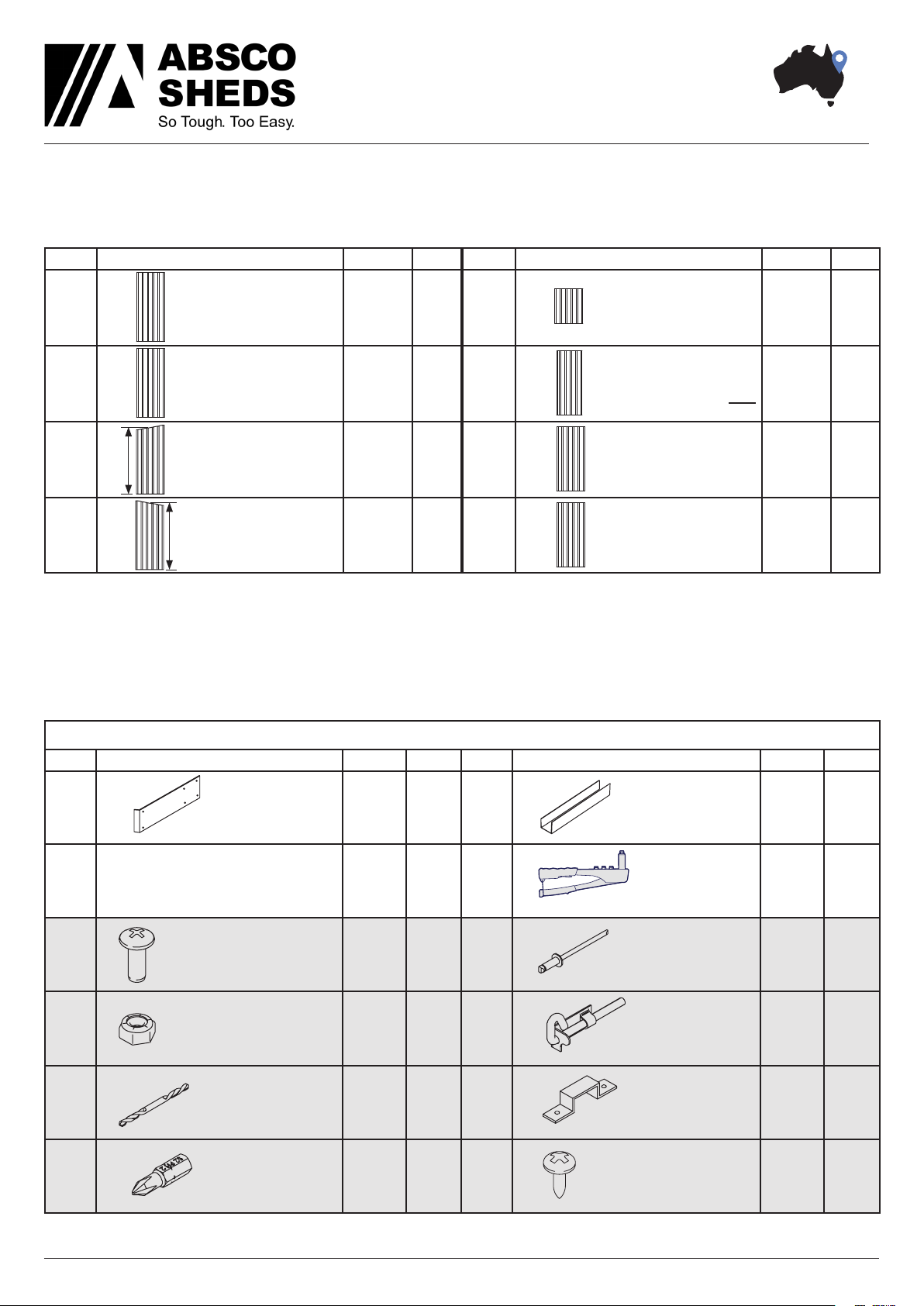

COMPONENT PACKING LIST
Check off all components.
FITTINGS PACK
QTY DESCRIPTION PART # CHK QTY DESCRIPTION PART # CHK
2DOOR
PLATE 12A 6CHANNEL JOINER CSJ
1
DOUBLE DOOR
FITTINGS PACK
CONTENTS SHOWN IN GREY
PSTK
DBL 1HAND POP
RIVETER
RIVET
GUN
83/16” ROUND HD
BOLTS
FAST
002 12 SBS43E POP
RIVET
FAST
009
83/16”
NYLOCK NUTS
FAST
003 3PADBOLT FAST 006
13 mm
DRILL BIT DRILL 2 PADBOLT HASP
FAST
007
1PHILLIPS HD
DRIVER BIT
FAST
038 1
PAN HEAD SCREW
SELF TAPPING
8G x 3/8” FAST001
PACK
220

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 4
Australian Made

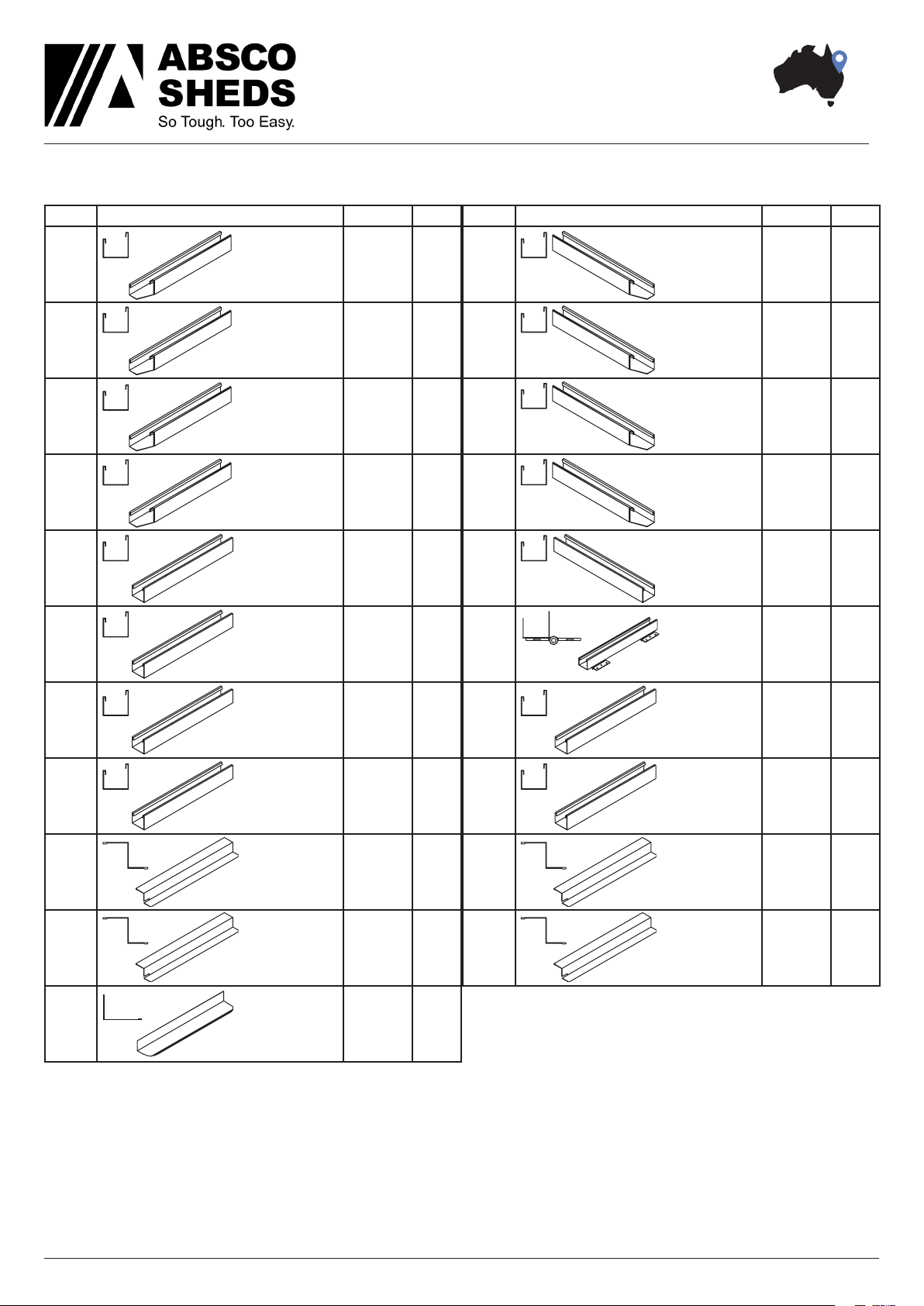

QTY DESCRIPTION PART # CHK
1CHANNEL
58.9” 55AL
1CHANNEL
58.9” 55CL
1CHANNEL
58.9” 55BL
1CHANNEL
58.9” 81BL
1CHANNEL
58.9” 81AL
2CHANNEL
30.9” 61B
2CHANNEL
30.4” 81J
1CHANNEL
61.7” 79A
2JAMB
70.3” 89A
1JAMB
67.9” 89C
2LIP
34” 88B
QTY DESCRIPTION PART # CHK
1CHANNEL
58.9” 55AR
1CHANNEL
58.9” 55CR
1CHANNEL
58.9” 55BR
1CHANNEL
58.9” 81BR
1CHANNEL
58.9” 81AR
2
HINGED
CHANNEL
67.9”
58A
1CHANNEL
67.9” 58B
4CHANNEL
30.4” 58C
1JAMB
61.7” 90A
4JAMB
44” 91A

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 5
Australian Made

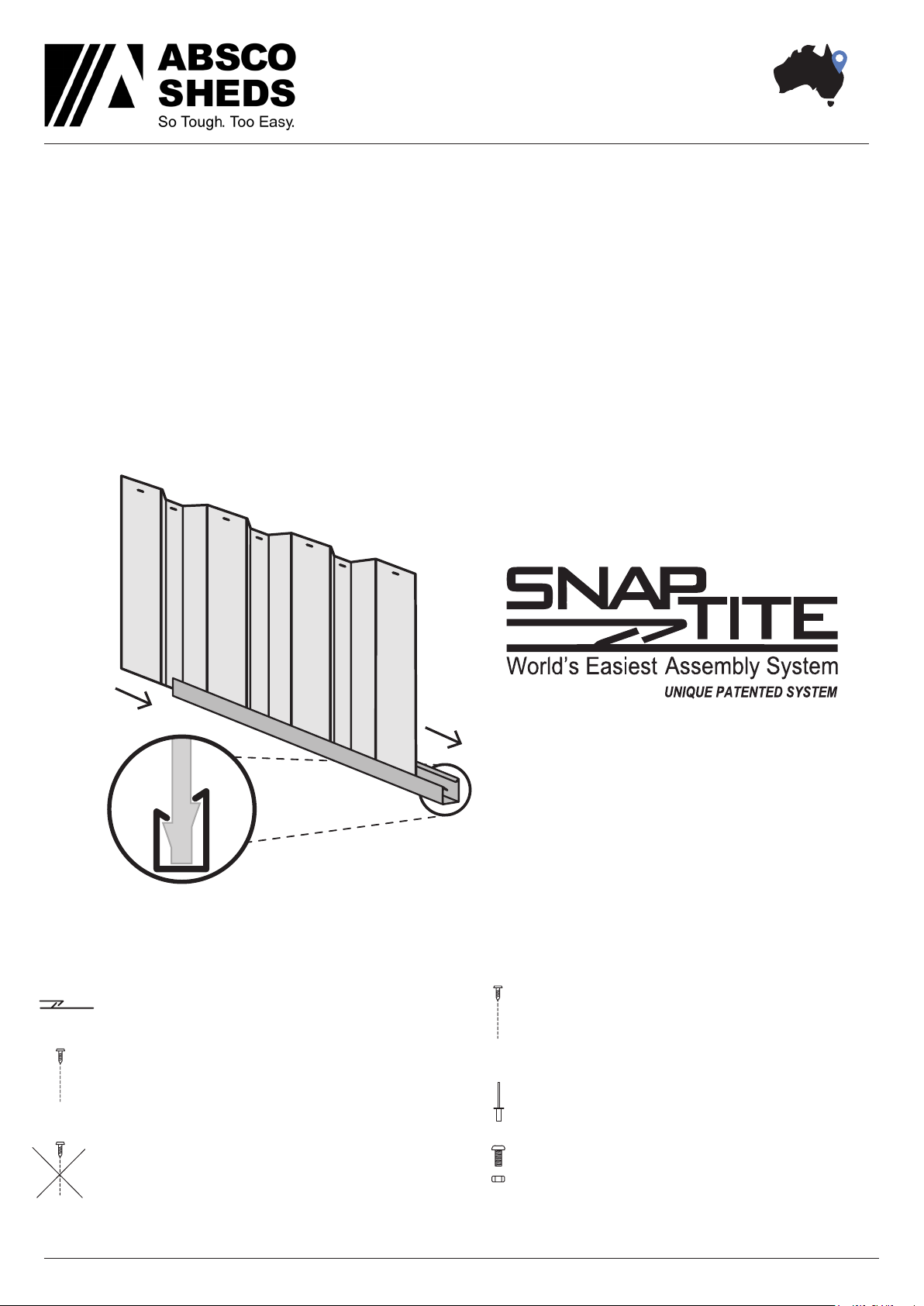

SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 1/8” drill bit.
1/8” pop rivet
3/16” nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 6
Australian Made

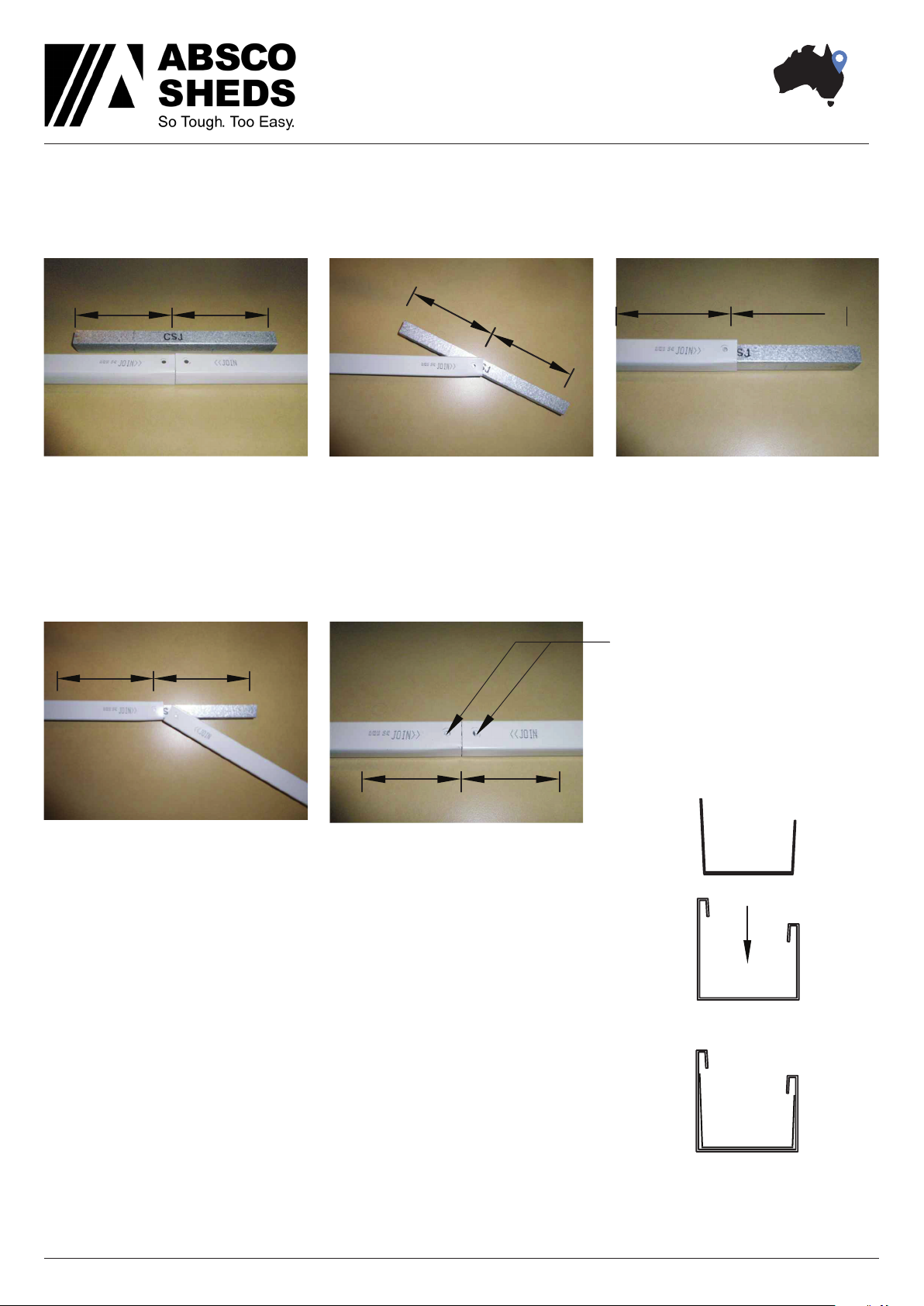

Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 1/8” drill
bit in CSJ to match the holes
in channel. Drilling of screws
on the joined channels is being
done after sheets are locked on
the spliced channels.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
25/32” 19/32”
CSJ
.
...

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 7
Australian Made

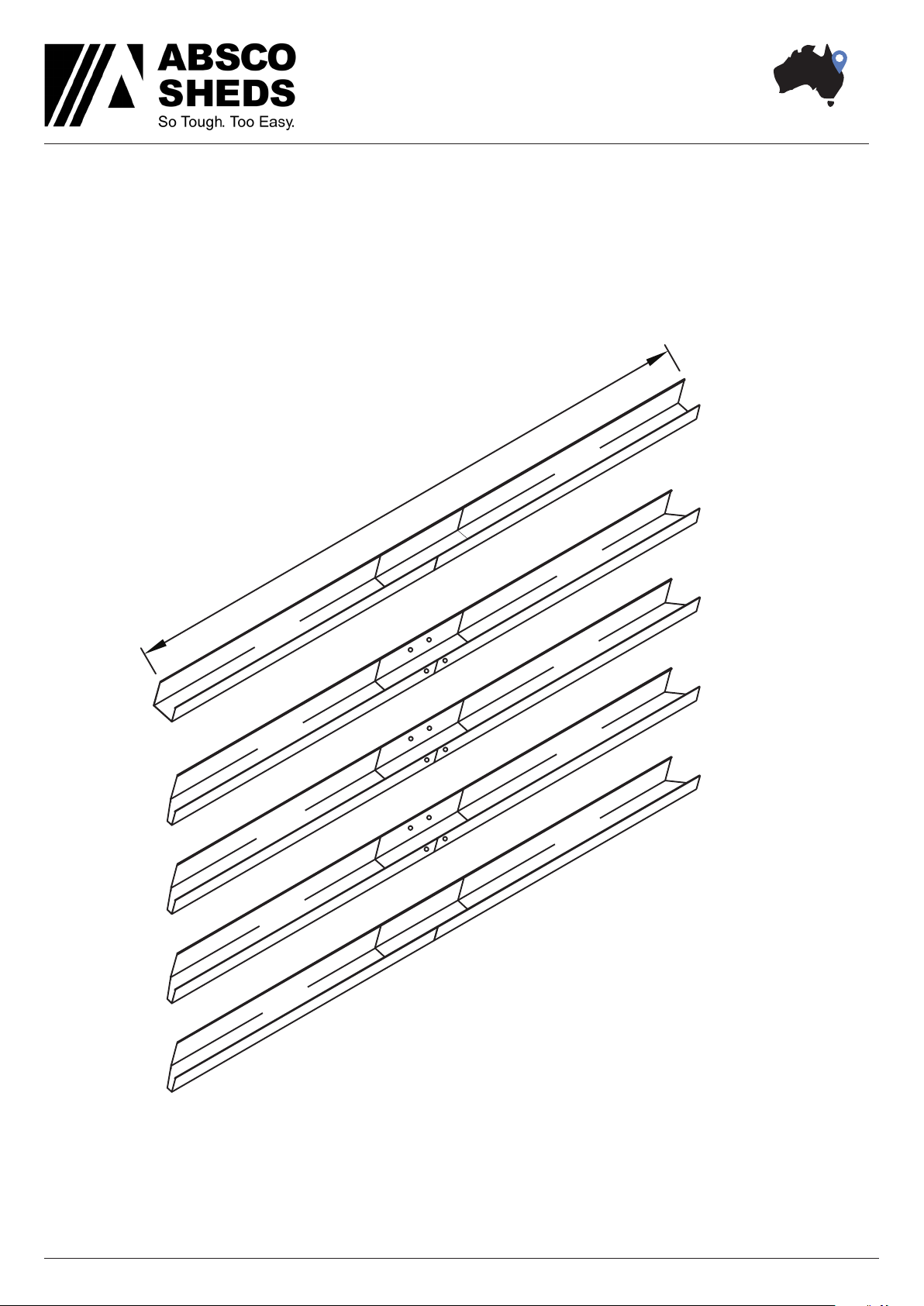

PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.
Join together 12 x channel sections using 6 x channel joiners (Part CSJ)
=
=
=
=
=
2 x 81A
1 x 55A
1 x 55C
1 x 55B
1 x 81B
81BL
81BR
55BR
55BL
55CL
55CR
55AR
55AL
81AR
81AL
2 X 81AR
2 X 81AL
1 X 55AR
1 X 55AL
1 X 55CR
1 X 55CL
1 X 55BR
1 X 55BL
1 X 81BR
1 X 81BL
117.8”

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 8
Australian Made

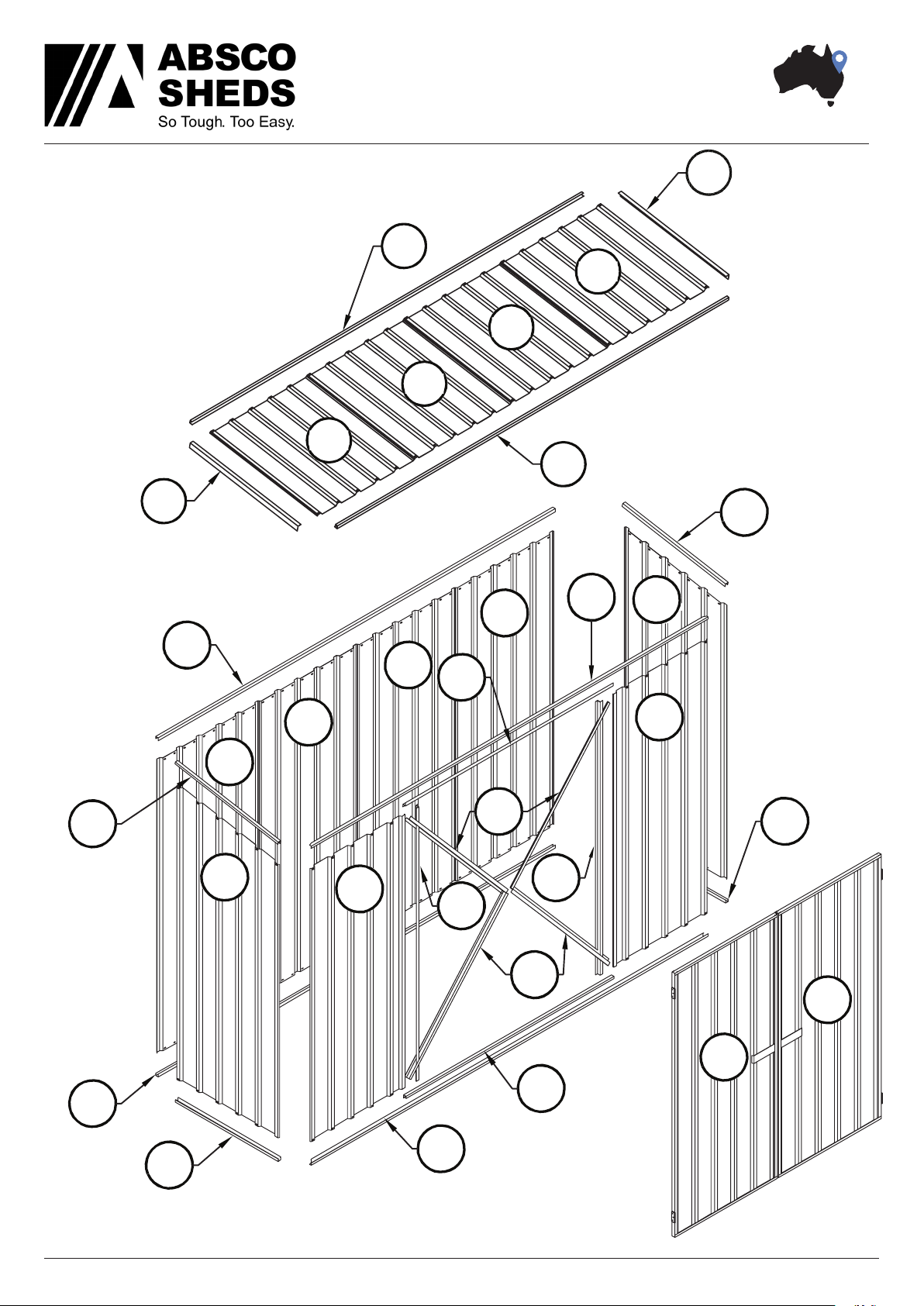

COMPONENT OVERVIEW
88B
81A
88B
81A
43D
43D
43D
43D
43B
43C
43C
43B
34A
X4L
34A
X4R
A
B
55C
91A
90A
91A
89A
89A
79A
55A
61B
81J
81B
55B
61B
81J

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 9
Australian Made
Part numbers are found on
the inside of the sheeting
near the corner.
Shown as grey box on left

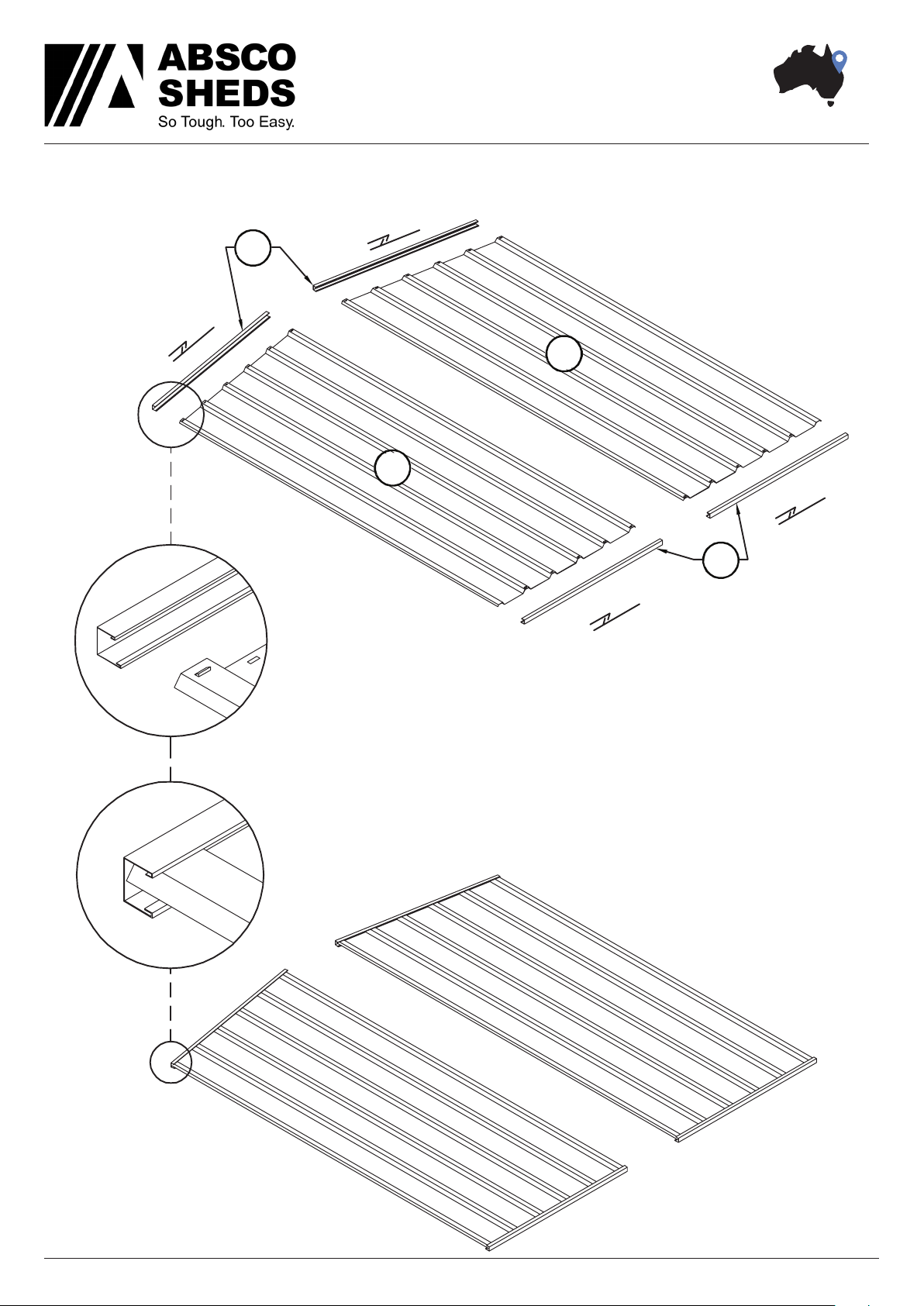

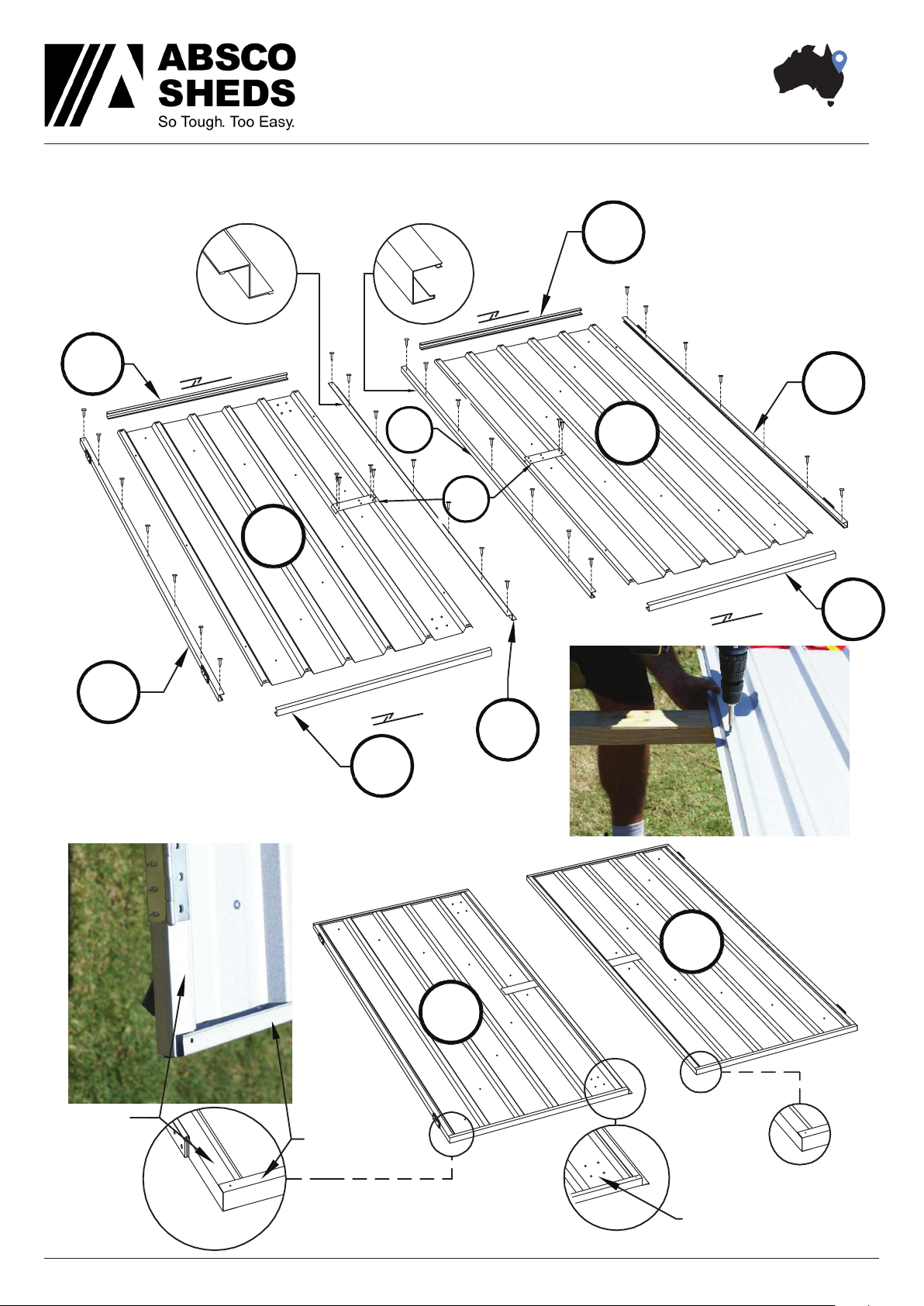

1. Overlap specified sheets as
shown. Make sure ends are flush.
Where possible, have sheets
orientated so printed part
numbers are as shown.
edge holes to outside
edge holes to outside
2. Fasten with self tapping
screws through prepunched
sheet-to-sheet holes on overlap.
If you can’t see bottom hole twist
the sheet left or right.
Make a new hole with supplied
drill bit if bottom hole is too far
up or down the sheet or not
found.
3. Attach the top and bottom
channels using the SNAP-TiTE
method.
Make sure you have the short
side of the channel to the
outside of the sheeting
81B
55B
REAR PANEL
ASSEMBLY
START HERE
43B
43C
43C
43B

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 10
Australian Made
SIDE PANEL ASSEMBLY
2x required.
X4L
X4R
SNAP
T
TE
i
SNAP
TTE
i
SNAP
T TE
i
SNAP
TTE
i
61B
81J

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 11
Australian Made

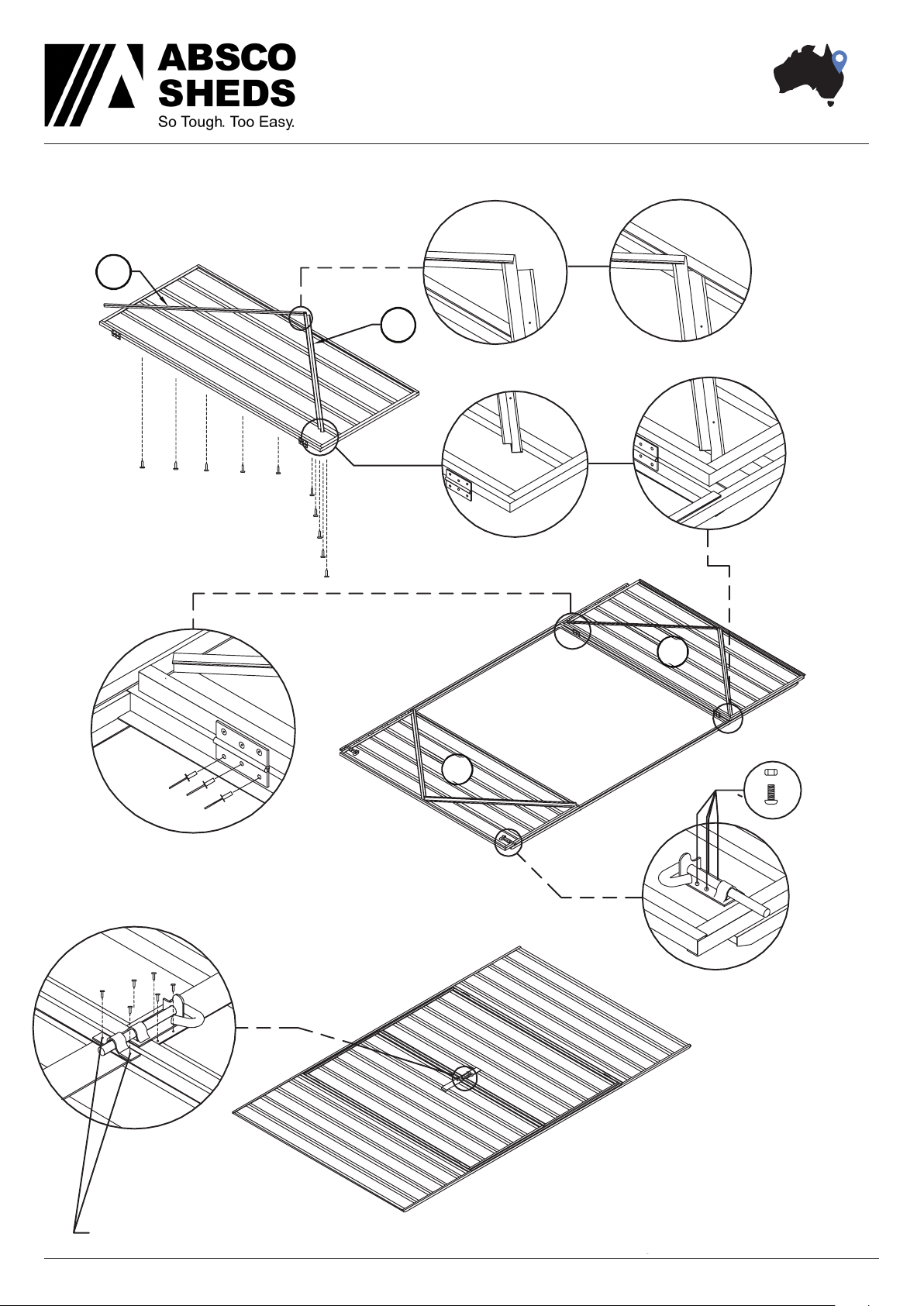

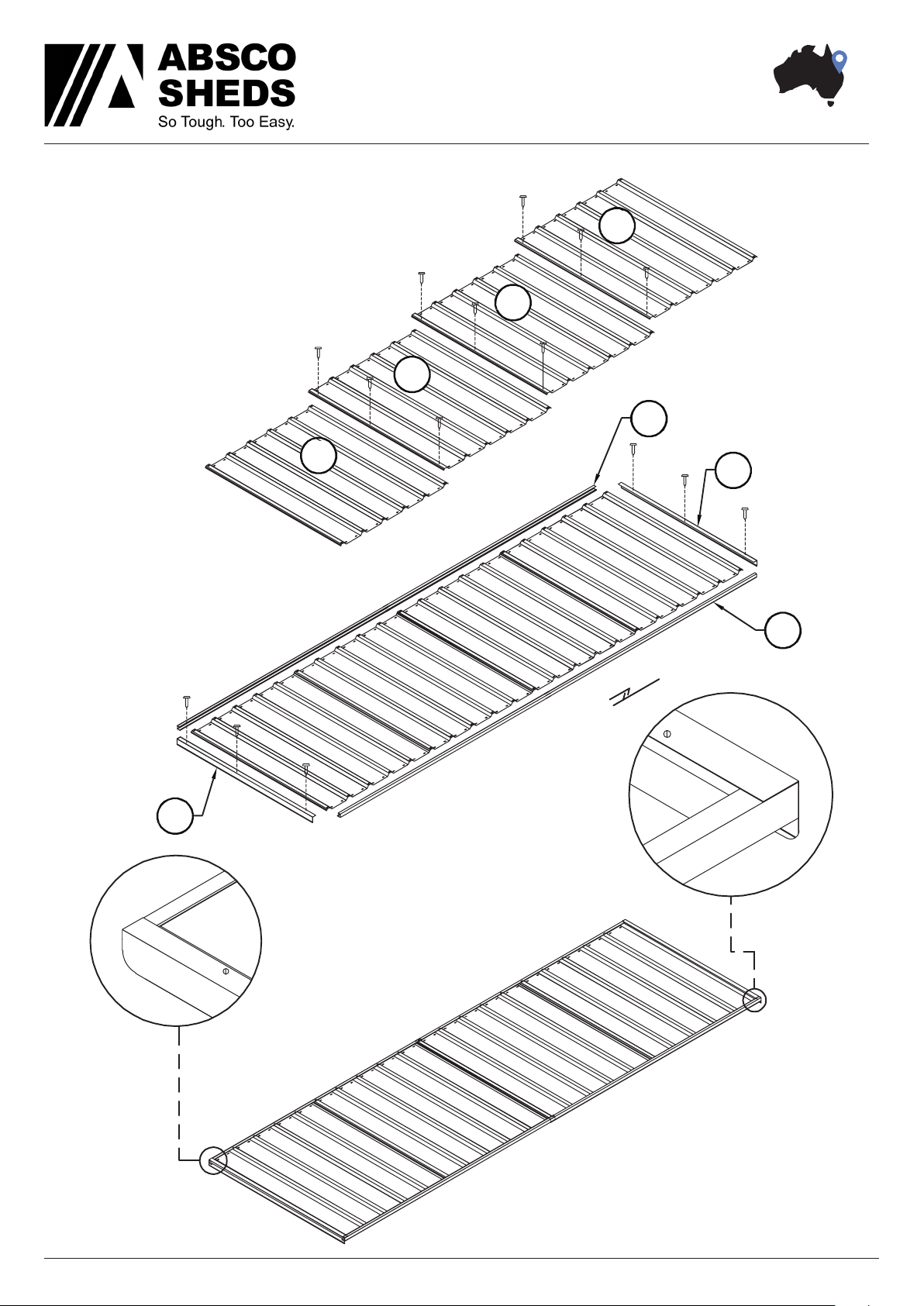

ROOF PANEL ASSEMBLY
43D
43D
43D
43D
SNAP
T TE
i
81A
88B
81A
88B

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 12
Australian Made

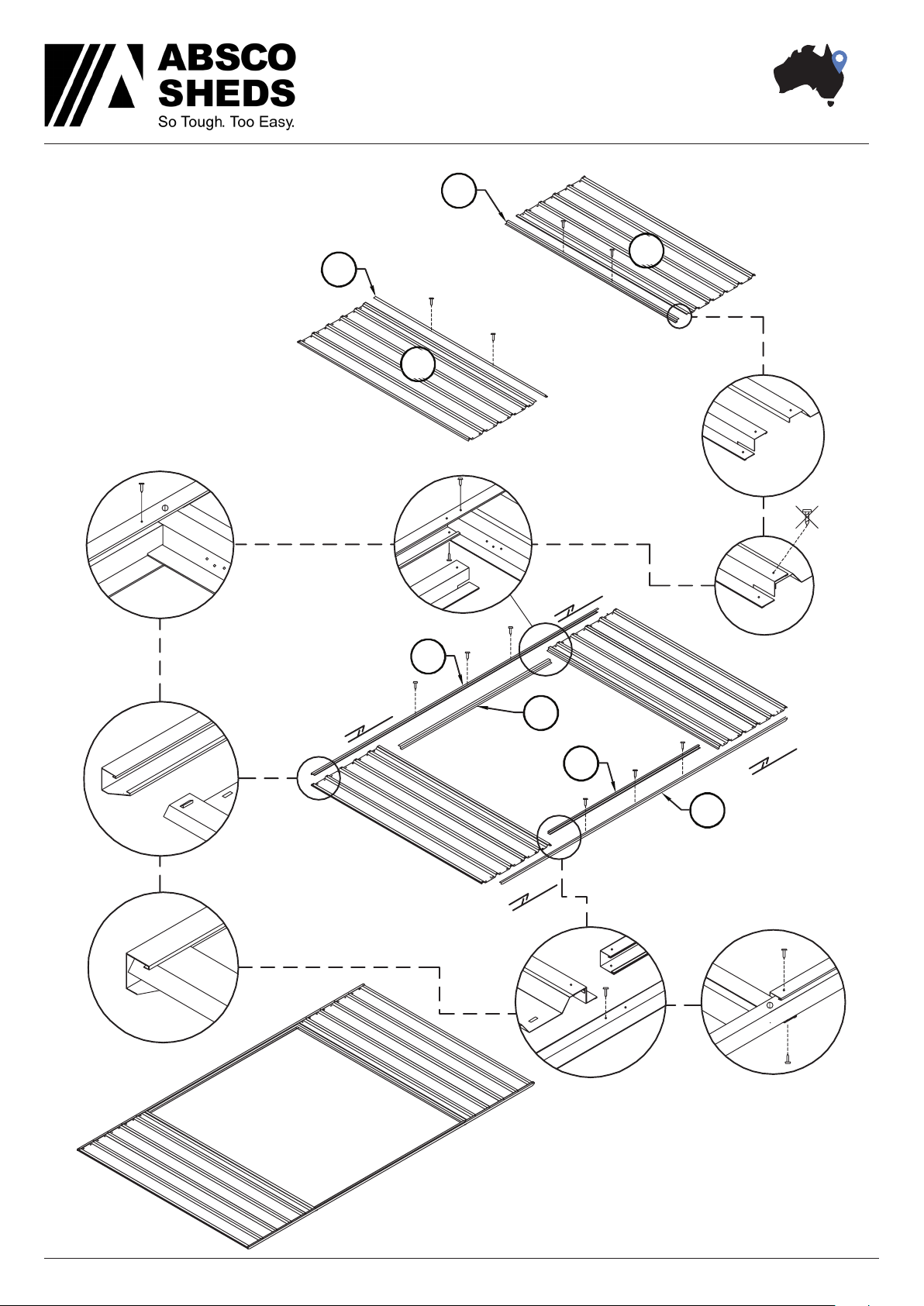

DOUBLE DOOR ASSEMBLY
58C
58C
58C
12A
58C
58A
58A
A
B
89C
58B
A
B
SNAP
TTE
i
SNAP
TTE
i
SNAP
TTE
i
SNAP
T TE
i
Vertical door channels are
installed in the opposite
orientation compared to the
horizontal door channels.
Four hole set for
padbolt connection.
Short flange
of channel
Long
flange of
channel
D
D
D
D
D
D
D
D

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 13
Australian Made
FRONT PANEL ASSEMBLY
89A
89A
55A
90A
79A
55C
SNAP
T
TE
i
SNAP
T
TE
i
SNAP
T
TE
i
SNAP
T
TE
i
34A
34A

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 14
Australian Made
NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for
proper alignment. position each hasp centrally over the padbolt shaft, and drill 3mm holes and secure with screws
91A
91A
A
B
FRONT PANEL ASSEMBLY (continued)
1/8”

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 15
Australian Made

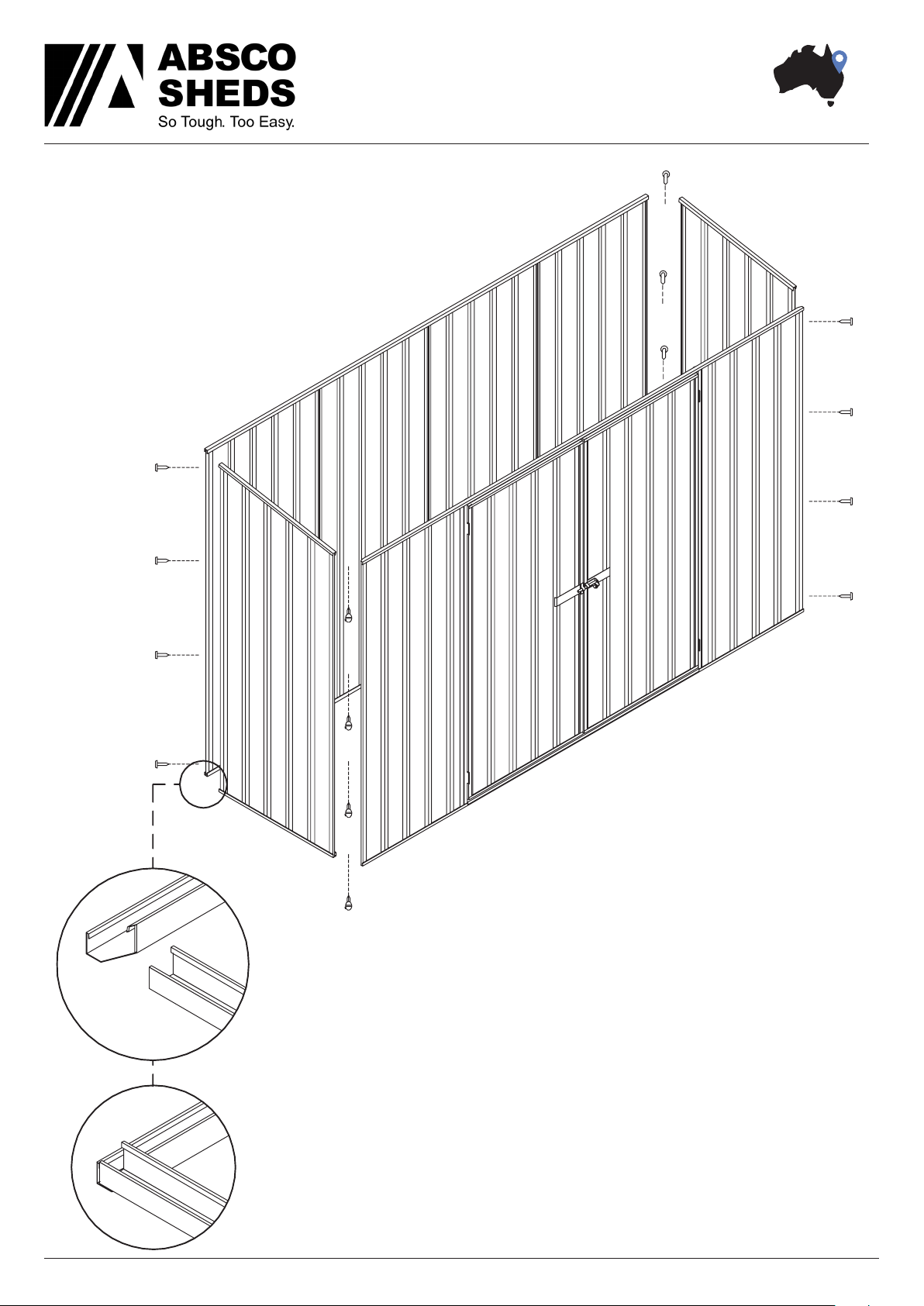

PANEL CONSTRUCTION
NOTE: Take care to ensure that all wall
panels are not upside down. The top
channels of each panel are pre-punched
for attaching roof sheeting. The base
channels are not pre-punched.
SIDE WALL PANEL CHANNELS FIT
INTO THE NOTCHED FRONT AND
REAR WALL PANEL CHANNELS

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 16
Australian Made
FINAL CONSTRUCTION
Bolt & Nut
Steel
Angle
Dynabolt
Wall Sheet
Slab
ANCHORING OF SHED
LOCATION OF 8
CONCRETE ANCHORS
• EACH ANCHOR CONSISTS OF ONE NUT & BOLT, A
DYNABOLT AND STEEL ANGLE.
• DRILL A HOLE IN THE WALL SHEET TO SUIT BOLT.
• DRILL A HOLE IN THE SLAB TO SUIT DYNABOLT.

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 17
Australian Made
Absco Sheds Storage Guidelines
• Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme
weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins,
screw fixings etc., may exhibit minor deformations which may allow some water entry. These areas should be
checked regularly to ensure that maximum strength and protection is maintained.
• Other weather conditions such as extreme heat and extreme cold, moist or dry air can influence the effects
of concrete floor moisture and/or condensation on the underside of the roof sheets.
• Absco Sheds and storage units are primarily used for storage of garden equipment such as lawnmowers,
wheelbarrows, garden tools etc. Storage items that might be adversely affected by any of the above conditions
may require additional protection such as being sealed or covered by plastic sheets and/or stacked above
the concrete floor on timber slats.
• Waterproof sealants may be used to offer further protection where required around joins and screw fixings,
as can rubber door seals and other products which are available from most hardware outlets.
• Placement of waterproof sealants (silicone) between the base of the shed and concrete slab is not
recommended, as this process can have a reverse effect, preventing excess water from escaping, resulting
with water accumulating and being trapped inside the shed.
• Absco accepts no responsibility for water entry, floor moisture, condensation or the condition of the Contents
inside your Absco steel building arising from any of the pre-mentioned weather conditions.
6-12 Activity St, Acacia Ridge QLD 4110
PO Box 119, Acacia Ridge QLD 4110
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au

Absco Industries Assembly Instruction Manual
SPACE SAVER SHED
MODEL: 30082SK-PTX
10’ W x 2’7” D x 5’11” H, 6’5” H
Model: 30082SK-PTX 12/7/23 1.1 18
Australian Made
1 | P a g e
EXPORT PRODUCT WARRANTY
AGAINST DEFECTS
Congratulations on your purchase of an ABSCO SHED
ABSCO SHEDS, including garden sheds, garden beds, aviaries, storage units, garages,
awnings and carports are made using high quality Australian made steel.
We are pleased to advise we warrant that the steel coating will not rust, crack, flake peel or
blister for 12 years from date of purchase.
This warranty does not apply to surface deterioration of panels caused by ‘Swarf” (Tiny
particles of steel debris left from cutting, grinding or drilling operations) that has not been
removed after building construction, or as a result of contact with damp soil, chemicals,
fertilisers or other corrosive substances.
This warranty covers any Absco product used for normal domestic use and installed in
accordance with the installation instructions.
This warranty does NOT cover Damage caused by storms, wind, rain, snow or poor
foundations.
This warranty does NOT cover ABSCO products installed in severe coastal, industrial or
other highly corrosive environments. The warranty does not cover fasteners (screws, nuts,
bolts, rivets, hasps or sliding padbolts).
The warranty is limited to replacement and delivery of components and does not include any
labour or installation costs. The benefits given by the warranty are in addition to your other
rights and remedies under a law in relation to the goods or services to which the warranty
relates.
In the unlikely event a warranty claim is made, it must be supported by photographic
evidence and details of the defect, including component part numbers, together with proof
of purchase documentation (or on-line registration of purchase) and forwarded to the
address below. Upon receipt of the warranty claim, the Customer Service Manager will
contact you within three business days to advise you of the assessmentoutcome of the
claim, which may include your expenses incurred in making the claim.
THE CUSTOMER SERVICE MANAGER, ABSCO SHEDS, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110
PHONE: [phone] EMAIL: wa[email protected]m.au
Issued 16 July 2019
