ABSCO SHEDS 30082SECOK User manual

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 1
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23151GK 21-11-2017
CONCRETE SLAB
2360mm
1620mm
FRONT: 2.26m
SIDE: 1.52m
HEIGHT: 1.95m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
[email protected]
CONCRETE
REBATED EDGE
BOTTOM CHANNEL
CONCRETE SLAB
75mm WIDE REBATE
100mm
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
Absco Industries
Premier Shed Model: 23151GK
PAGE 01
When laying concrete slab, ensure there
is a rebated edge 25mm deep around the
perimeter. This will help water egress from
the base of the shed.
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
CONCRETE
SLAB
3100mm
880mm

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 2
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page.
TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored to a solid foundation immediately after construction is
completed.
• It is highly recommended to erect the shed with two or more people.
• Do not sit, stand or walk on the roof of your shed.
RECOMMENDED
3mm drill bit 10mm masonry drill bit

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 3

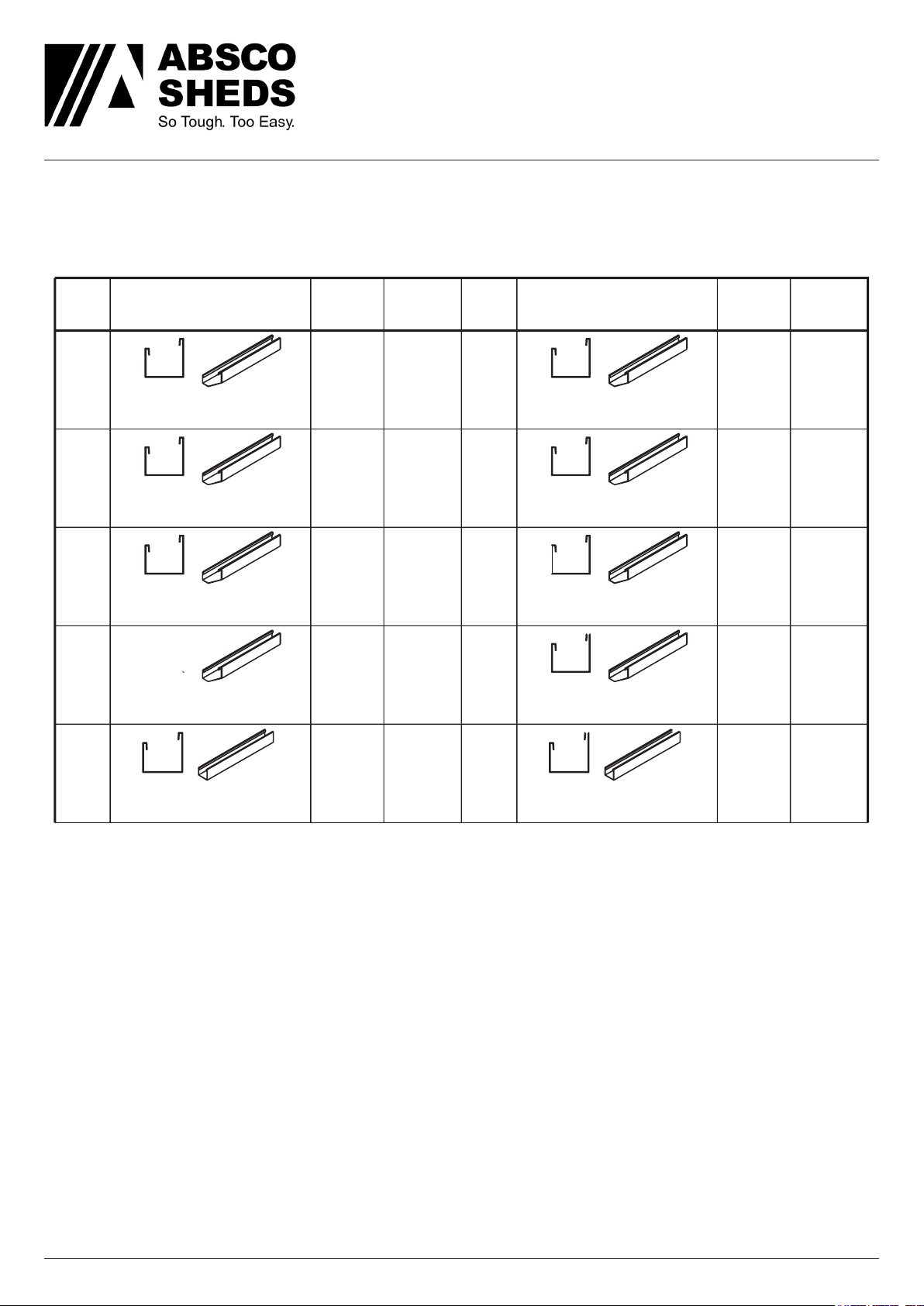

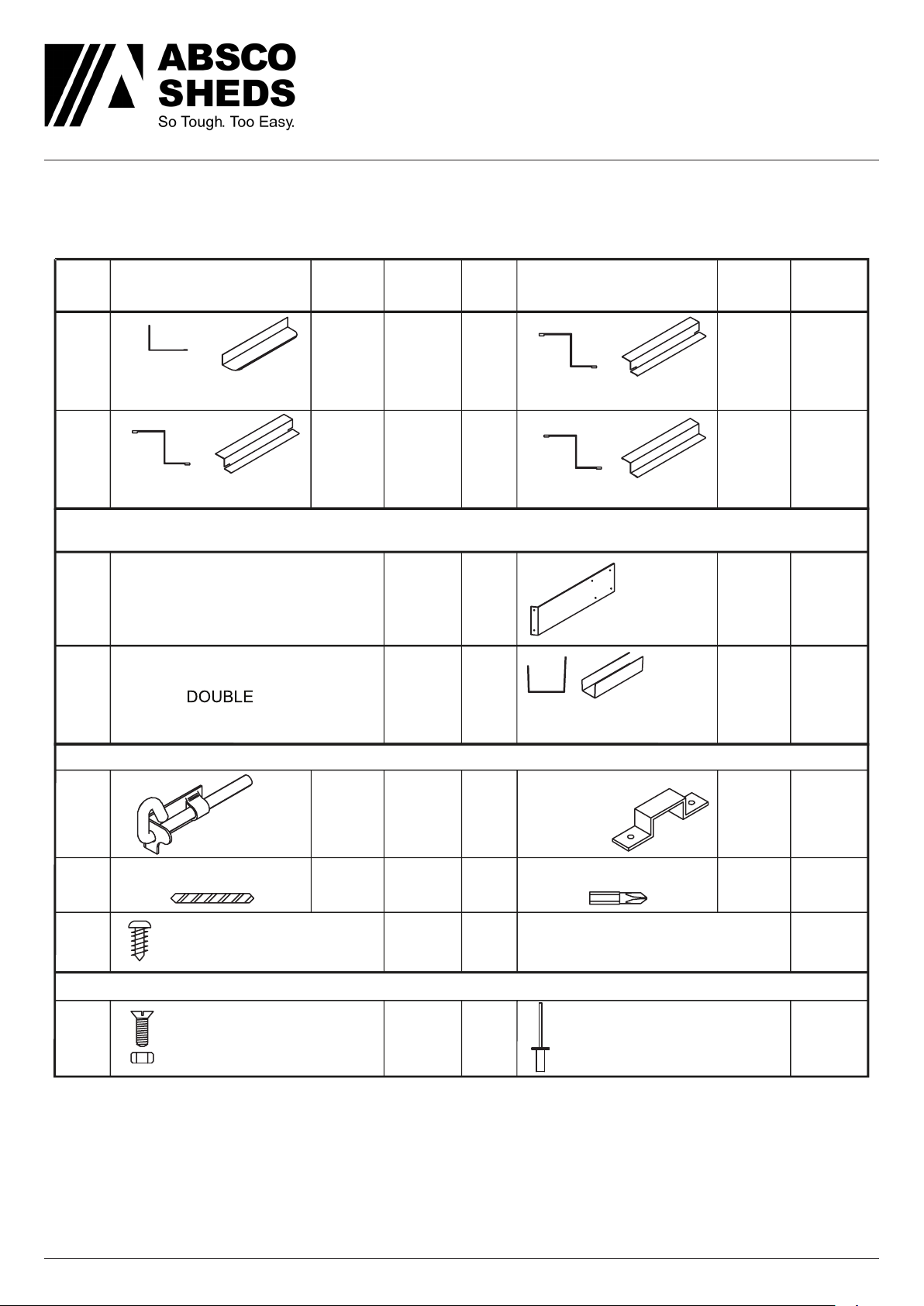

COMPONENT PACKING LIST
Check off all components.
2
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
2
1915 X 773mm 43B
STEEL SHEET
2
1
1
4
2
1
1
1915 X 773mm 43C
STEEL SHEET
STEEL SHEET
1915mm X 773mm X4L
STEEL SHEET
1915mm X 773mm X4R
STEEL SHEET
865mm X 773mm 43D
STEEL SHEET
1785mm X 711mm 34A
STEEL SHEET
1725mm X 773mm A
STEEL SHEET
1725mm X 773mm B
2
2
1
61B
CHANNEL
L = 786mm
CHANNEL
L = 773mm
81J
79A
CHANNEL
L = 1568mm
1
4
89A
JAMB L= 1785mm
2
58A
CHANNEL WITH HINGES
L = 1725mm
58B
CHANNEL
L = 1725mm
58C
CHANNEL
L = 773mm
Nominal sheet widths are shown. +/- 2mm is within tolerance.

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 4
COMPONENT PACKING LIST
Check off all components.
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY
55AL
55CL
55BL
81BL
81AL
QTY
55CR
1
1
1
1
2
1
1
1
1
2
CHANNEL
L = 1496.5mm (58.9")
CHANNEL
L = 1496.5mm (58.9")
CHANNEL
L = 1496.5mm (58.9")
CHANNEL
L = 1496.5mm (58.9")
CHANNEL
L = 1496.5mm (58.9")
55BR
81BR
81AR
55AR
CHANNEL
L = 1496.5mm (58.9")
CHANNEL
L = 1496.5mm (58.9")
CHANNEL
L = 1496.5mm (58.9")
CHANNEL
L = 1496.5mm (58.9")
CHANNEL
L = 1496.5mm (58.9")

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 5
1ASSEMBLY
INSTRUCTIONS
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
INSTRUCTIONS & FITTINGS PACKET
12A
2DOOR
STRAP
L: 165mm
1
1
4
2
89C
JAMB L= 1725mm
90A
JAMB L= 1568mm
91A
JAMB L= 1120mm
88B
LIP TRIM L= 865mm
CSJ
6CHANNEL JOINER
L= 200mm (7.9")
1PSTKSGL
DOOR
FITTINGS PACK
DOOR
PADBOLT
HASP
1
3
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
FAST006
3/16 COUNTERSUNK
SCREWS & NUTS
12 3.2 x 8mm
BLIND POP RIVETS
12
PSTKSGL -
DOUBLE DOOR FITTINGS PACK
PACK 12P - SCREW PACK 12
PACK 12P SCREW
PACK 12
1
PHILLIPS DRIVER BIT
3mm DRILL BIT DRILL
FAST007
FAST038
1 1
Check off all components.
COMPONENT PACKING LIST
PSTKDBL -

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 6

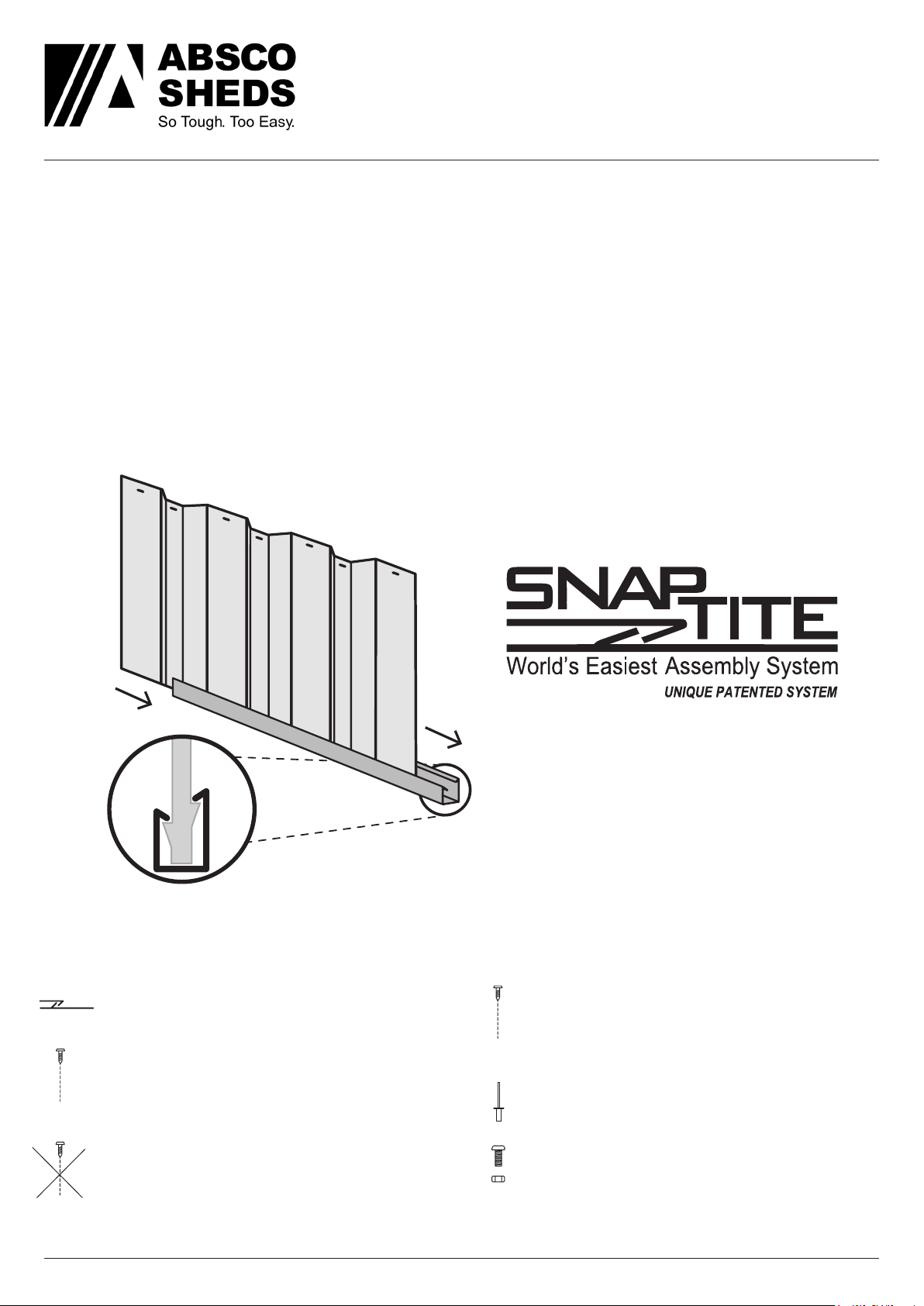

SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 7

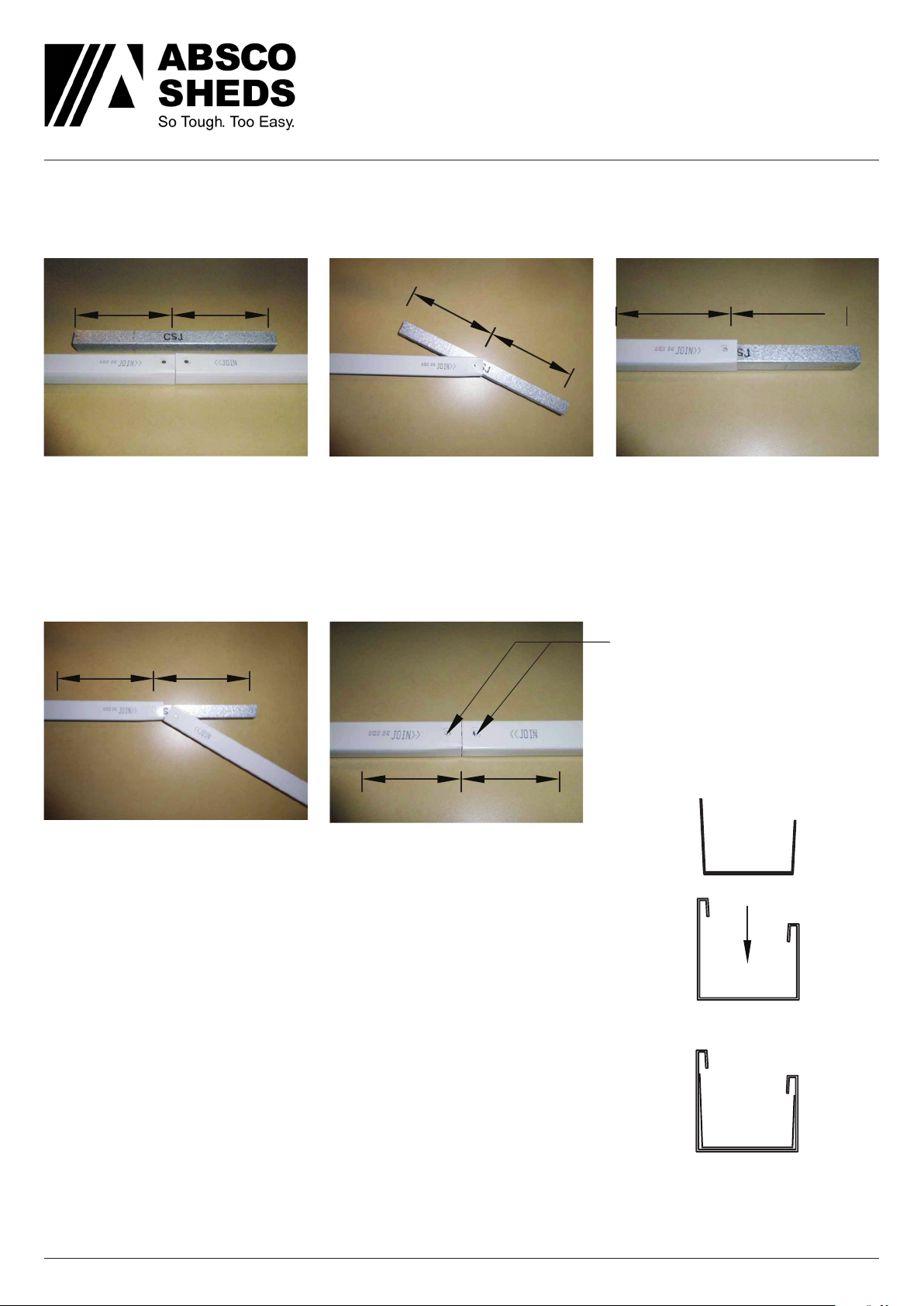

Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 3mm drill
bit in CSJ to match the holes
in channel. Drilling of screws
on the joined channels is being
done after sheets are locked on
the spliced channels.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
20mm 15mm
CSJ
.
...

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 8

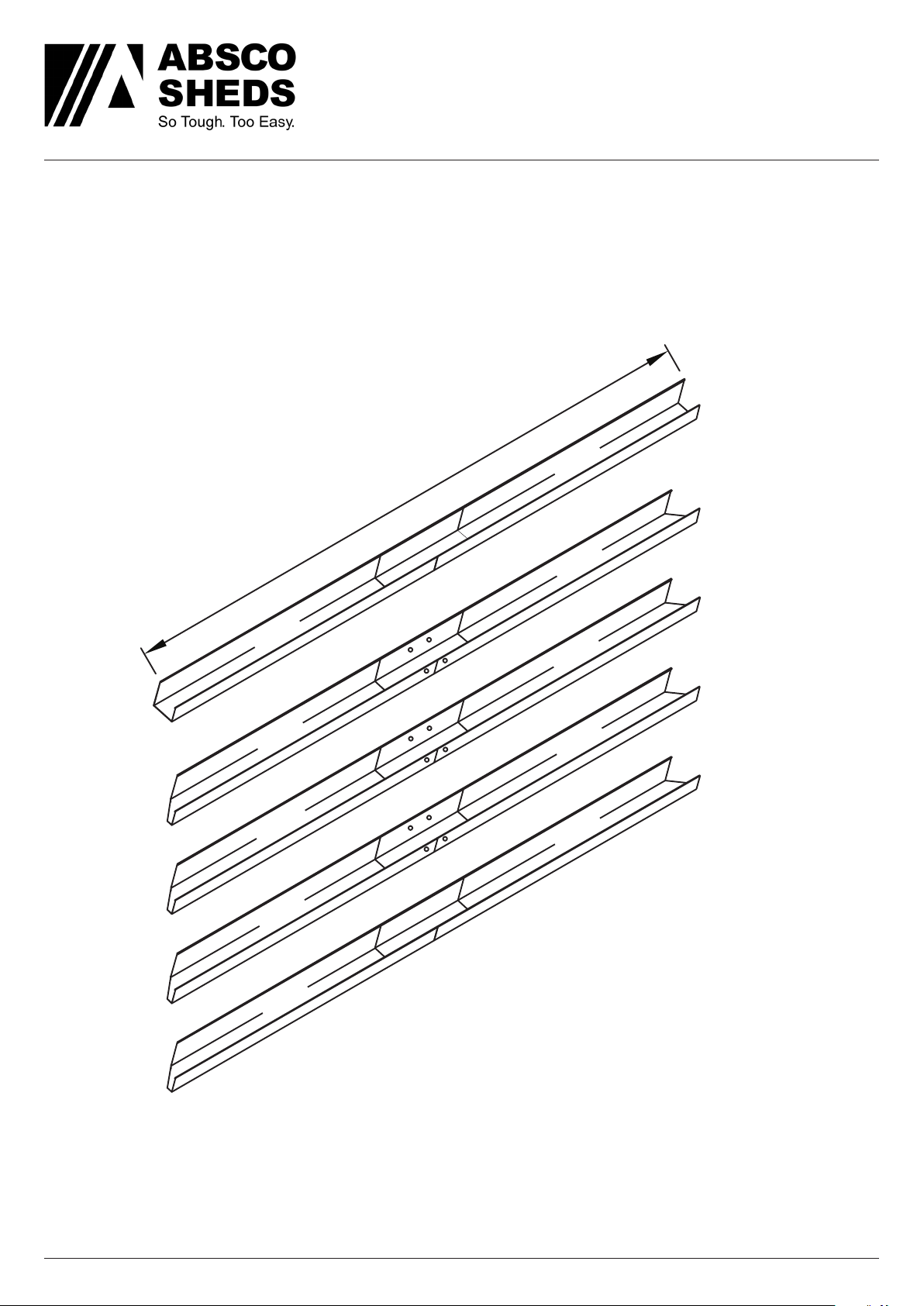

PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.
Join together 12 x channel sections using 6 x channel joiners (Part CSJ)
=
=
=
=
=
2993mm
2 x 81A
1 x 55A
1 x 55C
1 x 55B
1 x 81B
81BL
81BR
55BR
55BL
55CL
55CR
55AR
55AL
81AR
81AL
2 X 81AR
2 X 81AL
1 X 55AR
1 X 55AL
1 X 55CR
1 X 55CL
1 X 55BR
1 X 55BL
1 X 81BR
1 X 81BL

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 9

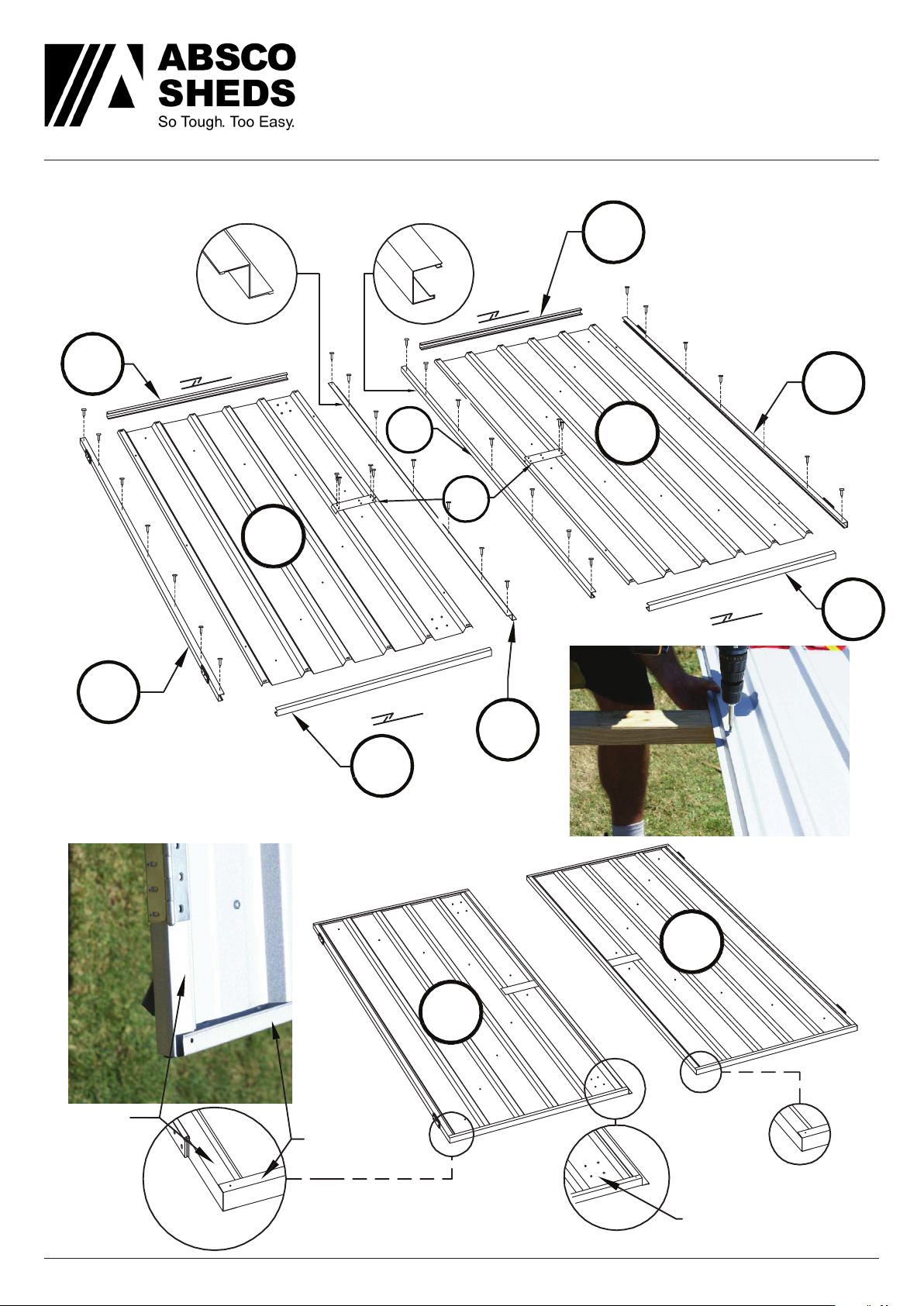

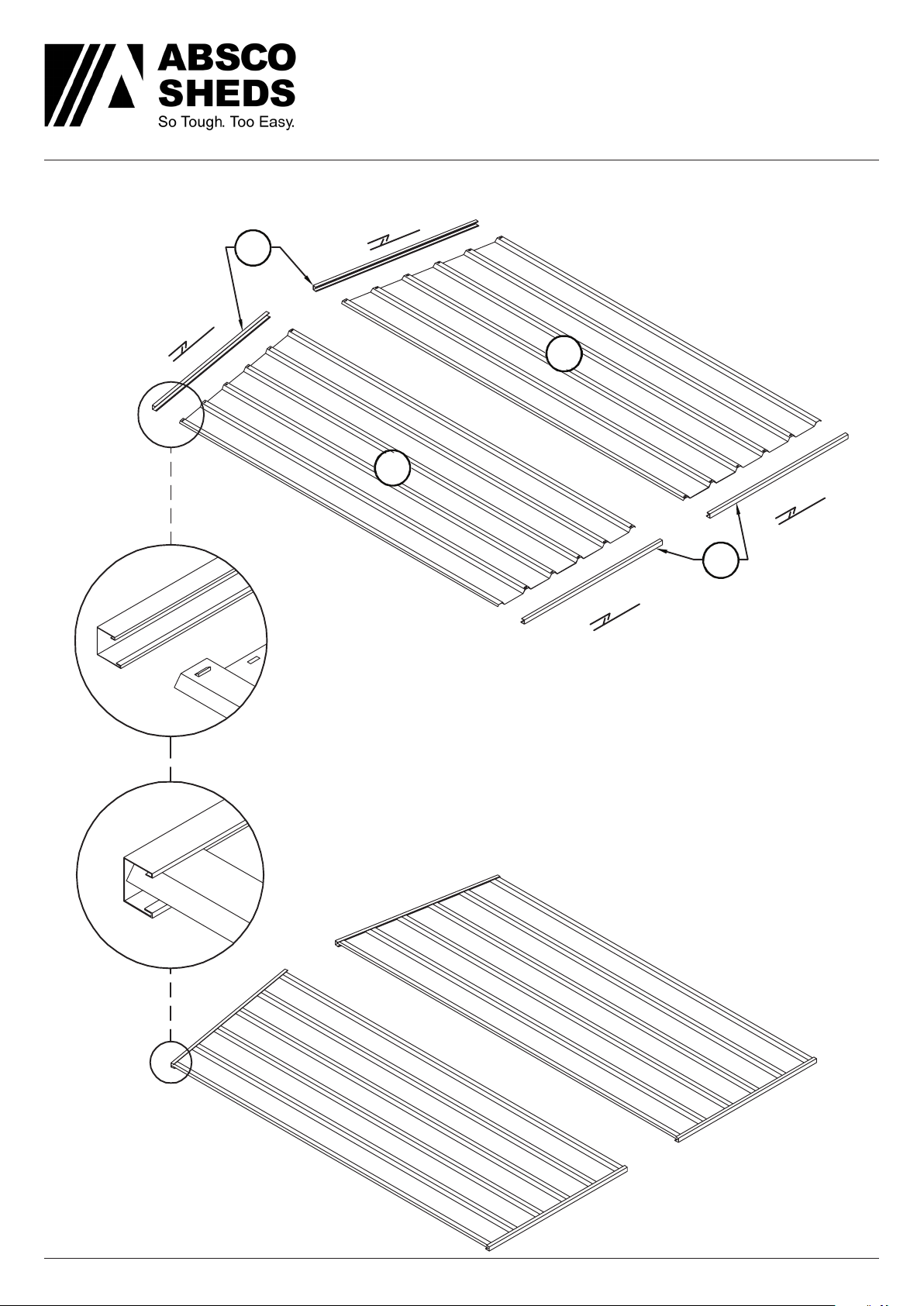

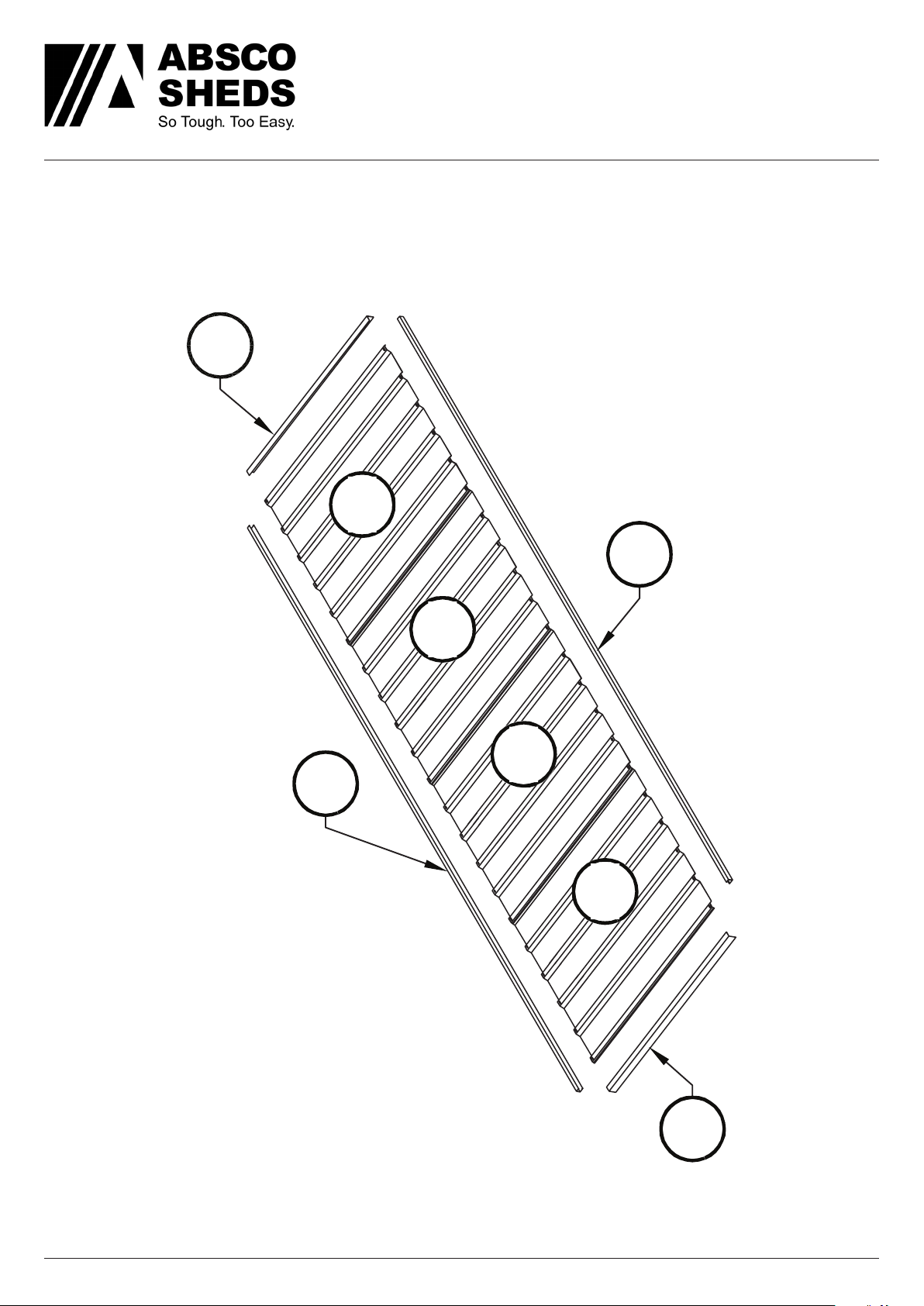

ROOF COMPONENT OVERVIEW
ROOF COMPONENT OVERVIEW
88B
81A
88B
81A
43D
43D
43D
43D

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 10

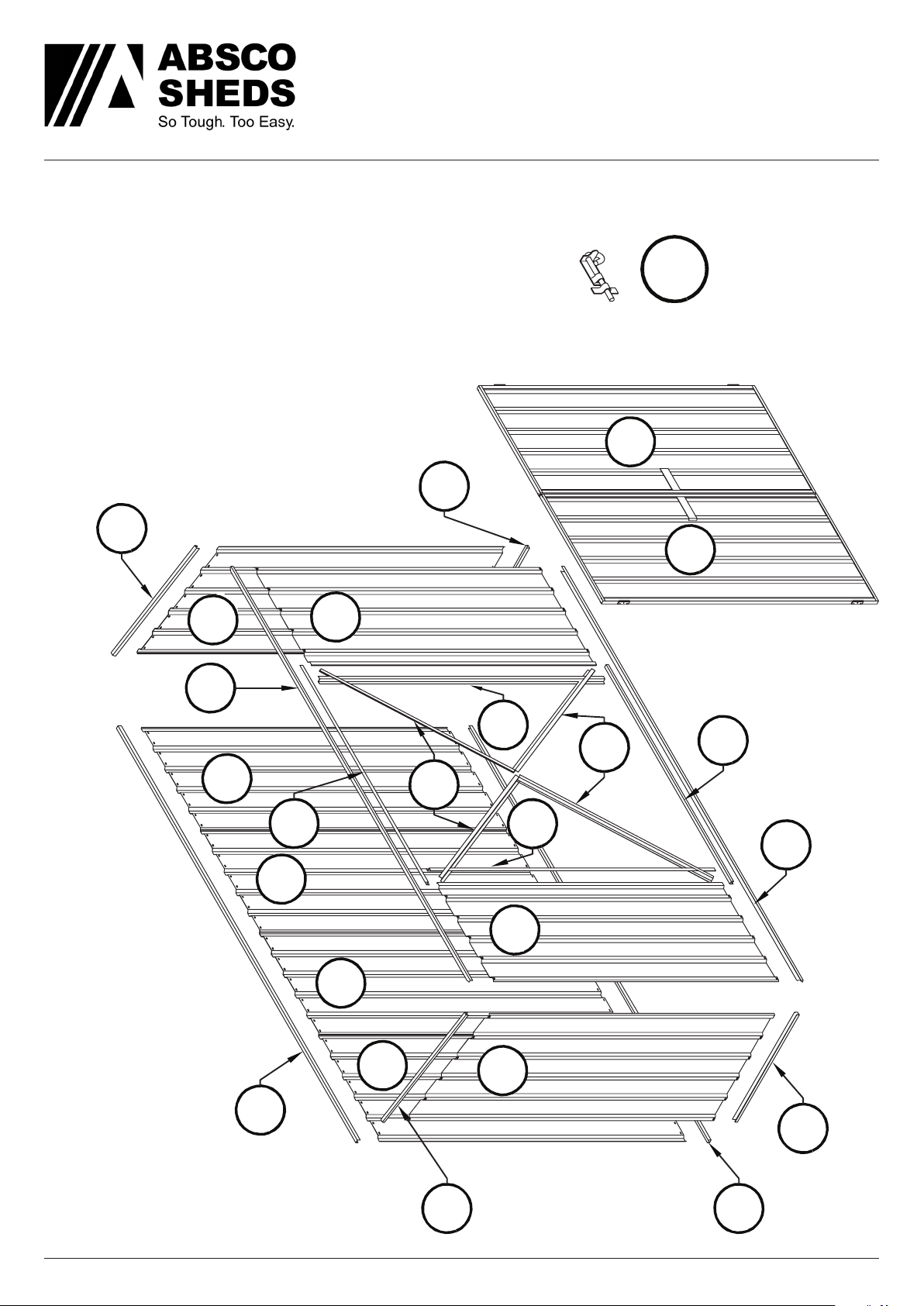

WALL COMPONENT OVERVIEW
43B
43C
43C
43B
34A
X4L
34A
X4R
A
B
22A
55C
91A
90A
91A
89A
89A
79A
55A
61B
81J
81B
55B
61B
81J
WALL COMPONENT OVERVIEW

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 11

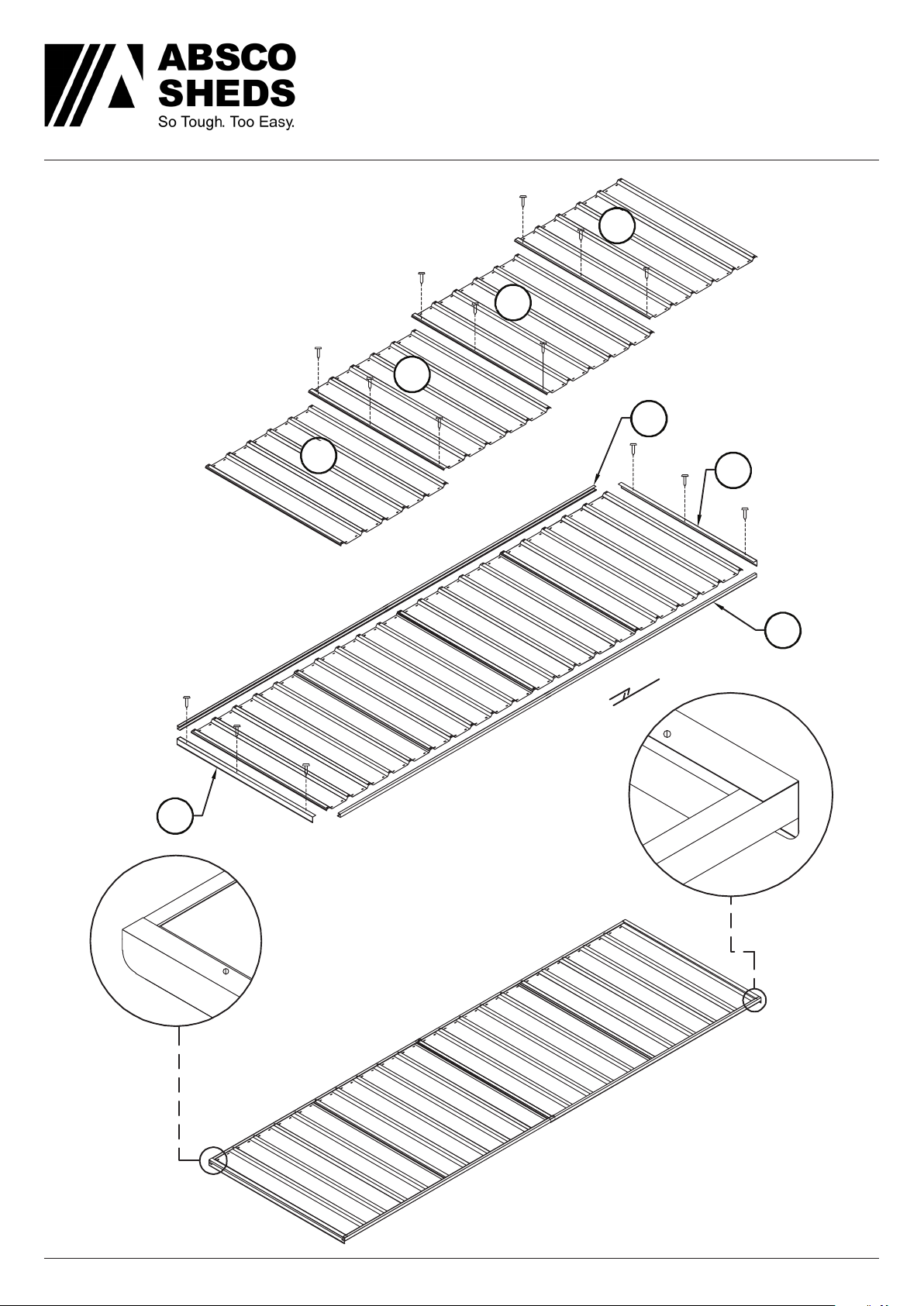

REAR PANEL ASSEMBLY
1x required
43B
43C
43C
43B
SNAP
T TE
i
SNAP
T TE
i
55B
81B

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 12
SIDE PANEL ASSEMBLY
2x required.
X4L
X4R
SNAP
T
TE
i
SNAP
TTE
i
SNAP
T TE
i
SNAP
TTE
i
61B
81J

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 13

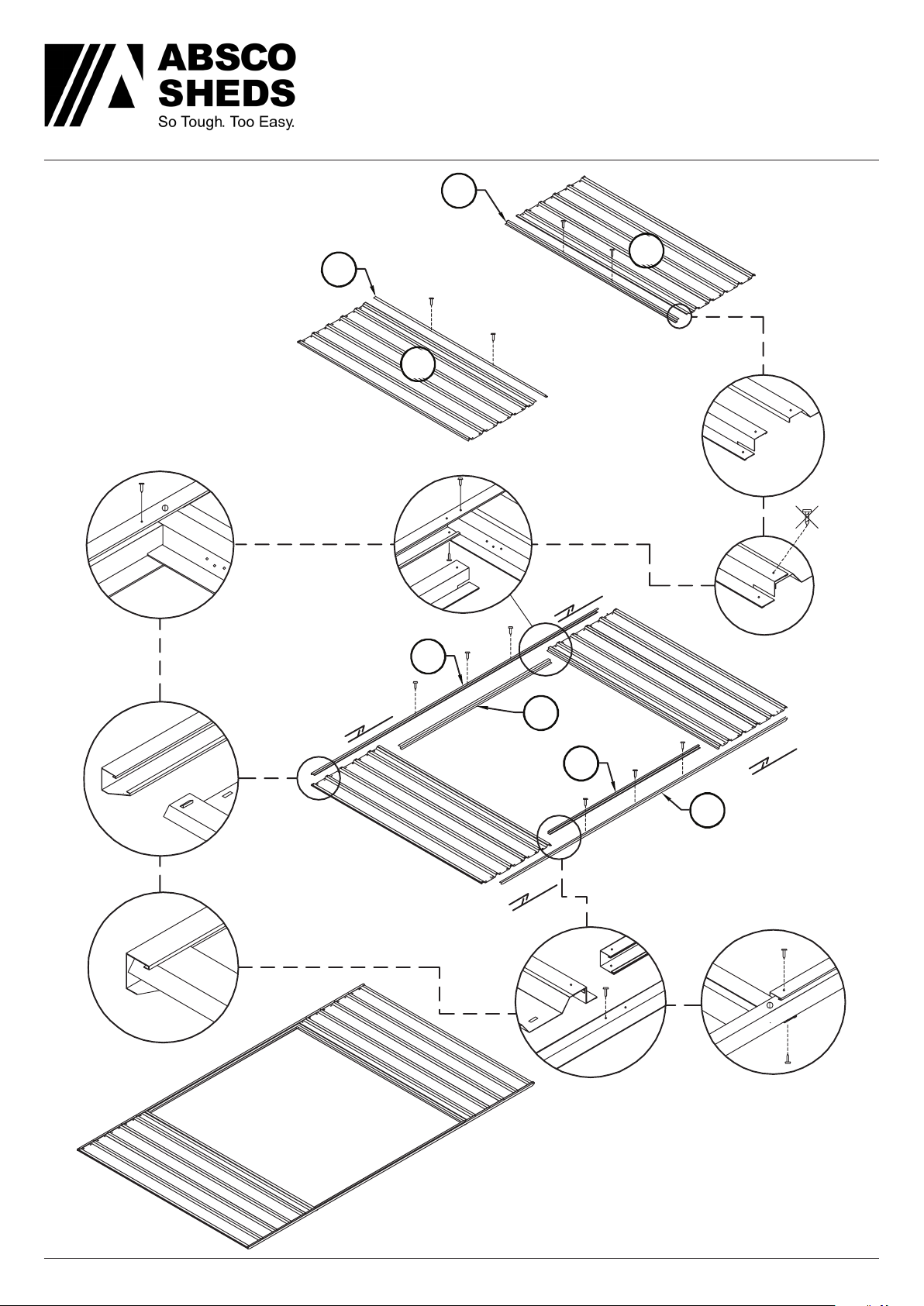

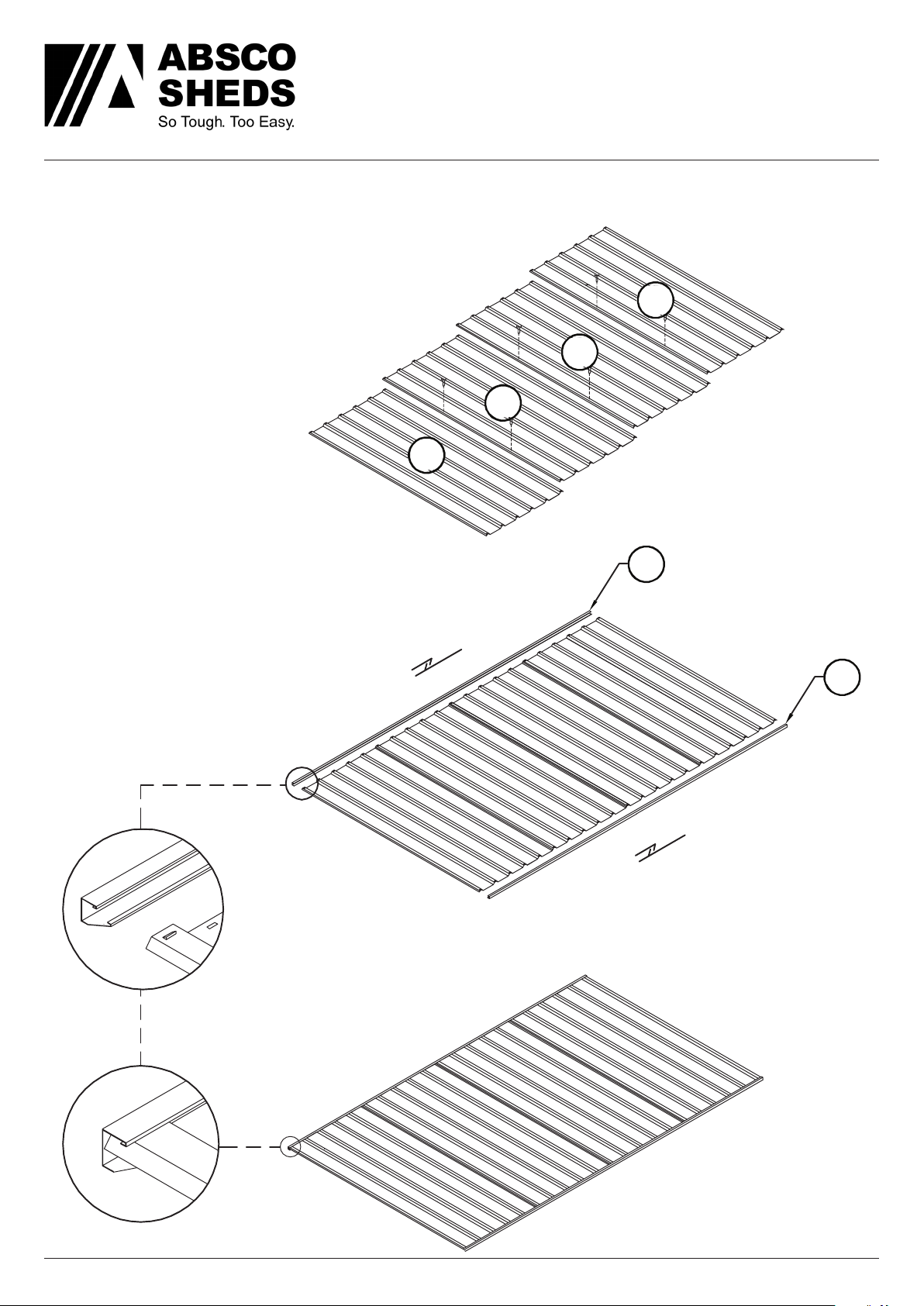

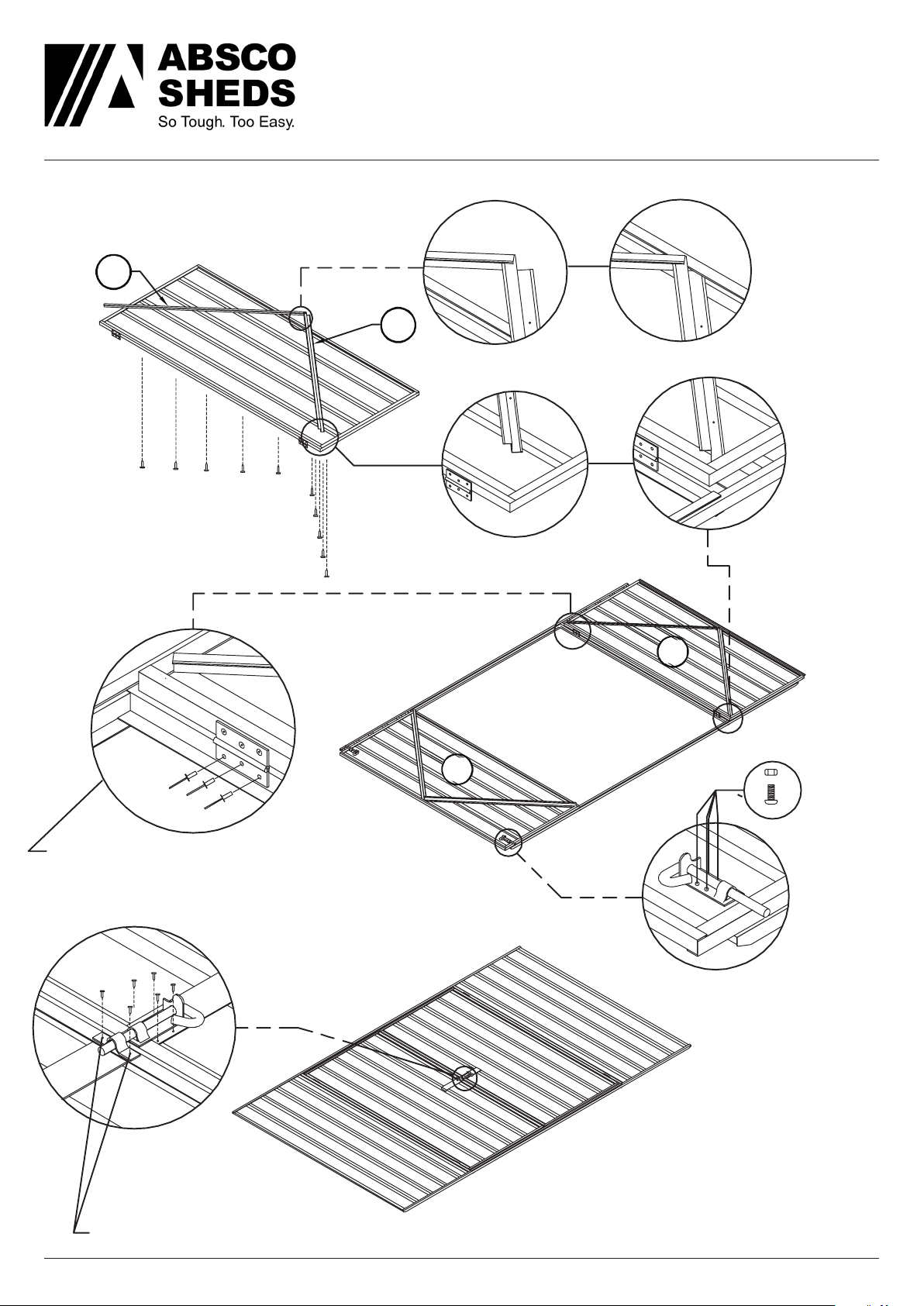

ROOF PANEL ASSEMBLY
43D
43D
43D
43D
SNAP
T TE
i
81A
88B
81A
88B

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 14
DOUBLE DOOR ASSEMBLY
58C
58C
58C
12A
58C
58A
58A
A
B
89C
58B
A
B
SNAP
TTE
i
SNAP
TTE
i
SNAP
TTE
i
SNAP
T TE
i
Vertical door channels are
installed in the opposite
orientation compared to the
horizontal door channels.
Four hole set for
padbolt connection.
Short flange
of channel
Long
flange of
channel
D
D
D
D
D
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 15

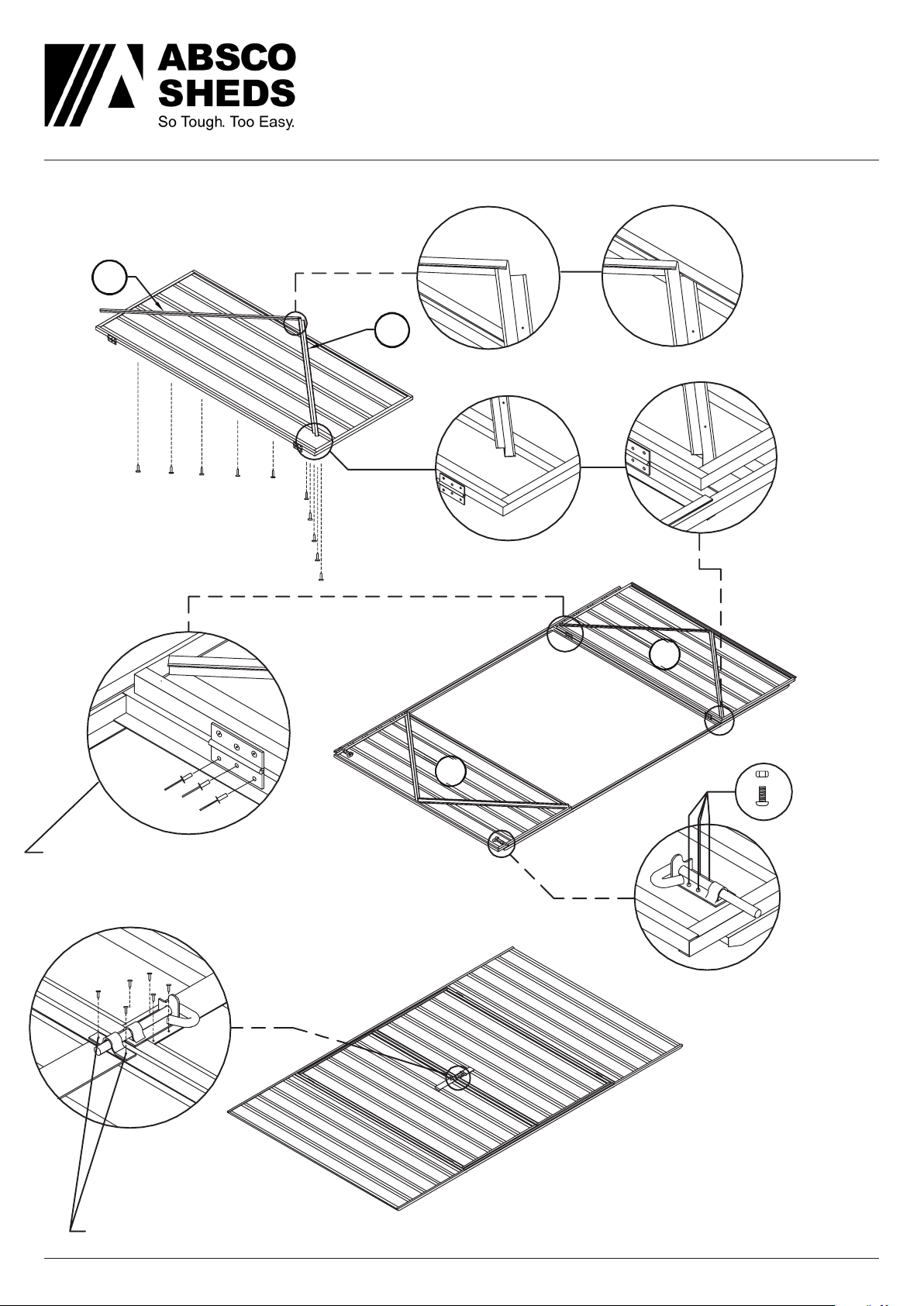

FRONT PANEL ASSEMBLY
89A
89A
55A
90A
79A
55C
SNAP
T
TE
i
SNAP
T
TE
i
SNAP
T
TE
i
SNAP
T
TE
i
34A
34A

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 16
NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for
proper alignment. position each hasp centrally over the padbolt shaft, and drill 3mm holes and secure with screws
NOTE: Nuts and bolts (supplied) may be used instead of
pop rivets (supplied) by simply enlarging the hinge hole
sets in the jamb using a 4mm drill bit
91A
91A
A
B
FRONT PANEL ASSEMBLY (continued)

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 17
FRONT PANEL ASSEMBLY (continued)
NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for
proper alignment. position each hasp centrally over the padbolt shaft, and drill 3mm holes and secure with screws
NOTE: Nuts and bolts (supplied) may be used instead of
pop rivets (supplied) by simply enlarging the hinge hole
sets in the jamb using a 4mm drill bit
91A
91A
A
B

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 18

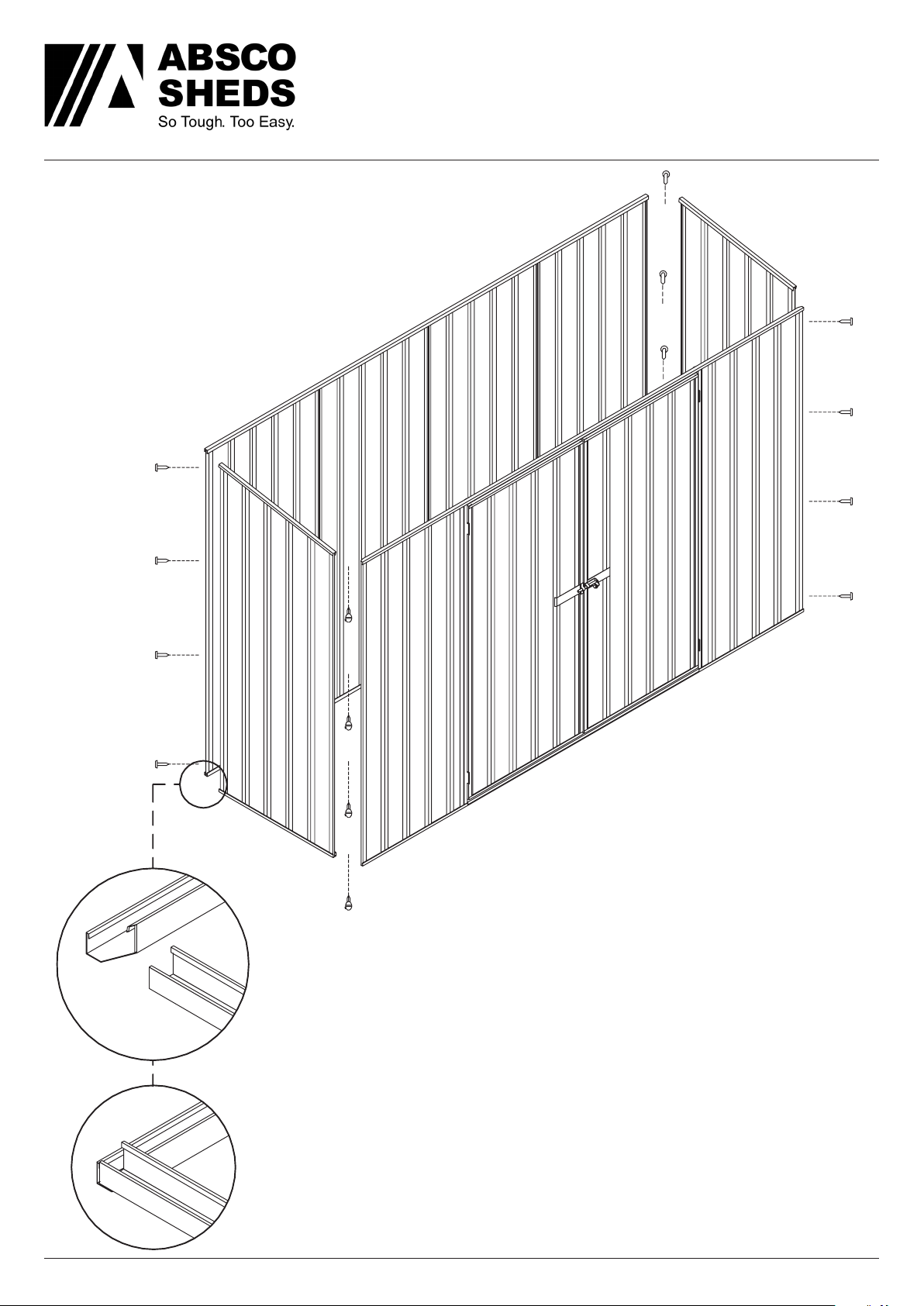

PANEL CONSTRUCTION
NOTE: Take care to ensure that all wall
panels are not upside down. The top
channels of each panel are pre-punched
for attaching roof sheeting. The base
channels are not pre-punched.
SIDE WALL PANEL CHANNELS FIT
INTO THE NOTCHED FRONT AND
REAR WALL PANEL CHANNELS

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 19
FINAL CONSTRUCTION
Each anchor consists of one nut, bolt, M10
dynabolt and steel angle.
Drill a 10mm hole into the wall sheet.
Drill a 10mm hole into the concrete.
Bolt and Nut*
M10 4.6/S
Steel Angle*
35 x 35 x 3
M10 Dynabolt*
* Denotes hot dip galvanised finish
Wall Sheet
Slab
ANCHORING OF SHED
LOCATION OF 8
CONCRETE ANCHORS

Absco Industries Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
Model: 30082SECOK 20/09/2023 1.1 20
Absco Skillion Roof Shed Notes
• 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifications and
written instructions provided by Absco and/or their representatives.
• 2.G The drawings provided herein are for installation and structural engineering purposes only. If discrepancies
are discovered within the documentation provided, these shall be brought to the attention of Absco and
written approvals obtained prior to commencing the affected section of work.
• 3.G If in doubt ask.
• 4.G Until approvals from the local authorities are obtained, commencement of construction from these
drawings shall not commence.
• 5.G Unless varied by the project specification, all materials and workmanship shall be undertaken in
accordance with the relevant Australian standards and the by-laws and ordinances of the relevant building
authorities.
• 6.G All dimensions indicated in these drawings shall be verified on site by the installation contractor. Scaling
of drawings shall not be undertaken.
• 7.G Prior to commencing works on site, the contractor shall verify the position of all services in the area to
ensure that the construction does not interfere with any of those services.
• 8.G During installation on site the shed structures shall be maintained in a stable condition with no part
becoming overstressed or permanently deformed.
• 9.G In circumstances where the shed has been installed in a manner which is inconsistent with the installation
manual, structural certification shall be void.
• 10.G The structural components detailed within this installation manual have been designed for the following
loads in accordance with AS/NZS1170 based on a Class 10a, Type 2 structure:
• Roof Live Load: 0.25 kPa uniformly distributed or 1.1 kN concentrated as per AS/NZS1170.1
• Wind Load: Classification N2, Non-Cyclonic to AS4055 where Vu = 40 m/s, Vs = 26 m/s
Windward wall Cpe = 0.7
Leeward Wall Cp,e = -0.3 to -0.5 as applicable based on shed geometry
Side Wall Cp,e = -0.5 to -0.65 as applicable based on shed geometry
Roof Cp,e = -0.5 to -1.3 depending on wind direction
6-12 Activity St, Acacia Ridge QLD 4110
PO Box 119, Acacia Ridge QLD 4110
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
General
