ABSCO SHEDS 60303WECOK User manual

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 1
Download the Absco
Sheds Assembly App
for instructional videos
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au

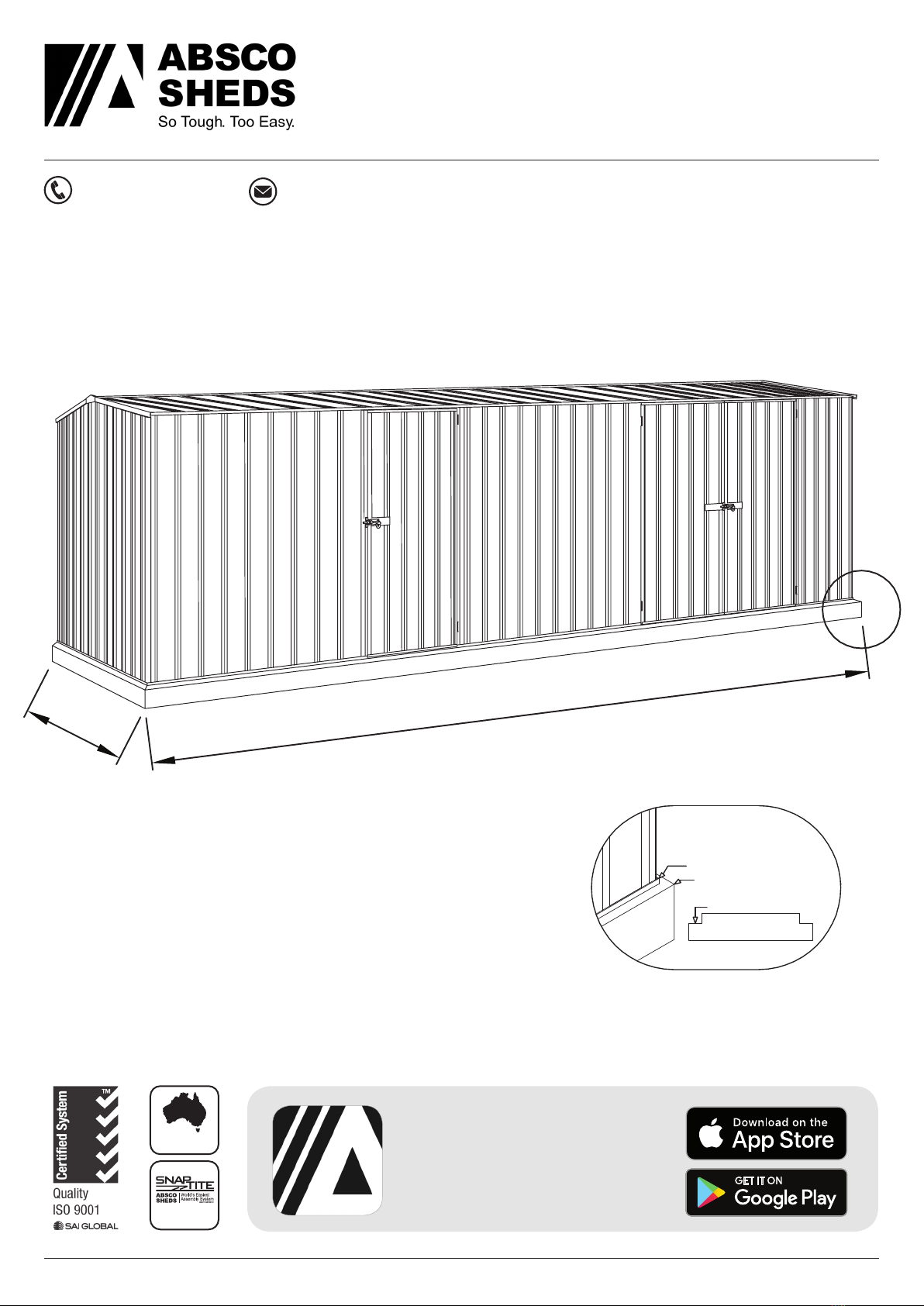

CONCRETE SLAB
6060mm
3100mm
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
Wind rating: Not rated.
If you require a wind rated product please contact
us: [email protected] or 1800 029 701
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23151GK 21-11-2017
CONCRETE SLAB
2360mm
1620mm
FRONT: 2.26m
SIDE: 1.52m
HEIGHT: 1.95m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
[email protected]
CONCRETE
REBATED EDGE
BOTTOM CHANNEL
CONCRETE SLAB
75mm WIDE REBATE
100mm
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
Absco Industries
Premier Shed Model: 23151GK
PAGE 01

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 2
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
• Local authority approval must be obtained prior to construction of the shed. Once you have
selected your site you will need to lodge a site plan to your local council.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page. If using a rebated slab ensure that all frame
uprights are trimmed 25mm.
TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• It is highly recommended to erect the shed with two or more people.
RECOMMENDED
3mm drill bit 10mm drill bits metal & masonry

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 3

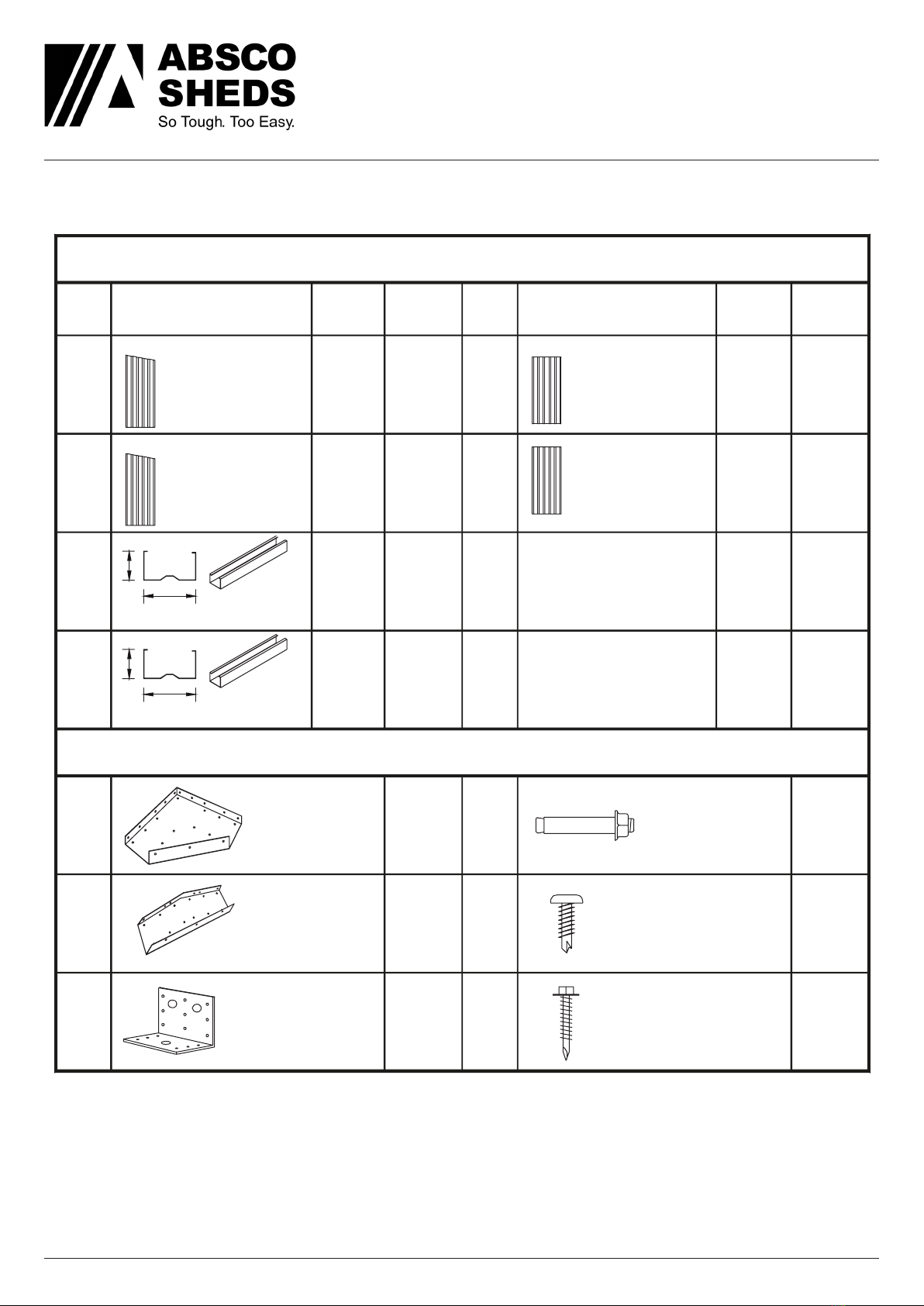

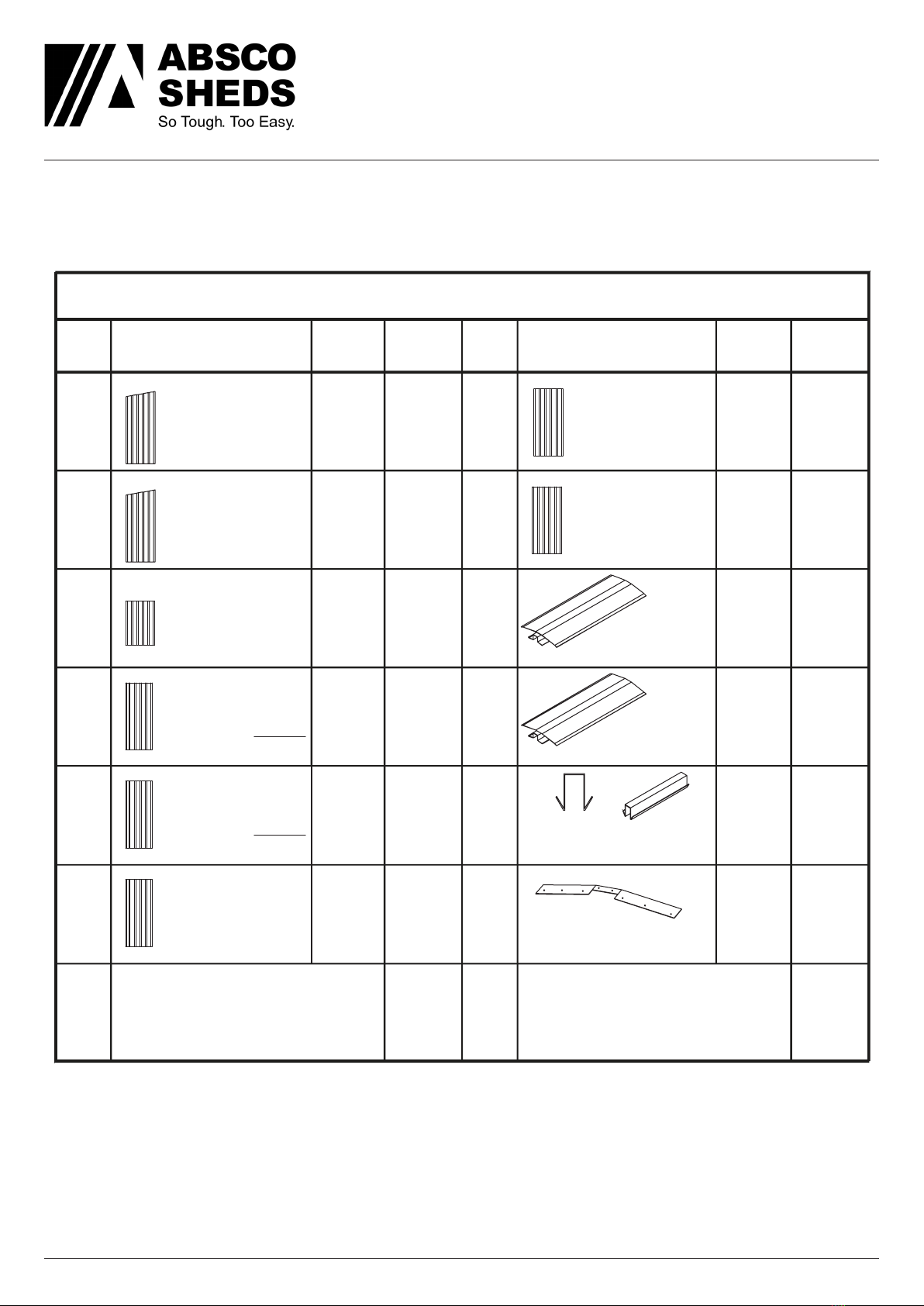

COMPONENT PACKING LIST
Check off all components.
MAIN PACK CARTON (PACK 1 OF 2)
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
2
2
16
1
STEEL SHEET
1915mm X 773mm 36L
STEEL SHEET
2045mm X 773mm 38L
STEEL SHEET
1546mm X 773mm 45A
STEEL SHEET
1785mm X 711mm 34A
2
2
1
1
15A
PEAK BRACE
STEEL SHEET
1785mm X 711mm 35A
STEEL SHEET
1725mm X 773mm A
STEEL SHEET
1725mm X 773mm B
1FITTINGS & ACCESSORIES
PACKET (SEE PAGE 4)
297AL
RIDGE
BEAM
L = 1521mm
STEEL SHEET
1785mm X 731mm 33A
2
297AR
RIDGE
BEAM
L = 1521mm
ZARSP
2RIDGE BEAM JOINER
L: 450mm (17.7")

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 4
COMPONENT PACKING LIST
2RBP
RIDGE
PLATES

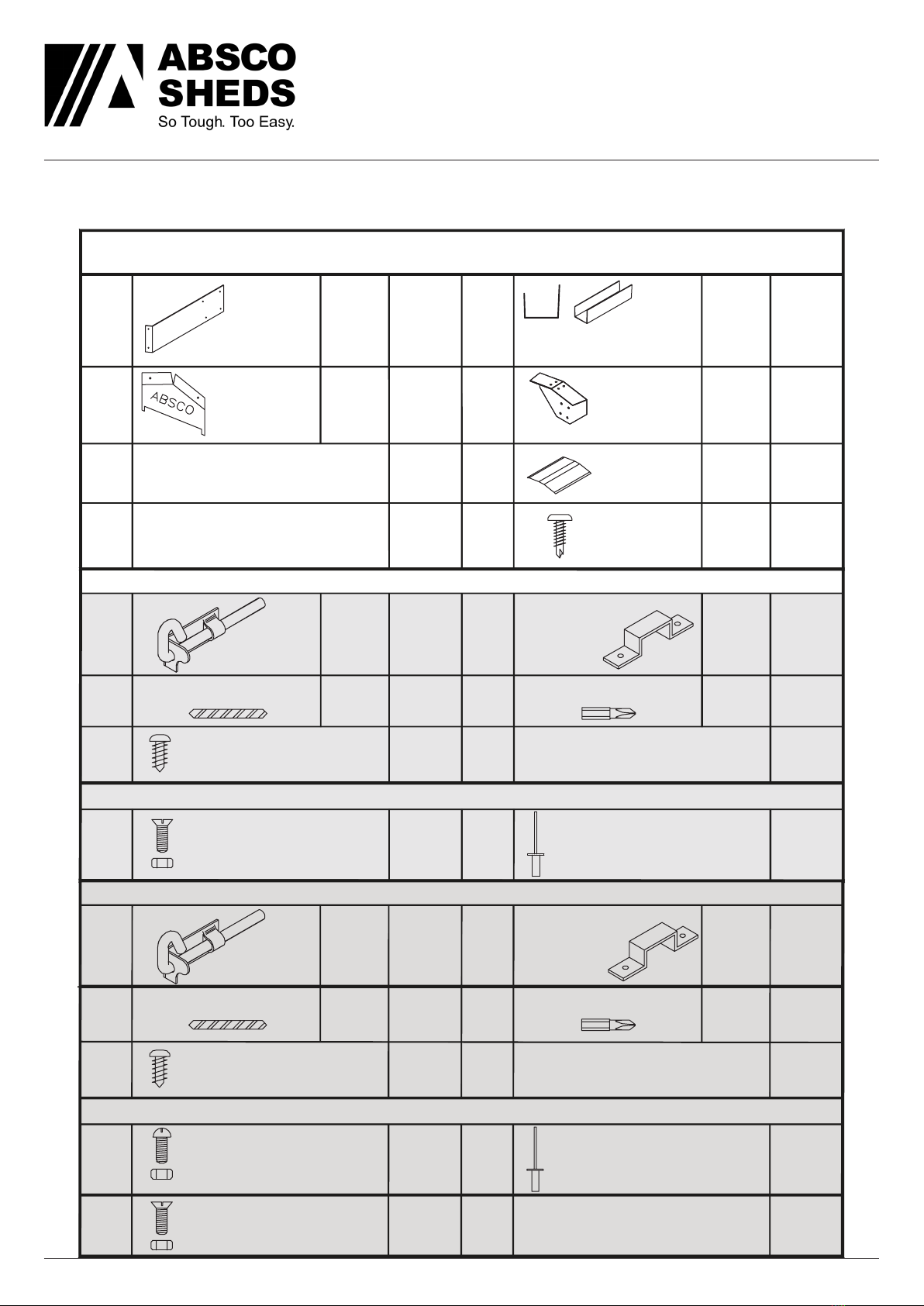

FITTINGS & ACCESSORIES PACKET CONTENTS
3
2
12A
DOOR
STRAP
L: 165mm
14A
CAP GABLE
L: 170mm
CSJ
18 CHANNEL JOINER
L= 200mm (7.9")
PSTKSGL
SINGLE DOOR FITTINGS PACK
1
1
DOOR
PADBOLT
HASP
1
1
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
FAST006
3/16 COUNTERSUNK
SCREWS & NUTS
63.2 x 8mm
BLIND POP RIVETS
6
PSTKSGL - SINGLE DOOR FITTINGS PACK
PACK 6P - SCREW PACK 6
PACK 6P
SCREW PACK 6
1
PHILLIPS DRIVER BIT
3mm DRILL BIT DRILL
FAST007
FAST038
DOOR
PADBOLT
HASP
2
3
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
3/16 COUNTERSUNK
SCREWS & NUTS
12
3/16 ROUND HEAD
BOLTS & NYLOCK NUTS
83.2 x 8mm
BLIND POP RIVETS
12
PSTKDBL - DOUBLE DOOR FITTINGS PACK
PACK12P - SCREW PACK 12
PACK12P
SCREW PACK 12
1
PHILLIPS DRIVER BIT
3mm DRILL BIT DRILL FAST038
FAST007FAST006
198A
RIDGE CAP
JOINER
20 16mm TEK
SCREWS FAST014
1 1
1 1
PSTKDBL
DOUBLE DOOR FITTING PACK

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 5
COMPONENT PACKING LIST
2STEEL SHEET
2045mm X 773mm 38R
MAIN PACK CARTON (PACK 2 OF 2)
2
3
6
STEEL SHEET
1915mm X 773mm 36R STEEL SHEET
1785mm X 773mm 31A
PORTAL FRAME
FITTINGS PACK
(SEE BELOW)
COMPONENT
DESCRIPTION
PART
No. CHECK CHECK
QTY QTY
PORTAL FRAME ACCESSORIES
CHECK
C1482
COMPONENT
DESCRIPTION
PART
No.
C1704
CHANNEL L = 1482mm
40
80
CHANNEL L = 1704mm
40
80
KNEE PLATE
APEX PLATE
MULTI PURPOSE
BRACKET
DYNABOLT
16mm TEK
SCREWS
45mm TEK
SCREWS
1785mm X 773mm 30A
STEEL SHEET
1
60303WCP-(J)
CHANNELPACK
(SEE PGs 6 & 7)
2
2
2 4
120
2
2
1
26

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 6
COMPONENT PACKING LIST

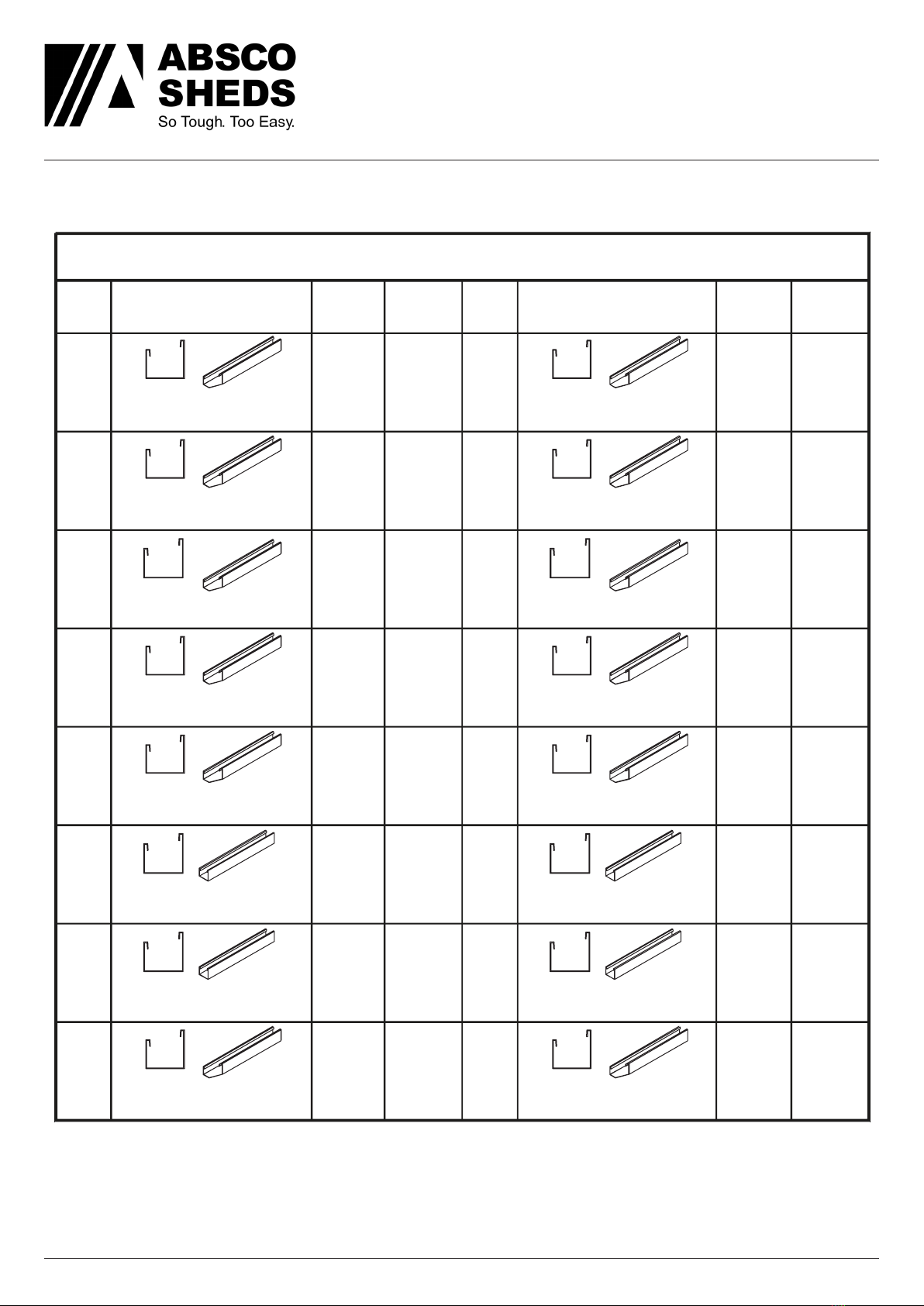

MAIN PACK (PACK 2 OF 2) CHANNEL SET
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
55AL
CHANNEL
L = 1496.5mm
1
1
1
1
2
55CL
CHANNEL
L = 1496.5mm
55BL
CHANNEL
L = 1496.5mm
2
6
81BL
CHANNEL
L = 1496.5mm
81AL
CHANNEL
L = 1496.5mm
56AL
CHANNEL
L = 1496.5mm
56BL
CHANNEL
L = 1496.5mm
460AL
CHANNEL
L = 1496.5mm
55AR
CHANNEL
L = 1496.5mm
1
1
1
1
2
55CR
CHANNEL
L = 1496.5mm
55BR
CHANNEL
L = 1496.5mm
2
6
81BR
CHANNEL
L = 1496.5mm
81AR
CHANNEL
L = 1496.5mm
56AR
CHANNEL
L = 1496.5mm
56BR
CHANNEL
L = 1496.5mm
460AR
CHANNEL
L = 1496.5mm

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 7
COMPONENT PACKING LIST
3
1
1
4
89A
JAMB L= 1785mm
90A
JAMB L= 1568mm
89C
JAMB L= 1725mm
87A
LIP TRIM L= 1546mm
2
1
1
6
58B
CHANNEL
L = 1725mm
2
58A
CHANNEL WITH HINGES
L = 1725mm
3
2
79A
CHANNEL
L = 1568mm
58C
CHANNEL
L = 773mm

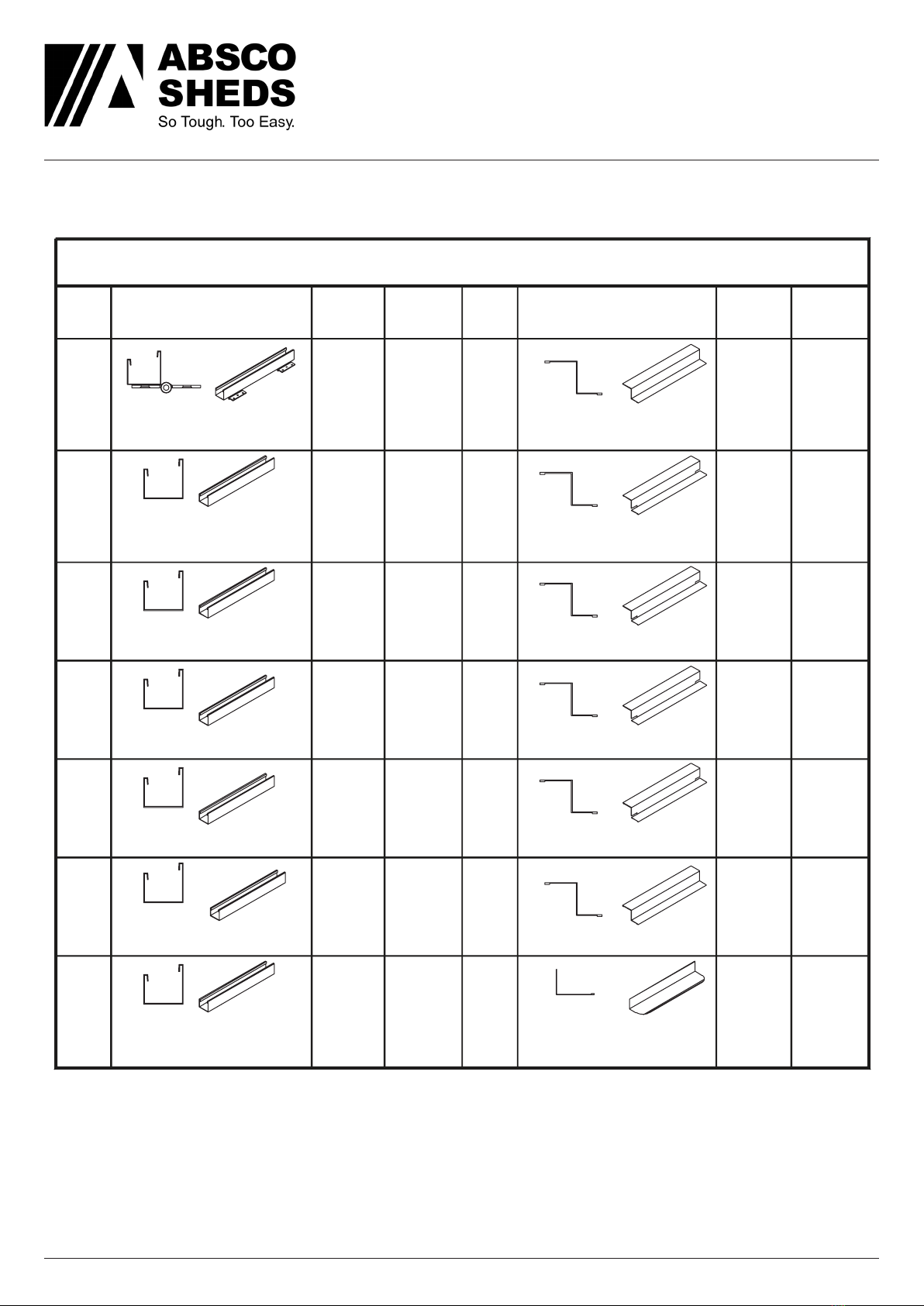

MAIN PACK (PACK 2 OF 2) CHANNEL SET (CONT.)
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
CHANNEL
L = 1518mm
84L
79B
CHANNEL
L = 788mm
89B
JAMB L= 1785mm
1
90B
JAMB L= 788mm
91A
JAMB L= 1120mm
1
6
CHANNEL
L = 1518mm
84R

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 8
SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 9
Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 3mm drill
bit in CSJ to match the holes
in channel and secure with the
screws supplied.
These may have to be
temporarily removed during
assembly.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
20mm 15mm
CSJ
.
...

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 10

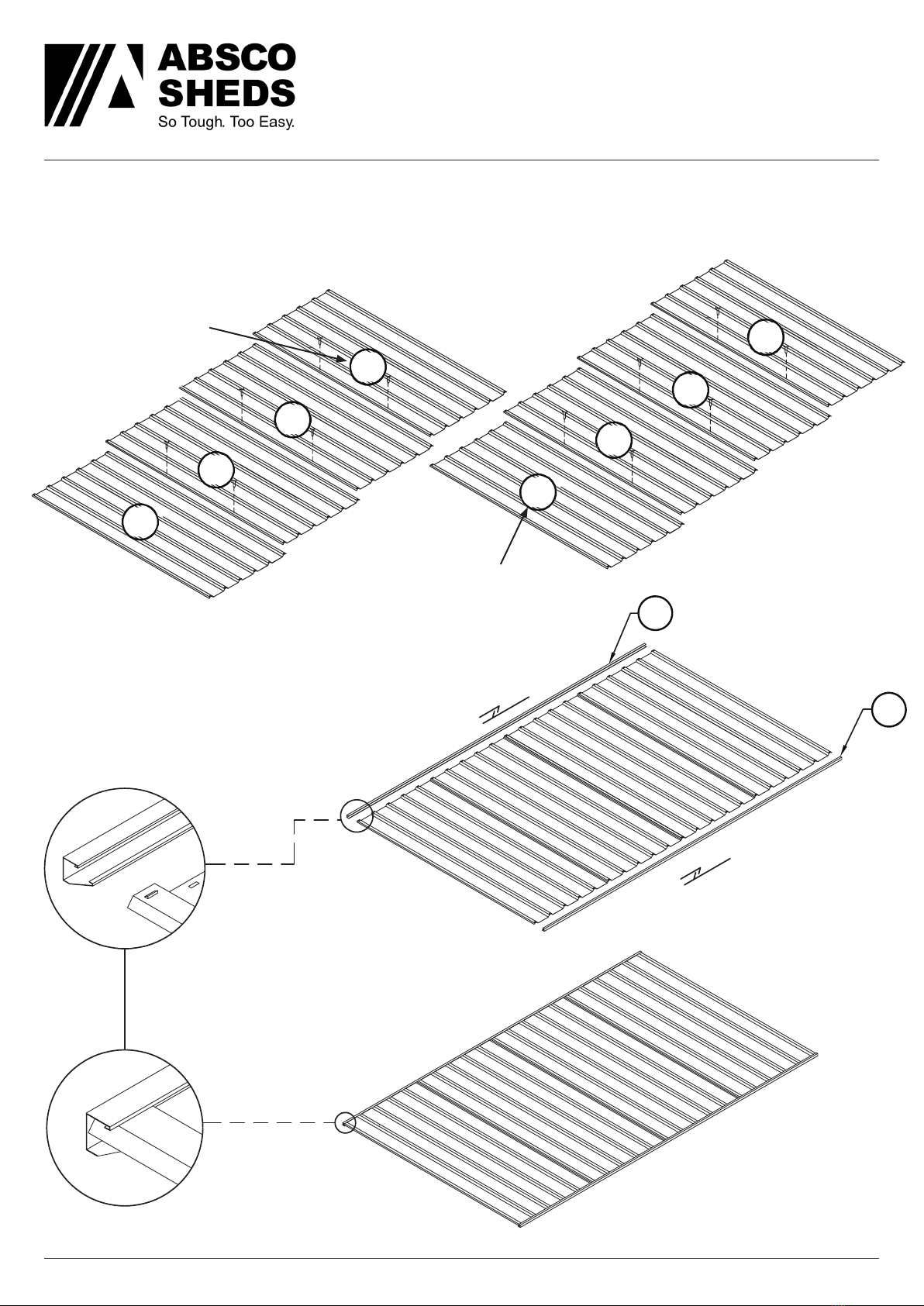

PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.
Join together 36 x channel sections using 18 x channel joiners (Part CSJ)
=
=
=
=
=
=
4 X 60AR
2993mm
(117.8")
6 x 81A
4 x 60A
1 x 55A
2 x 55B
1 x 55C
1 x 56A
56AR
56AL
55CL
55CR
55BR
55BL
55AL
55AR
60AR
60AL
81AL
81AR
6 X 81AR
6 X 81AL
4 X 60AL
1 X 55AR
1 X 55AL
2 X 55BR
2 X 55BL
1 X 55CR
1 X 55CL
1 X 56AR
1 X 56AL
=
=
1 x 56B
2 x 81B
81BR
81BL
56BL 56BR
1 X 56BR
1 X 56BL
2 X 81BR
2 X 81BL

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 11
Tek screw driver bit
Push

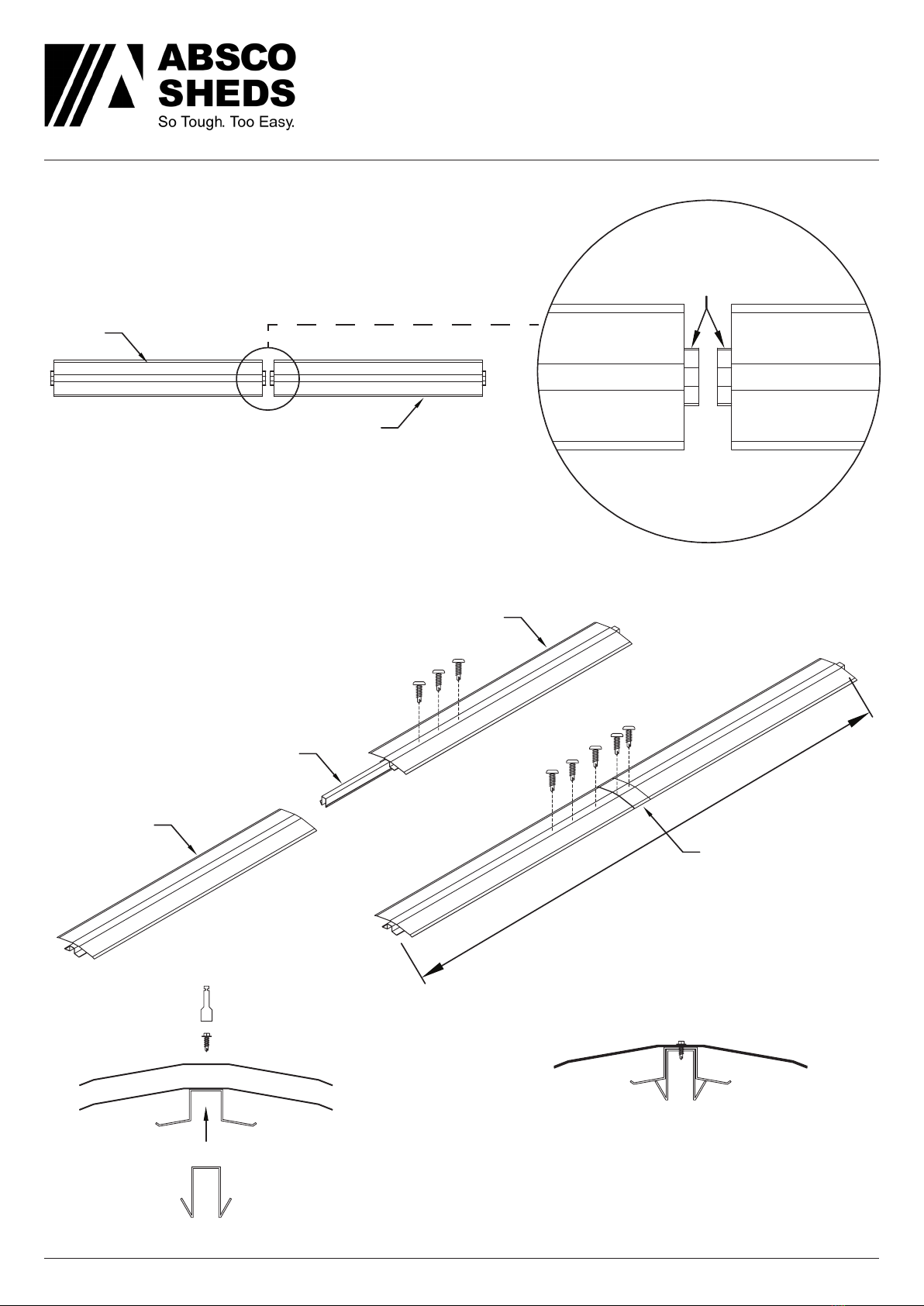

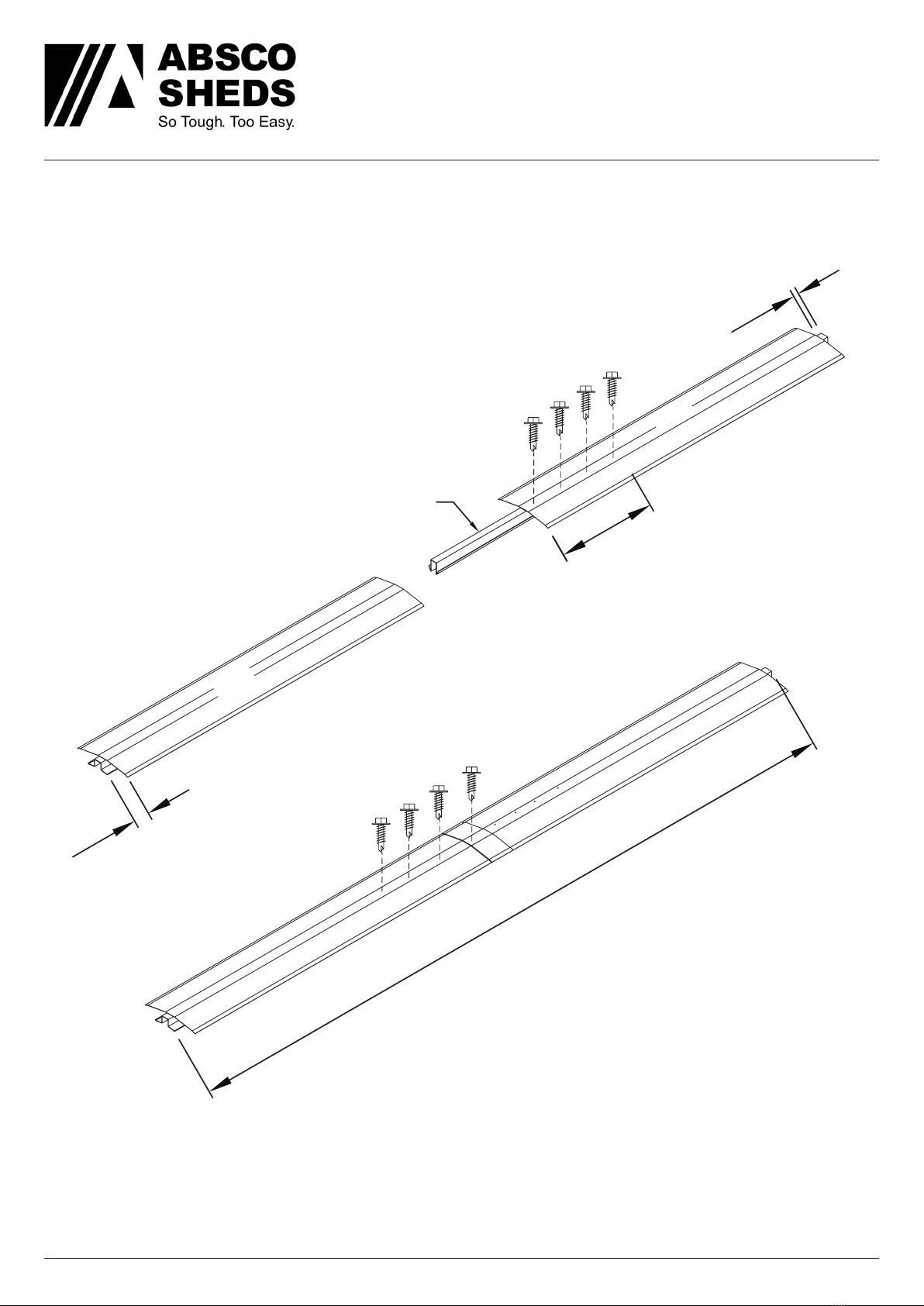

Guide on Joining a Spliced Ridge Beam
Follow these three steps to assemble a ridge beam.
Step 1.
Place two ridge beams as
shown and push them together.
Slide the cap of one under the
other.
NOTE.
There is a 50mm overlap of the
ridge caps when the beams are
in position.
Step 2.
Use the ZARSP to connect at
the centre of the two ridge
beams. Be sure it is pushed in
fully.
Step 3.
Turn over the ridge beam.
Measure 250mm from the
middle along the centre of one
ridge beam, mark spacings of
50mm. Fasten with a Tek screw
at each marking.
Repeat to the other side of the
ridge beam assembly.
TIP: Predrilling each hole with
the 3mm drill bit makes it easier
to fasten.
50mm
225mm
ZARSP
Finished Spliced Ridge Beam
Finished
Spliced Ridge Beam
ZARSP
Ridge Beam
Self drilling Tek screw

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 12
PRE-ASSEMBLY OF SPLICED RIDGE BEAM
97AL
97AR
.
.
2x 97AL
2x 97AR
= 2x 97A
2993mm Overall length
ZARSP
225mm
16mm
16mm

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 13
To make the total span we must now join the two ridge beams
.
Using a hacksaw, remove one protruding section of each
ridge beam, this will allow the sections to butt up neatly
to each other.
Cut away these two only.
Self drilling Tek screw
98A
ZARSP
Tek screw driver bit
Push
..
.
98A
Finished
Joined Ridge Beams
Insert the ZARSP at an equal distance
into each ridge beam. Confirm that
the beam is straight with a string line
before fastening with self drilling
screws.
The ZARSP is a very tight fit, tap into
place with a hammer.
ZARSP
JOINING RIDGE BEAMS
97A
97A
5953mm Overall length
97A
97A
97A

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 14

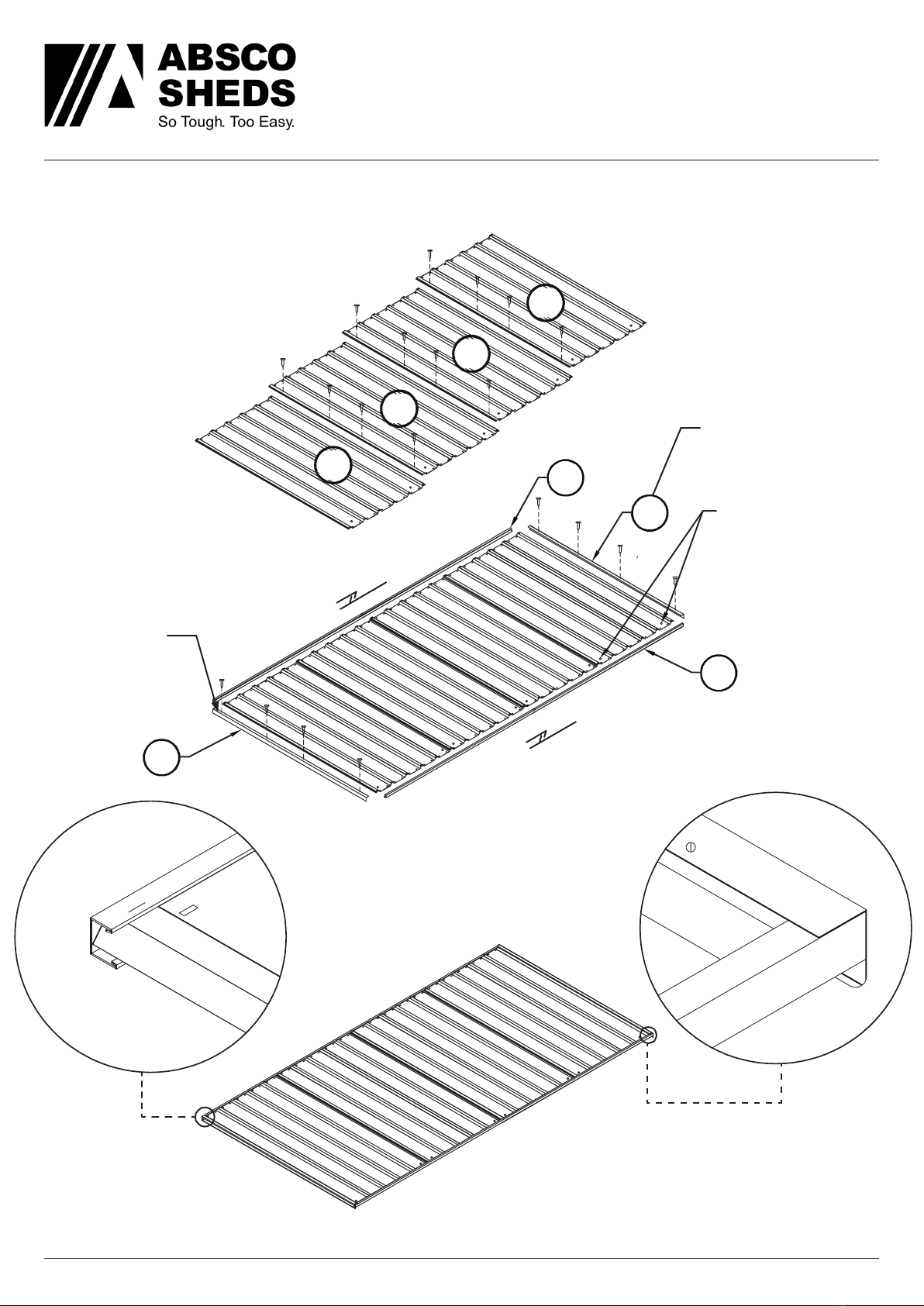

OVERVIEW OF ROOF COMPONENTS
OVERVIEW OF ROOF COMPONENTS
87A
87A
81A
60A
60A
97A
14A
45A
45A
45A
45A
45A
45A
45A
45A
81A
98A
60A
60A
97A
87A
87A
14A
45A
45A
45A
45A
45A
45A
45A
45A
81A
81A

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 15

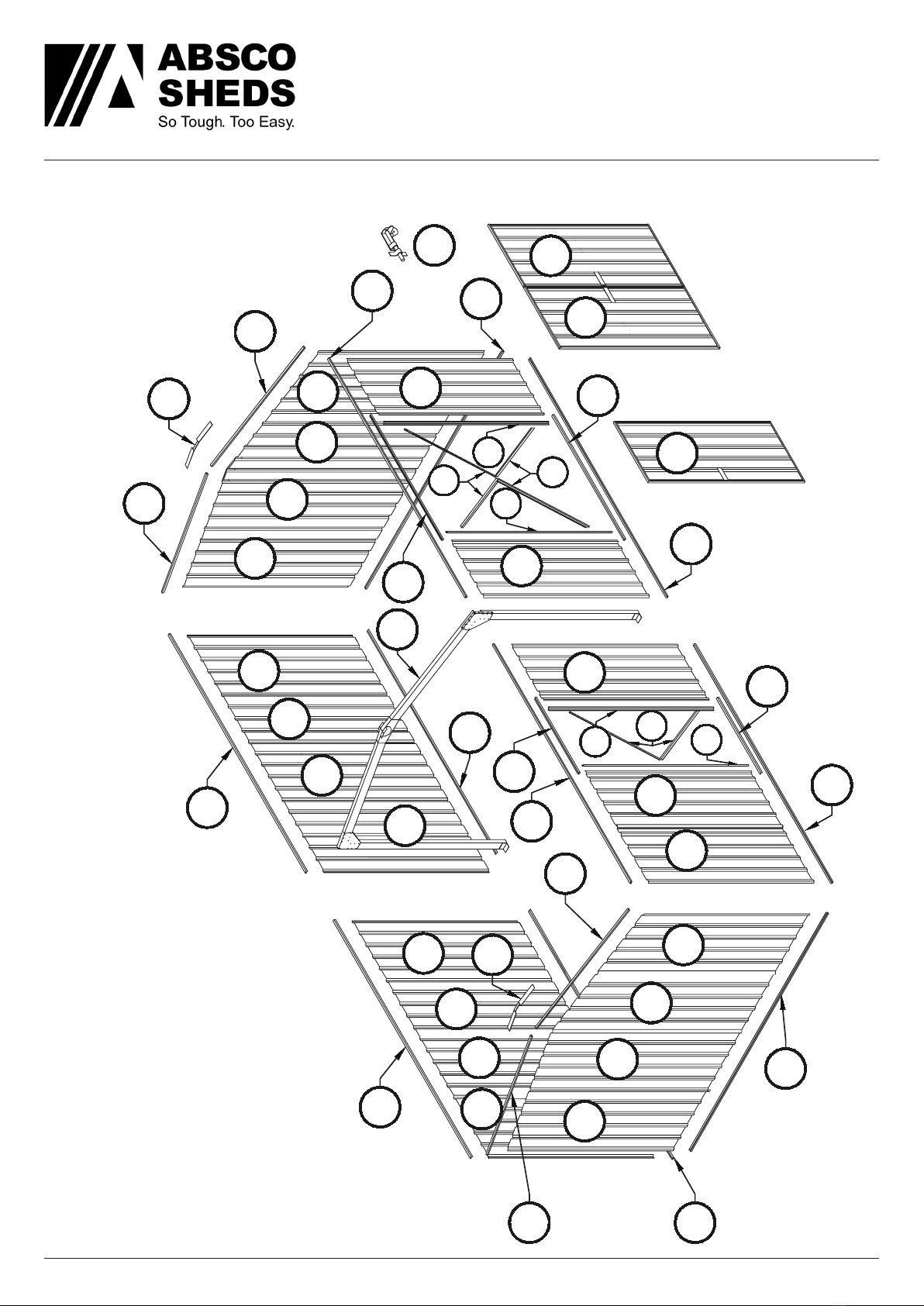

OVERVIEW OF WALL COMPONENTS
OVERVIEW OF WALL COMPONENTS
22A
89A
91A
89A
91A
55C
84L
84R
15A
55B
81A
PF 90A
36R
38R
38L 36L
31A
31A
31A
30A
35A
34A
A
B
79A
55A
81B
81A
36L
38L
38R
36R 30A
33A
31A
31A
31A
33A
89A
89B
91A
56B
79B
84L
30A
55B
84R
56A
81B
15A
B
90B

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 16
END PANEL ASSEMBLY
2 required.
One panel requries
sheet 30A this end.
H30 is a corner sheet and must be
orientated towards the shed corners
when panels finally joined.
One panels requries
sheet 30A this end.
SNAP
T TE
i
SNAP
T TE
i
55B
81B
31A
31A
31A
30A
30A
31A
31A
31A

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 17

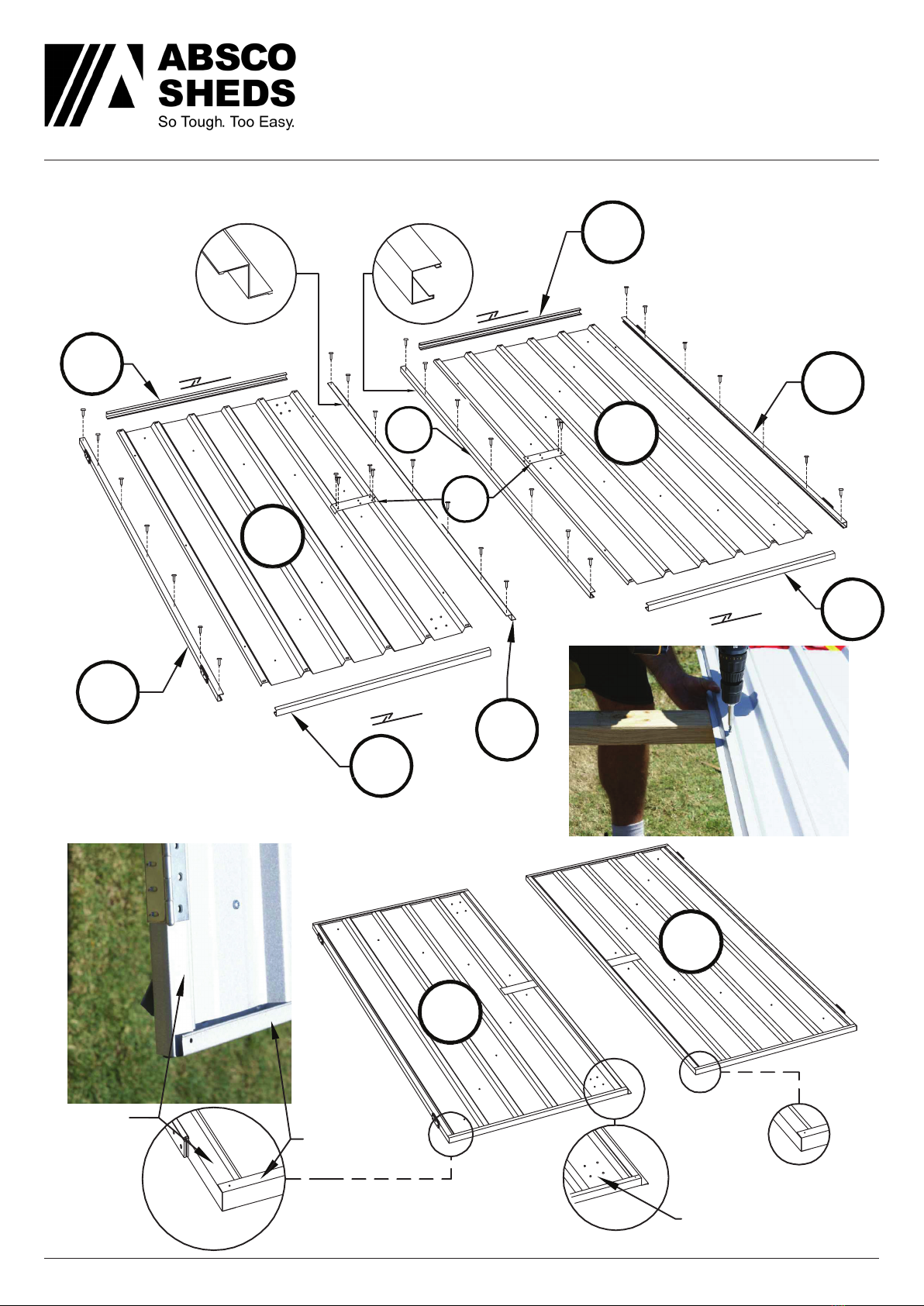

ROOF PANEL ASSEMBLY
4 required.
Two panels will have
part 87A fitted to
this end only.
Two panels will have
part 87A fitted to
this end only.
Fit 81A to edge
of sheet with pre-
punched holes.
SNAP
T TE
i
SNAP
T TE
i
60A
87A
81A
87A
45A
45A
45A
45A
When completed there will be
four sections with 87A lip at
one end only.

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 18

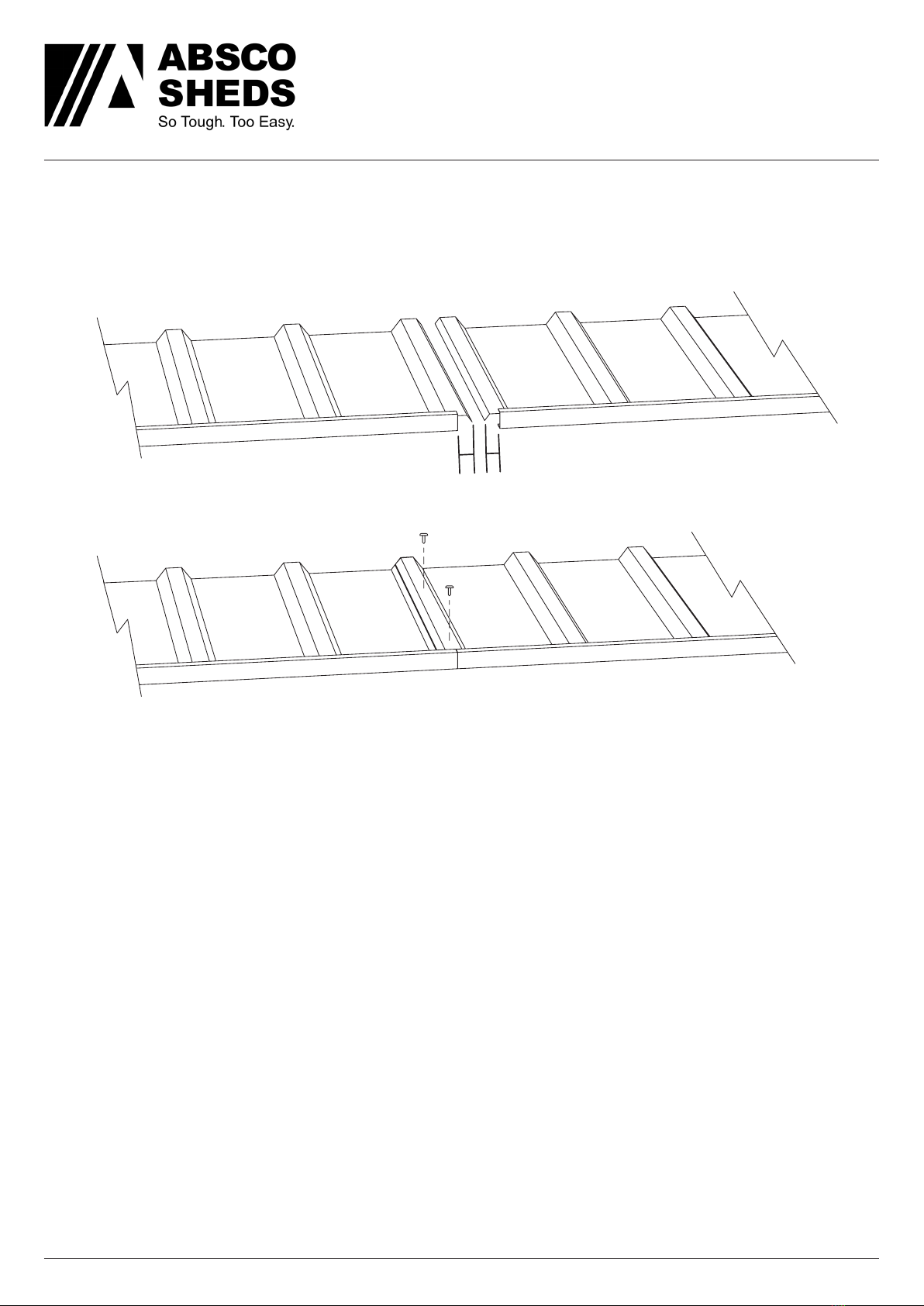

To make the total span we must now join sections of sheeting together for the roof and wall.
Refer to the panel construction section of this instruction set for further details and ensure that the
assembled panels are not joined together with pre-punched holes incorrectly positioned.
The overall length of each panel is the same as the ridge beam.
Trim the channels by 16.5mm to
allow the sheets to be overlapped.
Overlap the panels and fasten as
shown.
16.516.5
It is not critical that the overall dimension is exact but try and make sure the length is within 5mm.
JOINING WALL AND ROOF PANELS
Ridge beam and panel length = 2993mm
Length to be cut off = 16.5mm
New length = 2976.5mm
Both panels joined = 2976.5 x 2 = 5953mm

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 19
SIDE PANEL ASSEMBLY
2 required.
84R
84L
15A15A
81A
TRIM THE TIP OF EACH SHEET
OR BEND OUT OF THE WAY TO
ALLOW CHANNELS TO FIT HARD
UP TO THE EDGE OF THE
SHEET
36L
36R
38L
38R
INSIDE
OF
SHED

Absco Industries Assembly Instruction Manual
ABSCO WORKSHOP SHED
MODEL: 60303WECOK
5.96mW x 3.00mD x 2.10mH
Model: 60303WECOK 06/02/2019 1.10 20
58C
58C
58C
12A
58C
58A
58A
A
B
89C
58B
A
B
SNAP
TTE
i
SNAP
TTE
i
SNAP
TTE
i
SNAP
T TE
i
Vertical door channels are
installed in the opposite
orientation compared to the
horizontal door channels.
Four hole set for
padbolt connection.
Short flange
of channel
Long
flange of
channel
D
D
D
D
D
D
D
D
