ABSCO SHEDS 1508WBCK Installation guide

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 1 10/3/23
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
*Most models available
• Store up to two 240L garbage bins.
• Maximum internal height 1.11 m
852 mm
1525 mm
780 mm

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 2 10/3/23
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page.
TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored to a solid foundation immediately after construction is
completed.
• It is highly recommended to erect the shed with two or more people.
• Do not sit, stand or walk on the roof of your shed.
RECOMMENDED
5/16” Hex driver bit
Hammer drill Shifter
10mm metal drill bit
10mm masonry drill bit
Pop riveterTinsnipsCordless drill

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 3 10/3/23

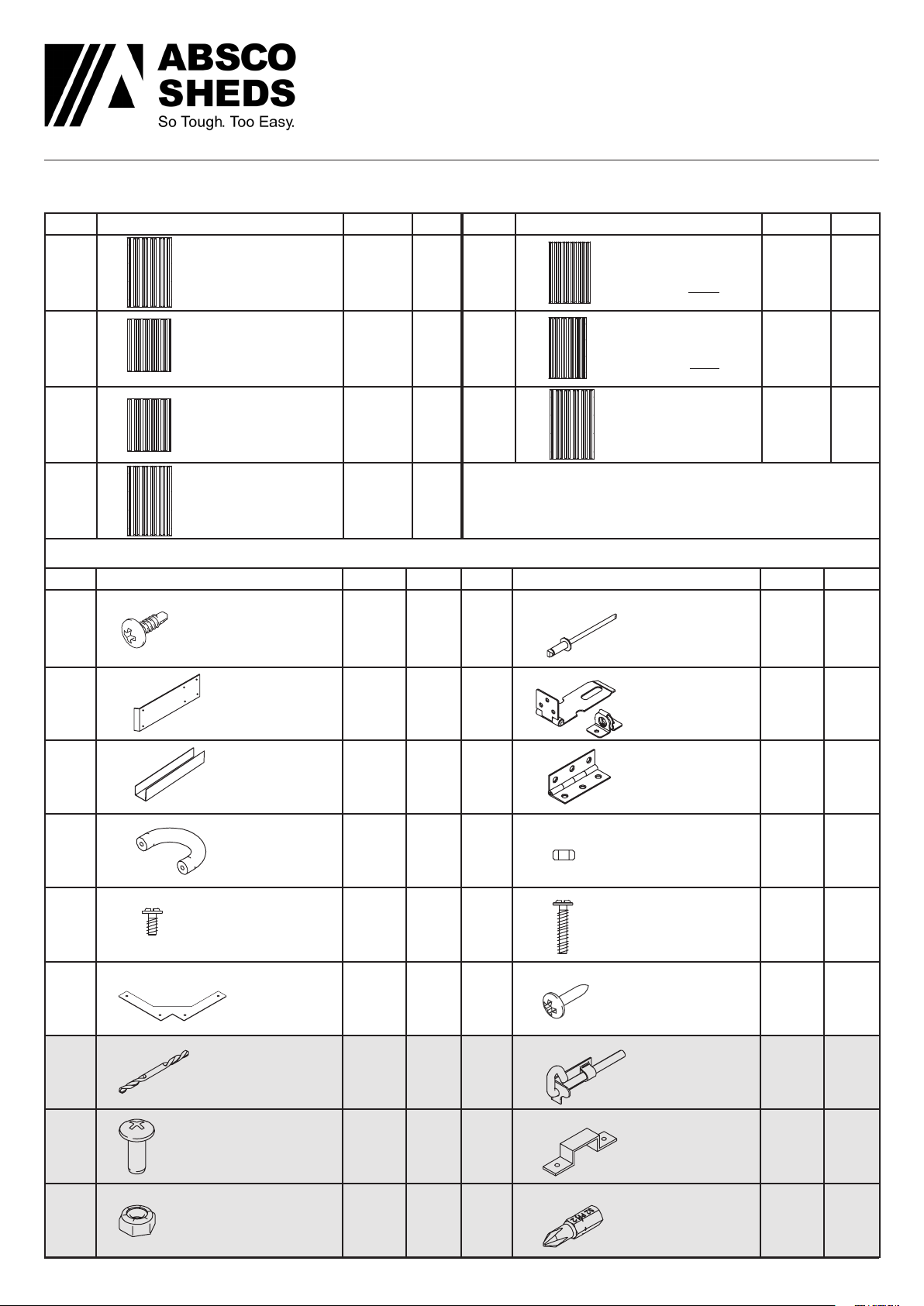

FITTINGS PACK
QTY DESCRIPTION PART # CHK QTY DESCRIPTION PART # CHK
220
8G x 12mm SELF
DRILLING PAN
HD SCREW
FAST
096 1
SBS43E POP
RIVET
FAST009 x 50
PACK
12
2DOOR
PLATE 12A 1 LATCH & STAPLE
FAST
052
6CHANNEL
JOINER CSJ 6
64 mm
BUTT HINGE
6 HOLE
FAST
012A
1C HANDLE
32 mm
FAST
048 2M4 HEX NUT
NYLOCK
FAST
064
2M4 X 10 mm
PAN HD SCREW
FAST
060 2M4 X 25 mm
PAN HD SCREW
FAST
047
2L-PLATE BKT
262 6
SELF TAPPING
SCREW
8G 20mm
FAST
013
13 mm
DRILL BIT DRILL 3 PADBOLT FAST
006
83/16” ROUND HD
BOLTS
FAST
002 2PADBOLT
HASP
FAST
007
83/16”
NYLOCK NUTS
FAST
003 1PHILLIPS HD
DRIVER BIT
FAST
038
QTY DESCRIPTION PART # CHK
1STEEL SHEET
1130 x 773 mm 44Z
1STEEL SHEET
852 x 773 mm 43Q
1STEEL SHEET
852 x 773 mm 43R
1STEEL SHEET
1130 x 773 mm Y83
QTY DESCRIPTION PART # CHK
1STEEL SHEET
1070 x 731 mm 37B
1STEEL SHEET
1070 x 711 mm 37C
2STEEL SHEET
1130 x 773 mm Y81
Nominal sheet widths are shown
+/- 2 mm is within tolerance
COMPONENTS LIST
DOUBLE DOOR PACK PSTKDBL

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 4 10/3/23
QTY DESCRIPTION PART # CHK
2CHANNEL
751 mm 53HL
1CHANNEL
756 mm 53JL
1CHANNEL
756 mm 81FL
1CHANNEL
323 mm 79HL
1CHANNEL
760 mm 81RL
1CHANNEL
760 mm 81WL
2CHANNEL
1130 mm 80F
1CHANNEL
1070 mm 58T
1CHANNEL
1070 mm 58W
1CHANNEL
593 mm 61PL
4CHANNEL
773 mm 61G
1JAMB
323 mm 91HL
1JAMB
1137 mm 91HR
1JAMB
1060 mm 91J
QTY DESCRIPTION PART # CHK
2CHANNEL
751 mm 53HR
1CHANNEL
756 mm 53JR
1CHANNEL
756 mm 81FR
1CHANNEL
1137 mm 79HR
1CHANNEL
760 mm 81RR
1CHANNEL
760 mm 81WR
2CHANNEL
711 mm 58M
2CHANNEL
1070 mm 58Y
2CHANNEL
731 mm 58Z
1CHANNEL
593 mm 61PR
2JAMB
1130 mm 91K
2JAMB
960 mm 91L
2JAMB
1120 mm 91A
2LIP
852 mm R14

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 5 10/3/23

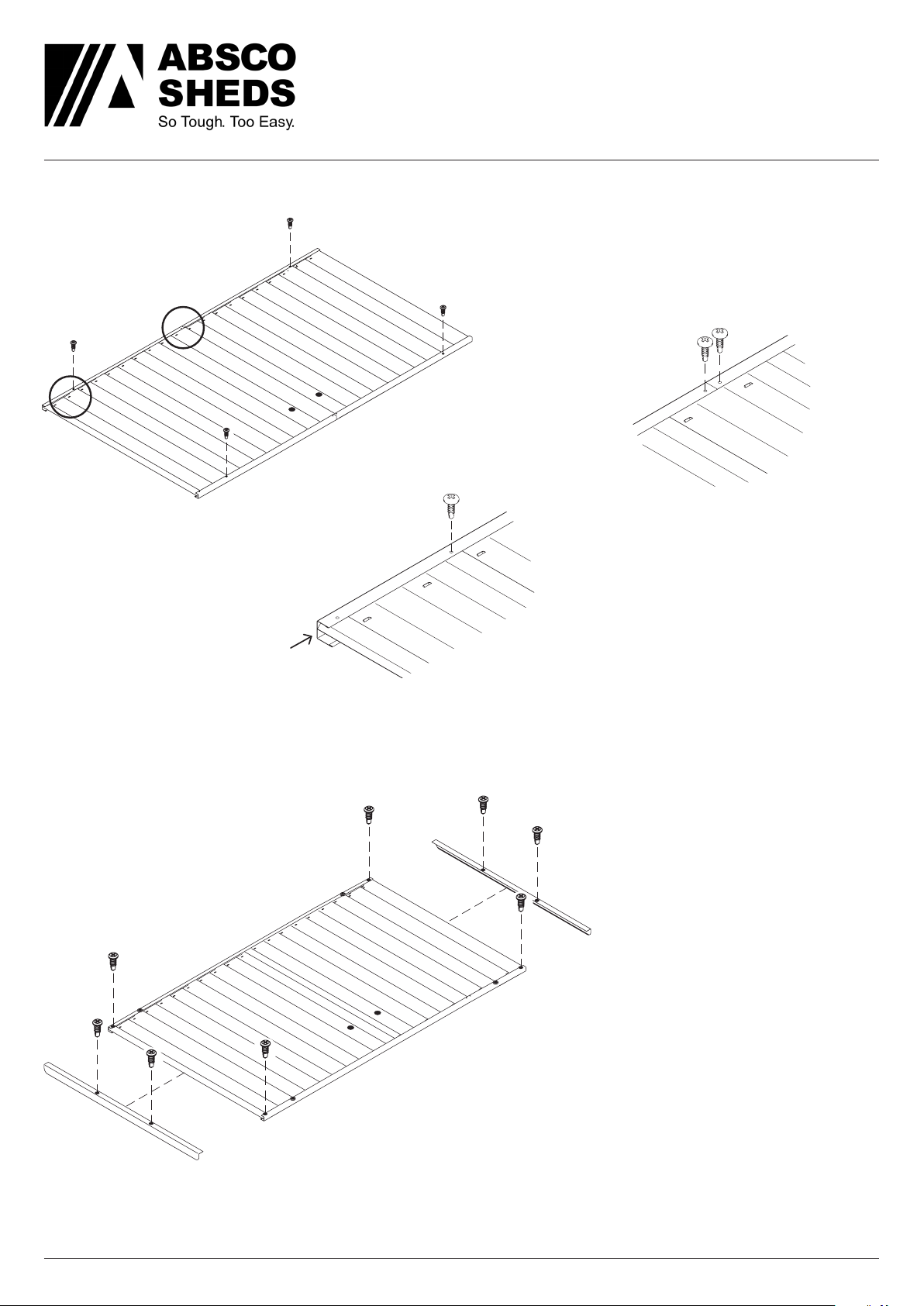

Join together 12x channel sections using 6x channel joiners (CSJ)
See the next page for a photo guide on how to splice channels.
Please don’t join
- 79HL and 79HR
- 61PL and 61PR
2 x 53HR
2 x 53HL
1 x 81FR
1 x 81FL
1 x 53JR
1 x 53JL
1 x 81RR
1 x 81RL
1 x 81WR
1 x 81WL
= 2 x 53H
= 1 x 81F
= 1 x 53J
= 1 x 81R
= 1 x 81W
53HR
81FR
53JR
81RR
81WR
53HL
81FL
53JL
81RL
81WL
Channel
Joiner
“CSJ”
PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 6 10/3/23
Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 3mm drill
bit in CSJ to match the holes
in channel. Drilling of screws
on the joined channels is being
done after sheets are locked on
the spliced channels.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
20mm 15mm
CSJ
.
...

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 7 10/3/23
SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 8 10/3/23
REAR PANEL ASSEMBLY
2. Make sure the ends of the
sheets are flush at overlap before
continuing.
Use the holes in the top sheet
as a template and fasten to the
sheet beneath with three self
drilling screws FAST096.
3. Attach the top and bottom
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
outside of the sheeting
FAST096
Check ends are flush first
15
53J
81F
44Z
Y83

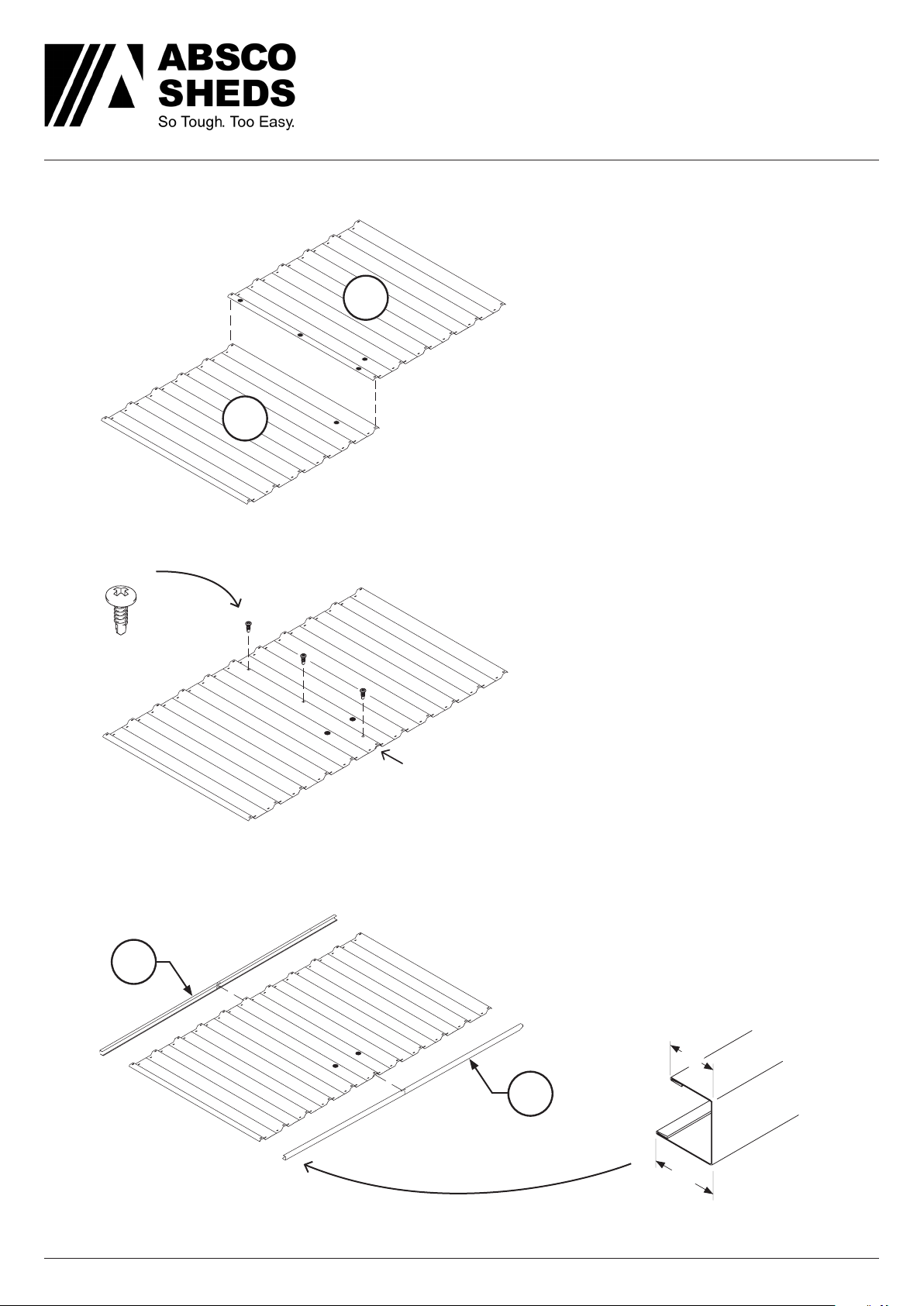

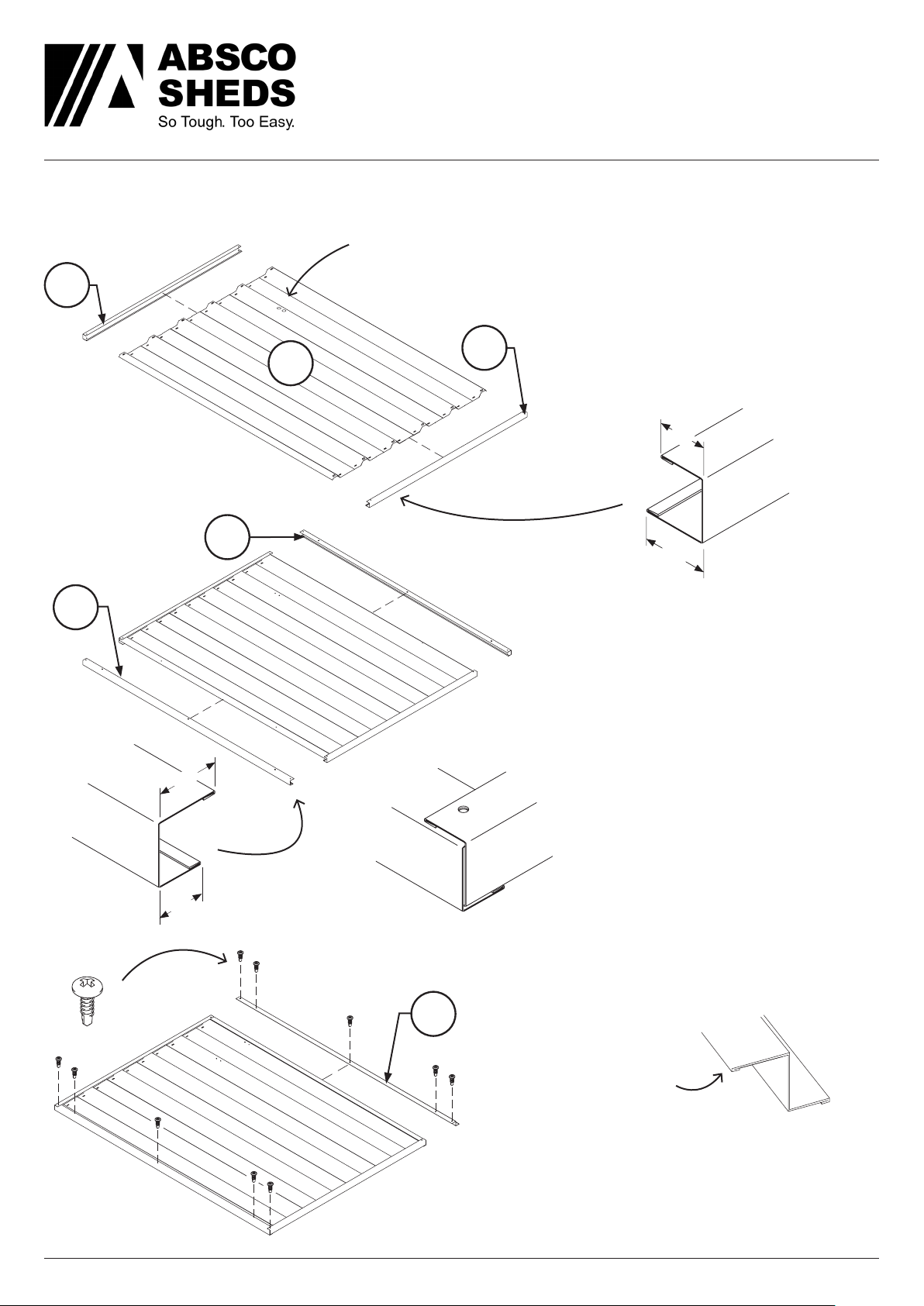

1. Layout and overlap sheets by
one rib as shown.
Sheet 44Z must be on top with
the three holes in the centre.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 9 10/3/23
Sheet &
channel are
flush
FAST009
FAST012A

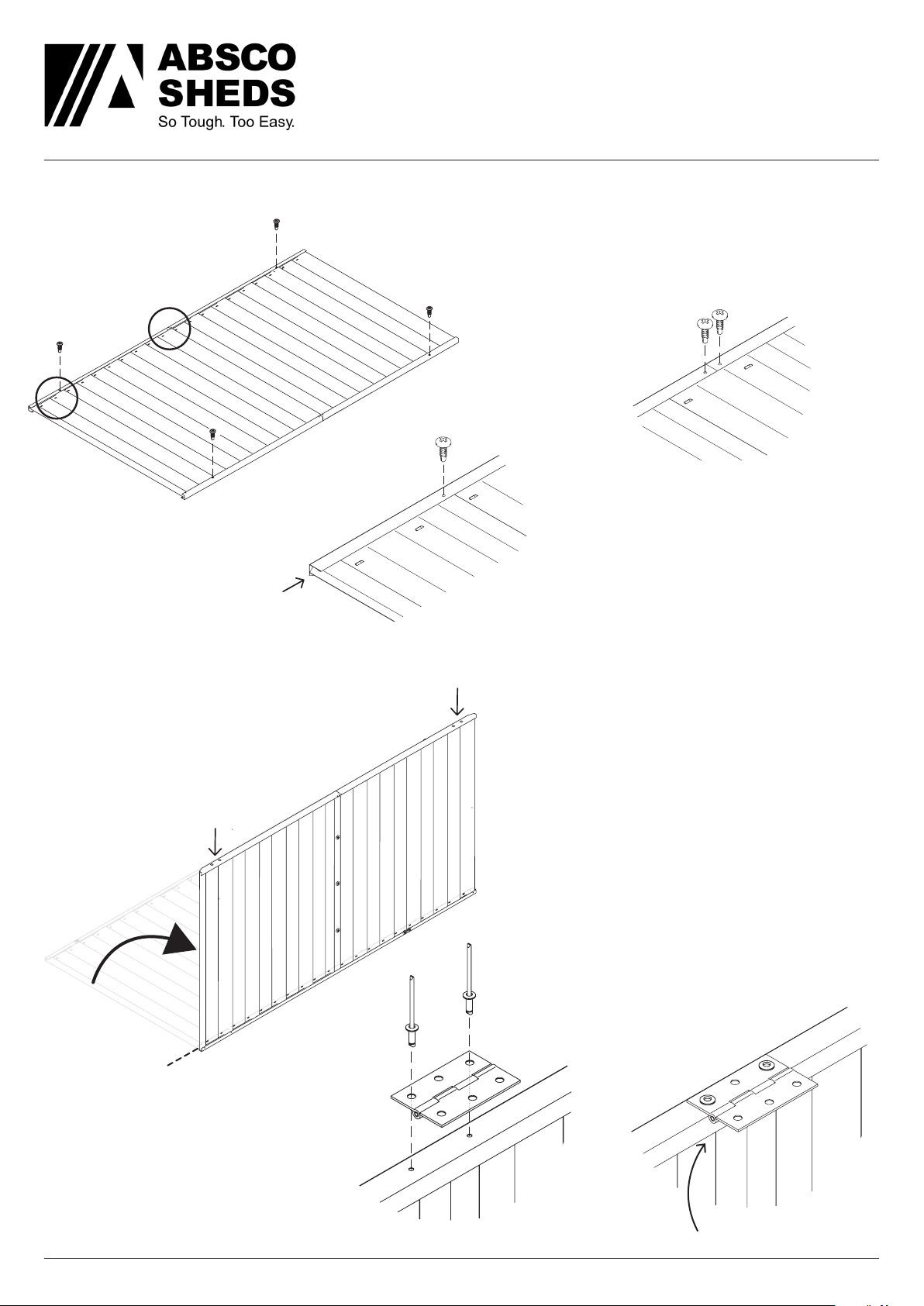

6. Stand up the panel.
Align the hinge FAST012A with
the holes in to the top of the
channel.
Make sure the bump of the hinge
is down and to the outside of the
panel.
Use a pop riveter and two
FAST009 rivets per hinge.
Fit both hinges with four pop
rivets total.
‘bump’ of hinge
- This completes the rear panel -
4. Now both channels are
attached, fasten their L&R pieces
to the CSJ with a self drilling
screw FAST096 in each top hole -
four screws total.
REAR PANEL ASSEMBLY
CONTINUED
4
5

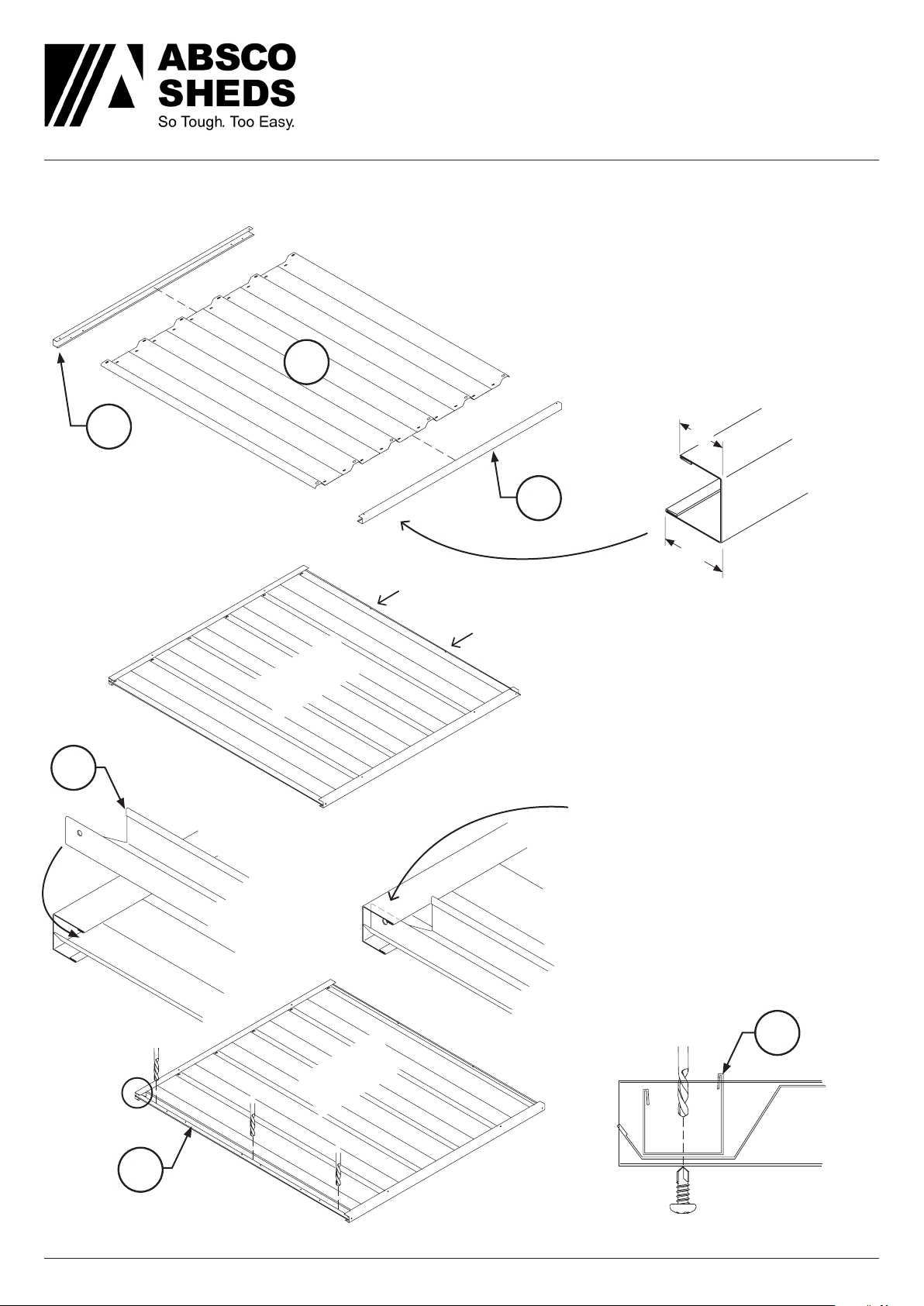

5. Align the side of the sheeting
with the end of the channels and
fasten with a self drilling screw
FAST096 through the hole in the
channel.
Do this at all corners - four
screws total.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 10 10/3/23
SIDE PANEL ASSEMBLY

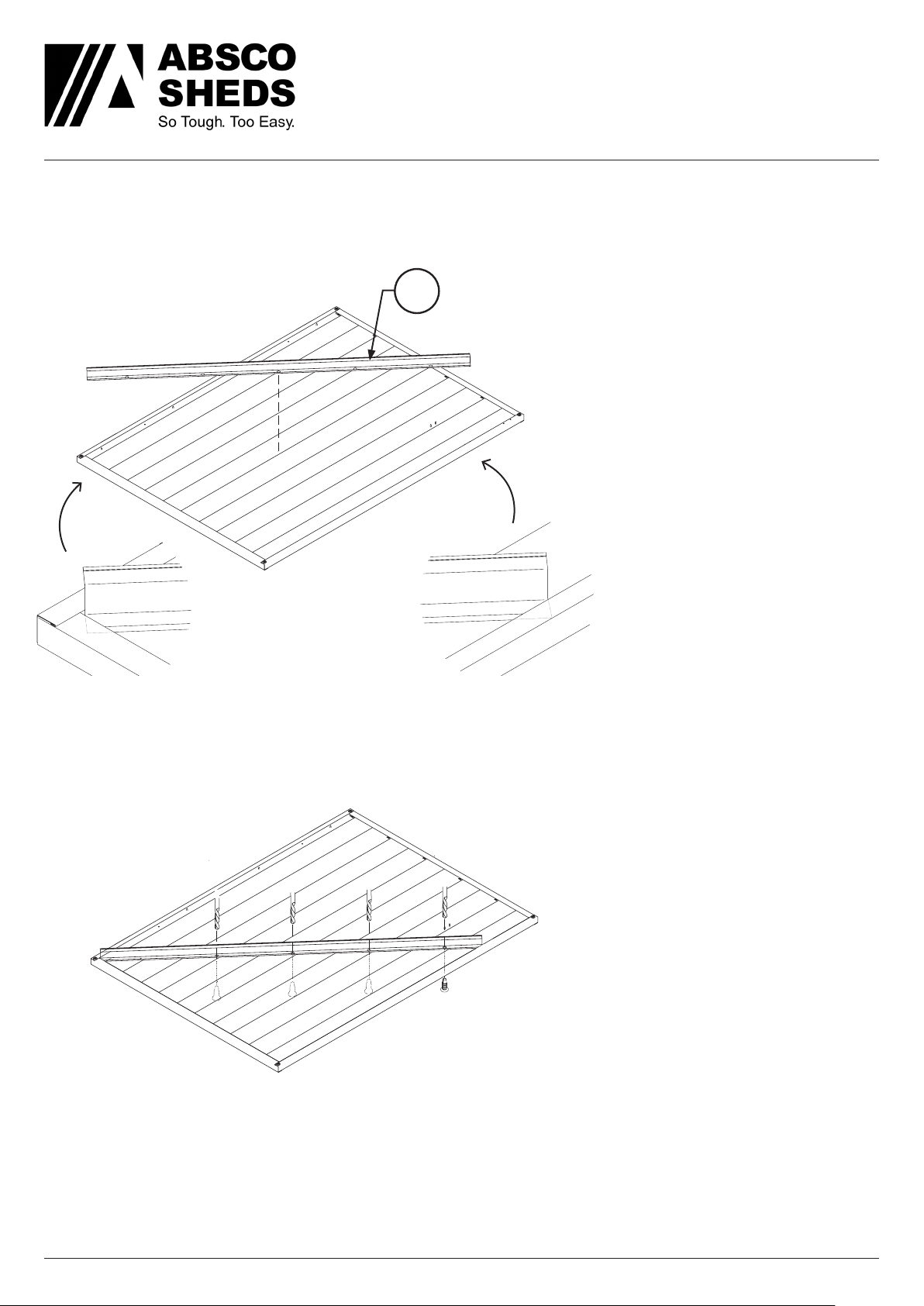

2 required 1. Attach the two 61G channels
to both ends of the Y81 sheet
using the SNAP-TiTE method.
Make sure you have the shorter,
15 mm side of the channel to the
outside of the sheeting.
20
15
61G
61G
Y81
2. Turn the panel over and
orientate it so the edge with the
two holes are as shown.
3. Take the 80F channel and sit
in the end rib and inside the top
and bottom channels.
4. Using the 80F as a template
drill three holes through the
sheeting and fasten with a screw
from the exterior side.
Edge holes
Inside of
side panel
Inside of
side panel
80F
80F
80F
3
4
3
2
- This completes a side panel - Repeat to make the 2nd panel -

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 11 10/3/23
FAST096
Check ends are flush first
81R
81W
LID PANEL ASSEMBLY
1. Layout and overlap sheets by
one rib as shown.
Orientate the sheets as shown,
please note the pan holes.
2. Make sure the ends of the
sheets are flush at overlap before
continuing.
Use the holes in the top sheet
as a template and fasten to the
sheet beneath with three self
drilling screws FAST096.
3. Attach the front and rear
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
top of the sheeting
20
15
Sheet holes are
exaggerated for
illustrative purposes 43R
43Q

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 12 10/3/23
Sheet &
channel are
flush
5. Align the side of the sheeting
with the end of the channels and
fasten with a self drilling screw
FAST096 through the hole in the
channel.
Do this at all corners - four
screws total.
4. Now both channels are
attached, fasten their L&R pieces
to the CSJ with a self drilling
screw FAST096 in each top hole -
four screws total.
LID PANEL ASSEMBLY
CONTINUED
4
5
6. Take both R14 lips and place
on top of the sheet and inside
both channels. Make sure the
face with holes is to the top.
Next, using these holes and the
end holes in the channels as a
template fasten into the sheet
beneath with four self drilling
screws FAST096 - 8 screws total

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 13 10/3/23
LID PANEL ASSEMBLY
CONTINUED
LID PANEL ASSEMBLY
CONTINUED
Flip the panel over, Check you
have the panel orientated as
shown for the next step.
7. Attaching the lid braces is
next. Take two 91L jambs and
orientate them as shown.
Align the holes shown with with
the sheet holes and fasten with
self drilling screws FAST096 from
the underside.
Then use another screw in the
overlap.
8. Check the distance from the
end of the jamb to the rear
channel is 57mm or greater.
9. Use the holes in the 91L
that line up with the middle of
the sheet pans as a template &
drill through the sheet with the
supplied 3 mm drill bit DRILL.
Fasten from underneath with
screws.
These sheet
holes will be
used in next
step.
Underside of lid
7
- This completes the lid panel -
91L
91L
57

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 14 10/3/23
20
15
LEFT DOOR PANEL ASSEMBLY 1. Orientate the 37B sheet as
shown.
Sheet holes are
exaggerated for
illustrative purposes 2. Attach the top and bottom
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
outside of the sheeting
3. Attach the left and right
channels.
Make sure you have the longer,
20 mm side of the channel to the
outside.
Insert the 20 mm side of the
channel in the top and bottom
channels, on top of the sheet
and let the bottom side go
under.
4. Take the 91J jamb and insert
in the top and bottom channels,
on top of the 58T channel.
Next, using the top holes as
templates fasten into the sheet
beneath with six self drilling
screws FAST001 per side - 10
screws total
20
15
58Z
58Z
58Y
91J
58T
FAST001
Insert this edge
37B

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 15 10/3/23
LEFT DOOR PANEL ASSEMBLY
CONTINUED
5. Attach the 12A door plate to
the sheet with six self tapping
screws FAST001.
6. Let’s attach the hinges.
Use the supplied 3 mm drill bit
DRILL and go through these
existing channel holes into the
sheet behind.
Align the hinge FAST012A with
these holes.
Use a pop riveter and three
FAST009 rivets per hinge.
‘bump’ of hinge to
outside.
Inside of
door panel
7. Turn the panel over as shown.
Fasten all corners with pop rivets
FAST009.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 16 10/3/23
8. Now we’ll fit the door brace
91A to the inside of the door.
Orientate it so the face with the
holes is to the sheet.
Make sure to tuck both ends of
the brace into the channels that
frame the door.
10. Attaching the padbolts.
The top padbolt is fixed with
two self tapping screws to the
channel.
The bottom padbolt is also fixed
with two self tapping screws
to the lower end of the same
channel.
9. Fastening the door brace.
Use the supplied 3mm drill bit,
and the jamb as a template, drill
new holes into the door sheet.
Fasten with FAST001 self tapping
screws from the outside of the
panel as shown.
LEFT DOOR PANEL ASSEMBLY
CONTINUED
Under side
channel Under bottom
channel in corner
- This completes the left door panel -
91A

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 17 10/3/23
RIGHT DOOR PANEL ASSEMBLY 1. Orientate the 37C sheet as
shown.
2. Attach the top and bottom
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
outside of the sheeting
3. Attach the left and right
channels.
Make sure you have the longer,
20 mm side of the channel to the
outside.
Insert the 20 mm side of the
channel in the top and bottom
channels, on top of the sheet
and let the bottom side go
under.
4. Next, using the channel holes
as templates drill into the sheet
beneath with the supplied 3mm
drill bit.
Next use six self tapping screws
FAST001 per side - 10 screws
20
15
FAST001
58M
58M
20
15
58Y
58W
Sheet holes are
exaggerated for
illustrative purposes
37C

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 18 10/3/23
RIGHT DOOR PANEL ASSEMBLY
CONTINUED
5. First attach the 12A door
plate through the pair of holes in
the sheet with two self tapping
screws FAST001 at the location
shown.
Next align the padbolt with
the four remaining holes in the
door plate and fasten into the
sheeting underneath with four
more screws.
6. Let’s attach the hinges.
Use the supplied 3 mm drill bit
DRILL and go through these
existing channel holes into the
sheet behind.
Align the hinge FAST012A with
these holes.
Use a pop riveter and three
FAST009 rivets per hinge.
‘bump’ of
hinge to
outside.
Inside of
door panel
Do these
two first
7. Turn the panel over as shown.
Fasten the corners with pop
rivets FAST009.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 19 10/3/23
RIGHT DOOR PANEL ASSEMBLY
CONTINUED
- This completes the right door panel -
Under side
channel
Under bottom
channel in corner
91A
8. Now we’ll fit the door brace
91A to the inside of the door.
Orientate it so the face with the
holes is to the sheet.
Make sure to tuck both ends of
the brace into the channels that
frame the door.
9. Fastening the door brace.
Use the supplied 3mm drill bit,
and the jamb as a template, drill
new holes into the door sheet.
Fasten with FAST001 self tapping
screws from the outside of the
panel as shown.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
Model: 1508WBCK 3.0 20 10/3/23
FRONT PANEL ASSEMBLY
FAST013
53H
53H
91K
Align these holes
53H
91K
91K
1. Arrange the 53H channels top
and bottom and place these two
91K jambs with the hinge faces
towards one another.
2. Fasten with a longer 20mm
self tapping screw FAST013 at
each corner.
