ABSCO SHEDS 30372RK Installation guide

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 1
Download the Absco
Sheds Assembly App
for instructional videos
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
When laying concrete slab, ensure there
is a rebated edge 25mm deep around the
perimeter. This will help water egress from
the base of the shed.
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2012
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23151GK 21-11-2017
CONCRETE SLAB
2360mm
1620mm
FRONT: 2.26m
SIDE: 1.52m
HEIGHT: 1.95m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
[email protected]
CONCRETE
REBATED EDGE
BOTTOM CHANNEL
CONCRETE SLAB
75mm WIDE REBATE
100mm
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
Absco Industries
Premier Shed Model: 23151GK
PAGE 01
CONCRETE SLAB
3100mm
3760mm

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 2
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page.

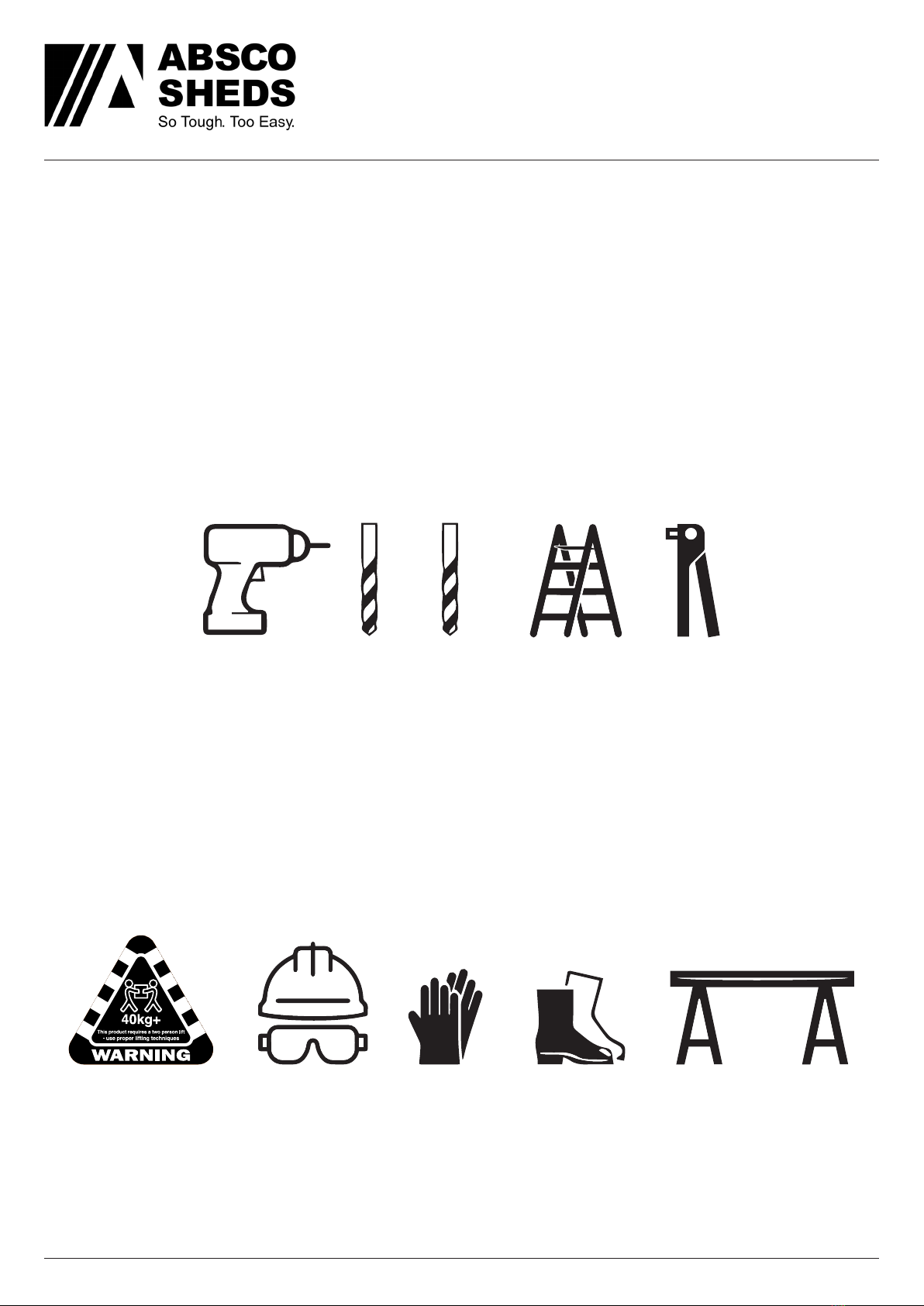

TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored to a solid foundation immediately after construction is
completed.
• It is highly recommended to erect the shed with two or more people.
RECOMMENDED
3mm drill bit 10mm drill bit metal/masonry

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 3
COMPONENT PACKING LIST
Check off all components.
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
2
8
2
2
6
2
4
1
1
2
STEEL SHEET
1785mm X 711mm 34A
STEEL SHEET
1785mm X 731mm 32A
STEEL SHEET
1725mm X 773mm A
STEEL SHEET
1725mm X 773mm B
GABLE L/H
L=1475mm 16L
GABLE R/H
L=1475mm 16R
13A
BRACE
L: 393mm
97DL
1RIDGE
BEAM
1
L = 1866.5mm
97DR
RIDGE
BEAM
ZARSP
1RIDGE BEAM JOINER
L: 450mm
L = 1866.5mm
1785mm X 773mm 30A
STEEL SHEET
STEEL SHEET
1785mm X 773mm 31A
STEEL SHEET
1546mm X 773mm 44L
STEEL SHEET
1546mm X 773mm 44R
STEEL SHEET
1546mm X 773mm 45A
2 2

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 4
COMPONENT PACKING LIST
1 4
79A
CHANNEL
L = 1568mm
58A
CHANNEL WITH HINGES
L = 1725mm
58B
CHANNEL
L = 1725mm
58C
CHANNEL
L = 773mm
77AL
55CL
77BL
81BL
81LL
62BL
55CR
1
1
1
1
2
2
1
1
1
1
2
2
CHANNEL
L = 1496.5mm
CHANNEL
L = 1496.5mm
CHANNEL
L = 1496.5mm
CHANNEL
L = 1496.5mm
CHANNEL
L = 1866.5mm
CHANNEL
L = 1866.5mm
77BR
81BR
81LR
62BR
77AR
CHANNEL
L = 1496.5mm
CHANNEL
L = 1496.5mm
CHANNEL
L = 1496.5mm
CHANNEL
L = 1496.5mm
CHANNEL
L = 1866.5mm
CHANNEL
L = 1866.5mm
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
81KL
2 2
CHANNEL
L = 1829.5mm
81KR
CHANNEL
L = 1829.5mm
62AL
2 2
CHANNEL
L = 1829.5mm
62AR
CHANNEL
L = 1829.5mm
58C
58B
58A
79A
77AL
JOIN>>
55CL
JOIN>>
77BL
JOIN>>
81BL
JOIN>>
81LL
JOIN>>
62BL
JOIN>>
81KL
JOIN>>
62AL
JOIN>>
62AR
JOIN>>
81KR
JOIN>>
62BR
JOIN>>
81LR
JOIN>>
81BR
JOIN>>
77BR
JOIN>>
55CR
JOIN>>
77AR
JOIN>>
1
2

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 5

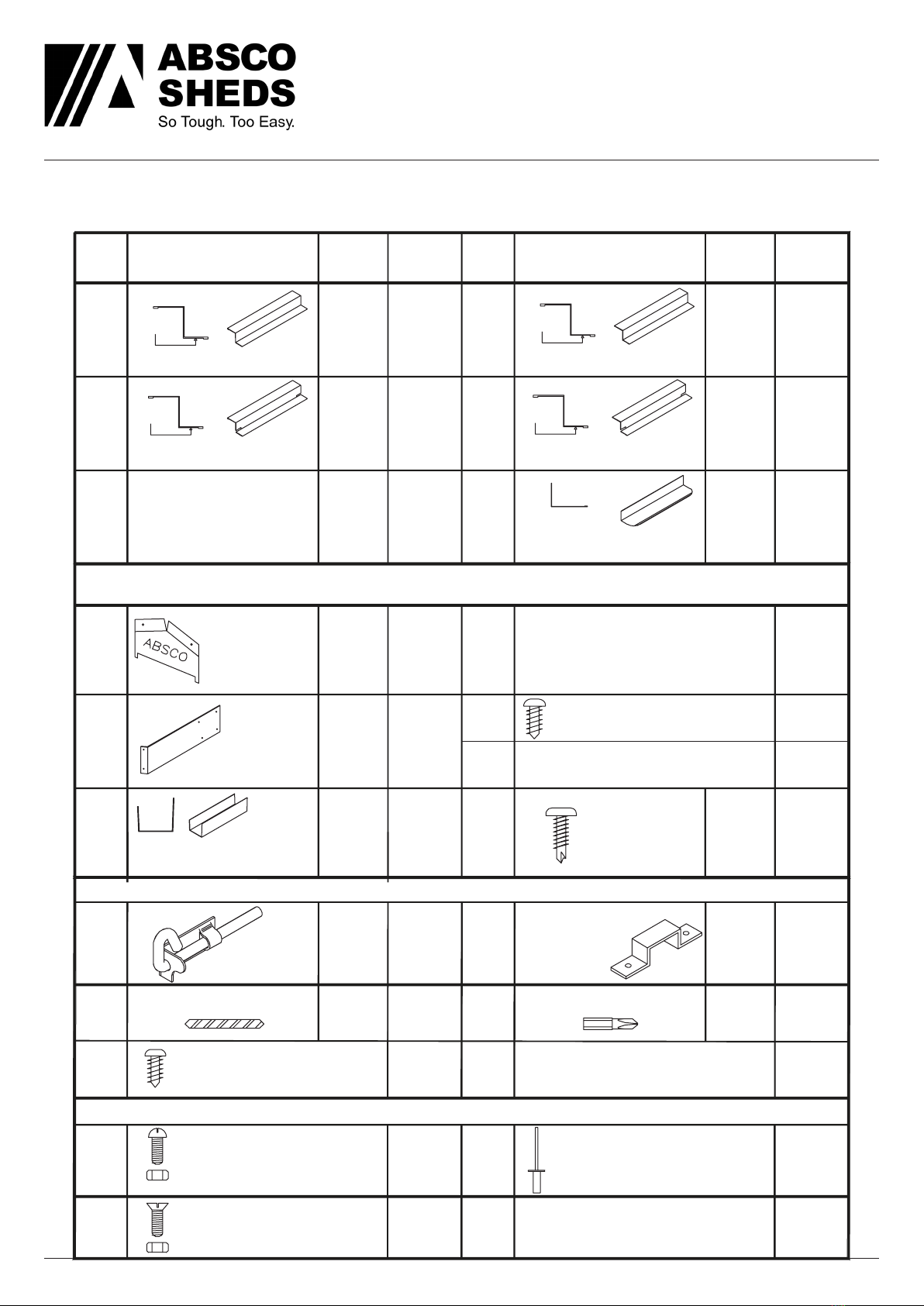

COMPONENT PACKING LIST
1
12A
2
DOOR
STRAP
L: 6.5"
14A
2CAP GABLE
L: 170mm 1ASSEMBLY
INSTRUCTIONS
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
INSTRUCTIONS & FITTINGS PACKET
4
4
1
289A
JAMB L= 1785mm
90A
JAMB L= 1568mm
91A
JAMB L= 1120mm
89C
JAMB L= 1725mm
87B
LIP TRIM L= 1546mm
CSJ
12 CHANNEL JOINER
L= 200mm
Part No. Here
Part No. Here
Part No. Here
Part No. Here
87B
CSJ
DOOR
PADBOLT
HASP
2
3
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
3/16 COUNTERSUNK
SCREWS & NUTS
12
3/16 ROUND HEAD
BOLTS & NYLOCK NUTS
83.2 x 8mm
BLIND POP RIVETS
12
PSTKDBL - DOUBLE DOOR FITTINGS PACK
PACK12P - SCREW PACK 12
PACK12P
SCREW PACK 12
1
PHILLIPS DRIVER BIT
3mm DRILL BIT DRILL FAST038
FAST007FAST006
10 16mm TEK
SCREWS FAST014
11
1
1
SELF TAPPING SCREWS
PACKET CONTAINING 100
PSTKDBL
DBL DOOR FITTINGS PACK

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 7

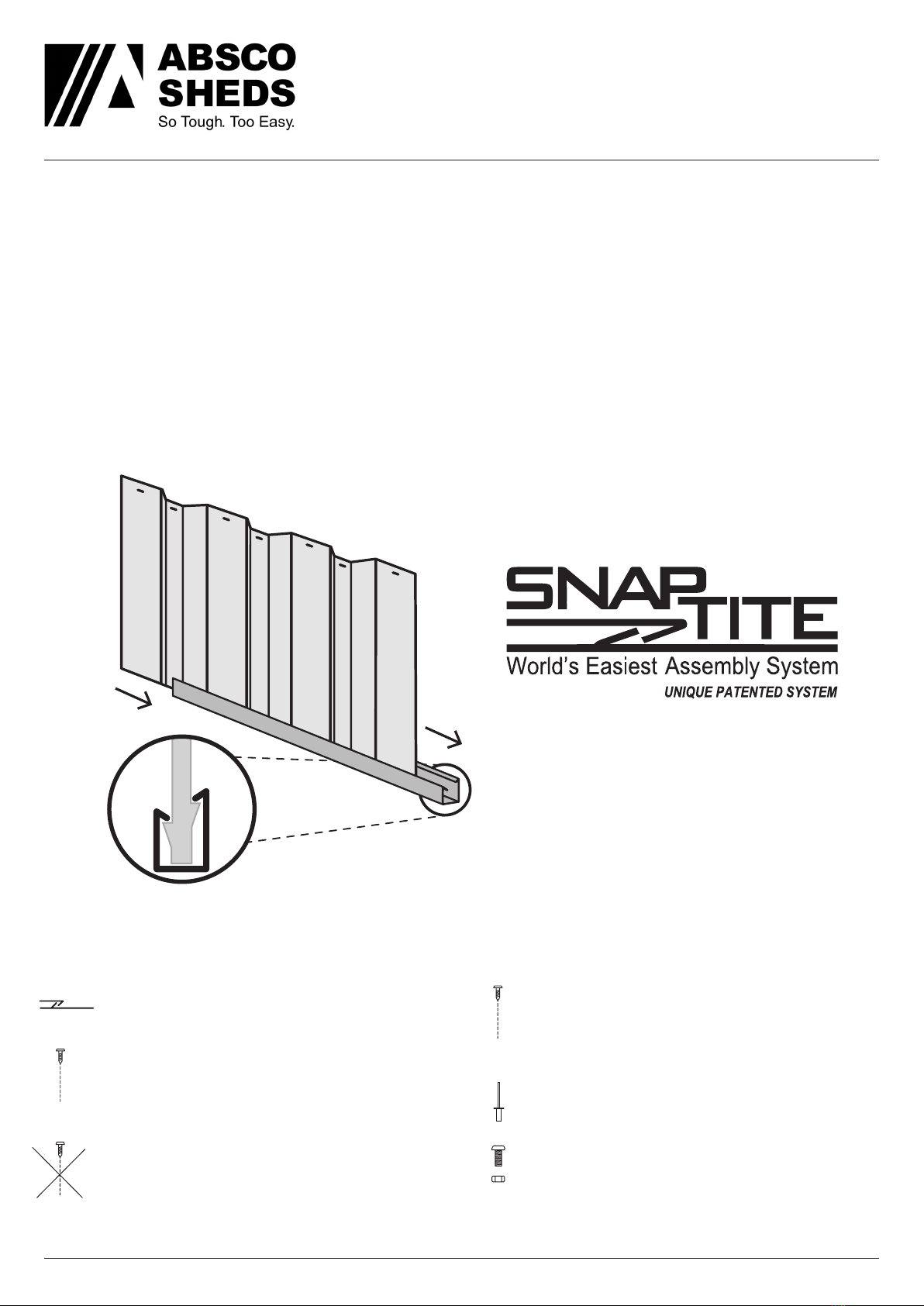

SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 8

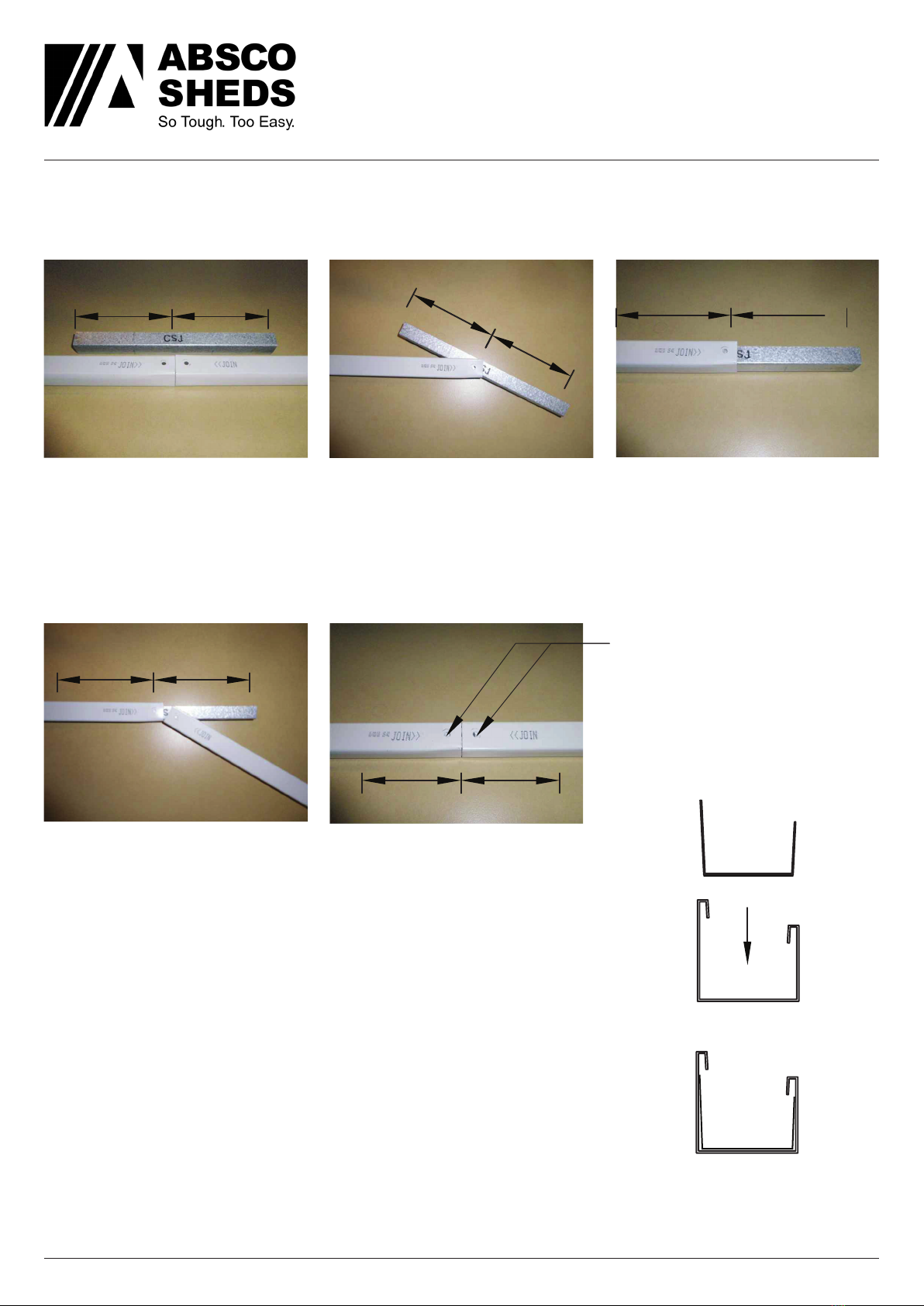

Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 3mm drill
bit in CSJ to match the holes
in channel and secure with the
screws supplied.
These may have to be
temporarily removed during
assembly.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
20mm 15mm
CSJ
.
...

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 9

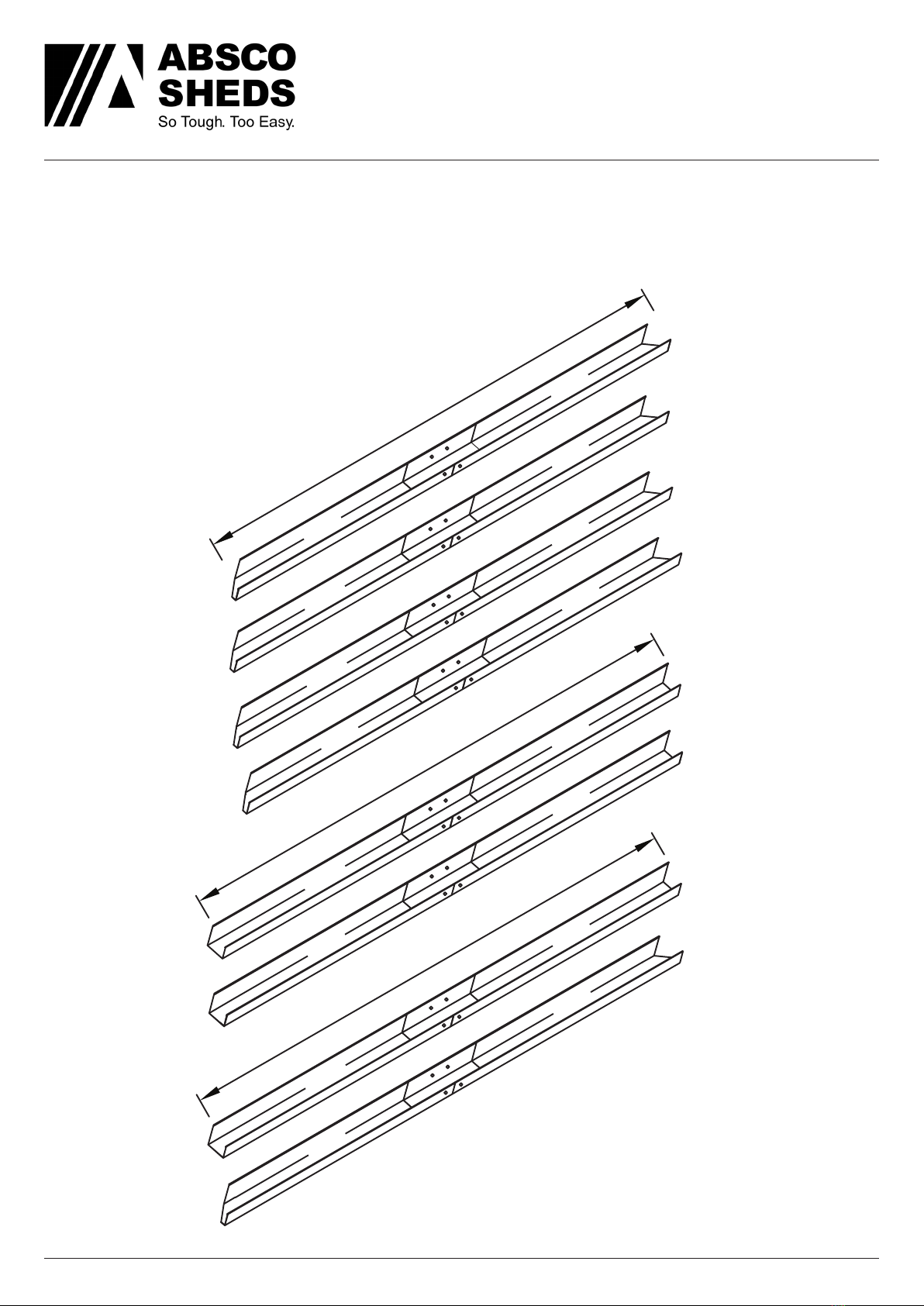

PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.
Join together 24 x channel sections using 12 x channel joiners (Part CSJ)
=
=
=
=
=
1 X 77BR
2993mm
1 x 77A
1 x 77B
1 x 55C
2 x 62B
1 x 81B
81BR
81BL
62BL
62BR
55CR
55CL
77AR
1 X 77AR
1 X 77AL
1 X 77BL
1 X 55CR
1 X 55CL
2 X 62BR
2 X 62BL
1 X 81BR
1 X 81BL
=
2 X 81LR
2 x 81L
81LR
81LL
2 X 81LL
3733mm
77BL
77BR
77AL
=2 x 62A
62AL 62AR
2 X 62AR
2 X 62AL
=
2 X 81KR
2 x 81K
81KR
81KL
2 X 81KL
3659mm

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 10
Tek screw driver bit
Push

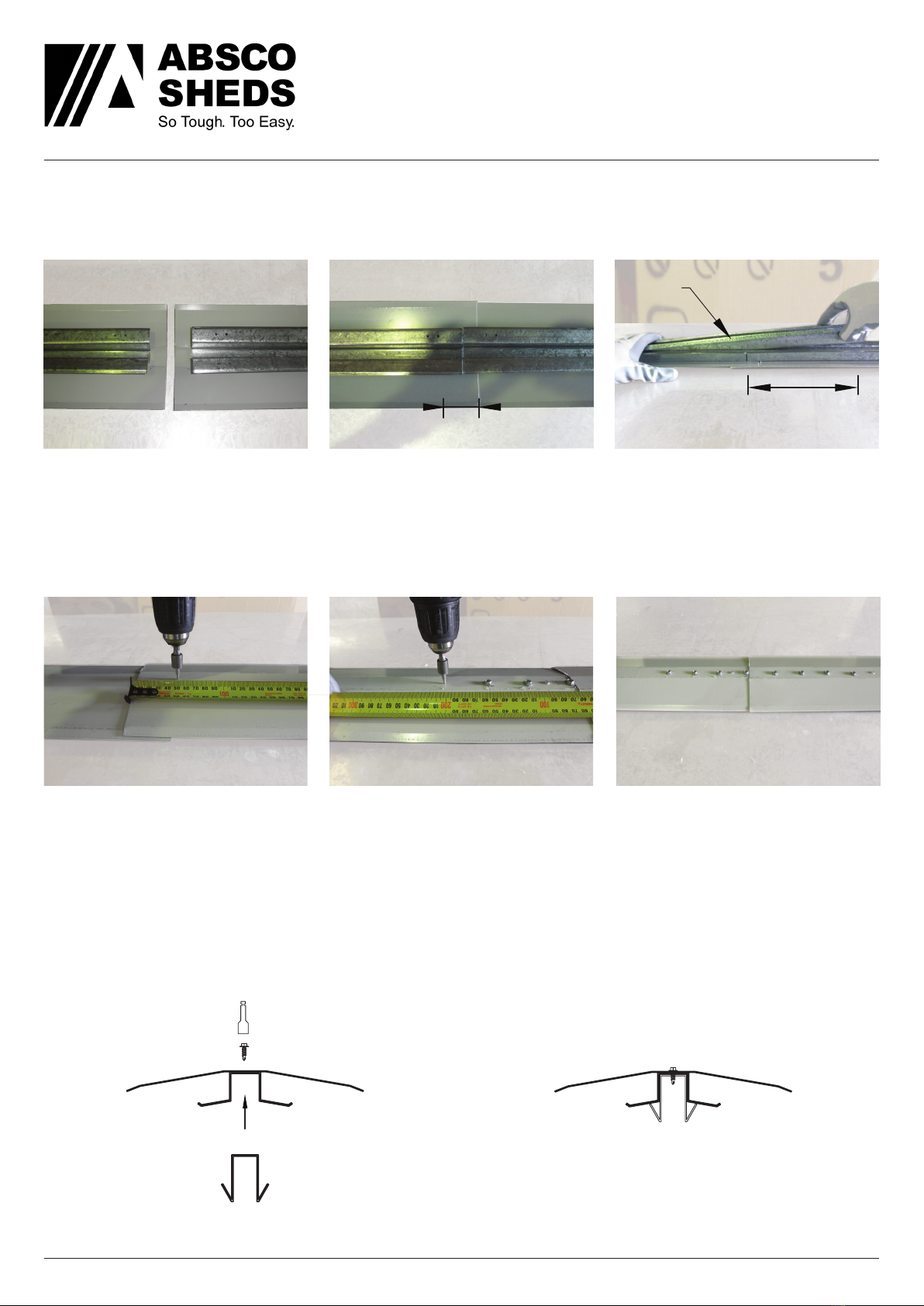

Guide on Joining a Spliced Ridge Beam
Follow these three steps to assemble a ridge beam.
Step 1.
Place two ridge beams as
shown and push them together.
Slide the cap of one under the
other.
NOTE.
There is a 50mm overlap of the
ridge caps when the beams are
in position.
Step 2.
Use the ZARSP to connect at
the centre of the two ridge
beams. Be sure it is pushed in
fully.
Step 3.
Turn over the ridge beam.
Measure 250mm from the
middle along the centre of one
ridge beam, mark spacings of
50mm. Fasten with a Tek screw
at each marking.
Repeat to the other side of the
ridge beam assembly.
TIP: Predrilling each hole with
the 3mm drill bit makes it easier
to fasten.
50mm
225mm
ZARSP
Finished Spliced Ridge Beam
Finished
Spliced Ridge Beam
ZARSP
Ridge Beam
Self drilling Tek screw

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 11
PRE-ASSEMBLY OF SPLICED RIDGE BEAM
.
.
1x 97DL
1x 97DR
= 1x 97D
3733mm Overall length
ZARSP
225mm
97DL 97DR
16mm
16mm

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 12

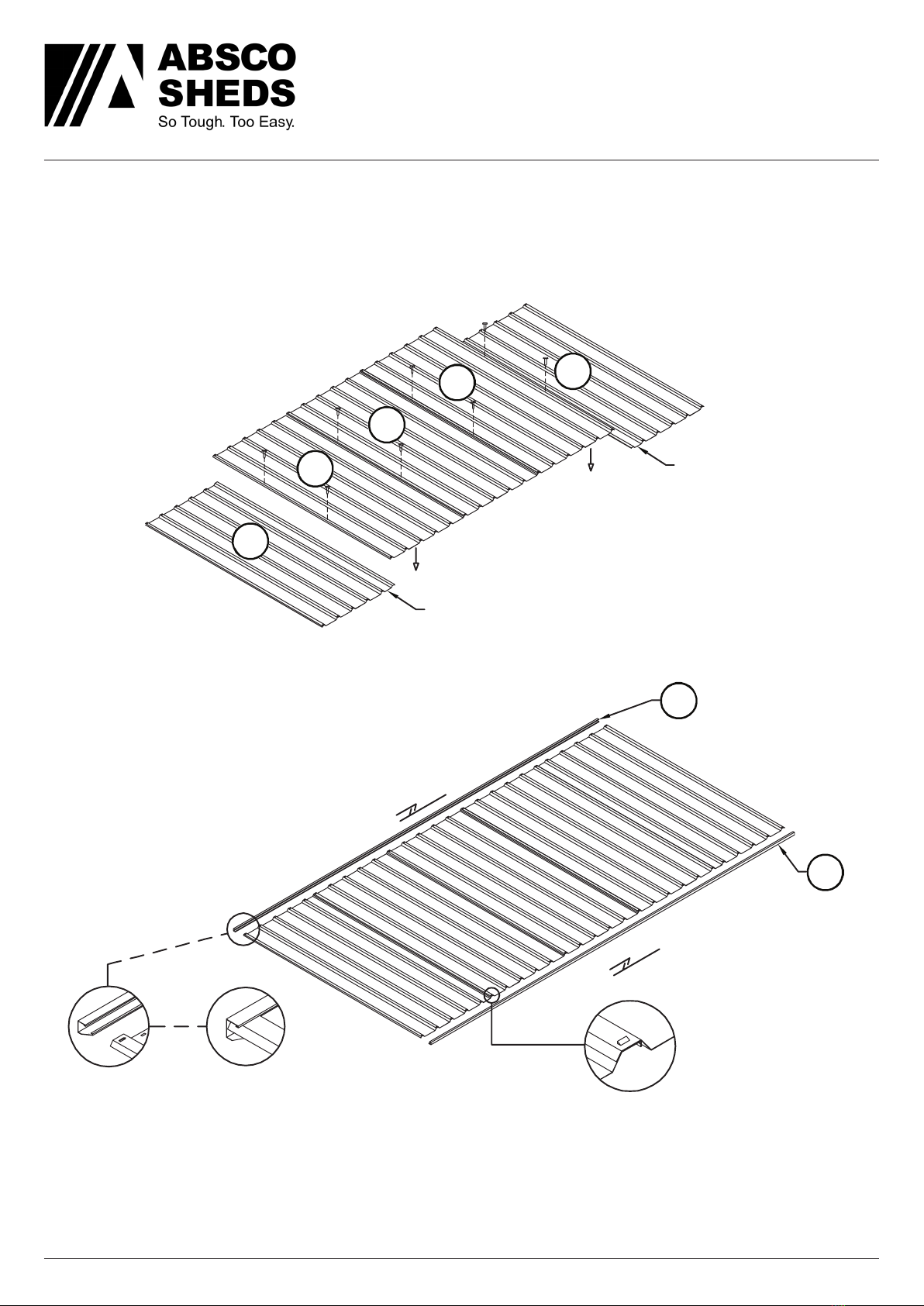

OVERVIEW OF ROOF COMPONENTS
OVERVIEW OF ROOF COMPONENTS
44R
45A
45A
45A
44L
44R
45A
45A
45A
44L
81L
87B
14A
87B
97D
81L
62B
87B
87B

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 13
OVERVIEW OF WALL COMPONENTS
OVERVIEW OF WALL COMPONENTS
32A
31A
31A
31A
32A
81K
91A
91A
89A
90A
34A
A
B
34A
55C
79A
89A
22A
62A
77B
16R
81B
30A
13A
31A
31A
30A
32A
31A
31A
31A
32A
62A
16R
77A
13A
16L
81K
16L

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 14
REAR PANEL ASSEMBLY
1x required.
30A
31A
31A
30A
81B
SNAP
T
TE
i
SNAP
T
TE
i
77B

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 15
ROOF PANEL ASSEMBLY
2x required.
Fit 81L to edge
of sheet with pre-
punched holes.
44L
45A
45A
45A
44R
87B
81L
62B
SNAP
T TE
i
SNAP
T TE
i
87B

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 16
SIDE PANEL ASSEMBLY
2x required.
62A
81K
SNAP
T TE
i
SNAP
T TE
i
SMALL PAN
SMALL PAN
32A
31A
31A
31A 32A

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 17
FRONT PANEL ASSEMBLY
89A
89A
34A
1x required.
34A
77A
90A
79A
55C
SNAP
T
TE
i
SNAP
T
TE
i
SNAP
T
TE
i
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 18
DOOR PANEL ASSEMBLY
58C
58C
58C
12A
58C
58A
58A
A
B
89C
58B
A
B
SNAP
TTE
i
SNAP
TTE
i
SNAP
TTE
i
SNAP
T TE
i
Vertical door channels are
installed in the opposite
orientation compared to the
horizontal door channels.
Four hole set for
padbolt connection.
Short flange
of channel
Long
flange of
channel
D
D
D
D
D
D
D
D
1x required.

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 19

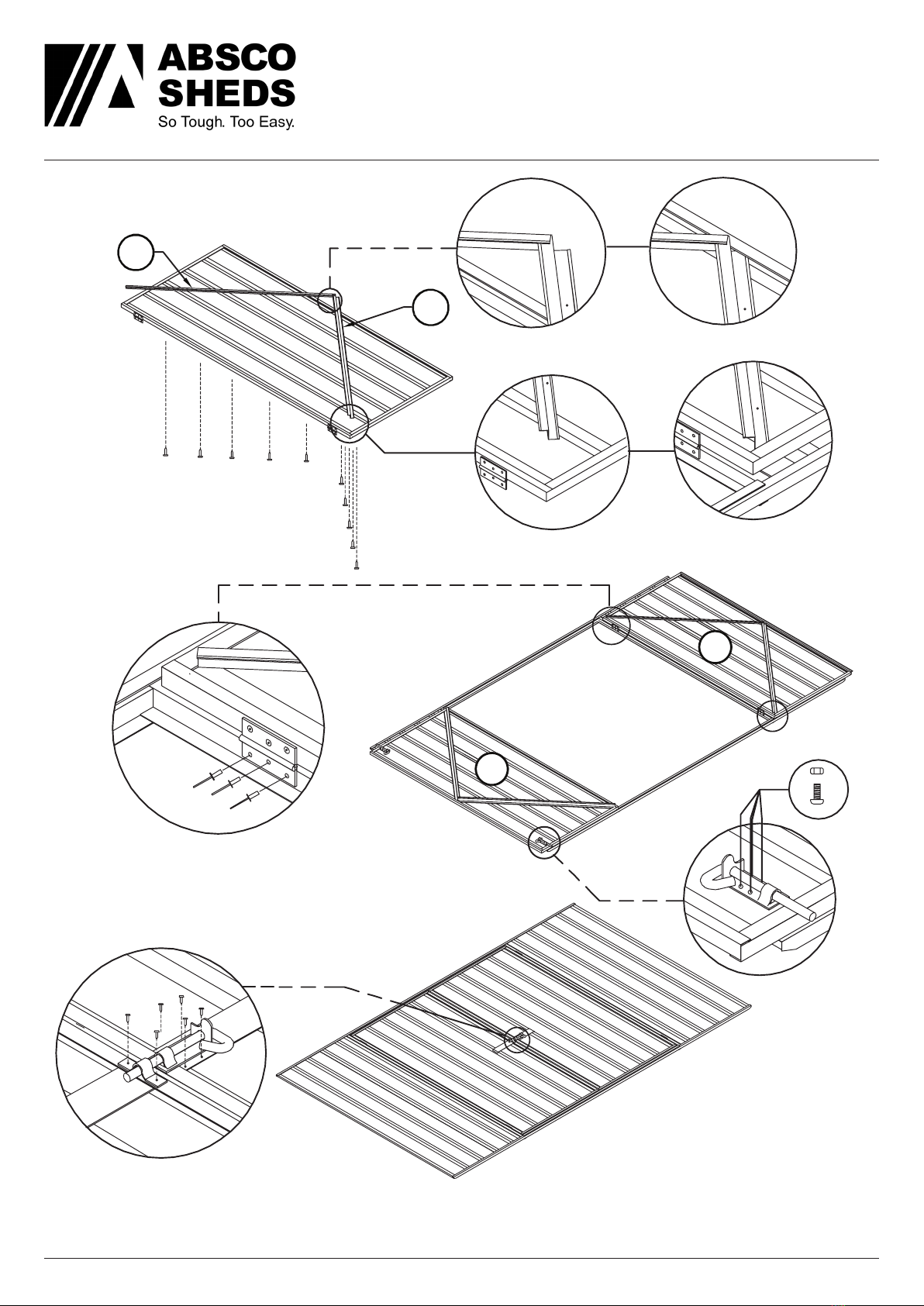

DOOR PANEL ASSEMBLY
Nuts and bolts may be used instead of pop rivets by
drilling out hinge holes using a 4mm drill bit. Both
are supplied.
The two holes required to connect the padbolt hasp for each door have not been pre-punched, to
allow for proper alignment, position each hasp centrally over the padbolt shaft and drill 3mm holes and
secure with screws.
91A
91A
A
B

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 21
PANEL CONSTRUCTION
NOTE: Take care to ensure that all wall panels
are not upside down. The top channels
of each panel are pre-punched for
attaching roof sheeting. The
base channels are not pre-
punched.
Pre-punched
channel to
match ridge
beam holes
Side wall channels
fit into the
notched rear wall
channels.
Pre-punched holes in roof panel to this side
for connection to front and rear walls.
Orient panel so
channel (62B)
goes into ridge
beam
Channel (81L)
this end
97D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30372RK
3.00mW x 3.66mD x 2.10mH
Model: 30372RK 19/09/18 1.4 22
INSIDE VIEW OF FIXING
INSIDE VIEW OF FRONT WALL
OUTSIDE VIEW
37mm
ROOR OVERHANGS
ALL WALL PANELS
BY 37mm
13A
Secure ridge beam to
gable sections with
two screws at each
end. Secure each roof
panel with one screw
in each corner only at
this stage
After attaching both roof panels to walls as
shown above, fit one regent brace to the ridge
beam and front wall as shown. You will have to
remove and replace existing screws at fixing
locations. Repeat this procedure for the rear wall
regent brace
