AC Air Technology T1X3 User manual

Instruction Manual MODEL: T1X3 Aircraft Tug
World’s First Portable, Remote-Control Aircraft Tugs
95490 Rev. B

Contents
1. Components
1-1. Components in the Box
1-2. Tug Components
1-3. Radio Components
1-4. Charger Components
1-5. Spare Parts
1-6. Track Tools
2. Start-Up Guide
2-1. Radio Operation
2-2. Operating the Tug
2-3. Adjusting the Wheel Cradle
2-4. Adjusting the Tire Guides
2-5. Load the Aircraft Wheel
2-6. Unloading the Aircraft Wheel
2-7. Adjusting Track Tension
2-8. Charging the Tug
2-9. Charging the Transmitter
2-10. Replacing Radio Batteries
3. Warranty

1. Components
1-1. Components in the Box
Radio Transmitter Battery Tray Radio Charger
Tug Charger Owners Manual Spare Parts Bag
Tug
Accessory Cradle Roller

1-2. Tug Components
1. Components
Rear Cradle Gate
Lazy Susan
Right Track Assembly
Left Track Assembly Main Plate
Wheel Cradle Side Plates
Wheel Ramp
Power Switch
Tug Charger Connection
Tug Shroud

Radio Controller

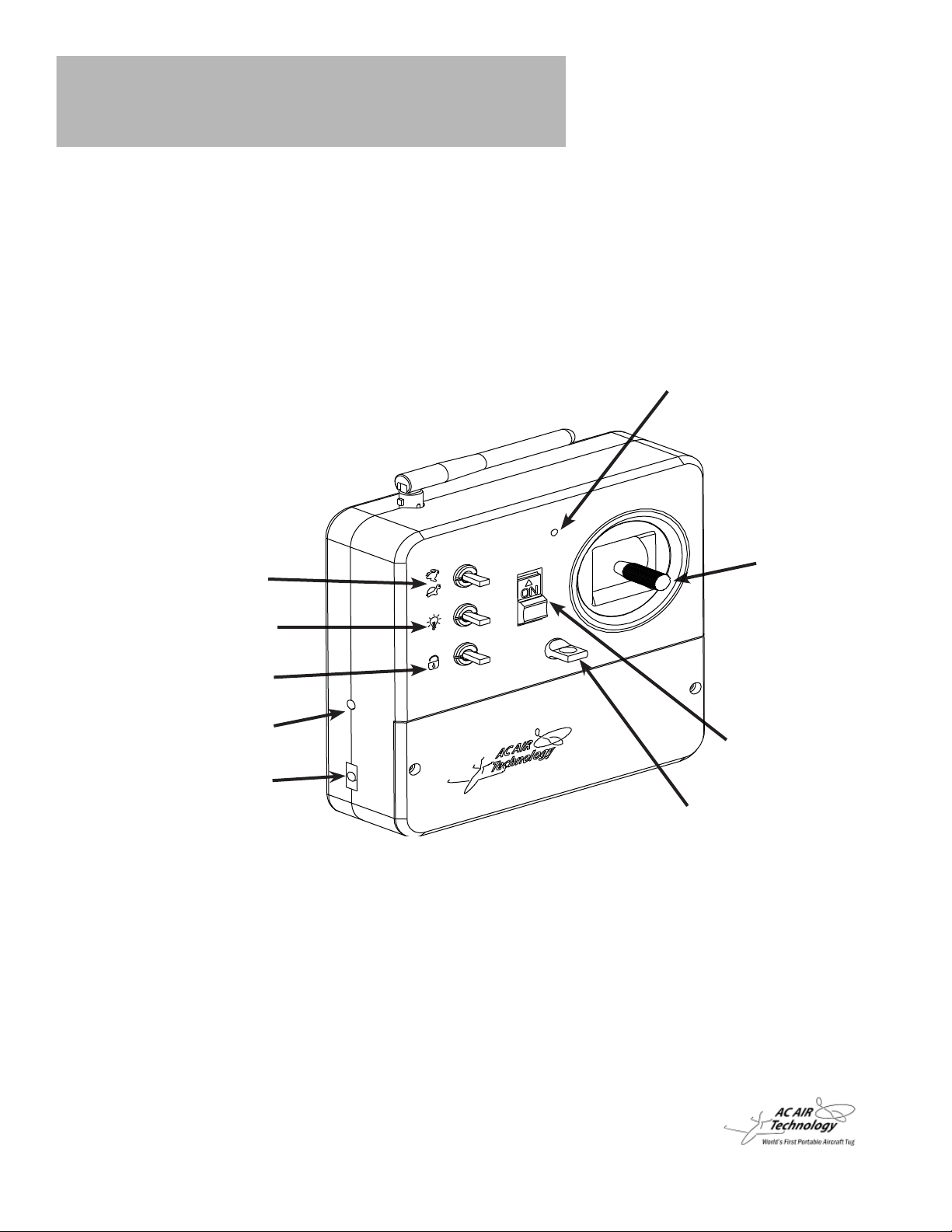

1-3. Radio Components
1. Components
Warning: The control stick on the remote is very sensitive and will cause
the tug to move if it is moved accidenally. When not using the
remote it is recommended that the power switch is turned OFF.
Note: If the remote is not used for more than a couple minutes it will start
beeping as a indicator that it is still in the ON position. This is not an
indicator of a low battery.
Control Stick
Lazy Susan Lock &
Cradle Release Switch
Power Indicator
LED
ON/OFF
Switch
Light Switch
3 Speed Toggle
Charging Jack
Lanyard Anchor
Charging Indicator LED

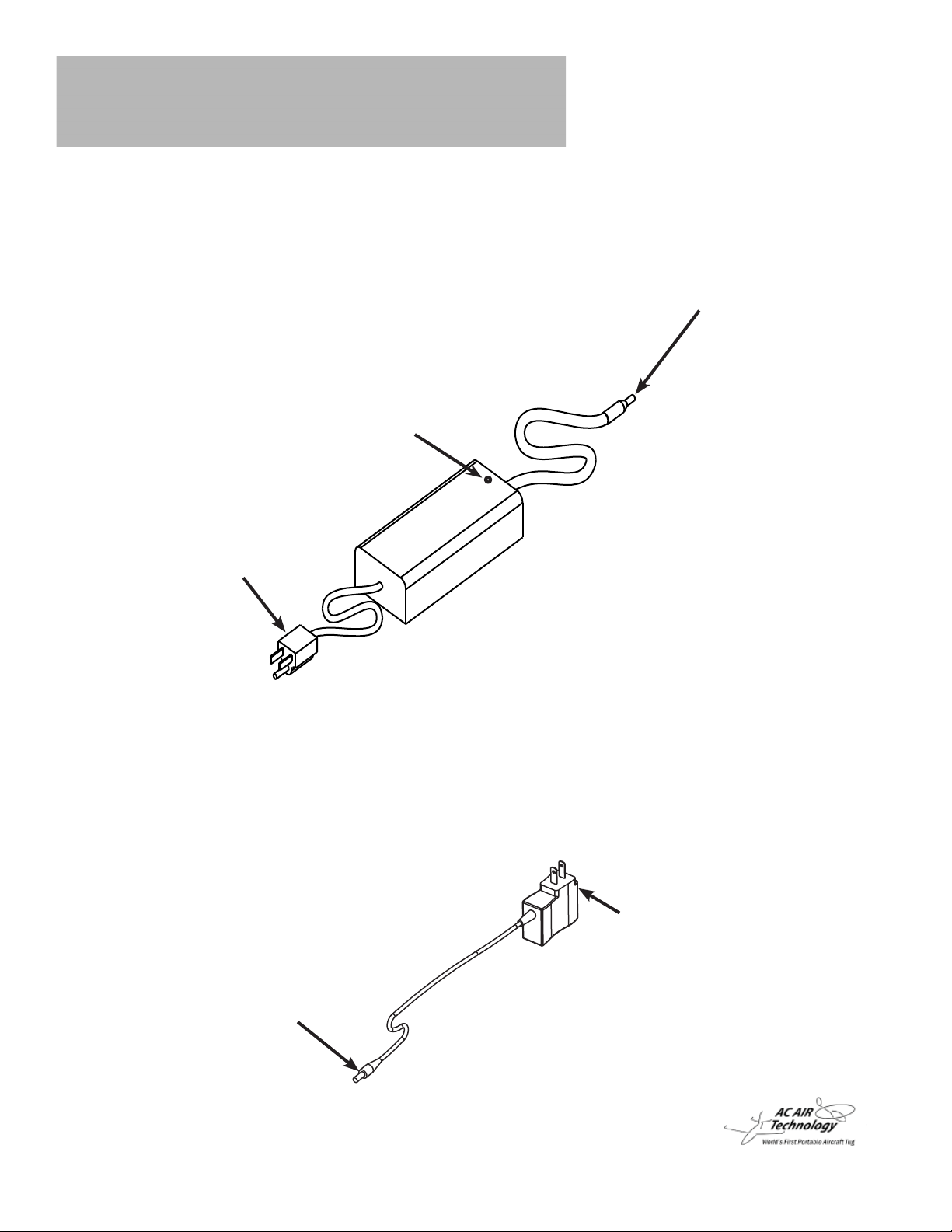

1-4. Charger Components
1. Components
Tug Charger
Radio Charger
110V Power
Connection
Radio Connection
110V Power
Connection
Tug Connection
Charging Indicator

1. Components
1-5. Spare Parts
Rotoclips
sdaerTskniL
• Spare Track Parts
Pins
• Fuses
4A mp Replacement Light Fuse
10 Amp Replacement Circuit Board Fuse
• Track Install Tools
Track Pin Tools
Retainer Clip Tool
4

1. Components
1-6. Track Tools
Track Pin
Track Pin Groove
Rotoclip Teeth
Facing Outward
When Rotoclip is properly installed in the track pin groove it should rotate
freely inside of the groove.
Retainer Clip Tool
Rotoclip
(Teeth Pointing Down)
Track Pin
The Track Tools are used to assist in the installation of new tracks.
This section is intended to show how the tools are used only.
Adetailed instruction guide is provided when purchasing new tracks.
Refer to that instruction guide when installing new tracks.
Note:

The Track Pin Tools are used to assist in the installation of new tracks
Insert the Track Pin Tools on the inside and outside adjacent pins to
the missing pin hole. Note: You will need to hold these in place by hand.
Track Pin Tool
Track Pin Tool
Missing Pin Hole Adjacent Pin
Adjacent Pin

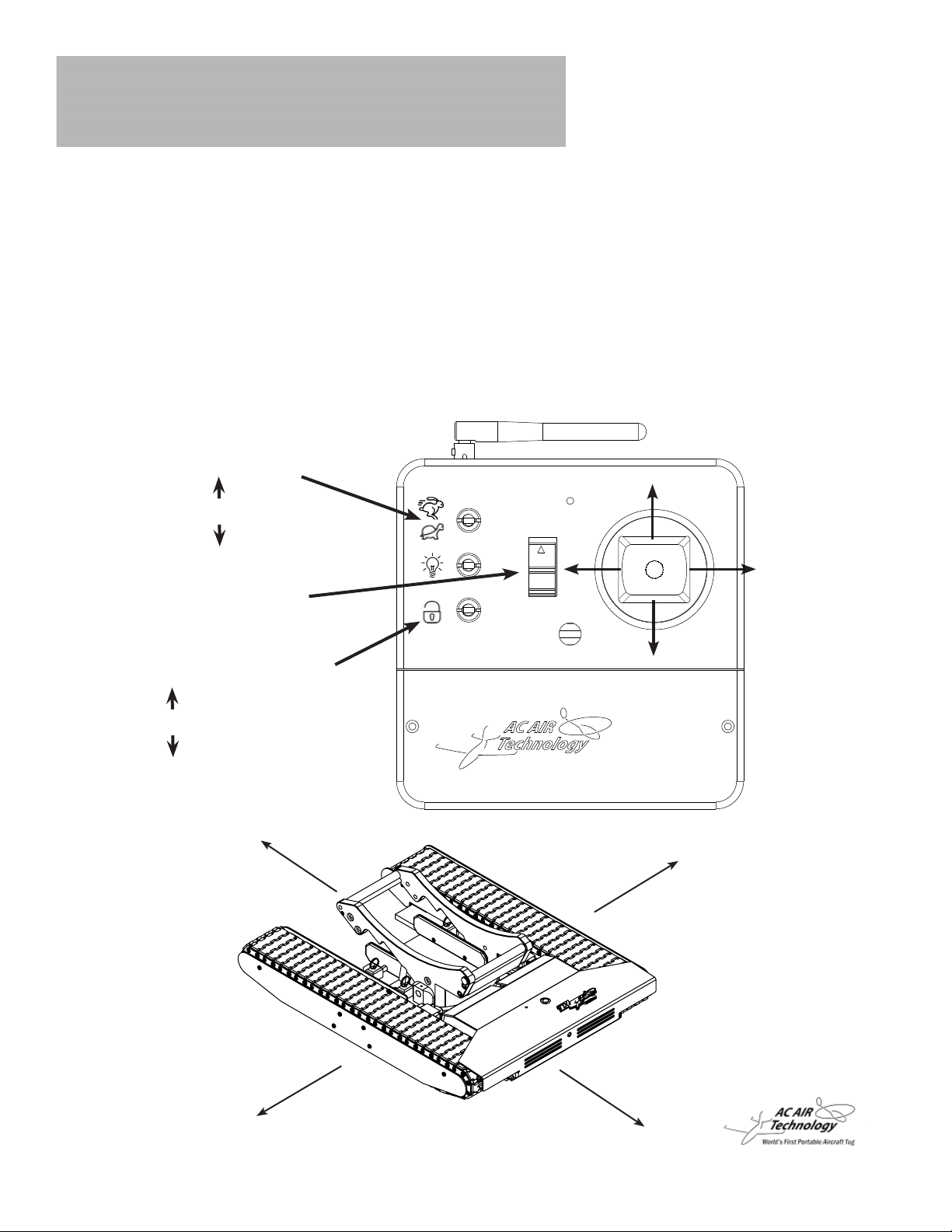

2-1. Radio Operation
2. Start-Up Guide
1. Switch the radio on and make sure the power indicator light turns on and the
radio beeps once. If this does not happen, check to make sure the batteries
were installed correctly. When the battery level in the radio becomes low the
radio will begin to beep, signaling you to replace or recharge the batteries.
2. To drive the tug, move the control stick in the desired direction.
3. The Lazy Susan Lock & Cradle Release Switch is a 3 position switch. The
Unlock and Lock positions are used to lock the lazy susan rotation. The
Release postion is to release the tire from the cradle while unloading.
ON/OFF
Power Switch
Lazy Susan Lock &
Cradle Release Switch
Unlock
- Lock
Release
3 Position
Speed Toggle
Fast
- Moderate
Slow
Forward
Right
Reverse
Left
ON
Forward
Left Reverse
Right

2-2. Operating the Tug
2. Start-Up Guide
1. Before turning on the tug, make sure the tracks and bottom of the tug are free
from obstruction.
2. Turn the tug on using the ON/OFF switch. There will be a short series of beeps and
then the ON/OFF switch will illuminate red to show the tug is on. The ON/OFF switch
light will be on solid when the battery is fully charged. When the battery is low the
ON/OFF switch light will blink and there will also be a beeping sound.
3. Turn on the power switch on the radio controller and the power indicator LED will be
green and the RF indicator LED will be red. Refer to sections 1-3 and 2-1.
It is recommended that you practice maneuvering the tug prior to loading the plane.
It is recommended that you practice maneuvering the tug prior to loading the plane.
4. When towing your airplane ALWAYS be cautious of the steering angle limitations of
your aircraft. Do not oversteer your aircraft with the tug. This can cause damage to
your gear.
Tug ON/OFF Switch

5. After lifting the tug off of the ground for any reason or taking it in and out of your
aircraft, you must check to make sure that the sprockets are correctly seated on the
tracks. If the sprocket is not properly seated it could result in damage to the track.
6. Visually check tracks for wear on the treads and wear on the inner plastic surfaces.
Also inspect for damaged or missing rotoclips as a result of driving over small rocks.
Damaged treads should be replaced before operating the tug.
Note: The circuit breaker reset buttons will trip if the tug is overloaded. To reset
the circuit breakers open the tug shroud and locate the white button
on the ciruit board. Press it down to reset. If the reset button pop back
up wait 1 minute and try again.
Check sprockets for proper seating and alignment.

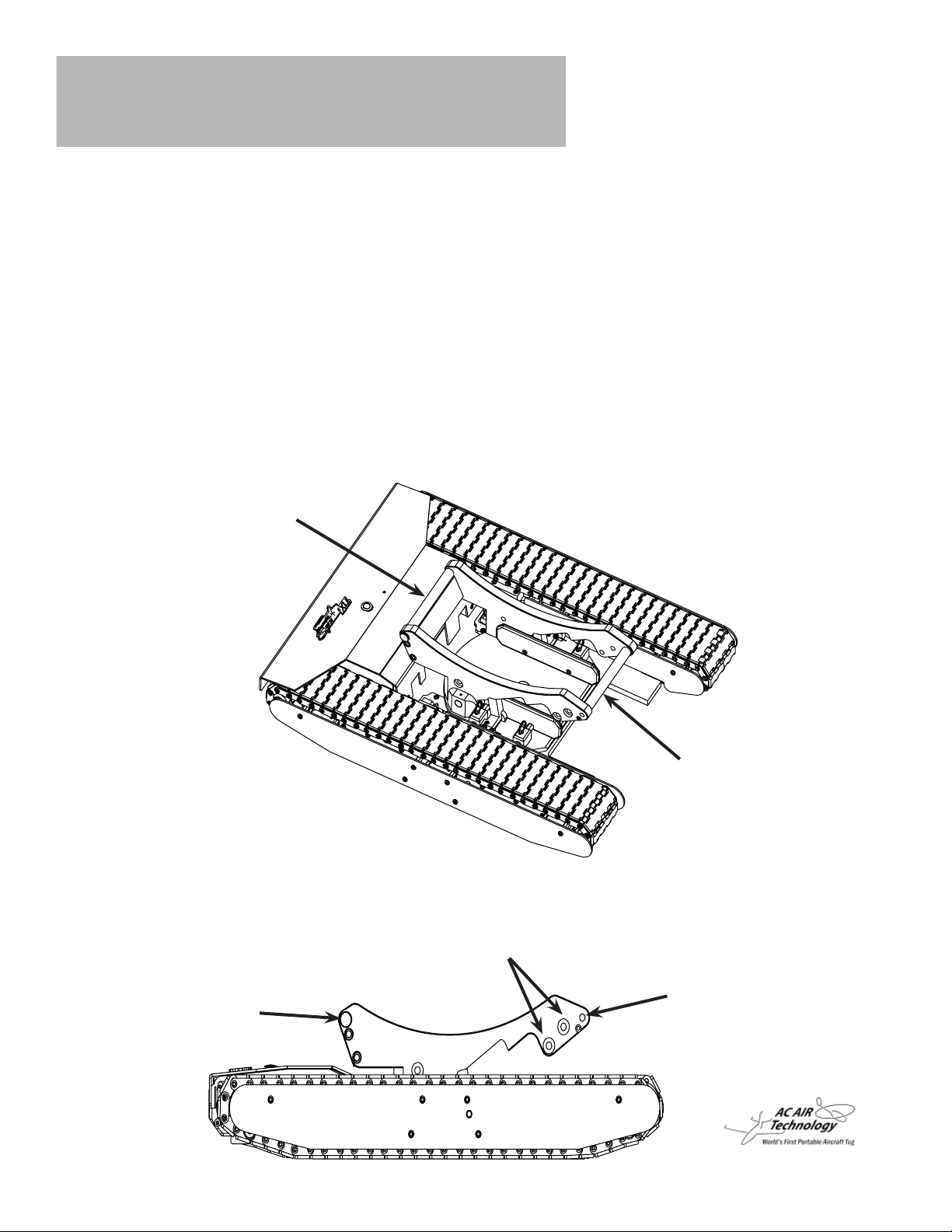

2-3. Adjusting the Wheel Cradle
1. The wheel cradle can be adjusted to 3 different positions depending on your
aircraft’s outside tire diameter. The three configurations are as follows:
NOTE: You do not want the tire to be be too tight inside the wheel cradle.
There should be space for tire size variations. After configuring the wheel cradle
drive the tug under the tire to double check that the wheel cradle is setup
correctly and to ensure the cradle lock is fully engaged.
When releasing the wheel cradle always make sure the tire is against the back
gate cradle roller. If not, the wheel cradle may not release properly.
2. Start-Up Guide
Configuration A:
For 16.25” Maximum Outside Tire Diameter
1A. The wheel cradle Back Gate Roller should be in the position shown above.
No accessories required.
Back Gate
Cradle Roller
Permanent
Front Roller
Back Gate
Roller Permanent
Front Roller
Remove Accessory Cradle Roller if installed

Configuration B:
For 14.50” Maximum Outside Tire Diameter
ii. Pull out Inside Rod
i. While holding the other
end firmly, turn one of the
red knobs to unscrew and
release the Inside Rod
1B. For Configuration B the supplied Accessory Cradle Roller will be needed.
2B. Disassembly the Accessory Cradle Roller.
Accessory Cradle Roller
3B. The wheel cradle Back Gate Roller should be in the position shown below.
Back Gate
Roller
Accessory
Cradle Roller
in First Position Permanent
Front Roller

4B. Install the Accessory Cradle Roller into the wheel cradle’s First Position
(position shown is step 3B above) by holding the outside roller in between the wheel
cradle and sliding the inside rod through one end of the wheel cradle and out the
other. Secure the Accessory Cradle Roller with the red knob. Ensure both red knobs
are securely fastened.
Inside Rod
Outside Roller
Red Knobs
Back Gate
Roller
Accessory
Cradle Roller
Permanent
Front Roller

Configuration C:
For 8.25” Maximum Outside Tire Diameter
i. While holding the other
end firmly, turn one of the
red knobs to unscrew and
release the Inside Rod
ii. Pull out Inside Rod
1C. For Configuration C the supplied Accessory Cradle Roller will be needed.
2C. Disassembly the Accessory Cradle Roller.
Accessory Cradle Roller
3C. The wheel cradle Back Gate Roller should be in the position shown below.
Back Gate
Roller
in middle
position
Accessory Cradle Roller
in Second Position Permanent
Front Roller
(Move Back Gate
Roller from this
position to middle
position)

4C. Install the Accessory Cradle Roller into the wheel cradle’s Second Position
(position shown is step 3C above) by holding the outside roller in between the wheel
cradle and sliding the inside rod through one end of the wheel cradle and out the
other. Secure the Accessory Cradle Roller with the red knob. Ensure both red knobs
are securely fastened.
Outside Roller
Inside Rod
Red Knobs
Back Gate
Roller
Accessory
Cradle Roller
Permanent
Front Roller

2-4. Adjusting the Tire Guides
2. Start-Up Guide
1. If the tire guides are in the furthest back position and your tire does not
fit or it is too close of a fit remove the tire guides and adjustment pins.
Furthest back postion
Tire Guide
Adjustment Pin

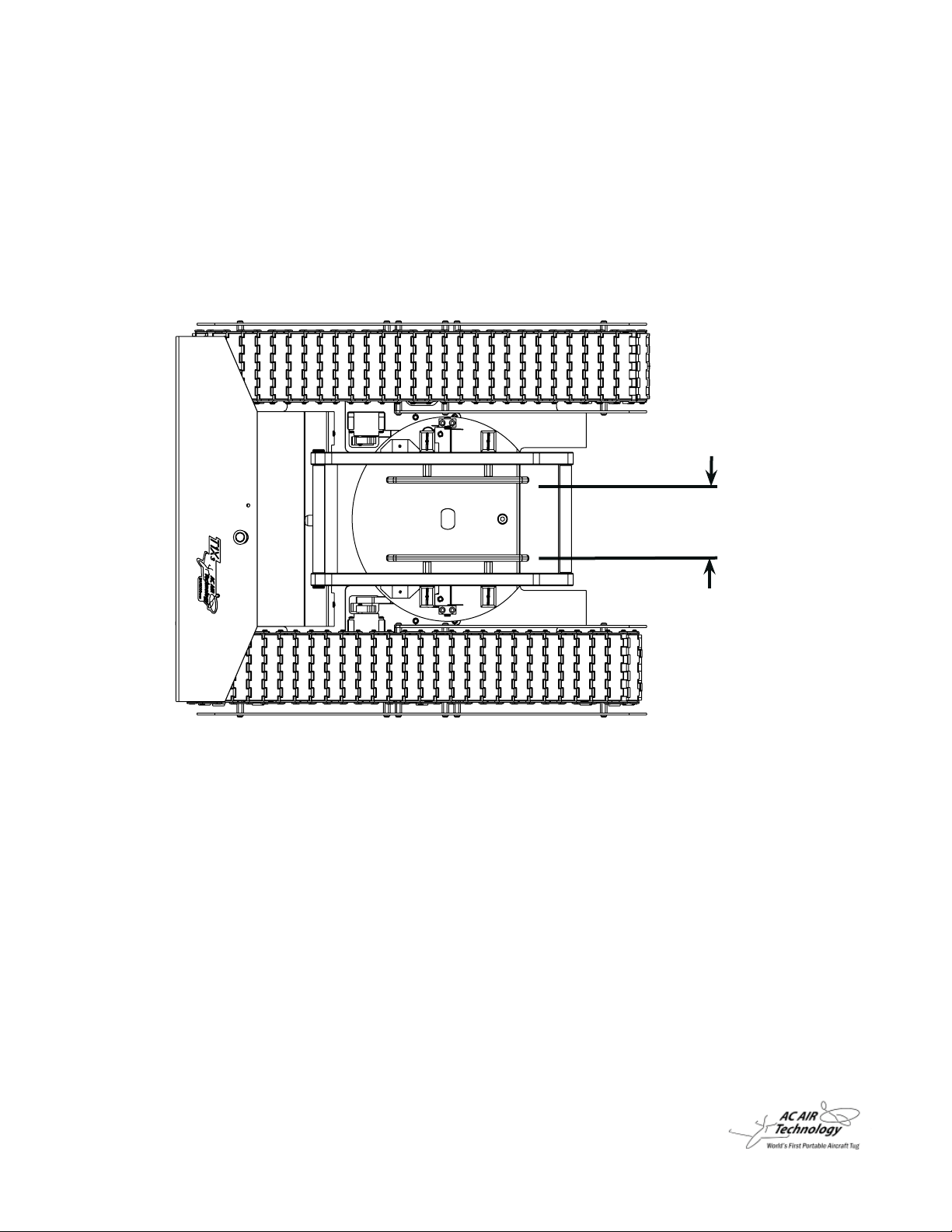

2. Adjust the tire guides by removing four adjustment pins and sliding the tire guides
towards each other. Ideally the tire guides should be moved the same distance on
each side to keep your tire centered in the cradle. The distance between the tire guides
should equal the width of your tire plus one inch maximum.
Width of your tire
plus 1” max

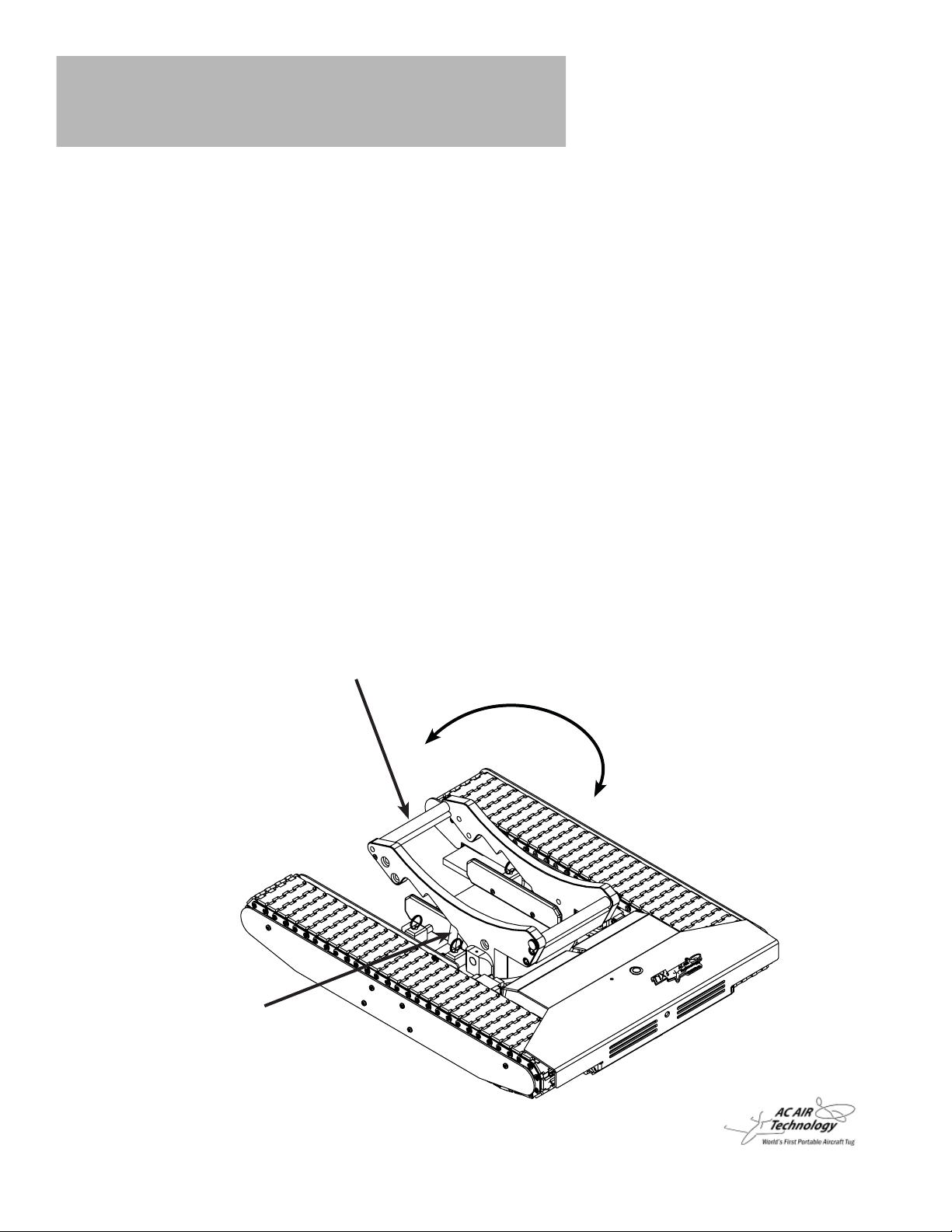

2-5. Loading The Aircraft Wheel
1. Turn on the tug power switch and the radio controller power switch, see
sections 2-1 and 2-2 for details. The wheel ramp needs to be in the down
position before loading the aircraft wheel. If the wheel ramp is in the up
position then hold the latch release switch on the radio controller and slowly
rotate the lazy susan until the Cradle Lock releases the ramp and it falls to
the down position. The ramp release only occurs when the lazy susan is oriented
with the wheel cradle facing forward. Leave the latch release switch in the middle
position, locking the lazy susan from rotating.
WARNING: DO NOT PUT ANY PART OF YOUR BODY IN THE MECHANISM WHILE
RELEASING THE LATCH. SEVERE BODILY INJURT CAN OCCUR.
WARNING: DO NOT SIT IN THE PLANE WHILE DRIVING THE TUG.
2. Start-Up Guide
Wheel Cradle
Ramp in up
position, facing
forward 360 Degree
Lazy Susan
Rotation
Cradle Lock
