Schaffert Rebounder User manual

SCHAFFERT MFG. CO. INC. - phone: [phone] - fax: [phone]
REBOUNDERTM MOUNTING INSTRUCTIONS
WaveVision Sensor
(JD 1700/7000/7200, Kinze, Great Plains, Monosem, White 5000/6000/8000, Yield Pro)
(Read Instructions Completely before Beginning Installation)
DANGER: When storing or working on the planter always install cylinder stops or place the planter on stands to prevent personal injury or damage to the Re-
bounder.
WARNING: Do not roll back or back up the planter in or on the ground as this can result in damage to the Rebounder.
Before working on your planter or drill
Mounting Instructions
Before you begin, verify all items listed in the “package contents” table at the right.
Rebounder covered by one or more of the following U.S. patents: 5,640,915; 5,918,557; 6,082,275; 6,283,050; 6,453,832; 6,763,773 and 7,121,216.
71495 rd. 397 - indianola, ne 69034 - phone: [phone] - fax: [phone] - [e-mail] - www.schaffert.com - 5 mar 2018
Rebounder Packa g e Contents
(per sin g le row)
Item Quantity
Rebounder (7 hole) .............1
Tie Strap .....................2
Instruction Sheet ..............1
Bracket Packa g e Contents
(per sin g le row)
Item Quantity
WaveVision Bracket ............1
L-Bracket ....................1
Propeller T-nut ................2
Washer ......................2
Screw .......................2
Step #1: Unplug seed sensor from monitor harness.
Step #2: Pull seed tube from planter.
Step #4: Check size of double disc openers before installing Rebounder to WaveVision bracket.
If your double disc openers measure 14.75″  15″, use the settings in Step #5a.
If your double disc openers measure 14.5″  14.75″, use the settings in Step #5b.
Step #3:
NOTE: If applying liquids in furrow with the Rebounder, attach either Y-Not Split It, Hose
Holder, or Straight Shot kit by following kit directions. See kit instructions.
INSTALL KIT BEFORE INSTALLING REBOUNDER TO SEED TUBE.
When placing fertilizer in-furrow, use the L-bracket placed over the top T-nut
(Step #5) .
Step #5a:
FOR DOUBLE DISC OPENERS MEASURING 14.75″―15″
Put one T-nut in the 3rd hole from the top in the Rebounder and the second T-nut in the
next (4th) hole down. If applying fertilizer in-furrow, the L-bracket should be installed
under the T-nut in the 3rd hole down.
Put the WaveVision bracket behind the Rebounder and put screws with washers into the
top square hole and 3rd square hole down on the bracket
[g. (a) & photos on back] .
Step #5b:
FOR DOUBLE DISC OPENERS MEASURING 14.5″―14.75″ (By following these settings the Rebounder will be 3/8″ less in depth.)
Put one T-nut in the 4th hole from the top in the Rebounder and the second T-nut in the next (5th) hole down. If applying fertilizer in-furrow, the
L-bracket should be installed under the T-nut in the 4th hole down.
Put the WaveVision bracket behind the Rebounder and put screws with washers into the 2nd square hole from the top and 4th square hole down
on the bracket.
Step #7: Use two tie straps to secure WaveVision bracket with Rebounder attached to the seed tube. The top tie strap goes into the cut-out at the top of
the bracket and the bottom one goes just above the metal part on the bottom of the seed tube
[g. (b)] . The sensor’s red indicator will be seen
through one of the holes in the Rebounder.
Step #8: Put seed tube back in planter.
Step #6: Tighten both screws.

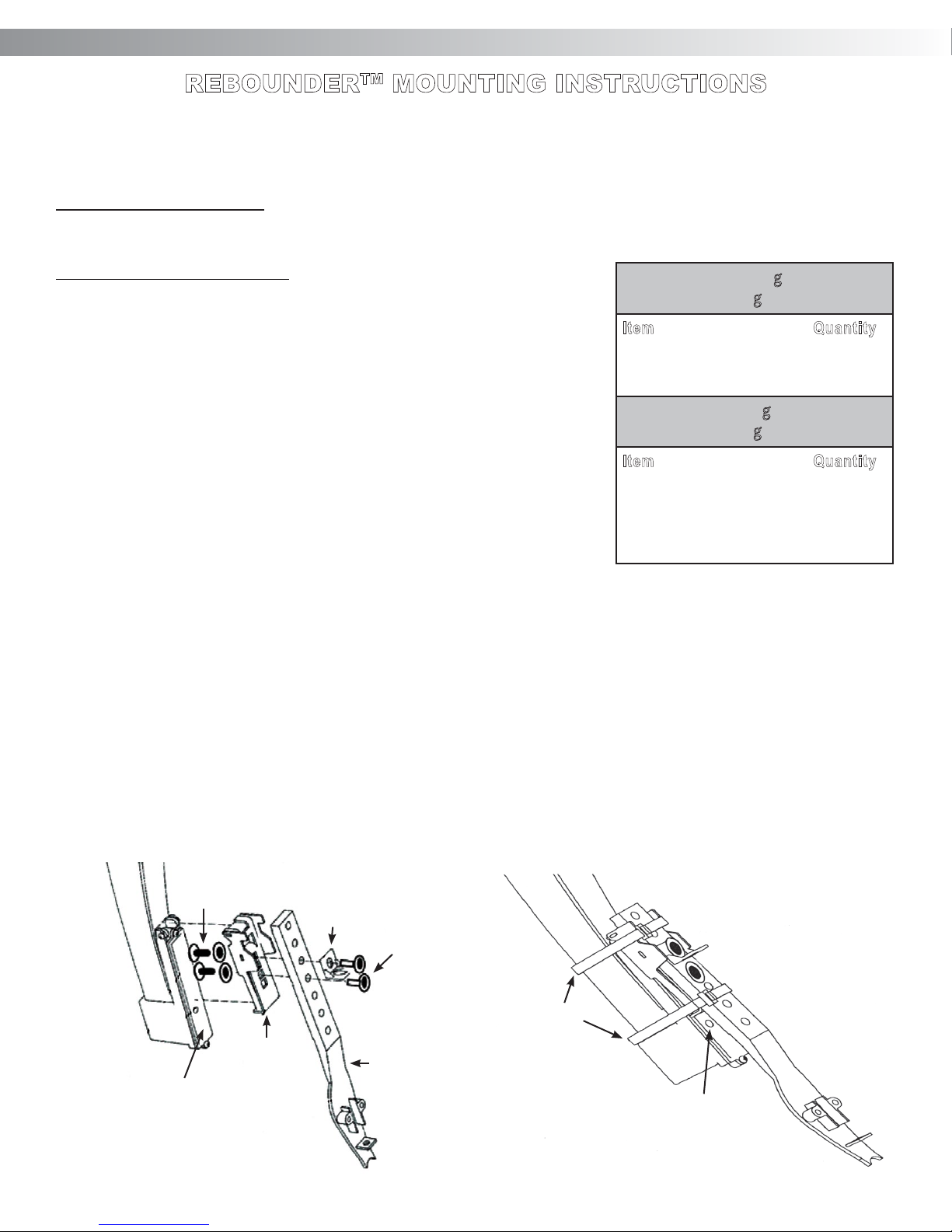

g. (a) g. (b)
L-bracket
sensor
T-nuts
Rebounder
WaveVision
bracket
screws &
washers
tie straps
red sensor
light

SCHAFFERT MFG. CO. INC. - phone: [phone] - fax: [phone]
REBOUNDERTM MOUNTING INSTRUCTIONS
WaveVision Sensor
(JD 1700/7000/7200, Kinze, Great Plains, Monosem, White 5000/6000/8000, Yield Pro)
(continued)
Rebounder covered by one or more of the following U.S. patents: 5,640,915; 5,918,557; 6,082,275; 6,283,050; 6,453,832; 6,763,773 and 7,121,216.
71495 rd. 397 - indianola, ne 69034 - phone: [phone] - fax: [phone] - [e-mail] - www.schaffert.com - 5 mar 2018
REBOUNDER MOUNTING BRACKET
FOR WAVE VISION SENSOR
71495 Rd 397 Indianola Ne 69034 - phone [phone] fax [phone] - [e-mail] - www.schaffert.com
bottom
top
SETTINGS FOR DOUBLE
DISC OPENERS MEASURING
14.75″―15″
