AC Air Technology T1H1 User manual

Instruction Manual MODEL: T1H2 Helicopter Tug
World’s First Portable, Remote-Control Aircraft Tugs
95631 Rev. a

2
1. Components (Page 3)
1-1. Components in the Box
1-2. Components in the Box (Con’t)
1-3. Components in the Box (Con’t)
1-4. Tug Components
1-5. Tug Components (Con’t)
1-6. Radio Components
1-7. Charger Components
1-8. Spare Parts
1-9. Track Tools
2. Tug Assembly (Page 13)
2-1. Front Assembly
2-2. Back Assembly
3. Tug Operation (Page 24)
3-1. Radio Operation
3-2. Operating the Tug
3-3. Adjusting the Width of the Tug
3-4. Loading the Helicopter on the Tug
3-5. Moving the Helicopter on the Tug
3-6. Unloading the Helicopter
4. Tug Care (Page 36)
4-1. Adjusting the Track Tension
4-2. Charging the Tug
4-3. Charging the Transmitter
4-4. Replacing the Transmitter Batteries
5. Troubleshooting (Page 42)
6. Warranty (Page 46)
Contents

3
1. Components
1-1. Components in the Box
Right MainTug
Assm. 09612
Left MainTug
Assm. 09994

1-2. Components in the Box (Con’t)
Left End Assembly
Assm. #09889
Right End Assembly
Assm. #09993
Short Front-end Adjuster
Assm. #09621
Long Back-end Adjuster
Assm. #09622
(2X) Frame Side Support
Part #02617

1-3. Components in the Box (Con’t)
Radio Transmitter
Part #02629
Battery Tray
Part #95087
Radio Charger
Part #95102
(2X) Tug Charger
Part #95394
Owners Manual
Part #95631
(2X) Spare Parts Bag
Part #95631
(4X) T-Handle
Part #95545
(4X) T1H2 Frame Insert
Part #24244
(12X) Socket Head
Part #95304
(2X) Shoulder Bolt
Part #95655

1-4. Tug Components
Track Assembly
Main Plate
Skid Loading Rollers
Skid Guide Rollers
Tug Charger Connection
Power Switch
Right Back-end Connection Slot
Side to Side Swivel Connection
*Note Left Main Tug is an Identical Mirrored Component

Left Main Tug Swivel Connection
Right Main Tug Swivel Connection
1-5. Tug Components (Con’t)
Left Back-End Insert
Right Back-End Insert
Left Back-End Insert Hole
Right Back-End Side to Side Insert
Right Back-End Connection Slot
Right Back-End Connection Slot

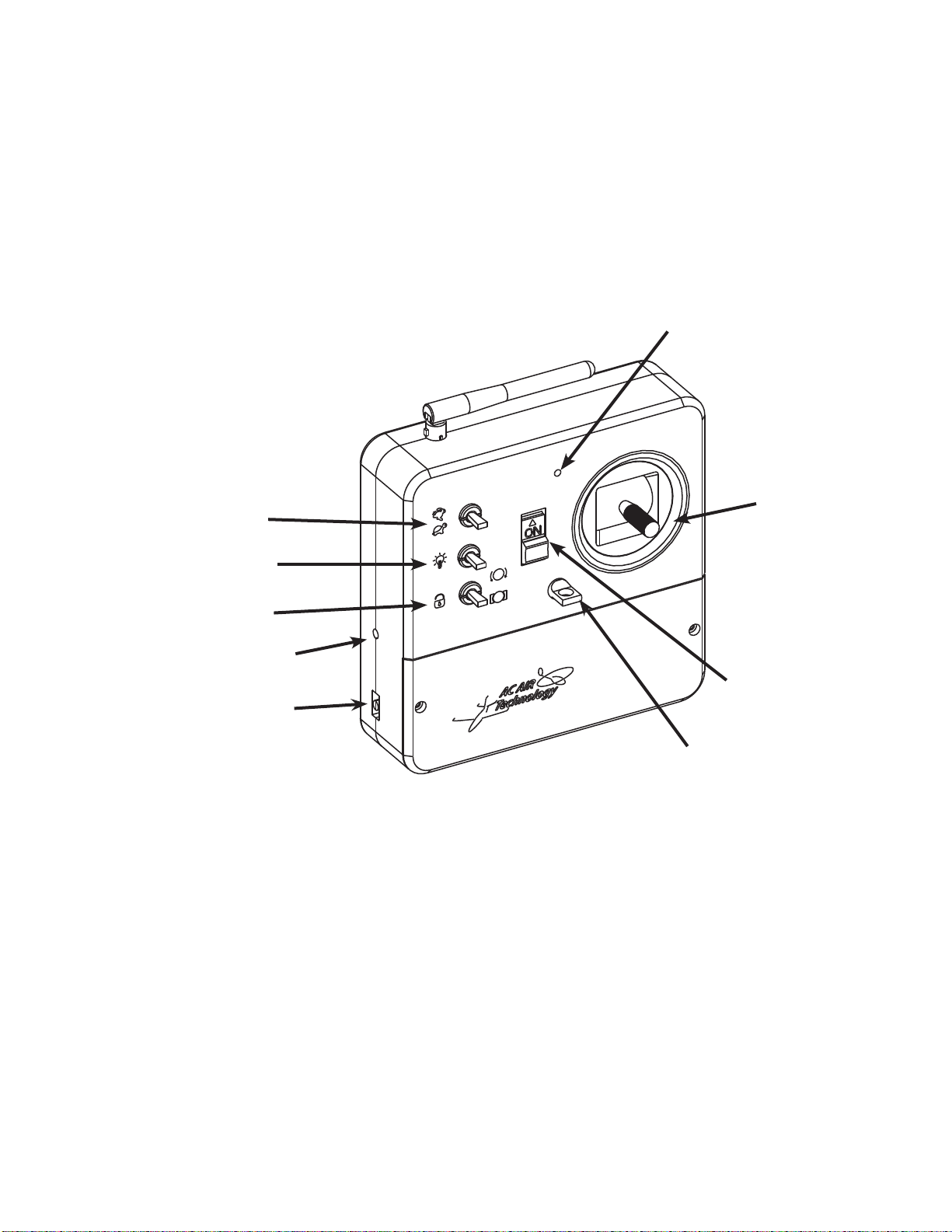

1-6. Radio Components
Warning: The control stick on the remote is very sensitive and will cause
the tug to move if it is moved accidenally. When not using the
remote it is recommended that the power switch is turned OFF.
Note: If the remote is not used for more than a couple minutes it will start
beeping as a indicator that it is still in the ON position. This is not an
indicator of a low battery.
Radio Controller
Control Stick
Power Indicator
LED
ON/OFF
Switch
Light Switch
3 Speed Toggle
Charging Jack
Lanyard Anchor
Charging Indicator LED
(Optional)
Roller Engagement Switch

1-7. Charger Components
Tug Charger (2 Included)
Radio Charger
110V Power
Connection
Tug Connection
Charging Indicator
LED
110V Power
Connection
Radio Connection

1-8. Spare Parts
44
• Spare Track Parts
Pins
Rotoclips
Treads
Links
Retainer Clip Tool
Track Pin Tools
4 Amp Replacement Light Fuse
4 Amp Replacement Light Fuse
• Track Install Tools • Spare Track Parts

Track Pin
Track Pin Groove
Rotoclip Teeth
Facing Outward
When Rotoclip is properly installed in the track pin groove it should rotate
freely inside of the groove.
Retainer Clip Tool
Rotoclip
(Teeth Pointing Down)
Track Pin
The Track Tools are used to assist in the installation of new tracks.
This section is intended to show how the tools are used only.
A detailed instruction guide is provided when purchasing new tracks.
Refer to that instruction guide when installing new tracks.
1-9. Spare Parts

12

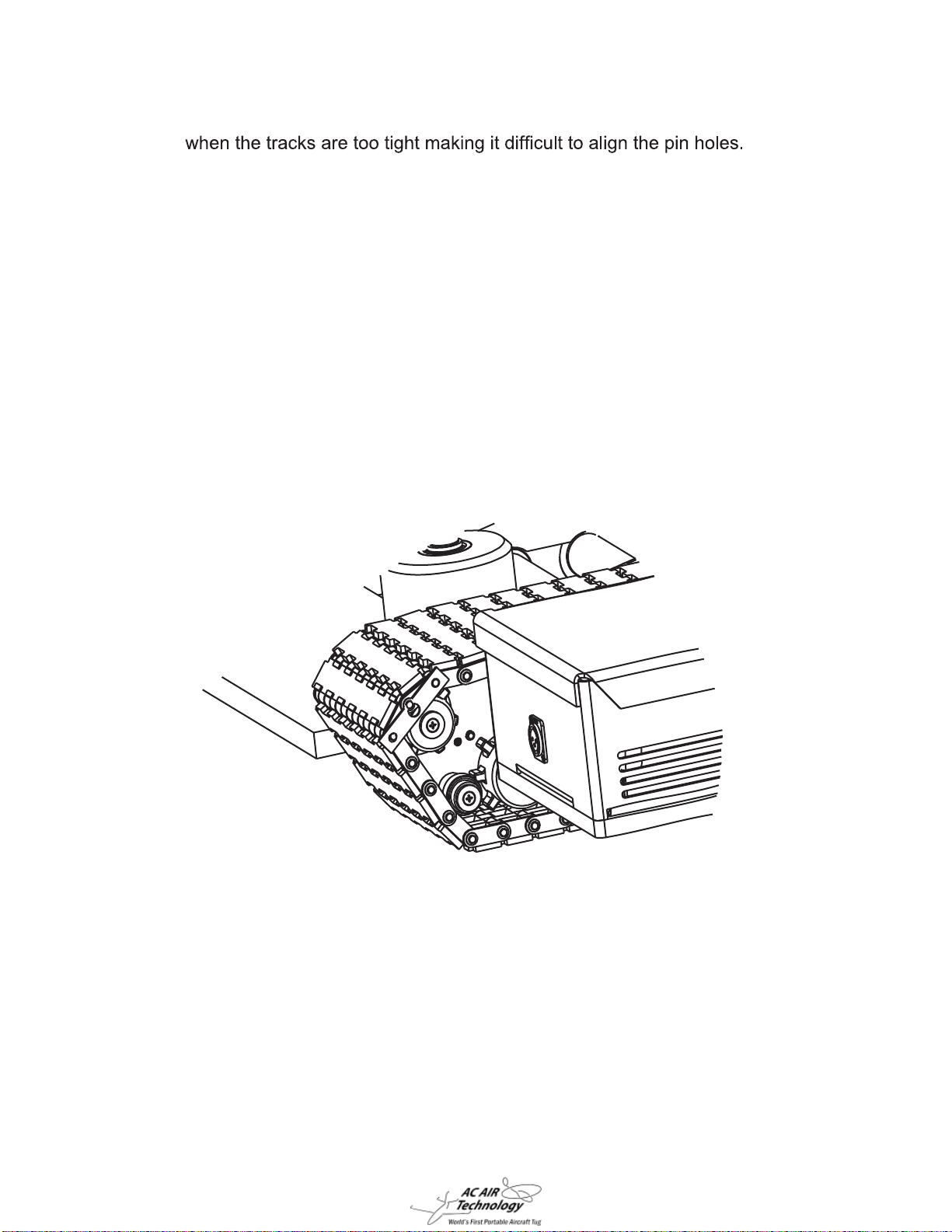

The Track Pin Tools are used to assist in the installation of new tracks
Insert the Track Pin Tools on the inside and outside adjacent pins to
the missing pin hole. Note: You will need to hold these in place by hand.

13

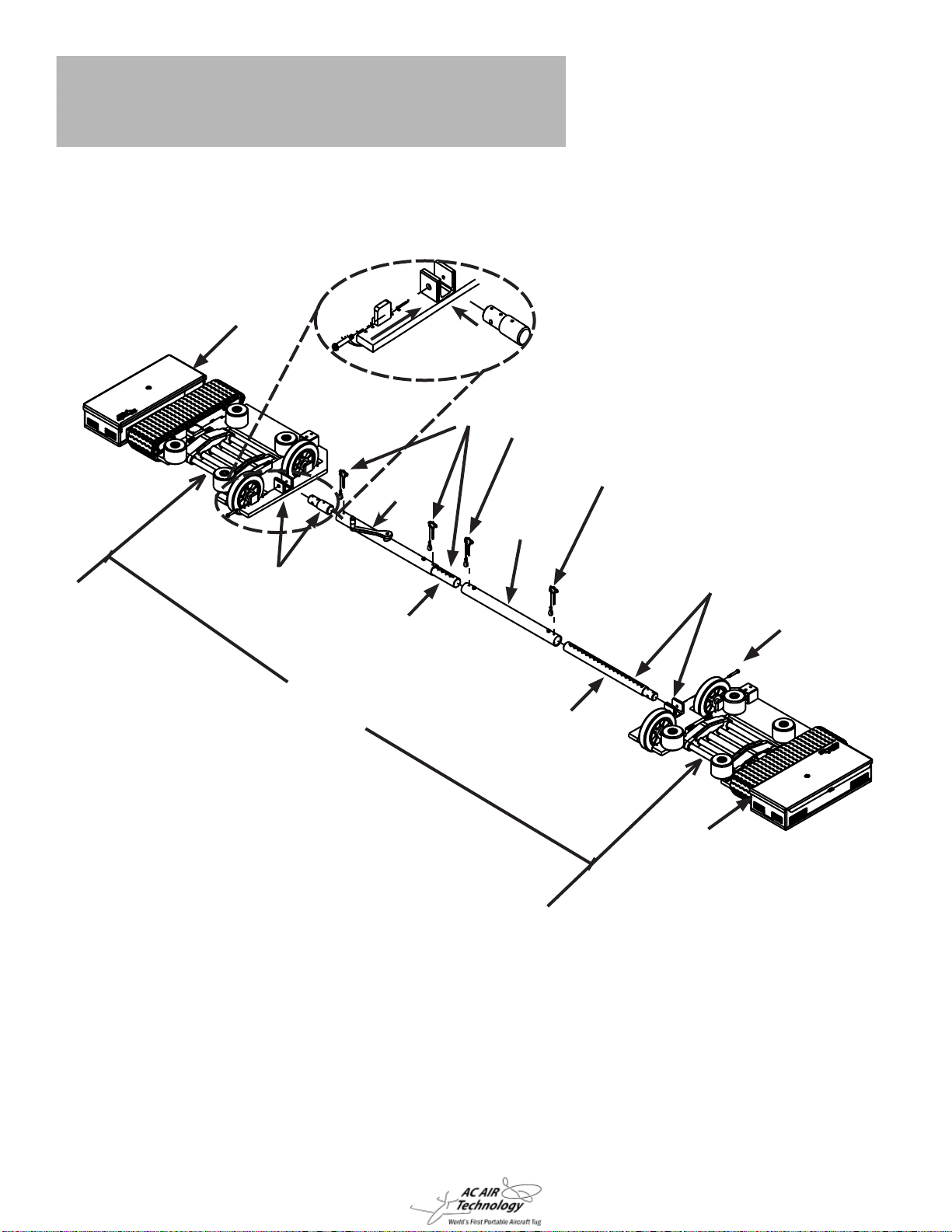

2-1 Front Assembly
T-Handle Pin
T1H2 Short Adjuster Right End T1H2 Short Adjuster Left End
(2X) 3/8”-16 Shoulder Blot
Right Tug
Left Tug
Measured Helicopter Skid Center to Center Distacne
(1)
(2)
(4)
(3)
Center Numbered Tube Insert
End Numbered Tube Insert
(5)
Center Tube
(6)
Adj. Handle
*NOTE*
BEFORE STARTING ASSEMBLY PROCESS PLACE BOTH RIGHT AND LEFT
TUGS APART ABOUT 5 INCHES LESS THAN THE SKID WIDTH MEASURED
EARLIER. IT IS POSSIBLE BOTH TUGS CANNOT BE PLACED 5 INCHES LESS
WITHOUT INTERFERRING AND IN THIS CASE THE TUG WIDTH WILL BE AT ITS
MOST MINIMUM.
Assembly Figure 1
2. Tug Assembly

14

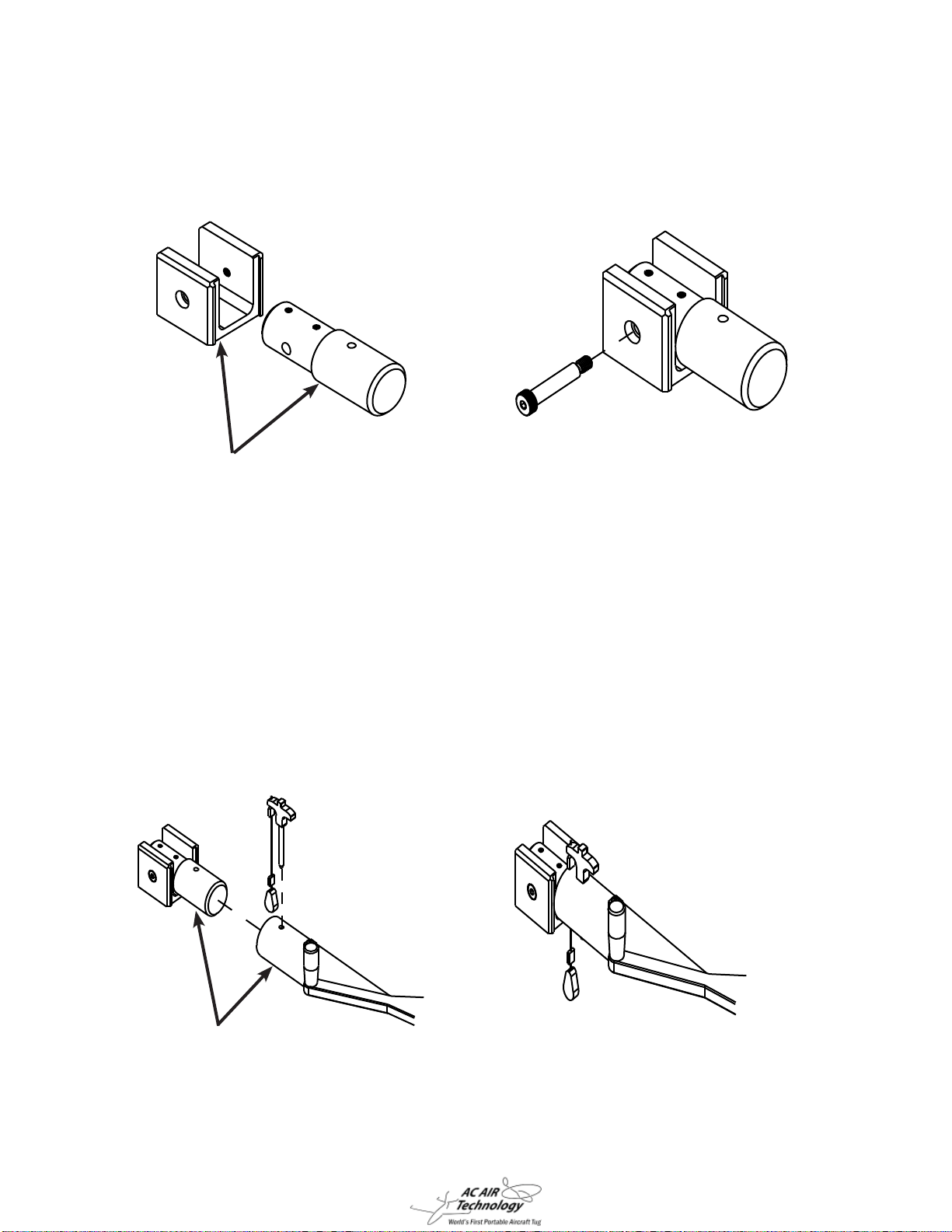

Step 2: Insert larger diameter end of Helicopter Frame Insert (Part #24244)
into the end of the tube of assembly #09621. Align the thru holes on both
the helicopter frame insert and end of the tube shown and insert T-han-
dle pin (Part #95545) far enought until the handle cannot slide out freely.
Step 1: Slide the smaller diameter end of the Helicopter Frame Insert
(Part #24244) into swivel connection shown above. Align the non threaded
thru holes and while holding the insert in place screw in Shoulder Bolt (Part
#95655).

15
Step 4: Align the center numbered #1 thru hole and one end of the center
tube shown and insert the T-handle pin (Part #95545) far enough until the
handle cannot slide out freely. Remove the T-Handle Pin on the side with
the adjustment handle and leave out until the tug’s width has been adjusted
to the previously measured width. This connection does not adjust and will
remain intact when adjusting the width of the T1H2 tug. Facing down on the
adjusment handle turn it counter-clockwise until it can no longer turn.
Step 3: Align the thru holes on both the center numbered tube and end of
the tube shown and insert T-handle pin (Part #95545) far enought until the
handle cannot slide out freely. Take note this pin will be removed and ad-
justed in step 6 of this process when connecting both the right and left tugs.
#1 Thru Hole
Figure 1 Figure 2 Figure 3
Center Tube

16
Step 6: With both tugs placed 5 inches less than the width measured, as-
suming it is possible and not at its minimum width, power one of the tugs
on to aid in aliging the tubes. Align the center tube and the end numbered
tube insert so they are concentric with one another. Remove the T-Handle
pin from step three and looking down on the adjusment handle rotate it
clockwise guiding the tube to the desired length. Once the desired length
has been achieved insert the T-Handle pin to connect both the center tube
and end numbered tube together
Center Tube
End Numbered Tube
T-Handle Pin (Step 3)
Step 5: Slide the smaller diameter end of the end numbered tube insert into
the swivel connection shown above. Align the non threaded thru holes and
while holding the insert in place screw in Shoulder Bolt (Part #95655).

17
Step 7: Both the right and left tugs are now connected together. Take note of
the numbers the T-handle Pins have been inserted to after adjustment is com-
plete as shown in the fi gure below. These numbers will aide with the backend
assembly width adjusment in the fi nal step.
Measured Helicopter Skid Center to Center Distacne
Mid Section Tube Number
End Tube Number

18
Step 8: Insert (2x) T1H2 Frame Insert into the seperate Heli Rail Support
blocks attached individually to each tug. Align the two threaded holes on
each of the T1H2 Frame Inserts with the thru holes on the Heli Rail Support
blocks. Using a 3/16” allen wrench screw in and fi rmly tightened (4X) socket
head screws, two per side. Insert (2X) Frame Side Support tubes into the
larger diameter ends of T1H2 Frame Inserts. Align the thru holes on both the
T1H2 Frame Insert and Frame Side Support and insert (2X) T-Handle Pin for
each side.
(4X)1/4”-20 Socket Head
Part #95304
(2X) T1H2 Frame Insert
Part #24244
(2X) Frame Side Support
Part #02617
Right Tug
Left Tug
(2X) T-Handle Pin

19
2-2 Back Assembly
Right Back-End Tug
Part # 09993
Left Back-End Tug
Part #09889
(2X) T1H2 Frame Insert
Part #24244
(8X) 1/4”-20 Socket Head
Part # 95304
(1)
(2)
(6)
(4)
(5)
(3)
T1H2 Long Adjuster
Part # 09622
(6)
Back-End Fully Assembled
T1H2 Roller Block
Long Support

20
Step 1: Insert (2X) T1H2 Frame Insert into the seperate T1H2 Roller Block
Long Support attached individually to each of the back-end assemblies. Align
the two threaded holes on each of the T1H2 Frame Inserts with the thru holes
on the T1H2 Roller Block Long Supports. Using a 3/16” allen wrench screw in
and fi rmly tightened (4X) socket head screws, two per side. Insert Fixed Long
Frame Insert into the T1H2 Roller Block Long Support on the right side back-
end assembly. Align the two threaded holes on the fi xed long frame support
with the thru holes on the T1H2 Roller Block Long Support. Screw in and
fi rmly tightened (2X) socket head screws.
(8X) 1/4”-20 Socket Head
Part # 95304
Fixed Long Frame Insert
