Accent BALANCE DESK User manual

BALANCE DESK
ASSEMBLY GUIDE

2www.accentworkspaces.co.nz
Tools Required
Phillips DriverTip Soft HammerBattery Drill

0800 126 826 | [e-mail] 3
CONFIGURATION PAGE NUMBER IMAGE
Straight Desk 4-5
Inline 2pod 6-7
Back to Back 2Pod 8-9
Back to Back 4pod 10-11
Corner Workstation
with 90degree
Corner Leg
12-13
Corner Workstation
3 End Legs 14-15
3 Pod 120degree 16-17
TABLE OF CONTENTS

4www.accentworkspaces.co.nz
NO. NAME QUANTITY IMAGE
1 Balance End Leg 2pcs
2 Extendable Beam 1pc
3 Bolts 4pcs
4 Wooden Screw 16pc
5Desk Top 1pc
STRAIGHT DESK
PARTS LIST

0800 126 826 | [e-mail] 5
Extend beams out so that the end of the leg is flush with the end of the desk top. Attached end legs frames
and extendable beams to the desk top using bolt B. (Desk tops will be pre- drilled for the legs). Using the bolts
supplied with the beams, install 2 bolts front and back of the beam.
Attach the extendable beam to the end legs. Make sure the beam is mounted closer to the back of the legs. Open
side of the beam should face the front on a single desk. Use a nylon hammer to hit the beam down into place.
Place the table top on to the frame, attach the table top to the frame using the wood screws provided.
STEP 1
STEP 2
STEP 3
STRAIGHT DESK
ASSEMBLY INSTRUCTION

6www.accentworkspaces.co.nz
NO. NAME QUANTITY IMAGE
1 Balance End Leg 2pcs
2 Middle Leg 1pc
3 Extendable Beam 2pcs
4 Bolts 8pcs
5 Wooden Screw 24pcs
6Desk Top 2pcs
INLINE DESK 2POD
PARTS LIST

0800 126 826 | [e-mail] 7
Attach the extendable beam to the end legs and the inline legs as per above. Make sure the beam is mounted
closer to the back of the legs. Open side of the beam should face the back of the desk. Use a nylon hammer
to hit the beam down into place.
Extend beams out so that the end of the leg is flush with the end of the desk top. Attached end legs frames
and extendable beams to the desk top using bolt B. (Desk tops will be pre- drilled for the legs). Using the bolts
supplied with the beams, install 2 bolts front and back of the beam.
STEP 1
STEP 2
STEP 3
Place the table tops on to the leg frame, attach the table top to the frame using the wood screws provided.
INLINE DESK 2POD
ASSEMBLY INSTRUCTION

8www.accentworkspaces.co.nz
NO. NAME QUANTITY IMAGE
1 Balance End Leg 2pcs
2 Extendable Beam 2pcs
3 Bolts 8pcs
4 Wooden Screw 16pcs
5Desk Top 1pc
BACK TO BACK 2POD
PARTS LIST

0800 126 826 | [e-mail] 9
Attach the extendable beam to the end legs and the inline legs as per above. Make sure the beam is mounted
closer to the back of the legs. Open Side of the beam should face the back of the desk. Use a nylon hammer to
hit the beam down into place.
Extend beams out so that the end of the leg is flush with the end of the desk top. Attached end legs frames
and extendable beams to the desk top using bolt B. (Desk tops will be pre- drilled for the legs). Using the bolts
supplied with the beams, install 2 bolts front and back of the beam.
STEP 1
STEP 2
STEP 3
Place the table top on to the frame, then attach centre screen to it, then place desk top on the frame. As per above.
BACK TO BACK 2POD
ASSEMBLY INSTRUCTION

10 www.accentworkspaces.co.nz
NO. NAME QUANTITY IMAGE
1 Balance End Leg 2pcs
2 Middle Leg 1pc
3 Extendable Beam 4pcs
4 Bolts 16pcs
5 Wooden Screw 48pcs
6Desk Top 4pcs
BACK TO BACK 4POD
PARTS LIST

0800 126 826 | [e-mail] 11
Place 2 table tops on one side of the frame as per
above.
Attach centre screens to desk tops.
Attach the extendable beam to the end and middle
legs. Open side of the beam should face the middle
of the leg. Use a nylon hammer to hit the beam down
into place.
Install desk tops on other side. Extend beams out so
end legs a line with the edge of the desk tops. Attach
end leg frames and extendable beams to the desk top
using bolt B. (Desk tops will be pre-drilled for the legs.)
Using the bolts supplied with the beam, Install 2 bolts
front and back of each beam as per above.
STEP 1STEP 2
STEP 3STEP 4
BACK TO BACK 4POD
ASSEMBLY INSTRUCTION

12 www.accentworkspaces.co.nz
NO. NAME QUANTITY IMAGE
1 Balance End Leg 2pcs
290degree Back
Corner Leg 1pc
390degree Leg
Bracket 1pc
4 Extendable Beam 2pcs
5 Bolts 10pcs
6 Wooden Screw 26pcs
7Desk Top 1pc
CORNER WORKSTATION
with 90degree corner leg
PARTS LIST

0800 126 826 | [e-mail] 13

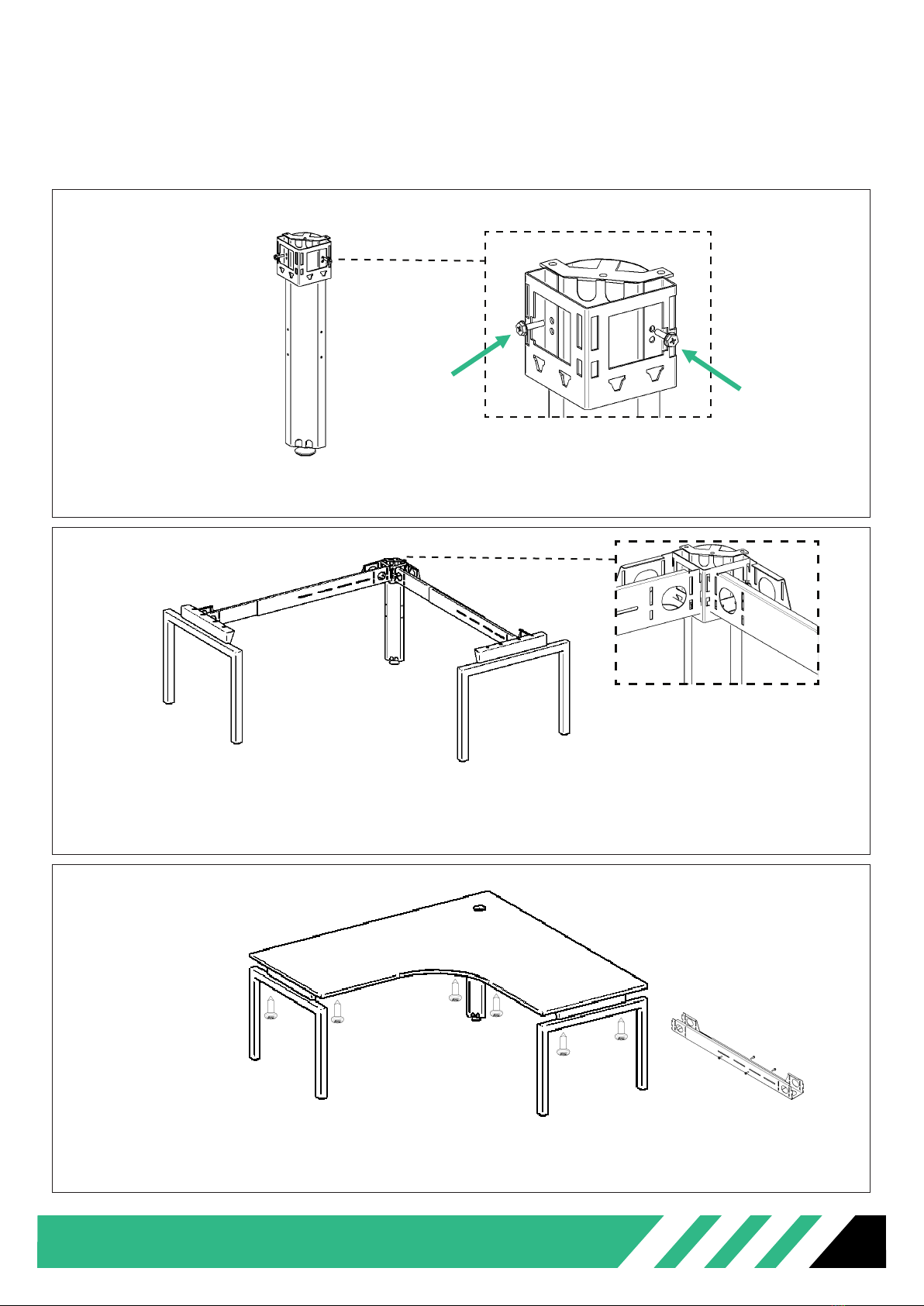

Place desk tops on to the leg frame as per above. Extend beams out so end leg are inline with the edge of the
desk top. Desk top will be predrilled for the legs. Attach desk top to the legs and beams using the wood screws
supplied.
Attach 90degree bracket to the 90degree back corner leg as per above, using bolts supplied with the bracket.
Attach extendable beams to the 90degree back corner leg and Balance end legs as per above, open side of
the beam to face the back of the desk. Use nylon hammer to hit beam down into place. Using the bolt supplied
with the beam, install 2 bolts front and back of each beam as per above.
STEP 1
STEP 2
STEP 3
CORNER WORKSTATION
with 90degree corner leg
ASSEMBLY INSTRUCTION

14 www.accentworkspaces.co.nz
NO. NAME QUANTITY IMAGE
1 Balance End Leg 3pcs
2 Extendable Beam 2pc
3Beam to Beam
Connecting Bracket 1pc
4 Bolts 8pcs
5 Wooden Screw 20pcs
6Desk Top 1pc
CORNER WORKSTATION
with 3 End Legs
PARTS LIST

0800 126 826 | [e-mail] 15
Attach the extendable beam to the
end legs. Make sure the beam is
mounted closer to the back of the
legs. Open side of the beam should
face the front. Use a nylon hammer
to hit the beam down into place.
Attach the beam to beam connecting
bracket to the front side of the beam
as per above.
Attach the other beam to the return
leg, as per above.
Attach the return leg beam to the beam to beam
connecter bracket as per above.
Extend the beams out to match the desk top supplied,
align the legs up with the front , back and ends of the
desk top, place the table top on to the frame, attach
the table top to the frame using the wood screws
provided. Install 2 bolts front and back of each beam
as per above.
STEP 1
STEP 4
STEP 2STEP 3
STEP 5
CORNER WORKSTATION
with 3 End Legs
ASSEMBLY INSTRUCTION

16 www.accentworkspaces.co.nz
NO. NAME QUANTITY IMAGE
1 Balance End Leg 3pcs
2120degree Back
Corner Leg 3pcs
3120degree
Leg Bracket 3pcs
4 Extendable Beam 6pcs
5 Bolts 30pcs
6 Wooden Screw 48pc
7Desk Top 3pcs
3 POD 120DEGREE
PARTS LIST

0800 126 826 | [e-mail] 17
Attached Extendable beams to the 120degree back
corner leg and Balance end legs as per above,
open side of the beam to face the centre of the pod.
Use nylon hammer to hit beam down into place.
Place desk tops on to the leg frame as per above.
Extend beams out so end leg aline with the edge of
the desk top.
Install screens as per above. Attached end legs frames
and extendable beams to the desk top using the
wood screws. (Desk tops will be pre-drilled for the
legs). Using the bolt supplied with the beam, Install
2 bolts front and back of each beam as per above.
Attach 120degree bracket to the 120degree back
corner leg as per above, using Bolts supplied with
the bracket.
STEP 1STEP 2
STEP 3STEP 4
3 POD 120DEGREE
ASSEMBLY INSTRUCTION

18 www.accentworkspaces.co.nz
GENERAL CARE – INFORMATION
• Avoid scourers and abrasives as they will damage the surface.
• Don’t place hot objects, electrical appliances or pots straight from the oven or cooker onto your
laminate surface.
• Don’t cut on the laminate surface.
• Keep waxes and polishes well away as they dull the natural shine.
• Do not use strongly acidic, alkaline cleaners or bleach for normal cleaning as these might etch
the surface.
GENERAL CARE – STREAKS
Streaky marks sometimes show on dark colours after cleaning. An all-purpose cleaner such as
Mr. Muscle Surface & Glass or Ajax Spray n Wipe usually removes them.
GENERAL CARE – GREASE
Using a mild dishwashing detergent in water will remove greasy marks. Dab, wait and wipe away.
Finish with an all-purpose cleaner such as Mr. Muscle Surface & Glass or Ajax Spray n Wipe.
GENERAL CARE – SPILLS
Laminate surfaces resist staining from most household chemicals. With some accidental spills
however, prompt action is essential. Wipe o beetroot, grape and berry juices, first aid
preparations, concentrated bleach, oven cleaners, dishwasher detergents, artificial dyes,
hair colouring and solvent based pen ink immediately. Specialty glues such as Super Glue
must also be removed straight away with acetone (nail polish remover).
GENERAL CARE – STAINS
If the stain won’t budge with Mr. Muscle Surface & Glass, try methylated spirits or dab the stain
with a diluted bleach mixture (1 part bleach to 8 parts water); leave for 3 minutes then wash
o with water and dry. Finish o with Mr. Muscle Surface & Glass. Only as a last resort if a stain
persists try 2 or 3 rubs with a crème cleanser or white toothpaste, wash and dry. Please note that
bleach or these abrasive cleaners may irreversibly damage the laminate surface.
GENERAL CARE – SCRATCHES
Laminate surfaces will withstand normal wear and tear, but can be damaged by scratching
or cutting with utensils, knives and unglazed pottery. Darker colours will show scratches more
readily than lighter colours. In general, dark colours and high gloss surfaces require more
care and maintenance than lighter colours or lower gloss colours. To minimise scratching,
always place and lift objects from the surface – never drag or slide them across the surface.
FACTSHEET
CARE & MAINTENANCE

0800 126 826 | [e-mail] 19
BALANCE

0800 126 826
[e-mail]
22 Hood Street Wellsford, Auckland 0900 New Zealand
Version #260722
