  9. Access Lighting TaskWorks Flex 72002LEDD User manual

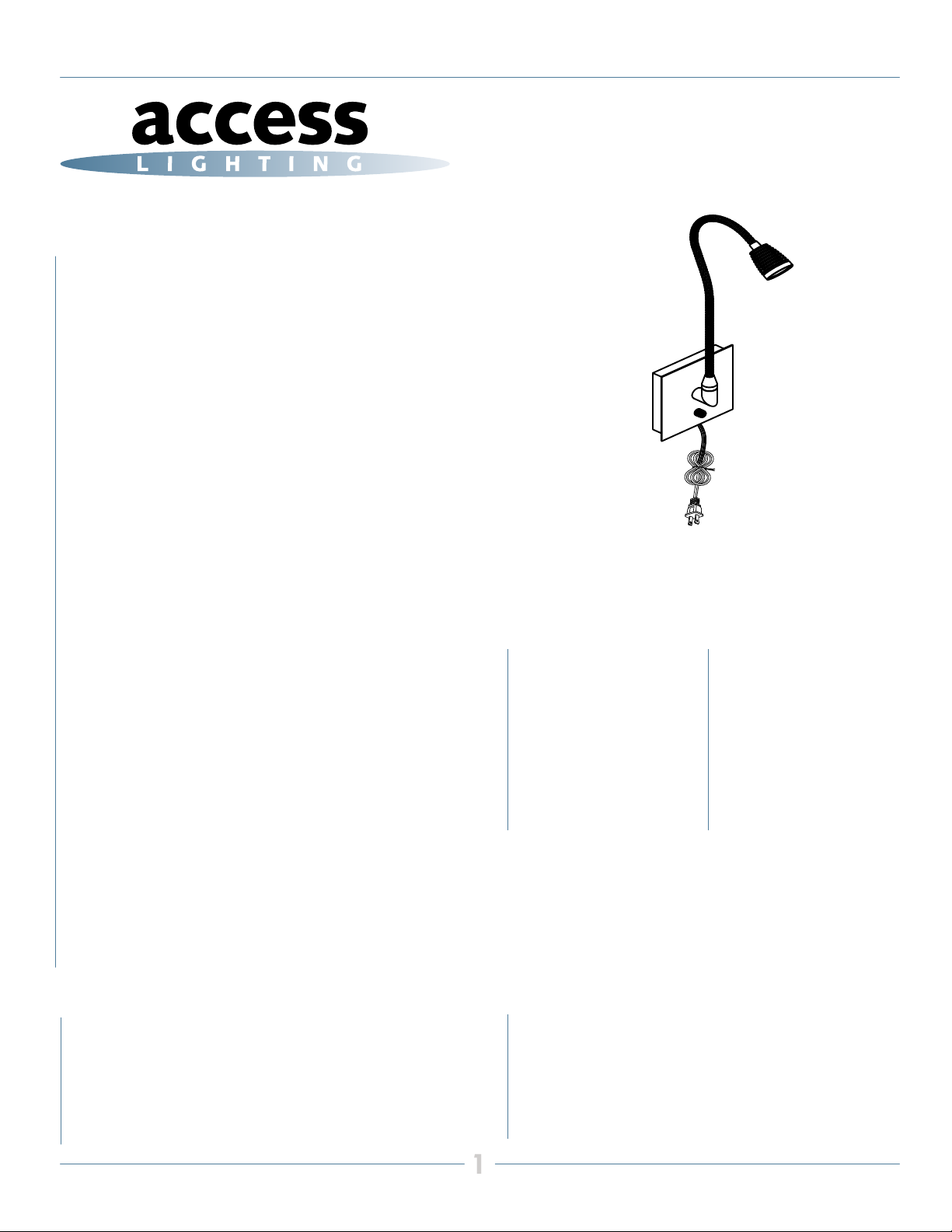

Access Lighting TaskWorks Flex 72002LEDD User manual

WHAT YOU NEED
• Screwdriver
• Wire Cutters
• Wiring Supplies as Specified
by Electrical Code
INSTALLATION INSTRUCTIONS
WHAT WE PROVIDE
•
Mounting plate
•
Mounting Hardware
•
LED
COLLECTION
1
CERTIFICATION: cULus DRY NO. 72002LEDD
72002LEDD
APPLICATION MODEL NO.
Wall Fixture/PortableTaskWorks Flex
IMPORTANT SAFETY INSTRUCTIONS
MESURES DE SECURITE A RESPECTURE
Before assembling your ACCESS LIGHTING fixture, please make sure that
you carefully read through this instruction sheet. Save this instruction sheet
and refer to it when additions to or changes in the fixture
configuration are made.
Lisez attentivement ce manuel d’instructions. Enregistrer cette feuille
d'instructions et de s'y référer lorsque les ajouts ou changements dans
la configuration de montage sont faites.
CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH
CIRCUIT CONDUCTOR.
CONSULTER UN ELECTRICIEN QUALIFIE POUR VOUS ASSURER QUE LES
CONDUCTEURS DE LA DERIVATION SONT ADEQUATS
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONTSTRUCTION
AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
CE PRODUIT DOIT ETRE INSTALLE SELON LE CODE D’INSTALLATION PERTINENT,
PAR UNE PERSONNE QUI CONNAIT BIEN LE PRODUIT ET SON FONCTIONNEMENT
AINSI QUE LES RISQUES INHERENTS
NOTE: The important safeguards and instructions that appear in this
manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense, caution and
care, are factors that can’t be built into any product. These factors must
be supplied by the person(s) caring for and operating the fixture.
Read all instructions
Do not install this fixture in hazardous locations.
N'installez pas cet appareil dans des emplacements dangereux.
Do not install any fixture assembly closer than 6 inches from any
curtain or similar combustible material.
Laisser une distance d’au moins 6 pouces entre ce luminaire et la toute
surface combustible.
"WARNING Risk of Fire and Electric Shock."
“CAUTION: Risque d’ Incendie et de Choc Electriques.”
GENERAL INFORMATION
All electrical connections must be in accordance with all ordinances,
Local and the U.S. National Electrical Codes (NEC). These fixtures are
intended for mounting to a standard 4” metal octagon outlet box.
The box must be directly supported by the building structure and U.L.
Recognized.
STEP BY STEP INSTRUCTIONS
Before starting your installation disconnect the Power by turning off the
Circuit Breaker or by removing the fuse at the fuse box. Just turning the
light off at the light switch is not sufficient to prevent electrical shock.
PREPARE FIXTURE
If there is an existing fixture remove it.
Expose the supply wires from the junction box.
Mount the crossbar to the J-box with the supplied
screws.
1
4
2
CERTIFICATION: cULus DRY NO. 72002LEDD
3
CONNECT THE WIRES
Option A - For use without the cord
Connect the black supply wire to the black fixture wire.
Secure with the supplied wire nuts. Connect the white
supply wires to the white fixture wire. Secure with the
supplied wire nuts.
Attach the green J-Box wire around
green hexagonal head screw or connect it to the green
supply grounding wire of the fixture.
Secure all wires
with U.L. Certified electrical tape (not supplied).
Option B - For use with the cord
Thread the open screw (1) onto the supplied cord. Gently
feed the cord through the opening in the lower end of
the fixture base (2). Continue to pull the cord through
opening (3). Follow the same wire connection procedure
as with option A.
MOUNT THE BACKPLATE
Fit the fixture base up to the mounting plate.
Align the holes at the top of the plate and the hole at the
bottom of the base.
Secure with supplied screws on top and screw nut at bottom.
PLUG-IN TO THE SOCKET
RESTORE THE ELECTRICITY AND
CHECK THE OPERATION OF YOUR
NEW ACCESS LIGHTING FIXTURE
If the fixture is to be removed or replaced,
please ensure that the electricity is
switched off and that the fitting is cool
before touching it.
CAUTION
2
Option A - use without the cord
Option A - use without the cord
Option B- use with the cord
Option B- use with the cord
Open screw
(1)
xture
base
Opening
(3)
Opening (2)
xture
base
mounting
plate
mounting
plate
VER: 18.05.1
