Accorroni RPE Series Manual

Water refrigerators and heat pump air/water
SERIE RPE - HPE X
Models 5 - 7,5 - 8,5 - 10 - 13 - 15 - 17 R410a
Technical features
This manual is composed from 3 sections:
-SECTION A - GENERAL INFORMATION
Description and technical features of the water refrigerator and air/water heating pump
-SECTION B – TECHNICAL FEATURES
-SECTION C – USE ISTRUCTIONS AND MAINTENANCE
Important notes:
1- For the correct and safety working of the machinery the installer, the user and the technical
service have to respect all rules in the present manual
2- Advise following “WARNING!” is extremely important. If not applied, risk of damage and injury to
the user/operator may occur. Advises written in bolt type shall be carefully read and strictly followed.
3- A2B Accorroni E.G. Srl is not responsible for any change of the standards applied.
4- All technical data, aesthetic, devices and accessories may be modified at any time by A2B Accorroni
EG Srl for product development.
5- The laws and norms reported in the present manual refer to the legislation valid on the date of
issue. Any upgrade and changes to the local laws and norms might not be reported in the present
manual but shall be considered by the user/installation workman.
INDEX
SECTION A - GENERAL INFORMATION pag.
1. GENERAL CARACHTERISTICS ............................................................................................ 4
1.1 Classification ............................................................................................................................ 4
1.2 Certifications - Mark CE ............................................................................................................ 4
1.3 Building characteristics ............................................................................................................. 4
1.4 Packing contains....................................................................................................................... 4
1.5 Accessories from factory or on demand ................................................................................... 4
1.6 Use ........................................................................................................................................... 4
1.7 Safety norms .................................................... ......................................................................... 5
1.8 Technical tables...........................................................................................................................11
1.9 Electrical schema ................................................................................................................... 14
1.10 Dimensions ............................................................................................................................. 17
1.11 View drawing ........................................................................................................................... 19
1.12 Graphic and perfomance tables...................................................................... ................... .....25

Pag. 2
2. SAFETY AND CONTROLS DEVICES .................................................................................. 32
2.1 Microprocessor of control ....................................................................................................... 32
2.2 Protection of the cooling circuit ............................................................................................... 34
2.3 Protection of the hydro circuit ................................................................................................. 34
2.4 Control of defrosting ................................................................................................................ 34
2.5 Control, start of compressors Tandem (mod. RPE-HPE X10÷17) ......................................... 35
2.6 Functon Adaptive ..................................................................................................................... 35
SECTION B - TECHNICAL FEATURES
3. WARNING.............................................................................................................................. 36
3.1 Qualification of the installer ..................................................................................................... 36
3.2 Preliminary information ........................................................................................................... 36
3.3 Transport and manipulation..................................................................................................... 36
3.4 Instructions ............................................................................................................................. 36
4. INSTALLATION ...................................................................................................................... 37
4.1 General indications ................................................................................................................. 37
4.2 Operations of installation ........................................................................................................ 38
4.3 Electrical feeding..................................................................................................................... 39
4.4 Hydraulic pump ....................................................................................................................... 39
4.5 Use with low water temperature .......................................... ................................................... 40
5. STARTING ............................................................................................................................. 40
5.1 Check out of first starting ........................................................................................................ 40
5.2 Function .................................................................................................................................. 40
6. ALARM AND DIAGNOSTIC .................................................................................................. 42
6.1 Visualitation of the different alarms and signification ............................................................... 42
7. RIPARATION-REMPLACEMENT OF COMPONENTS........................................................ 46
7.1 Cooling circuit ......................................................................................................................... 46
8. PERIODIC OPERATIONS OF MAINTENANCE................................................................... 47
8.1 Exchanger cleaning ................................................................................................................ 47
8.2 Yearly check-out ..................................................................................................................... 47
SECTION C - USE ISTRUCTIONS AND MAINTENANCE
9. GENERAL .............................................................................................................................. 48
9.1 Instructions ............................................................................................................................. 48
9.2 Improper use - Recommendations ......................................................................................... 48
9.3 First working ........................................................................................................................... 48
9.4 Starting - Switching off ............................................................................................................ 48
9.5 Maintenance and controls ....................................................................................................... 49
INDEX ILLUSTRATIONS
Fig. n° pag.

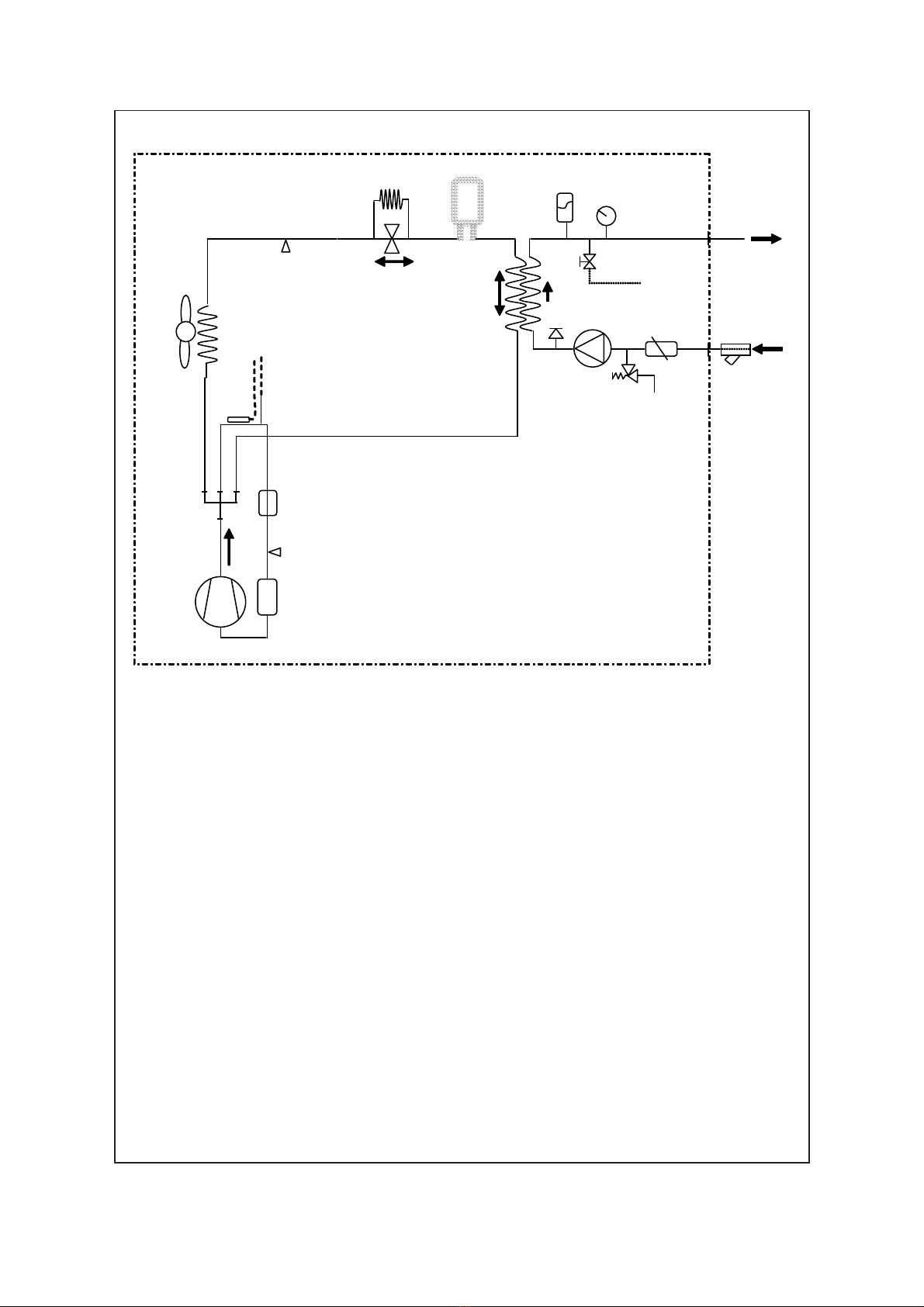

1a Schema cooling/hydro cicuit RPE X5 ÷ 8,5 R410a only cooling ............................................ 7
1b Schema cooling/hydro cicuit HPE X5 ÷ 8,5 R410a heat pump .............................................. 8

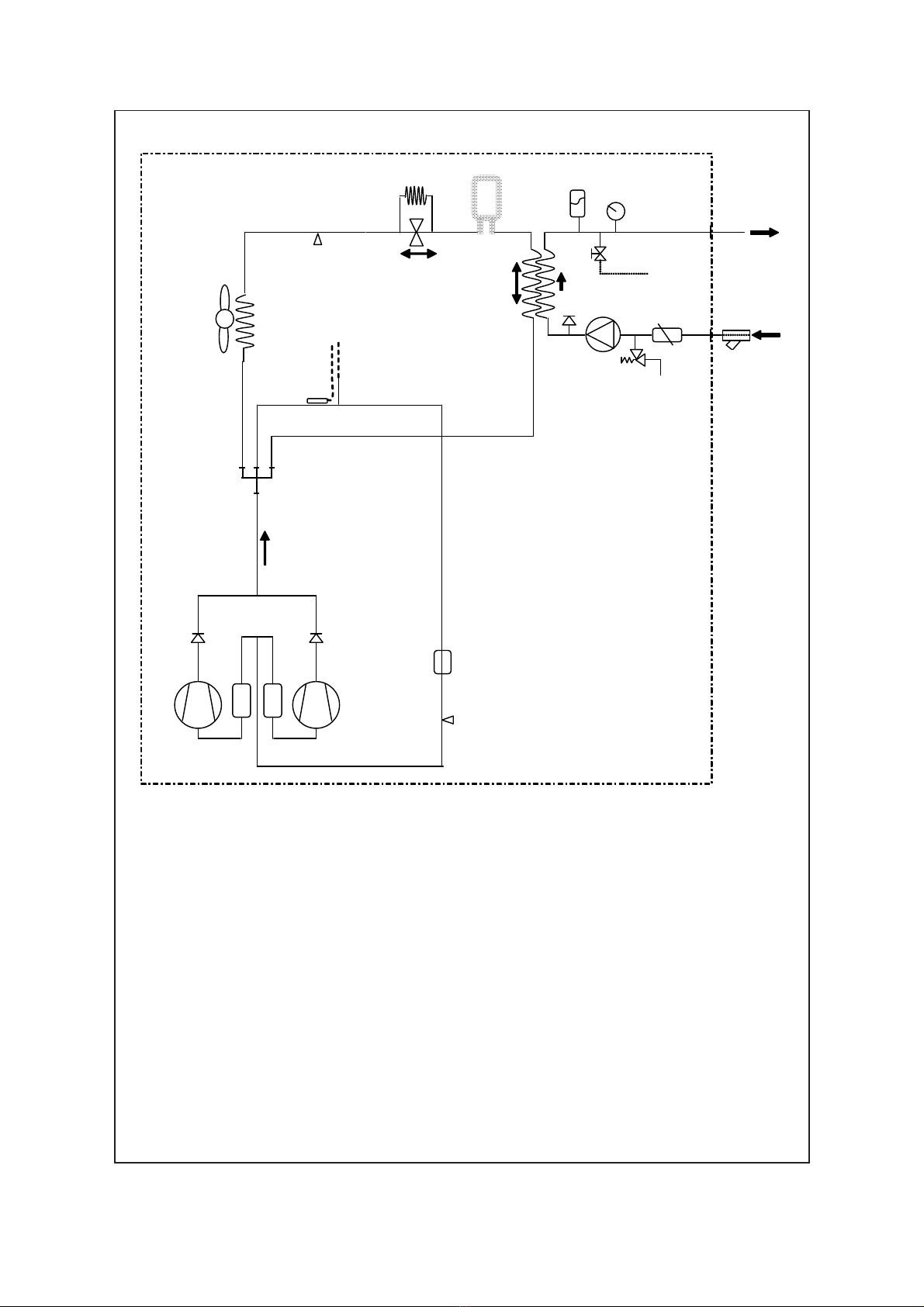

1c Schema cooling/hydro cicuit RPE X10 ÷ 17 R410a only cooling ........................................... 9
1d Schema cooling/hydro cicuit HPE X10 ÷ 17 R410a heat pump ........................................... 10
2 Electrical schema RPE-HPE X5 ÷ 8,5 ................................................................................. 14

Pag. 3
3 Electrical schema RPE-HPE X10 ÷ 17 (400V 3N~) ............................................................. 15
4 Electrical schema RPE-HPE X10 ÷ 17 (230V 3N~) ............................................................. 16
5 Dimensions RPE-HPE X5 ÷ 8,5 ........................................................................................... 17
6 Dimensions RPE-HPE X10 ÷ 17 .......................................................................................... 18
7 View drawing RPE X5 ÷ 8,5 ................................................................................................. 19
8 View drawing HPE X5 ÷ 8,5 ................................................................................................. 20
9 View drawing RPE X10 ÷ 17 ................................................................................................ 22
10 View drawing HPE X10 ÷ 17................................................................................................. 23
11-20 Microprocessor of control ............................................................................................... 32-34
21 Menù .................................................................................................................................... 35
22 Lift of the machinery ............................................................................................................. 36
23 Distances to be respected ................................................................................................... 37
24 Distances ............................................................................................................................. 37
25 Hydro connections ............................................................................................................... 38
26 Electrical schema heat/cool remote control ......................................................................... 39
27 Schema pump ..................................................................................................................... 41
28 Schemi compressor starting-switch off...................................................................................43
29-30 Improper use ........................................................................................................................ 48
31-32 Starting ................................................................................................................................. 49
INDEX TABLES
Tab. n° pag.
1 Accessories from factory and on demand RPE/HPE X5 ÷ 17 ............................................... 6
2 Table technical data RPE/HPE X5 ÷ 8,5 .............................................................................. 11
3 Table technical data RPE/HPE X5 ÷ 17 ............................................................................... 12
4 Index of correction of the thermo power in cooling mode ..................................................... 25
5 Index of correction of the thermo power in heating mode .................................................... 25
6 Set point alarm anti-frost with low water temperature .......................................................... 41
7 Set point resistance anti-frost with low pemperature ........................................................... 41
8 Description alarm ................................................................................................................. 44

Pag. 4
1.GENERAL CARACHTERISTICS
1.1 CLASSIFICATION
The machinery in the present manual is defined
as:
“Refrigerator and heating pump mono block air/
water”.
All water refrigerators are signed as RPE, the
heating pumps nominated HPE, with addition e
numeric code of the power in kW.
1.2 CERTIFICATIONS - MARK CE
RPE - HPE X are conform to the norms as
follows 97/23/CE, 98/37/CEE, 73/23/CEE, 89/
336/CEE, nd modified 93/68/CEE.
The machineries are tagged with mark CE and
its are tested in respect of the CE norms.
1.3 BUILDING CARACHTERISTIC
RPE/HPE X are created for out-door installation,
with protection class IP24 and feeding mono
phase 230V~ 50Hz (mod. 5÷17) or three phase
400V 3N~ 50Hz (mod. 10÷17): the models 10÷17
can be mono or three phased.
All appliances are equipped with a
microprocessor for the control and the regulation
of the work and safety of the units.
The adaption algorithm of the SET POINT –
function sliding of temperature of SET – and the
control of the partial mode (0/50/100%) of the
compressors tandem (mod. RPE-HPE X10÷17)
permits, often, the elimination of the tank.
The performance of the appliance are better
used by high energy efficiency values, using the
big surfaces of the thermo exchangers and the
thermo dynamic characteristics of gas R410a.
Other building features:
-the casing is realised with Inox steel AISI 304.
The compressor is insulated from the air/
refrigerant exchanger; this insulation
contributes of the protection of the electro-
mechanics components and of the low sound
level;
- the compressor is of rotary type on high
efficiency and low sound level, function with
refrigerant R 410a, mounted above elastic
supports anti-vibration, automated with
electrical mono phase motor;
- the exchanger air/gas refrigerant is realised
with cooper pipes and aluminium wings, high
surface of thermo exchange;
- the fan group is composed from 1 or 2 fans
helicoidally with exocrine motors mono phase
with internal protection. The fans are equipped
with a protection grille;
- the warm exchanger water/gas refrigerant,
on plates type from steel inox AIS I316, is
insulated with an external casing on closed
cellules to reduce the thermo dispersions;
- the cooling circuit and the connections
between the single components are realised
from cooper. In the cooling circuit are situated
the thermostatic valve, cycle inversion’s valve,
liquid’s separator and receiver (models heat
pump), pressure switch of low and high
pressure, filter dehydration;
- the electrical panel is situated inside the
machinery;
- the control system of the microprocessor is
easy to be reach.
1.4 PACKING CONTAINS
Packing – wood’s pallet, with plastic protection.
The technical data are reported on the external
tag.
The present manual and the warranty certificate
are inside the little box on compressor’s side and
should be delivered to the end user.
1.5 ACCESSORIES FROM FACTORY OR ON
DEMAND
The large range of accessories available from
factory or on demand improve the performances
of the appliance (Tab.1).
1.6 USE
The appliances are created for cooling and, or
heating of the water in the conditioning plants
and should be used only for this purposes.
WARNING! All other uses, not descript in
this manual, will be considerate as improper.
The manufacturer excludes any
responsibility for damage of person, animals
SECTION A - GENERAL INFORMATIONS

Pag. 5
or goods due to non observance of the rules
and instructions of this manual – as
deformation of the product, not correct
installation, error of regulation and bad
maintenance.
The warranty will be cancelled by improper
use.
1.7 SAFETY
WARRANTY! Only skilled person is
authorized to make the installation and the
technical service of the machinery.
All norm for electrical feeding and
connections should be observed.
During the operation of installation and
technical service to observe safety
conditions and instruction from the manual.
Distance limits and electrical connections
should not be modified.
Before each technical intervention the
general electrical feeding should be switch
off.

Table1 – Devices from factory and accessories on demand Description RPE/HPE 5 RPE/HPE 7,5 RPE/HPE 8,5 RPE/HPE 10,5 RPE/HPE 13 RPE/HPE 15 RPE/HPE 17 Water pump
From factory From factory From factory From factory From factory From factory From factory
Expansion vase
From factory From factory From factory From factory From factory From factory From factory
Securety valve
From factory From factory From factory From factory From factory From factory From factory
Off / On load tap
From factory From factory From factory From factory From factory From factory From factory
Water pressure manometer 0-10 bar
From factory From factory From factory From factory From factory From factory From factory
Relief valve
From factory From factory From factory From factory From factory From factory From factory
Flow meter
From factory From factory From factory From factory From factory From factory From factory
Water filter
From factory From factory From factory From factory From factory From factory From factory
Tank
Accessory Accessory Accessory Accessory Not available Not available Not available
Water pump high prevalence
Not available Accessory Accessory Accessory Accessory
Accessory for
models RPE
not available for
modes HPE Not available
Electronic control fan rotation
From factory From factory From factory From factory From factory From factory From factory
Communication vetween PC and control box
From factory From factory From factory From factory From factory From factory From factory
Remote control
Accessory Accessory Accessory Accessory Accessory Accessory Accessory
Kit alarm remote
Accessory Accessory Accessory Accessory Accessory Accessory Accessory
Kit remote control compressor
Accessory Accessory Accessory Accessory Accessory Accessory Accessory
Acoustic compressor device
From factory From factory From factory From factory From factory From factory From factory
Anti-vibrant floor installation
From factory From factory From factory From factory From factory From factory From factory
Anti-vibrant floor fix
Accessory Accessory Accessory Accessory Accessory Accessory From factory
Exchanger air/gas with hydrophilic wings
On demand On demand On demand On demand On demand On demand On demand
Exchanger air/gas with painted wings
On demand On demand On demand On demand On demand On demand On demand
Pag. 6

Pag. 7











 





Fig. 1a
SCHEMA COOLING / HYDRO CIRCUIT RPE X5 ÷ 8,5 R410a
LEGEND
Cp Compressor
Cr Capillary
Fl Flow meter
Ft Hydro filter
Fr Filter hydro circuit
Mv Air fan
Mn Manometer
P1 Water pump
Ps Pressure connection 5/16"
Rr Off/on load tap
Sc1 Exchanger water side
Sc2 Exchanger gas side
Si Security valve
Sf Relief valve
Ve Expansion vase
Vt Thermostatic valve b-flow
Vt b Equilibrator + Vt bulb

Pag. 8



















Fig. 1b
SCHEMA COOLING / HYDRO CIRCUIT HPE X5 ÷ 8,5 R410a
LEGEND
Cp Compressor
Cr Capillary
Fl Flow meter
Ft Hydro filter
Fr Filter hydro circuit
Mv Air fan
Mn Manometer
P1 Water pump
Ps Pressure connection 5/16"
Ri Liquid receiver
Rr Off/on load tap
Sc1 Exchanger water side
Sc2 Exchanger gas side
Si Security valve
Sf Relief valve
Ve Expansion vase
Vi Inversion valve
Vt Thermostatic valve b-flow
Vt b Equilibrator + Vt bulb

Pag. 9
Fig. 1c
SCHEMA COOLING / HYDRO CIRCUIT RPE X10 ÷ 17 R410a



















 
LEGEND
Cp1-Cp2 Compressor
Cr Capillary
Fl Flow meter
Ft Hydro filter
Fr Filter hydro circuit
Mv Air fan
Mn Manometer
P1 Water pump
Ps Pressure connection 5/16"
Rr Off/on load tap
Sc1 Exchanger water side
Sc2 Exchanger gas side
Si Security valve
Sf Relief valve
Ve Expansion vase
Vr1-2 Not return valve CP1-2
Vt Thermostatic valve b-flow
Vt b Equilibrator + Vt bulb

Pag. 10
Fig. 1d
SCHEMA COOLING / HYDRO CIRCUIT HPE X10 ÷ 17 R410a




















 
LEGEND
Cp1-Cp2 Compressor
Cr Capillary
Fl Flow meter
Ft Hydro filter
Fr Filter hydro circuit
Mv Air fan
Mn Manometer
P1 Water pump
Ps Pressure connection 5/16"
Ri Liquid receiver
Rr Off/on load tap
Sc1 Exchanger water side
Sc2 Exchanger gas side
Si Security valve
Sf Relief valve
Ve Expansion vase
Vi Inversion valve
Vr1-2 Not return valve CP1-2
Vt Thermostatic valve b-flow
Vt b Equilibrator + Vt bulb

1.8 Table 2 - Technical Data - RPE X5÷17 R410a
Description / model RPE X5 RPE X7,5 RPE X8,5 RPE X10 RPE X13 RPE X15 RPE X17
Refrigerating power 1) kW 4,78 6,35 7,37 9,54 12,69 13,71 14,73
Total Power of Absorbed electricity kW 1,97 2,65 3,09 3,96 5,30 5,74 6,18
Rise of current 2) A 36,8 61,0 63,0 36,8 61,0 63,0 63,0
Total absorbed current 2) A 8,82 11,3 13,2 16,9 22,6 24,5 26,3
Power of Absorbed electricity L1 (auxiliary) kW 0,45 0,46 0,48 0,49
Power of Absorbed electricity L2/L3 (1/2 compressors) kW 1,75 2,42 2,63 2,84
Absorbed current L1 A 2,02 2,04 2,13 2,17
Absorbed current L2/L3 A 7,43 10,27 11,16 12,08
EER W/W 2,47 2,44 2,43 2,45 2,43 2,42 2,43
Nominal water capacity l/h 822 1.092 1.268 1.641 2.183 2.358 2.534
Min. water capacity l/h 514 683 792 1.026 1.364 1.474 1.583
Useful standard prevalence kPa 39,0 50,0 49,8 40,0 44,0 43,0 58,0
Useful prevalence – Optional vers. Height pressure 3) kPa NA 90,2 90,0 75,0 70,0 55,0 NA
Total absorbed electric power kW NA 2,71 3,15 4,02 5,36 5,81 NA
EER W/W NA 2,42 2,42 2,44 2,43 2,41 NA
Scale of partiality 1112222
Cooling power of partial charge (compressors 1/2) kW 5,20 5,46 / 8,12 7,65 8,20
absorbed electric power (compressors 1/2) kW 2,03 2,10 / 3,05 2,94 3,14
EER on partial charge W/W 2,64 2,71 / 2,74 2,68 2,71
Max. absorbed electric power 2) 4) kW 2,43 3,27 3,81 4,88 6,53 7,07 7,62
Max absorbed current 2) 4) A 10,4 14,1 16,4 21,0 28,1 30,5 32,8
Max. absorbed electric power L1/L2 4) kW 2,21 3,04 3,30 3,56
Max absorbed current L1/L2 4) A 9,8 13,5 14,6 15,8
Magnet thermo of protection (L1-L2/L3) A 16 16 20 10-16 10-16 10-20 10-20
Power supply Volt/Hz
Grade of protection
External air temperature d.b. Min - Max °C
Entry water temp. Min-Max °C
Max Content of glycol %
Max water pressure kPa
Circuits n. 1111111
Compressors n. 1112222
Type of compressors
Refrigerate gas
Max pressure refrigerate kPa
Charge of refrigerate gas g 1.100 1.350 1.300 2.200 2.450 2.650 2.600
Capacity of expansion vase l 4
Max pressure kPa
Pre-charge pressure kPa
Hydraulic attachments "
Water content in the hydraulic circuit l 0,616 0,710 0,850 0,980 1,080 1,120 1,150
Min. water content in the system l 10 16 16 10 16 16 16
Ventilators – number X diameter
Nominal air capacity m3/h 2.200 3.000 3.200 4.400 6.000 6.200 6.400
Sound pressure 5) db(A) 40,2 41,5 42,0 43,2 44,5 44,8 45,0
Height mm 670 1277 1660
Dimensions Lenght mm
Depth mm
Net weight kg 67 81 85 124 136 142 149
1) Air temperature 35° w.b.; entry water temp. 12 °C 'T 5 °C
2) Value for mono-phase charge
3) Fabric installed option
4) Air temperature 45°C d.b.; entry water temp. 23 °C 'T 5 °C
5) 10 m. in open space
NA Not applicable
35
Rotativo
IP 24
230/1~/50 - 400/3N~/50
da -10 a +45
da 0 a +23
368
NA
230/1~/50
1
600
150
2 x Ø 4501 x Ø 450
4.200
NA
NA
NA
NA
NA
NA
NA
NA
1 / 1
925
300
870 1460
R410a
2
Pag. 11

1.8 Table 3 - Technical Data - HPE X5÷17 R410a (part first)
cold heat cold heat cold heat cold heat cold heat cold heat cold heat
Colling/heating power 1) kW 4,45 5,50 5,96 7,45 6,98 8,28 9,05 10,50 10,20 12,60 12,94 15,40 13,96 16,54
Power of Absorbed electricity kW 1,96 1,98 2,67 2,69 3,09 2,95 3,94 3,99 4,48 4,38 5,73 5,86 6,12 6,13 Rise of current 2) A
Total absorbed current 2) A 8,3 8,4 11,4 11,5 13,2 12,6 16,8 17,0 19,1 18,7 24,4 25,0 26,1 26,2 Power of Absorbed electricity L1 (auxiliary) kW 0,46 0,48 0,46 0,48 0,51 0,51 0,51 0,51
Power of Absorbed electricity L2/L3 (compr. 1/2 ) kW 1,74 1,75 2,01 1,95 2,61 2,67 2,81 2,81
Absorbed current L1 A 2,0 2,1 2,0 2,1 2,3 2,3 2,3 2,3 Absorbed current L2/L3 A 7,4 7,4 8,5 8,3 11,1 11,3 11,9 11,9 EER / COP W/W 2,31 2,78 2,27 2,77 2,30 2,81 2,33 2,63 2,32 2,88 2,31 2,63 2,31 2,70 Nominal water capacity l/h 765 946 1.025 1.281 1.201 1.424 1.557 1.806 1.754 2.167 2.226 2.649 2.401 2.845
Min. water capacity l/h 478 591 641 801 751 890 973 1.129 1.096 1.354 1.391 1.656 1.501 1.778 Useful standard prevalence kPa 41,5 34,0 50,0 43,0 49,8 47,6 43,2 39,0 50,0 39,9 58,0 38,0 40,0 38,8 Useful prevalence – Optional vers. Height pres. 3) kPa 90,2 82,4 90,0 86,0 75,0 72,8 70,0 45,0
Total absorbed electric power kW 2,71 2,74 3,14 3,00 4,02 4,06 4,53 4,44
EER | COP W/W 2,31 2,72 2,30 2,76 2,31 2,59 2,32 2,84
Scale of partiality 1 1 1222 Power of partial charge refrigerating (compr. 1/2) kW 5,10 5,80 4,75/6,52 5,98/7,53 6,26 7,73 7,13 8,81
absorbed electric power (compr. 1/2) kW 2,01 2,04 1,94/2,60 2,05/2,66 2,69 2,75 2,99 3,08
EER / COP on partial charge W/W 2,62 2,84 2,55/2,59 2,91/2,84 2,44 2,81 2,50 2,86
Max. absorbed electric power 2) 4) kW 2,41 2,44 3,29 3,31 3,81 3,63 4,86 4,91 5,52 5,40 7,06 7,22 7,55 7,56
Max absorbed current 2) 4) A 10,4 10,5 14,2 14,2 16,4 15,6 20,9 21,2 23,8 23,2 30,4 31,1 32,5 32,5
Max. absorbed electric power L1/L2 4) kW 2,20 2,22 2,53 2,46 3,28 3,36 3,52 3,52
Max absorbed current L1/L2 4) A 9,8 9,8 11,2 10,9 14,5 14,9 15,6 15,6
Magnet thermo of protection (L1-L2/L3) A Power supply Volt/Hz Grade of protection
230/1~/50 230/1~/50 - 400/3N~/50
IP 24
10-16 10-16 10-20 10-20
NA NA
16 16 20
2
NA NA NA
NA
NA NA NA NA
NA NA NA
NA
61,0 63,0 63,0
NA
36,8 61,0 63,0 36,8
HPE X10 HPE X13 HPE X15 HPE X17
Description / model
HPE X5 HPE X7,5 HPE X8,5
Pag. 12

1.8 Table 3 - Technical Data - HPE X5÷17 R410a (part second)
cool heat cold heat cold heat cold heat cold heat cold heat cold heat
External air temperature d.b. Min - Max °C Entry water temp. Min - Max °C Max Content of glycol % Max water pressure kPa Circuits n. 1 1 1111 Compressors n. 1 1 1222 Type of compressors Refrigerate gas Max pressure refrigerate kPa Charge of refrigerate gas g Capacity of expansion vase l
Max pressure kPa Pre-charge pressure kPa
Hydraulic attachments " Water content in the hydraulic circuit l Min. water content in the system l Ventilators – number X diameter Nominal air capacity m3/h
Sound pressure 5) db(A) 40,2 41,0 41,5 42,0 42,0 42,5 43,2 43,8 44,5 45,0 44,8 45,2 45,0 45,5
Height mm
Dimensions Lengh mm
Depth mm
Net weight kg
1) Cooling: Air temperature 35°C d.b.; entry water temperature 12 °C 'T 5 °C 4) Cooling: Air temperature 45°C d.b.; water entry temperature 23 °C 'T 5 °C
Heating: air temperature 7°C d.b. – 6°C w.b.; water entry 40 °C 'T 5 °C Heating: Air temperature 20°C d.b.; water entry 50 °C 'T 5 °C
2) Value of mono-phase charge 5) 10 m. open space 3) Optional fabric installation NA = Not applicable
HPE X10 HPE X13 HPE X15 HPE X17
148 152 164
Description / model
HPE X5 HPE X7,5 HPE X8,5
42
da -10 a +45 in cooling / da -10 a +20 in heating
72 86 93 135
925 368
6.000 6.200 6.400
670 870 1277 1460 1660
2.200 3.000 3.200 4.400
16
1 x Ø 450 2 x Ø 450
10 16 16 10 16 16
600 150
1 / 1
0,616 0,710 0,850 0,980 1,080 1,120 1,150
1
1.250 1.600 1.600 2.450
2
Rotativo
R410a
4.200
3.100 3.100 3.200
da 0 a +23 in cooling / da +30 a +50 in heating
35
300
1
Pag. 13

Pag. 14
1.9 ELECTRICAL SCHEMA RPE/HPE X5-7,5-8,5 R410a
Fig. 2
RPE-HPE X5 RPE-HPE X7,5 RPE-HPE X8,5
L1 L1 L1
16A 20A 20A
Cc = Condensates compressors CP1 = Contact HEAT/COOL remote (only mod. HPE) CP2 = Remote On/Off contact Cr = Electronic control F= Fusible 5 A FI = Water flow meter Fr = Radio filter Hp = Pressure switch of Max. Lp = Pressure switch of Min. M= Clamp Mc = Motor of compressor Mg = Thermo magnetic protection Mv1 = Fan motor P= Water pump Ra1 = Relay auxiliary (optional) 230V AC Ra2 = Relay alarm (optional) 12V AC Rc = Relay compressor Rs = Spool relay of anti frost resistance (optional) Scc = Interface card electrical control (Cr) St1 = Water sensor entry St2 = Water sensor issue St3 = Exchanger sensor Tk = Modulation card Mc1-Mv2 Tr = Transformer of electrical feeding Vi = Valve of inversion (only mod. HPE) _ _ _ = Connection to be made ____ = Connection made
Thermo magnetic
Models
of protection

Pag. 15
Fig. 3
1.9 ELECTRICAL SCHEMA RPE/HPE X10-13-15-17 R410a (400V 3N~)
Cc = Condensates compressors CP1 = Contact HEAT/COOL remote (only mod. HPE) CP2 = Remote On/Off contact Cr = Electronic control EXP = Control box compressor 2 F= Fusible 5 A F4 = Fusible 2.5 A FI = Water flow meter Fr = Radio filter Hp = Pressure switch of Max. Lp = Pressure switch of Min. M= Clamp Mc1-Mc2 = Motors of compressor Mg = Thermo magnetic protection Mv1-Mv2 = Fan motors P= Water pump Ra1 = Relay auxiliary (optional) 230V AC Ra2 = Relay alarm (optional) 12V AC Rc1-Rc2 = Relay compressor Rs = Spool relay of anti frost resistance (optional) Scc = Interface card electrical control (Cr) St1 = Water sensor entry St2 = Water sensor issue St3 = Exchanger sensor Tk = Modulation card Mc1-Mv2 Tr = Transformer of electrical feeding Vi = Valve of inversion (only mod. HPE) _ _ _ = Connection to be made ____ = Connection made
Models
Models
Thermo magnetic
of protection
Thermo magnetic
of protection

Pag. 16
Fig. 4
1.9 ELECTRICAL SCHEMA RPE/HPE X10-13-15-17 R410a (230V 3N~)
Cc = Condensates compressors CP1 = Contact HEAT/COOL remote (only mod. HPE) CP2 = Remote On/Off contact Cr = Electronic control EXP = Control box compressor 2 F= Fusible 5 A F4 = Fusible 2.5 A FI = Water flow meter Fr = Radio filter Hp = Pressure switch of Max. Lp = Pressure switch of Min. M= Clamp Mc1-Mc2 = Motors of compressor Mg = Thermo magnetic protection Mv1-Mv2 = Fan motors P= Water pump Ra1 = Relay auxiliary (optional) 230V AC Ra2 = Relay alarm (optional) 12V AC Rc1-Rc2 = Relay compressor Rs = Spool relay of anti frost resistance (optional) Scc = Interface card electrical control (Cr) St1 = Water sensor entry St2 = Water sensor issue St3 = Exchanger sensor Tk = Modulation card Mc1-Mv2 Tr = Transformer of electrical feeding Vi = Valve of inversion (only mod. HPE) _ _ _ = Connection to be made ____ = Connection made
Models
Models
Thermo magnetic
of protection
Thermo magnetic of protection

Pag. 17
1.10 DIMENSIONS - RPE/HPE X5 - 7,5 - 8,5 R410a
Fig. 5
Mod. A B RPE-HPE X5 670 256 RPE-HPE X7,5 - 8,5 872 456

Pag. 18
1.10 DIMENSIONS - RPE/HPE X10 - 13 - 15 - 17 R410a
Fig. 6
Mod. A B RPE-HPE X10 1279 713 RPE-HPE X13 - 15 1479 713 RPE-HPE X17 1679 843
