Accorroni S Series Specification sheet

Swimming Pool Heat Pump
TCPO 07 01G - TCPO 09 01G
TCPO 11 01G
TECHNICAL INFORMATION
INSTALLATION
PLUG & PLAY
ECOLOGICAL
GAS
RENEWABLE
ENERGIES
TITANIUM
EXCHANGER
SILENT
HEATERS
ABS
COVER
Operation and Installation Manual

Swimming Pool Heat Pump – S series
TABLE OF CONTENT
INTRODUCTION …………………………………………………………………………………………………………...2
This manual ………………………………………………………………………………………………………………….2
The unit …………………………………………………………………………………………………………................. 2
SAFETY INSTRUCTIONS ……………………………………………………………………………………………………..3
Warning ………………………………………………………………………………………………………………………….…3
Caution …………………………………………………………………………………………………………………………..4
ITEMS INSIDE THE BOX ……………………………………………………………………………………………………..5
OVERVIEW OF THE UNIT ……………………………………………………………………………………….……….…6
INSTALLATION …………………………………………………………………………………………….…..….…….……..7
Installation information…………………………………………………………………………………………….…..….7
Condition of installation……………………………………………………………………………….……………………7
Installation place ……………...……………………………………………………………………………………….…….7
To perfect your installation.………………………………………………………………………….……………………7
Water connection…………………………………………………………………………………..…………….…………..7
Electrical connection……………………..……………………………………………………………………….….………8
Trial running …………………………………………………………………………………………….……..………………..8
OPERATING THE UNIT …………………………………………………………………………………………….…………9

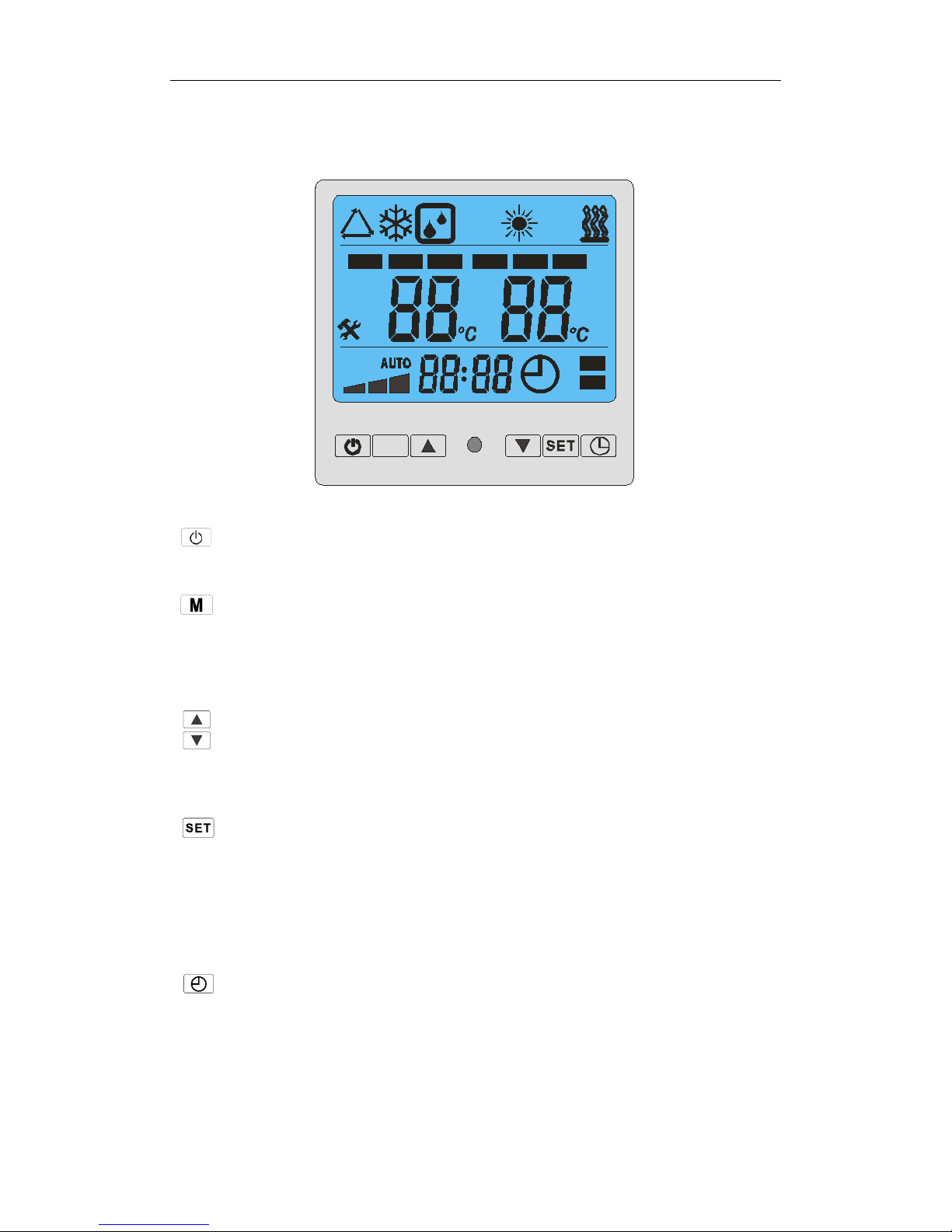

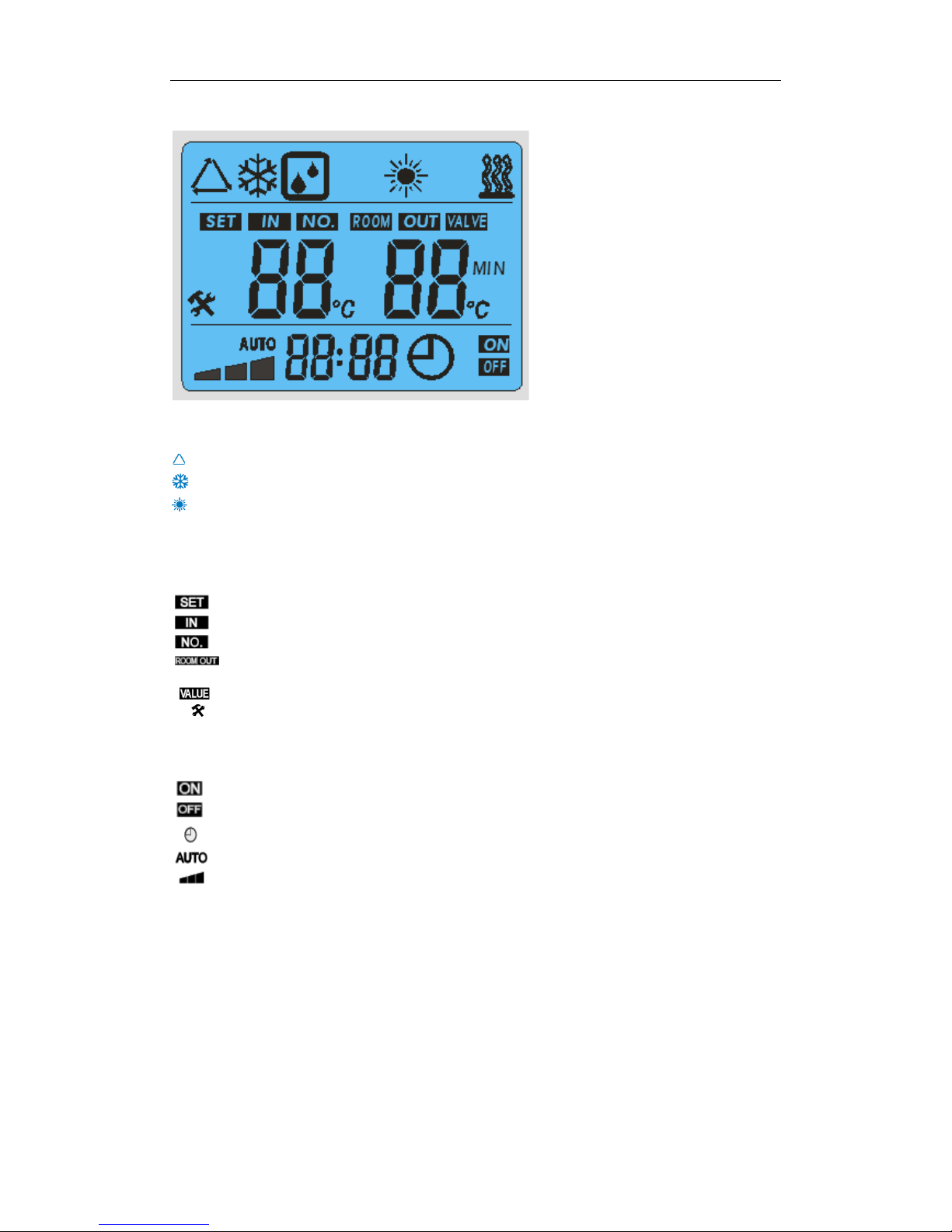

Controller operations………………………………………………………………………….……………………….……11

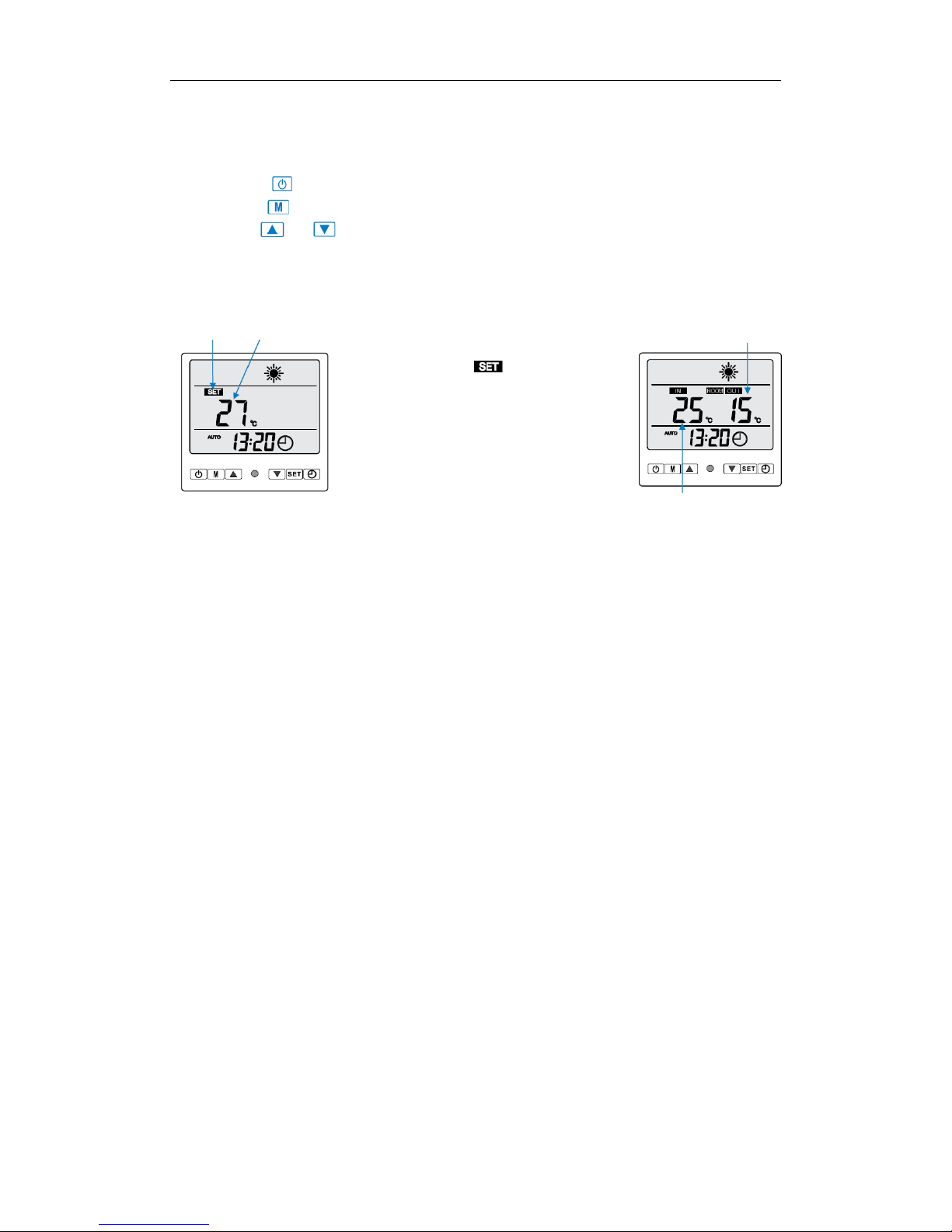

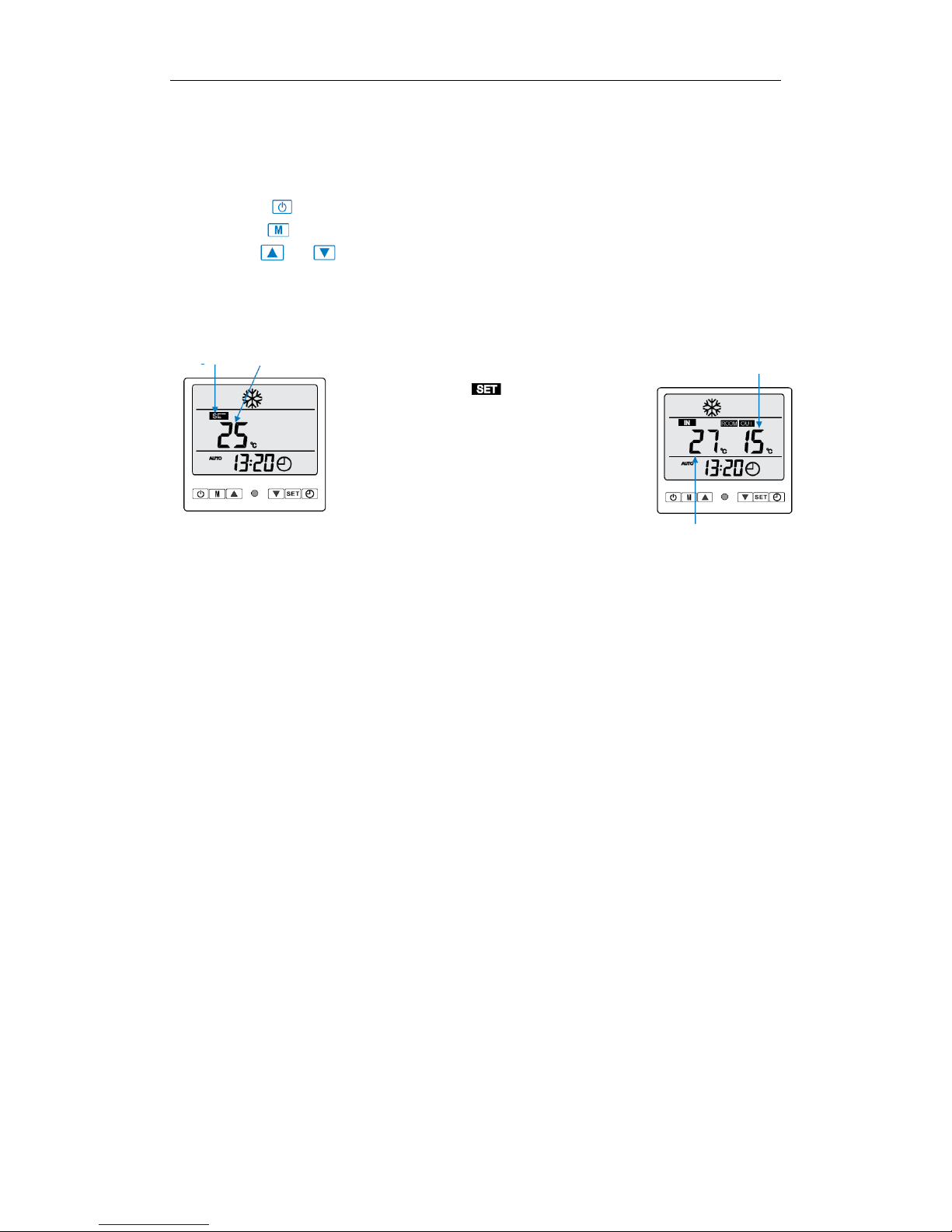

How to use the mode………………………………………………………………………………………………………..13
Failure code checking………………………………………………………………………………………………………..26
MAINTENANCE and TROUBLESHOOTING ………………………………………………………………….…28
PARAMETER CHECKING AND ADUSTMENT …………………………………….……………….……………..28
Parameter list …………………………………………………………………………………………….…………………….29
ENVIRONMENTAL INFORMATION ……………………………………….…………………………………………….31
DISPOSAL REQUIREMENTS …………………………………………………………….………………………………….32
WIRING DIAGRAM …………………………………………………………….………………………………………………32
TECHNICAL SPECIFICATIONS …………………………………………………………….……………………………….34
READ THIS MANUAL CAREFULLY BEFORE STARTING UP THE UNIT. DO NOT THROW IT
AWAY.
KEEP IT IN YOUR FILES FOR FUTURE REFERENCE.
BEFORE OPERATING THE UNIT, MAKE SURE THE INSTALLATION HAS BEEN CARRIED
OUT CORRECTLY BY A PROFESSIONAL DEALER. IF YOU FEEL UNSURE ABOUT
OPERATION, CONTACT YOUR DEALER FOR ADVICE AND INFORMATION.
Operation and Installation Manual 1 2016/02

Swimming Pool Heat Pump – S series
INTRODUCTION
This manual
This manual includes the necessary information about the unit. Please read this manual
carefully before you use and maintain the unit.
The unit
The swimming pool heat pump is one of the most economical systems to heat the swimming
pool efficiently. Using the free renewable energy from the air and the earth it delivers up to
five times more energy in heating than a traditional heating system such as gas boiler or
electric heater. So you will save 4/5 cost of the traditional heating. The swimming pool heat
pump lengthens your swimming season and gives you comfort at high level. You could enjoy
swimming not only in summer, but also in spring, autumn and even winter time.
Ecological and economical heating
By making use of the renewable energy in the outside air, it consumes much less energy
with low carbon emission. Use environment friendly advanced refrigerant R410A which
has no effect on Ozone.
Titanium heat exchanger
Advanced titanium heat exchanger guarantees long life span of heat pump free from
corrosion and rust. By using of titanium heat exchanger the heat pump could be applied
with all types of water treatment such as chlorinate, iodine, bromine and salt water.
Multiple functions
-Cooling and heating functions available;
-Auto operation, Auto-restart, Auto defrost
-Timer on/off: no human attendance is required
- Wide ambient workingcondition: -7°C to 43°C
Reliable operation
To guarantee the stable running and increase the suability of the unit multiple
protection devices have been set into pool heat pump which include insufficient water
flow protection, high/low pressure protection, overload protection, compressor
protection.
Safe use
The swimming pool heat pump works without oil, gas or other hazardous substance
which avoid potential risk that goes together. Moreover no gas connection or a fuel tank
is needed. No risk of intoxication, smell or pollution from leakage.
Self-diagnosis
When there is malfunction, the swimming pool heat pump will make self-diagnosis by
displaying error code from the control panel. The problem could be found out at a glance.
Operation and Installation Manual 2 2016/02

Swimming Pool Heat Pump – S series
SAFETY INSTRUCTIONS
To prevent injury to the user, other people, or property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage.
Install the unit only when it complies with local regulations, by-laws and standards. Check
the main voltage and frequency. This unit is only suitable for earthed sockets, connection
voltage 220 – 240 V ~ / 50Hz.
The following safety precautions should always be taken into account:
-Be sure to read the following WARNING before installing the unit.
-Be sure to observe the cautions specified here as they include important items related to
safety.
-After reading these instructions, be sure to keep it in a handy place for future reference.
Do not install the unit yourself.
Incorrect installation could cause injury due to fire, electric shock, the unit falling or leakage
of water. Consult the dealer from whom you purchased the unit or a specialized installer.
Install the unit securely in a place.
When insufficiently installed, the unit could fall causing injury. When installing the unit in a
small room, please take measures (like sufficient ventilation) to prevent the asphyxia caused
by the leakage of refrigerant.
Use the specified electrical wires and attach the wires firmly to the terminal board
(connection in such a way that the stress of the wires is not applied to the sections).
Incorrect connection and fixing could cause a fire.
Be sure to use the provided or specified parts for the installation work.
The use of defective parts could cause an injury due to possible fire, electric shocks, the unit
falling etc.
Perform the installation securely and please refer to the installation instructions.
Incorrect installation could cause an injury due to possible fire, electric shocks, the unit
falling, leakage of water etc.
Perform electrical work according to the installation manual and be sure to use a dedicated
section.
Operation and Installation Manual 3 2016/02

Swimming Pool Heat Pump – S series
If the capacity of the power circuit is insufficient or there is an incomplete electrical circuit, it
could result in a fire or an electric shock.
The unit must always have an earthed connection.
If the power supply is not earthed, you may not connect the unit.
Never use an extension cable to connect the unit to the electric power supply.
If there is no suitable, earthed wall socket available, have one installed by a recognized
electrician.
Do not move/repair the unit yourself.
Before proceeding with any maintenance, service or repair work, the product must be
isolated from the mains electrical supply. Only qualified personnel should carry out these
tasks. Improper movement or repair on the unit could lead to water leakage, electrical shock,
injury or fire.
Do not install the unit in a place where there is a chance of flammable gas leaks.
If there is a gas leak and gas accumulates in the area surrounding the unit, it could cause an
explosion.
Perform the drainage/piping work according to the installation instruction.
If there is a defect in the drainage/piping work, water could leak from the unit and
household goods could get wet and be damaged.
Do not clean the unit when the power is ‘ON’.
Always shut ‘OFF’ the power when cleaning or servicing the unit. If not, it could cause an
injury due to the high speed running fan or an electrical shock.
Do not continue to run the unit when there is something wrong or there is a strange smell.
The power supply needs to be shut ‘OFF’ to stop the unit; otherwise this may cause an
electrical shock or fire.
Do not put your fingers or others into the fan, or evaporator.
The ventilator runs at high speed, it could cause serious injury.
Operation and Installation Manual 4 2016/02

Swimming Pool Heat Pump – S series
ITEMS INSIDE PRODUCT BOX
Before starting the installation, please make sure that all parts are found inside the box.
The Unit Box
Item Image Quantity
Swimming pool heat
pump 1
Operation and
Installation Manual 1
Operation and Installation Manual 5 2016/02

Swimming Pool Heat Pump – S series
OVERVIEW OF THE UNIT

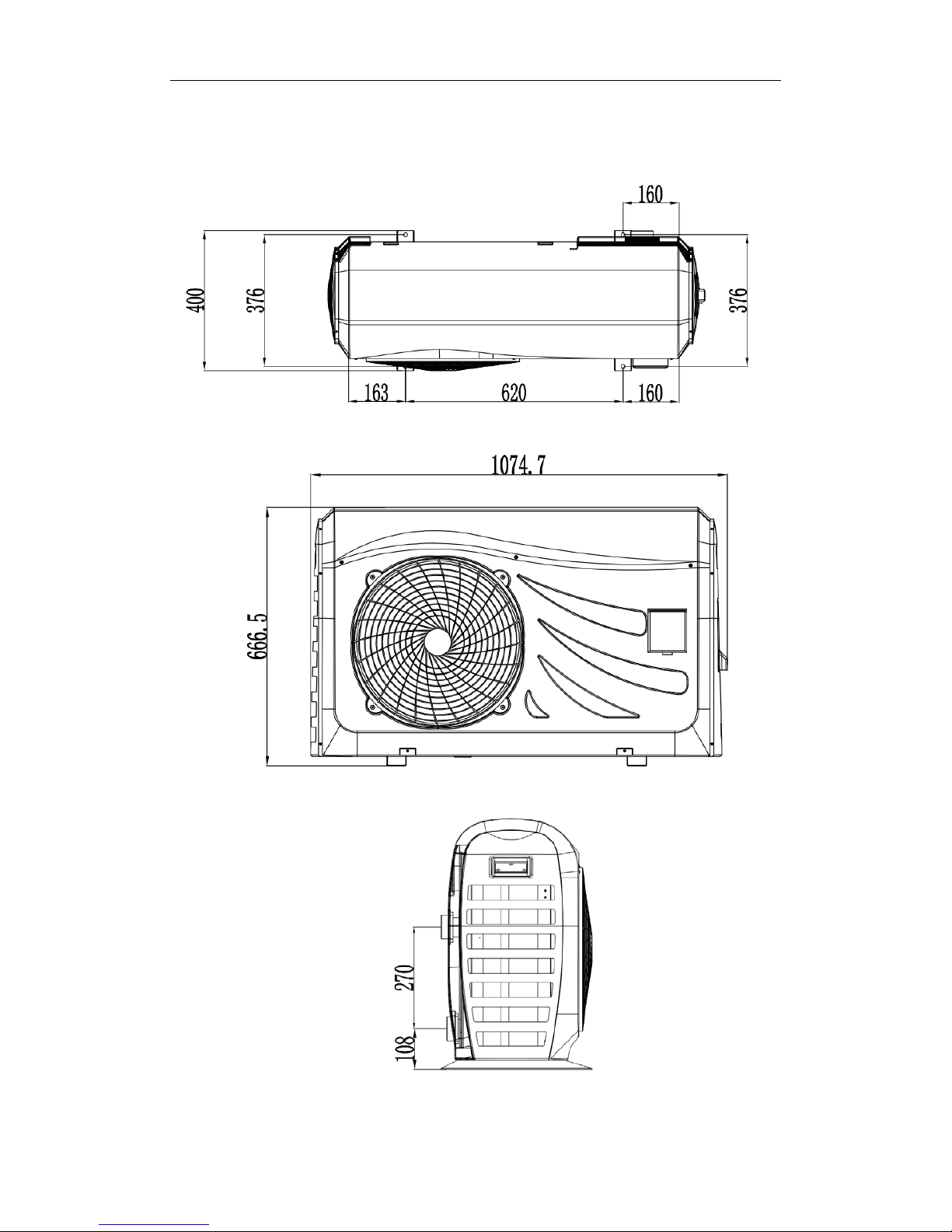

Unit Dimension （mm）
Operation and Installation Manual 6 2016/02

Swimming Pool Heat Pump – S series
INSTALLATION
Installation information
The following information given here is not an instruction, but simply meant to give the user a
better understanding of the installation.
Condition of installation
The following information given here is not an instruction, but simply meant to give the user a
better understanding of the installation.
Installation place
Install the swimming pool heat pump on a flat, horizontal, and stable surface. Maintain 1 M of
open space in front of the discharge grids and 3 M on the outlet side of the ventilator. And
reserve enough space to allow access to temperature controller.
Make sure that the discharged air will not be breathed in.
To perfect your installation
--Avoid directing the flow of ventilated air towards a sensitive noise zone, such as room window.
--Avoid positioning pool heat pump on a surface that can transmit vibrations to dwelling.
--Try to avoid placing appliance under a tree or exposed to water or mud, which would be likely
to complicate maintenance.
Water connection
The heat pump is connected to a filtration circuit with a by-pass.
It is imperative that the by-pass is placed after the pump and the filter.
The by-pass generally consists of 3 valves.
This makes it possible to regulate the water flow which passes through the heat pump and to
isolate the heat pump completely for any maintenance work, without cutting the flow of filtered
water.
If your installation is equipped of a water treatment with product adductions (chlorine,
brominates, salt…) the by-pass must be installed before the water treatment, with a non-return
valve between the by-pass and water treatment.
Operation and Installation Manual 7 2016/02

Swimming Pool Heat Pump – S series
Electrical connection
Electrical supply must correspond to that indicated on the appliance.
Connection cables have to be sized according to appliance power and installation requirements.
Please refer to below table:
Heat pump Cable size
TCPNA 701 G
3x2.5mm2
TCPNA 901 G
3x4.0mm2
TCPNA 1101 G
3x6.0mm2
These data are only indication, you must ask an electrician to determine the exact data for your
pool installation.
Use the cable glands and grommets provided inside the heat pump to route cables.
Trial running
After connecting water to the pool system, complete with a suitable by-pass and electrical
connections by a qualified engineer.
Be sure that:
1) Appliance is horizontal and on a firm base.
2) Water circuit is well connected (no leaks and no chance of injury due to badly fitted
hydraulic couplings).
3) Electrical circuit is well connected (all cables tightened correctly at terminals and
intermediate circuit breaker), insulated and earthed correctly.
4) The installation requirements described previously are strictly adhered to.
ATTENTION: THE HEAT PUMP ONLY FUNCTIONS WHEN WATER FLOW IS PRESENT.
Initial Start up
Start the heat pump following every point in the below order:
-Open all by-pass valves
-Start pool system pump
-Turn on pool heat pump
-Set regulation
To set the regulator, slowly close off the middle bypass valve until the gauge at the back of heat
pump reads between 23 - 25 kg/cm2.
Select heat or cool mode and then set temperature. If set on heat mode the air flow leaving the
front of the heat pump should feel cool and if set on cool mode the air flow leaving the front of
the heat pump should feel warm.
With the heat pump operating turn the filter pump off. The unit should also turn off automatically.
This should display an error message because the water flow has been interrupted. When filter pump
Operation and Installation Manual 8 2016/02

Swimming Pool Heat Pump – S series
is turned on the heat pump will also turn on after a few minutes and resume normal operation. Press
the up or down button to cancel the error message displayed.
OPERATING THE UNIT
Operating the unit comes down to operating the digital controller.
NEVER LET THE DIGITAL CONTROLLER GET WET. THIS MAY CAUSE AN ELECTRIC SHOCK
OR FIRE.
NEVER PRESS THE BUTTONS OF THE DIGITAL CONTROLLER WITH A HARD, POINTED
OBJECT. THIS MAY DAMAGE THE DIGITAL CONTROLLER.
NEVER INSPECT OR SERVICE THE DIGITAL CONTROLLER YOURSELF, ASK A QUALIFIED
SERVICE PERSON TO DO THIS.
Features and functions
Basic controller functions
The basic controller functions are:
Turning the heat pump ‘ON’/’OFF’.
24 hours real time clock.
Timer ‘ON’ and timer ‘OFF’.
Parameter adjustment
1、Power on/off
(1)Power on: with the power off, press” ”key
Power off Power on
Press “ “
Operation and Installation Manual 9 2016/02

Swimming Pool Heat Pump – S series
（2）Power off：with the power on，press” ”key
Power on Power off
2、Temperature setting
With power on, by adjust or by increase or decrease the set temperature
Flash
Initial state
Press “ “
For example
Press “ ”
Operation and Installation Manual 10 2016/02

Swimming Pool Heat Pump – S series
Controller Operation
MIN
ON
OFF
IN
SET
VALVE
OUT ROOM NO.
M
Introduction for the keys
ON/OFF
Press it to switch on or off heat pump.
MODE SELECTION
Press it to select the mode. The sequence is: automatic-cooling -heating.
During parameter setting, press it to adjust parameters;
During clock and timer setting, press it to choose the hour value or minute value.
UP AND DOWN
Press them to adjust the value of water temperature, clock, timer, parameters;
During failure checking and p arameter checking, press any of them to exit
checking.
SETTING AND CONFIRM
Long press it for more than 6 seconds, you can check and adjust the parameters.
Press the UP/DOWN key to exit operation.
When a failure occurs, press it for no more than 2 seconds, you can check the
failure code. Press it again you can check the other failure code if more than one
occurs. Press the UP/DOWN key to exit checking.
CLOCK AND TIMER KEY
Press it to set clock and timer. Detailed operation will be described in following
pages.During parameter setting, press it to change the rolling direction of
parameters.
Operation and Installation Manual 11 2016/02

Swimming Pool Heat Pump – S series
Controller Operation
Top area
Automatic mode symbol.
Cooling mode symbol.
Heating mode symbol.
Middle area
Temperature setting symbol, the figure under is the temperature value.
Inlet water temperature symbol, the figure under is the temperature value.
Parameter number symbol, the figure under is the parameter number .
Outdoor ambient temperature symbol, the figure under is the temperature value.
Parameter value symbol, the figure under is the parameter value.
Failure symbol.
Bottom area
Turning on timer symbol. It appears when setting turn on timer.
Turning off timer symbol. It appears when setting turn off timer.
Clock symbol. It appears when setting time.
Timer circulation symbol.
Timer number symbol. The number of segments represents the number of timer.
Operation and Installation Manual 12 2016/02

Swimming Pool Heat Pump – S series
How to use the mode
Before setting your temperature, you must first choose a mode operation for your remote
control
Automatic mode (hot, cold)
Select for the Auto mode
In this mode, the heat pump will automatically change to
heating or cooling your pool (depending on t he actual tempera
ture) to reach the desired temperature.
No electric heating.
Cooling mode
Select for the cooling mode
In this mode, the heat pump will cooling the water in your pool .
Heating mode
Select for the heating mode
In this mode, the heat pump will heating the water in your pool .
Operation and Installation Manual 13 2016/02

Swimming Pool Heat Pump – S series
HOW TO USE THE AUTOMATIC MODE
CAUTION: Before you begin, make sure the filter pump is in a state of operation.
Step 1: Press once to turn on your pump.
Step 2:Press to select from one mode to the other until you see the Automatic mode.
Step 3: Use or to select the desired temperature (8-40 ° C).
Example
If you chose the value 27 ° C, the screen will display:
Once the symbol
stops flashing, the requested
temperature will be validated and
up to the temperature of the water
current (in our example 25 °).
Your screen will display:
Good to know about the operation of the automatic mode
Automatic Cooling:
When the temperature of the incoming water is greater than or equal to the required
temperature + (X +2) ° C, the compressor will enter cooling mode. The compressor stops
when the temperature of the incoming water will be equal to the required temperature.
Automatic heating:
When the water temperature is less than or equal to the required temperature-X°C，the
compressor will enter heating mode. The compressor stops when the temperature of the
incoming water will be equal to the required temperature.
Attention : Following the selection of heating or cooling mode, the current program can not
be changed in 10 minutes.
Directions for setting range X and Y
X: parameter adjust from 2 ° to 10 ° C, the default setting is 3 ° C
Y: parameter adjust from 0 ° to 6 ° C, the default setting is 0 °
FlashRequested temp. Current ambient temp.
Current water temp.
Operation and Installation Manual 14 2016/02

Swimming Pool Heat Pump – S series
HOW TO USE THE COOLING MODE
CAUTION: Before you begin, make sure the filter pump is in a state ofoperation.
Step 1: Press once to turn on your pump.
Step 2:Press to select from one mode to the other until you see the Cooling mode.
Step 3: Use or to select the desired temperature (8-28° C).
Example
If you chose the value 25 ° C, the screen will display:
Once the symbol
stops flashing, there quested
temperature will be validated and
up to the temperature of the water
current (in our example 27 °).
Your screen will display:
Good to know about the operation of the cooling mode
When the temperature of the incoming water is greater than or equal to the required
temperature + X ° C, the compressor will enter cool down mode. The compressor stops
when the temperature of the incoming water is less than or equal to the required
temperature.
Directions for setting range X and Y
X: parameter adjust from 2 ° to 10 ° C, the default setting is 3 ° C
Y: parameter adjust from 0 ° to 6 ° C, the default setting is 0 °
FlashRequested temp.
Current water temp.
Current ambient temp.
Operation and Installation Manual 15 2016/02

Swimming Pool Heat Pump – S series
HOW TO USE THE HEATING MODE
CAUTION: Before you begin, make sure the filter pump is in a state ofoperation.
Step 1: Press once to turn on your pump.
Step 2:Press to select from one mode to the other until you see the Heatling mode.
Step 3: Use or to select the desired temperature (15-40° C).
Example
If you chose the value 27 ° C, the screen will display:
Once the symbol
stops flashing, there quested
temperature will be validated and
up to the temperature of the water
current (in our example 25 °).
Your screen will display:
Good to know about the operation of the heating mode
When the temperature of the incoming water is less than or equal to the required
temperature -X ° C, the compressor will start in heating mode. The compressor stops
when the temperature incoming water is greater than or equal to the required temperature
+ Y ° C.
Directions for setting range X and Y
X: parameter adjust from 2 ° to 10 ° C, the default setting is 3 ° C
Y: parameter adjust from 0 ° to 6 ° C, the default setting is 0 °
FlashRequested temp.
Current water temp.
Current ambient temp.
Operation and Installation Manual 16 2016/02

Swimming Pool Heat Pump – S series
Water temperature setting
When the heat pump is switched on, just press or to adjust water temperature.
Operation and Installation Manual 17 2016/02

Swimming Pool Heat Pump – S series
Clock setting
Set the system time according to the local time as follows:
Step 1:press to start clock setting, the symbol flashes.
Step 2:press to select hour and the corresponding value flashes.
Step 3:press or to adjust the hour value.
Step 4:press to select minute and the corresponding value flashes.
Step 5:press or to adjust the minute value.
Step 6:press to confirm the value.
Operation and Installation Manual 18 2016/02

Swimming Pool Heat Pump – S series
ON/OFF timer setting
With this function ,the heat pump can turn on or turn off automatically at the set time.
ON/OFF timer setting as follows:
Step 1:press twice to start ON time setting.
Step 2:press to select hour and the corresponding value flashes.
Step 3:press or to adjust the hour value.
Step 4:press to select minute and the corresponding value flashes.
Step 5:press or to adjust the minute value.
Step 6:press to confirm the value.
Step 7:press to return to normal display.
Operation and Installation Manual 19 2016/02
