AccuPen User’s Guide
AccuPen®
Handheld Tonometer
24-3002 Rev-I

Accutome AccuPen User’s Guide
ii www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
Federal law restricts this device to sale by or on the order of a physician.
FEDERAL COMMUNICATIONS COMMISSION (FCC)
UNINTENTIONAL EMITTER PER FCC PART 15
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in an office installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions in the user’s guide,
may cause harmful interference to radio or television reception. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a different circuit than the receiver is
connected to.
• Consult Accutome, Inc., or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation of this product is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by Accutome, Inc., could void
the FCC compliance and negate your authority to operate the product.
The AccuPen is manufactured and trademarked by:
Accutome, Inc.
3222 Phoenixville Pike
Malvern, PA 19355 USA
Toll-Free (USA): [phone]
International: [phone]
Fax: [phone]

iii
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
Chapter 1: Introduction 1
AccuPen Overview 1
Features 1
Measurements 2
About This Manual 2
Chapter 2: Safety 3
Safety Information 3
Safety Issues to Consider When Using the AccuPen 3
Indications for Use 3
Battery Disposal 3
Symbol Definitions for the AccuPen 4
Safety Precautions 5
Maintenance 5
Disinfection 5
Cleaning 5
Sensor Cleaning Instructions 5
Warnings 6
Electrical Hazard and Safety 6
Avoiding Equipment Damage 7
Chapter 3: Getting Started 8
Overview 8
Unpacking Instructions 8
Accessories Included with the AccuPen 8
Battery Specification and Installation 8
Battery Specification 8
Battery Installation 9
Instructions for Use 9
Initial AccuPen Tonometer Setup 9
Calibration 10
Basic Operation 11
How to Power On the AccuPen 11
How to Start a New Patient 11
How to Take a Measurement 12
How to Calculate Adjusted IOP 12
Chapter 4: Maintenance, Storage & Troubleshooting 14
General Maintenance 14
Maintenance and Cleaning 14
Table of Contents

Accutome AccuPen User’s Guide
iv www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
Storage 14
Troubleshooting 14
Chapter 5: Specifications 16
Overview 16
Physical Specifications 16
Environmental Specifications 17
Measurement Accuracy 17
EMC Compliance Information 17
Chapter 6: Warranty & Repairs 21
Warranty 21
Product Returns 21
Service and Repair 21
All Other Returns 21
Nonreturnable Merchandise 22
Replacement Parts 22

v
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
Table Of Contents
List Of Figures
Figure 1.1 - AccuPen Tonometer 1
Figure 2.1 - Clean with Canned Air 6
Figure 3.1 - AccuPen Unpacked 8
Figure 3.3 - Action Control Buttons and LCD 9

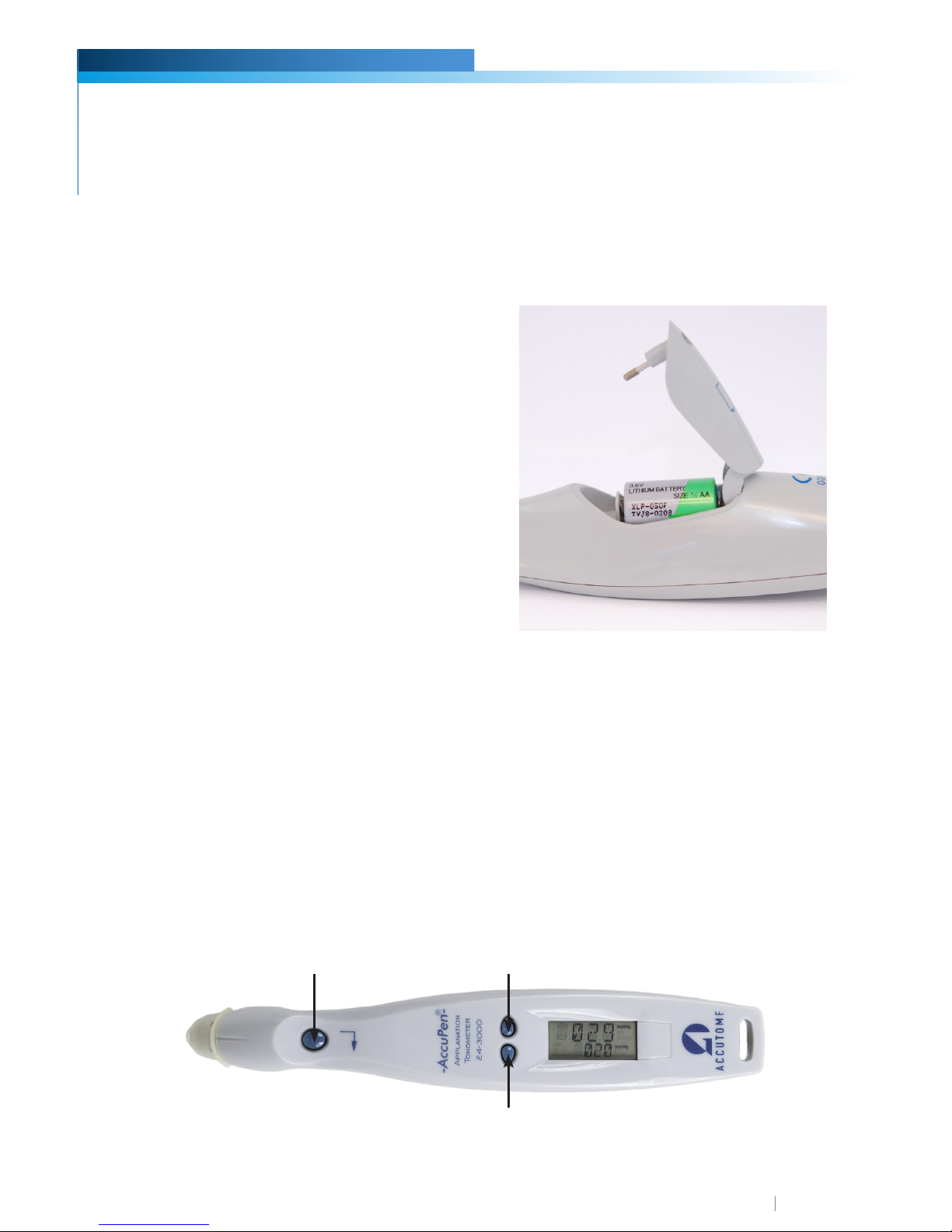

Figure 3.2 - Battery Insertion 9
Figure 3.4 - Calibration Probe Horizontal Position 10
Figure 3.5 - Calibration Probe Up Position 10
Figure 3.6 - Calibration Probe Down Position 11
Figure 3.7 - Measurement Screen Starting New Patient 11
Figure 3.8 - Capturing a Measurement 12
Figure 3.9 - Adjusted IOP Screen 12
Table 3.1 - IOP Correction Values 13
Table 4.1 - AccuPen Troubleshooting Information 14
Table 5.1 - AccuPen Physical Specifications 16
Table 5.2 - Environmental Specifications 17
Table 5.3 - Measurement Accuracy 17
Table 5.4 - Guidance and Manufacturer’s Declaration -
Electromagnetic Emissions 18
Table 5.5 - Guidance and Manufacturer’s Declaration -
Electromagnetic Immunity 18
Table 5.6 - Guidance and Manufacturer’s Declaration -
Electromagnetic Immunity 19
Table 5.7 - Recommended Separation Distances between Portable
and Mobile Rf Communications Equipment and the AccuPen 20
Table 6.1 - Accutome Replacement Parts 22

1
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
Chapter 1: Introduction
1Introduction
AccuPen Overview
The Accutome AccuPen pictured below has all the features that make it easy to
obtain extreme accuracy and improved patient outcomes.
Figure 1.1 - AccuPen Tonometer
Features
The AccuPen is designed for easy access to all screens and functions.
The unsurpassed ease of use of the control buttons, and the straightforward
Graphical User Interface guide you through every operation.
What you can’t see on the surface is also important. Industry-leading signal
acquisition and processing helps ensure accurate measurements. Reliable design
and efficient manufacturing provide fiscal value. Upgradeable software protects
your investment. The AccuPen lets you accomplish even the complex simply.
The AccuPen provides the following general features:
• Multisegment high-resolution LCD screen with control buttons to provide an
intuitive User Interface
• Long-lasting lithium battery power source
• 18.4 cm X 3.2 cm X 3.2 cm (7.25” X 1.25” X 1.25” size), and 85 g (3 oz.) weight
make the unit very portable
• Ergonomic design that fits comfortably into the hand for fast and accurate
measurements
• Allows entry of CCT (Central Corneal Thickness) and provides Adjusted IOP
based on manually entered corneal thickness measurements
• The body of the AccuPen is angled from the probe tip, and both the body
and the tip have sighting lines that allow easy visualization of the cornea,
facilitating both centration and perpendicularity
• Display of measured IOP, entered corneal thickness, Corrected IOP, and
average for all stored measurements
• Capture and store up to nine measurements along with the running average
of all measurements taken

Accutome AccuPen User’s Guide
2www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
Measurements
The high accuracy of the AccuPen measurements is provided by the following:
• High-resolution, real-time waveform analysis
• High-speed signal digitalization that acquires many data points per
measurement in a continuous acquisition until strict criteria are recognized
• Automatic offset control to acquire the optimum signal
• Sampling of the pressure signal is at a 1 KHz rate
• Unit correlates matching (or multiple) readings to ensure accuracy
• Uses a highly precision machined probe
• Has Adjusted IOP feature to correct for varying CCTs
• Uses proprietary pressure waveform analysis algorithm
About This Manual
This manual is a guide for technicians, optometrists, and opthalmologists who are
experienced in intraocular pressure measurement techniques.
This manual is organized as follows:
Chapter 2 - Safety
Summarizes safety precautions, warnings, symbols, and terms.
Chapter 3 - Getting Started
Provides assembly instructions and overview of AccuPen basic operation.
Chapter 4 - Maintenance, Storage & Troubleshooting
Provides general maintenance, storage, and troubleshooting instructions.
Chapter 5 - Specifications
Provides AccuPen physical and operational specifications.
Chapter 6 - Warranty & Repairs
Describes AccuPen warranty information and repair procedures.
After reading this manual, you will be able to set up the AccuPen, take
measurements, and enter and calculate Adjusted IOP.

3
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
Chapter 2: Safety
2Safety
Safety Information
The section lists:
• Specific safety precautions associated with the AccuPen
• General safety precautions
Safety Issues to Consider When Using the AccuPen
The AccuPen is noninvasive. The strain gauge sensor probe tip, covered with a
single-use latex disposable, touches the surface of the anesthetized cornea during
the scanning process.
Indications for Use
This instrument is used for measuring the intraocular pressure (IOP) of the eye.
It is to be used in a medical setting and only by physicians, optometrists, and
technicians who are experienced in IOP measurement techniques.
CAUTION: General indications for use of the AccuPen include on external, structurally
intact areas of the eye globe and orbit only.
Battery Disposal
Follow the procedure outlined below for proper disposal of lithium batteries.
1. Guidelines for the disposal of lithium batteries are continually under review.
Waste-management companies can provide assistance in the disposal of
these cells and batteries.
2. Disposal should be done in accordance with applicable regulations,
which vary from country to country. In most countries, disposal of used
batteries in the trash is forbidden. Disposal can be done through nonprofit
organizations mandated by local authorities or organized by professionals.
3. Cells and batteries should not be incinerated unless suitable procedures
are followed and appropriate precautions have been taken by qualified
handlers. Exposure of these cells to high temperatures or fire can cause the
cells to vent and/or rupture.
4. Used batteries should be shipped with the same regulations as those for
new lithium/thionyl chloride batteries.
5. Accutome recommends that cells and batteries for disposal should be
collected, transported, and disposed of in a manner that will prevent short-
circuit (the terminals taped).
6. Handling of used cells and batteries should be done according to the safety
instructions of fresh cells.
7. Recycling of the cells and batteries should be done in authorized facilities,
through a licensed waste carrier. A recycler in United States is listed below.

Accutome AccuPen User’s Guide
4www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
Disposal in Europe
The European Community (EC) has
issued two directives; 91/157/EEC
and 93/86/EEC. These directives are
implemented by each member country
in a different way. Thus, in each country,
the manufacturers, importers, and
users are responsible for the proper
disposal or recycling.
In accordance with these directives, the
AccuPen lithium cells do not contain
dangerous substances. The reaction
products are inorganic and do not
represent environmental hazards once
the decomposition or neutralization
process has terminated.
Disposal in the United States
Lithium batteries are neither specifically
listed nor exempted from the federal
Environmental Protection Agency
(EPA) hazardous waste regulations,
as conveyed by the Resources
Conservation and Recovery Act (RCRA).
The only metal of possible concern
in the cell is the lithium metal that is
not listed or characterized as a toxic
hazardous waste. Significant amount
of spent cells and batteries that are
untreated and not fully discharged
are considered as reactive hazardous
waste. Thus, hazardous waste of spent
cells and batteries can be disposed of
after they are first neutralized through
an approved secondary treatment prior
to disposal (as required by U.S. Land
Ban Restriction of the Hazardous and
Solid Waste Amendments of 1984).
Disposal of spent batteries should be
performed by authorized, professional
disposal company that is familiar
with the requirements of the federal,
state, and local authorities regarding
hazardous materials, transportation,
and waste disposal. In any case, it is
recommended to contact the local EPA
office.
PROPER SHIPPING NAME: Waste
Lithium Batteries
UN NUMBER: 3090
LABEL REQUIREMENTS:
MISCELLANEOUS, HAZARDOUS WASTE
DISPOSAL CODE: D003
Following is a battery recycler and
collector in the United States:
ToxCo, Inc.
3200E Frontera,
Anaheim, California 92806
Contact Person: David Miller
Email: [email protected]
Phone: [phone]
Fax: [phone]
www.toxco.com
Symbol Definitions for the
AccuPen
Statements, graphics, and symbols
listed below are used on components
of the AccuPen. Descriptions and
meanings are listed to the right of the
symbols.
Attention! Consult
Instruction Manual
Action Control
Button
Battery
Replacement
Type B Medical
Device
Class II Insulation
Disposal of Product
within the EU

5
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
Safety Precautions
There are several areas in the use of the AccuPen that require special attention, as
they may pose a safety threat.
The AccuPen has an enclosure rated Degree of Protection of IP32. The enclosure
provides protection for objects larger than 2.5 mm and dripping water. In the event
of a spill contacting the unit, wipe the unit completely dry before returning it to
service.
Maintenance
Remove AccuTip tonometer tip cover and dispose.
Clean the sensor with optical-quality compressed gas before the first use each day,
prior to storage, and in the event of suspect readings.
Spray the compressed gas into the sensor for approximately 2 seconds. Wait 3
minutes to allow the instrument to thermally stabilize and place a new AccuTip
tonomter tip cover over the tip.
Disinfection
In order to prevent the transmission of disease, medical authority(ies) having
jurisdiction guidelines are referenced for proper control of sterilization issues.
These guidelines are frequently updated so be sure to contact your local disease-
control agency for the latest information and disinfection techniques.
Cleaning
Keep the surfaces of the AccuPen free of dust and dirt and store the instrument in
a dry and cool place so as not to adversely affect any electronic parts.
CAUTION: No abrasive or harsh cleaning solutions should be used while cleaning the
AccuPen.
When the unit needs cleaning, use only a damp, soft, lint-free cloth. Do not pour
or spray any liquids or cleaners onto the unit at any time. The damp, lint-free cloth
may contain mild soap, if necessary. Gently wipe down the instrument surfaces.
Allow the unit to completely dry before using again. If the probe tip needs cleaning,
Sensor Cleaning Instructions
The AccuPen tonometer may have difficulty taking measurements or display an
“Error Message” when its tip is dirty and requires cleaning. When the tip of the
tonometer has dirt and contaminants in the airspace between the sensor and the
housing, cleaning of the tip is necessary. When the airspace contains contaminants,
the sensor cannot move freely and the tonometer may have erratic readings and
then display an “Error Message.”
NOTE: It is recommended that this procedure be performed on a daily basis to
prevent builup of powder or dirt in the sensor.
Safety

Accutome AccuPen User’s Guide
6www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
To clean the AccuPen, perform the following steps:
1. Remove AccuTip cover from the tonometer, if one is installed.
2. Submerge the tip of the AccuPen in Isopropyl Alcohol to loosen any debris
that may have accumulated in the sensor housing
NOTE: Allow the tip of the AccuPen to soak in the Isopropyl Alcohol for two to
three minutes, frequently moving the tip in the solution to aid in the loosening of
debris.
WARNING! DO NOT SUBMERSE THE ENTIRE TIP IN ISOPROPYL ALCOHOL, AS THIS WILL
DAMAGE COMPONENTS IN THE SENSOR.
3. Using compressed air, place the sensor end of
the tonometer against the outlet of the canned
air as shown in figure 2.1.
4. Blow the canned air into the tip of the tonometer
for approximately 3 seconds.
NOTE: It is necessary to blow canned air directly into
the tip, so that the contaminants are pushed out of
the airspace between the sensor and the housing.
5. After cleaning the tip of the tonometer with
compressed air, the tip will be cold. Allow the tip of the tonometer to warm
to room temperature.
6. Perform the calibration procedure as listed in User Manual.
NOTE: If the tonometer does not pass verification, then repeat the above
cleaning instructions. Do not clean more than 3 times in a row. If the tonometer
still will not pass verification, contact Accutome.
NOTE: Always store the AccuPen tonometer with an AccuTip cover installed to
protect the tonometer tip from dirt and contaminants.
WARNING! NEVER USE THE ACCUPEN TONOMETER WITHOUT AN ACCUTIP COVER
INSTALLED.
Warnings
DO NOT AUTOCLAVE!
DO NOT IMMERSE THE ENTIRE ACCUPEN IN ANY LIQUID.
Electrical Hazard and Safety
The AccuPen is an electrical/electronic device. Reasonable care should be taken
when making an electrical connection and handling electrically powered devices.
Avoid the use of damaged electrical equipment. If repair or maintenance is to be
performed on the AccuPen, the equipment must be turned off and the battery
removed.
Figure 2.1 - Clean with
Canned Air

7
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
The device covers must not be removed except by qualified personnel. There are
no user controls inside the unit. To avoid injury, do not operate the AccuPen without
protective covers.
The system is intended to operate from a 3.6 V lithium battery.
Avoiding Equipment Damage
No peripheral equipment may be connected to the AccuPen.
The AccuPen provides no explosion protection from static discharge or arcing
components. Do not operate the instrument in the presence of explosive gases
such as flammable mixtures of anesthetic and air, or nitrous oxide.
Safety

Accutome AccuPen User’s Guide
8www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
Chapter 3: Getting Started
3Getting Started
Overview
The AccuPen is designed to be used in multiple medical settings and can be rested
on a surface, such as a counter or desk. The AccuPen requires no assembly.
Unpacking Instructions
Upon receiving the AccuPen:
1. Remove the AccuPen Tonometer
case from the protective shipping
materials. Save the shipping materials
for use if return or repair becomes
necessary.
2. Check for missing items. The AccuPen
Tonometer, this guide, a battery, a
screwdriver, a box of 100 AccuTip
single-use latex tip covers, and a
lanyard should be included inside the
case.
3. Visually inspect the AccuPen
Tonometer for damage.
CAUTION: AccuTips contain natural rubber latex,
which may cause allergic reactions. Question patients about allergies to latex before
examining them with the AccuPen.
Accessories Included with the AccuPen
1. (1) XENO 3.6V Lithium Battery
2. (1) User’s Guide
3. (1) Screwdriver
4. (1) Lanyard
5. (1) Box of AccuTips
Note: Notify Accutome, Inc., immediately if any components are missing or
damaged. See Chapter 6 of this manual for contact information.
Battery Specification and Installation
The power source for the AccuPen is a 3.6 V Lithium battery. The battery is included
with the AccuPen and must be installed before use.
Battery Specification
Use only one (1) 3.6 V, XENO model XLP-050F lithium battery, or an equivalent.
Figure 3.1 - AccuPen Unpacked

9
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
CAUTION: Use only the style and type of battery specified. Using another style or
type of battery may cause damage to the product and invalidate the warranty.
Battery Installation
CAUTION: The battery is polarized so that it only fits into the battery compartment one way.
Check to be sure that the battery is installed correctly, and do not force
the battery into place. Incorrect battery installation could cause severe damage to the
product and invalidate the warranty.
To install the battery in the AccuPen:
1. Locate the battery compartment
(as shown in Figure 3.2) on the
bottom of the AccuPen and open
the compartment by unscrewing
the battery door screw. The battery
door is hinged to the bottom of the
handle and should not be removed
from the product.
2. Insert the XENO model XLP-050F
lithium battery, or an equivalent,
into the battery compartment as
shown in Figure 3.2.
3. Close the battery compartment
door and screw the captive
battery door screw back into
position to firmly hold the battery
compartment door in a closed position.
Do not over tighten the screw.
Instructions for Use
CAUTION: Do not Autoclave the AccuPen Tonometer.
Initial AccuPen Tonometer Setup
The followiing steps outline the basic setup of the AccuPen.
1. If the battery is not installed in the AccuPen, install the battery as described
in “Battery Installation” on page 5 and 6 of this guide.
2. To return to the Measurement screen, press and hold the Action Control
button for 2 to 3 seconds until the Measurement screen appears.
Figure 3.3 - Action Control Buttons and LCD
Figure 3.2 - Battery Insertion
Up ButtonAction Control Button
Down Button
Getting Started

Accutome AccuPen User’s Guide
10 www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
Calibration
The AccuPen is calibrated during the manufacturing process, so there is no need to
calibrate the unit prior to using it for the first time.
Recalibration of the unit is recommended after the unit has been dropped,
mishandled or cleaned. The steps to recalibrate the AccuPen are as follows:
1. With the AccuPen powered on, press and hold the Action Control button
and Up button simultaneously for 5 seconds. Probe will enter calibration
mode and “PROB HORZ” will be displayed on LCD as shown in Figure 3.4.
2. Hold AccuPen, so the probe is horizontal and press Action Control button
as shown in Figure 3.4.
Figure 3.4 - Calibration Probe Horizontal Position
3. Wait for a beep and then hold the AccuPen so that the probe is straight up
in a vertical position. Press the Action Control button as shown in Figure
3.5. “PROB UP” will be displated on the LCD.
Figure 3.5 - Calibration Probe Up Position
4. Wait for a beep again and then hold the AccuPen so that the probe is
straight down in a vertical position and press the Action Control button as
shown in Figure 3.6. “PROB DOWN” will be displayed on the LCD.

11
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
Getting Started
Figure 3.6 - Calibration Probe Down Position
5. Wait for a beep, then a calibration number will be displayed on the LCD.
6. Press the Action Control button again to exit calibration mode and store
calibration number.
7. If “No Calc” is displayed on the LCD, the calibration process was not
performed correctly.
Basic Operation
The basic operation of the AccuPen consists of the following steps:
1. Power on the AccuPen instrument.
2. Take up to nine measurements.
3. Enter the measured CCT (Central Corneal Thickness) and calculate the AIOP
(Adjusted IOP) for each eye.
4. Record the data in the Patient Record.
How to Power On the AccuPen
1. With the battery installed, the AccuPen is always powered. However, after a
period of nonuse, the unit turns off sections of the electronics, including the
LCD, to conserve power. To restore the unit to full power, press any control
button.
2. The Product Information Screen is briefly shown, and then the Measure
Screen is displayed.
How to Start a New Patient
1. Hold the Up and Down control buttons on the
AccuPen simultaneously for 2 to 3 seconds.
2. A single beep from the instrument will indicate
that all IOP measurements, averages, CCT
entries, and calculations are set to zero.
WARNING! THE ACCUTIP COVER MUST BE REPLACED BEFORE TAKING ANY
MEASUREMENTS ON A NEW PATIENT.
Figure 3.7 - Measurement
Screen Starting New Patient

Accutome AccuPen User’s Guide
12 www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
How to Take a Measurement
1. Touch and hold the Up and Down control
buttons on the AccuPen simultaneously for
2 to 3 seconds to reset all measurements,
averages, and IOP information to zero.
2. Press and release the Action Control button.
Two high-pitched chirps (beeps) and a
rotating line to the left of the average in the
display indicate that the AccuPen is ready to
take a reading.
3. Gently tap the sensor tip on the patient’s eye.
4. The AccuPen will automatically proceed to the next empty measurement if
it is available.
5. The AccuPen will emit a high-pitched chirp (beep) when you have
automatically acquired a measurement.
6. The AccuPen will emit three high-pitched chirps (beeps) when the ninth
measurement has been taken, or if the measurement time expires.
Notes
1. The AccuPen can take up to nine measurements and provide the average
of those measurements. This average is the number used when calculating
the Adjusted Intraocular Pressure (AIOP).
2. The * symbol by a measurement indicates the reading that is furthest away
from the average.
3. You can review the measurements taken by pressing the Up and Down
control buttons.
4. You can delete any measurement taken by touching and holding either the
Up or Down control button for several seconds (until the unit emits a high-
pitched chirp). After deleting a measurement, the unit will automatically
recalculate the average of the measurements.
How to Calculate Adjusted IOP
After you have completed a Patient’s measurements, you can calculate the
Adjusted IOP for the Patient. You can perform the calculation from the MCCT
(Manual Central Corneal Thickness) Screen.
To calculate Adjusted IOP:
1. From the Measurement screen, select the
MCCT screen by pressing and holding the
Action Control button for 2 to 3 seconds.
530μm will appear as default.
2. Enter the measured CCT by pressing the Up
and Down control buttons until the proper
measured CCT is displayed. If you make a
mistake, just reselect the correct value.
3. The Adjusted IOP based on the average of the measurements taken is
displayed below the measured IOP.
4. Return to the Measurement screen by pressing and holding the Action
Control button until the Measurement screen appears.
Figure 3.8 - Capturing a
Measurement
Figure 3.9 - Adjusted IOP
Screen

13
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
Getting Started
Table 3.1 below provides the IOP correction values.
Table 3.1 - IOP Correction Values
Corneal Thickness (micrometers) Correction Values (mmHg)
405 7
425 6
445 5
465 4
485 3
505 2
525 1
545 0
565 -1
585 -2
605 -3
625 -4
645 -5
665 -6
685 -7
705 -8
Correction Values according to corneal thickness of 545 micrometers. These correction
values are modified from the work of Doughty and Zamen. This chart was reproduced from the
Review of Ophthalmology, July 2002. Leon Herndon, MD, Duke University, Glaucoma Service,
Pages 88, 89, 90.
WARNING! CCT ADJUSTMENTS ARE NOT SUPPORTED BY PERFORMANCE DATA.

Accutome AccuPen User’s Guide
14 www.accutome.com • [phone] US & CA • [phone] International • [phone] Europe
General Maintenance
Maintenance that should be performed on the AccuPen consists of activities such
as keeping surfaces free of dust and dirt and storing in a dry and cool place so as
to not adversely effect electronic parts.
Refer to page 3 for details on sterilization, disinfection, and cleaning before doing
any sterilization, disinfection, or cleaning of the AccuPen.
CAUTION: No abrasives or harsh cleaning solutions should be used while cleaning
the AccuPen.
Note: The unit does not contain any user replaceable parts other than the
battery.
Maintenance and Cleaning
Clean the AccuPen Tonometer by wiping everything except the tip with a clean, lint-
free, non-abrasive cloth and alcohol. Clean the AccuPen Tonometer tip by wiping
the tip with alcohol and allowing it to air dry. Do not drop the device. Avoid any shock
or excessive vibration as this may damage the unit. Do not immerse the device in
any fluid. This will damage the electronics and invalidate the warranty.
Note: See Chapter 2 for detailed cleaning instructions and see Chapter 3 for
battery specification and installation.
Storage
1. When not in use, the AccuPen Tonometer and all accessories should be
placed in the storage case.
2. If the AccuPen Tonometer is not to be used for an extended period of time,
remove the battery from the device.
Troubleshooting
Refer to Table 4.1 below for information on identifying and correcting problems that
can occur with the AccuPen.
Table 4.1 - AccuPen Troubleshooting Information
Symptom Probable Cause Correction
“LOW BATT”
displayed
Battery is low Replace battery (see Chapter 3)
Multiple variable
readings
Improper technique Review measurement technique
Getting Started
Chapter 4: Maintenance, Storage & Troubleshooting
4Maintenance, Storage
& Troubleshooting

15
[phone] US & CA • [phone] International • [phone] Europe • www.accutome.com
Table 4.1 - Continued AccuPen Troubleshooting Information
Symptom Probable Cause Correction
Multiple variable
readings
Battery is low Replace battery (see Chapter 3)
Mechanical or
electronic damage
Arrange for repair through
Accutome Technical Service
Group (see Chapter 6)
No beep and/
or no display
upon activation
Action Control
button not held down
long enough
Hold down Action Control
button longer
Incorrect battery
installation
Check battery installation
Battery is low Replace battery (see Chapter 3)
Mechanical or
electronic damage
Arrange for repair through
Accutome Technical Service
Group (see Chapter 6)
No readings Improper technique Review measurement technique
Incorrect battery
installation
Check battery installation
Battery is low Replace battery (see Chapter 3)
Mechanical or
electronic damage
Arrange for repair through
Accutome Technical Service
Group (see Chapter 6)
“NO CALC”
displayed
Out of calibration Recalibrate unit (see Chapter 3)
“ERR 0” displayed Measurable range out
of tolerance
Arrange for repair through
Accutome Technical Service
Group (see Chapter 6)
“ERR 1” displayed Measurable range out
of tolerance
Arrange for repair through
Accutome Technical Service
Group (See Chapter 6)
“ERR 2” displayed Measurable range out
of tolerance
Arrange for repair through
Accutome Technical Service
Group (See Chapter 6)
Maintenance, Storage, & Troubleshooting
