Acer packardbell viseo 193ws User manual
3
Copyright
Copyright © 2003 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
Transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice. Acer Incorporated makes no representations or
warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties
of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is
sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer
Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
Trademarks
Acer is a registered trademark of Acer Incorporated.
All other trademarks are property of their respective owners.
Conventions
The following conventions are used in this manual:
Screen messages Denotes actual messages that appear on screen.
Note Gives bits and pieces of additional information related to the current topic.
Warning Alerts you to any damage that might result from doing or not doing specific actions.
Caution Gives precautionary measures to avoid possible hardware or software problems.
Important Remind you to do specific actions relevant to the accomplishment of procedures.
http://www.wjel.net
4
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided
for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness,
your regional office may have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra
memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such
cases, please contact your regional offices or the responsible personnel/channel to provide you with further
technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on
your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the
printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list
provided by your regional Acer office to order FRU parts for repair and service of customer machines.
Warning: (For FCC Certified Models)
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this
equipment. It is the responsibility of the user to correct such interference.
As ENERGY STAR®Partner our company has determined that this product meets the ENERGY STAR®
guidelines for energy efficiency.
Warning:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerous high voltages are present
inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.
Precautions
http://www.wjel.net
5
zDo not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in
a wet basement.
zDo not place the monitor on an unstable trolley, stand, or table. If the monitor falls, it can injure a person and
cause serious damage to the appliance. Use only a trolley or stand recommended by the manufacturer or sold
with the monitor. If you mount the monitor on a wall or shelf, uses a mounting kit approved by the manufacturer
and follow the kit instructions.
zSlots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable
operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered.
Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator
or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.
zThe monitor should be operated only from the type of power source indicated on the label. If you are not sure of
the type of power supplied to your home, consult your dealer or local power company.
zThe monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit
only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug,
have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the
safety purpose of the grounded plug.
zUnplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the
monitor from damage due to power surges.
zDo not overload power strips and extension cords. Overloading can result in fire or electric shock.
zNever push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric
shock. Never spill liquids on the monitor.
zDo not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous
voltages and other hazards. Please refer all servicing to qualified service personnel
zTo ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between 100 - 240V AC, Min. 5A.
zThe wall socket shall be installed near the equipment and shall be easily accessible.
Special Notes On LCD Monitors
The following symptoms are normal with LCD monitor and do not indicate a problem.
Notes
zDue to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and
then turn it on again to make sure the flicker disappears.
zYou may find slightly uneven brightness on the screen depending on the desktop pattern you use.
zThe LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a
missing pixel or a pixel lit all of the time.
zDue to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image,
when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image
or turning off the Power Switch for hours.
http://www.wjel.net
6
Table Of Contents
Chapter 1 Monitor Features ………………………………………… 7
Introduction ……………………………………… 7
Electrical Requirements ……………………………………… 8
LCD Monitor General Specification ……………………………………… 9
LCD Panel Specification ……………………………………… 10
Support Timing ……………………………………… 13
Monitor Block Diagram ……………………………………… 14
Main Board Diagram ……………………………………… 15
Software Flow chart ……………………………………… 16
Main Board Layout ……………………………………… 18
Installation ……………………………………… 19
Chapter 2 Operating Instructions ……………………………………… 20
External Controls ……………………………………… 20
eColor Management (OSD) ……………………………………… 21
How to Adjust a Setting ……………………………………… 22
How To Optimize The DOS-Mode ……………………………………… 24
Chapter 3 Machine Disassembly ……………………………………… 25
Chapter 4 Troubleshooting ……………………………………… 30
Chapter 5 Connector Information ……………………………………… 36
Chapter 6 FRU (Field Replacement Unit) List ……………………………………… 38
Exploded Diagram ……………………………………… 38
Chapter 7 Schematic Diagram ……………………………………… 42
http://www.wjel.net
7
Monitor Features
Introduction
Scope
This short specification describes the electrical, optical and functional performance requirements for a 48cm(19”)
TFT LCD color monitor with VGA&DVI compatible interface.
Description
The LCD monitor is designed with the latest LCD technology to provide a performance oriented product with no
radiation. This will alleviate the growing health concerns. It is also a space saving design, allowing more desktop
space, and comparing to the traditional CRT monitor, it consumes less power and gets less weight in addition MTBF
target is 50k hours or more.
Chart of Viseo 193ws
Panel M190PW01 V00 SZ AUO
Signal Interface D-Sub 15pin;DVI 24pin
Sync Type Separate / Compatible
Color Temp User Adjust Support
DDC DDC2B
Speaker Yes
Headphone Jack Yes
Microphone Jack No
USB Hub Not support
Tilt / Swivel No / No
Chapter 1
http://www.wjel.net
8
Electrical Requirements
Standard Test Conditions
All tests shall be performed under the following conditions, unless otherwise specified.
Ambient light Dark room (< 1 cd/m2)
Viewing distance 40 cm for LCD performance, 20 cm for LCD failures
Warm up time ＞30 minutes
Analog Input signal 700 mVss
Control temperature 6500°K
User brightness control The value under user mode
User contrast control
Set to factory preset value, which allows that the brightest two of
32 linear distributed gray-scales (0～700mv) can be
distinguished.
Picture position and size Factory preset value
Viewing angle 90° H and V
AC Supply voltage 230V± 5％, 50±3Hz;110V±5％,60±3Hz
Ambient temperature 20+5℃
Humidity 65% ±20%
Display mode 1440 x 900, 60 Hz, all white
e-color mode Set to “User” mode
Measurement systems
The units of measure stated in this document are listed below:
1 gamma = 1 nano tesla
1 tesla = 10,000 gauss
cm = in x 2.54
Lb = kg x 2.2
Degrees F = [°C x 1.8] + 32
Degrees C = [°F - 32]/1.8
u' = 4x/(-2x + 12y + 3)
v' = 9y/(-2x + 12y + 3)
x = (27u'/4)/[(9u'/2) - 12v' + 9]
y = (3v')/[(9u'/2) - 12v' + 9]
nits = cd/(m2) = Ft-L x 3.426
lux = foot-candle x 10.76
http://www.wjel.net
9
LCD Monitor General Specification
Driving system TFT Color LCD
Active Display Area 255.15 (W) × 408.24(H)
Pixel pitch 0.2835(H) x 0.2835(W)
Contrast Ratio 1000 : 1
Response time 5ms
LCD Panel
Luminance of White 300cd/㎡(Typ)
Separate Sync. H/V TTL
H-Frequency 30kHz – 80kHz
Input
V-Frequency 55-75Hz
Viewing angle (H)90° (V) 90°(Type)
Display Colors 16.7M
Display mode 1440 x 900 @60Hz
ON Mode < 45W
EPA ENERGY STAR®
OFF Mode <2W
Contrast control
Set to factory preset value, which allows that the brightest two of 32 linear distributed
gray-scales (0～700mv) can be distinguished.
Power Source 100 V ~ 240 V，50 ±3Hz, 60 ±3Hz
Environmental
Considerations
Operating Temp: 5° to 35°C
Storage Temp: -30° to 65°C
Operating Humidity: 0% to 90%
Storage Humidity: 0% to 90%
Peak surge current < 55A peak at 240 VAC and cold starting
Power line surge No advance effects (no loss of information or defect) with a maximum of 1 half-wave
missing per second
http://www.wjel.net
13
Support Timing
MODE MODE NAME Resolution H.FREQ V.FREQ
1
640x480 31.469 59.941
2
640x480 37.861 72.809
3
640x480 37.5 75
4 MAC 640x480 35 66.66
5 VESA 720x400 31.469 70.087
6 SVGA 800x600 35.156 56.25
7 800x600 37.879 60.317
8 800x600 48.077 72.188
9 800x600 46.875 75
10 MAC 832x624 49.722 74.55
11 XGA 1024x768 48.363 60.004
12 1024x768 56.476 70.069
13 1024x768 60.023 75.029
14 MAC 1152x870 68.7 75
15 VESA 1152x864 67.5 75
16 1280x960 60 60
17 SXGA 1280x1024 63.981 60.02
18 1280x1024 79.976 75.025
19 VESA 1280x720 44.955 59.94
20 1280x768 47.776 59.87
21 1280x768 60.289 74.893
22 WXGA 1280x800 49.702 59.81
23 WXGA+ 1440x900 55.935 59.887
24
1440x900 70.635 75
http://www.wjel.net
14
Monitor Block Diagram
The LCD MONITOR will contain a main board, a power board and a key board which house the flat panel control
logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.
Inverter Board
(include adapter)
Flat Panel and
CCFL backlight
Main Board
Key board
Input :
D-SUB Signal
CCFL Drive.
AC-IN
100V-240V Input
DVI
http://www.wjel.net
17
Remark:
1) MCU initializes.
2) Is the EEPROM blank?
3) Program the EEPROM by default values.
4) Get the PWM value of brightness from EEPROM.
5) Is the power key pressed?
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Save the power key status into EEPROM.
Turn on the LED and set it to green color.
Scalar initializes.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog port, are there any signals coming?
13) Does the scalar send out an interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog port?
16) Display "No connection Check Signal Cable" message. And go into standby mode after the
message disappears.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key pressed?
http://www.wjel.net
18

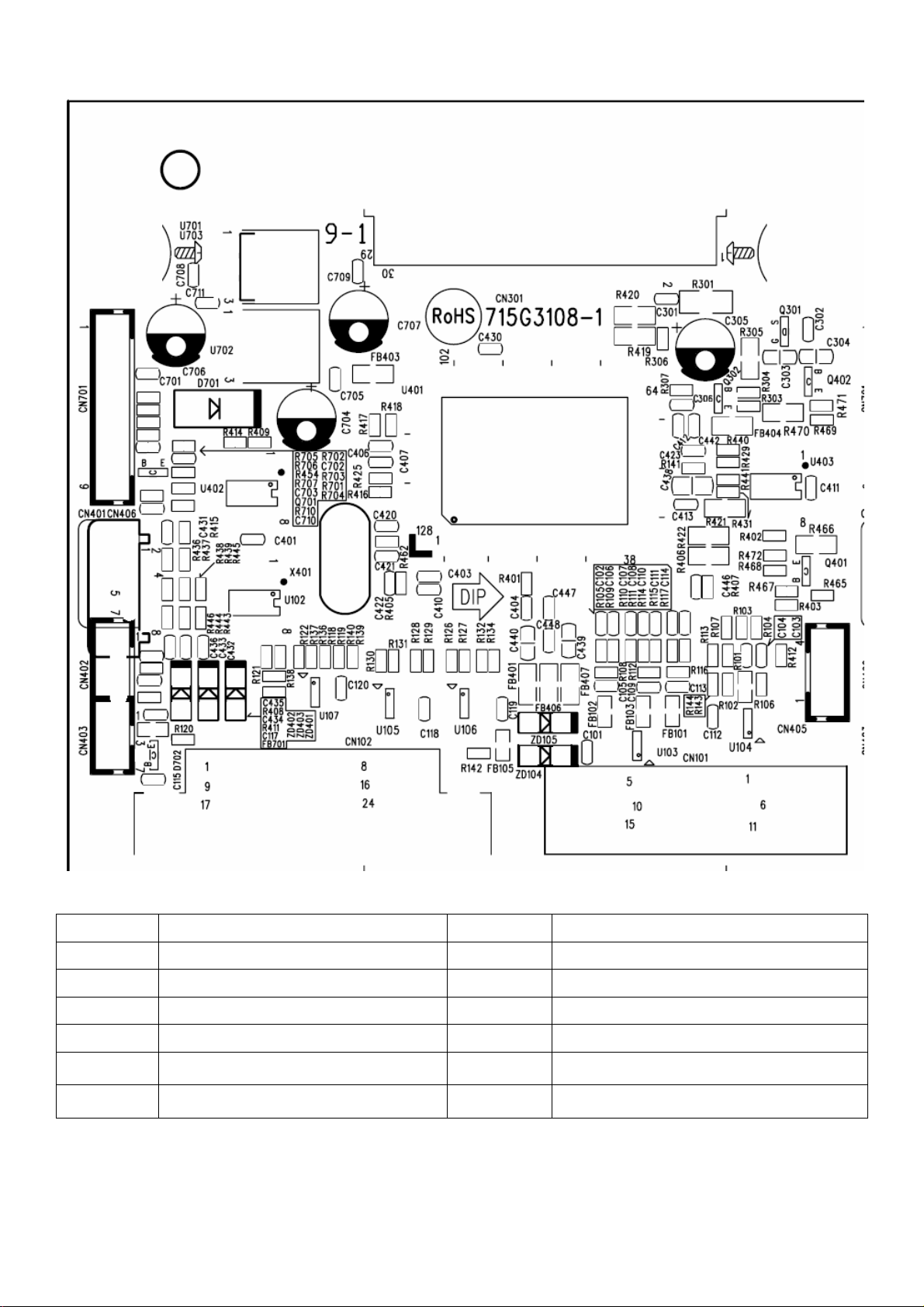

Main Board Layout
Symbol Description Symbol Description
U401 IC NT68667FG QFP-128L CN402 WAFER
U703 IC AP1117D33L-13 TO252-3L DIODES CN701 WAFER 9P RIGHT ANELE PITCH
U103 IC AZC099-04S SOT23-6L CN301 CONNECTOR
U104 IC AZC099-04S SOT23-6L X401 CRYSTAL 12MHz HC-49US ARG6-120
U402 IC PM25LV010A-100SCE SOIC-8 CN101 D-SUB 15PIN
U403 M24C16-WMN6TP CN102 DVI 24PIN CONN F
http://www.wjel.net
19
Installation
To make it easier to connect the right plug into the right connector, Packard Bell has introduced Colour Coding.
Each connector has its own icon with its own colour. Please make sure to always put a plug into a connector with
corresponding icon and colour.
Make sure your system and LCD monitor power are OFF.
• If your computer is equipped with a VGA port, connect one of the VGA cable plugs to the VGA port on your
computer's rear panel and the other to the connector on the rear of the monitor. According to PC99 requirements,
the VGA plug and connector should be coloured blue. The VGA interface allows your computer to output analog
signals.
The monitor is automatically configured to match the PC video settings with maximum SXGA resolution.
http://www.wjel.net
20
OperatingInstructions
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
•The power cord should be connected.
•Connect the video cable from the monitor to the video card.
•Press the power button to turn on the monitor position. The power indicator will light up.
External Controls
1. Press the AUTO Button (A) to perform an automatic optimized display setup.
2. Press the MENU Button (B) to access the OSD menu.
3. The POWER button (C) switches your monitor on and off. We recommend you switch the monitor on before
switching the computer on.
4. Press the < button (D) or the > button (E) to choose the item you want to adjust. Use the MENU Button to choose
the modification and then use the > and < buttons to increase or decrease the value of the selected control, press
the MENU button again to set the new value.
Chapter 2
http://www.wjel.net
Other manuals for packardbell viseo 193ws
3
Table of contents
Other Acer Monitor manuals
