Acer PalmPro 7763P User manual

Digital Multimedia Projector
PalmPro 7763P/65PE
OPERATING GUIDE
Thank you very much for purchasing this Acer DLP™ Technology Projector.
Please read this operating guide to ensure correct use of the device. After reading this
manual, keep it for future reference.
Outline
Model name
This DLP™ Technology Projector can display
various computer signals and NTSC/PAL/SECAM
video signals.
Features
(1) High brightness
(2) High resolution
(3) Compact size, light weight for portability
(4) RGB output terminal
(5) RS232 Communication
(6) Mouse emulation
(7) Complies with VESA DDC1/2B specifications
English I

Copyright
Copyright © 2000 by this company. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system or
translated into any language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of this company.
Disclaimer
This company makes no representations or warranties, either expressed or implied,
with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Further, this company
reserves the right to revise this publication and to make changes from time to time
in the contents hereof without obligation of this company to notify any person of
such revision or changes.
Fill this in!!
For the convenience of service, record the following
information in the space below. The serial number is
on the back of the product.
Monitor Information
Product
Name: 7763P/65PE
Serial
Number:
Date of
Purchase:
Dealer Information
Dealer:
Telephone
Number:
Address:
Caution
TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER –SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PLUS SERVICE PERSONNEL. AND PLEASE READ ALL OF THESE
INSTRUCTIONS BEFORE YOU OPERATE YOUR PROJECTOR. SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE .
Safety Instructions
1. Read all of these instructions before you operate your projector and save for
future reference.
2. The lamp becomes extremely hot during operation. Allow the projector to cool
for approximately 45 minutes prior to removing the lamp assembly for
replacement. Do not operate lamps beyond the rated lamp life. Excessive
operation of lamps beyond rated life could cause them to explode in rare
occasions.
3. Power is still available when the projector is in the standby mode. Never
replace lamp assembly or any electronic components unless the projector is
unplugged.
4. Do not attempt to service this product yourself, as opening or removing covers
may damage the components inside and will void your warranty.
English II

5. Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.
6. The Standard Remote Control contains a low-power laser that acts as a pointing
device during presentations. The light beam may cause injury if pointed
directly into a person’s eyes.
7. This product is capable of displaying inverted images for ceiling mount
configurations. Please use suitable equipment for mounting the unit and make
sure it is securely installed.
8. Openings in front or at two sides are for ventilation. They must not be blocked
or covered.
9. For ventilation reasons, the fan continues to operate for about 2 minutes after
the projector has been powered off. Please do not unplug the power cord until
the fan stops.
10. Do not look straight at the projector lens during operation. The intense light
beam may injure your eyes.
English III

Table of Contents
Introduction .......................................... 1
Projector Features ............................... 1
Description ....................................... 2
A FRONT (figure) .............................. 2
B REAR (figure) ............................... 2
C BOTTOM (figure) ............................. 3
Installation ...................................... 3
A. Positioning ............................. 3
B. Adjustable Feet ........................ 4
Moving the Projector .............................. 4
Accessories ....................................... 5
Connection ............................................ 7
A Connecting the Projector to Computer/Notebook 7
B Connecting the Projector to Macintosh/Power Book 8
Operation ............................................. 9
Turn On/Off Procedure ............................. 9
A Power on .................................... 9
B Standby ..................................... 9
External Control .................................. 9
A Control Pad ............................ 9
B Remote Control ........................ 11
Usage and Replacement of Lamp .................... 12
A Lamp/temperature Status LED Indicator ...... 13
B Replacing the Lamp ......................... 14
OSD .............................................. 17
Main OSD Menu .................................... 17
A Display Page .......................... 18
B Image Page ............................ 19
C Control Page ........................... 20
D Source Page ............................ 21
Other Correspondent Remote Functions and Messages 22
Maintenance and Troubleshooting ...................... 24
A Lamp Replacement ....................... 24
B Cleaning the Lens ...................... 24
C Troubleshooting ......................... 24
Specifications ....................................... 26
A Optical ................................ 26
B Electrical ............................. 26
C Mechanical .............................. 26
D Preset Display Resolution Table ......... 27
Appendix ............................................. 28
AV Connection Port ............................... 28
AV Control Pad ................................... 28
A Connecting the Box ..................... 29
English IV

English 1
A
B
C
D
E
F
Introduction
1
Projector Features
Image Resolution
Fully compatible with true SVGA(63P)/XGA(65PE), and supports SXGA
using advanced intelligent compression technology. The advanced
intelligent compression technology enables it to present clear
compression SVGA/XGA images without line omission.
Brightness
Provides superior brightness of 700 ANSI lumens using TI’s Digital
Micromirror Device (DMD) and our own optical design, with a geometric
effect that increases light usage efficiency. By increasing the light
usage efficiency we can better reproduce the three basic colors (RGB)
required for color reproduction on a single DMD.
Portability
This projector has a sophisticated shape, like that of an attaché
case, with a retractable carrying handle that is extremely compact
and lightweight. It helps you make powerful presentations wherever
you go with its 5-pound weight and B5 size.
Keystone
The projection position is already set to the height of the line of
vision; there is no keystone effect. Even when projecting above or
under the height of the line of vision, image distortion (if any) can
be adjusted using the keystone correction function.
Multilanguage
The OSD (On Screen Display: information screens and menus) in 7
languages (English, Deutsch, Français, Italiano, Español, Swedish and
Dutch) provides you with additional information to help you make
corrections with OSD operation in your native languages.
Auto Detect System
This projector can detect display signals from PCs with frequently
used timing and do the optimization simultaneously. It does not
require complicated adjustments in order to project picture images
from PCs.

G
H
A
Ceiling Mount and Rear Screen Projection
The projector is equipped with a full mirror scan conversion function
(vertical/horizontal mirror), which allows the image to be reversed
for ceiling mounting as well as for rear projection applications.
AV box
An AV box is optional, and users can attach one or two to the
projector. Additionally, our AV box video standard is compatible with
NTSC U.S. and Canada standard
PAL Western Europe standard
SECAM France and Eastern
Europe standard
NTSC4.43 Middle East standard
If users want to watch CATV, AV box will serve the need.
Description
FRONT (figure)

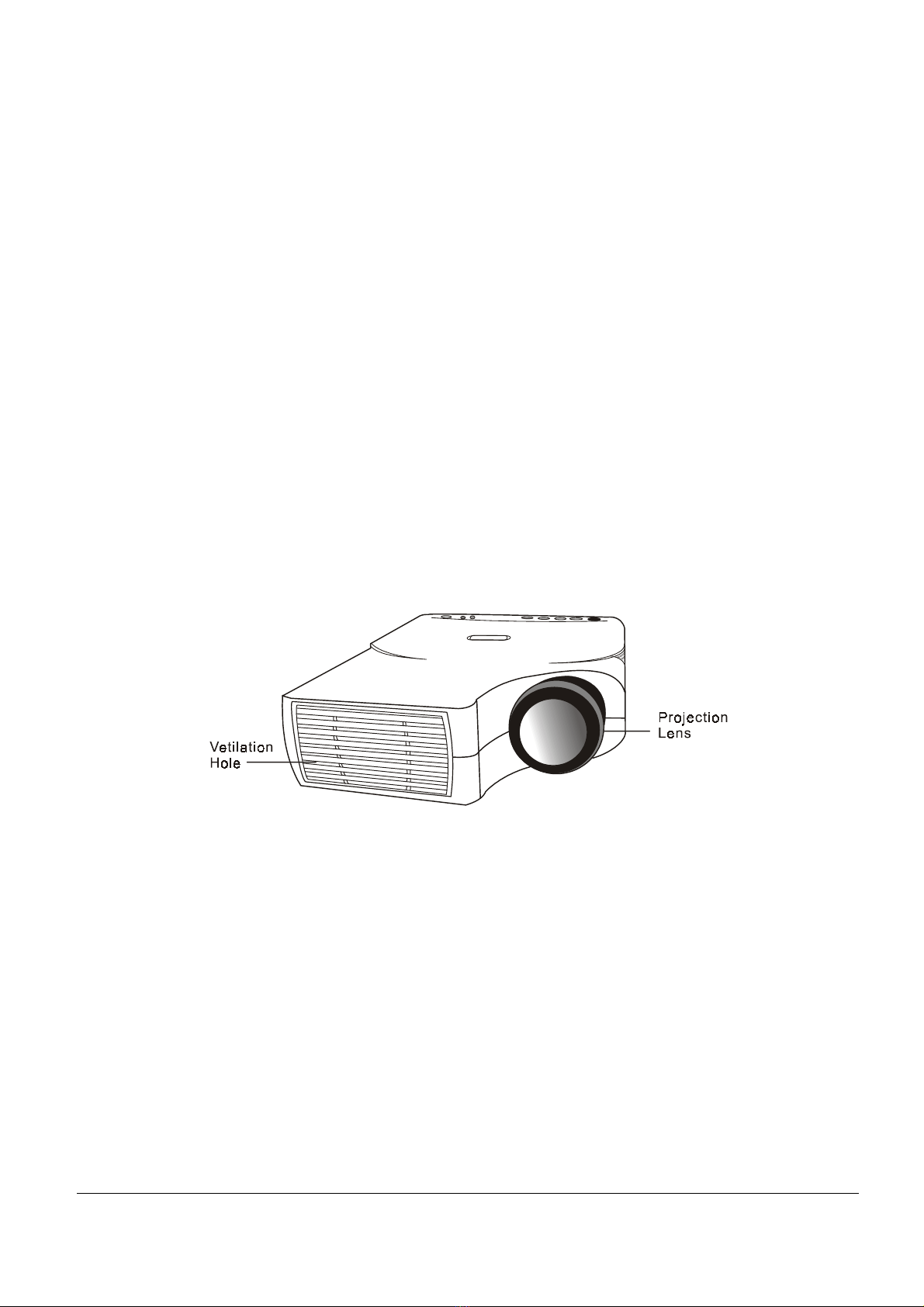

Figure 1 Front view of 7763P/ 65PE
B REAR (figure)
English 2

Figure 2 Rear view of 7763P/65PE
C BOTTOM (figure)
Figure 3 Bottom view of 7763P/65PE
Installation
A.
•
•
•
Positioning
This projector is basically designed to project on a flat
projection surface.
This projector can be focused from 1.5m–14m.
Refer to the figure below to adjust the screen size.
English 3

Figure 4 Positioning of 7763P/65PE
B.Adjustable Feet
Picture tilt and projection angle can be adjusted by twisting
Adjustable Feet. Projection angle can be adjusted 2°to 8.5°degrees
by rotating Adjustable Feet.
Figure 5 Adjustable feet

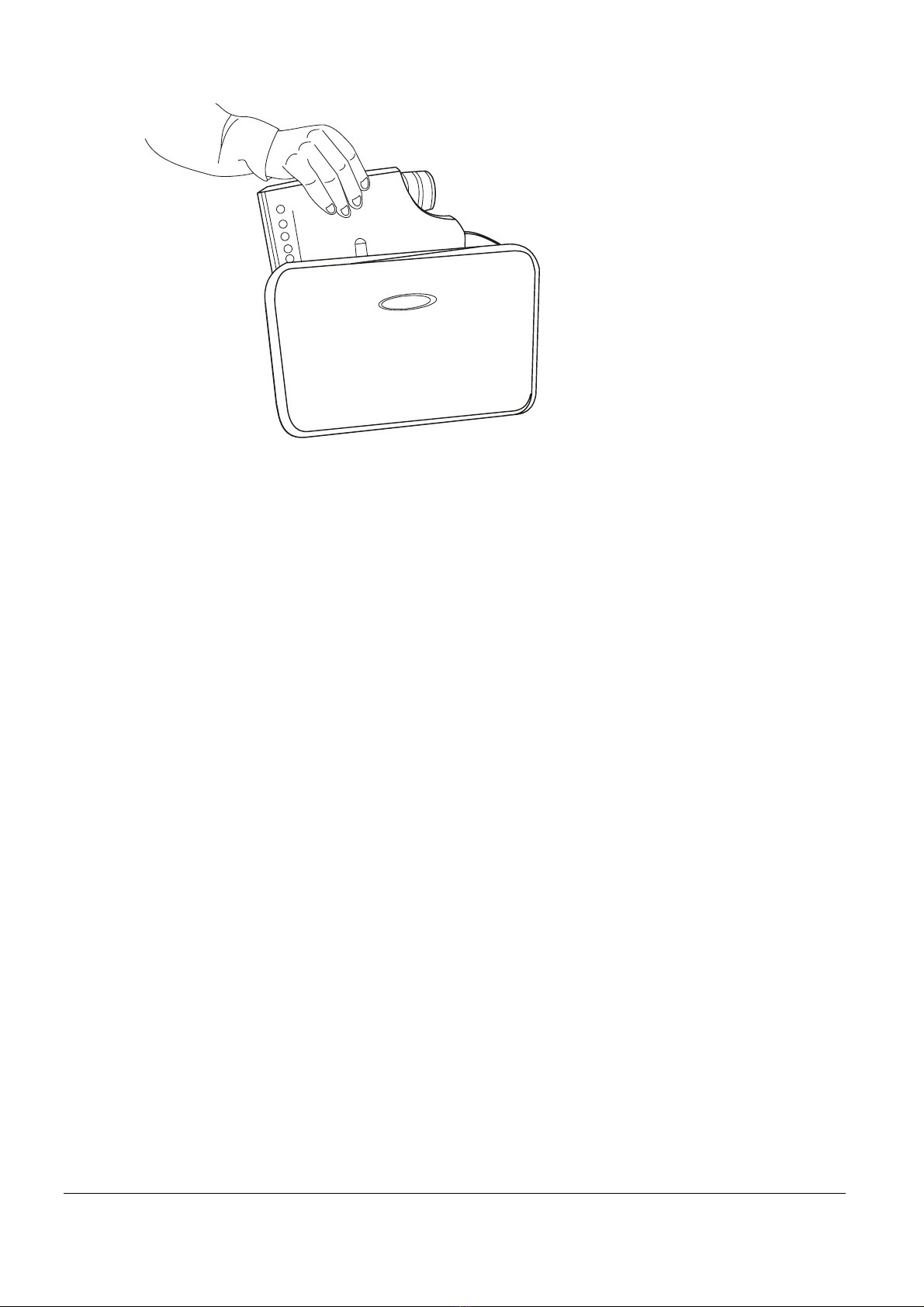

Moving the Projector
Use the carrying handle when moving the projector.
Replace the lens cover and rotate the feet fully clockwise (to
shorten the feet) when moving the projector to prevent damage to the
projector.
Caution
The carry bag (supplied) is intended to protect the projector from dust and
scratches on the surface of the cabinet. It is not designed to protect the
projector from external shock.
Do not transport the projector in an unsuitable transport case by using a courier
or transport service. This may cause damage to the projector.
English 4

Figure 6 Moving the projector
Accessories
Please check and make sure your box contains everything listed below.
If any pieces are missing, contact your dealer.
Please save the original box and packing materials in case you ever
need to ship the unit.
English 5

Figure 7 Accessories of 7763P/65PE
English 6

English 7
A
Connection 2
Connecting the Projector to Computer/Notebook
Figure 8 Connection to PC
Figure 9 Connection to notebook

B Connecting the Projector to Macintosh/Power Book
Figure 10 Connection to Macintosh
Figure 11 Connection to Power Book
English 8

English 9
A



B
A
Operation
3
Turn On/Off Procedure
Power on
Press the Standby/On key to turn on the lamp. The LED will blink
green during warm up and then light solid green.
"INPUT SIGNAL DETECTED, ACTIVATING AUTO IMAGE" will be displayed on the
screen after the projector has identified the input signal;
“SEARCHING“ message will be displayed on the screen if there is no signal
input;
“SYNC IS OUT OF RANGE” message will be displayed on the screen if the
horizontal frequency of the input signal exceeds the range of the
projector.
Standby
Press the Standby/On key for more than one second to turn off the
lamp. The LED will then blink orange and the lamp will shut down,
but the fan will continue to run for about 1 minute to cool the
lamp. After the fan stops, the LED will turn to a light solid
orange.
*Lamp Protection Procedure: If you try to turn on the lamp again while the LED is
blinking, the projector will ignore the command until it has cooled down for one
minutes.
External Control
Control Pad
Figure 12 External control pad

MAIN UNIT FUNCTION
Menu To call the OSD menu.
To enter sub pages.
To select items.
4To navigate through sub pages or to increase
the scale bar number.
3To navigate through sub pages or to decrease
the scale bar number.
Exit To exit from the current page or OSD menu, and
save setting changes.
To show lamp hour message
Standby/On To turn the projection lamp on and off.
Standby/On
indicator Functions as an indicator showing the standby
status.
Lamp status
indicator Lights or blinks when the lamp does not light.
English 10
STMANDBY/ON Laser
Exit
Source
Blank
Freeze
L-Click R-Click
Volume
Mute
Menu
Magnify
Drag
Return
(LED)

B Remote Control
Figure 13 Remote control
The remote control allows you to operate the function keys on the
projector and to emulate mouse function when the projector is
connected to a computer.
Main Unit Function
Standby/On To turn the projection lamp on and off.
Freeze Pressing this button displays a still (frozen)
picture.
Magnify Pressing this button partially magnifies a displayed
picture.
(Move the picture with the Disk Pad after pressing
the Magnify button.)
Disk Pad When the OSD menu is active, Disk Pad acts as
56selecting device. When the on-screen menus are
not active, it works as mouse pad. When the magnify
function is active, use disk pad to move through the
picture.
Menu Call the OSD Menu.
To enter sub pages.
To select items.
Blank The blank screen is displayed by pressing Blank. And
the blank screen will be revealed partially from top
to bottom by pressing Blank again.
Source Selects the input source.
Mute Mutes the sound.
Volume Adjusts volume. The sound gets louder or quieter by
pressing the "+" or "-" button.
Laser Laser pointer on button. Use as a stick (for
indication).
Mouse Left-
Click When operating in mouse emulation mode, it registers
a left mouse click. (bottom button)
Mouse Right-
Click When operating in mouse emulation mode, it registers
a right mouse click.
Exit To leave current OSD Pages.
34Drag To move Left/Right among OSD items.
English 11
Inserting Batteries in the Remote Control

Be sure to follow instructions in placing batteries into the remote
control units.
Push and slide the lid in the direction of the arrow.
•
•
•
Install two ’AAA’ batteries as indicated inside the battery
compartment.
Replace the lid and snap into place.
Caution
•
•
Avoid excessive heat and humidity.
Do not mix new and old or different types of batteries.

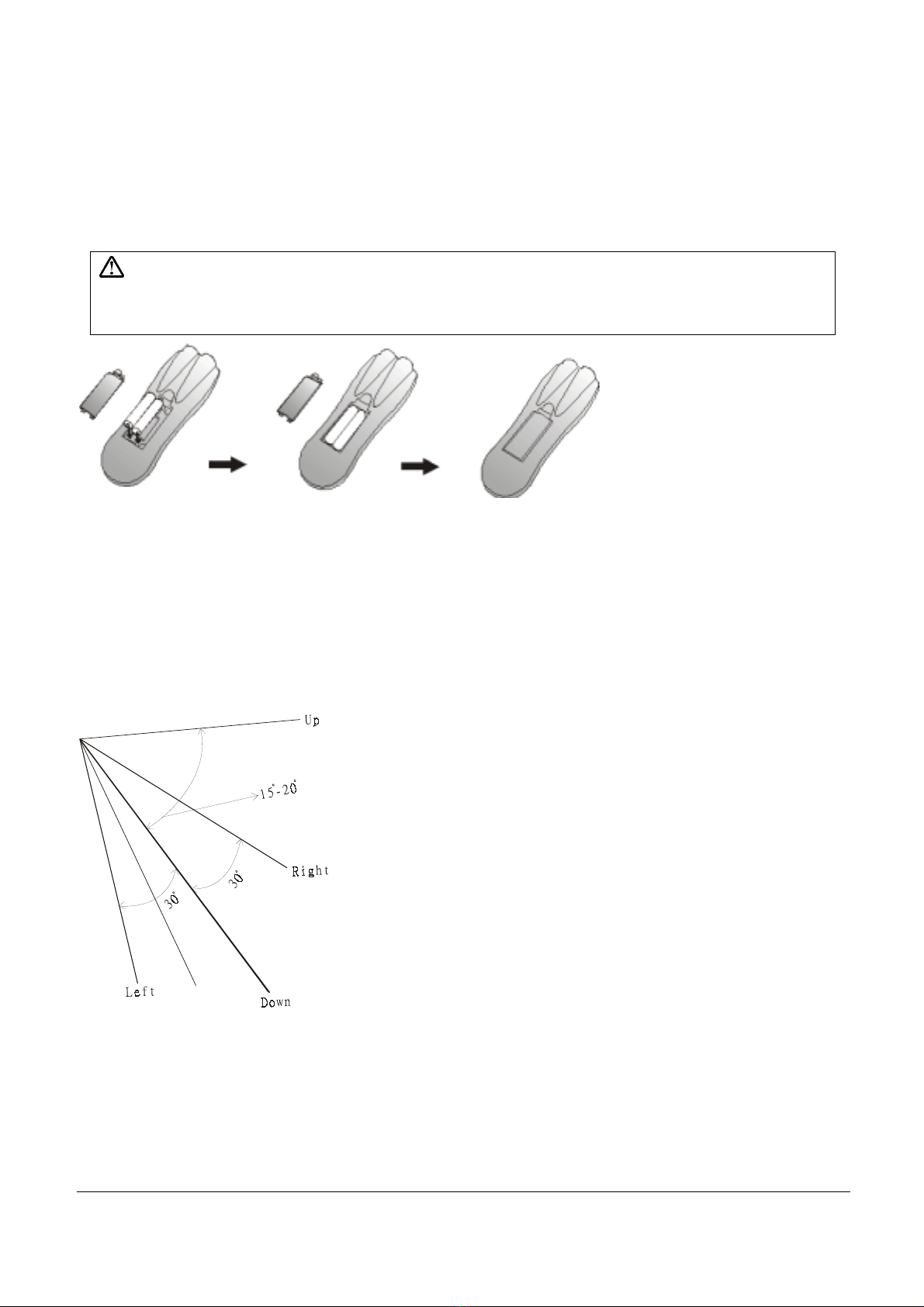

Figure 14 Battery replacement process
Remote Control Range
The remote sensors are located on the back of the unit. It can
function in a range 50 degrees horizontal and 30 degrees vertical
relative to a line that is a right angle to the remote sensor. The
distance between the remote control and remote sensor must be
shorter than four meters (13 feet).
Figure 15 Range
Usage and Replacement of Lamp
The light source lamp has a limited service life.
English 12

The picture will become dark or the color will fade after the lamp
has been used for a long time. In such cases, continued use of the
lamp could cause a malfunction. Replace the lamp with a new one.
A Lamp/temperature Status LED Indicator
1. Lamp in excess of service hours
When the LED light is a continuous red, it means the lamp has
exceeded (*1500) service hours. After this light appears, it is
advisable to replace the projection lamp as soon as possible.
i. “CHANGE THE LAMP, AND RESET THE LAMP TIMER” will be displayed on
the screen if the lamp has been operated for 1200 hours (see
figure 16).
ii. “CHANGE THE LAMP, THE POWER WILL TURN OFF AFTER 20 HOURS” will
be displayed on the screen if the lamp has been operated for
1479 hours. The “20” will count down (see figure 17).
iii. “CHANGE THE LAMP!” will blink on the screen together with a red
LED if the lamp has been operated for more than (*1500) hours
(see figure 18). The power will turn off automatically after 10
minutes. All three of the above messages will not display for
more than 3 minutes, but each message will be displayed whenever
you turn on the lamp.

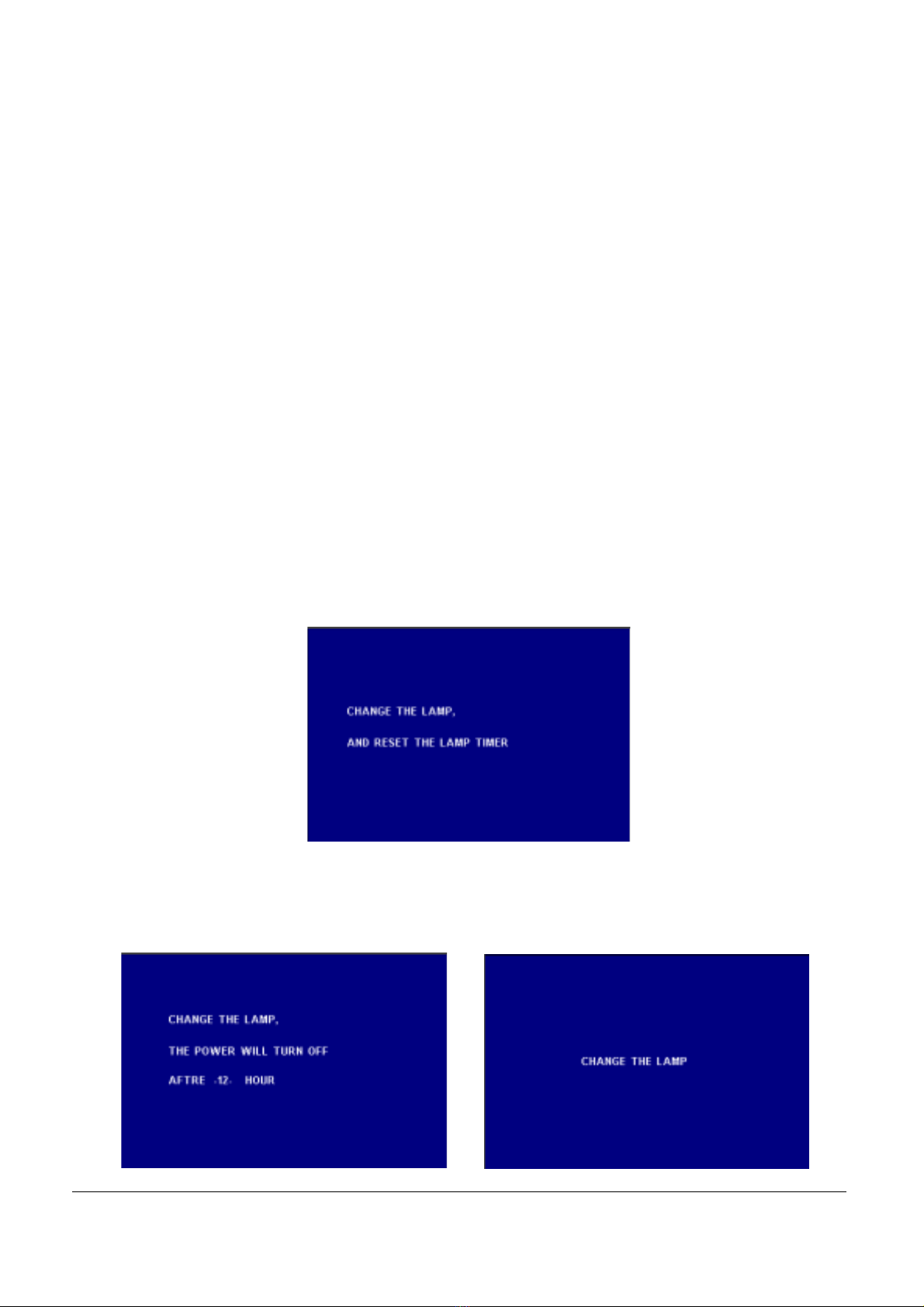

Figure 16 Lamp replacement warning signal
English 13

Figure 17 Lamp replacement warning signal II Figure 18 Lamp
replacement warning signal II
2. Lamp is not well attached
If the LED blinks rapidly, it indicates that the lamp is not
attached properly.
3. Temperature is too high
If the projector’s internal temperature is too hot to operate
safely, the LED will blink slowly for one minute and then the lamp
will turn off automatically.
4. Normal status
If the LED light is off, it means the lamp and temperature inside
the projector are normal.
Caution:
The lamp indicator will light when the lamp becomes too hot. Turn off the power
and let the projector cool for 45 minutes, then turn it on again. If the
indicator is still shining, contact your dealer.
B Replacing the Lamp
Replacing the lamp
When replacing the lamp, turn off the projector and unplug the AC
cord. Wait 45 minutes so that the lamp can cool. High-pressure lamp
when hit, may explode if improperly handled.
Caution:
•
•
•
•
Dispose of used lamps in accordance with local authorities.
As the lamp is made of glass, do not apply shocks to it or scratch it.
Also, do not use an old lamp, as this could cause the lamp to explode.
If it seems that the lamp has exploded (for example, an explosive sound
is heard), disconnect the power cord from the outlet and ask your
dealer to replace the lamp. The lamp is covered by a front glass panel
and an air-tight structure, but, in rare cases, the reflector and the
inside of the projector may be damaged by scattered, broken pieces of
glass, which could cause injury while being handled.
i. Turn the main power switch off and disconnect the power cord from
the outlet.
ii. Remove the lamp cover.
If hot, the lamp could cause burns. Wait for about 45 minutes
until lamp has cooled down.
•
• Loosen a screw and remove the cover.
English 14

iii. Loosen the screw and pull the handle to remove the lamp.
If the screw is not loosened completely, you could hurt your
fingers.
•
•
•
•
•
•
•
Do not insert your hand into the box after the lamp has been
removed. (There are optical parts inside that, if touched,
could result in color unevenness, etc.)
iv. Replace the lamp with a new one and fix it using the same screw.
Firmly tighten the lamp screw. Loose screws could result in a
poor connection, which could cause the unit to malfunction.
v. Install the lamp cover and fix it using a screw.
To prevent burns, install the lamp cover and secure it using
the screw.
Do not turn on power with lamp cover removed.
Whenever the lamp is replaced, reset the total operation time
of the lamp. Do not reset if the lamp has not been replaced.
Do not reset the timer without changing the lamp, as this can
cause the lamp to break.
English 15

Lamp Replacement Procedure
Step 1
Step 2 Step 3
Figure 19 Lamp replacement: Step 1, Step 2, Step 3
English 16
