Acer X138wh User manual

HDMI

or HDMI

Input Source

ZOOM FOCUS

Quick Start Guide

*36.7AR02H002-B*

36.7AR02H002-B

P/N:MC.JPV11.007

RS232

DVD player,

Set-top Box,

HDTV receiver

HDTV adapter

R B G

RB G

D-Sub

DVD player

HDMI

USB

MHL

Audio Output

Video Output

Smart Phone

Power Bank

Scan to get user’s manual

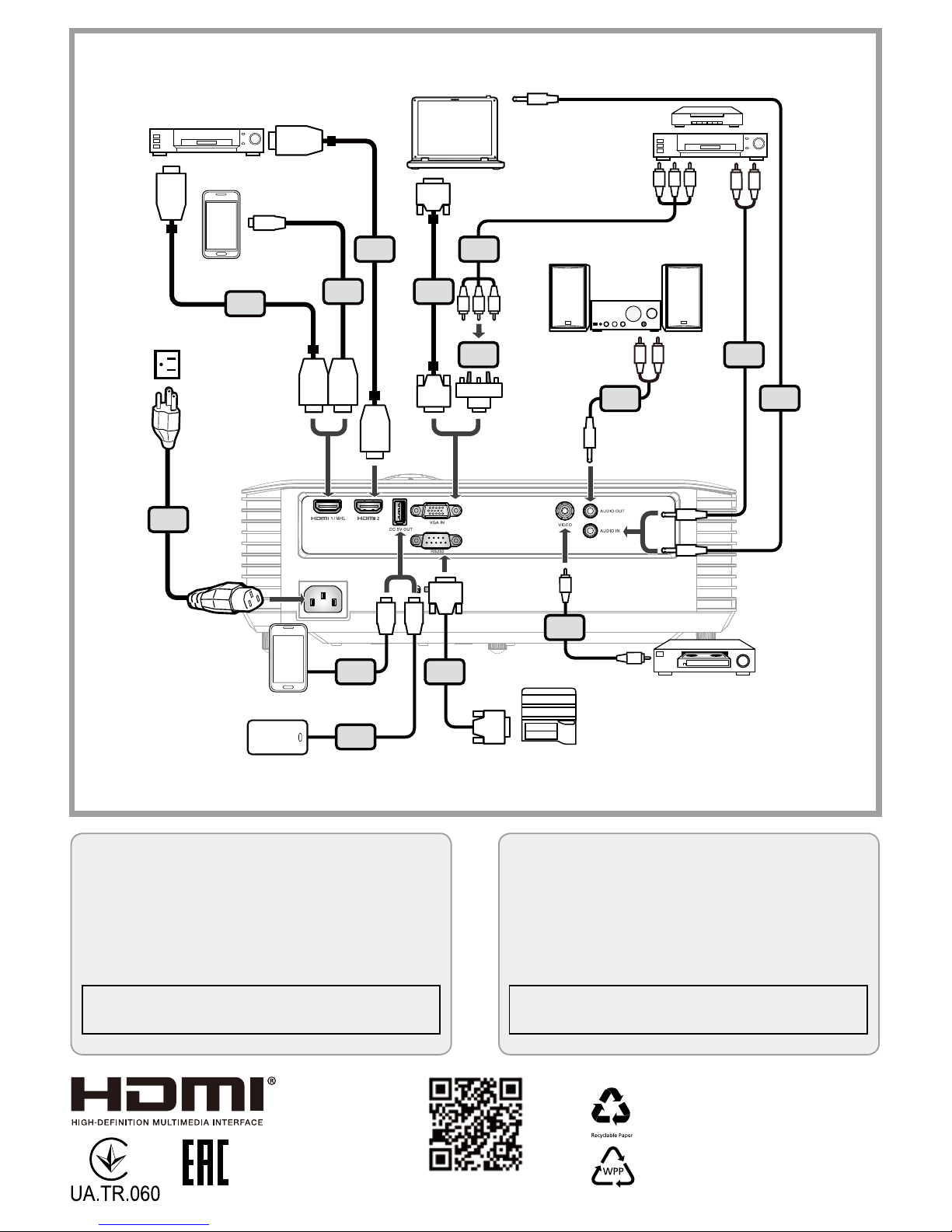

INSTALLATION

Note: Functions vary depending on model definition.

Consumo de Energia

En Operaction: 244.46 Wh (244,46Wh)

En modo de espera: 0.41 Wh (0,41 Wh)

X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/

D616/D606D/D606B/D606/EV-W65H/EV-X65H/EV-X65/

EV-S65H/EV-S65A/EV-S65/V36W/V36X/V36XC/V36S/V36SB/

V36SC/V16S/AW319/AX319/AX319D/AS319/AS319E/AS319D/

AS309/DX412/DX212/DX212G/DX112/DX112C/DX112G/

BS-312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KW316/

KX316/KX316B/KS316/KS316A/KS316B/X1286G/X1186G/

DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727

H6540BD/H6521BD/X1623HX168H/E156D/E155F/D860D/

D666D/HE-806J/HE-802K/EV-WU80H/EV-WU65H/GM532/

GM512/V50U/V36U/VH-432/VH-412/AU540/AU319/DX620/

DX612/BS-520/BS-512/KU330/KU316/D1P1719/D1P1720/

DWU1729/DWU1721

Consumo de Energia

En Operaction: 310.56 Wh (310,56Wh)

En modo de espera: 0.43 Wh (0,43 Wh)

SPECIFICATIONS

Projection system DLP®

Resolution

• X118/X118AH/X118H/X1186G/D606/D606B/D606D/EV-S65/EV-S65A/EV-S65H/V36S/V36SB/V36SC/

V16S/AS319/AS319D/AS309/AS319E/DX112/DX112C/DX112G/BS-012/BS-012E/BS-012K/KS316/

KS316AK/KS316B/DSV1725/DSV1726/DSV1727 series: 800x600 SVGA resolution

• X128H/X128/D616D/D616/EV-X65H/EV-X65/V36X/V36XC/AX319/AX319D/DX212/DX212G/BS-112/BS-

112E/KX316/KX316B/X1286G/DNX1723/DNX1724 series: 1024x768 XGA resolution

• X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series: 1280x800 WXGA

resolution

• H6540BD/H6521BD/X168H/X1623H/E156D/E155F/D666D/D860D/HE-806J/HE-802K/EV-WU65H/EV-

WU80H/GM532/GM512/V36U/V50U/VH-432/VH-412/AU319/AU540/DX612/DX620/BS-512/BS-520/

KU316/KU330/D1P1719/D1P1720/DWU1721/DWU1729 series: WUXGA resolution

•

Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and VESA standards: SXGA, XGA, VGA, SVGA,

SXGA+, WXGA, WXGA+, WSXGA +

Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p,

576p), SDTV (480i, 576i)

Aspect ratio Auto, Full, 4:3, 16:9, L.Box

Displayable colors 1.07 billion colors

Optical zoom ratio

• H6521BD/X168H/X138WH/X128H/X128/X118H/X118AH/X118/E155F/D666D/D626D/D616D/D616/

D606D/D606B/D606/HE-802K/EV-WU65H/EV-W65H/EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/

GM512/V36U/V36W/V36X/V36XC/V36S/V36SB/V36SC/V16S/VH-412/AU319/AW319/AX319/AX319D/

AS319/AS319E/AS319D/AS309/DX612/DX412/DX212/DX212G/DX112/DX112C/DX112G/BS-512/BS-

312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KU316/KW316/KX316/KX316B/KS316/KS316A/KS316B/

X1286G/X1186G/D1P1720/DWU1721/DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727

series: 1.1X

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 1.3X

Throw ratio

• X128H/X128/X118/X118AH/X118H/D616D/D616/D606/D606B/D606D/EV-X65H/EV-X65/EV-S65/EV-

S65A/EV-S65H/V36X/V36XC/V36S/V36SB/V36SC/V16S/AX319/AX319D/AS319/AS319D/AS309/AS319E/

DX212/DX212G/DX112/DX112C/DX112G/BS-112/BS-112E/BS-012/BS-012E/BS-012K/KX316/KX316B/

KS316/KS316AK/KS316B/X1286G/X1186G/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series:

1.94 ~2.16 (51”@2m)

•

X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series: 1.54 ~ 1.72 (60”@2m)

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 1.58 ~ 2.06 (59”@2m)

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series: 1.47~1.62 (63”@2m)

Projection lens

• X128H/X128/X118/X118AH/X118H/D616D/D616/D606/D606B/D606D/EV-X65H/EV-X65/EV-S65/EV-

S65A/EV-S65H/V36X/V36XC/V36S/V36SB/V36SC/V16S/AX319/AX319D/AS319/AS319D/AS309/AS319E/

DX212/DX212G/DX112/DX112C/DX112G/BS-112/BS-112E/BS-012/BS-012E/BS-012K/KX316/KX316B/

KS316/KS316AK/KS316B/X1286G/X1186G/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series:

F = 2.41 ~ 2.53, f = 21.85mm ~ 24.01mm, Manual Zoom & Focus

• X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series:

F = 2.41 ~ 2.53, f = 21.85mm ~ 24.00mm, Manual Zoom & Focus

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series:

F = 2.37 ~ 2.78, f = 16.91mm ~ 21.60mm, Manual Zoom & Focus

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series:

F = 2.1~2.31, f = 15.59 ~ 17.14mm, Manual Zoom & Focus

Projection screen size

(diagonal)

• X128H/X128/X118/X118AH/X118H/D616D/D616/D606/D606B/D606D/EV-X65H/EV-X65/EV-S65/EV-

S65A/EV-S65H/V36X/V36XC/V36S/V36SB/V36SC/V16S/AX319/AX319D/AS319/AS319D/AS309/AS319E/

DX212/DX212G/DX112/DX112C/DX112G/BS-112/BS-112E/BS-012/BS-012E/BS-012K/KX316/KX316B/

KS316/KS316AK/KS316B/X1286G/X1186G/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series:

23” ~ 300” (58cm ~762cm)

• X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series: 30” ~ 300” (75cm

~ 762cm)

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 27” ~ 300” (69cm ~ 762cm)

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series: 29’’ ~ 300’’ (73cm ~ 762cm)

Projection distance

• X128H/X128/X118/X118AH/X118H/D616D/D616/D606/D606B/D606D/EV-X65H/EV-X65/EV-S65/EV-

S65A/EV-S65H/V36X/V36XC/V36S/V36SB/V36SC/V16S/AX319/AX319D/AS319/AS319D/AS309/AS319E/

DX212/DX212G/DX112/DX112C/DX112G/BS-112/BS-112E/BS-012/BS-012E/BS-012K/KX316/KX316B/

KS316/KS316AK/KS316B/X1286G/X1186G/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series:

1.0m ~ 11.8m (3.3’ ~ 38.8’)

• X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series: 1.1m ~ 10m (3.6’

~ 32.7’)

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 1.0m ~ 10.2m (3.3’ ~33.6’)

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series: 1.0m~9.5m (3.3’ ~31.2’)

Horizontal scan rate 15 - 100 kHz

Vertical refresh scan rate 24 - 120 Hz

Digital Zoom 2x

Power supply AC input 100 - 240 V auto-switching power supply

Operating temperature 0ºC to 40ºC / 32ºF to 104ºF

Lamp type

• X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/D616/D606D/D606B/D606/EV-W65H/

EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/V36W/V36X/V36XC/V36S/V36SB/V36SC/V16S/AW319/

AX319/AX319D/AS319/AS319E/AS319D/AS309/DX412/DX212/DX212G/DX112/DX112C/DX112G/BS-

312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KW316/KX316/KX316B/KS316/KS316A/KS316B/X1286G/

X1186G/DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series: 203 W user-replaceable

lamp

• H6540BD/H6521BD/X1623HX168H/E156D/E155F/D860D/D666D/HE-806J/HE-802K/EV-WU80H/EV-

WU65H/GM532/GM512/V50U/V36U/VH-432/VH-412/AU540/AU319/DX620/DX612/BS-520/BS-512/

KU330/KU316/D1P1719/D1P1720/DWU1729/DWU1721 series: 250 W user-replaceable lamp

Audio

• H6521BD/X168H/X138WH/X128H/X128/X118H/X118AH/X118/E155F/D666D/D626D/D616D/D616/

D606D/D606B/D606/HE-802K/EV-WU65H/EV-W65H/EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/

GM512/V36U/V36W/V36X/V36XC/V36S/V36SB/V36SC/V16S/VH-412/AU319/AW319/AX319/AX319D/

AS319/AS319E/AS319D/AS309/DX612/DX412/DX212/DX212G/DX112/DX112C/DX112G/BS-512/BS-

312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KU316/KW316/KX316/KX316B/KS316/KS316A/KS316B/

X1286G/X1186G/D1P1720/DWU1721/DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727

series: Internal speaker with 3W x 1 output

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: Internal speaker with 10W x 1 output

Weight

• X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/D616/D606D/D606B/D606/EV-W65H/

EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/V36W/V36X/V36XC/V36S/V36SB/V36SC/V16S/AW319/

AX319/AX319D/AS319/AS319E/AS319D/AS309/DX412/DX212/DX212G/DX112/DX112C/DX112G/BS-

312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KW316/KX316/KX316B/KS316/KS316A/KS316B/X1286G/

X1186G/DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series: 2.7 Kg (5.95 lbs)

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 3.1 Kg (6.83 lbs)

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series: 2.8Kg (6.17 lbs)

Dimensions (W x D x H)

(with feet)

• X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/D616/D606D/D606B/D606/EV-W65H/

EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/V36W/V36X/V36XC/V36S/V36SB/V36SC/V16S/AW319/

AX319/AX319D/AS319/AS319E/AS319D/AS309/DX412/DX212/DX212G/DX112/DX112C/DX112G/BS-

312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KW316/KX316/KX316B/KS316/KS316A/KS316B/X1286G/

X1186G/DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series: 313mm x 240mm x

113.7mm (12.3” x 9.4” x 4.5”)

• H6540BD/H6521BD/X1623HX168H/E156D/E155F/D860D/D666D/HE-806J/HE-802K/EV-WU80H/EV-

WU65H/GM532/GM512/V50U/V36U/VH-432/VH-412/AU540/AU319/DX620/DX612/BS-520/BS-512/

KU330/KU316/D1P1719/D1P1720/DWU1729/DWU1721 series: 313mm x 240mm x 110.7mm (12.3” x

9.4” x 4.3”)

Power consumption

• X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/D616/D606D/D606B/D606/EV-W65H/

EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/V36W/V36X/V36XC/V36S/V36SB/V36SC/V16S/AW319/

AX319/AX319D/AS319/AS319E/AS319D/AS309/DX412/DX212/DX212G/DX112/DX112C/DX112G/BS-

312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KW316/KX316/KX316B/KS316/KS316A/KS316B/X1286G/

X1186G/DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series:

Normal mode: 240W ± 10% @ 110VAC

ECO mode: 195W ± 10% @ 110VAC

Standby mode < 0.5W

• H6540BD/H6521BD/X1623HX168H/E156D/E155F/D860D/D666D/HE-806J/HE-802K/EV-WU80H/EV-

WU65H/GM532/GM512/V50U/V36U/VH-432/VH-412/AU540/AU319/DX620/DX612/BS-520/BS-512/

KU330/KU316/D1P1719/D1P1720/DWU1729/DWU1721 series:

Normal mode: 300W ± 10% @ 110VAC

ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

Standard package

contents

• AC power cord x1 • VGA cable x1 (option) • AAA battery x2 (for remote control) (option)

• Remote control x1 • HDMI cable x1 (option) • User’s guide (Projector)(CD-ROM) x1 (option)

•

Security card x1 (option)

•

Carrying case x1 (option)

• Quick start guide (Projector) x1

I/O connectors

X128/X118/D616/D606/

EV-X65/EV-S65/V36XC/

V36SC/V16S/AX319D/

AS319D/AS309/DX212G/

DX112G/BS-112E/

BS-012E/KX316B/

KS316B/X1286G/

X1186G/DNX1724/

DSV1727

X128H/

D616D/

EV-X65H/

V36X/

AX319/

DX212/

BS-112/

KX316/

DNX1723

X118AH/

D606B/

EV-S65A/

V36SB/

AS319E/

DX112C/

BS-012K/

KS316A/

DSV1726

H6521BD/X168H/X138WH/X118H/

E155F/D666D/D626D/D606D/

HE-802K/EV-WU65H/EV-W65H/

EV-S65H/GM512/V36U/V36W/V36S/

VH-412/AU319/AW319/AS319/

DX612/DX412/DX112/BS-512/

BS-312/BS-012/KU316/KW316/

KS316/D1P1720/WU1721/

DWX1722/SV1725

H6540BD/E156D/

HE-806J/GM532/

VH-432/D1P1719/

X1623H/D860D/

EV-WU80H/V50U/

AU540/DX620/

BS-520/KU330/

DWU1729

• Power socket V V V V V

• VGA IN V V X V V

• HDMI X V V V X

• HDMI 2 X X X X V

• HDMI 1/MHL X X X X V

• Composite video X V X V V

• RS232 X X (*) X X V

• 3.5 mm audio jack input X V X V V

• 3.5 mm audio jack

output X X X X V

• 5V DC output V V V V V

Note:

• The specifications listed above are subject to change without notice.

• Find manuals and other documents for your Acer product on the official Acer support website.

• (*) Functions vary depending on model definition.

This manual suits for next models

Table of contents

Popular Projector manuals by other brands

Eiki

Eiki LC-X985 Specification sheet

InFocus

InFocus LitePro 610 quick start

Epson

Epson EH-TW5900 datasheet

FOREVER

FOREVER MLP-100 manual

Toshiba

Toshiba TDP-MT8U Specifications

Mitsubishi

Mitsubishi XD500U specification

Kodak

Kodak Ektapro 3020 Illustrated parts list

Toshiba

Toshiba TDP-EW25U Specifications

Barco

Barco iQ PRO G500 supplementary guide

NEC

NEC Showcase Series HT1100 user manual

Philips

Philips LC1341 user guide

Epson

Epson PowerLite 1266 user guide

MAGINON

MAGINON DLP 1400S user manual

Toshiba

Toshiba TLP-380 owner's manual

Philips

Philips PicoPix PPX2480/EU user manual

Hitachi

Hitachi CP-X605 Series Specifications

Optoma

Optoma TW1692 user manual

Kodak

Kodak EKTAPRO instruction manual

Acer X138WH User manual

Popular Projector manuals by other brands
