Acom SI-100W User manual

Operating Manual
Model : SI-100W
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable

Preface
Specification
Acom Inc. would like to thank you for your choosing our model SI-100W Smart Bench
Scale. We are committed to creating high quality low maintenance products and supplying
our customers with diligent customer service.
This manual contains information how to assemble and use the scale properly.
Model
Capacity
Minimum graduation
Maximum tare
A/D conversion speed
Display (digit)
Maximum counting
Designators (g version)
Mode
Power source
Power consumption
SI-100W
60kg 60kg 150kg 150kg 300kg 300kg
20g 10g,20g 50g 20g,50g 100g 50g,100g
Full Tare
9 times / second
VFD or LCD weight (5)
3,000 pcs
Zero, Net, Stable,(g,lb)
Normal,Counting,Limit,Pound (option)
DC adaptor 9V 300mA or Dry battery DM1.5V x 6ea(choose one)
Approximately 1.3W
(W)400 x (D)675 x (H)850
(W)510 x (D)790 x (H)850
(W)400 x (D)525
(W)510 x (D)635
60kg / 150kg
300kg
60kg / 150kg
300kg
Products size (mm)
Weighing Pan Size (mm)

Precaution before assembling and using
It means that improper using will be directly connected with
serious injury or decease.
Warning / Caution
Marks
Warning
Caution It means that improper using will be directly connected with
serious injury or materialistic damage.
Prohibition
Prohibition
Must not be done.
Prohibit of disassembling.
Must be followed the indication.
Plug must be separated with power condenser.

WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
Warning
Caution
Prohibition
Prohibition
Prohibition
The power cable must be prevented from
any harmfulness.
Do not remanufacture intentionally.
Must turn off the power and
plug in the adaptor.
Place the scale on a flat and rigid desk that
is free of vibrations.
Do not use a radio device which emits strong
electromagnetic fields nearby.
Do not apply sudden impact to the platter.
Place the scale out of direct sunlight.
Must be careful of moisture and water.
Prohibition
Prohibition
Prohibition
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable

Always level the scale.
Put the gloves on whenever carrying on or
assembling.
Must take the regular calibration.
Do not use a cleaner which is included the
solvent or sinner.
Caution
Prohibition
Alcools
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
WEIGHT
TARE MODE SET
ZERO
Net
Zero
Stable
Level gauge
sinner

Assembling
Unwrap the package from the scale.
Place the scale on the flat place.
Using the cord-stopper, adjust the wire under
the pole likely the photo.
Insert the bracket into the pole.
Tighten the each bolt (4ea).
Make the load cell’s and adaptor’s wire out top of the pole.
Inset the necktie.
necktie
adaptor

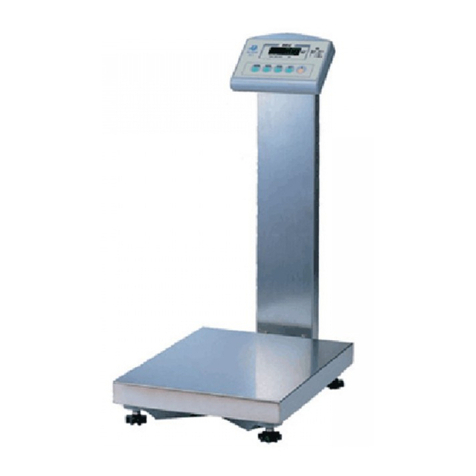

Name of the parts
After put the load cell jack into the connector, fix it using by
the load cell fixed parts. The back side indicator,
which is round shape of groove needs to be posited likely
photo. Put the adaptor’s secondary plug into the indicator
jack.
indicator fixing screw
tilting bolt
TILTING BOLT
INDICATOR
DISPLAY POLE
BRACKET
LEVEL GAUGE
PLATTER
ADJUST BOLT

Designators
Key and function
This key is used to restore as “0” on the weighing display.
It can be worked when the “STABLE” is shown at the designators.
This key is used to set or remove the tare weighing
It can be worked when the “STABLE” is shown at the designators.
This key is used to change the mode.
This key is used to extend the function as a spare key. It is
used to set the user parameter simply. It is also very convenient to
measure the livestock or unstable material.
This key is used to set the unit weight of sample in the count mode.
Furthermore, it is used to set the Max. and Min. in the limit mode.
ZERO
TARE
MODE
SET
NAME FUNCTION
Zero
Stable
Tare
Batt.
It indicates the centered zero.
It indicates the stable status of weighing
It indicates the tare set.
It indicates the battery’s discharge.

Operating
1. Mode function
2. General weighing
Before using, please check the “Zero” on the designator.
After “stable” is marked on, read weighing value.
Press the Mode key, it will be changed likely as below ordering.
Normal
MODE Press the Key. (Count)
MODE Press the Key. (Limit)
Place the commodityon the platter.
Read the weighing value after “stable” is marked on.
Remove the commodity.
MODE Press the key, the scale will be restored the
“Normal” Mode

3. Weighing with tare
4. Counting mode
Place the tare on the platter.
Place the commodity into the tare.
After “stable” is marked on, read weighing value.
Remove the commodity.
Press the Tare key, the tare weighing will be set.
The weighing display will be marked on “0”.
The designator will be marked “net”.
MODE Press the key. (Count)
Remove the tare and press the Tare key.
SET Press the key. (Set 10)
Place 10pcs of samples which are need to be measured.
After the “Stable” is marked on, press the Set key.
Start to count.
The possible counting quantity shall be 10, 20, 50, and 100.
Please refer the table 1-1.
* When the “SET 20” or above quantity is marked on, the total sample
weighing is smaller. So, more quantities are needed.
* The set sample’s weighing will be saved in the memory, it can be
memorized even when the mode is changed or the power supply is off.
When the power is on, the previous counting mode can be set automatically.

5. Limit mode
MODE press the key. (Limit)
SET press the key. (Lo)
After place the commodity on the platter, which is need to be
set the min. value, SET press the key. (SEt)
SET press the key. (Hi)
After place the commodity on the platter, which is need to be
set the max.value, SET press the key. (SEt)
Scale makes the buzzer when the weighing value is not
matched with min. or max value in the limit mode.
Item
Min. unit weight
Min. sample weight
Max. counting PCS

This function is used to prevent the unnecessary discharging when the battery
power is using. The power will be shut off automatically (it will be functioned after
a certain period of setting time) when the measuring is worked. While the pressing
the key, the power must be turned on(OFF TIME).
Press the SET key. (bl mode)
Using the SET key, one key must be chosen.
While the pressing the key, the power must be
turned on( OFF TIME)
6. Auto shut off
7. Back Light
Press the key.
Using the SET key, you can choose one of them (15,30~
180sec).Then, press the key.
If the weighing indicates “0”, the power will be turned off
after setting time. When the scale has to be reacted, it
needs to be turned off/on.
Press the key.
* The scale has been set as “0” when it is dispatch
0 : Turn off
1 : Turn on if the weighing is on
2 : No using
3 : Turn on constantly
4 : Turn on without expectations
5 : Using the key to get out

If the actual back light function is needed after setting, press the key
about 3 second (Weighing status “0”).
The main propose of this function is for optional working in the darkness
while battery operating.
<<Working>>
8. Errors table
Error
Initial zero error
Memory element has a
problem on main PCB
Analogy PCB has a
problem
Memory problem
Battery discharge Replacement Optional
Call the service
Call the service
Call the service
Remove weight on the
platter and restart the
scale
Same problem still goes
on, call the service.
TreatmentMeaning Remarks

Head office / Factory
#679-1, Yugo-Ri,Gunnae-Myun, Pocheon-si, Kyunggi-Do 487-872 Korea
Tel : [phone]
Fax : [phone]
http://www.acominc.co.kr
