ACP MAX-Tension TL-2 User manual

MAX-Tension™ TL-2
Tangent, redirective non-gating, guardrail terminal
with SabertoothTM Technology
Training and Product Installation Manual
Please call ACP on 1800 724 172
or visit www.acprod.com.au
for more information
July 2020

July 2020 | Page 2NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Table of contents
Limited Warranty
MAX-TensionTM TL-2
System Overview
Recommended Tools
Safety Equipment
Trafc Control
Documentation
Installation Preparation
Preparation
Soil Conditions
Site Grading
System Offset Requirements
Curve Installations
Panel Lapping
Parts Identification
Bill of Materials
Installation Instructions
Step 1 - Post Assembly and Installation
Step 2 - Ground Strut and Soil Anchor Installation
Step 3 - Blockout Installation
Step 4 - Assemble Inner Side Slider (ISS) Panel on Rail 2
Step 5 - Install Rail 2
Step 6 - Assemble Trafc Side Slider (TSS) and Tooth on Rail 1
Step 7 - Install Rail 1
Step 8 - Install Impact Head
Step 9 - Install Cables
Step 10 - Turn Friction Plate
4
5
5
6
6
6
6
7
7
7
8
9
9
9
10
12
13
13
14
15
16
17
18
19
20
21
22

July 2020 | Page 3NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Step 11 - Tighten Cables
Step 12 - Install Rear Side Slider (RSS) Plate and Tighten Tooth
Step 13 - Install Delineation Bracket or Yellow Plastic Housing
Step 14 - Install Plastic Nut Covers
Inspector Checklist
Maintenance Inspection
Drawings
Notes
23
24
25
27
28
29
31
36
ACP may make changes to this Product Manual from time to time. Please check the ACP
website prior to using this Product Manual to ensure that you have the latest version.

July 2020 | Page 4NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Limited Warranty
Australian Construction Products (ACP) has tested
the impact performance of its barrier systems
and crash cushion systems, and other highway
safety hardware under controlled conditions,
however, ACP does not represent nor warrant that
the results of those controlled conditions would
necessarily avoid injury to persons or property.
ACP EXPRESSLY DISCLAIMS ANY WARRANTY
OR LIABILITY FOR CLAIMS ARISING BY
REASONS OF DEATH OR PERSONAL INJURY
OR DAMAGE TO PROPERTY RESULTING
FROM ANY IMPACT, COLLISION OR HARMFUL
CONTACT WITH THE PRODUCTS OR NEARBY
HAZARDS OR OBJECTS BY ANY VEHICLE,
OBJECTS OR PERSONS.
ACP warrants that any product or component part
manufactured by ACP will be free from defects in
material or workmanship. ACP will replace free of
cost any product or component part manufactured
by ACP that contains such a defect.
THE FOREGOING WARRANTY IS IN LIEU OF
AND EXCLUDES ALL OTHER WARRANTIES
NOT EXPRESSLY SET FORTH HEREIN,
WHETHER EXPRESS OR IMPLIED BY
OPERATION OF LAW OR OTHERWISE,
INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
ACP’S LIABILITY UNDER THIS WARRANTY
IS EXPRESSLY LIMITED TO REPLACEMENT
FREE OF COST OF PARTS SUPPLIED BY ACP
ONLY (IN THE FORM AND UNDER THE TERMS
ORIGINALLY SHIPPED), OR TO REPAIR OR
TO MANUFACTURE BY ACP, PRODUCTS
OR PARTS NOT COMPLYING WITH ACP
SPECIFICATIONS, OR, AT ACP’S ELECTION, TO
THE REPAYMENT OF AN AMOUNT EQUAL TO
THE PURCHASE PRICE OF SUCH PRODUCTS
OR PARTS, WHETHER SUCH CLAIMS ARE FOR
BREACH OF WARRANTY OR NEGLIGENCE.
ACP SHALL NOT BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL OR SPECIAL
LOSSES, DAMAGES OR EXPENSES OF ANY
KIND, INCLUDING, WITHOUT LIMITATION,
ANY SUCH LOSSES, DAMAGES OR EXPENSES
ARISING DIRECTLY OR INDIRECTLY FROM
THE SALE, HANDLING OR USE OF THE
PRODUCTS FROM ANY OTHER CAUSE
RELATING THERETO, OR FROM PERSONAL
INJURY OR LOSS OF PROFIT.
Any claim by the Buyer with reference to Products
sold hereunder for any cause shall be deemed
waived by the Buyer unless ACP is notied in
writing, in the case of defects apparent on visual
inspection, within ninety (90) days from the delivery
date, or, in the case of defects not apparent
on visual inspection, within twelve (12) months
from the said delivery date. Products claimed to
be defective may be returned prepaid to ACP’s
plant for inspection in accordance with return
shipping instructions that ACP shall furnish to
the Buyer forthwith upon receipt of the Buyer’s
notice of claim. If the claim is established, ACP will
reimburse that Buyer for all carriage costs incurred
hereunder.
The forgoing warranty benets shall not apply to (i)
any Products that have been subject to improper
storage, accident, misuse or unauthorised
alterations, or that have not been installed,
operated and maintained in accordance with
approved procedures and (ii) any components
manufactured by the Buyer.

July 2020 | Page 5NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
System Overview
The MAX-Tension™ TL-2 Guardrail Terminal
System (MAX TL-2) is a redirective, non-
gating tension-based end terminal for
corrugated W-Beam barrier systems in tangent
congurations. The MAX TL-2 system has been
tested and evaluated per the recommendations
set forth in the Manual for Assessing Safety
Hardware (MASH) Test Level 2 tests at 70 km/h.
The system utilizes tensioned cables and a
cutting tooth to absorb kinetic energy and
safely contain or redirect an impacting vehicle.
The system is comprised of a friction-based
energy-absorbing impact head, two tensioned
cables, a releasable Post 1, a ground anchor
assembly and an energy-absorbing coupler with
integrated cutting tooth used in conjunction
with standard W-Beam guardrail panels, post,
blockouts, and hardware.
The MAX TL-2 is applied directly to W-Beam
guardrail systems at, or transitioned to 787mm
with panels and post spacing congured at mid-
span splice. Transitions to strong post W-Beam
guardrail systems or other barriers where the
splice is not mid-span can be accomplished
using a 1.00m panel after the MAX TL-2 system
[minimum of 7.62m downstream of the rst
post] in accordance with Federal, State, and
Local standards. Transitions to other barrier
systems such as thrie beam or rigid bridge or
roadside barriers shall be in accordance with
Federal, State, and Local requirements and
attached after the MAX TL-2 system [minimum
of 7.62m downstream of the rst post].

July 2020 | Page 6NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Recommended Tools
NOTE: The list of tools, safety equipment, and
trafc control is a general recommendation and
should not be considered a comprehensive list.
Depending on the specic characteristics of
the job site and the complexity of the repair or
assembly, more or less tools may be necessary.
>Post Driver/Auger
>Soil Tamper
>Tape Measure
>String Line
>Chalk Line
>Marking Paint
>Level
>Hammer
>Crescent/Spud Wrench
>Pry Bar (recommended minimum 6’ length)
>Vice Grips or Clamps
>42mm Wrench
>1/2” Ratchet
>32mm Socket
>24mm Socket
>10mm Hex Socket
>Pipe Wrench or Large Pliers
>Impact Wrench (Optional)
Safety Equipment
>Safety Glasses
>Hearing Protection
>Gloves
>Steel Toe Boots
>Hard Hat
>Safety Vest
Traffic Control
>Trafc Control Equipment
>Trafc Control Plan
Documentation
Prior to installation and assembly of the MAX-
Tension™ TL-2 system, ensure you have read
and understand the installation and assembly
instructions. The following items should be
reviewed and understood prior to installation.
>Installation and Assembly Manual (Current
Revision)
>Installation and Assembly Video, Mobile
App - The Lindsay Guide App is available as
a free download from the Apple Store® and
Google Play™.
>Installation and Assembly Video, Online -
Full installation videos can be viewed online
at http://lindsay.guide.com.
>System Drawing (Current Revision)

July 2020 | Page 7NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Preparation
The MAX-Tension™ TL-2 Guardrail Terminal
System (MAX TL-2) is a redirective, non-
gating tensioned-based end terminal for
corrugated W-Beam barrier systems in tangent
congurations. The MAX TL-2 is applied directly
to W-Beam guardrail systems at, or transitioned
to, 787mm with panels and post spacing
congured at mid-span splice. Transitions to
strong post W-Beam guardrail systems or other
barriers where the splice is not mid-span can
be accomplished using a 1.00m panel after
the MAX TL-2 system [minimum of 7.62m
downstream of the rst post] in accordance with
Federal, State, and Local standards. Transitions
to other barrier systems such as thrie beam
or rigid bridge or roadside barriers shall be
in accordance with Federal, State, and Local
requirements and attached after the MAX TL-2
system (minimum of 7.62m downstream of the
rst post).
Before installing the MAX TL-2 system, ensure
that all the materials required for the system are
on site and have been identied.
Soil Conditions
The MAX-Tension™ TL-2 system has been
designed to be installed in soil that meets
or exceeds the AASHTO “standard soil”
specication. If the specic site soil conditions
differ from those specied in the AASHTO
standard soil specication, the installation
should be reviewed and approved by the Project
Engineer. If rock or stiff soil is encountered,
the posts and soil anchor may be installed by
auguring and backlling the hole. Extra care
must be taken to prevent settlement and lateral
displacement of the posts. Backll material
should be compacted to optimum compaction
using a tamper, per Local requirements.
IMPORTANT NOTES:
>Ensure the MAX-Tension™ TL-2 system is
properly transitioned in accordance with
Federal, State, and Local standards when
attaching any other type of barrier system
other than corrugated W-Beam.
>Do not attach the MAX-Tension™ TL-2
system directly to a rigid barrier (e.g. concrete
barrier, steel barrier, concrete structure)
without proper transition.
>The term Upstream = Towards the impact
head.
>The term Downstream = Away from impact
head.

July 2020 | Page 8NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Site Grading
All testing was completed on a relatively at and controlled testing environment. Ensure proper site
grading prior to installation of the MAX-Tension™ TL-2 system in accordance with Federal, State and
Local specications, in addition to the AASHTO Roadside Design Guide.
Source: AASHTO Roadside Design Guide, 4th Edition 2011, page 8-6

July 2020 | Page 9NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
System Offset Requirements

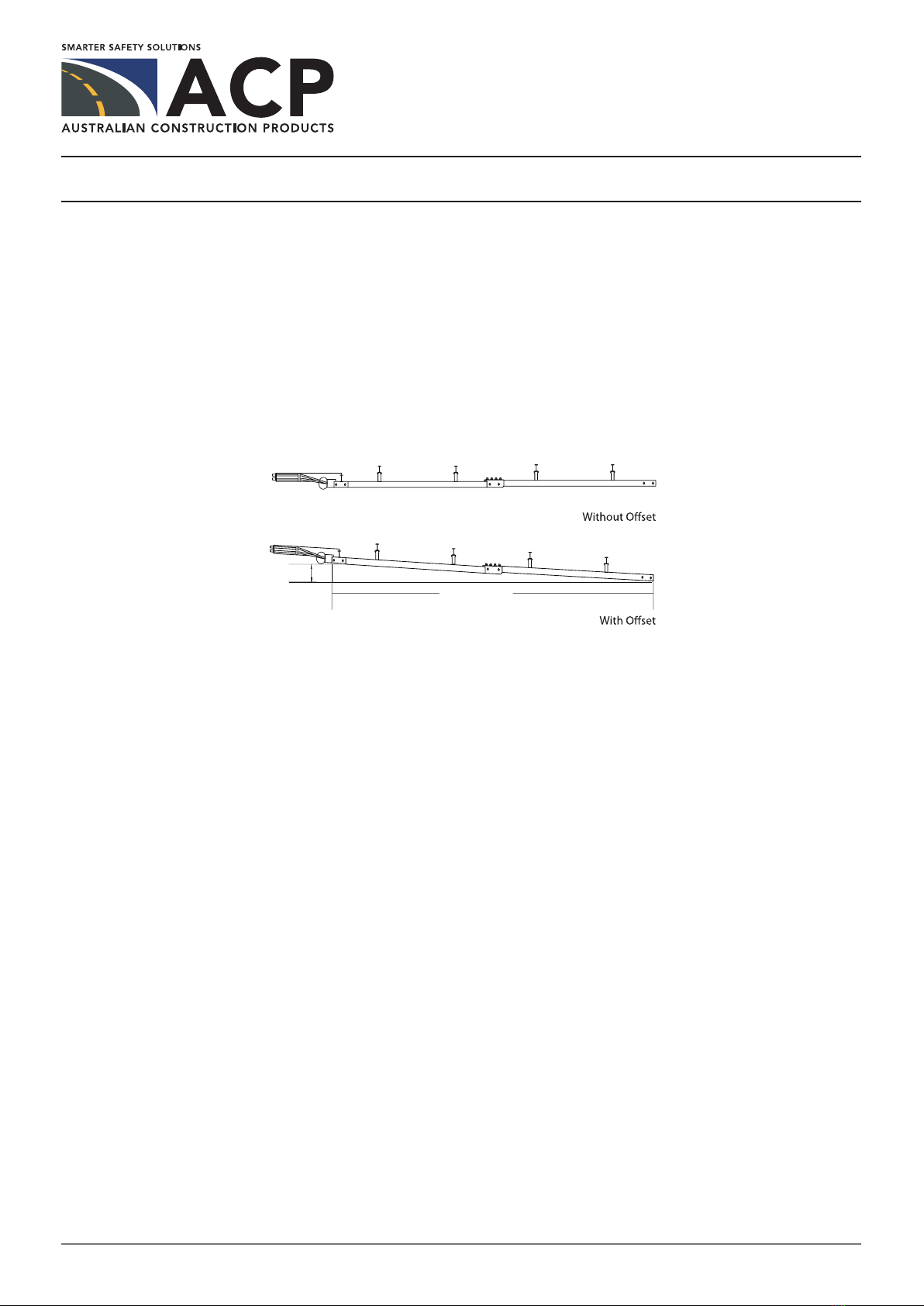

The MAX-Tension™ TL-2 system is a tangent terminal that shall be installed parallel to the edge of
the roadway. The system may be installed offset away from the roadway if specied and approved by
the Project Engineer. If off-set, the system shall be offset over the entire length of the system from the
center of the last splice to the Soil Anchor.
Curve Installations
The MAX-Tension™ TL-2 system SHALL NEVER
be installed within a curved section of guardrail.
It is recommended that the guardrail be extended
past the curve before the installation of the MAX-
Tension™ system. The MAX-Tension™ system
should always be installed in a straight line over
the length of the system.
Panel Lapping
The MAX-Tension™ TL-2 system is a tension-
based system that slides backwards upon
impact. For the panels to slide properly, panel
1 must lap over panel 2, panel 2 must lap over
panel 3, panel 3 must lap over panel 4 and
panel 4 must lap over the existing rail system.
This applies to both approach end and trailing
end terminals, no matter the direction of trafc.
Failure to follow this lapping pattern can result in
serious injury or death.
Test Level 2
610mm
610mm
7.625m

July 2020 | Page 10NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2

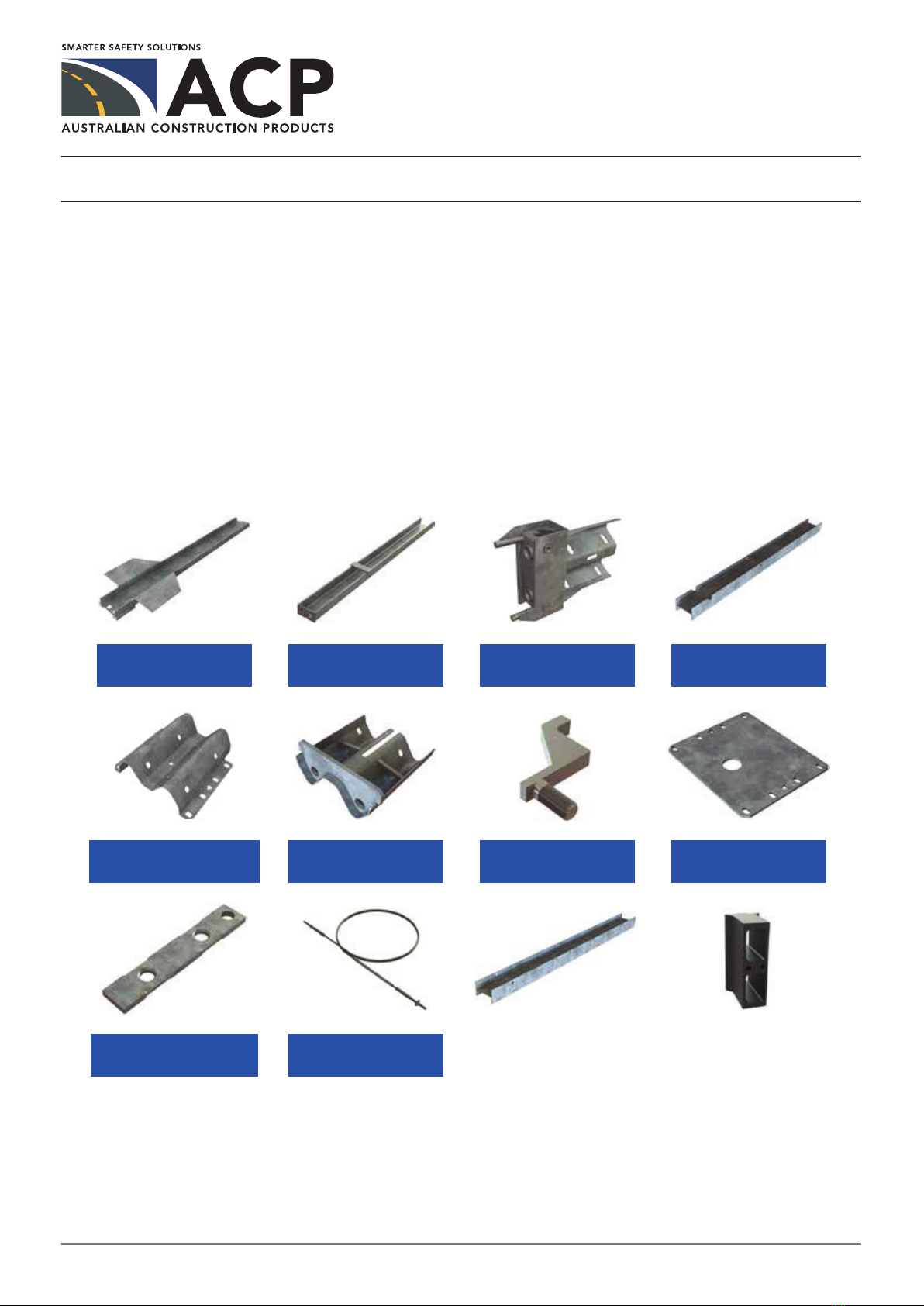

Parts Identification
WARNING Use only ACP parts that are specied by ACP for use with the MAX-Tension™
Guardrail Terminal System. Do not use or co-mingle parts from other systems, as such
congurations have not been tested nor have they been approved for use. The use of unspecied
parts is prohibited and could result in severe personal injury or death.
Soil Anchor
MAXGAG, Qty. 1
Traffic Side Slider Panel
MAXTSSG, Qty. 1
Friction Plate
[INCL. IN MAXHDG], Qty. 1
Ground Strut
MAXGSG, Qty. 1
Inner Side Slider Panel
MAXISSG, Qty. 1
TL-2 Cable Assembly
MAXTL2CAG, Qty. 2
Impact Head
MAXHDG, Qty. 1
Tooth
BSI-1610066-00, Qty. 1
Line Post
MAXLPG, Qty. 4
I-Beam Post (Post 1)
MAXP1G, Qty. 1
Rear Side Slider Plate
MAXRSSG, Qty. 1
Blockout
B090534, Qty. 4
Highlighted in blue above denotes shipped with Kit
1
5
9
2
6
10
3
7
11
4
8
12

July 2020 | Page 11NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Parts Identification (Cont.)
MASH W-Beam Guardrail
W122G, Qty. 2
M16X32MM Galv Splice Bolt
F1002, Qty. 40
M16X50mm Galv Post Bolt
F1012, Qty. 1
1.0m NLL W-Beam Rail
W113G, Qty. 1
Square Washer
FW923, Qty. 1
M16X240 Galv Cup Head
F124, Qty. 4
Delineation Bracket
MAXBDG, Qty. 1
Plastic Nut Cover
X350NC, Qty. 17
M16X200 Galv Hex Head
F123, Qty. 1
M16 Galv Round Washer
FW900, Qty. 2
14-20 X 25mm Self Drilling
F173, Qty. 3
Yellow Plastic Nose Housing
X350YN, Qty. 1
M20X75 Galv Hex Head
[INCL. IN MAXHDG], Qty. 4
Guardrail Nut - 5/8
4001116, Qty. 1
Guardrail Washer, Rect.
FW903, Qty. 1
Highlighted in blue above denotes shipped with Kit
13
17
21
25
14
18
22
26
15
19
23
27
16
20
24
optional
optional

July 2020 | Page 12NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Bill of Materials
Item # Part # Description Description 2 Quantity
1 MAXGAG MAXTENSION GROUND ANCHOR GALV 1
2 MAXGSG MAXTENSION GROUND STRUT 1
3 MAXHDG MAXTENSION IMPACT HEAD GALV 1
4 MAXP1G MAXTENSION POST 1 1830MM GALV 1
5 MAXTSSG MAXTENSION TS SLIDER GALV Trafc Side Slider Panel 1
6 MAXISSG MAXTENSION INSIDE SLIDER GALV 1
7 BSI-1610066-00 TOOTH, GEOMET MAX-TENSION 1
8 MAXRSSG MAXTENSION REAR SIDE SLIDER Galvanised 1
9 [incl. in MAXHDG] MAXTENSION CABLE FRICTION PLATE 1
10 MAXTL2CAG MAXTENSION TL2 CABLE ASSEMBLY 2
11 MAXLPG MAXTENSION LINE POST 1830MM Galv 4
12 B090534 COMPOSITE BLOCK - X350 4
13 W122G 3.81M MAXTENSION W-BEAM GALV 2
14 FW923 50 X 50 X 3MM GALV SQUARE Washer 1
15 F123 M16X200 GALV HEX HEAD Bolt & Nut 1
16 [incl. in MAXHDG] M20X75 GALV HEX HEAD 4
17 F1002 M16X32MM GALV SPLICE BOLT & Nut GR 8.8 40
18 F124 M16X240 GALV CUP HEAD Bolt & Nut 4
19 FW900 M16 GALV ROUND WASHER 2
20 4001116 Guardrail Nut Recessed 5/8-11 1
21 F1012 M16X50MM GALV POST BOLT & Nut GR 4.6 1
22 MAXBDG MAX BRACKET DELINEATION (optional) 1
23 F173 14-20 X 25MM SELF DRILLING Screw Hex Washer Head
CL4 3
24 FW903 RECTANGULAR WASHER GALV (75x45x5) 1
25 W113G 1.0M NLL W-BEAM RAIL 1
26 X350NC PLASTIC NUT COVER 17
27 X350YN YELLOW PLASTIC NOSE HOUSING (optional) 1

July 2020 | Page 13NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Step 1 - Post Assembly and Installation
Item # Part # Description Qty
4 MAXP1G MAXTENSION POST 1 1830MM GALV 1
11 MAXLPG MAXTENSION LINE POST 1830MM 4
The MAX-Tension™ TL-2 guardrail end terminal is designed to attach to 787mm W-beam guardrail
systems. If the existing rail system is not 787mm in height, ensure the guardrail end terminal is
properly transitioned per Federal, State, and Local standards.
1.1 Install posts (items 11 & 4) in the conguration shown. Ensure post height and post spacing
follow the dimensions above.
NOTE: Slot on post 1 (item 4) is facing upstream.
NOTE: The spacing between post 3 and post 4 is unique.
NOTE: The spacing between post 1 and post 2 is unique.
NOTE: The detail above depicts a tangent system without an offset. If applying an allowable offset
of 0-610mm, modify the post offsets accordingly.

July 2020 | Page 14NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Step 2 - Ground Strut and Soil Anchor Installation
NOTE: To facilitate placement of the soil anchor (item 1), place the ground strut (item 2) in place
prior to driving the soil anchor.
2.1 Assemble the ground strut (item 2) ush to the soil anchor (item 1) with hardware (items 15 & 19)
in conguration shown.
2.2 Tighten all hardware.
Item # Part # Description Qty
1 MAXGAG MAXTENSION GROUND ANCHOR GALV 1
2 MAXGSG MAXTENSION GROUND STRUT 1
15 F123 M16X200 GALV HEX HEAD 1
19 FW900 M16 GALV ROUND WASHER 2
SEE
DETAIL
GROUND STRUT
GROUND STRUT DETAIL
SIDE VIEW DETAIL
POST 1
FINISHED
GRADE LINE
FINISHED
GRADE LINE
70mm
19
19
15
15
1
1
2
TRAFFIC FLOW

July 2020 | Page 15NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2

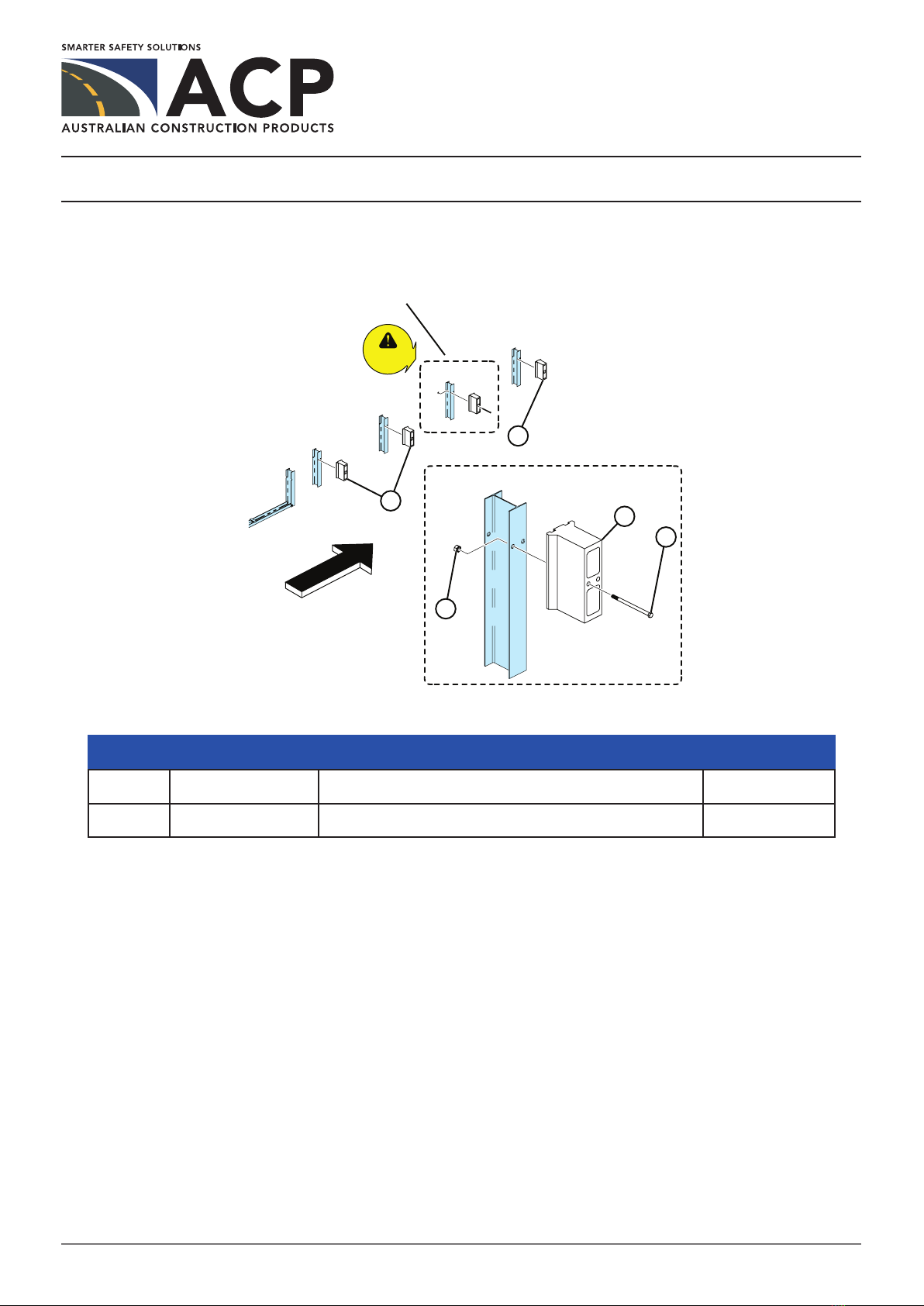

Step 3 - Blockout Installation
NOTE: Only posts 2-5 require a blockout. Do not install blockout on post 1.
3.1 Install the blockouts (item 12) in the conguration shown.
3.2 Secure blockout (item 12) on post 6 with hardware (item 18) as shown.
3.3 Tighten all hardware.
NOTE: The blockout must be secured to post 4 before hanging the rail using hardware items 18 and
20 as listed in the table above.
Item # Part # Description Qty
12 B090534 COMPOSITE BLOCK - X350 4
18 F124 M16X240 GALV CUP HEAD 1
POST 4 (ONLY)
SEE POST 4 BLOCKOUT DETAIL
POST 4 BLOCKOUT DETAIL
POST 5
POST 4
POST 3
POST 2
POST 1
18
TRAFFIC FLOW
12
18
NOTICE
12
12

July 2020 | Page 16NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Step 4 - Assemble Inner Side Slider (ISS) Panel on Rail 2
4.1 Prior to installing rail 2 (item 13), secure the inner side slider (ISS) panel (item 6) on upstream
end of rail 2 (item 13) using the supplied hardware (item 17).
NOTE: Secure ISS on the non-trafc side of the rail.
DANGER BOLTS SHALL BE INSTALLED WITH THE BOLT HEADS ON THE TRAFFIC SIDE AND
NUTS ON THE NON-TRAFFIC SIDE.
5.2 Tighten all hardware.
Item # Part # Description Qty
6 MAXISSG MAXTENSION INSIDE SLIDER GALV 1
13 W122G 3.81M MAXTENSION W-BEAM GALV 1
17 F1002 M16X32MM GALV SPLICE BOLT 8
8x
8x
8x
13
TRAFFIC FLOW
17
17
617
RAIL 2
NOTICE
NOTICE

July 2020 | Page 17NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Step 5 - Install Rail 2
DANGER RAIL 2 IS LAPPED OVER TOP OF RAIL 3. THIS IS DONE REGARDLESS OF AN
UPSTREAM OR DOWNSTREAM END SYSTEM POSITION.
5.1 Install the preassembled rail 2 with attached inner side slider (ISS) panel in conguration shown
in Step 4.
NOTE: Hardware used to splice rails 2 and the exisiting rail is not supplied with the system. This
hardware shall be supplied by the end user.
NOTE: Bolts shall be installed with the bolt heads on the trafc side and nuts on the non-trafc
side.
NOTE: Do not install any type of washer (e.g., rectangular washer) or delineator between the post
bolt head and the guardrail.
NOTE: Rail 2 is not bolted at post 4. Ensure that the blockout on post 4 has already been secured
with a bolt (See Step 3).
5.2 Tighten all hardware.
Item # Part # Description Qty
18 F124 M16X240 GALV CUP HEAD 1
EXISTING RAIL
POST 4
POST 5
POST 6
RAIL 2 AND ISS PANEL
13
TRAFFIC FLOW
18
18
BOLT RAIL TO
(DO NOT
POST 4)
(NO WASHERS)
NOTICE
SPLICE BOLTS & NUTS
NOT SUPPLIED UPSTREAM
END

July 2020 | Page 18NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Step 6 - Assemble Traffic Side Slider (TSS) and Tooth on Rail 1
6.1 Prior to installing rail 1 (item 13), assemble the trafc side slider (TSS) panel (item 5) and tooth
(item 7) on the trailing end of rail 1 (item 13) in the conguration shown.
6.2 Secure the trafc side slider (TSS) panel (item 5) to the outside of rail 1 (item 13) using hardware
(item 17). The arrow shall point toward the front of the system.
DANGER BOLTS SHALL BE INSTALLED WITH THE BOLT HEADS ON THE NONTRAFFIC SIDE
AND NUTS ON THE TRAFFIC SIDE.
6.3 Secure the tooth (item 7) using nut (item 20). Only hand tighten at this time. The RSS
engagement hook on the tooth shall point toward the front of the system.
6.4 Tighten all hardware except the nut (item 20) on the tooth (item 7). The nut will be tightened
during Step 12.
Item # Part # Description Qty
5 MAXTSSG MAXTENSION TS SLIDER GALV 1
7 BSI-1610066-00 TOOTH, GEOMET MAX-TENSION 1
13 W122G 3.81M MAXTENSION W-BEAM GALV 2
17 F1002 M16X32MM GALV SPLICE BOLT 8
20 4001116 Guardrail Nut Recessed 5/8-11 1
8x
HAND
TIGHTEN
8x
ONLY
ARROW
DETAIL TOOTH
8x
RSS ENGAGEMENT HOOK
TOWARD FRONT OF SYSTEM
TRAFFIC FLOW
7
13
17
17
2017
5
(NUTS OUT)
NOTICE
(BOLTS IN)
NOTICE
RAIL 1
CUTTING EDGE

July 2020 | Page 19NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Step 7 - Install Rail 1
DANGER RAIL 1 IS LAPPED OVER TOP OF RAIL 2. THIS IS DONE REGARDLESS OF AN
UPSTREAM OR DOWNSTREAM END SYSTEM POSITION.
NOTE: Rails 1 and 2 will not be spliced together. When installing rail 1 over rail 2, ensure the tooth
goes through elongated slot on rail 2.
7.1 Install the preassembled rail 1 with attached trafc side slider (TSS) panel and tooth in
conguration shown ensuring the tooth goes through the slot on rail 2.
7.2 Secure rail 1 to post 2 and post 3 using hardware (item 18).
NOTE: Do not install any type of washer (e.g., rectangular washer) or delineator between the post
bolt head and the guardrail.
7.3 Tighten all hardware.
Item # Part # Description Qty
18 F124 M16X240 GALV CUP HEAD 2
POST 2
POST 3
SLOT
(NO WASHERS)
13
TRAFFIC FLOW
18
18
18
POST 1
RAIL 1 AND TSS PANEL
RAIL 2 AND ISS PANEL

July 2020 | Page 20NSW/WA/SA/ACT 02 8708 4400 VIC/TAS 03 8773 5300 QLD/NT 07 3442 6200 www.acprod.com.au
Product & Installation Manual: MAX-TensionTM TL-2
Step 8 - Install Impact Head
DANGER ALWAYS LAP THE IMPACT HEAD OVER RAIL 1.
8.1 Install the impact head (item 3) in conguration shown.
8.2 Splice the impact head (item 3) to rail 1 using hardware (item 17).
NOTE: Bolts shall be installed with the bolt heads on the non-trafc side and nuts on the trafc side.
8.3 Secure the impact head (item 3) and rail 1 to post 1 in the conguration shown.
8.4 Ensure that the rectangular washer (item 24) is placed between the post bolt head (item 21) and
the impact head (item 3) and that the square washer (item 14) is used on the backside between post
1 and the nut (item 21).
8.5 Tighten all hardware.
Item # Part # Description Qty
3 MAXHDG MAXTENSION IMPACT HEAD GALV 1
14 FW923 50 X 50 X 3MM GALV SQUARE 1
17 F1002 M16X32MM GALV SPLICE BOLT 8
21 F1012 M16X50MM GALV POST BOLT 1
24 FW903 RECTANGULAR WASHER GALV 1
POST 2
POST 1
3
TRAFFIC FLOW
17 24 21
8x
8x
8x
17
21
14
17
17
RAIL 1
(NUTS OUT)
(BOLTS IN)
DANGER
DANGER
