Dynapac CC722 Guide

DYNAPAC
CC722/722C
Box 504, SE-371 23 Karlskrona, Sweden
Telephone [phone]
Telefax [phone]
Web www.dynapac.com
M722EN2
MAINTENANCE

19
ILF015WO1

Reservation for changes.
Printed in Sweden.
Vibratoryroller
CC722/722C
Maintenance
M722EN2,May2002
Diesel engine:
Cummins QSB 5.9-C
These instructions apply from:
CC 722: PIN (S/N) *63920722*
CC 722C: PIN (S/N) *64020722*
The CC 722 is a roller of the heavier category in the CC family.
The CC 722 has articulated steering and drive on both drums.
The CC 722 features high power, high capacity and high quality in extremely demanding
applications, such as building highways and airfields, with strict requirements for results and
sealed surfaces in compacting various asphalt compounds.
Separate information about accessories is available on request.
KEEPTHISMANUALFOR
FUTUREREFERENCE

2CC 722/722C M722EN2
CONTENTS
Safety instructions—Personal safety.
Special caution—Machine or component damage.
Read the entire manual before starting any
service work.
Ensure that ventilation (extraction) is adequate
if the engine is run indoors.
It is essential that the machine is properly cared for to
ensure satisfactory operation. Keep the machine clean to
facilitate quick and timely detection of any leakage, loose
bolts and loose connections.
TAKE CARE OF THE ENVIRONMENT
Do not leave behind any oil, fuel or other substances that
are detrimental to the environment.
This manual contains instructions for periodic activities
that should normally be performed by the operator.
For the diesel engine, the engine manufacturer’s
instructions—found in the engine manual—also
apply. This manual is included in the product
binder.
WARNING SYMBOLS
GENERAL
WARNING
WARNING
WARNING
CAUTION
CAUTION
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects,
and other reproductive harm.
Page
Lubricants, symbols ......................................................... 3
Specifications ................................................................ 4-6
Maintenance schedule ..................................................... 7
Maintenance measures ................................................ 8, 9
Every 10 hours of operation (daily) ........................... 10-13
Every 50 hours of operation (weekly) ....................... 14-16
Every 250 hours of operation (monthly) ................... 17, 18
Every 500 hours of operation (every three months). 19, 20
Every 2000 hours of operation (yearly) .................... 21, 22
Long-term parking .......................................................... 23
Special instructions ........................................................ 24
Electrical system, fuses ........................................... 25, 26

3CC 722/722C M722EN2
LUBRICANTS, SYMBOLS
Other fuel and lubricants are required for operation in extremely high or extremely low
ambient temperature. See the “Special instructions” chapter, or consult Dynapac.
Always use high-quality lubricants in the recommended amounts. Too much grease or oil can
cause overheating and subsequent increased wear.
Engine, oil level Air filter
Engine, oil filter Battery
Hydraulic reservoir, level Sprinkler
Hydraulic fluid filter Sprinkler water
Drum, oil level Recycling
Lubricating oil Fuel filter
Air pressure Sprinkler, tyres
Coolant, level Transmission, oil level
CAUTION
CAUTION
ENGINE OIL
ambient temperature
-10°C to +50°C (14°F-122°F) Shell Rimula SAE 15W/40 or equivalent.
HYDRAULIC FLUID
ambient temperature
-10°C to +40°C (14°F-104°F) Shell Tellus TX68 or equivalent
above +40°C (above 104°F) Shell Tellus TX100 or equivalent
BIOLOGICAL Shell Naturelle HF-E46
HYDRAULIC FLUID When it leaves the factory, the machine may be filled
with biologically degradable fluid. The same type of
fluid must be used when changing or topping off.
DRUM OIL
ambient temperature
-15°C to +40°C (5°F-104°F) API, GL-5 SAE 80W/90 HD
above +40°C (above 104°F) Shell Spirax HD85W/140 eller motsvarande
TRANSMISSION OIL
ambient air temperature
-15°C to +40°C (5°F - 104°F) API, GL-5 SAE 80W/90 HD
above +40°C (above 104°F) Shell Spirax HD85W/140 eller motsvarande
GREASE SKF LGHB2 (NLGI Class 2) or equivalent for the articulated
joint. Shell Retinax LX2 or equivalent for other grease points.
FUEL See engine manual.
COOLANT Shell Anti-Freeze 402 or corresponding.
mixed 50/50 with water Anti-freeze protection down to about -35°C (-31°F).

4CC 722/722C M722EN2
Fluid volumes Liters (gal or qts)
Drums 26.5 l/drum (7 gal/drum) 26.5 l/drum (7 gal/drum)
Hydraulic reservoir 120 l (32 gal) 120 l (32 gal)
Fuel tank 335 l (88 gal) 335 l (88 gal)
Water tanks front/rear 670/670 l (177/177 gal) 670/318 l (177/84 gal)
Coolant 38 l (10 gal) 28 l (7 gal)
Diesel engine 19 l (6 gal) 15,7 l (4 gal)
Pump drive 4 l (4.3 qts) 3,1 l (3.3 qts)
Drum drive 3 l/drum (3.2 qts/drum) 3 l/drum (3.2 qts/drum)
Electricalsystem CC 722 CC 722CC
Battery 12 V, 160 Ah
Alternator 12 V, 95 A
Fuses 5,0-10 A 5,0-10 A
Compaction data CC 722 CC 722C
Static linear load, kg/cm (pli)
Front 35 (196) 35 (196)
Rear 39 (218) 39 (218)
Tire load kg/tire (lbs/tire) - 3 100 (6,835)
Amplitude, mm (in)
High: 0,8 (0.031) 0,8 (0.031)
Low: 0,4 (0.016) 0,4 (0.016)
Frequency, Hz (vpm) 45 (2700) 45 (2700)
Centrifugal force, kN (lb)
At high amplitude: 189 (42,489) 189 (42,489)
At low amplitude: 90 (20,233) 90 (20,233)
Propulsion CC 722 CC 722C
Speed range, km/h (mil/h) 0-13 (0-8.1) 0-10,5 (0-6.5)
Climbing capacity (theoretical) % 30 31
SPECIFICATIONS
Weight Sizes CC 722 CC 722C
Weight CECE,
standard equipped roller, kg (lbs) ...................... 16 500 (36,382) 20 600 (45,423)
Length, standard equipped roller, mm (in) ......... 5 653 (12,463) 5 653 (12,463)
Width, standard equipped roller, mm (in) ........... 2 430 (5357) 2 430 (5357)
Height, standard equipped roller, mm (in)
(Shipping height)................................................ 2 630 (5798) 2 630 (5798)
Height, standard equipped roller with ROPS ..... 3 330 (7341) 3 330(7341)
Tires CC 722C
Dimension .............. 15.0 R24 Pilote
Qty. ........................ 4
Air pressure ........... See diagram on next page

5CC 722/722C M722EN2

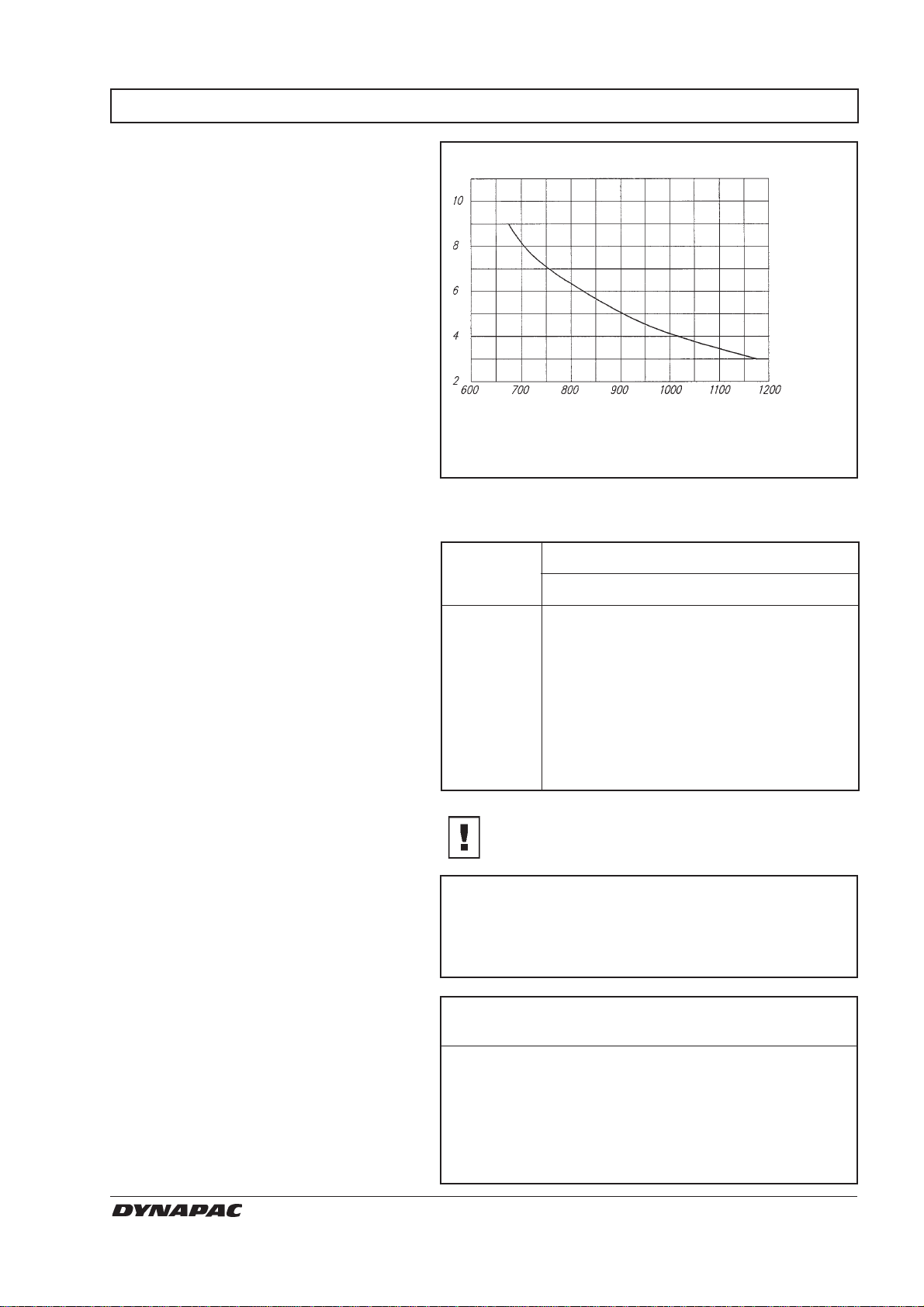

SPECIFICATIONS
Note.
The diagram applies for a wheel load of 3100 kg (6,834 lbs).
(1 bar = 100 kPa)
Tire pressure (bar)
Contact
area,
cm2 (in2)
(36.6) (42.7) (48.8) (54.9) (61.0) (67.1) (73.2)
Opening pressure,
MPa (psi) CC 722 CC 722C
Drive system 35 (5,100) 35 (5,100)
Charge system 2,0 (290) 2,0 (290)
Vibration system 35 (3,626) 35 (3,626)
Steering system 14 (2,000) 14 (2,000)
Brake release 1,5 (220) 1,5 (220)
Tightening torque
M STRENGTH CLASS
thread 8.8 10.9 12.9
M6 8,4 12 14,6
M8 21 28 34
M10 40 56 68
M12 70 98 117
M16 169 240 290
M20 330 470 560
M24 570 800 960
M30 1130 1580 1900
M36 1960 2800 –
Tightening torque in Nm (lbf.ft) for oiled, bright
galvanized bolts tightened with a torque wrench.
Hydraulic system
ROPS
Bolt size: M24 (P/N 903792)
Strength class: 10,9
Tightening torque: 800 Nm (590lbf.ft)
(for Dacromet treated)
ROPS bolts must always be tightened dry.
CAUTION

6CC 722/722C M722EN2
The vibration values are measured in conformance
with the driving mode described in EU directive
2000/14/EC on EU equipped machines, on soft
polymer material with vibration switched ON and
the operator’s seat in transport mode.
Operator’s station, vibration, hand/arm (steering
wheel/lever):
Below limit value.
Limit value: <2.5 m/s2.
Operator’s station, vibration, entire body (operator’s
seat):
Below limit value.
Limit value: <0.5 m/s2.
SPECIFICATIONS
Vibrationer - Förarplats
(ISO 2631)
Noise level - Operator’s station
(ISO 6394) Noise levels with vibration switched OFF (dB(A)).
Measured on hard surface, standard roller.
Operator’s station, (with cab) LpA: 76 dBA
Operator’s station, (without cab) LpA: 84 dBA
Seven metres from machine LpA: 80 dBA
CC 722 113 - 88
CC 722C 113 - 87
The acoustic values are measured in conformance with EU directive
2000/14/EC on EU-equipped machines, on soft polymer material
with vibration switched ON and the operator’s seat in transport
mode.
Acoustic values
Model Guaranteed
acoustic
power level
dB(A)
Acoustic
pressure level,
operator’s ear
(platform)
dB(A)
Acoustic
pressure level,
operator’s ear
(cab) dB(A)
Noise level can vary when driving on different
courses and with different seat positions.
Vibration levels may vary when driving on
different courses and with different seat
positions.
CAUTION
CAUTION

7CC 722/722C M722EN2
MAINTENANCE SCHEDULE
15 16 17
18
19
22 21 20
1. Water tanks
2. Sprinklers
3. Fuel tank
4. Engine suspension
5. Fuses
6. Drum oil filling/level
7. Scrapers
8. Rubber element,
fastening screws
16. Drive belts
17. Coolant filter
18. Drum drive
19. Control table
20. Air filter
21. Engine oil level
22. Fuel filter
9. Flywheel casing,
pump drive
10. Hydraulic filter
11. Articulation joint,
steering cylinder
12. Hydraulic reservoir
13. Battery
14. Tires (CC 722C)
15. Radiator
Fig.1 Maintenancepoints
6
14131211109787
521
1234

8CC 722/722C M722EN2
MAINTENANCE MEASURES
The periodic measures should be performed primarily
after the specified hours of operation. Use the daily,
weekly, etc. time periods only where this is not possible.
Remove all dirt before filling, when checking
oils and fuel, and when lubricating with oil or
grease.
The engine manual specifies additional ser-
vice/maintenance instructions which relate to
the diesel engine.
CAUTION
CAUTION
Items in Measure See page Comments
fig. 1
Before starting up
21 Check oil level in the engine See engine manual
15 Check coolant level 10 See engine manual
15 Check for free circulation of cooling air 10 See engine manual
22 Drain the water trap on the fuel filters 10 See engine manual
Test the brakes 10
2 Inspect and clean the sprinkler system 11
7 Check the scraper setting 12
12 Check level of the hydraulic reservoir and top
off with hydraulic fluid as required 13
3 Refuel 13
Every 10 hours of operation (daily)
Items in Measure See page Comments
fig. 1

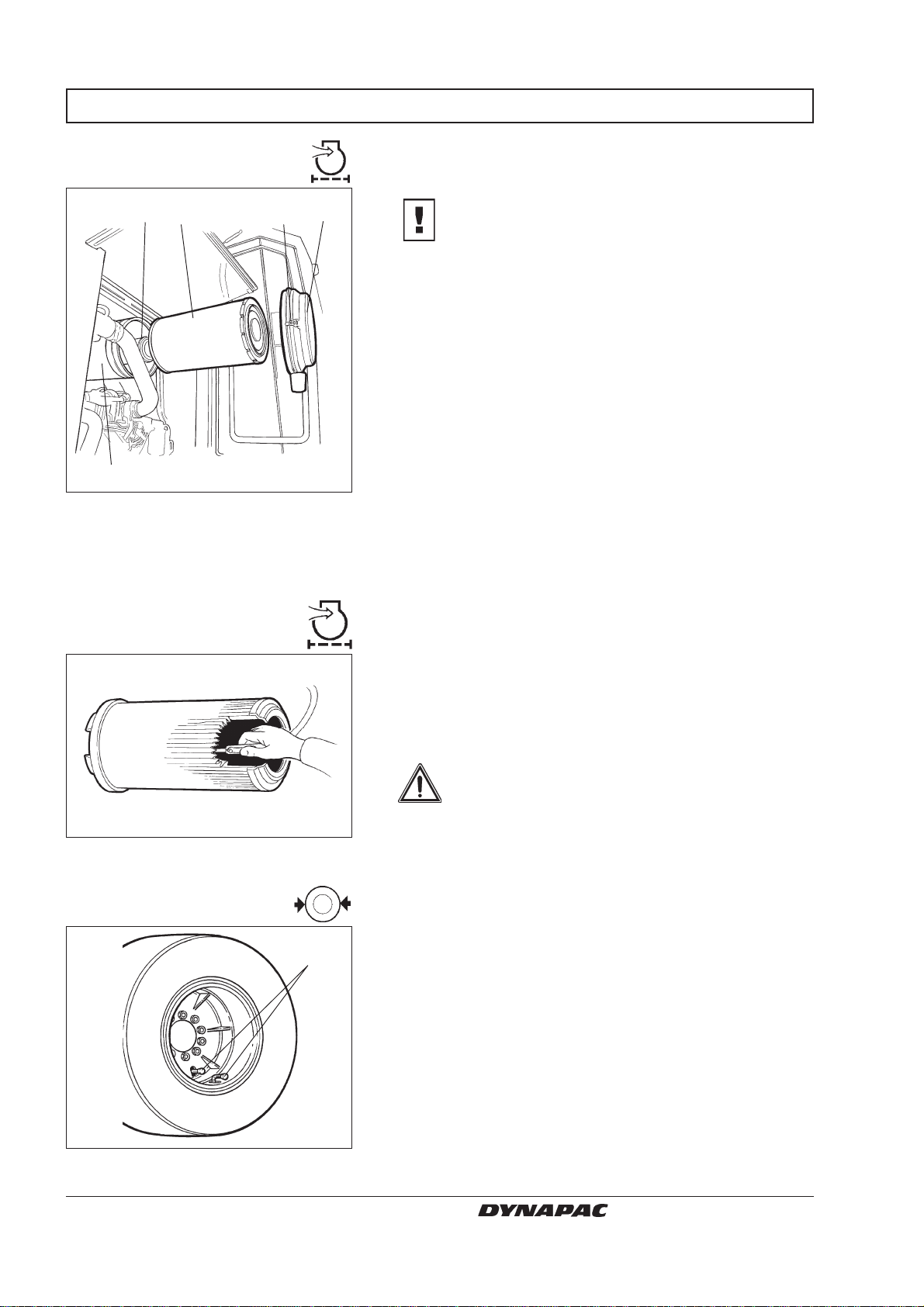

14 Check tire pressure 14
20 Clean the filter element in the air cleaner 14
Check that hoses and connections are tight
8 Check rubber elements and bolted joints 15
11 Grease the articulation joint and the steering
cylinder mounts 15
12 Check the hydraulic reservoir cover/breather 15
13 Check the battery 16
22 Drain the engine fuel pre-filter 16
After the first 50 hours of operation, change all the lubricating oils,
but not the hydraulic fluid.
Every 50 hours of operation (weekly)

9CC 722/722C M722EN2
MAINTENANCE MEASURES
Items in Measure See page Comments
fig. 1
16 Check belt tension of the radiator fan and
alternator See engine manual
21 Change the engine oil and oil filter See engine manual
9 Check the oil level in the pump drive 18
18 Check oil level in the drum drives
(2 on CC 722) 18
Items in Measure See page Comments
fig. 1
12 Change the hydraulic fluid 21
6 Check oil in the drums
(2x2 on CC 722) 21
18 Change oil in the drum drives (2 on CC 722) 22
1 Empty and clean the water tanks
9 Change oil in the pump drive 22
10 Replace the hydraulic filter and clean the
outside of the hydraulic fluid cooler 17
Every 2000 hours of operation (yearly)
Every 250 hours of operation (monthly)
Every 500 hours of operation (every three months)
Items in Measure See page Comments
fig. 1
6 Check oil level in the drums
(2x2 on CC 722) 19
19 Lubricate controls, pivoted joints and the
control table bearings 19
4 Control tighten engine suspension and
bolted joints 20
3 Drain condensation from the fuel tank 20
12 Drain condensation from the hydraulic
reservoir 20
22 Replace the engine fuel filters (2 off) See engine manual
21 Change the engine oil and oil filter See engine manual
Items in Measure See page Comments
fig. 1
Check/adjust engine valve clearance See engine manual
16 Check the belt stretcher, engine See engine manual
Every 1000 hours of operation (every six months)

10 CC 722/722C M722EN2
EVERY 10 HOURS OF OPERATION (DAILY)
1
31
924
Take great care if the radiator cap must be
opened while the engine is hot.
Danger of being burned. Wear gloves and
safety goggles.
Fill with coolant comprised of 50% water and 50%
antifreeze. See page 3 in these instructions and the
engine manual.
Change the coolant and flush the system
every other year. Ensure that air has free
passage through the radiator.
Coolant level – Checking,
filling(Circulationofcoolingair)
Fig.2 Radiator cap
Open the drain tap at the bottom of the outer fuel filter
and drain off water and sediment until pure fuel flows
out. See also engine manual.
WARNING
CAUTION
Check brake function:
Drive the roller slowly forward.
Push in the reserve/parking brake knob (9). The roller
should slow down and come to a standstill as the brake
warning lamp (31) lights.
After checking the brakes, put the forward/reverse
lever (24) in neutral before resetting the parking brake.
Pull up the reserve/parking brake knob.
Fig.3 Water trap on the fuel filter
1. Drain cock
Brakes – Check
Fig.4 Instrument panel
9. Reserve/parking brake knob
24. Forward/Reverse lever
31. Brake warning lamp
Water trap – Draining
WARNING

11CC 722/722C M722EN2
EVERY 10 HOURS OF OPERATION (DAILY)
4
Use only clean water in the water tanks. Ensure that
the strainer (1) in the filler is fitted. Take out the strainer
and clean it as required.
1
2
31
1
32
Sprinkler system
– Checking, cleaning
Fig.5 Water tank
1. Strainer
Fig.6 Sprinkler system
1. Stop cock
2. Pressure filter housing
3. Water pump
Fig.7 Nozzle
1. Strainer
2. Rubber seal
3. Nozzle
4. Holder
Close the tap (1) and remove the housing of the
pressure filter (2), to clean the strainer and housing.
Check that water is sprayed evenly over the entire
surface of the drum. If any nozzle is not spraying
evenly, release the holder and take out the strainer,
rubber seal and nozzle; see figure 7 showing how the
parts are fitted.
Clean using compressed air or water.
Wear protective goggles when working
with compressed air.
WARNING

12 CC 722/722C M722EN2
2
23 1 1
EVERY 10 HOURS OF OPERATION (DAILY)
Adjust the scrapers to give a clearance of 1–2 mm
(0.04-0.08 in) along the entire width of the drum.
Unscrew the fastening screws (1).
Push the scraper (2) to the correct position, 1–2 mm
(0.04-0.08 in) from the drum (3).
Tighten the screws.
When the rubber/plastic has become so worn that the
scraper cannot be adjusted any more, lower the
scraper, unscrew the screws holding the blade, and
replace with a new one. Put the scraper back in position.
Scrapers
– Inspection and setting
Fig.8 Scraper setting
1. Fastening screw
2. Scraper
3. Drum
1-2 mm
0.04-0.08 in
1-2 mm
0.04-0.08 in
Tire scrapers
Checking – setting
Fig.9 Scraper setting
1. Scraper blade
2. Locking pin
3. Limit stop
Fig.10 Scraper setting
1. Scraper blade
2. Locking pin
Make sure that the scrapers (1) are against the tires
when compacting asphalt compounds. Pull out the
cotter (2) and lower the scraper blades (1) against the
tires. The screw (3) is an adjustable limit stop for the
scraper blades.
The scrapers must hang freely from the tires during
transport driving. Lift up the scraper blades (1) and
latch them in the raised position with the cotter (2).
1
3
2
1 2

13CC 722/722C M722EN2
12
1
Hydraulic reservoir
– checking the fluid level
Place the roller on a level surface and check the fluid
level in the sight glass (1).
Top off with hydraulic fluid through the filler hole (2) if
the level is 20 mm (0.8 in) or more below the upper
edge of the sight glass.
Check that the strainer in the filler hole is intact.
Fig.11 Hydraulic reservoir
1. Sight glass
2. Filling
Stop the diesel engine while refueling. Short
(press) the filler gun against a non-insulated
partoftherollerbeforerefueling,andagainst
thefillerpipe(1)whilerefuelingisinprogress.
Refuel at the end of each working day up to the lower
edge of the filler pipe on the fuel tank.
Use diesel fuel recommended by the engine
manufacturer.
Fig.12 Refueling
1. Filler pipe
Fuel tank
– refueling
WARNING
CAUTION
EVERY 10 HOURS OF OPERATION (DAILY)

14 CC 722/722C M722EN2
EVERY 50 HOURS OF OPERATION (WEEKLY)
1234
5
WARNING
CAUTION
Cleaning with
compressed air
Fig.14 Main filter
Use compressed air at a maximum pressure of 0.7
MPa (7 bar). Blow up and down the paper pleats on the
inside of the filter element. Hold the nozzle at least 20
mm (0.8 in) from the paper pleats so as to avoid tearing
the paper.
Wear protective goggles when working
with compressed air.
Air cleaner
– Check/Cleaning
Fig.13 Air cleaner
1. Locking braces
2. Cover
3. Main filter
4. Backup filter
5. Filter housing
Replace or clean the main filter of the air
cleaner when the warning lamp on the instru-
ment panel lights at full engine revs.
Release the three locking braces (1) and pull off the
cover (2), pull out the main filter (3).
Do not remove the backup filter (4).
Tires - tire pressure
(CC 722C)
1
Check the tire pressure with a pressure gauge.
Ensure that the tires have equal pressure. Two valves
can be reached from the right side and two from the left
side.
Recommended pressure is 300–900 kPa (3–9 bar).
See also the diagram on page 5.
Fig.15 Wheel,right side
1. Air valves

15CC 722/722C M722EN2
EVERY 50 HOURS OF OPERATION (WEEKLY)
Steering cylinder and steering
joint – lubrication Do not allow anyone near the steering
joints when the engine is running. Danger
of being crushed.
Wipe the nipples clean from grease and dirt.
Lubricate the steering cylinder mounts (1) with two
strokes of the grease gun and the horizontal and vertical
bearings of the steering joint (2) with five strokes each.
If grease does not penetrate the bearings, relieve load
on the articulation with a jack and repeat the greasing.
Ensure that grease penetrates the bearings and leave a
little grease on the nipples to prevent dirt from entering.
Ensure that the breather holes (1) in the hydraulic
reservoir cover are not clogged. Clean the cover with
diesel oil and blow dry with compressed air as required.
Wear protective goggles when working
with compressed air.
1
2
Rubber elements and fastening
screws – check
Hydraulic reservoir cover
– inspecting the breather holes
Fig.16 Drum
1. Rubber element
2. Fastening screw
Fig.17 Lubricantnipples
1. Steering cylinder mounts
2. Steering joint bearings
Fig.18 Reservoir cover
1. Breather hole
1
1
1
1
1
Max 76 mm (3 in)
2
Check all rubber elements (1), replace all of the ele-
ments if more than 25% of them on one side of the
drum are cracked deeper than 10–15 mm (0.4-0.6 in).
Use the blade of a knife or pointed object to assist
when checking.
Ensure that the fastening screws (2) are tightened.
With a caliper gauge, measure the length of
the rubber element including the mounting
plates. See separate workshop instructions if
the size is more than 76 mm (3 in).
WARNING
CAUTION
WARNING

16 CC 722/722C M722EN2
EVERY 50 HOURS OF OPERATION (WEEKLY)
If water and other contamination is visible in the bowl,
remove and clean it.
Unscrew the nut (1) and take the bowl (2) down.
Take out the gasket and strainer from the filter head.
Inspect and clean the parts in diesel oil. Reassemble.
Pump fuel with the hand pump and check for tightness.

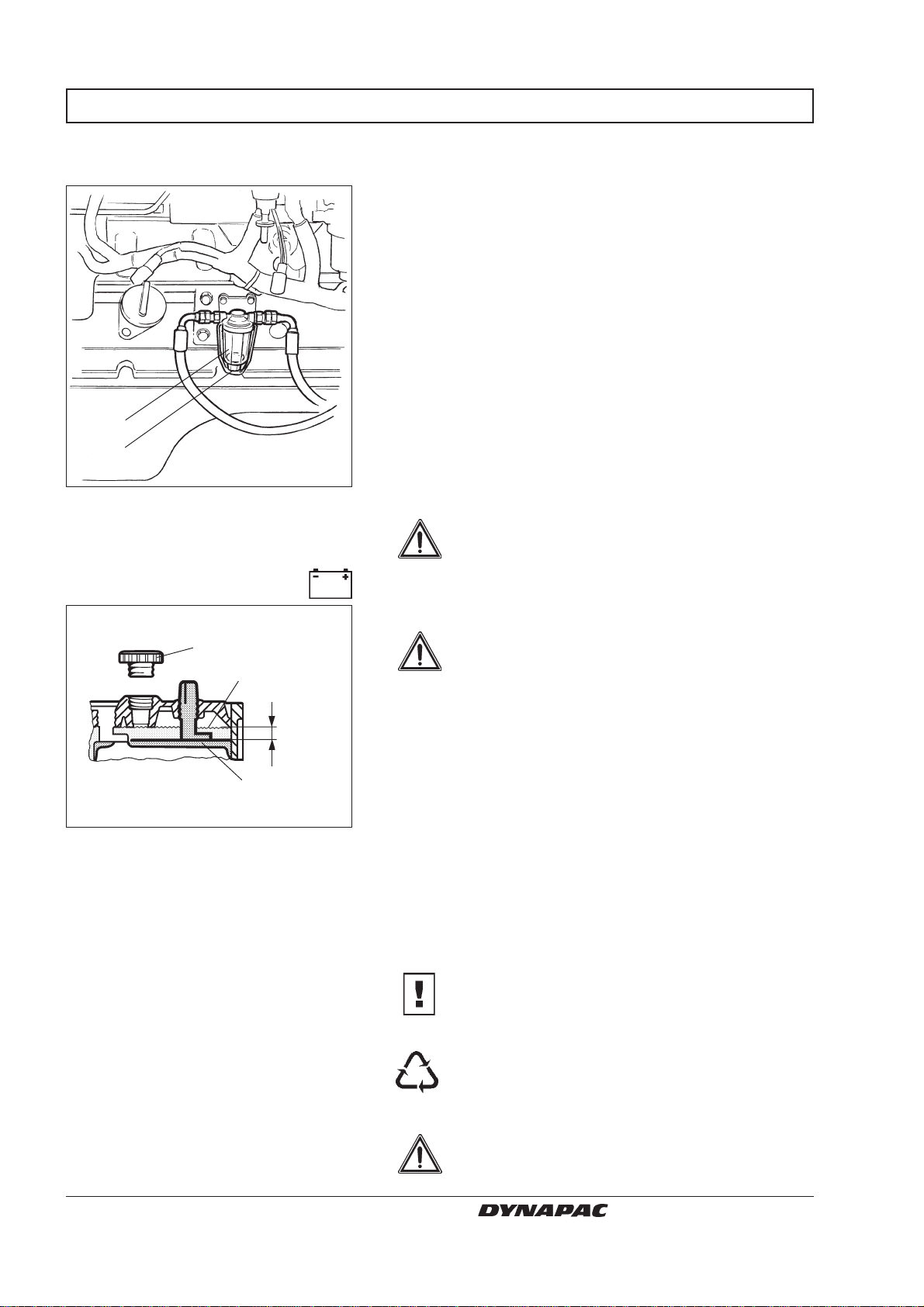

Diesel engine pre-filter
– draining
Fig.19 Pre-filter
1. Nut
2. Glass bowl
Fig.20 Electrolyte level in battery
1. Cell cap
2. Electrolyte level
3. Plate
2
1
Battery – check
Never use an open flame when checking
the electrolyte level. Explosive gas is
generated when the alternator is charging.
Wipe the top of the battery.
Wear safety goggles. The battery contains
acid. Rinse with water if electrolyte comes
into contact with the body.
Take off the cell caps and ensure that electrolyte is
about 10 mm (0.4 in) above the plates. Check the level
of all cells. Top off with distilled water to the right level if
the level is low. If the air temperature is below freezing,
the engine should be run for a while before topping up
with distilled water, there is otherwise a risk that the
battery fluid will freeze.
Ensure that the ventilation holes in the cell cover are
not clogged. Then put the cover back on.
The cable shoes should be clean and well tightened.
Clean corroded cable shoes and grease them with
acid-free Vaseline.
When disconnecting the battery, always
disconnect the negative cable first.
When connecting the battery, always connect
the positive cable first.
Discarded used batteries properly. Batteries
contain lead, which is detrimental to the envi-
ronment.
Before doing any electric welding on the
machine, disconnect the battery ground
cable and then all electrical connections to
the alternator.
1
2
3
10 mm
WARNING
CAUTION
WARNING
WARNING

17CC 722/722C M722EN2
EVERY 250 HOURS OF OPERATION (MONTHLY)
Hydraulic system
– changing the filters
Remove the filters and empty the fluid into the spill-oil
container. Discard the filters; they are disposable and
cannot be cleaned.
Ensure that the old gaskets do not remain on
the filter holders. Leakage may otherwise
occur between the new and the old sealing
rings.
Thoroughly clean the sealing surfaces of the filter
holders.
Apply a thin coat of fresh hydraulic fluid to the new filter
gaskets.
Tighten the filters by hand. First, screw on until the filter
seal lies against the filter holder. Then screw a further
half-turn.
Do not tighten the filter too hard; this could
damage the seal.
Start the engine and ensure that no hydraulic fluid leaks
from the filters.
Ensure that ventilation (extraction) is
adequate if the engine is run indoors.
(Risk of carbon monoxide poisoning.)
Check the fluid level in the sight glass (2) and top off as
required.
When you read the filter indicator, the hydraulic fluid
should be warm and the engine running at full revs.
Ensure that the air flow through the radiator is unob-
structed. Clean a dirty radiator with water or com-
pressed air. Blow the radiator in the opposite direction
to that of the cooling air. Ensure that seals and noise
absorbers are not damaged by the cleaning operation.
Wear protective goggles when working
with compressed air.
Fig.21 Hydraulic fluid system
1. Filter
2. Sight glass
21
CAUTION
WARNING
CAUTION
WARNING

18 CC 722/722C M722EN2
1
3
Fig.22 Pump drive
1. Filler plug and dipstick
Make sure that the roller is level.
Switch off the engine and apply the
parking brake/reserve brake.
Unscrew the filler plug/dipstick (1) on the right side of
the pump drive. The oil level must be within the marked
area on the dipstick.
Top off with oil through the filler plug (1) until the oil level
is within the marked area. See page 3 for the grade of
oil.
EVERY 250 HOURS OF OPERATION (MONTHLY)
2
1
Drum drive
– checking the oil level
Place the roller on a level surface with the filler plug (1)
at its highest point.
Wipe clean around the plugs.
Remove the plugs and ensure that the oil level reaches
the level plug (2).
Top off with transmission oil as required, see the lubri-
cant specifications on page 3.
Pump drive
– checking the oil level
Fig.23 Drum drive
1. Filler plug
2. Level plug
3. Drain plug
WARNING
