Coleman 5444 Series User manual

IMPORTANT
Read this manual carefully before assembling, using or servicing these stoves. Keep
this manual for future reference. If you have questions about assembly, operation,
servicing or repair of these stoves, please call Coleman at 1-800-835-3278 or TDD:
316-832-8707. In Canada call 1-800-387-6161.
IMPORTANT
Lisez attentivement ce manuel avant d’assembler, d’utiliser ou de réparer le réchaud
et gardez-le pour référence ultérieure. Pour toute question en ce qui concerne
l’assemblage, le fonctionnement, l’entretien ou la réparation, appelez Coleman au 1
800 835-3278 ou
ATS 316-832-8707 aux États-Unis et au 1 800 387-6161 au Canada.
IMPORTANTE
Lea este manual cuidadosamente antes de ensamblar, usar o reparar esta estufa.
Guarde este manual para uso de referencia en el futuro. Si tiene alguna pregunta acerca
del ensamblaje, uso, compostura o reparaciones a la estufa, por favor llame a Coleman
al 1-800-835-3278 o TDD: 316-832-8707. En Canada llame al 1-800-387-6161.
Propane Stoves
Réchauds à propane
Estufas de gas Propano
Instructions for use
Notice d’emploi
Instrucciones de uso
© 2006 The Coleman Company, Inc.
www.coleman.com
5444 Series
®®
ANSI Z21.72b - CSA 11.2b (2002)
Camp Stove
Poêle de camping
Estufa de campamento
INSTASTART™ Electronic Ignition
Allumage électronique
Encendido electrónico
Patents Pending
Brevets en instance
Patentes Pendientes
AA Battery included.
Propane cylinder not included.
Pile AA incluse.
Bouteille de propane non comprise.
Pila “AA” incluida.
El cilindro de propano no está incluido.

English-1
If you smell gas:
1. Do not attempt to
light appliance.
2. Extinguish any
open flame.
3. Disconnect from
fuel supply.
FOR YOUR
SAFETY
Do not store or use
gasoline or other liquids
with flammable vapors in
the vicinity of this or any
other appliance.
FOR YOUR
SAFETY
CARBON MONOXIDE
HAZARD
• This appliance can pro-
duce carbon monoxide
which has no odor.
• Using it in an enclosed
space can kill you.
• Never use this appliance
in an enclosed space
such as a camper, tent,
car or home.
DANGER
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
This manual contains important information about
the assembly, operation and maintenance of this
outdoor propane appliance. General safety infor-
mation is presented on this page and is also locat-
ed throughout these instructions. Particular atten-
tion should be paid to information accompanied by
the safety alert symbol “ DANGER”,
“ WARNING”, “ CAUTION”.
Keep this manual for future reference and
to educate new users of this product. This manual
should be read in conjunction with the labeling on
the product.
Safety precautions are essential when any
mechanical or propane fueled equipment is
involved. These precautions are necessary when
using, storing, and servicing. Using this equipment
with the respect and caution demanded will reduce
the possibilities of personal injury or property damage.
The following symbols shown below are used
extensively throughout these instructions. Always
heed these precautions, as they are essential when
using any mechanical or propane fueled equipment.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate personal injury, or
property damage.
Failure to comply with the precautions and
instructions provided with these stoves can
result in death, serious bodily injury and proper-
ty loss or damage from hazards of fire, explo-
sion, burn, asphyxiation, and/or carbon
monoxide poisoning.
Only persons who can understand and follow
the instructions should use or service
these stoves.
If you need assistance or information such
as an instruction manual or labels, contact
The Coleman Company, Inc.
CALIFORNIA PROPOSITION 65:
WARNING: This fuel, and byproducts of com-
bustion of this fuel, contain chemicals known to the
state of California to cause cancer, birth defects,
or other reproductive harm.
DANGER

English-2
• This product is fueled by propane gas. Propane
gas is invisible, odorless, and flammable. An
odorant is normally added to help detect leaks
and can be described as a ”rotten egg” smell.
The odorant can fade over time so leaking gas
is not always detectable by smell alone.
• Propane gas is heavier than air and leaking
propane will sink to the lowest level possible. It
can ignite by ignition sources including match-
es, lighters, sparks or open flames of any kind
many feet away from the original leak. Use
only propane gas set up for vapor withdrawal.
• Propane gas should be stored or used in compli-
ance with local ordinances and codes or with
ANSI/NFPA 58. Turn off propane when not in use.
WARNING
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open
flames, pilot lights, direct sunlight, other igni-
tion sources or where temperatures exceed
120 degrees F (49°C).
• Propane is heavier than air and can accumu-
late in low places. If you smell gas, leave the
area immediately.
• Never install or remove propane tank while out-
door stove is lighted, near flame, pilot lights,
other ignition sources or while outdoor stove is
hot to touch.
• During lighting and operation, this product can
be a source of ignition. Never use the stove in
spaces that contain or may contain volatile or
airborne combustibles, or products such as
gasoline, solvents, paint thinner, dust particles
or unknown chemicals. Minimum clearances
from combustible materials: 12 inches from the
sides and 48 inches from the top.
• Provide adequate clearances around air open-
ings into the combustion chamber.
WARNING
Not for home or recreational vehicle use.
We cannot foresee every use which may be
made of our products.
Check with your local fire safety authority if
you have questions about use.
Other standards govern the use of fuel gases
and heat producing products for specific uses.
Your local authorities can advise you
about these.
• Never refill disposable cylinders.
• Use the preset regulator that came with the
stove. Do not attempt to adjust.
• Use only Coleman®accessories or parts.
During stove set-up, check all fittings for
leaks using soapy water. Never use a flame.
WARNING
• BURN HAZARD
• Never leave stove unattended when hot
or in use.
• Keep out of reach of children.
DANGER
• CARBON MONOXIDE HAZARD
• This stove is a combustion appliance. All com-
bustion appliances produce carbon monoxide
(CO) during the combustion process. This
product is designed to produce extremely
minute, non-hazardous amounts of CO if used
and maintained in accordance with all warn-
ings and instructions. Do not block air flow into
or out of the stove.
• Carbon Monoxide (CO) poisoning produces
flu-like symptoms, watery eyes, headaches,
dizziness, fatigue and possibly death.You
can’t see it and you can’t smell it. It’s an invisi-
ble killer. If these symptoms are present dur-
ing operation of this product get fresh
air immediately!
• For outdoor use only.
• Never use inside house, camper, tent, vehi-
cle or other unventilated or enclosed
areas. This stove consumes air (oxygen).
Do not use in unventilated or enclosed
areas to avoid endangering your life.
CAUTION
• SERVICE SAFETY
• Keep all connections and fittings clean.
Inspect propane cylinder and stove propane
connections for damage before attaching.
• During set up, check all connections and
fittings for leaks using soapy water. Never use
a flame. Bubbles indicate a leak. Check that
the connection is not cross-threaded and that
it is tight. Perform another leak check. If there
is still a leak, remove the cylinder and contact
Coleman for service or repairs.
• Use as a cooking appliance only. Never alter
in any way or use with any device or part not
expressly approved by Coleman.
• Clean stove frequently to avoid grease accu-
mulation and possible grease fires.

English-3
To Set Up
Technical
Characteristics
Input: 28,000 BTU/H
Category: Pressure regulated propane
Fuel:
16.4 oz. disposable propane cylinders
Regulator: 5430
DANGER
• CARBON MONOXIDE HAZARD
• For outdoor use only.
• Never use inside house, camper, tent, vehicle
or other unventilated or enclosed areas. This
stove consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid
endangering your life.
■ NOTE: Use Coleman 16.4 oz. disposable
propane cylinders. The LP-gas cylinder(s) used
with stoves must be constructed and marked in
accordance with the specifications for LP-gas
cylinders of the U.S. Department of Transportation
or
Transport Canada, CAN/CSA B339 .

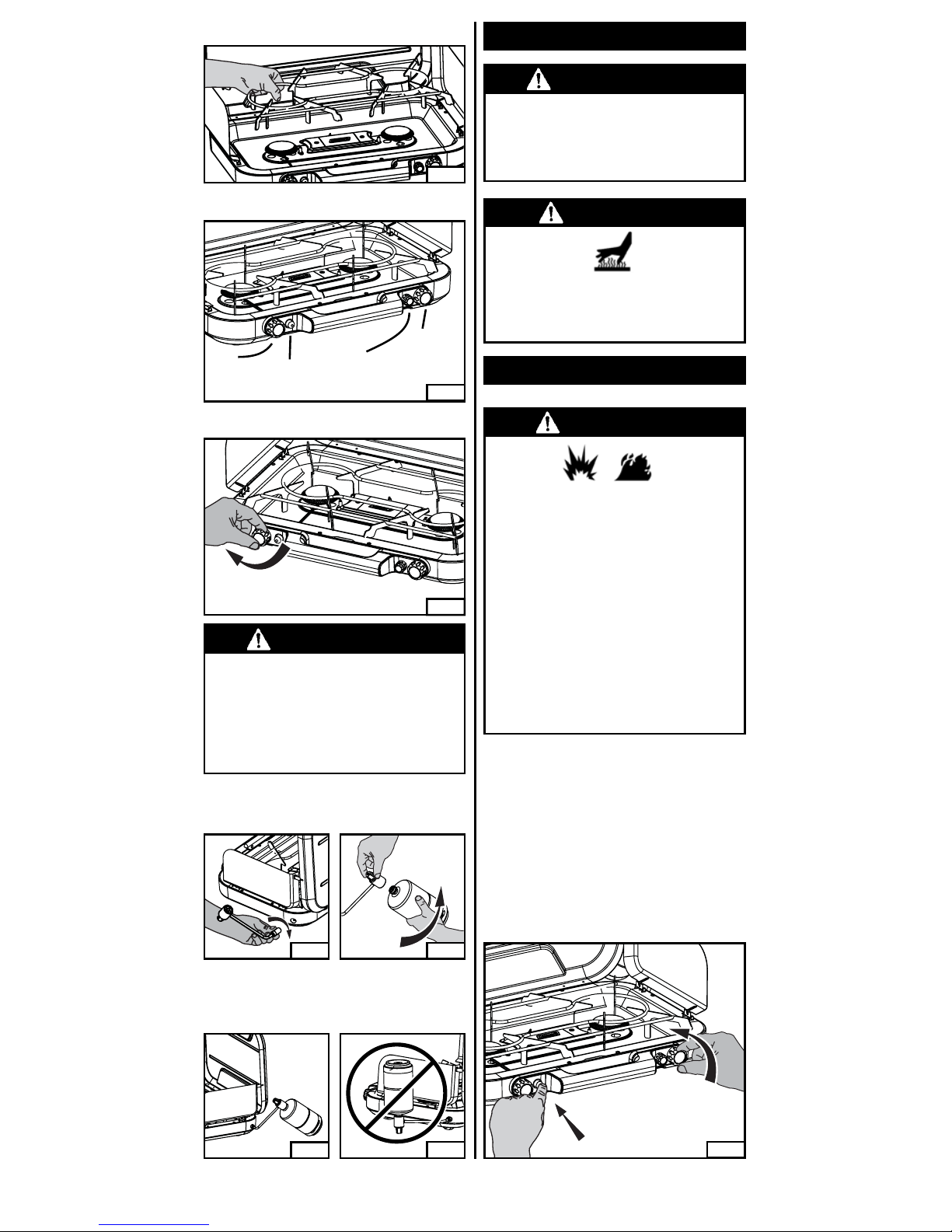

■ Remove components from carton. (Fig. 1)
Fig. 1
■ Assemble windbaffles to lid. (Fig. 5)
Fig. 6
■ You may lower one
wind baffle to serve
as a light utensil tray.
(Fig. 6)
Fig. 4
■ To open the lid, push the latch release located
above the handle. (Fig. 4)
Fig. 5
Regulator
Pot Support
Stove
AA Battery
Battery
Fig. 3
■ The battery compartment is located on the
bottom of the stove, near the handle.
■ Open the battery compartment by turning the
thumbscrew.
■ Assemble the AA battery into the compartment.
Observe polarity.
■ Close the battery cover.
NOTE: Use a fresh AA alkaline battery only. Do
not use a nickle cadmium battery. Remove your
battery if you won’t be using your stove for an
extended time period. (Fig. 3)
■ Assemble feet to
stove. Attach each
foot to stove using
one screw. (Fig. 2)
NOTE: Screwdriver
is not provided.
Fig. 2
Feet w/ screws

English-4
Fig. 13
■ Propane cylinder correctly installed. (Fig. 12)
■ Never operate stove with propane cylinder in an
inverted position. (Fig. 13)
Fig. 11
Fig. 10
■ Screw regulator into stove hand tight. (Fig. 10)
■ Remove plastic cap from top of propane bottle and
screw propane bottle into regulator hand tight. (Fig. 11)
Fig. 12
WARNING
• Perform leak test outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use the outdoor stove until connection
has been leak tested and does not leak.
Leak Check
WARNING
• BURN HAZARD
• Never leave stove unattended when hot
or in use.
• Keep out of reach of children.
To Light
DANGER
• EXPLOSION - FIRE HAZARD
• Propane is heavier than air and can accumu-
late in low places. If you smell gas, leave the
area immediately.
• Always attach or detach propane source out-
doors; never while stove is lighted, near flame,
pilot lights, other ignition sources or while
stove is hot to touch.
• This stove is red hot during use and can ignite
flammables too close to the burners. Keep
flammables at least 12 inches from the sides
and 48 inches from the top of the stove. Keep
gasoline and other flammable liquids and
vapors well away from stove.
• The stove must not be exposed to flammable
vapors or liquids during lighting.
INSTASTART™
Electronic Ignition Stoves
■ Set on sturdy, flat surface. For outdoor use only.
■ Push igniter button and hold; then open fuel
valve fully. (Fig. 14)
■ Repeat for all three burners.
Note: If igniter fails to light stove, replace the
battery with a fresh AA battery. If the igniter still
fails to light stove, use match to light burner. If
the stove is wet the igniter may not spark.
Fig. 14
Fig. 8
Control Knob Identification (Fig. 8)
Right
Burner
Valve
Center
Burner
Valve
Igniter
Button
Left
Burner
Valve
CAUTION
• SERVICE SAFETY
• Keep all connections and fittings clean.
Inspect propane cylinder and stove propane
connections for damage before attaching.
• During set up, check all connections and
fittings for leaks using soapy water. Bubbles
indicate a leak. Never use a flame.
■ Close all three burner valves firmly. (Fig. 9)
Fig. 9
Fig. 7
■ Install pot support as shown. (Fig. 7)

Match Lighting
■ Set on sturdy, flat surface. For outdoor use only.
■ Hold lighted match near burner and open
burner valve. (Fig. 15)
■ Repeat for all three burners.
Fig. 15
English-5

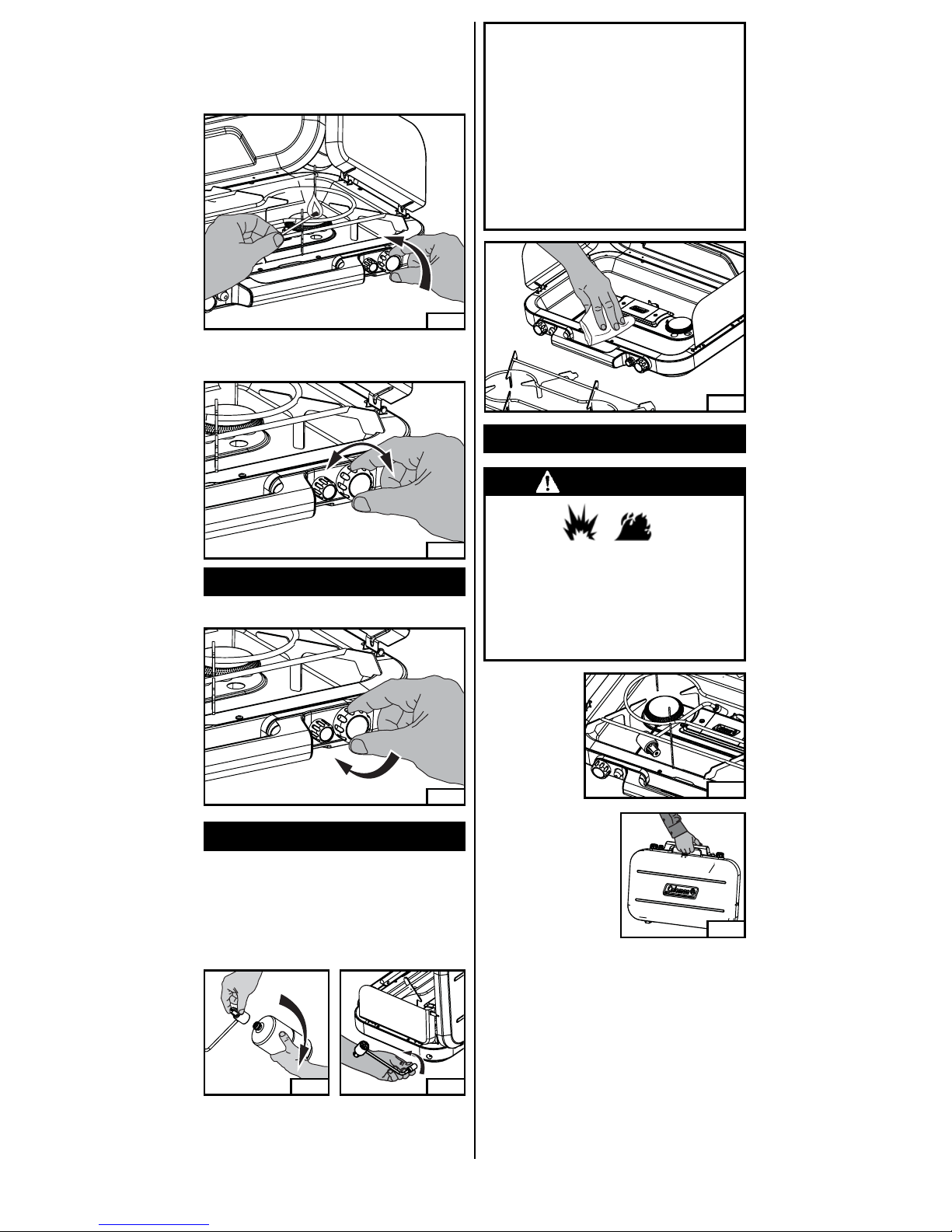

To Turn Off
■ Adjust flame with burner valves. (Fig. 16) Flame
should be blue with a hint of yellow on tips.
■ Close the burner valves firmly. (Fig. 17)
Fig. 17
To Clean
■ Make sure stove is cool.
■ Move stove away from flame (including pilot
lights) and other ignition sources.
■ Remove propane cylinder from regulator and
replace protective cap on cylinder. (Fig. 18)
■ Remove regulator from stove. (Fig. 19)
• MAINTENANCE
• Keep stove area clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
• Do not obstruct the flow of combustion and
ventilation air.
• A good flame should be blue with minimal
yellow tip. Some yellow tips on flames are
acceptable as long as no carbon or soot
deposits appear.
• Wipe clean with soft cloth and mild dish
detergent. Do not use abrasives. (Fig. 20)
Fig. 20
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open
flames, pilot lights, direct sunlight, other igni-
tion sources or where temperatures exceed
120 degrees F (49°C).
• The cylinder must be disconnected when the
stove is in storage.
To Store
■ For storage or
transport,
the regulator
may be located
below the pot
support.
(Fig. 21)
Fig. 21
Fig. 22
■ To carry the stove,
firmly grasp the stove
by the handle.
(Fig. 22)
Fig. 18 Fig. 19
Fig. 16

English-6
Things You Should Know
1. It is unsafe and illegal in some places to store or
use propane cylinders of greater than 1.14 kg (2.5
lbs) water capacity (approximately 1 lb. propane) in
occupied enclosures.
2. The usual storage areas for camping and picnic
equipment are the basement, attic, or garage. To
avoid the accumulation of dust, cobwebs, etc., that
is common in these areas, place your stove in a
plastic bag and seal it with a rubber band.
3. For repair service call one of the numbers on
the front cover for location of your nearest
Coleman Service Center. If a service center is not
conveniently located, attach to the product a tag
that includes your name, address, daytime
telephone number and description of the problem.
Carefully package the product and send either by
courier or insured mail with shipping and insurance
prepaid to:
For products purchased in the United
States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
DBA Jarden Consumer Solutions
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
4. If not completely satisfied with the performance
of this product, please call 1-800-835-3278 in the
US or
1 800 387-6161 in Canada.
www.coleman.com
Accessory Griddle
(sold separately)
Fig. 23
Grease
Cup
Griddle
Storing the Griddle
■ Place the grease cup under the pot support.
■ To protect the non-stick surface, place the griddle
into the griddle cover.
■ Invert the griddle and place on the pot support.
■ Close the wind baffles and the stove lid.
Cleaning the Griddle
■ Make sure stove and griddle are cool.
■ Wipe clean with soft cloth and mild dish
detergent. Do not use abrasives on the non-
stick griddle surface.
Grease Outlet
NOTE TO PREVENT DAMAGE WHICH WILL
VOID THE WARRANTY:
• Do not use pots, pans, ovens, etc., on this
griddle surface.
• Do not use this griddle on a campfire or
other open fire.
• Use this griddle only on the Coleman®
stove for which it was designed.
■ Extend the left wind baffle down to the utensil
tray position.
■ Place the grease cup on the utensil tray. The
grease cup engages the three holes on the
utensil tray.
■ Lay the griddle in the center of the pot support
with the grease outlet directed into the grease
cup (Fig. 23). The tabs on the bottom side of
the griddle must engage the pot support.

English-7
Warranty
Parts List
Limited Five Year Warranty
The Coleman Company, Inc. (“Coleman”) warrants that for a
period of five years from the date of original retail purchase, this
product will be free from defects in material and workmanship.
Coleman, at its option, will repair or replace this product or any
component of the product found to be defective during the warran-
ty period. Replacement will be made with a new or remanufac-
tured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or
greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the
date of initial retail purchase and is not transferable. Keep the origi-
nal sales receipt. Proof of purchase is required to obtain warranty
performance. Coleman dealers, service centers, or retail stores
selling Coleman® products do not have the right to alter, modify or
in any way change the terms and conditions of this warranty.
What This Warranty Does Not Cover
This warranty does not cover normal wear of parts, parts that
are not genuine Coleman® parts, or damage resulting from any of
the following: negligent use or misuse of the product; use on
improper voltage or current; commercial use of the product; use
contrary to the operating instructions; disassembly, repair or alter-
ation by anyone other than Coleman or an authorized service cen-
ter. Further, the warranty does not cover Acts of God, such as fire,
flood, hurricanes and tornadoes. Warranty void if damage to prod-
uct results from the use of a part other than a genuine Coleman®
part.
COLEMAN SHALL NOT BE LIABLE FOR DEFECTS THAT
ARE CAUSED BY THE USE OF UNAUTHORIZED PARTS OR
SERVICE. COLEMAN SHALL NOT BE LIABLE FOR ANY INCI-
DENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR
CONDITIONS. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE
WARRANTY OR CONDITIONS. SOME STATES, PROVINCES,
OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
THAT VARY FROM STATE TO STATE OR PROVINCE TO
PROVINCE.
How to Obtain Warranty Service
Take the product to an authorized Coleman service center.You
can find the nearest authorized Coleman service center by visiting
www.coleman.com or calling 1-800-835-3278 or TDD 316-832-
8707 in the United States or 1 800 387-6161 in Canada. If a serv-
ice center is not conveniently located, attach to the product a tag
that includes your name, address, daytime telephone number and
description of the problem. Include a copy of the original sales
receipt. Carefully package the product and send either by courier
or insured mail with shipping and insurance prepaid to:
For products purchased in the United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
DBA Jarden Consumer Solutions
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
The costs of transporting the product to Coleman or an author-
ized service center for warranty service is the responsibility of the
purchaser.
Do not mail products with fuel in tanks, or with disposable
propane cylinders. Remove glass globes from lanterns and wrap
separately.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF PUR-
CHASE.
If you have any questions regarding this warranty please call 1-
800-835-3278 or TDD 316-832-8707 in the United States or 1 800
387-6161 in Canada.
2
1
5
3
4
6
Accessories (sold separately)
Item Part No. Description
8 & 9 R5444-200 Griddle w/Cup*
10 5444-1171 Griddle Cover
11 R5444-115C Carry Case
Item Part No. Description
8 5444-3151 Griddle
9 5444A1201 Grease Cup
*You may purchase the Griddle or
Grease Cup individually as follows:
No. Part Number Description
1 5444-5401 Pot Support
2 5444-3251 Burner Assembly (1 pk)
3 5444-3261 Burner Assembly (1 pk)
4 5430-5651 Regulator Assembly
5 5444-1501 Large Control Knob (1 pk)
6 5444-1451 Small Control Knob (1 pk)
7 9922-4051 Foot w/ screw (1 pk)
7
8
9
11
10

5444B050T (11/20/06)
The Coleman Company, Inc. • 3600 North Hydraulic • Wichita, KS 67219 U.S.A.
1-800-835-3278 • TDD: 316-832-8707
Sunbeam Corporation (Canada) Limited • DBA Jarden Consumer Solutions
5975 Falbourne Street • Mississauga, Ontario, Canada • L5R 3V8 • 1 800 387-6161
© 2006 The Coleman Company, Inc. All rights reserved. Coleman® and
are registered trademarks and INSTASTART™ and EVENTEMP™ are trademarks of The Coleman Company, Inc.
© 2006 The Coleman Company, Inc. Tous droits réservés. Coleman® et sont des marques déposées alors
que INSTASTART™ et EVENTEMP™ sont des marques de commerce de The Coleman Company, Inc.
© 2006 The Coleman Company, Inc. Todos los derechos reservados. Coleman® y
son marcas registradas
y INSTASTART™ y EVENTEMP™ son marcas de la compañía The Coleman Company, Inc.
www.coleman.com
