Acroprint ES700 User manual

ES700
USER’S MANUAL

WARNING
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his or her own expense.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS A LIMITS FOR RADIO
NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE RADIO
INTERFERENCE REGULATIONS OF THE CANADIAN DEPARTMENT OF
COMMUNICATIONS.
LE PRÉSENT APPAREIL NUMÉRIQUE NÉMET PAS DE BRUITS
RADIOÉLECTRIQUES DÉPASSANT LES LIMITES APPLICABLES AUX APPAREILS
NUMÉRIQUES DE CLASSE A PRESCRITES DANS LE RÈGLEMENT SUR LE
BROUILLAGE RADIOÉLECTRIQUE ÉDICTÉ PAR LE MINISTÈRE DES
COMMUNICATIONS DU CANADA.
Information contained in this manual is
company private to Acroprint Time Recorder
Co., and shall not be modified, used, copied,
reproduced or disclosed in whole or in part
without the written consent of Acroprint.
Contents herein are current as of the date of
publication. Acroprint reserves the right to
change the contents without prior notice.
This manual has been carefully prepared to
cover all aspects of this unit. However, if any
explanations are inadequate, unclear, or
difficult to understand, please contact
Acroprint.
We recommend that you carefully read this
manual to maximize the use of this unit.
© 2008 Acroprint Time Recorder Co.
All Rights Reserved.
Serial Number label for bottom of clock
;;;;;;;
(6
9ROWDJH;;9$&+]
:DWWDJH;;$
6HULDO1RQQQQQFF
(
7KLVHTXLSPHQWFRPSOLHVZLWK
3DUWRI)&&5XOHV2HUDWLRQ
LVVXEMHFWWRWKHIROORZLQJWZR
FRQGLWLRQV7KLVGHYLFHPD\
QRWFDXVHKDUPIXOLQWHUIHUHQFH
DQGPXVWDFFHSWDQ\KDUPIXO
LQWHUIHUHQFHUHFHLYHGLQFOXGLQJ
LQWHUIHUHQFHWKDWPD\FDXVH
XQGHVLUHGRSHUDWLRQ
'HSDUWXUH'Uv5DOHLJK1&86$
,186$

ES700 User’s Manual i
Table of Contents
Alert Definitions .............................................................................. iii
Precautions ..................................................................................... iv
Introduction ..................................................................................... 1
Features ........................................................................................... 1
Equipment ....................................................................................... 2
ES700 ....................................................................................................... 2
Open and Close Unit ................................................................................ 3
Power the Unit/Print Positioning ............................................................... 5
Important Things to Remember When Using The ES700 ........... 6
Quick Start ....................................................................................... 7
Atomic Synchronization ............................................................................ 7
Set Time Zone (-5 EST, -6 CST, -7 MST, -8 PST) ................................... 7
Automatically Receive Atomic Signal ....................................................... 7
Turn DST OFF .......................................................................................... 7
Program the Time Recorder ........................................................... 9
Settings ............................................................................................ 10
Time .......................................................................................................... 10
Date .......................................................................................................... 11

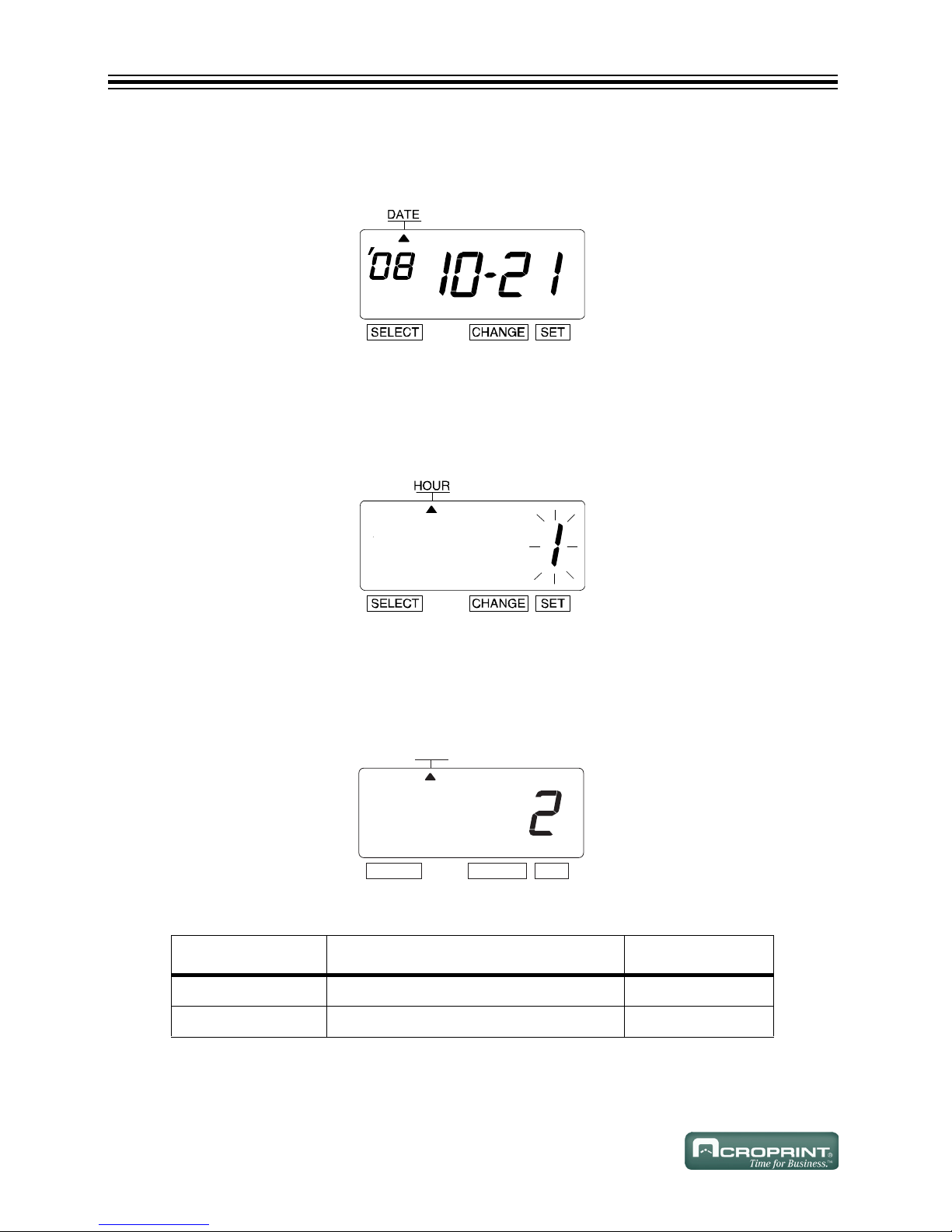

12/24 Hour Format ................................................................................... 12
Print Order ................................................................................................ 13
Year Digit .................................................................................................. 14
Hour/Minute .............................................................................................. 15
Leading Zero ............................................................................................ 17
Preset Comments ..................................................................................... 18
Language .................................................................................................. 19
Print Length .............................................................................................. 20
Print Method ............................................................................................. 21
Daylight Saving Time (DST) ..................................................................... 23
Set Password ............................................................................................ 27
Enter Password ........................................................................................ 29
Cancel the Password ................................................................................ 29

ii
Reset Factory Default Settings ...................................................... 30
Wall Mounting .................................................................................. 32
Replacing the Ribbon Cassette ..................................................... 33
Troubleshooting .............................................................................. 36
Specifications .................................................................................. 37

ES700 User’s Manual iii
ALERT DEFINITIONS
For your safety and the protection of the unit, the following alerts are used throughout this manual.
READER ALERT MEANING
Alerts you to supplementary information.
Alerts you to helpful tips (information given as a guide to action).
Alerts you to supplementary information that is essential to the completion of
a task.
Alerts you to possible data loss, breaches of security, or other more serious
problems.
Alerts you that failure to take or avoid a specific action might result in
physical harm to you or to the hardware.
Alerts you to stop immediately. Failure to do so will result in physical harm
to you or to the hardware.
Alerts you that improper handling may cause electrical shock resulting in
serious injury or death.
Alerts you not to disassemble or modify the unit.
Alerts you to remove power cord from wall outlet.
Alerts you “do not” perform an action.

iv
PRECAUTIONS
ALERT DESCRIPTION
• Insert the power plug as far as it will go. Improper insertion of the plug may
result in fire or electric shock.
• Do not disassemble the unit. High voltage is present inside that may lead to an
electric shock.
• Do not modify the unit. Modifications may cause a fire and/or electric shock.
• Do not use any voltage of the power source other than designated.
• Do not share a single outlet with another plug. This may lead to a fire or electric
shock.
• Do not damage, break, or modify the power cord.
• Do not put heavy objects on, pull, or forcefully bend the cord. These may dam-
age the cord, possibly resulting in a fire or electric shock.
• Do not plug or unplug the unit with a wet hand. This may lead to an electric
shock.
• Do not place the unit on an uneven or tilted surface. This may result in injuries
due to the unit dropping or falling off.
• Do not put a water-filled container or a metal object on top of the unit. If water is
spilled or the metallic object slips inside, a fire or electric shock may occur.
• Do not install the unit in a humid or dusty environment. This may result in a fire
or electric shock.
• Do not place the unit near a kitchen counter or humidifier. Oil, smoke, or steam
generating from them may cause fire or electric shock.
• Do not yank the power cord to disconnect from the outlet. Hold the plug with
your hand to do so, or the cord may be damaged. This may lead to a fire or elec-
tric shock.
• Do not insert or drop any other time card than specified into the slot. Such mis-
use may cause a fire or electric shock.
• Do not come in contact with the print head. This may result in personal injury.
• If any anomaly occurs, for example, heat or smoke is generated or an odor is
emitted, unplug the unit immediately and contact your dealer for servicing.
There is a danger that further use may cause a fire or electric shock.
• If foreign matter should get in the unit (including a piece of metal, water, or liq-
uid), disconnect the plug from the outlet immediately and contact your dealer
for servicing. There is a danger that further use may cause a fire or electric shock.
• Remove the line cord plug from the outlet before transferring the unit, or it may
damage the cord. This may lead to a fire or electric shock.
• If the unit should be dropped or the case is broken, unplug the unit and contact
your dealer for servicing. Further use may lead to a fire or electric shock.

ES700 User’s Manual 1
INTRODUCTION
Thank you for purchasing an Acroprint Model ES700 Time Recorder. We are confident this unit
will give you full satisfaction. Items such as the time and date are preset at the factory. After
plugging in the power cord to the wall outlet, this unit can be used. However, we recommend
reading this manual before you start using this unit.
FEATURES
Main Applications: Payroll/job cost recorder or time stamp.
• Atomic Synchronization Sets Time and Date Automatically
• Quartz Time Recorder
• Digital LCD (Date, Hour, Minute, Day of the Week)
• Perpetual Calendar
• Dot-Matrix Printer
• Automatic Daylight Saving Time (DST)
• Automatic Date, Month Year Change to 2099
• 3-way Print Activation
o Automatic
o Semi-Automatic
o Manual
• Durable Snap-in Ribbon Cartridge
• Adjustable Print Positions
• Prints in 4 languages
•PrintsDate
• 13 Preset Comments
• Selectable 2 or 4 digit Year
• 12 or 24-Hour Format
• Regular Minute, Tenths, or Hundredths of an Hour
• Password Protection
• Wall or Desktop Mount

2
EQUIPMENT
Unpack the unit and check its contents to ensure that the time recorder unit and all accessories
shown below are included. If equipment has been damaged in transit, report the extent of damage to
the transportation company and to Acroprint. Order replacement equipment, if necessary.
ES700
ES700 Manual (1)
Wall Brackets (2)
(2 Screws)
Keys (2)
Ribbon Cassette (1)
Factory Installed
Wall-Mount Fittings
(4 Screws, 4 Mollies,
1 Sheet)
Front View (with Cover) Front View (without Cover)
Back View
Push bar
Cover
Display
Key hole
Print head
Ribbon cassette
Control buttons
Display
Wall-mount holes
AC power cord
AC adapter

ES700 User’s Manual 3
Open and Close Unit
Open Unit
Insert the key into the lock on cover of the unit. Turn the key in the clockwise position to unlock the
unit. Remove the cover. Refer to Open Unit below.
Open Unit
When you open the unit for the first time, you must remove the Protective Pad and
Cardboard Insert. Plug the AC Adapter into the back of the unit. Refer to Remove
Protective Pad and Cardboard Insert/Plug AC Adapter into Unit on page 4.
Ribbon May Dislodge. To avoid damage to the printer, press the ribbon cartridge
firmly into position after removing the protective pad. Refer to Remove Protective
Pad and Cardboard Insert/Plug AC Adapter into Unit on page 4.

4
Remove Protective Pad and Cardboard Insert/Plug AC Adapter into Unit
Close Unit
Replace the cover. Insert the key into the lock on the cover of the unit. Turn the key in the
counter-clockwise position to lock the unit. Refer to Close Unit below.
Close Unit
3URWHFWLYH3DG
&DUGERDUG,QVHUW
