ACTi CAM-6110 User manual

0-1
IP speed dome
Quick Installation Guide
Vers. 060210
Model: CAM-6100/6110/6120

0-2
0INTRODUCTION
zPrecautions
1) Read these instructions
All the safety and operating instructions should be read before the product is
operated.
2) Heed all warnings
All warnings on the product and in the instruction manual should be adhered to.
The symbol indicates the following items, please carefully read the
description next to each symbol.
a. Failure to follow the safety instruction given may directly endanger
people, cause damage to the system or to other equipment.
b. The requirements to make this device work, including hardware,
computer settings, network settings, and operation procedures.
c. The tips to make using this device easier, more convenient and more
efficient.
3) Servicing
Do not attempt to service this video product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnels.
zCopyright
This manual is the intellectual property of ACTi and is protected by copyright. All
rights are reserved. No part of this document maybe reproduced or transmitted for any
purpose by any means including electronic or mechanical without the official written
permission from ACTi.
zTrademarks
All names used in this manual for hardware and software are probably registered
trademarks of respective companies.
0

0-3
zLiability
Every care has been taken during writing this manual. Please inform your local office
if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product
and manuals without prior notice.
zFCC/CE Regulation
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

0-4
Table of Contents
0INTRODUCTION ______________________________________________ 0-2
Precautions ____________________________________________________ 0-2
Copyright______________________________________________________ 0-2
Trademarks ____________________________________________________ 0-2
Liability _______________________________________________________ 0-3
FCC/CE Regulation _____________________________________________ 0-3
1Installation ____________________________________________________ 1-1
1.1 Parts name and locations _________________________________________ 1-1
1.2 Speed dome setup _______________________________________________ 1-4
1.2.1 Open CAM-61xx _____________________________________________________ 1-5
1.2.2 Setup camera ID, protocol and baud rate___________________________________ 1-9
1.3 Indoor installation______________________________________________ 1-12
1.4 Outdoor installation ____________________________________________ 1-14
2Configuration_________________________________________________ 2-15
2.1 Network video platform (Web configurator) setup ___________________ 2-15
2.1.1 Check your network setting. ___________________________________________ 2-15
2.1.2 Open Internet Explorer with IP address___________________________________ 2-16
2.1.3 Login with default administrator’s account & password______________________ 2-16
2.1.4 Preview Video ______________________________________________________ 2-17
2.1.5 Set the new IP address ________________________________________________ 2-18
2.1.6 Check Default Video Setting ___________________________________________ 2-19
2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds for system
reboot. __________________________________________________________________ 2-19
2.2 AP (Streaming Activator) setup___________________________________ 2-20
2.2.1 Open Streaming Activator.____________________________________________ 2-20
2.2.2 Click Setup. ________________________________________________________ 2-20
2.2.3 Click PTZ setup. ____________________________________________________ 2-21
2.2.4 Click PTZ setup and follow the picture below to setup. ______________________ 2-22

0-5
2.2.5 Press the Apply button and reconnect to the IP speed dome. __________________ 2-22
2.2.6 PTZ function will work perfectly now. ___________________________________ 2-22
3Appendix_____________________________________________________ 3-23
A. Application guide_________________________________________________ 3-23
B. Outdoor installation ______________________________________________ 3-26

1-1
1Installation
1.1 Parts name and locations
1

1-2

1-3

1-4
1.2 Speed dome setup
Follow the description below setup IP speed dome’s hardware camera ID,
baud rate and protocol.
Speed dome setup
Network video platform
(Web-configurator)
setup
AP (Streaming
Activator) setup
Camera ID, baud rate and protocol setting in these 3 item should be the same
for PTZ control function to work.

1-5
1.2.1 Open CAM-61xx
Indoor CAM-61xx
Step1: Rotate the dome cover counter-clockwise and de-attach it from the
housing.
NOTE: Please keep the safety wire attached securely to the dome cover and
the housing, otherwise the dome cover might fall.

1-6
Step2: Rotate the dome body counter-clockwise and de-attach it from the
dome base.
NOTE: Please keep the safety wire attached securely to the dome body and
the dome base, otherwise the dome body might fall.

1-7
Outdoor CAM-61xx
Step1: Loosen the fours screws and de-attached the dome cover.
NOTE: Please keep the safety wire attached securely to the dome body and
the dome base, otherwise the dome body might fall.

1-8
Step2: Rotate the dome body counter-clockwise and de-attach it from the
dome base.
NOTE: Please keep the safety wire attached securely to the dome body and
the dome base, otherwise the dome body might fall.

1-9
1.2.2 Setup camera ID, protocol and baud rate
Step1: Setup the hardware camera ID and the baud rate on the
bottom of the dome body. Refer to the table below for setup
details.
●Baud Rate Setup
Bit Rate bit1 bit2
1200 bps Off Off
2400 bps On Off
4800 bps Off On
9600 bps On On
Address ID Baud
Rate
1 2 3 4 5 6 7 8 1 2

1-10
●Address ID Setup
Please refer to the table.
Camera ID swtich Camera ID swtichCamera
Address bit1 bit2 bit3 bit4 bit5 bit6 bit7 bit8
Camera
Address bit1 bit2 bit3 bit4 bit5 bit6 bit7 bit8
1 On Off Off Off Off Off Off Off 51 On On Off Off On On Off Off
2 Off
On Off Off Off Off Off Off 52 Off Off On Off On On Off Off
3 On On Off Off Off Off Off Off 53 On Off On Off On On Off Off
4 Off Off
On Off Off Off Off Off 54 Off On On
Off On On Off Off
5 On Off On Off Off Off Off Off 55 On On On Off On On Off Off
6 Off
On On Off Off Off Off Off 56 Off Off Off On On On Off Off
7 On On On Off Off Off Off Off 57 On Off Off On On On Off Off
8 Off Off Off On Off Off Off Off 58 Off On Off On On On Off Off
9 On Off Off On Off Off Off Off 59 On On Off On On On Off Off
10 Off
On Off On Off Off Off Off 60 Off Off On On On On Off Off
11 On On Off On Off Off Off Off 61 On Off On On On On Off Off
12 Off Off
On On Off Off Off Off 62 Off On On On On On Off Off
13 On Off On On Off Off Off Off 63 On On On On On On Off Off
14 Off
On On On Off Off Off Off 64 Off Off Off Off Off Off On Off
15 On On On On Off Off Off Off 65 On Off Off Off Off Off On Off
16 Off Off Off Off On Off Off Off 66 Off On Off Off Off Off On Off
17 On Off Off Off On Off Off Off 67 On On Off Off Off Off On Off
18 Off
On Off Off On Off Off Off 68 Off Off On Off Off Off On Off
19 On On Off Off On Off Off Off 69 On Off On Off Off Off On Off
20 Off Off
On Off On Off Off Off
21 On Off On Off On Off Off Off
22 Off
On On Off On Off Off Off
23 On On On Off On Off Off Off 228 Off Off On Off Off On On On
24 Off Off Off On On Off Off Off 229 On Off On Off Off On On On
25 On Off Off On On Off Off Off 230 Off On On Off Off On On On
26 Off
On Off On On Off Off Off 231 On On On
Off Off On On On
27 On On Off On On Off Off Off 232 Off Off Off On Off On On On
28 Off Off
On On On Off Off Off 233 On Off Off On Off On On On
29 On Off On On On Off Off Off 234 Off On Off On Off On On On
30 Off
On On On On Off Off Off 235 On On Off On Off On On On
31 On On On On On Off Off Off 236 Off Off On On Off On On On

1-11
32 Off Off Off Off Off On Off Off 237 On Off On On Off On On On
33 On Off Off Off Off On Off Off 238 Off On On On Off On On On
34 Off
On Off Off Off On Off Off 239 On On On On
Off On On On
35 On On Off Off Off On Off Off 240 Off Off Off Off On On On On
36 Off Off
On Off Off On Off Off 241 On Off Off Off On On On On
37 On Off On Off Off On Off Off 242 Off On Off Off On On On On
38 Off
On On Off Off On Off Off 243 On On Off Off On On On On
39 On On On Off Off On Off Off 244 Off Off On Off On On On On
40 Off Off Off On Off On Off Off 245 On Off On Off On On On On
41 On Off Off On Off On Off Off 246 Off On On Off On On On On
42 Off
On Off On Off On Off Off 247 On On On
Off On On On On
43 On On Off On Off On Off Off 248 Off Off Off On On On On On
44 Off Off
On On Off On Off Off 249 On Off Off On On On On On
45 On Off On On Off On Off Off 250 Off On Off On On On On On
46 Off
On On On Off On Off Off 251 On On Off On On On On On
47 On On On On Off On Off Off 252 Off Off On On On On On On
48 Off Off Off Off On On Off Off 253 On Off On On On On On On
49 On Off Off Off On On Off Off 254 Off On On On On On On On
50 Off
On Off Off On On Off Off 255 On On On On On On On On
Value 1 2 4 8 16 32 64 256 Value 1 2 4 8 16 32 64 256

1-12

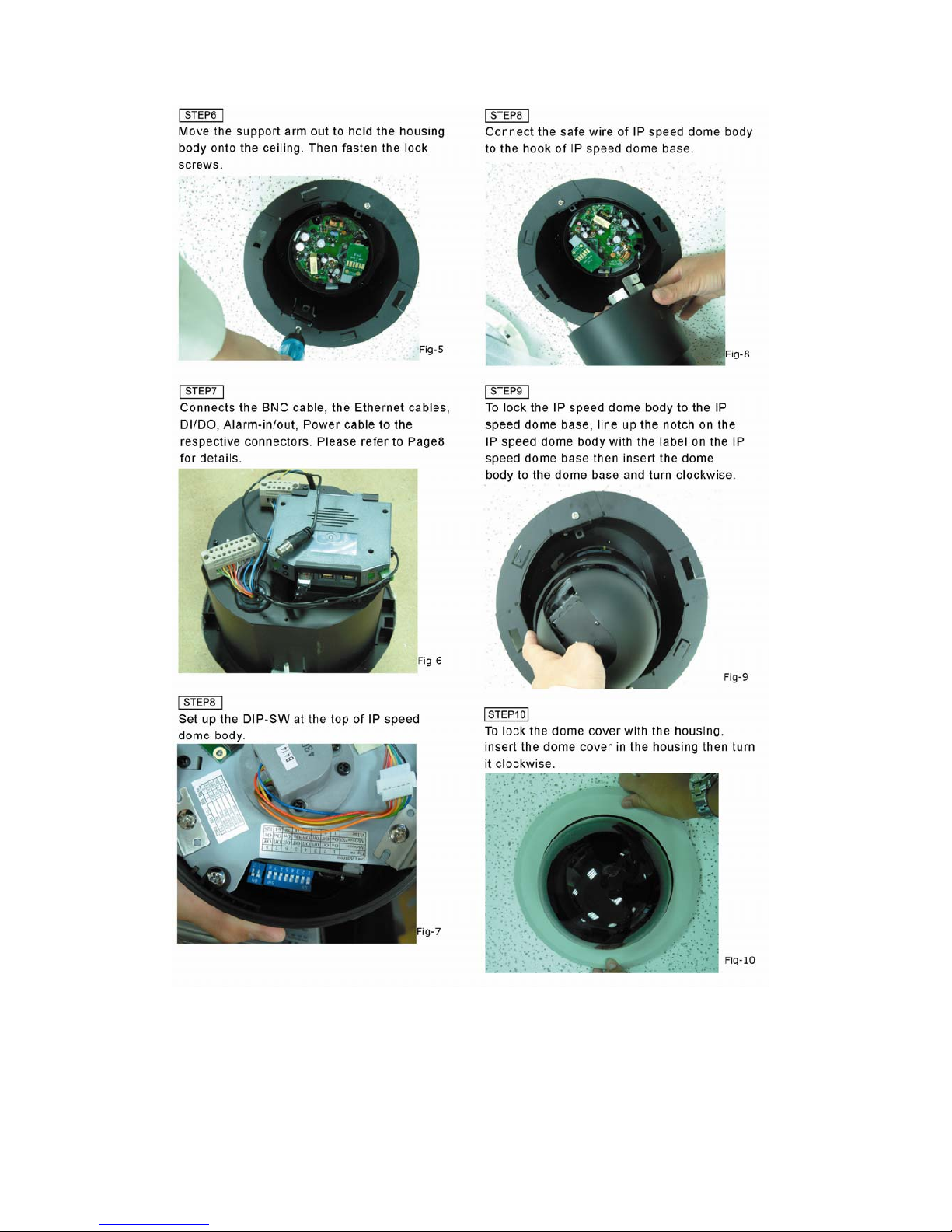

1.3 Indoor installation

1-13

1-14
1.4 Outdoor installation
Please refer other applications to Appendix.A application guide.
Please refer to the outdoor installation guide at Appendix.B.

2-15
2Configuration
2.1 Network video platform (Web
configurator) setup
2.1.1 Check your network setting.
Default IP address of the LAN port of the IP speed dome/Video
server is 192.168.0.101. Please make sure your PC is on the same
network segment otherwise you can’t login it.
2
Please set the settings as
below.
IP address :192.168.0.xxx
Subnetmask :255.255.255.0
(NOTE: xxx should be a
number from 1 to 254 except
for 100)
