Actions Microelectronic QuattroPod User manual

QuattroPod Spec









Rev. 1.01
QuattroPod Spec









Rev. 1.01
Distribution:
PureLink GmbH Available from B2B Online Portal

Revision
History
Date
V1.00
Initial Release
2018/Sep.
V1.01
Correct I/O description
2019/Apr.

Distribution:
PureLink GmbH Available from B2B Online Portal

Introduction
Firstly, thanks for choosing QuattroPod as wireless presentation facility. It integrates
powerful dual core SoC and advanced 802.11ac 5G WiFi to provide you the a smooth
wireless display experience, and it supports almost all devices. Our features not only
support ‘’Split Screens Display”, “ Host Control System” but also let cross platform devices
throw the contents in APP-independence. It provides a more friendly and efficient
environment for BYOD (Bring Your Own Devices) with wireless projection in legacy/ existing
projectors or monitors you have! Enjoy them and help you to achieve more collaboration!
System Requirement:
-PC: Any PC or laptops with HDMI output or DP with Dual mode (DP++) support
-Tablet/SmartPhone: iOS 9 above and Android 5.0 above
*Important: Android device must turn ADB mode in advance
Receiver (R01) Spec:
CPU
ARM based RISC
DRAM
DDR3 1GB
Flash
NAND Flash 512MB
Output Resolution
l 4096x2160@24hz
l 3840x2160@30hz
l 3840x2160@25hz
l 3840x2160@24hz
l 1920x1080@60Hz
l 1280x720@60hz
l 1920x1080@50Hz
l 1920x1080@24Hz
l 1280x720@50hz
I/O
l HDMI out (HDMI1.4)
l USB type A (USB 2.0)
l DC 5V
l Ethernet
WiFi
802.11ac 2T2R, max. bandwidth 866Mbps (5Ghz)
WiFi Frequency
5Ghz: 5.150Ghz~5.825Ghz
Power
DC 5V, 2A
HDCP
HDCP1.4
Ethernet
10/100/1000M, support POE
LED Indication
Power, Ethernet, WiFi status, USB
Key
Reset button and Sync button
Power Consumption
l Standby: 5W approx.
l Casting: 10W approx.
Working Temp.
0~40°C
Storage Temp.
-20~70°C

Distribution:
PureLink GmbH Available from B2B Online Portal

Transmitter (T01) Spec:
CPU
ARM based RISC
DRAM
DDR3 256MB
Flash
NAND Flash 256MB
Input Resolution
l 3840x2160@60hz (HDMI only)
l 3840x2160@30hz
l 4096x2160@60hz (HDMI only)
l 4096x2160@30hz
l 1920x1080@60Hz
l 1920x1080i@60Hz
l 1280x720@60hz
l 1280x720@50hz
l 1920x1080@30Hz
l 1920x1080@50Hz
l 1920x1080i@50Hz
I/O
l HDMI in
l DP in
l USB type A male
l USB type A female
l Ethernet
Ethernet
10/100/1000M, support POE
WiFi
802.11ac 1T1R, max. bandwidth 433Mbps (5Ghz)
WiFi Frequency
5Ghz: 5.150Ghz~5.825Ghz
Power
DC 5V, 1A
HDCP
HDCP1.4
LED Indication
Power, WiFi status, Connection
Key
Mirror and Control button
Switch
USB host and slave mode switch
Power Consumption
l Standby: 2W approx.
l Casting: 5W approx.
Working Temp.
0~40°C
Storage Temp.
-20~70°C
Distribution:
PureLink GmbH Available from B2B Online Portal

Dimension:

Installation Guide:
QuattroPod RX:
1. Connect Power with the adaptor
2. Connect HDMI with HDMI port with the projectors or displays.
Distribution:
PureLink GmbH Available from B2B Online Portal

*Notice: Rx is compatible with VESA mounting screw holes. Please use the 5x5 bracket and M4
screws.
*Due to WiFi signal requires enough space, please DO NOT block the antenna or mount it behind
of TV/Panel.
QuattroPod TX:
1. Plug USB 5V(required 1A above), through adaptors or USB ports of laptops (recommend
USB3.0)
2. Connect HDMI port with PC
*Notice: If the HDMI cable is not long enough, please use extension cable to ensure the
connection

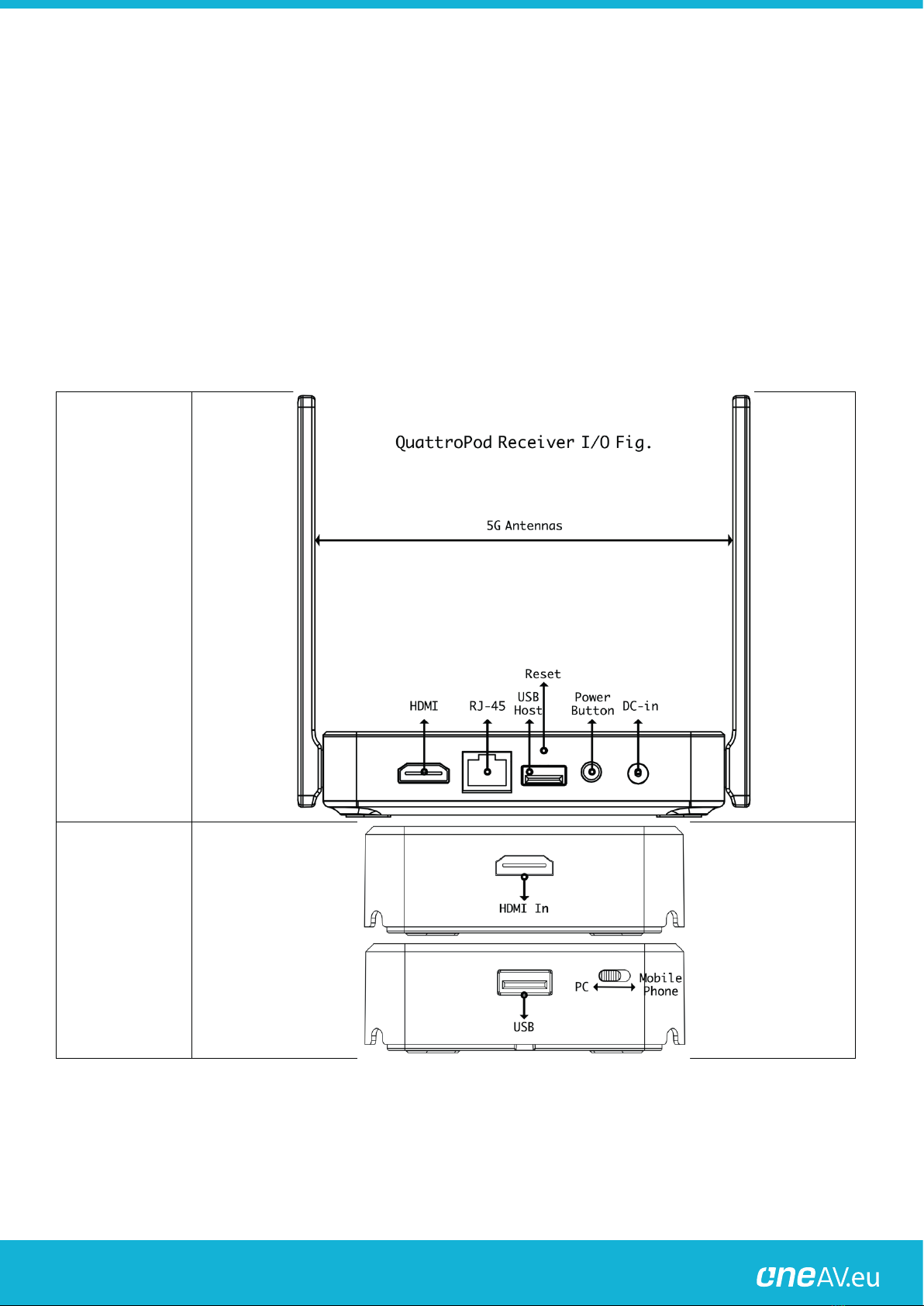

I/O Descriptions:
QuattroPod
Receiver

QuattroPod Tx

Distribution:
PureLink GmbH Available from B2B Online Portal

LED Indication:
QuattroPod
Receiver

QuattroPod
Transmitter

WiFi Channel Table (5Ghz, 20Mhz):

Distribution:
PureLink GmbH Available from B2B Online Portal

Rx’s WiFi RF Parameters (5Ghz):


4 .2 5GHz RF Specification
Feature
Description
WLAN Standard
Frequency Range
Number of Channels
IEEE 802.11ac 2x2, WiFi compliant
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
5.0GHzPlease see the table 1
802.11a /54Mbps : 13 dBm ± 1.5 dB @ EVM ≤ -25dB
802.11n /MCS7 : 12 dBm ± 1.5 dB @ EVM ≤ -28dB
802.11ac /MCS9 : 10 dBm ± 1.5 dB @ EVM ≤ -32dB
Output Power
-
-
6Mbps
PER @ -88 dBm, typical
PER @ -87 dBm, typical
PER @ -86 dBm, typical
PER @ -83 dBm, typical
PER @ -80 dBm, typical
PER @ -77 dBm, typical
PER @ -72 dBm, typical
PER @ -70 dBm, typical
PER @ -90 dBm, typical
PER @ -89 dBm, typical
PER @ -88 dBm, typical
PER @ -86 dBm, typical
PER @ -83 dBm, typical
PER @ -80 dBm, typical
PER @ -75 dBm, typical
PER @ -71 dBm, typical
PER @ -88 dBm, typical
PER @ -85 dBm, typical
PER @ -83 dBm, typical
PER @ -80 dBm, typical
PER @ -76 dBm, typical
PER @ -71 dBm, typical
PER @ -70 dBm, typical
PER @ -68 dBm, typical
PER @ -89 dBm, typical
PER @ -88 dBm, typical
PER @ -86 dBm, typical
PER @ -83 dBm, typical
9Mbps
- 12Mbps
- 18Mbps
- 24Mbps
- 36Mbps
- 48Mbps
- 54Mbps
SISO Receive Sensitivity
(11a,20MHz) @10% PER
-
-
6Mbps
9Mbps
- 12Mbps
- 18Mbps
- 24Mbps
- 36Mbps
- 48Mbps
- 54Mbps
- MCS=0
- MCS=1
- MCS=2
- MCS=3
- MCS=4
- MCS=5
- MCS=6
- MCS=7
- MCS=0
- MCS=1
- MCS=2
- MCS=3
MIMO Receive Sensitivity
(11a,20MHz) @10% PER
SISO Receive Sensitivity
(11n,20MHz) @10% PER
MIMO Receive Sensitivity
(11n,20MHz) @10% PER
Distribution:
PureLink GmbH Available from B2B Online Portal


- MCS=4
- MCS=5
- MCS=6
- MCS=7
- MCS=8
- MCS=15
- MCS=0
- MCS=1
- MCS=2
- MCS=3
- MCS=4
- MCS=5
- MCS=6
- MCS=7
- MCS=0
- MCS=1
- MCS=2
- MCS=3
- MCS=4
- MCS=5
- MCS=6
- MCS=7
- MCS=8
- MCS=15
PER @ -79 dBm, typical
PER @ -74 dBm, typical
PER @ -73 dBm, typical
PER @ -71 dBm, typical
PER @ -88 dBm, typical
PER @ -68 dBm, typical
PER @ -85 dBm, typical
PER @ -82 dBm, typical
PER @ -80 dBm, typical
PER @ -77 dBm, typical
PER @ -73 dBm, typical
PER @ -69 dBm, typical
PER @ -67 dBm, typical
PER @ -66 dBm, typical
PER @ -87 dBm, typical
PER @ -85 dBm, typical
PER @ -83 dBm, typical
PER @ -80 dBm, typical
PER @ -76 dBm, typical
PER @ -72 dBm, typical
PER @ -70 dBm, typical
PER @ -69 dBm, typical
PER @ -85 dBm, typical
PER @ -66 dBm, typical
SISO Receive Sensitivity
(11n,40MHz) @10% PER
MIMO Receive Sensitivity
(11n,40MHz) @10% PER
- MCS=0, NSS1 PER @ -86 dBm, typical
- MCS=1, NSS1 PER @ -84 dBm, typical
- MCS=2, NSS1 PER @ -82 dBm, typical
- MCS=3, NSS1 PER @ -79 dBm, typical
- MCS=4, NSS1 PER @ -75 dBm, typical
- MCS=5, NSS1 PER @ -70 dBm, typical
- MCS=6, NSS1 PER @ -69 dBm, typical
- MCS=7, NSS1 PER @ -68 dBm, typical
- MCS=8, NSS1 PER @ -64 dBm, typical
- MCS=0, NSS1 PER @ -88 dBm, typical
- MCS=1, NSS1 PER @ -87 dBm, typical
- MCS=2, NSS1 PER @ -85 dBm, typical
- MCS=3, NSS1 PER @ -82 dBm, typical
- MCS=4, NSS1 PER @ -78 dBm, typical
SISO Receive Sensitivity
(11ac,20MHz) @10% PER
MIMO Receive Sensitivity
(11ac,20MHz) @10% PER
Distribution:
PureLink GmbH Available from B2B Online Portal


- MCS=5, NSS1 PER @ -73 dBm, typical
- MCS=6, NSS1 PER @ -72 dBm, typical
- MCS=7, NSS1 PER @ -71 dBm, typical
- MCS=8, NSS1 PER @ -67 dBm, typical
- MCS=0, NSS2 PER @ -87 dBm, typical
- MCS=8, NSS2 PER @ -63 dBm, typical
- MCS=0, NSS1 PER @ -84 dBm, typical
- MCS=1, NSS1 PER @ -81 dBm, typical
- MCS=2, NSS1 PER @ -79 dBm, typical
- MCS=3, NSS1 PER @ -76 dBm, typical
- MCS=4, NSS1 PER @ -73 dBm, typical
- MCS=5, NSS1 PER @ -68 dBm, typical
- MCS=6, NSS1 PER @ -67 dBm, typical
- MCS=7, NSS1 PER @ -66 dBm, typical
- MCS=8, NSS1 PER @ -61 dBm, typical
- MCS=9, NSS1 PER @ -60 dBm, typical
- MCS=0, NSS1 PER @ -86 dBm, typical
- MCS=1, NSS1 PER @ -84 dBm, typical
- MCS=2, NSS1 PER @ -82 dBm, typical
- MCS=3, NSS1 PER @ -79 dBm, typical
- MCS=4, NSS1 PER @ -76 dBm, typical
- MCS=5, NSS1 PER @ -71 dBm, typical
- MCS=6, NSS1 PER @ -70 dBm, typical
- MCS=7, NSS1 PER @ -69 dBm, typical
- MCS=8, NSS1 PER @ -64 dBm, typical
- MCS=9, NSS1 PER @ -63 dBm, typical
- MCS=0, NSS2 PER @ -84 dBm, typical
- MCS=9, NSS2 PER @ -60 dBm, typical
- MCS=0, NSS1 PER @ -81 dBm, typical
- MCS=1, NSS1 PER @ -78 dBm, typical
- MCS=2, NSS1 PER @ -76 dBm, typical
- MCS=3, NSS1 PER @ -72 dBm, typical
- MCS=4, NSS1 PER @ -69 dBm, typical
- MCS=5, NSS1 PER @ -66 dBm, typical
- MCS=6, NSS1 PER @ -64 dBm, typical
- MCS=7, NSS1 PER @ -62 dBm, typical
- MCS=8, NSS1 PER @ -58 dBm, typical
- MCS=9, NSS1 PER @ -56 dBm, typical
SISO Receive Sensitivity
(11ac,40MHz) @10% PER
MIMO Receive Sensitivity
(11ac,40MHz) @10% PER
SISO Receive Sensitivity
(11ac,80MHz) @10% PER
Distribution:
PureLink GmbH Available from B2B Online Portal

Tx’s WiFi Parameters(5Ghz)

- MCS=0, NSS1 PER @ -82 dBm, typical
- MCS=1, NSS1 PER @ -81 dBm, typical
- MCS=2, NSS1 PER @ -79 dBm, typical
- MCS=3, NSS1 PER @ -75 dBm, typical
- MCS=4, NSS1 PER @ -72 dBm, typical
MIMO Receive Sensitivity - MCS=5, NSS1 PER @ -69 dBm, typical
(11ac,80MHz) @10% PER
- MCS=6, NSS1 PER @ -67 dBm, typical
- MCS=7, NSS1 PER @ -65 dBm, typical
- MCS=8, NSS1 PER @ -61 dBm, typical
- MCS=9, NSS1 PER @ -60 dBm, typical
- MCS=0, NSS2 PER @ -80 dBm, typical
- MCS=9, NSS2 PER @ -56 dBm, typical
802.11a/n : -30 dBm
Maximum Input Level
Antenna Reference
Small antennas with 0~2 dBi peak gain
MHz) Channel table
Operating Channel
Channel center
frequencies(MHz)
Band range
Numbers
36
5180
5200
5220
5240
5260
5280
5300
5320
5500
5520
5540
5560
5580
5600
5620
5640
5660
5680
5700
5745
5765
5785
5805
5825
40
MHz~5240MHz
44
48
52
56
5260MHz~5320MHz
60
64
100
104
108
112
116
120
124
128
132
136
140
149
153
157
161
165
5550MHz~5700MHz
5745MHz~5825MHz
5180
1
5GHz(20
8821CU
REDBIRDTEK TECHNOLOGY
LIMITED
- MCS=7 PER @ -64 dBm, typical
Receive Sensitivity
(11ac,20MHz)
@10% PER
- MCS=0 PER @ -86 dBm, typical
- MCS=1 PER @ -83 dBm, typical
- MCS=2 PER @ -82 dBm, typical
- MCS=3 PER @ -78 dBm, typical
- MCS=4 PER @ -75 dBm, typical
- MCS=5 PER @ -71 dBm, typical
- MCS=6 PER @ -69 dBm, typical
- MCS=7 PER @ -68 dBm, typical
- MCS=8 PER @ -63 dBm, typical
Receive Sensitivity
(11ac,40MHz)
@10% PER
- MCS=0 PER @ -84 dBm, typical
- MCS=1 PER @ -81 dBm, typical
- MCS=2 PER @ -79 dBm, typical
- MCS=3 PER @ -76 dBm, typical
- MCS=4 PER @ -73 dBm, typical
- MCS=5 PER @ -68 dBm, typical
- MCS=6 PER @ -67 dBm, typical
- MCS=7 PER @ -65 dBm, typical
- MCS=8 PER @ -61 dBm, typical
- MCS=9 PER @ -60 dBm, typical
4 .2 5GHz RF Specification
Feature
Description
WLAN Standard
IEEE 802.11a/n/ac, Wi-Fi compliant
Frequency Range
5.125 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
Number of Channels
5.0GHzBand1~Band4,please see the table 1
Modulation
802.11a/n : 64-QAM,16-QAM, QPSK, BPSK
802.11ac : 256-QAM, 64-QAM,16-QAM, QPSK, BPSK
Output Power
802.11a /64-QAM(R=3/4) : 14 dBm ± 1.5 dB @ EVM £-25dB
802.11n /64-QAM(R=5/6) : 13 dBm ± 1.5 dB @ EVM £-28dB
802.11ac/256-QAM(R=3/4) : 13 dBm ± 1.5 dB @ EVM £-30dB
802.11ac/256-QAM(R=5/6) : 11 dBm ± 1.5 dB @ EVM £-32dB
Receive Sensitivity
(11a, 20MHz) @10%
PER
- 6Mbps PER @ -85 dBm, typical
- 9Mbps PER @ -83 dBm, typical
- 12Mbps PER @ -82 dBm, typical
Distribution:
PureLink GmbH Available from B2B Online Portal

8821CU
REDBIRDTEK TECHNOLOGY
LIMITED
- 18Mbps
PER @ -80 dBm, typical
- 24Mbps
PER @ -76 dBm, typical
- 36Mbps
PER @ -73 dBm, typical
- 48Mbps
PER @ -68 dBm, typical
- 54Mbps
PER @ -67 dBm, typical
Receive Sensitivity
(11n,20MHz)
@10% PER
- MCS=0
PER @ -85 dBm, typical
- MCS=1
PER @ -83 dBm, typical
- MCS=2
PER @ -80 dBm, typical
- MCS=3
PER @ -77 dBm, typical
- MCS=4
PER @ -73 dBm, typical
- MCS=5
PER @ -69 dBm, typical
- MCS=6
PER @ -67 dBm, typical
- MCS=7
PER @ -66 dBm, typical
Receive Sensitivity
(11n,40MHz)
@10% PER
- MCS=0
PER @ -83 dBm, typical
- MCS=1
PER @ -80 dBm, typical
- MCS=2
PER @ -78 dBm, typical
- MCS=3
PER @ -75 dBm, typical
- MCS=4
PER @ -72 dBm, typical
- MCS=5
PER @ -67 dBm, typical
- MCS=6
PER @ -66 dBm, typical
- MCS=7
PER @ -64 dBm, typical
Receive Sensitivity
(11ac,20MHz)
@10% PER
- MCS=0
PER @ -86 dBm, typical
- MCS=1
PER @ -84 dBm, typical
- MCS=2
PER @ -81 dBm, typical
- MCS=3
PER @ -77 dBm, typical
- MCS=4
PER @ -74 dBm, typical
- MCS=5
PER @ -70 dBm, typical
- MCS=6
PER @ -68 dBm, typical
- MCS=7
PER @ -67 dBm, typical
- MCS=8
PER @ -63 dBm, typical
Receive Sensitivity
(11ac,40MHz)
@10% PER
- MCS=0
PER @ -83 dBm, typical
- MCS=1
PER @ -79 dBm, typical
- MCS=2
PER @ -77 dBm, typical
- MCS=3
PER @ -74 dBm, typical
- MCS=4
PER @ -71 dBm, typical
- MCS=5
PER @ -66 dBm, typical
- MCS=6
PER @ -64 dBm, typical
Distribution:
PureLink GmbH Available from B2B Online Portal



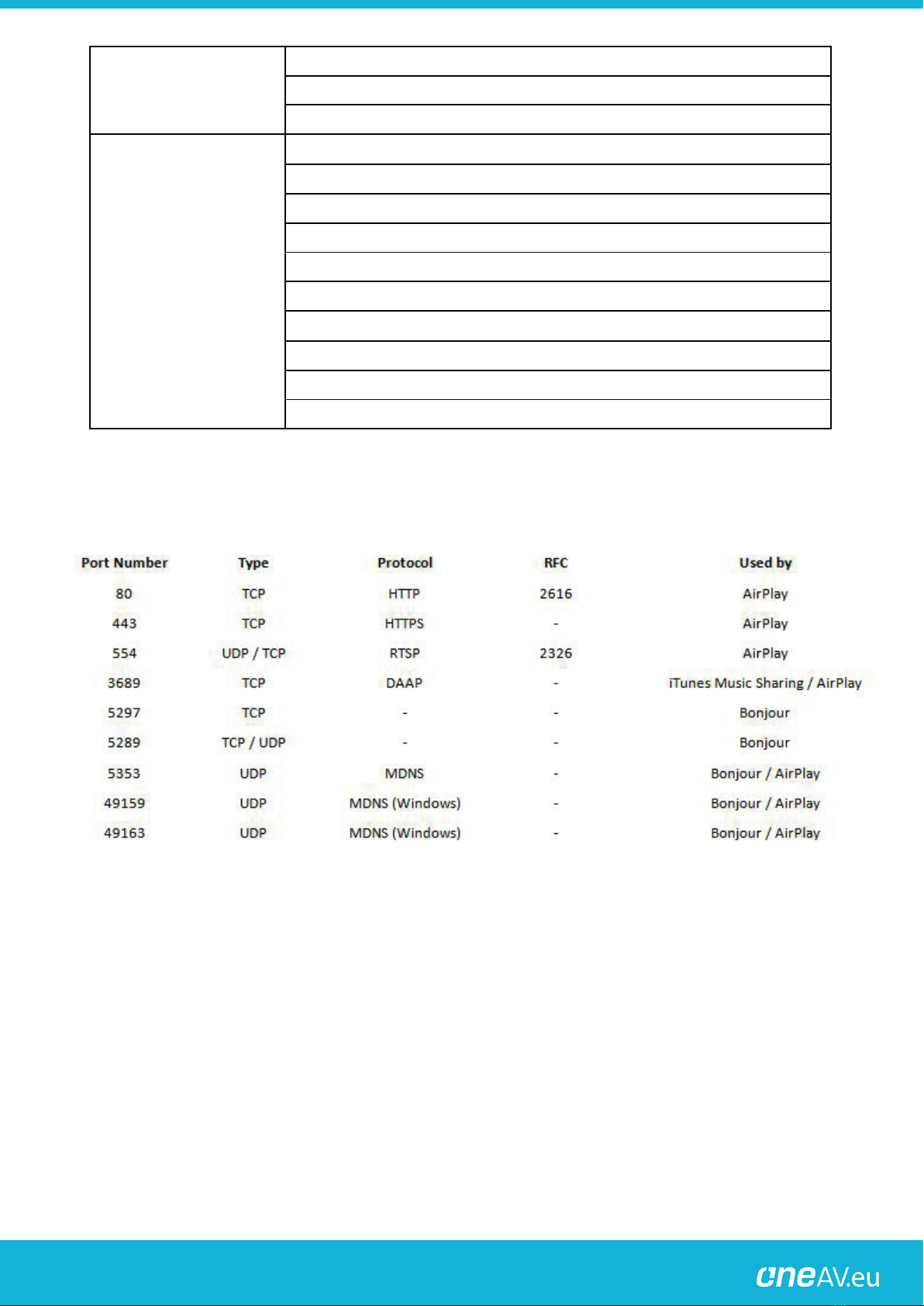

Port usage
1. Airplay:


2. Quattro TxóRx:
2.1 Port 2425
2.2 Port 63630
3. Web Setting Http server:
3.1 Port 80
3.2 Port 8080
4. FW OTA:
4.1 Port 80
4.2 Port 443
8821CU
REDBIRDTEK TECHNOLOGY
LIMITED
- MCS=7
PER @ -62 dBm, typical
- MCS=8
PER @ -60 dBm, typical
- MCS=9
PER @ -59 dBm, typical
Receive Sensitivity
(11ac,80MHz)
@10% PER
- MCS=0
PER @ -80 dBm, typical
- MCS=1
PER @ -77 dBm, typical
- MCS=2
PER @ -75 dBm, typical
- MCS=3
PER @ -71 dBm, typical
- MCS=4
PER @ -68 dBm, typical
- MCS=5
PER @ -66 dBm, typical
- MCS=6
PER @ -62 dBm, typical
- MCS=7
PER @ -60 dBm, typical
- MCS=8
PER @ -57 dBm, typical
- MCS=9
PER @ -56 dBm, typical
15GHz Channel table
Band (GHz)
Operating Channel
Numbers
Channel center
frequencies(MHz)
5.15GHz~5.25GHz
36
5180
40
5200
44
5220
48
5240
5.25GHz~5.35GHz
52
5260
56
5280
60
5300
64
5320
5.5GHz~5.7GHz
100
5500
104
5520
108
5540
112
5560
116
5580
120
5600
124
5620
128
5640
132
5660
136
5680
140
5700
5.725GHz~5.825GHz
149
5745
153
5765
157
5785
161
5805
165
5825
Distribution:
PureLink GmbH Available from B2B Online Portal

T02 LED Status list
Activate Host
without source
input
Activate Guest
without source input
Activate Host & in
projecting
Host received request
of projection
Guest standby
without projecting
Host standby without
projecting
Guest send request
of projection and
wait for allow
1. Under connection
2. Pairing/TX OTA
3. Fail to connection
(blinking over
1minutes)
Activate Guest & in
projecting
Pairing done
TX OTA Complete
TX OTA Fail


Main Screen of Rx
When Quattro RX is successfully turned on, the screen will be shown on display-
Icons Description for Function & Link Status
Function & Link Status
Manual Download

Quattro Rx IP



Distribution:
PureLink GmbH Available from B2B Online Portal

* Outbound link can select only one of Wi-Fi and RJ45 wire line (LAN).
Airplay activated after web setting. (Default is off)
Quattro RX has been powered on, however, there is
neither Quattro TX nor device linked.
Shift in 3, which means “under pairing” or “building the
connection”.
Complete pairing or connection, the number showed total
Quattro TX or Device linked.
RJ45 wire line disconnected.
Shift in 3, which means “building the connection”.
RJ45 wire line connected and IP acquired
IP conflict or other network error.
Outbound Wi-Fi disconnected.
Shift in 3, outbound Wi-Fi is connecting.
Outbound Wi-Fi connected with the router name shown
underline.
Wi-Fi connection Fail, Invalid password or other Errors

Web Setting
Quattro RX IP- when Devices (either laptops or mobile phones) connect with Quattro RX with SSID &
Password directly, applying the IP in web browser can enter Admin setting page for more advance setting.
1. Preparation-
To access the setting page, you have to choose either way to connect the devices.
1.1 Direct link- you can apply notebook or mobile phone to search Quattro RX by wifi and key in
relative SSID and Password. Turn on web browser and enter “192.168.168.1” in the address bar.
1.2 Through Wifi AP or Routers- if your Quattro RX has been connected to a certain networking device,
you can apply notebook or mobile phone to connect the same device. Turn on web browser and
enter the address show in mainpage in the Quattro Rx IP shown below.
Distribution:
PureLink GmbH Available from B2B Online Portal

After connecting to Rx and open the IP, the page will show as below-
Please select 2 icons for more features:
: menu icon. : indicate log-in icon.

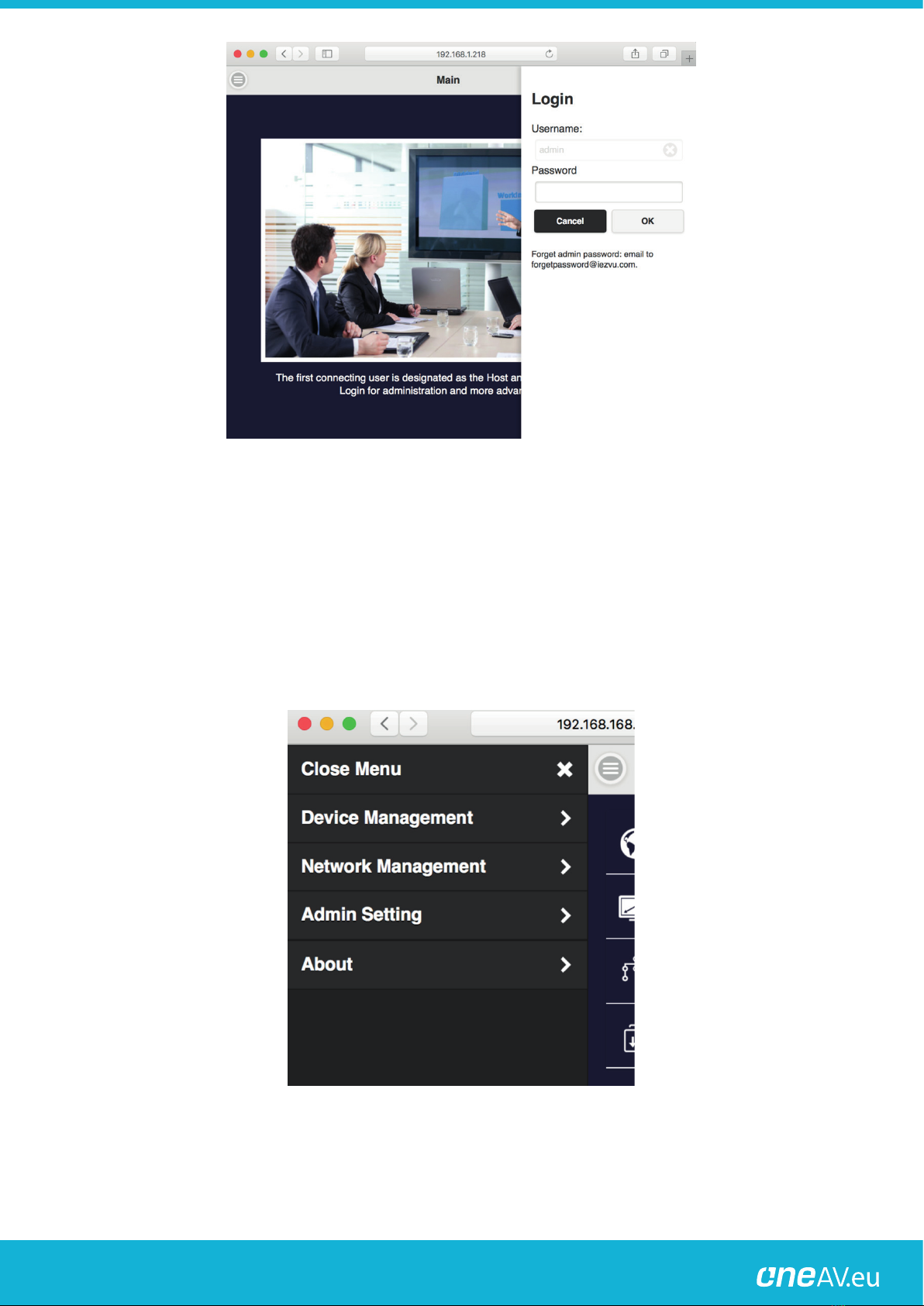

2. Log in
Function & Link Status
Manual Download

Quattro Rx IP



Distribution:
PureLink GmbH Available from B2B Online Portal

If you are not logging in, you will only be able to use 3~4 items without the Admin setting in the setup
menu.
*Please be noted the default password is “000000”, after logging in 1
st
time, you will be requested to
change the log-in password. Please keep it carefully, if you forget the password, please hold the reset
button for 10 secs to reset to default.
3. Menu setup:
3.1 Click the menu button and you will find several items to set: Device Management, Network
Management, Admin Setting, and About. You can also download Android APK here.
4. Device Management:
This section helps to manage web page language, Rx’s output resolutions, Max connections and
QuattroPod Receiver & Transmitter pairing file download.
Distribution:
PureLink GmbH Available from B2B Online Portal

4.1 Language:
Select the language you prefer to show in the webpage. There are more than 20+ languages are
supported.

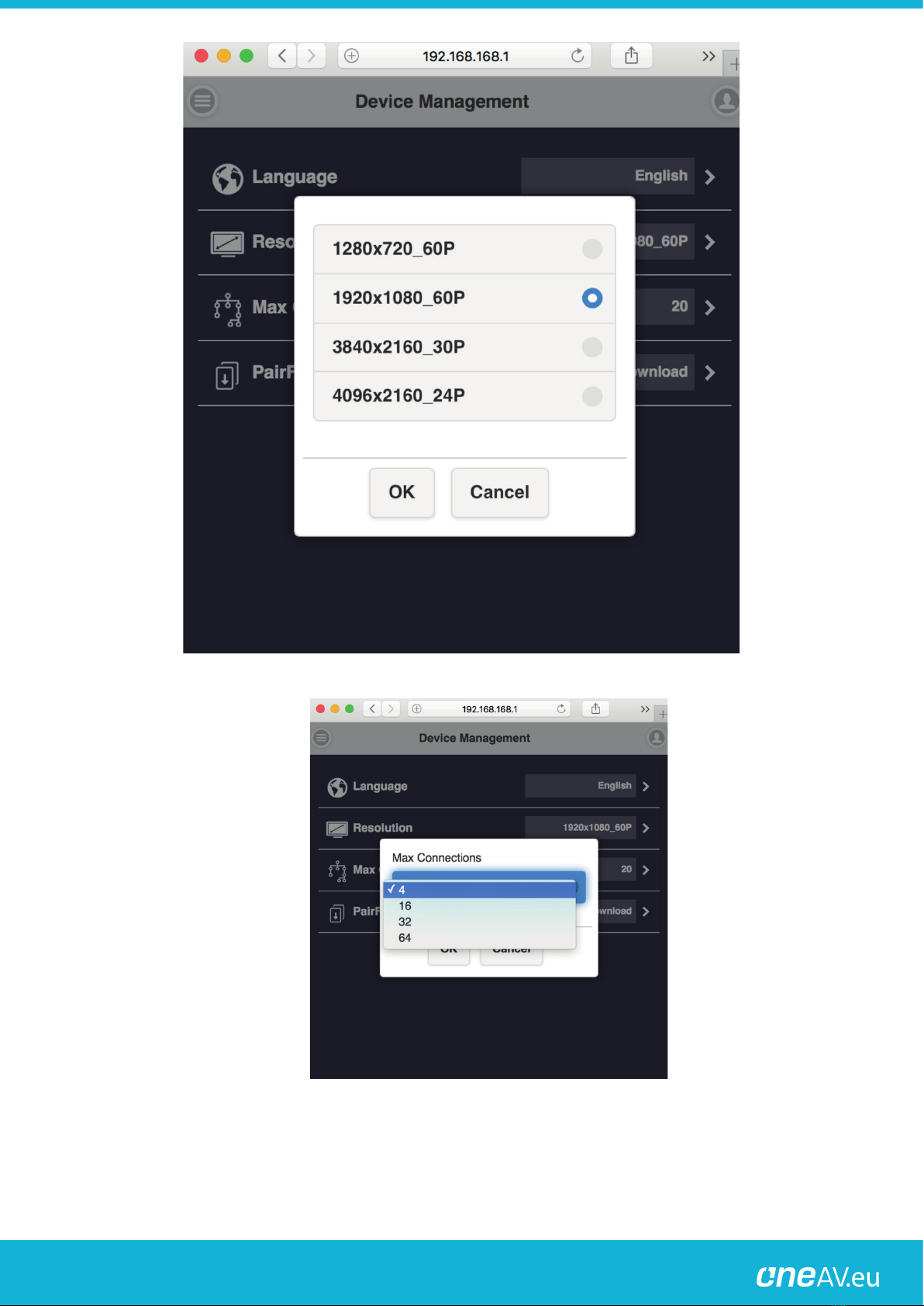

4.2 Resolution:
Our Receiver supports EDID to match the best resolution, you can also adjust it here.
Distribution:
PureLink GmbH Available from B2B Online Portal

4.3 Max Connection: Set up the maximum users of the Receiver (Direct link only). Default is 8 users.
4.4 Pair File Download: download the pairing file from Receiver. You can transfer the pairing file in USB
disk and plug into Transmitter for pairing
The switch of USB on Transmitter shall be adjusted to “mobile”.
Distribution:
PureLink GmbH Available from B2B Online Portal

Distribution:
PureLink GmbH Available from B2B Online Portal
