Actisense NBF-3 User manual

Technical Accuracy
To the best of our knowledge the information contained in this document was
correct at the time it was produced. Active Research Ltd cannot accept liability
for any inaccuracies or omissions.
The products described in this manual and the specications thereof may be
changed without prior notice. Active Research Ltd cannot accept any liability
for differences between the product and this document. To check for updated
information and specications please check actisense.com.
Active Research Ltd will not be liable for infringement of copyright, industrial
property rights, or other rights of a third party caused by the use of information
or drawings described in this manual.
Product Guarantee
This product comes with a three year ‘return to base’ guarantee. If you suspect
that the unit is faulty please refer to the Troubleshooting Section of the User
Manual before contacting support.
It is a requirement of the guarantee that all installations of electronic equipment
follow the NMEA 0400 specication. Any connection to a battery or power
supply must meet the mandatory essential safety requirements that may be
imposed by local regulatory agencies.
Actisense products are intended for use in a marine environment, primarily for
below deck use. If a product is to be used in a more severe environment, such
use may be considered misuse under the Active Research Ltd guarantee.
Important Notices
The device to which this manual relates complies with the Electromagnetic
Compatibility requirements according to EN60945. The unit should always be
used in conjunction with appropriately approved, shielded cable and connectors
as per NMEA 0400 to ensure compliance. A declaration of conformity is
available for download at www.actisense.com.
If the device to which this manual relates is to be installed within ve metres of a
compass, please refer to the ‘Compass Safe Distance’ section in the ‘Technical
Specications’ table.
Trademarks and Registered Trademarks
Actisense® and the Actisense logo are registered trademarks of Active
Research Limited (Ltd). All other trademarks are the property of their respective
owners.
The NMEA® name and NMEA logo are copyright held by the NMEA. All uses in
this manual are by permission and no claim on the right to the NMEA name or
logo are made in this manual.
Fair Use Statement
The contents of this manual may not be transferred or copied without the
express written permission of Active Research Ltd.
Copyright © 2017 Active Research Ltd. All rights reserved.
NMEA Buffer
Quick Start Guide
NBF-3
Product Registration
Please register your product via the online form at http://actisense.com/
support/prodreg.html.
Your product package includes a unit serial number. The serial number is six
digits long and can be found below the barcode on the label. Your registration
will assist Actisense Support to link your product to your details, simplifying any
future assistance you may require.
Product Disposal
Please dispose of this product in accordance with the WEEE Directive.
The product should be taken to a registered establishment for the disposal of
electronic equipment.
Issue 1.1
Before getting started
The wire colours used in this quick start guide are in accordance with
the NMEA 0183 specication (v.4.10, June 2014) and are for illustration
purposes only. Please ensure you check the wiring colours in the installation
instructions for the device you wish to interface to the NBF-3.
Introduction & Features
Ground breaking and innovative ‘ISO-Drive™’ technology from Actisense
protects up to six NMEA 0183 Listeners from damage that can be caused by
hazardous ground loops. Electrical isolation on the NBF-3 input also provides
protection to the connected Talker.
Data is distributed identically from each of the six outputs and at least the
original signal voltage levels. This means that information sent by the connected
Talker is reliably delivered to its intended destination, even over long cable runs.
The addition of power distribution for the NMEA Talker allows a single cable to
connect power and data to the Talker.
®
Active Research Ltd
21 Harwell Road
Poole
Dorset
UK, BH17 0GE
Tel: [phone]
Email:[email protected]
Web: www.actisense.com

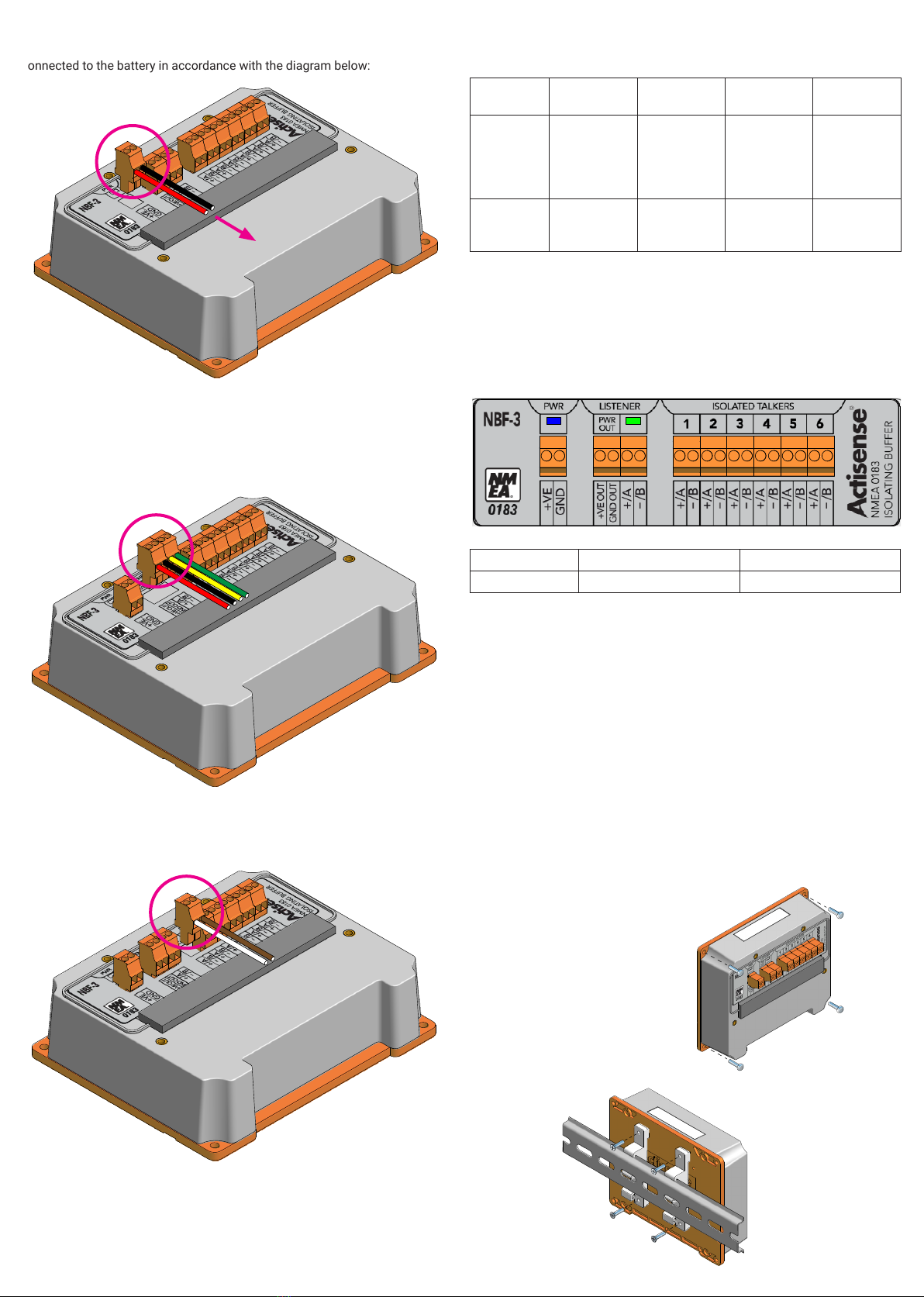

Powering the NBF-3
The NBF-3 is compatible with 12V and 24V power supplies and should be
connected to the battery in accordance with the diagram below:
Connecting to Devices
Strands of wire must not be twisted before inserting in to the connector, this
will ensure a much more secure termination than if the wires are twisted.
A small at headed screwdriver (2-3mm) is needed to loosen the screws on the
pluggable connectors for the wires to be inserted or removed.
NMEA 0183 and RS232 (serial PC) connections
Colour Blue Green
Name Power indicator Listener Port Data
The NBF-3 power connection is routed to the Listener port PWR OUT connection
via a self-resettable fuse. This provides the option to power the NMEA 0183
Talker from the NBF-3.
NBF-3
Label:
Talker A/+ Talker B/- Listener A/+ Listener B/-
NMEA 0183
device
label:
NMEA 0183
Listener
‘RX A/+’ or
‘NMEA IN
A/+’
NMEA 0183
Listener ‘RX
B/-’ or ‘NMEA
IN B/-’
NMEA 0183
Talker ‘TX
A/+’ or
‘NMEA OUT
A/+’
NMEA 0183
Talker ‘TX
B/-’ or ‘NMEA
OUT B/-’
Standard
RS232
label:
Pin 2 Pin 5 Pin 3 Pin 5
LED Behaviour
Mounting the NBF-3
The NBF-3 can be mounted on a DIN rail or directly to a bulkhead via the
screw holes in each corner. We recommend the DIN rail mount option for the
convenience of removing and re-installing the NBF-3 at a later date if needed.
To Battery
Direct mounting option
DIN rail mounting option
