Active Care Medical Mid-size Scooter series User manual

Provider:_________________________________________________________________________
Address:_________________________________________________________________________
Phone Number:__________________________ Purchase Date:___________________________
Please fill out the following information for quick reference:
*INFMANU4468*

Model
ÄAB
A
(Release Lever)
B
( Lo ck - up Pi n) Headlight FullLight
Package
A
(Molded plastic)
B
(CRS)
Suspension
SeatPost
Hi‐Low
Switch
Handbrake
Lever
104 yyy y
609 y y yyyy
709 y y yyyyy
610 y y yyyy
710 y y yyyyy
610DX y y yyyy
710DX y y yyyyyy
610DXW y y yyyy y
710DXW y y yyyy yy
712 y y yyyyy
712DX y y yyyyyy
Console
Style FrameLock‐upStyle SeatStyleOptionsLights(Optional) Options*
SCOOTER FEATURES TABLE
Copyright © 2012
INFMANU4468/Rev A/December 2012
NOTE: Please become familiar with your scooter’s model number. The number can be found on the product
specification sheet in your owner’s package. Throughout this owner’s manual, Scooter attributes are
identified by model number (far left-hand column on Scooter Features Table). Knowing your unit’s model
number will aid you in determining your particular scooter’s unique characteristics.
INTENDED USE
The intended use of the mobility device is to provide mobility to persons limited to a seated position that have
the capability of operating a scooter.
NOTE: This owner’s manual is compiled from the latest specifications and product information available
at the time of publication. We reserve the right to make changes as they become necessary. Any changes to
our products may cause slight variations between the illustrations and explanations in this manual and the
product you have purchased. The latest/current version of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
*NOTE: Scooter options vary by country. Please contact your Provider to determine which options are
available for your Scooter.

3
Mid-size Scooter Series
SAFETY GUIDELINES .....................................................................................................................3
I. SAFETY ........................................................................................................................................ 4
II. YOUR SCOOTER ....................................................................................................................... 7
III. BATTERIES AND CHARGING ......................................................................................... 14
IV. OPERATION ............................................................................................................................. 20
V. COMFORT ADJUSTMENTS .............................................................................................. 22
VI. DISASSEMBLY AND ASSEMBLY .................................................................................. 27
VII. BASIC TROUBLESHOOTING ........................................................................................... 29
VIII.CARE AND MAINTENANCE ............................................................................................. 31
CONTENTS
SAFETY GUIDELINES
WARNING! An authorized Provider or qualified technician must perform the initial setup
of this scooter and must perform all of the procedures in this manual.
The symbols below are used throughout this owner's manual and on the scooter to identify warnings
and important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow
designated procedures can cause either personal injury, component damage, or
malfunction. On the product, this icon is represented as a black symbol on a yellow
triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause personal injury and/or equipment damage. On the product,
this icon is represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause personal injury
and/or equipment damage. On the product, this icon is represented as a black symbol
with a red circle and red slash.

4Mid-size Scooter Series
I. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the scooter to identify warnings, mandatory actions, and prohibited
actions. It is very important for you to read and understand them completely.
NOTE: There are more warnings identified and explained in the Consumer Safety Guide that is
included with your scooter. Please become familiar with all the warnings and safety information found
in the Consumer Safety Guide and refer to this resource often.
Read and follow the information in the owner’s manual.
Indicates tie-down points on the scooter.
Battery Set Configuration:
+ = Positive (Red) Terminal Post
- = Negative (Black) Terminal Post
Connect Red wires to Red Positive (+) Terminal Posts.
Connect Black wire to Black Negative (-) Terminal Posts.
Does not meet 7176-19 standards for occupied transport in a motor
vehicle. When travelling in a motor vehicle, do not sit in your scooter.
Scooter information label.
Manufactured in.

5
Mid-size Scooter Series
I. SAFETY
GENERAL
MANDATORY! Do not operate your new scooter for the first time without completely
reading and understanding this owner’s manual and the Consumer Safety Guide.
Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. We provide an
extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the
final selection and purchasing decision regarding the type of scooter to be used is the responsibility of the
scooter user, who is capable of making such a decision and his/her healthcare professional (i.e., medical
doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted
the scooter to the user and has assisted the prescribing healthcare professional and/or the authorized
Provider in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the scooter user will need to
practice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as
a family member or care professional specially trained in assisting a scooter user in various daily living
activities.
As you begin using your scooter during daily activities, you will probably encounter situations in which
you will need some practice. Simply take your time and you will soon be in full and confident control as
you maneuver through doorways, on and off elevators, up and down ramps and over moderate terrain.
Additional general information can be found on the supplemental information sheets and booklets
included in your Owner’s Package. Please fully read and review the information, and keep it readily
available for future reference.
Below are some precautions, tips and other safety considerations that will help you become accustomed
to operating the scooter safely.
PRE-RIDE SAFETY CHECK
Get to know the feel of your scooter and its capabilities. We recommend that you perform a safety check
before each use to make sure your scooter operates smoothly and safely.
Perform the following inspections prior to using your scooter:
Check the condition of the tires. Make sure they are not damaged or excessively worn.
Check all electrical connections. Make sure they are tight and not corroded.
Check all harness connections. Make sure they are secured properly.
Check the brakes to ensure they operate properly.
Check the battery condition meter to ensure the batteries are fully charged.
Ensure the manual freewheel lever is in drive mode before sitting on the scooter.
If you discover a problem, contact your authorized Provider for assistance. Please refer to the Contact
Information insert in your Owner’s Package.

6Mid-size Scooter Series
I. SAFETY
BRAKING INFORMATION
Your scooter is equipped with these powerful brake systems:
Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the
cener/stop position.
Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or
when power is removed from the system for any reason.
(Optional) Handbrake: This lever provides you with emergency stopping power. See II. “Your
Scooter.”
HANDBRAKE LEVER (OPTIONAL)
The handbrake lever contains hydraulic fluid. When the lever is depressed, the fluid is pushed through the
brake line to engage the brake pads against the brake discs. The handbrake lever is a completely sealed
unit, meaning that the hydraulic fluid should not leak; however, there are certain safety measures that
should be taken if the handbrake lever becomes cracked or damaged.
Do not touch spilled material unless wearing protective equipment, such as safety goggles and gloves.
For small spills, cover the material with dry earth, sand or other non-combustible absorbent material.
Once absorbed, enclose the material in a plastic bag and contact your local waste disposal agency for
proper disposal measures. Do not expose the material to waterways or sewers.
If the eyes are exposed, check for and remove contact lenses. Flush eyes with cool, clean, low-
pressure water while occasionally lifting and lowering the eyelids. Seek medical attention if excessive
tearing, redness or pain persists.
If the skin is exposed, remove all contaminated clothing. Wipe off excess material and wash exposed
skin with soap and water. Seek medical attention if skin appears damaged or if irritation persists.
Thoroughly clean contaminated clothing before reuse. Discard contaminated leather goods.
If ingested, do not induce vomiting or give anything to drink unless directed to by a physician. Never
give anything by mouth to a person who is not fully conscious. Seek medical attention immediately.
If inhaled, move the affected individual to fresh air. If the affected individual is not breathing,
immediately begin rescue breathing. If breathing is difficult, 100% humidified oxygen should be
administered by a qualified individual. Seek medical attention immediately and keep the affected
individual warm and at rest.
If ignited, use dry chemical, foam, carbon dioxide or water fog to extinguish.
WARNING! Do not modify the handbrake lever or attempt to replace the hydraulic fluid.
If damage occurs, follow the safety information in this section and contact your
authorized dealer for handbrake replacement. The hydraulic handbrake should only be
serviced or replaced by your authorzed dealer.
WARNING! The handbrake contains hydraulic fluid that can cause mild skin, eye and
nasal/bronchial irritation. Do not attempt to adjust or service the handbrake without
proper protective equipment such as safety goggles and gloves and wash hands after
handling.

7
Mid-size Scooter Series

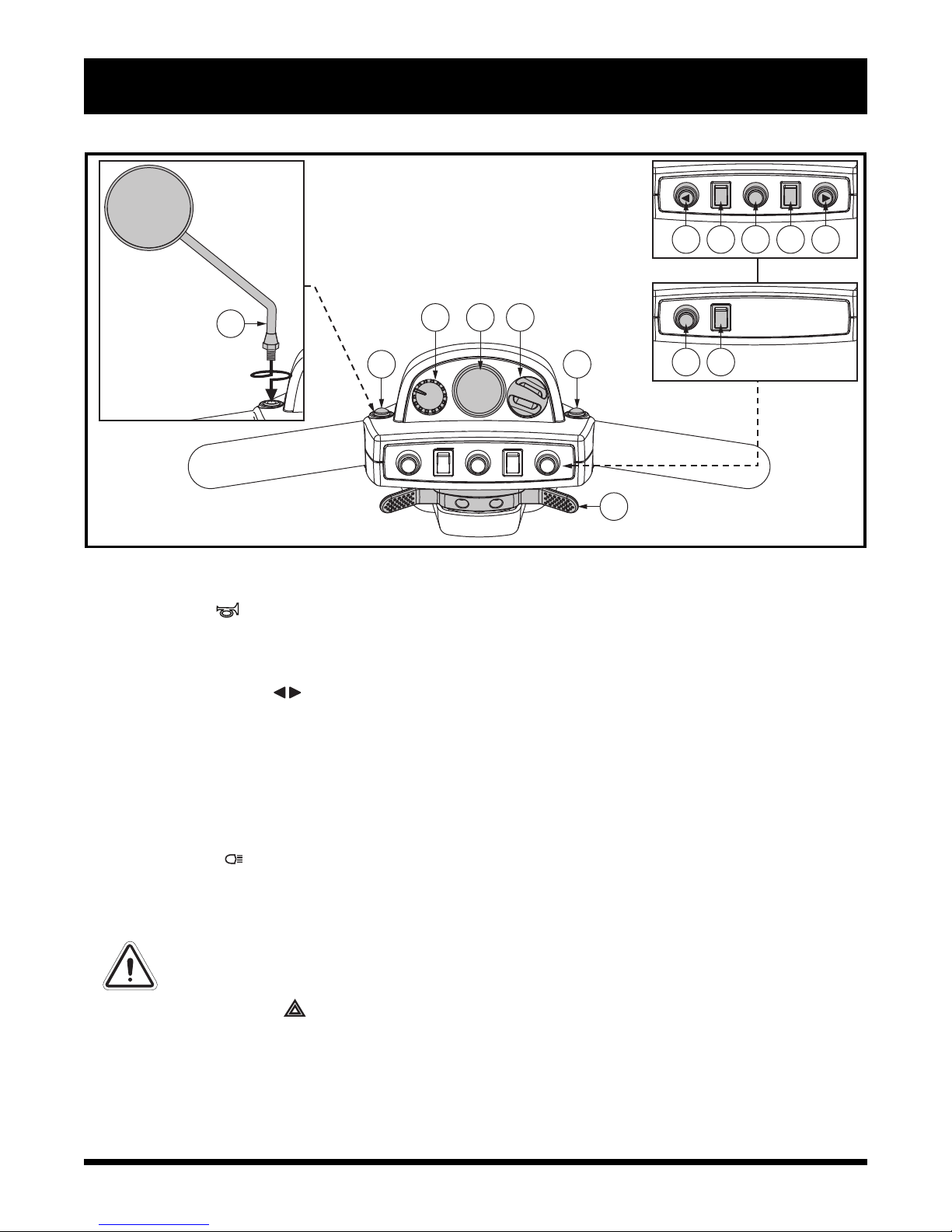

IDENTIFICATION KEY FOR FIGURES 1 AND 2
1. HORN BUTTON 7. THROTTLE CONTROL LEVER
2. *LEFT TURN SIGNAL BUTTON 8. SPEED ADJUSTMENT DIAL
3. *HAZARD LIGHTS SWITCH 9. BATTERY CONDITION METER
4. LIGHT SWITCH 10. KEY SWITCH
5. *RIGHT TURN SIGNAL BUTTON 11. MIRROR AND MIRROR PLUGS
6. *HI-LOW SWITCH 12. *HANDBRAKE LEVER
II. YOUR SCOOTER
TILLER CONSOLE
The tiller console houses all of the controls needed to drive your scooter, including the speed adjustment
dial, key switch, battery condition meter, horn buttons, turn signal buttons and the throttle control lever.
Please note that some of the features listed in this section are optional items and may not appear on your
scooter. Please refer to the Scooter Features Table on the inside of the front cover of this owner’s manual
to determine which console figure to choose. Contact your authorized Provider for more information. See
figure 1 or 2.
PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller
console does become exposed to moisture, do not attempt to operate your scooter until
the tiller console has dried thoroughly.
7
6
4
3
11
8 9 10 12
11
11
1
2 5
*OPTIONAL COMPONENTS AVAILABLE ON SOME MODELS
Figure 1. Tiller Console A

8Mid-size Scooter Series
Horn Buttons
These buttons activate a warning horn. Your scooter must be powered up for the horn to be operational.
Do not hesitate to use the warning horn when doing so may prevent accident or injury.
Turn Signal Buttons
Use these buttons to turn on the left and right turn signal (amber) lights.
Push the left button to activate the left turn signal light. The turn signal indicator LED located in the
battery condition meter will flash.
Push the right button to activate the right turn signal light. The turn signal indicator LED located in
the battery condition meter will flash.
The turn signals are timed to shut off automatically.
Lights Switch
This switch controls your scooter’s lighting system.
Toggle the switch forward to turn on the front lower light.
Toggle the switch rearward to turn off the lighting system.
WARNING! Scooter users are required to use their lights when visibility is restricted—
day or night.
Hazard Lights Switch
This switch activates the 4-way flashers on your scooter.
Toggle the hazard lights switch forward to turn on the flashers.
Toggle the hazard lights switch rearward to turn off the flashers.
8
11 11
910
7
11
24135
1 4
Figure 2. Tiller Console B
II. YOUR SCOOTER

9
Mid-size Scooter Series
Hi-Low Switch
This switch toggles the scooter’s speed between Hi and Low. Toggle the switch forward (Hi) to achieve
the maximum preprogrammed speed for the scooter. Toggle the switch rearward (Low) to achieve half the
maximum preprogrammed speed of the scooter.
Throttle Control Lever
This lever allows you to control the forward speed and the reverse speed of your scooter up to the
maximum speed you preset with the speed adjustment dial.
To use throttle control lever for models equipped with Tiller Console A:
To Move Forward, use either of the following:
Use your left thumb to push the left side of the throttle control lever.
Use your right hand fingers to pull back on the right side of the throttle control lever.
To Move Rearward, use either of the following:
Use your right thumb to push the right side of the throttle control lever.
Use your left hand fingers to pull back on the left side of the throttle control lever.
To use throttle control lever for models equipped with Tiller Console B:
To move Forward, use your right thumb to push the right side of the throttle control lever.
To move Rearward, use your left thumb to push the left side of the throttle control lever.
Release the throttle control lever and allow your scooter to come to a complete stop before engaging the
other side of the lever. When the throttle control lever is completely released, it automatically returns to
the center “stop” position and engages your scooter’s brakes.
Speed Adjustment Dial
This dial allows you to preselect and limit your scooter’s top speed.
The image of the tortoise represents the slowest speed setting.
The image of the hare represents the fastest speed setting.
Battery Condition Meter
When the key is fully inserted and turned clockwise to power up your scooter, this meter indicates the
approximate battery voltage strength. For further information on battery charging, see III. “Batteries and
Charging.”
Status LED (If Equipped)
The status LED alerts you to electrical problems that may occur with the scooter. The LED remains
constantly lit while your scooter is on. If your scooter develops an electrical problem, the status LED will
flash a code. See VII. “Basic Troubleshooting” for flash codes.
Key Switch
Insert the key into the key switch and turn it clockwise to power up (turn on) your scooter.
Turn the key counterclockwise to power down (turn off) your scooter.
WARNING! If the key is turned to the “off” position while your scooter is in motion, the
electronic brakes will engage and your scooter will come to an abrupt stop!
Mirror Positioning and Adjustment
For information on positioning and adjusting your mirror, see V. “Comfort Adjustments.”
II. YOUR SCOOTER

10 Mid-size Scooter Series
Handbrake Lever (If Equipped)
This lever provides you with emergency stopping power. When in motion, release the throttle control
lever and gently squeeze the handbrake lever to come to a stop.
The handbrake can be locked and used as a parking brake by squeezing the handbrake lever fully and
moving the brake lock to the locked position. See figure 1. To release the brake lock, fully squeeze the
handbrake.
WARNING! The handbrake is intended for use as an emergency brake and/or parking
brake only.
II. YOUR SCOOTER
1
2
4
6
7
5
3

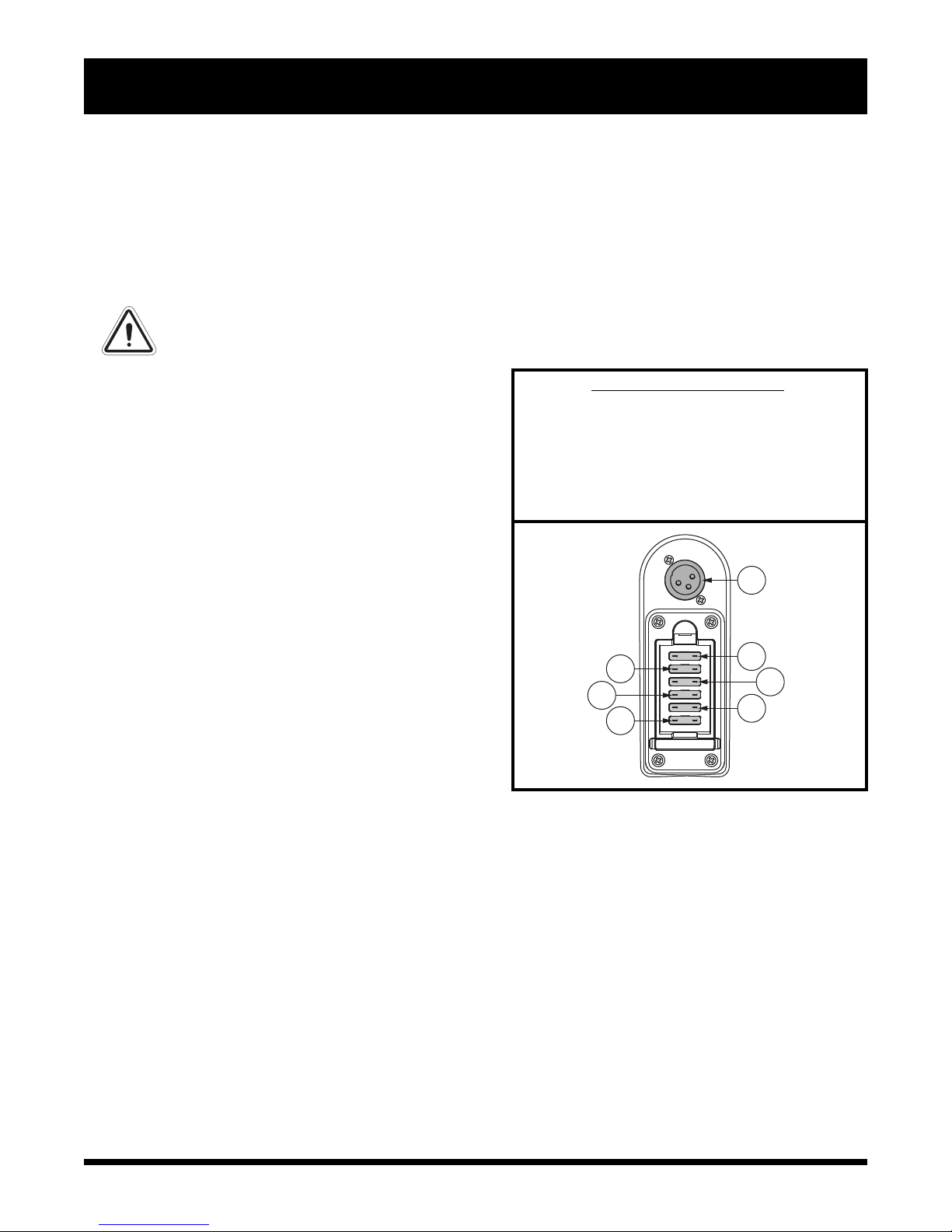

Figure 3. Off-board Charger Port/Tiller Console Fuses
IDENTIFICATION KEY
1. OFF-BOARD CHARGER PORT
2. OFF-BOARD CHARGER FUSE
3. KEY SWITCH FUSE
4. LOWER HEADLIGHT FUSE
5. REAR TAIL LIGHTS FUSE
6. LEFT TURN SIGNAL FUSE
7. RIGHT TURN SIGNAL FUSE
Off-board Charger Port
The off-board charger power cord plugs into this port
during battery charging. The off-board charger port
is located on the tiller. See figure 3.
Electrical System Fuses
Your scooter is equipped with a series of electrical
system fuses, which help protect the off-board
charging system, key switch and lighting system
from receiving an overload of electrical current.
These fuses are the same type used in automobiles
and are located in a compartment on the tiller. See
figure 3. See VIII. “Care and Maintenance” for fuse
replacement.
NOTE: Keep all electrical areas clean and free of
moisture and foreign material.

11
Mid-size Scooter Series
REAR COMPONENTS
The manual freewheel lever, anti-tip wheels, motor/transaxle assembly, and optional safety flag brackets
are located on your scooter as shown. See figure 4. Although not shown, the batteries and main circuit
breaker (reset button) are also located on the rear component section of your scooter.
WARNING! Before placing your scooter into or taking it out of freewheel mode, remove
the key from the key switch. Never sit on a scooter when it is in freewheel mode. Never
put a scooter in freewheel mode on any incline.
II. YOUR SCOOTER
Figure 4. Rear Components
IDENTIFICATION KEY
1. MANUAL FREEWHEEL LEVER
2. MOTOR/TRANSAXLE ASSEMBLY
3. ANTI-TIP WHEELS
4. SAFETY FLAG BRACKET
Manual Freewheel Lever
Whenever you need or want to push your scooter
for short distances, you can put it in freewheel
mode.
1. Remove the key from the key switch.
2. Push forward on the manual freewheel lever to
disable the drive system and the brake system.
This will enable you to push the scooter.
NOTE: If your scooter is equipped with a 2-
position manual freewheel lever, you must pull up
on the lever and then push forward on the manual
freewheel lever to disable the drive system and the
brake system. This will enable you to push the
scooter.
3. Pull back on the manual freewheel lever to
reengage the drive and the brake systems and
take your scooter out of freewheel mode.
WARNING! When your scooter is in
freewheel mode, the braking
system is disengaged.
 Disengage the drive motors only
on a level surface.
 Ensure the key is removed from
the key switch.
 Stand to the side of the scooter
to engage or disengage free-
wheel mode. Never sit on a
scooter to do this.
 After you have finished pushing
your scooter, always return it to
the drive mode to lock the
brakes.
4
3
2
1
NOTE: If the scooter is placed in freewheel mode (manual freewheel lever forward) while the key is in
the “on” position, the scooter will not run until the manual freewheel lever is pushed rearward and the
key is turned to the “off” position, then back to the “on” position.
Motor/Transaxle Assembly
The motor/transaxle assembly is an electromechanical unit that converts electrical energy from your
scooter’s batteries into the controlled mechanical energy that drives the scooter’s wheels.

12 Mid-size Scooter Series
Anti-Tip Wheels
The anti-tip wheels are an integral and important safety feature of your scooter. They are bolted to the
frame at the rear of the scooter.
PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that
is not authorized by your Provider.
WARNING! The anti-tip wheels may cause interference with the smooth transition of your
scooter when ascending or descending a curb. Contact your authorized Provider for more
information.
Batteries
The batteries store electrical energy that powers your scooter. See III. “Batteries and Charging ” for
information on how to charge your scooter batteries.
Safety Flag Bracket (Optional)
An accessory bracket for installing an optional safety flag is mounted near each anti-tip wheel. See
figure 4. To install the flag, the supplied L-shaped hex key is needed.
To install the safety flag:
1. Remove the cap from the top of the bracket.
2. Loosen the setscrew with the supplied L-shaped hex key.
3. Insert the flag pole into the opening.
4. Tighten the setscrew to complete installation.
II. YOUR SCOOTER
Main Circuit Breaker (Reset Button)
When the voltage in the batteries becomes low or your
scooter is heavily strained because of excessive loads, the
main circuit breaker may trip to protect the motor and
electronics from damage. When the breaker trips, the entire
electrical system shuts down. See figure 5.
The reset button pops out when the breaker trips.
Allow a minute or so for the electronics to “rest.”
Push in the reset button to reset the breaker.
If the breaker trips frequently, you may need to charge
the batteries more often or have your authorized
Provider perform a load test on the batteries.
If the main circuit breaker trips repeatedly, see your
authorized Provider for service.

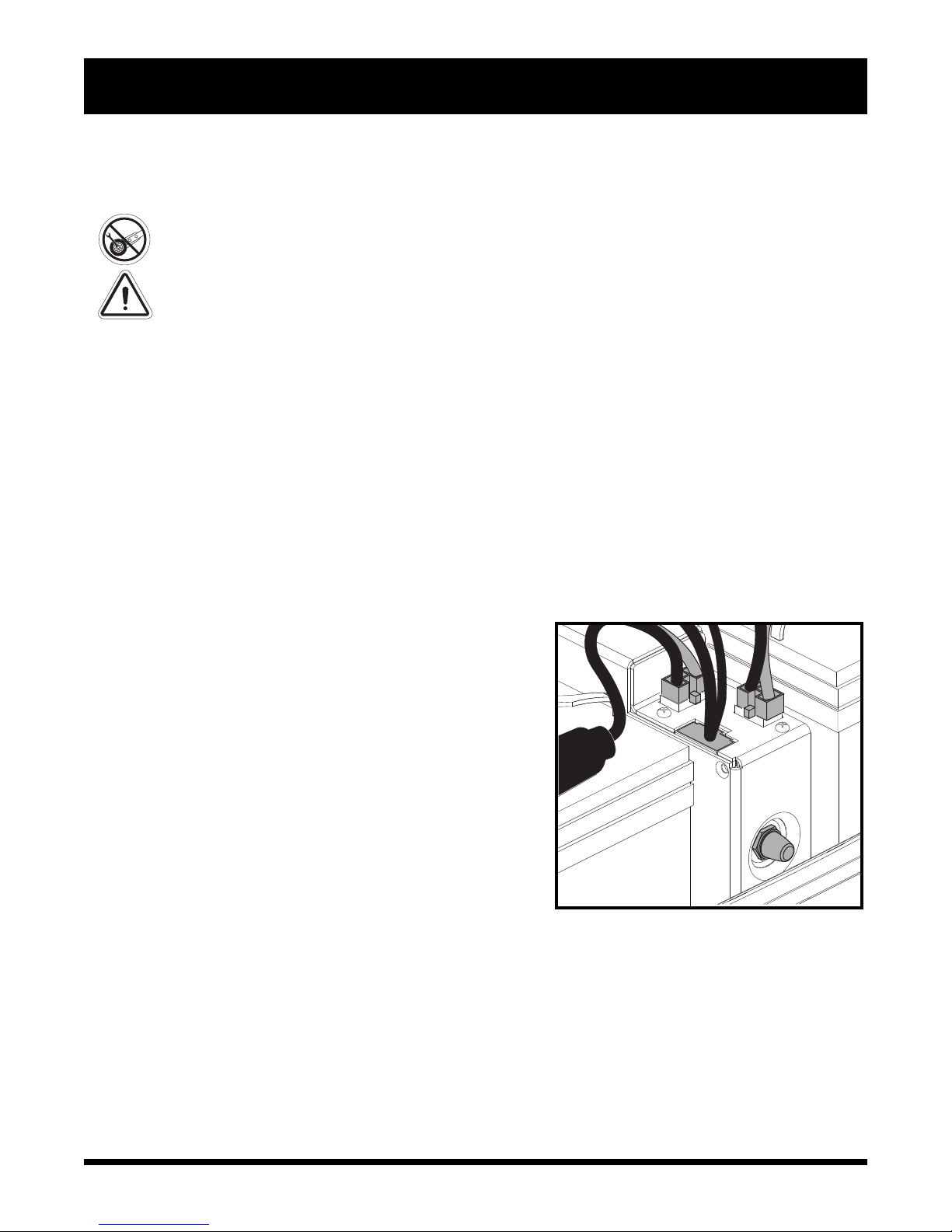

Figure 5. Main Circuit Breaker (Reset Button)

13
Mid-size Scooter Series
SECURING THE SCOOTER
Always secure the scooter in a forward-facing position in the vehicle. Attach the four tie-down straps to
the designated securement points. See figure 6. Tighten the straps to sufficiently remove all slack. Never
attach tie-downs to adjustable, moving or removable parts of the scooter such as armrests, shrouds, and
wheels. Any removable items should be removed and stowed separately. Position the anchor points for
the rear tie-down straps directly behind the rear securement points on the scooter. The front tie-down
straps should anchor to floor points that are spaced wider than the scooter to provide increased lateral
stability.
WARNING! Ensure scooters are properly secured to the motor vehicle during transport.
Scooters that are not properly secured can become a hazard to the user and to other
vehicle passengers in the event of a crash, sudden stopping, or swerving, as the scooter
could tip or slide out of place. Do not secure a scooter by any of its removable parts such
as armrests, seat, basket, accessory brackets, etc.
23
1
II. YOUR SCOOTER
IDENTIFICATION KEY
1. FRONT SECUREMENT POINTS (3-wheel models)
2. FRONT SECUREMENT POINTS (4-wheel models)
3. REAR SECUREMENT POINTS

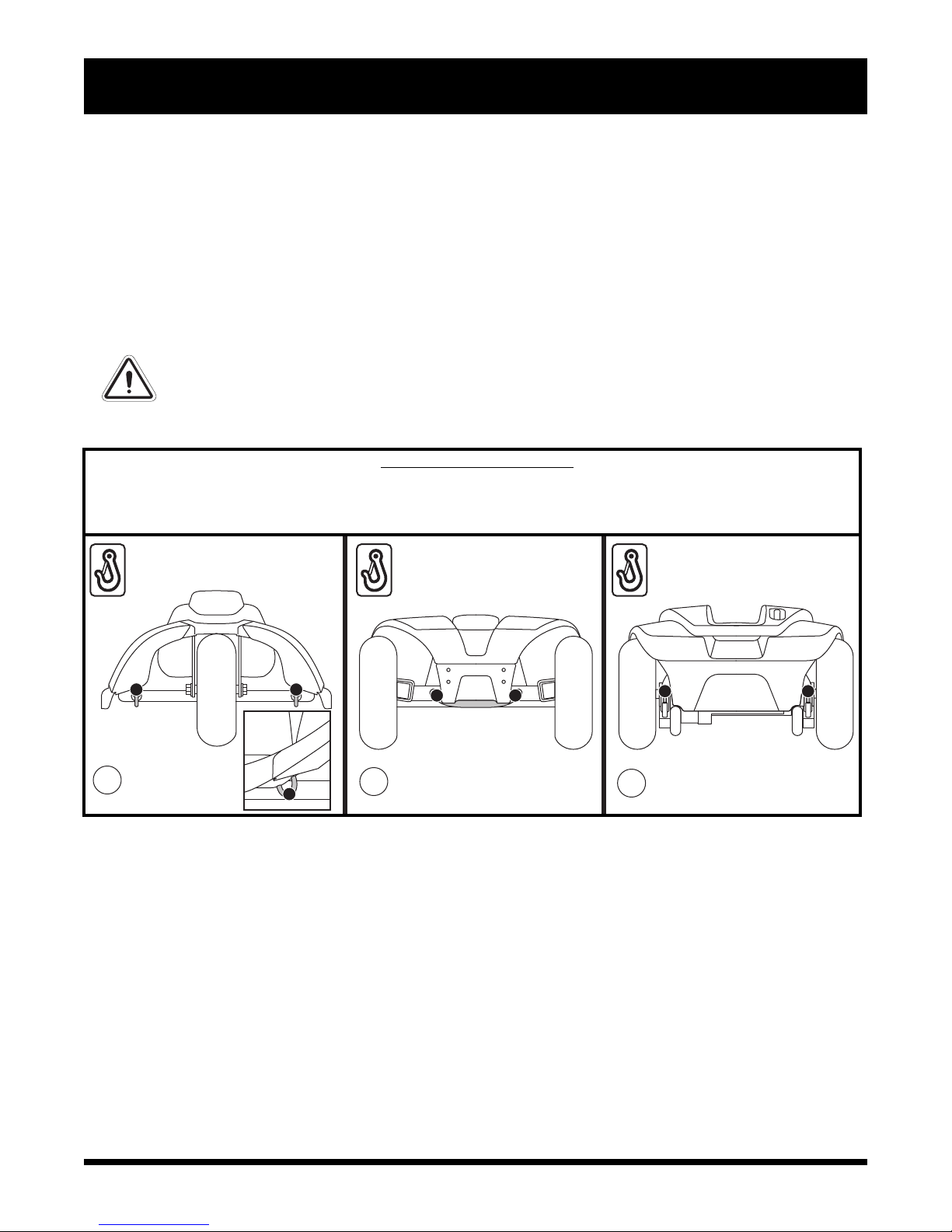

Figure 6. Securement Points (Identified with black dots)

14 Mid-size Scooter Series
PROHIBITED! Removal of grounding prong can create electrical hazard. If necessary,
properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged
plug access.
PROHIBITED! Never use an extension cord to plug in your battery charger. Plug the
charger directly into a properly wired standard electrical outlet.
PROHIBITED! Do not allow unsupervised children to play near the scooter while the
batteries are charging. We recommend that you do not charge the batteries while the
scooter is occupied.
MANDATORY! Read the battery charging instructions in this manual and in the manual
supplied with the battery charger before charging the batteries.
WARNING! Explosive gases may be generated while charging the batteries. Keep the
scooter and battery charger away from sources of ignition such as flames or sparks and
provide adequate ventilation when charging the batteries.
WARNING! You must recharge your scooter’s batteries with the supplied off-board
charger. Do not use an automotive-type battery charger.
WARNING! Inspect the battery charger, wiring and connectors for damage before each
use. Contact your authorized Provider if damage is found.
WARNING! Do not attempt to open the battery charger case. If the battery charger does
not appear to be working correctly, contact your authorized Provider.
WARNING! If the battery charger is equipped with cooling slots, then do not attempt to
insert objects through these slots.
WARNING! Be aware that the battery charger case may become hot during charging.
Avoid skin contact and do no place on surfaces that may be affected by heat.
WARNING! If your battery charger has not been tested and approved for outdoor use, then
do not expose it to adverse or extreme weather conditions. If the battery charger is
exposed to adverse or extreme weather conditions, then it must be allowed to adjust to
the difference in environmental conditions before use indoors. Refer to the manual
supplied with the battery charger for more information.
1b1a
III. BATTERIES AND CHARGING
BATTERIES AND CHARGING
Your scooter requires two long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance free.
They are recharged by an off-board charging system.
Charge your scooter’s batteries for at least 8 to 14 hours prior to using it for the first time.
Keep the batteries fully charged to keep your scooter running smoothly.

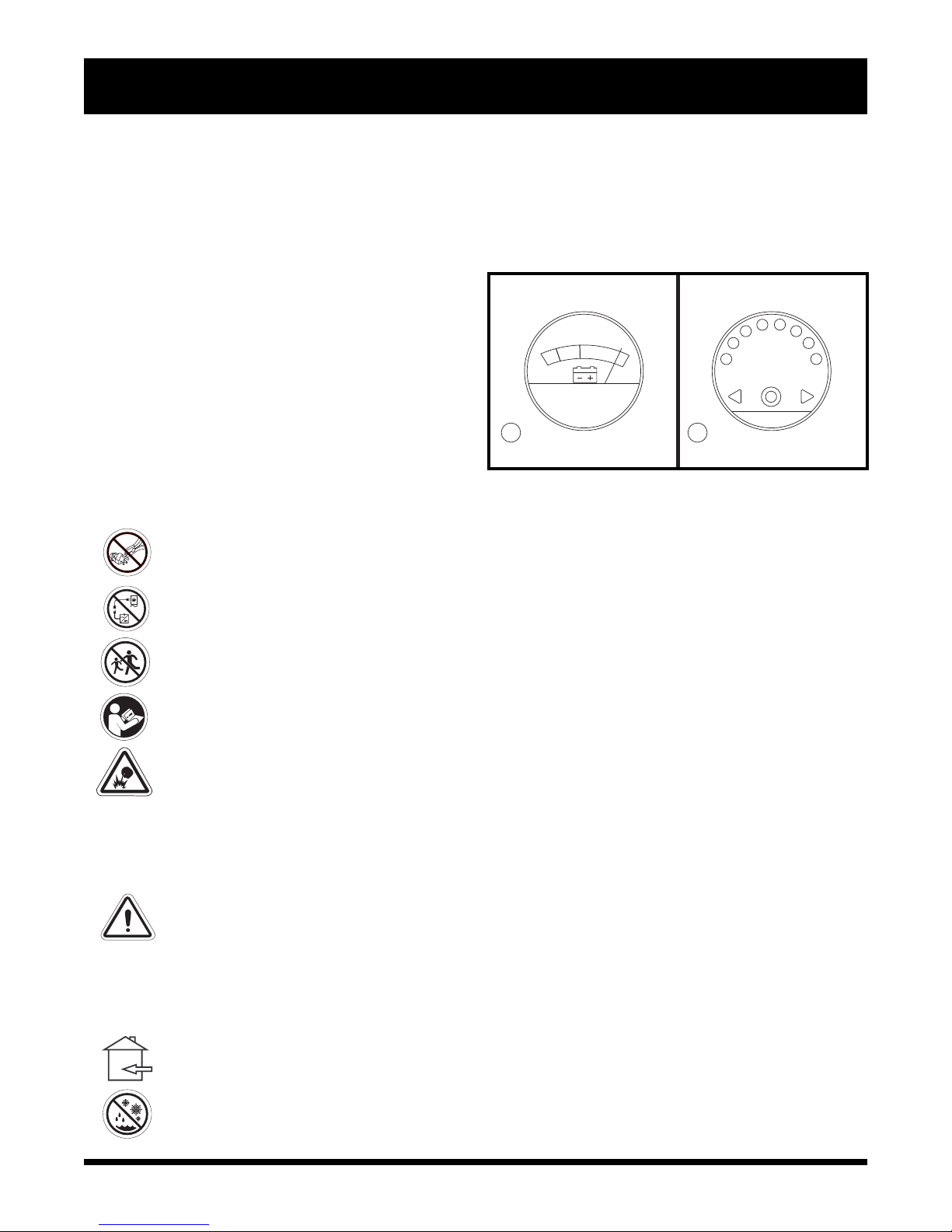

Figure 7. Battery Condition Meter
READING YOUR BATTERY VOLTAGE
The battery condition meter on the tiller console
indicates the approximate strength of your batteries
using a color code. From right to left, green indicates
fully charged batteries, yellow indicates a draining
charge and red indicates that an immediate recharge
is necessary. See figure 7. To ensure the highest
accuracy, the battery condition meter should be
checked while operating your scooter at full speed
on a dry, level surface.
CHARGING YOUR BATTERIES

15
Mid-size Scooter Series
III. BATTERIES AND CHARGING
Follow the 6 easy steps in figure 8 to charge your batteries safely:
WARNING! The LED lights on the charger indicate different charger conditions at various
times. If the LED does not indicate that charging is complete within 24 hours, unplug the
charger from the outlet and contact your Provider. Refer to the operating instructions
supplied with the charger for a complete explanation of these indicators.
NOTE: There is a charger inhibit function on your scooter. The scooter will not run and the battery
condition meter will not operate while the batteries are charging.
FREQUENTLY ASKED QUESTIONS
How does the charger work?
When your scooter’s battery voltage is low, the charger works harder, sending more electrical current to
the batteries to bring up their charge. As the batteries approach a full charge, the charger sends less and
less electrical current. When the batteries are fully charged, the current sent from the charger is at nearly
zero amperage. Therefore, when the charger is plugged in, it maintains the charge on your scooter’s
batteries, but does not overcharge them. Refer to the manual supplied with the battery charger for charging
instructions.
Can I use a different charger?
Chargers are selected precisely for particular applications and are especially matched to the type, size
and chemical formulation of specific batteries. For the safest and most efficient charging of your
scooter’s batteries we recommend only use of the charger supplied as original equipment with your
product. Any charging method resulting in batteries being charged individually is especially
prohibited.
1 2
4 5 6
8-14H
3
Figure 8. Battery Charging Procedures Diagram

16 Mid-size Scooter Series
III. BATTERIES AND CHARGING
What if my scooter’s batteries won’t charge?
Ensure the red (+) and black (-) battery cables are connected properly to the battery terminals.
Ensure both battery harnesses that extend from the batteries are plugged into their mating harness
leading to the charger.
Ensure both ends of the charger power lead are inserted fully.
How often must I charge the batteries?
Two major factors must be considered when deciding how often to charge your scooter’s batteries:
All day scooter use on a daily basis.
Infrequent or sporadic scooter use.
With these considerations in mind, you can determine how often and for how long you should charge your
scooter’s batteries. The battery charger was designed so that it will not overcharge your scooter’s batteries.
However, you may encounter some problems if you do not charge your batteries often enough and if you
do not charge them on a regular basis. Following the guidelines below will provide safe and reliable
battery operation and charging.
If you use your scooter daily, charge its batteries as soon as you finish using it for the day. Your
scooter will be ready each morning. We recommend that you charge your scooter’s batteries for at least
8 to 14 hours after daily use. We recommend that you charge the batteries for an additional 4 hours
after the battery charger indicates that charging is complete.
If you use your scooter once a week or less, charge its batteries at least once a week for at least 24
hours.
NOTE: Keep your batteries fully charged and avoid deeply discharging your batteries. Refer to the
manual supplied with the battery charger for charging instructions. We recommend charging your
batteries for at least 48 continuous hours once per month to improve battery performance and battery
life.
How can I get maximum range or distance per charge?
Rarely will you have ideal driving conditions—smooth, flat, hard driving surfaces with no wind or curves.
Often, you will face hills, pavement cracks, uneven and loosely packed surfaces, curves and wind, all of
which affect the distance or running time per battery charge. Below are a few suggestions for obtaining
the maximum range per battery charge.
Always fully charge your scooter’s batteries prior to daily use.
Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each tire.
Plan your route ahead to avoid as many hills, cracked, broken or soft surfaces as possible.
Limit your baggage weight to essential items.
Try to maintain an even speed while your scooter is in motion.
Avoid stop-and-go driving.
We recommend charging your batteries for at least 48 continuous hours once per month to improve
battery performance and battery life.
Make sure all harness connections are secured properly.
How can I ensure maximum battery life?
Fully charged deep-cycle batteries provide reliable performance and extended battery life. Keep your
scooter’s batteries fully charged whenever possible. Protect your scooter and batteries from extreme heat
or cold. Batteries that are regularly and deeply discharged, infrequently charged, stored in extreme
temperatures or stored without a full charge may be permanently damaged, causing unreliable
performance and limited service life.
NOTE: To extend battery life, always turn off scooter and remove the key when not in use.

17
Mid-size Scooter Series
What type and size of battery should I use?
We recommend deep-cycle batteries that are sealed and maintenance free. Both AGM and Gel-Cell are deep-
cycle batteries that are similar in performance. Do not use wet-cell batteries, which have removable caps.
Refer to the specifications table for size as batteries differ depending on manufacture.
WARNING! Corrosive chemicals are contained in batteries. Use only AGM or Gel-
Cell batteries to reduce the risk of leakage or explosive conditions.
NOTE: Sealed batteries are not serviceable. Do not remove the caps.
Why do my new batteries seem weak?
Deep-cycle batteries employ a different chemical technology than that used in car batteries, nickel-
cadmium batteries (nicads) and other common battery types. Deep-cycle batteries are specifically
designed to provide power, drain down their charge and then accept a relatively quick recharge.
We work closely with our battery manufacturer to provide batteries that best suit your scooter’s specific
electrical demands. Fresh batteries are shipped fully charged to our customers. During shipping, the
batteries may encounter temperature extremes that can influence their initial performance. Heat diminishes
the charge on the battery; cold slows the available power and extends the time needed to recharge the
battery.
It may take a few days for the temperature of your scooter’s batteries to stabilize and adjust to their new
room or ambient temperature. More importantly, it takes a few charging cycles (partial draining followed
by full recharging) to establish the critical chemical balance that is essential to a deep-cycle battery’s peak
performance and long life.
Follow these steps to properly break in your scooter’s new batteries for maximum efficiency and
service life:
1. Fully recharge any new battery prior to its initial use. This charging cycle brings the battery up to about
88% of its peak performance level.
2. Operate your new scooter in familiar and safe areas. Drive slowly at first and do not travel too far from
your home or familiar surroundings until you have become accustomed to your scooter’s controls and
have properly broken in your scooter’s batteries.
3. Fully recharge the batteries. They should be at over 90% of their peak performance level.
4. Operate your scooter again, and fully recharge the batteries again.
5. After four or five charging cycles, the batteries are able to receive a charge of 100% of their peak
performance level and are able to last for an extended period of time.
What about public transportation?
If you intend to use public transportation with your scooter, you must contact the transportation provider
in advance to determine their specific requirements.
III. BATTERIES AND CHARGING

18 Mid-size Scooter Series
2
1
1
How do I change a battery in my scooter?
MANDATORY! Battery posts, terminals and related accessories contain lead and
lead compounds. Wear goggles and gloves when handling batteries and wash
hands after handling.
WARNING! Always use two batteries of the exact same type, chemistry and amp-
hour (Ah) capacity. Refer to the specifications table with this manual and in the
manual supplied with the battery charger for recommended type and capacities.
WARNING! Do not mix old and new batteries. Always replace both batteries at the
same time.
WARNING! Contact your authorized Provider if you have any questions regarding
the batteries in your scooter.
WARNING! Do not replace the batteries while the scooter is occupied.
WARNING! The batteries on your scooter should only be serviced or replaced by
an authorized Provider or a qualified technician.
PROHIBITED! Keep tools and other metal objects away from battery terminals.
Contact with tools can cause electrical shock.
You may need the following to change your batteries:
 Metric/standard socket set and ratchet
 Adjustable wrench
WARNING! Do not lift beyond your physical capability. Ask for assistance when
necessary while disassembling or assembling your scooter.
WARNING! Do not pull on electrical harness wires directly to detach them from the
scooter. Always grasp the connector itself when disconnecting the harness to prevent
wire damage.
To change batteries in your scooter:
1. Remove the seat and battery shroud. See figure 9.
2. Disconnect the battery tie-down strap. See
figure 10.
3. Disconnect the battery harnesses by depressing
the tabs on the battery harness connectors and
pulling them straight up. See figure 10.
4. Disconnect the battery cables from the battery
terminals by sliding back the terminal boots and
unscrewing the nut from the bolt. See figure 11.
5. Remove the old batteries from the battery wells.
6. Place a new battery in each battery well. Face the
battery terminals of each battery opposite each
other and toward the outer sides of the scooter. See
figure 12.
7. Connect the red battery cable to the positive (+)
battery terminal on each battery.
8. Connect the black battery cable to the negative (-)
battery terminal on each battery.
9. Reposition the terminal boots over the battery
terminals.

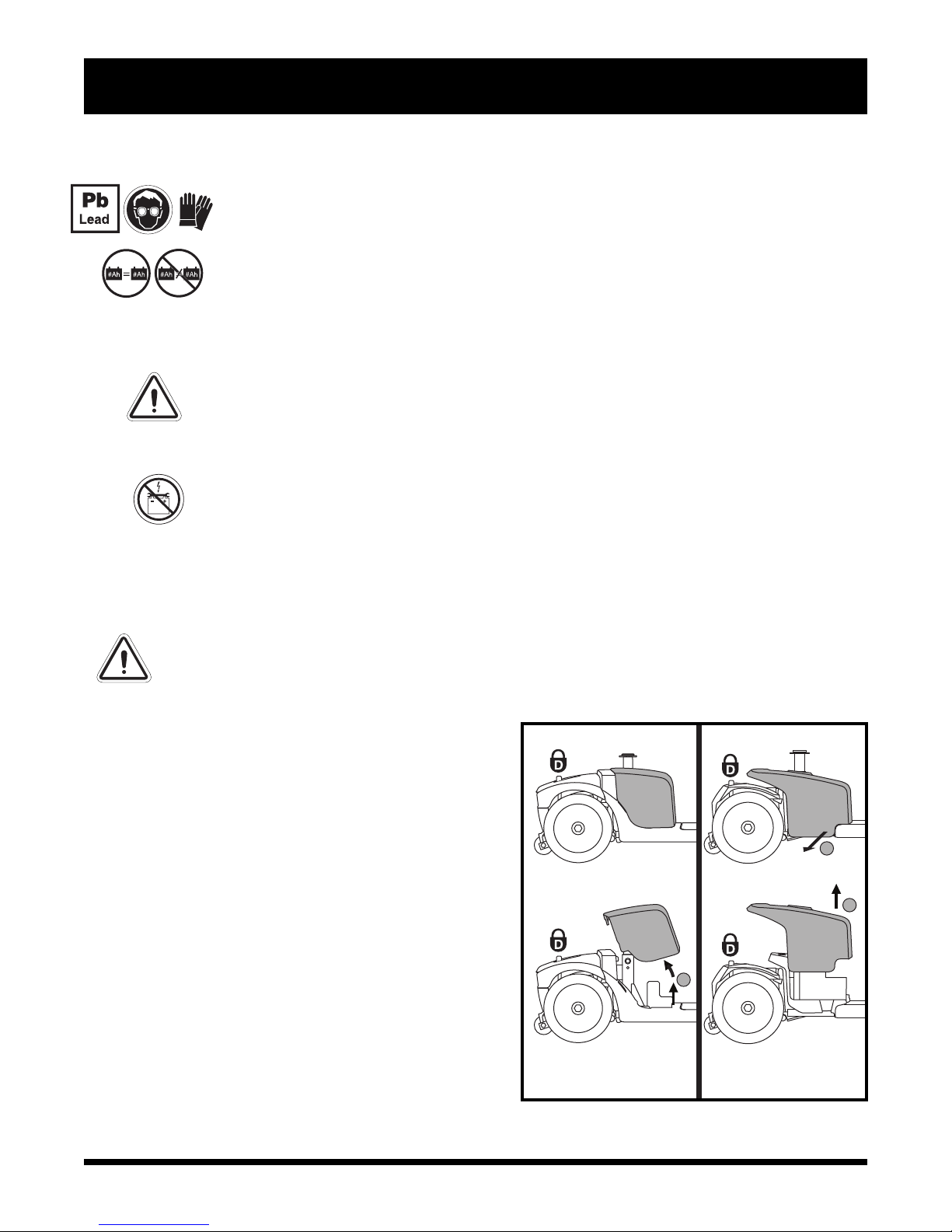

Figure 9. Battery Shroud Removal/Installation
*MODEL 104 ONLY
III. BATTERIES AND CHARGING

19
Mid-size Scooter Series
2
2
2
2
2
2
2
2
3
11
3
4
4
5
3
III. BATTERIES AND CHARGING
10. Reconnect the battery harnesses.
11. Reconnect the battery tie-down strap.
12. Reinstall the battery shroud and seat.
NOTE: If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag. Contact
your local waste disposal agency or your authorized Provider for instructions on disposal and battery
recycling, which is our recommended course of action.

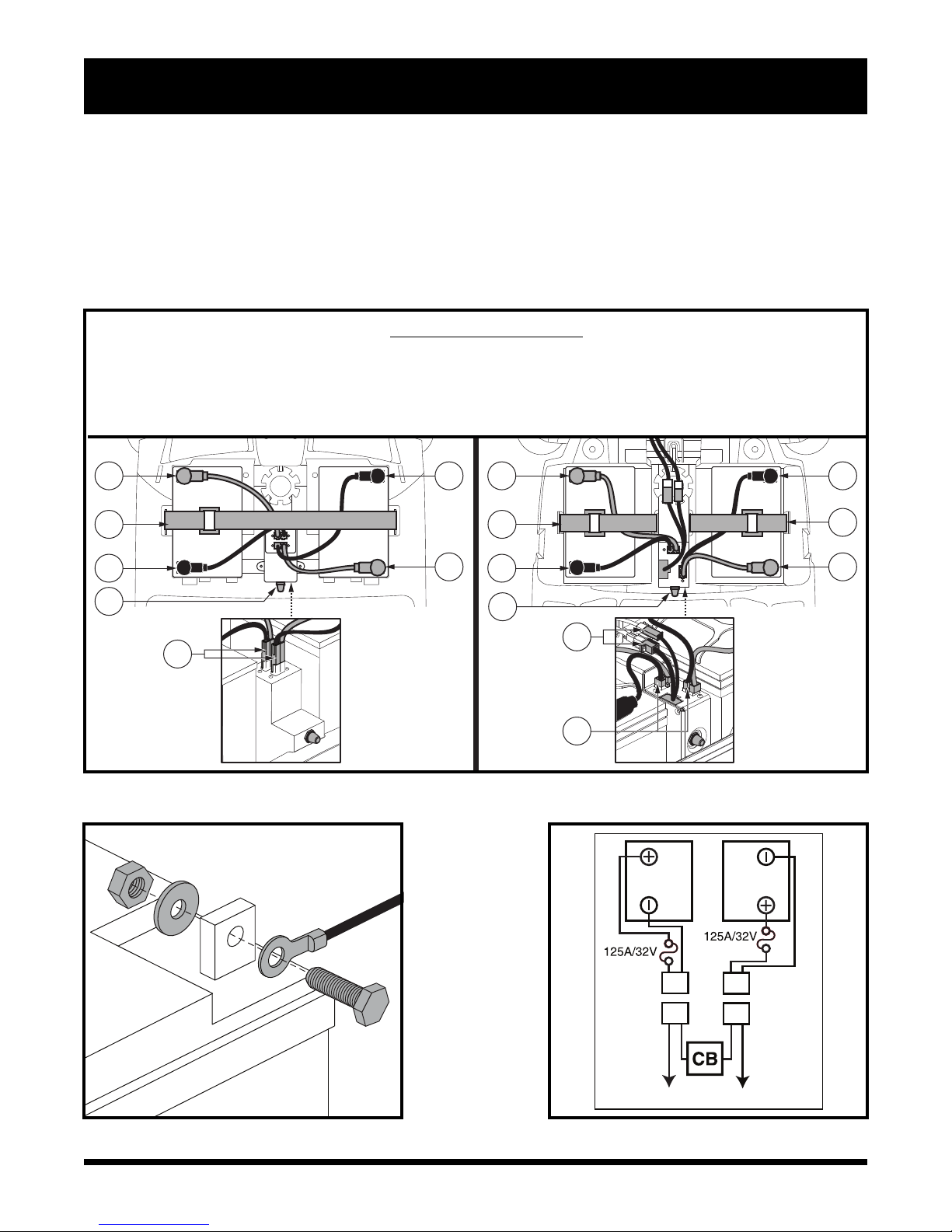

Figure 12. Battery Wiring Diagram
IDENTIFICATION KEY
1. MAIN CIRCUIT BREAKER
2. BATTERY TERMINALS UNDER BOOTS
3. BATTERY TIE-DOWN STRAP
4. BATTERY HARNESS CONNECTORS
5. FRONT-TO-REAR HARNESS CONNECTOR
Figure 10. Battery Removal/Installation Terminals and Connections
Figure 11. Battery Terminal Hardware
*MODEL 104 ONLY

20 Mid-size Scooter Series
IV. OPERATION
BEFORE GETTING ONTO YOUR SCOOTER
Have you fully charged the batteries? See III. “Batteries and Charging.”
Is the manual freewheel lever in the drive (rearward) position? Never leave the manual freewheel lever
pushed forward unless you are manually pushing your scooter.
GETTING ONTO YOUR SCOOTER
1. Make certain that the key is removed from the key switch.
WARNING! Never attempt to get onto or off of your scooter without first removing the key
from the key switch. This will prevent the scooter from moving if accidental throttle
control lever contact is made.
2. Stand at the side of your scooter.
3. Disengage the seat rotation lever and rotate the seat until it is facing you.
4. Make certain that the seat is fixed securely in position.
5. Position yourself comfortably and securely in the seat.
6. Disengage the seat rotation lever and rotate the seat until you are facing forward.
7. Make certain that the seat is fixed securely in position.
8. Make certain that your feet are safely on the floorboard.
PRE-RIDE ADJUSTMENTS AND CHECKS
Is the seat at the proper height? See V. “Comfort Adjustments.”
Is the seat fixed securely in position?
Is the tiller at a comfortable setting and locked securely in place? See V. “Comfort Adjustments.”
Is the key fully inserted into the key switch and turned clockwise to the “on” position?
Does the horn work properly?
Is your proposed path clear of people, pets, and obstacles?
Have you planned your route to avoid adverse terrain and as many inclines as possible?
OPERATING YOUR SCOOTER
WARNING! The following can adversely affect steering and stability while operating your
scooter, resulting in loss of control, tipping, and/or personal injury:
 Holding onto or attaching a leash to walk your pet
 Carrying passengers (including pets)
 Hanging any article from the tiller
Towing or being pushed by another motorized vehicle
WARNING! Keep both hands on the tiller and your feet on the floorboard at all times while
operating your scooter. This driving position gives you the most control over your vehicle.
Set the speed adjustment dial to your desired speed.
Push or pull the appropriate side of the throttle control lever.
The electromechanical disc park brake automatically disengages and the scooter accelerates smoothly
to the speed you preselected with the speed adjustment dial.
Pull on the left handgrip to steer your scooter to the left.
Pull on the right handgrip to steer your scooter to the right.
Move the tiller to the center position to drive straight ahead.
To stop, slowly release the throttle control lever. The electronic brakes will automatically engage,
bringing your scooter to a stop.
