ActiveAqua AAPC1020 User manual

USER MANUAL
UTILITY SUMP PUMP
AAPC1010 & AAPC1020

OVERVIEW
Thank you for purchasing the AAPC1010 or AAPC1020 Utility Sump Pump from Active Aqua. Before
operating this appliance, please read this instruction manual carefully and keep it handy for future
reference. Please pay special attention to the safety and caution sections, and operate the pump
only once you have a complete understanding of these instructions.
These pumps are ideal for use in hydroponics as well as many other applications including
aquariums, ponds, fountains and other water features, and more.
For information on additional Active Aqua products please visit Hydrofarm.com.
FEATURES
• Oil free and environmentally safe
• Ceramic bearings for continuous use
• All electrical parts are embedded in a block of plastic resin
• Energy-saving split tube motor
• Overload protection by means of thermal overload trip
SPECIFICATIONS
MODEL VOLTAGE FREQUENCY POWER QMAX HMAX HOSE DIA.
AAPC1010
110-120V 60 Hz
122W 1479 GPH 14.76'
1.0"/1.25"/1.5"
AAPC1020 250W 2166 GPH 19.69'
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 4
PERFORMANCE CURVE 4
USAGE CAUTION 5
BEFORE OPERATION 5
THE PUMP SHOULD NOT BE USED IF: 5
DURING OPERATION 5
AFTER OPERATION 5
FEATURES 6
USES 6
INSTALLATION INSTRUCTIONS 6
MAINTENANCE 7
TROUBLESHOOTING 7
2

PARTS DIAGRAM
1 - Input cord strain relief
2 - Mounting screws (cover)
3 - Cover
4 - Outer sleeve
5 - Barbed hose fitting (x2: 1" & 1¼")
6 - Output sealing nut
7 - Sealing washer
8 - Base
9 - Impeller
10 - Impeller O-ring
11 - Impeller mount
12 - Bottom cover
13 - Bottom cover screws
12
3
4
5
6
7
8
9
10
11
12
13
3

IMPORTANT SAFETY INSTRUCTIONS
For safety reasons, children and young persons under 16 years of age, as well as persons who cannot
recognize possible danger or who are not familiar with these operating instructions, should not
be permitted to use this pump. Keep children under supervision to ensure that they do not play
with the pump. The combination of water and electricity is inherently hazardous, and can lead to
death or severe injury from electrocution if the pump is incorrectly connected or misused and if safe
handling is not observed.
• Ensure that the power source (outlet) you plug the pump into is the correct voltage and is
properly grounded.
• Do not stand in water when plugging in or unplugging the pump.
• When unplugging the pump, grasp only the plug itself. Never pull by the power cord.
• Never snip off the plug and replace it by yourself, as this may create an electrical hazard. If the
power cord or plug is damaged, the appliance should be replaced.
• Do not attempt to disassemble and/or repair the pump.
300
3
600 900 1200 1500 1800 2100 2400
6
9
12
15
18
21
ft
GPH
AAPC1010
AAPC1020
PUMP HEAD HEIGHT
PERFORMANCE CURVE
4

USAGE CAUTION
BEFORE OPERATION
• Check to ensure that your electric service’s voltage and frequency conform with those on the
pump’s nameplate.
• The pump should be powered through a Ground Fault Circuit Interrupter (GFCI) outlet.
• Never lift, lower, or carry the pump by the power cord.
• Always unplug or switch off the mains before doing any maintenance or placing your hands in
the water to which this pump is connected.
• Do not attempt to lubricate the pump or operate it without water. It will damage the pump.
• Do not use the pump in water with a temperature higher than 104°F (40°C), as it will
significantly shorten the life of the pump.
• The pump should always be unplugged before examination.
THE PUMP SHOULD NOT BE USED IF:
• Its power supply cord or other important parts are damaged in any way
• Its plug or the power outlet are wet
• Its output appears to be reduced or restricted
• Some part of the pump is broken or cracked and water is leaking into the pump chassis
• Anything abnormal with it occurs
DURING OPERATION
• Unplug the pump immediately to prevent the motor from being burned out if the motor
becomes overloaded due to being clogged with foreign matter.
• Do not move or reposition the pump while it is powered and running.
• Do not allow the power cord to be kinked.
AFTER OPERATION
1. If freezing temperatures are predicted, remove the pump from the water and dry out the
impeller chamber completely. If water trapped inside the impeller chamber is allowed to freeze,
it may damage the pump.
2. If the pump is allowed to remain submerged in water for a long period of time without
operation, it might rust the pump, so it is best to remove it and dry it out if it will not be
operated for any length of time. Also, organic residue may accumulate inside the pump, which
can reduce its performance. If this happens, run the pump in clean water for a while to remove
most organic matter from it, then store it after draining and drying.
5

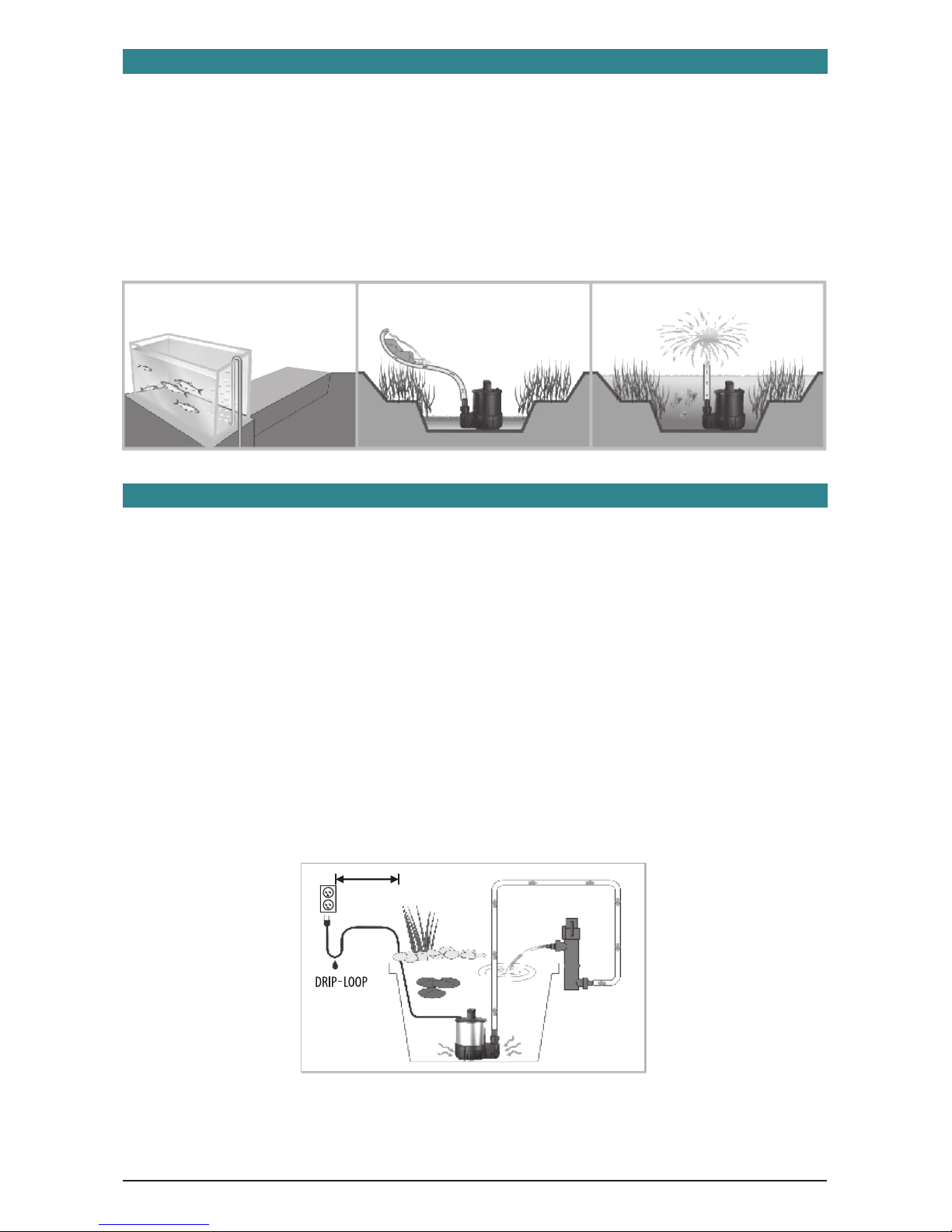

FEATURES
USES
• Hydroponics, garden irrigation, and aquaponic applications
• Thanks to its high alumina ceramic shaft, it can be used for both fresh and sea water (Fig. 1).
• Can be used in low water depth conditions for water circulation and draining for sea fish
breeding pond applications (Fig. 2).
• Can be used for garden irrigation, water supply and circulation for rockeries, fountains and
water features (Fig. 3), draining of ponds, etc.
(Fig. 1) (Fig. 2) (Fig. 3)
Min. 1.5 m
INSTALLATION INSTRUCTIONS
1. The pump must be completely immersed in water with a minimum depth of 3" (8 cm) to ensure
that it does not ingest air.
2. When used in a pond or brook, the pump must be installed on some solid, flat stones a few
inches above the bottom to prevent it from sucking up sand and silt.
3. The water inlet pipe must be filled with water before operation in a low water level.
NOTE: This pump can be used indoors or outdoors. However, when used outdoors the power outlet
used must be located in a dry place. The minimum distance between the power outlet and the pond
should be 5'(1.5 m). Position the pump off to the side of a wall-mounted outlet in order to prevent
water from dripping onto the plug or outlet.
Arrange a “drip loop” for the power cord connecting a pump to a power outlet. A drip loop is made
when the part of the power cord nearest the cord’s power plug is kept below the level of the outlet (or
if using an extension cord, below the level of the connection), preventing water from traveling along
the cord and coming in contact with the outlet (see illustration below).
6

MAINTENANCE
The motor unit is hermetically sealed by high quality resin and does not require any care. The
rotor assembly is disassembled through the water chamber lid, and should get regular checks and
cleaning.
The water chamber has an effective self-cleaning feature, but regular maintenance will lengthen the
life of the rotor and motor unit. To do maintenance cleaning, first unscrew the screws to remove the
filter cover from the bottom, then remove the water chamber cover. Rinse with water.
Please note that soaps and detergents are not recommended for pump maintenance because their
residues can be toxic to plants and fish.
TROUBLESHOOTING
SYMPTOM CAUSE REMEDY
The pump doesn't run
Power is not turned on Turn on the power
Pump is not plugged in sufficiently Plug in sufficiently
Impeller is binding Remove foreign matter from impeller
The motor cycles on and off
immediately without the pump
running or the motor suddenly
stops and can’t be started again
Wrong voltage is being used Apply correct voltage
The water inlet or outlet pipe is
clogged with foreign matter Remove foreign matter
The pump runs normally at
the beginning, but then water
flows out sluggishly or stops
flowing completely
Impeller is worn out Replace impeller
Water level goes down too far and
the pump is exposed Increase water level
Hose is too long or is clogged with
foreign matter Shorten the hose or clean it out
There is air in the impeller chamber
(”air-lock”)
Unplug pump. While leaving the pump submerged, grasp the
top handle, lift the pump up several inches, then push it back
down vigorously to dislodge the trapped air. Repeat until you
see air bubbles dislodge and float to the surface. Plug pump
back in to confirm restored water flow.
7

Hydrofarm.com
WARRANTY
AAPC1010 & AAPC1020 Instructions revised - January 12, 2018 12:13 PM
LIMITED WARRANTY
Hydrofarm warrants the AAPC1010 & AAPC1020 to be free from defects in materials and workmanship. The
warranty term is for 1 year beginning on the date of purchase. Misuse, abuse, or failure to follow instructions is not
covered under this warranty. Hydrofarm’s warranty liability extends only to the replacement cost of the product.
Hydrofarm will not be liable for any consequential, indirect, or incidental damages of any kind, including lost
revenues, lost profits, or other losses in connection with the product. Some states do not allow limitation on how
long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations
or exclusions may not apply to you. Hydrofarm will, at our discretion, repair or replace the AAPC1010/AAPC1020
covered under this warranty if it is returned to the original place of purchase. To request warranty service, please
return the AAPC1010/AAPC1020, with original sales receipt and original packaging, to your place of purchase. The
purchase date is based on your original sales receipt.
