Installation, Operating and
Servicing Instructions
SLE 130 / 160 / 210 / 240 / 300

EN • 2
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH
WARNING 3
Who should read these instructions 3
Symbols 3
Recommendations 3
Applicable standards 3
Warnings 3
Packing 3
INTRODUCTION 4
Description of function 4
Description of operation 4
TECHNICAL CHARACTERISTICS 5
Operating condition 5
Wiring diagram 5
INSTALLATION 6
Dimensions 6
Installation 6
Central heating connections 6
Domestic hot water connection 7
COMMISSIONING 8
Filling the tank 8
What to check start-up? 8
Setting the thermostat 8
MAINTENANCE 9
Periodical checks by the user 9
Annual service 9
Emptying 9
SPARE PARTS 10
INDEX

EN • 3
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH
WHO SHOULD READ THESE INSTRUCTIONS
These instructions should be read by:
- the specifying engineer
- the installer
- the user
- the service engineer
SYMBOLS
The following symbols are used in this manual:
• It is important to switch the tank OFF before carrying out
anywork.
• Therearenouseraccessiblepartsinsidethetankcasing.
APPLICABLE STANDARDS
The appliances carry the CE mark in accordance with the
standards in force in the various countries.
WARNINGS
This documentation is part of the information delivered with the
appliance and must be given to the user and stored in a safe
place!
An approved installer must carry out the assembly, commissioning,
maintenance and repair of the system, in accordance with current
standards in force.
ACV shall not accept any responsibility for damage caused by non-
compliant location of the system or by use of the parts or
connections not approved by ACV for this application.
 The manufacturer reserves the right to change the
technical characteristics and specification of its
productswithoutnotice.
 Theavailabilityofsomeversionsandtheiraccessoriesis
marketdependant.
PACKING
Units are shipped ready to install, tested and packaged in a
carboard box.
Contents of the package
• One hot water tank.
• One multilingual technical instruction manual.
WARNINGS
RECOMMENDATIONS
•Please, read carefully this manual before installing and
commissioningthetank.
•Itisprohibitedtocarryoutanymodificationstotheinsideof
theappliancewithoutthemanufacturer’spriorandwritten
agreement.
•The product must be installed and serviced by trained
engineers,incompliancewithcurrentstandards.
•The installation must comply with the instructions in this
manualandwiththecodesandstandardsgoverningsystems
fortheproductionofhotwater.
• Any failure to follow instructions relating to tests and test
proceduresmayresultinpersonalinjuryorrisksofpollution.
•Toguaranteesafeandcorrectoperationoftheappliance,it
isimportanttohaveitservicedandmaintainedeveryyearby
anapprovedinstallerormaintenancecompany.
•Incaseofanomaly,pleasecallyourserviceengineer.
•Thepartsmayonlybereplacedbygenuinefactoryparts.You
willfindalistofthesparepartsandtheirreferencenumber
ACVtotheendofthisdocument.
Dangerofburns
Essentialinstructionfor
thesafetyofpersons
andtheenvironment.
Dangerofelectrocution.
Essentialinstructionfor
thecorrectoperationof
theinstallation.

EN • 4
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH
DESCRIPTION OF FUNCTION
“Tank-in-Tank”system
“Tank-in-Tank” is a heat exchanger with a built-in accumulator, made
up of two concentric tanks: the inner tank contains domestic water
to be reheated (secondary) and the outer tank contains the heating
fluid (primary) which circulates between the two tanks and transfers
its heat to the domestic water.
DomesticHotWatercylinder
The inner tank is the heart of the tank: it is subject to the
aggressiveness of the supply water, to high pressures and to
variations in temperature. This tank is made of solid chrome-
nickel stainless steel (stainless steel 304 or duplex), fully welded
under argon protection using the Tungsten Inert Gas (T.I.G.)
technique.
Before assembly, the convex bottoms are pickled and passivated in
order to improve the tank’s lifespan and in particular its resistance to
corrosion. The shell is corrugated all the way up using an exclusive
manufacturing process. This design gives considerable resistance to
pressure and limits the adherence of lime scale by allowing the tank
to expand and contract.
Outertank
The outer tank containing water from the primary circuit arriving
from the boiler, is made of carbon steel STW 22.
ThermalInsulation
This is carried out using high density injected polyurethane
foam, 50 mm containing no CFCs.
Lining
The tank is covered using polypropylene, a plastic material
which offers a high resistance to shocks and which is also very
pleasing to the eye.
OptionalheatingelementforSLE
The SLE tanks can be installed with a self- controlled heating
element with built-in control and safety thermostats.
The control thermostat of the tank can not control the heating
element.
INTRoDuCTIoN
DESCRIPTION OF OPERATION
Operatingcycle
The thermostat is triggered and starts up the pump which circulates
the heating water. This water circulates around the inside tank and
heats up the domestic water. When the required temperature is
reached, the thermostat stops the primary circulating pump.
OFF Reheating Running Storing
Cold Water
Heating fluid
Domestic hot water
LosseswhenshutdowninWatt
Models
Losses when shut down
[Watt]
SLE 130 ∆T = 50°C 79,8
SLE 160 ∆T = 50°C 82,2
SLE 210 ∆T = 50°C 85,6
SLE 240 ∆T = 50°C 88,8
SLE 300 ∆T = 50°C 93,2
Temperature losses with ambient T° of 20°C
Volt Amp Power Code
1 x 230 V 13 3 kW 10800081
3 x 400 V + N 4.4 3 kW 10800082
1 x 230 V 26 6 kW 10800083
3 x 400 V + N 8.8 6 kW 10800084

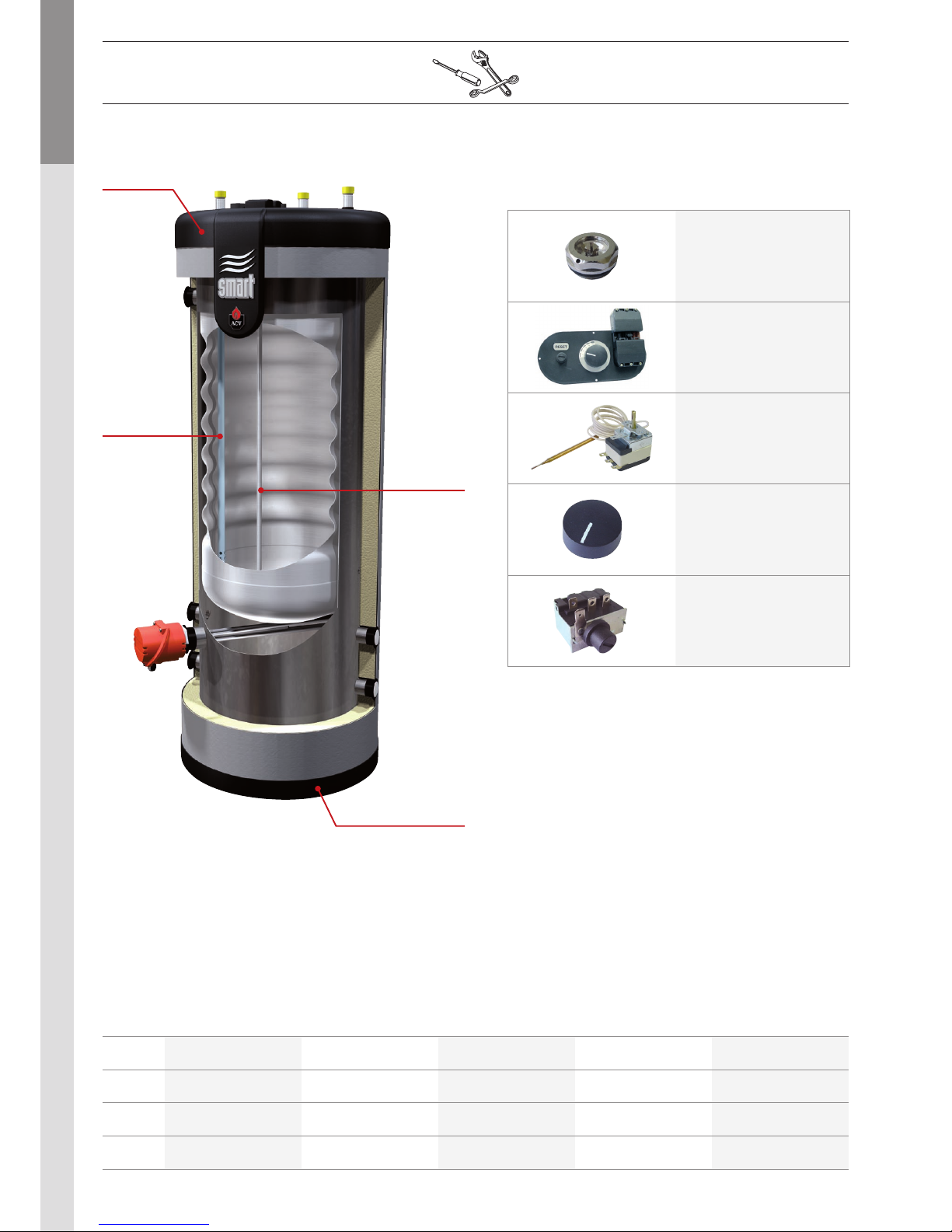

1. Manual air purge
2. Cold water inlet connection
3. post heating flow connection
4. PVCC plunger
5. Stainless steel dry well
6. Heating flow connection (only SLE 210 - 240 - 300)
7. Electric heating element (in option)
8. Heating return connection
9. Polypropylene shell
10. Auxiliary connection DHW
11. Hot water connection
12. Polypropylene top lid
13. Polyurethane foam insulation
14. Stainless steel tank (DHW)
15. Outer steel tank (primary circuit)
16. Flow connection heating circuit (only SLE 210 - 240 - 300)
17. Return connection heating circuit (only SLE 210 - 240 - 300)
18. Polypropylene bottom lid
1 10
2
3
4
5
8
9
11
12
15
13
14
7
6
17
18
16

EN • 5
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH
TECHNICAL CHARACTERISTICS
OPERATING CONDITION
Maximumservicepressure[tank filled with water]
- Heating circuit: 3 bar
- DHW circuit: 10 bar
Testpressure[tank filled with water]
- Heating circuit: 4,5 bar
- DHW circuit: 13 bar
Operatingtemperature
- Maximum temperature: 90°C
Waterquality
• Chlorides: < 150 mg/L [304 Stainless steel]
< 2000 mg/L [Duplex]
• 6 ≤ph ≤8
Bk. Black
Br. Brown
Or. Orange
R. Red
W. White
Y/Gr. Yellow/Green

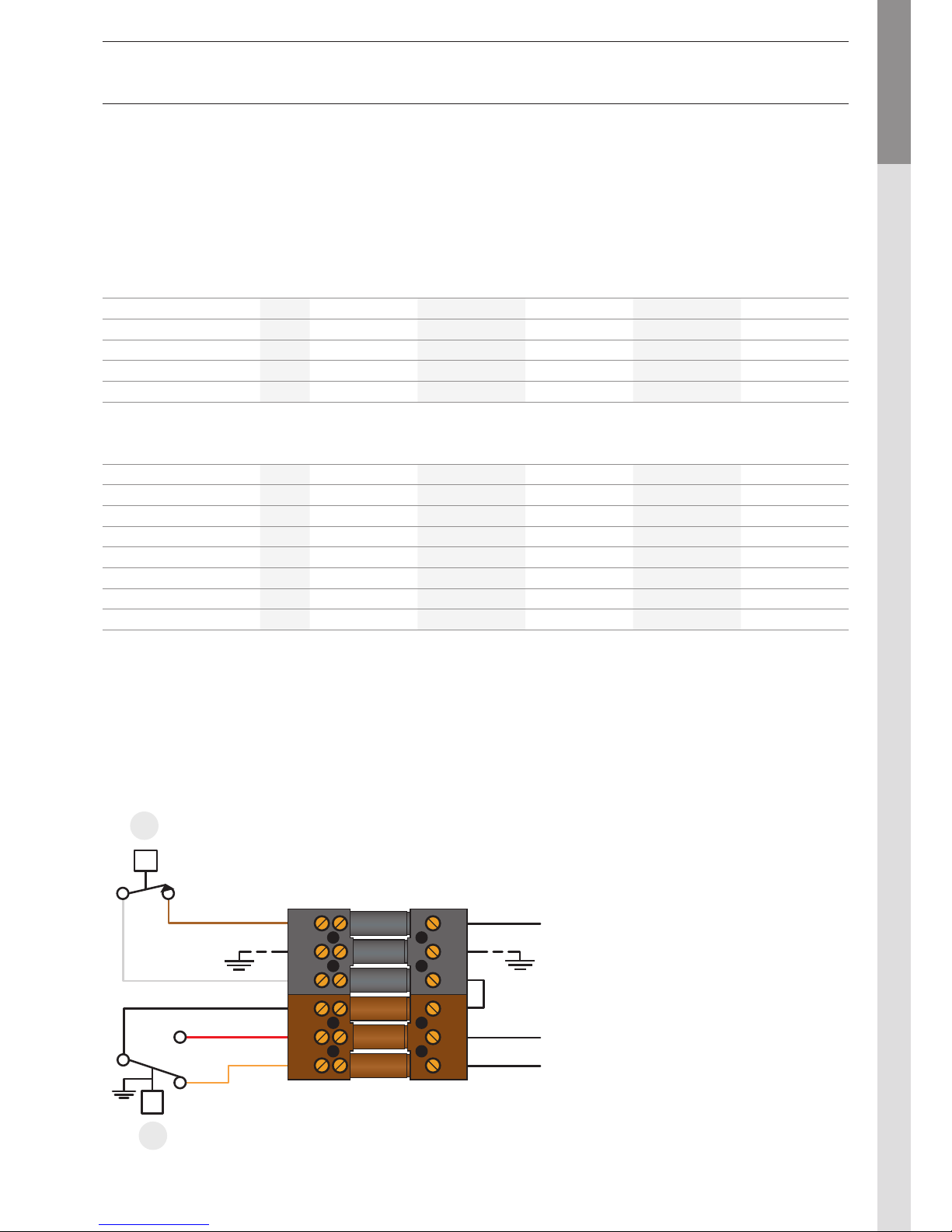

WIRING DIAGRAM
1. Manual reset high limit thermostat [103°C max.]
2. Control thermostat [60/90°C]
Tankcharacteristics SLE 130
SLE
160
SLE
210
SLE
240
SLE
300
Total capacity L 130 161 203 242 293
Primary capacity L 55 62 77 78 93
Primary fluid flow rate L/h 2100 2600 3500 4200 5500
Primary pressure drop mbar 17 22 37 45 51
Heating surface m21,03 1,26 1,54 1,94 2,29
Tankperformances SLE
130
SLE
160
SLE
210
SLE
240
SLE
300
Peak flow at 40°C L/10’ 236 321 406 547 800
Peak flow at 60°C L/10’ 117 161 209 272 370
Peak flow at 40°C L/60’ 784 1063 1349 1820 2360
Peak flow at 60°C L/60’ 384 549 689 913 1100
Constant flow at 40°C L/h 658 890 1132 1527 2100
Constant flow at 60°C L/h 320 465 576 769 970
Pre-heating time minutes 22 22 20 20 22
Power drawn kW 23 31 39 53 68
Running conditions: 85°C Water intake T°: 10°C
1
Y/Gr
Br
Y/Gr
R
W
Or
Bk
T2S3 T1 N L1
T2 S3T1NL1
t
2
c1
2
t
c1
L
N/C
N/O

EN • 6
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH
INSTALLATIoN
CENTRAL HEATING CONNECTIONS
PIPE DIMENSIONS
Models Ø connection (female)
SLE 130 1”
SLE 160 1”
SLE 210 1”
SLE 240 1”
SLE 300 1”
INSTALLATION
This hot water tank should not be installed where it will be exposed
to outside weather conditions.
Choose the most appropriate location according to the position of
the boiler and the proximity of the domestic hot water distribution
system, in order to reduce heat losses and minimise the pressure
drops.
 Floorstandinginstallationonly.

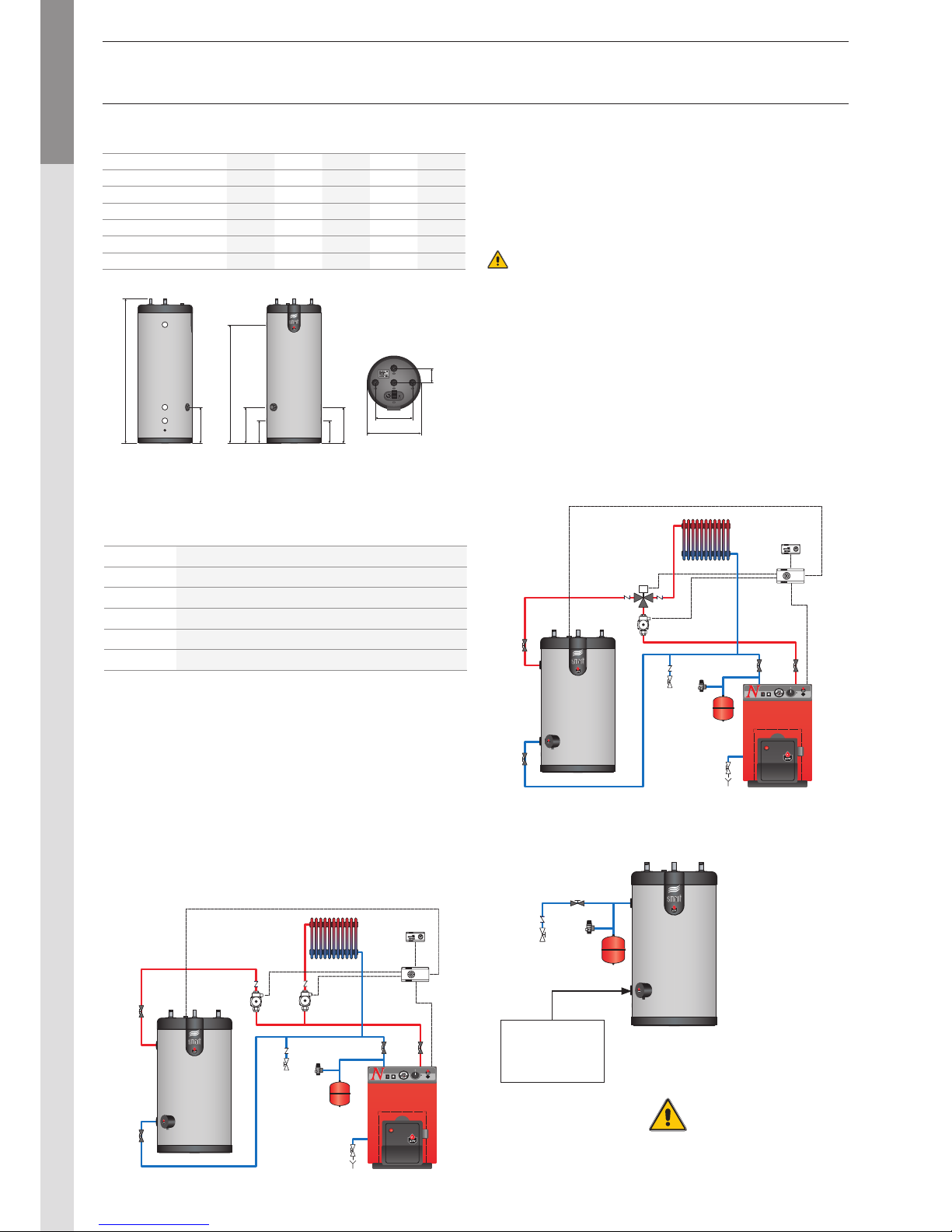

1. System filling valve
2. Safety valve calibrated to 3 bar
3. Expansion vessel
4. Drain cock
5. Isolation valve, heating system
6. Room thermostat
7. Optional boiler control [BC 01 or BC 03]
8. Boiler pump
9. Heating pump
10. 3-ways motorized mixing valve
5
5
5 5
1
89
4
2
3
6
7
Single tank with primary pump.
5 5
1
8
10
4
2
3
6
7
5
5
Single tank with three ways motorized mixing valve.
SLE tank used as electic
domestic hot water heater only
5
12
3
This connection
to be plugged.
Donotpowertheheatingelementijthe
oustidetankisnotfilledanddrained.
DIMENSIONS SLE
130
SLE
160
SLE
210
SLE
240
SLE
300
A mm 1024 1222 1494 1742 2043
B mm 234 234 363 338 405
C mm 759 959 1230 1478 1780
D mm 234 234 234 234 230
E mm — — 374 374 405
F mm — — 234 234 230
Weight empty [kg] 45 54 66 76 87
C
A
D F
B EE 360
150
565

EN • 7
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH
INSTALLATIoN
DOMESTIC HOT WATER CONNECTIONS
PIPE DIMENSIONS
Models Cold / hot water
connections Auxiliary connexion
SLE 130 Ø 3/4” [M] Ø 3/4” [F]
SLE 160 Ø 3/4” [M] Ø 3/4” [F]
SLE 210 Ø 3/4” [M] Ø 3/4” [F]
SLE 240 Ø 3/4” [M] Ø 3/4” [F]
SLE 300 Ø 3/4” [M] Ø 3/4” [F]
 Theinstallationofadomesticsafetyunitiscompulsory.
 In order to avoid water dropping on the tank, the
domestic safety unit should not be placed directely
abovethetank.
 The third domestic water outlet can be used as a
returnfromthedomestichotwatercirculationloop.
 Mains water kits could be in some countries due to
approvalregulations.
 Toavoidallrisk ofcorrosionconnect thesanitary tank
directlyintheearth.

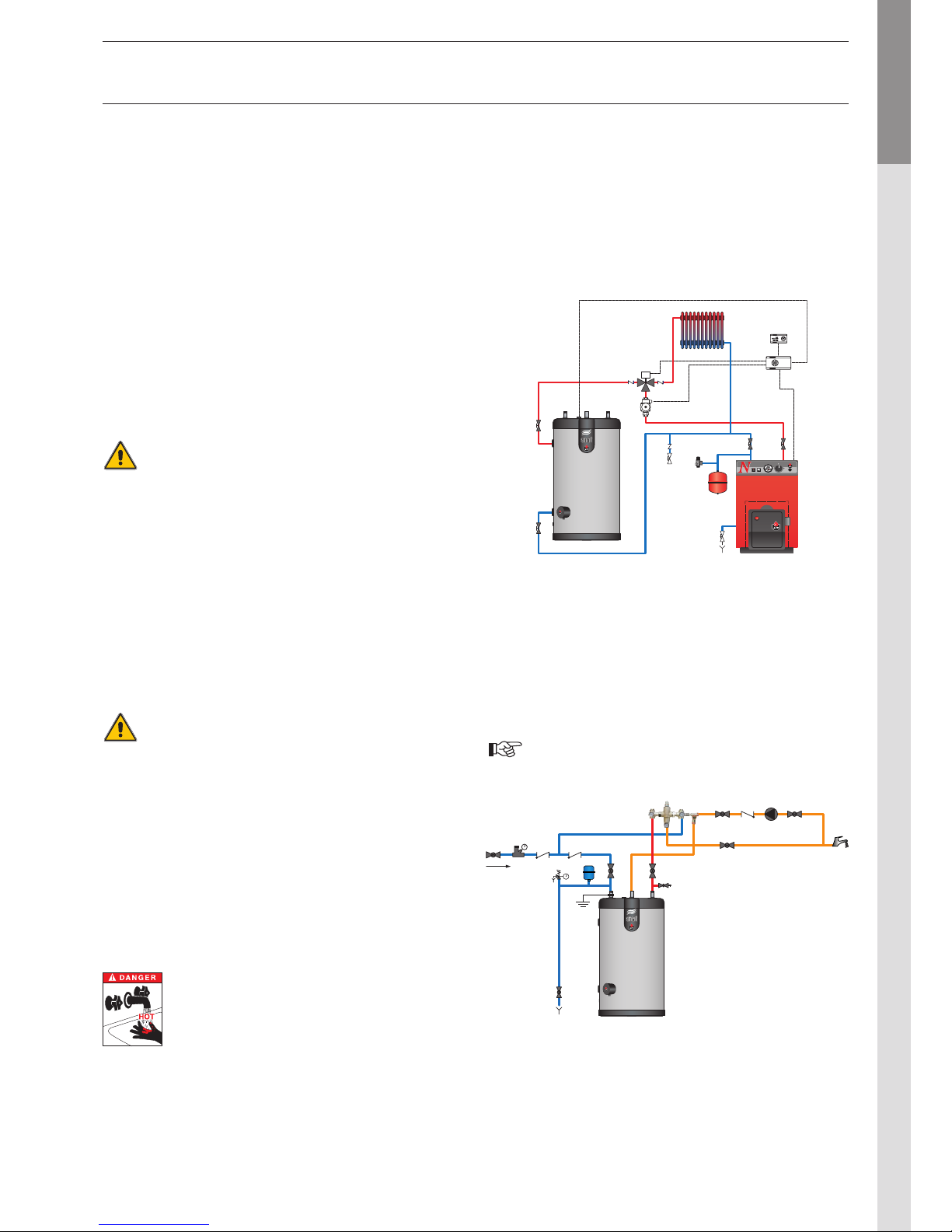

Domestichotwaterkit
A. Thermostatic mixing valve
B. Mixed water outlet
C. Cold water inlet
D. Drainage connection
E. Expansion vessel connection
S. Safety unit
TH. Outlet hot water tank
TC. Inlet cold water tank
A
BE
C
TCTH
S
D
2
7
5
6
11
4
8
10
1
39
1 1
33
1
11
1. Isolating valve
2. Pressure reducer
3. Non-return valve
4. Expansion tank
5. Safety valve
6. Drain cock
7. Air vent
8. Thermostatic mixing valve
9. Circulation pump
10. Drawoff point
11. Earth connection
Recommendations
• The pipe feeding the tank with cold water must be fitted with
a safety unit comprising at least the following:
- An isolating valve [1]
- a non-return valve [3]
- a safety valve [5]: (set to < 10 bar)
- a sanitary expansion vessel of appropriate dimensions.
• When the operating pressure exceeds 6 bar a pressure
reducer [2] must be installed before the safety unit.
• Union fittings are recommended for easy removal of the
connections. Ideally the “dielectric” version is preferable
in order to protect the connections against corrosion in
the presence of dissimilar metals such as copper and
galvanised steel.
• The installation of an expansion vessel avoids safety valve
runoff (loss of water).
• Domestic hot water expansion vessel capacity:
8 Litres: for the following models: 130 / 160
12 Litres: for the following models: 210 / 240 / 300
Please see the technical instruction manual of the
expansionvessel’smanufacturerforfurtherdetails.

EN • 8
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH

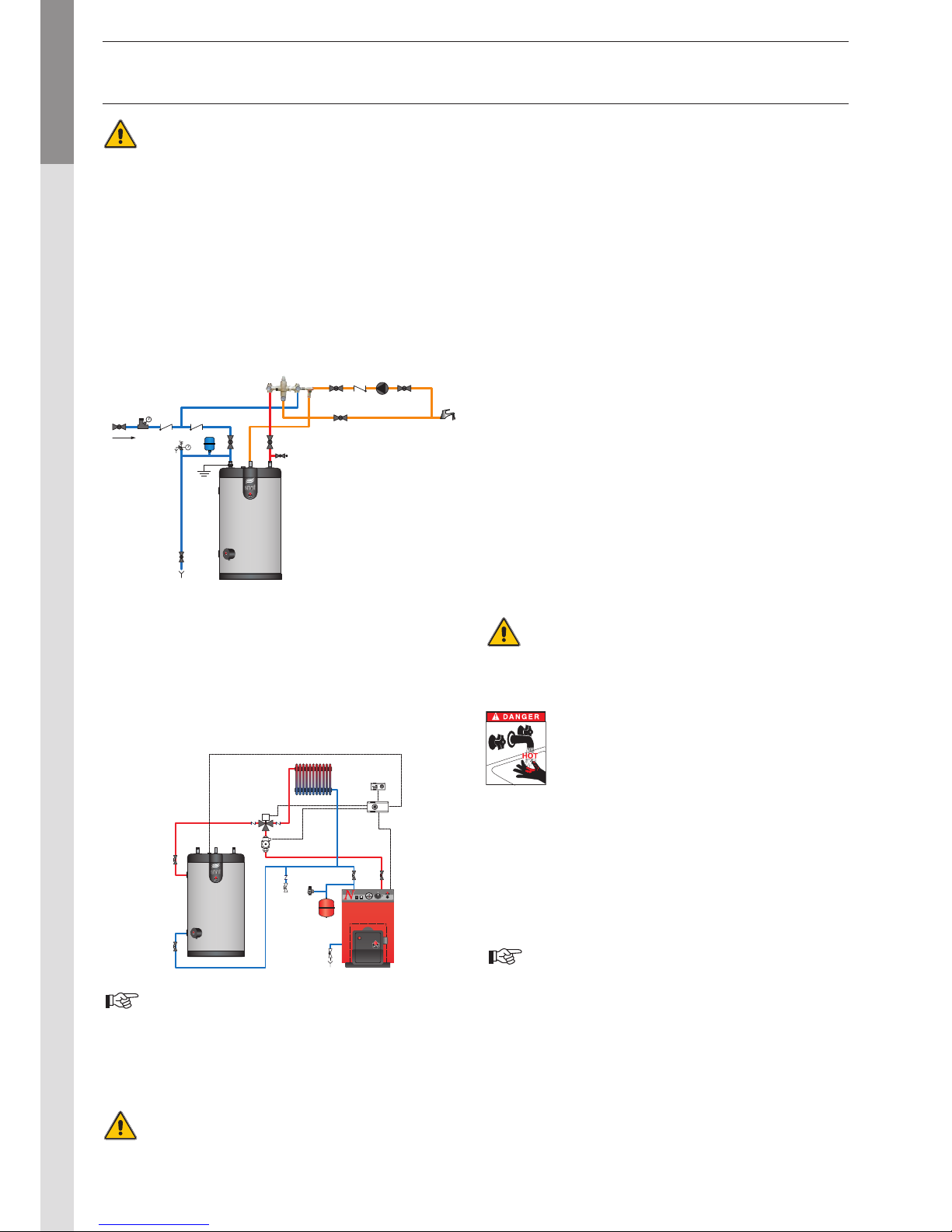

WHAT TO CHECK START-UP?
• Safety valves (domestic hot water) and (central heating)
correctly installed and discharge connected to the drains.
• Domestic hot water tank and primary circuit filled with
water.
• Air bleed correctly carried out on both circuits.
• Air valve sealed.
• Both hot and cold water pipes correctly connected to the
tank’s hot water circuit.
• Heating feed and return correctly connected to the tank.
• The electrical cabling is correct.
• The tank’s thermostat is set according to the instructions
shown in § “Setting the thermostat”.
• Connections checked and free of leaks.
SETTING THE THERMOSTAT
Factorysettings
The thermostat of the tank is factory preset to the minimum
recommended by the standards, over a range of settings from
60 to 90°C.
To increase the temperature: turn the button clockwise.
To reduce the temperature: turn the button anticlockwise.
When adjusting the tank’s thermostat, make sure that the
boiler temperature is set to a value at last 10°C higher than
tank’s thermostat.
Recommendations
 There is a risk that bacteria including “Legionella
pneumophila” may develop if a minimum temperature
of60°Cisnotmaintainedbothinstorageandinthe
hotwaterdistributionnetwork.
 Thereisariskofscaldingfromhotwater!
 ACVrecommendstheuseofathermostaticmixing
valvesettoprovidewaterat60°Corless.
• The water heated to wash clothes, dishes and for other
purposes can burn and cause serious injury.
• Children, the elderly, the sick or the disabled are the most at
risk from burns due to very hot water. Never leave them on
their own in a bath or under the shower. Never allow young
children to turn on hot water taps or fill their own baths.
• Set the water temperature appropriately according to the
intended use and plumbing codes.
 Whenrepeatedlydrawingsmallamountsofhotwater,
a“stratification”effectmaydevelopinthetank.
 Theupperlayerofhotwatermaythenreachveryhigh
temperatures. A thermostatic mixing valve will stop
water at excessivly high temperatures reaching the
outlets.
CommISSIoNING
Centralheatingtank
1. Close the drain cock [4] on the tank’s primary circuit.
2. Open the isolation valves [5] on the central heating circuit
connected to the boiler.
3. Bleed the air in the circuit by opening the air vent located on
the upper part of the tank.
4. Follow the instructions supplied with the boiler for filling.
5. When the tank is full and the air has been removed, the
bleed valve should be closed.
 Ensurethatthebleedvalveisproperlysealed.
6. If any antifreeze is needed in the primary circuit it mus be
compatible with Public hygiene rules and not be toxic.
A food-type Propylene Glycol is recommended.
Consult the manufacturer to ensure that the antifreeze is
compatible with the tank’s construction materials.
 Neverusecarantifreezeorundilutedantifreeze.
 Thiscancauseseriousinjury,deathordamagetothe
premises.
 Beforepressurisingthecentralheatingtank(primary)
you should first pressurise the domestic hot water
tank(secondary).
 Both the domestic hot water tank and the central
heatingtankmustbefilledbeforeusingthetank.
FILLING THE TANK
Domestichotwatertank
1. Close the drain cock [6] of the DHW circuit.
2. Open the isolating valve [1] of the DHW circuit for the filling.
3. Bleed the air in the circuit by turning on a nearby hot water
tap [10] Fill the tank until the flow rate stabilises.
4. Turn off the hot water tap [10 ].
5 5
1
8
10
4
2
3
6
7
5
5
2
7
5
6
11
4
8
10
1
39
1 1
33
1
11

EN • 9
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH
mAINTENANCE
Domestichotwatertank
To empty the domestic hot water tank:
1. Switch off the electrical power supply to the tank.
2. Close the isolation valve [1].
3. Open the drain cock [6] and the air vent [7].
4. Allow the water to flow out into the drain.
5. After emptying, return the valves to their initial positions.
 Inordertoallowemptyingthevalve[6]mustbelocated
atthelowestpointonthetank.
5 5
1
8
10
4
2
3
6
7
5
5
Centralheatingtank
To empty off the primary circuit:
1. Switch off the electrical power supply to the tank.
2. Connect a hose to the drain valve [4].
3. Open the drain valve [4] and drain the hot water off.
4. To speed up the process, open the air vent located on the
upper part of the tank.
5. When the emptying is finished, close the drain cock again
then screw the air valve up again.
PERIODICAL CHECKS BY THE USER
• Check the pressure of the boiler’s pressure gauge: it should
be between 0.5 and 1.5 bar.
• Carry out a monthly visual inspection of the valves,
connections and accessories in order to detect any leaks
or malfunctions.
• Periodically check the air valve located on the upper part of
the tank to make sure that it is not leaking.
• If you notice anything unusual, contact a technician or your
heating engineer.
ANNUAL SERVICE
The annual service, carried out by a technician, must include
the following:
• Checking the air valve:
The air bleed can lead to water being added to the system.
Check the pressure on the boiler’s pressure gauge.
• Manually activate the domestic hot water safety valve once
a year. This operation will lead to a discharge of hot water.
 Beforedrawinganyhotwaterthroughthesafetyunit,
makesurethatthedischargegoesdirectlytothedrain
inordertoavoidanyriskofburningordamage.
• The discharge pipe should be open to the atmosphere.
• If the safety unit occasionally “drips” this may be due to an
expansion problem or to clogging of the valve.
• Follow the circulator’s maintenance instructions.
• Check that the valves, cocks, controllers and any electrical
accessories installed are working properly (see the
manufacturer’s instructions if necessary).
EMPTYING
Recommendations
 Emptythetankifitistobeswitchedoffforthewinter
andthereisariskoffrostconditionsexposure.
 Ifthecentralheatingwater(primarycircuit)contains
anyantifreeze,onlythedomestichotwatershouldbe
drained.
 Before draining off the domestic hot water, insulate
thetanktobringthecentralheatingpressure(primary
circuit) down to 1 bar, in order to protect the tank
againstariskofcollapsing.
 If the central heating circuit does not contain any
antifreeze, both the central heating and hot water
circuitsshouldbedrained.
2
7
5
6
11
4
8
10
1
39
1 1
33
1
11
BECAREFUL!
 Riskofscaldingwhileemptyingthetank.

EN • 10
661Y0200.C
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANo
РУССКИЙ
DEuTSCH
N° SLE
130
SLE
160
SLE
210
SLE
240
SLE
300
A01 497B5010 497B5010 497B5010 497B5010 497B5010
A02 497B0003 497B0005 497B0007 497B0009 497B0010
A03 39438027 39438039 39438046 39438047 39438047
A04 497B5002 497B5002 497B5002 497B5002 497B5002
SLE
A04
A03
A01
55445006
24614152
54442045
54764021
54764020
A02
