1.0 INTRODUCTION
 The AE 504 series provides a versatile check counting and weighing application perfect
for general warehouse and production.
 The indicators can be set to verify counts up to 60000 divisions
 All indicators are supplied with a RS-232 bi-directional interface and real time clock
(RTC).
 The indicator has a sealed keypad with colour coded membrane switches and there is
a large, easy to read liquid crystal type display (LCD). The LCD is supplied with a
backlight.
 The indicator includes checkweighing, percentage weighing and parts counting
applications.










© Adam Equipment Company 2019 4
2.0 SPECIFICATIONS
INPUT SECTION
Load Cells 8 at 350 ohm
Connection 4 wire, auto compensation for long distance ≤ 10 meters
Excitation DC 5V: 1 ≤150mA
Sensitivity ≥0.02 μ V/e
Linearity 0.01% FS
Zero Range 0-10mv
Signal range -20mV～20mV
A/D conversion method Σ - Δ
DIGITAL SECTION
Capacity 1-800000kg
Verified counts 1/30000-1/60000
A
/D conversion speed 8 times/sec
Max. A/D conversion bits 24
Operating Temperature 0°C to +40°C / +32°F to +104°F
Power supply
A
C 12V/3A; DC inside rechargeable 6V/10AH battery
Battery Internal rechargeable battery
Calibration Manual calibration
Display 3 displays showing 6, 6 & 7 digits
Indicator Housing ABS Plastic
Overall Dimensions (wxdxh) 300x170x125mm
Net Weight 2.8kg/6pcs
Label sticker roll size Wide=50mm, Diameter=80mm
Functions Parts counting, weighing, percentage weighing, checkweighing,
pre-set count with alarm
Interface RS-232 bi-directional interface
English, German, French, Spanish selectable text
Date/Time Real Time Clock (RTC),
To print date and time information
(Dates in Year/month/day, Day/month/year or
Month/day/yea
r
formats- Battery backed)



© Adam Equipment Company 2019 5
3.0 INSTALLATION
3.1 UNPACKING
This indicator must be connected to a load cell platform and calibrated as necessary to
match the platform and user requirements.
The user’s application and the technical specifications of the platform or load cell will
determine the necessary configuration.

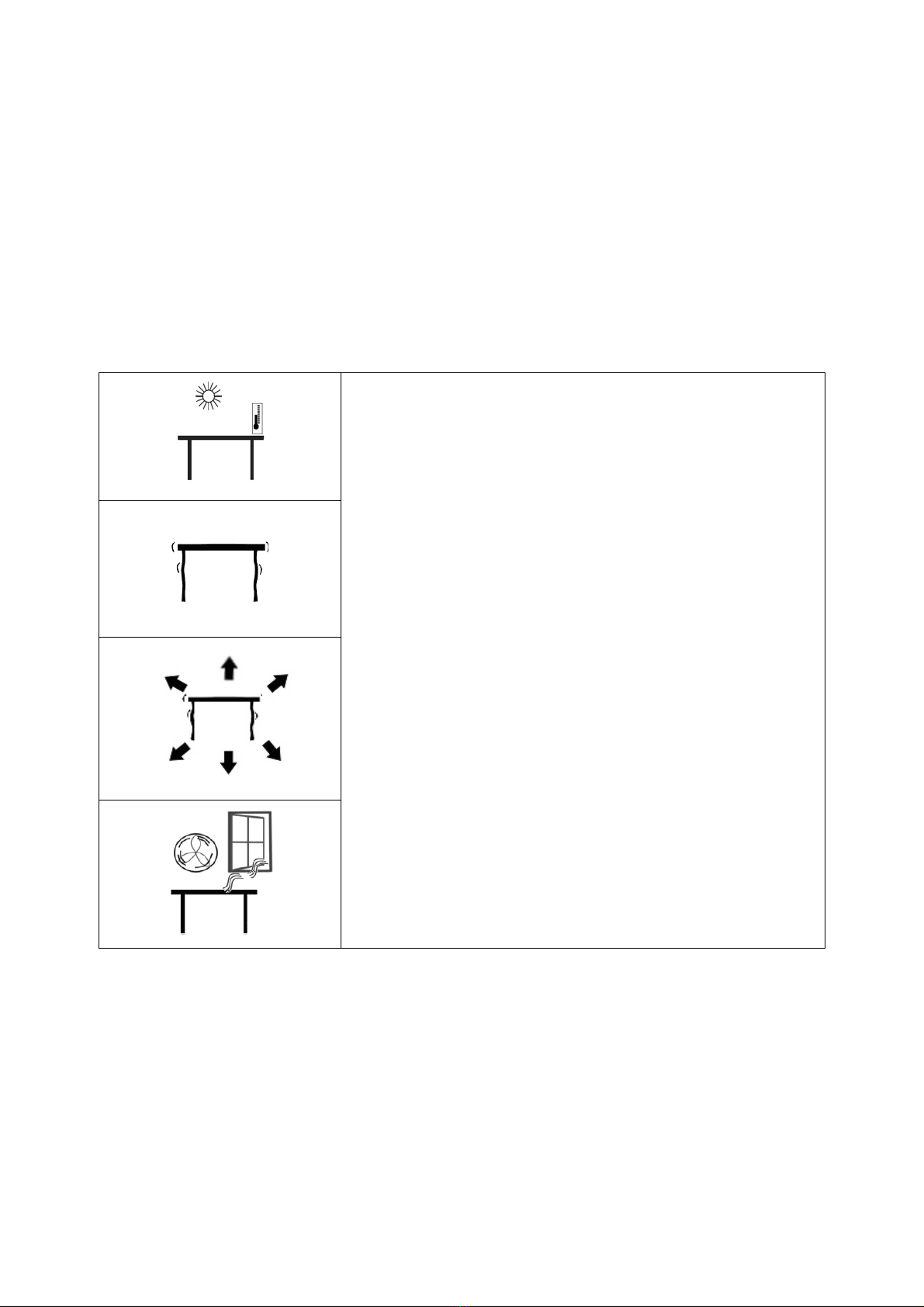

3.2 LOCATING

 The indicator should not be placed in a location that
will reduce the accuracy.
 Avoid extremes of temperature. Do not place in
direct sunlight or near air conditioning vents.
 Avoid unsuitable tables. The table or floor must be
rigid and not vibrate.
 Avoid unstable power sources. Do not use near
large users of electricity such as welding equipment
or large motors.
 Do not place near vibrating machinery.
 Avoid high humidity that might cause condensation.
Avoid direct contact with water. Do not spray or
immerse the indicator in water.
 Avoid air movement such as from fans or opening
doors. Do not place near open windows or air-
conditioning vents.
 Keep the indicator clean. Do not stack material on
the indicator when they are not in use.







© Adam Equipment Company 2019 6
3.3 CONNECTION
This indicator must be connected to a load cell platform and calibrated as necessary to
match the platform and user requirements.

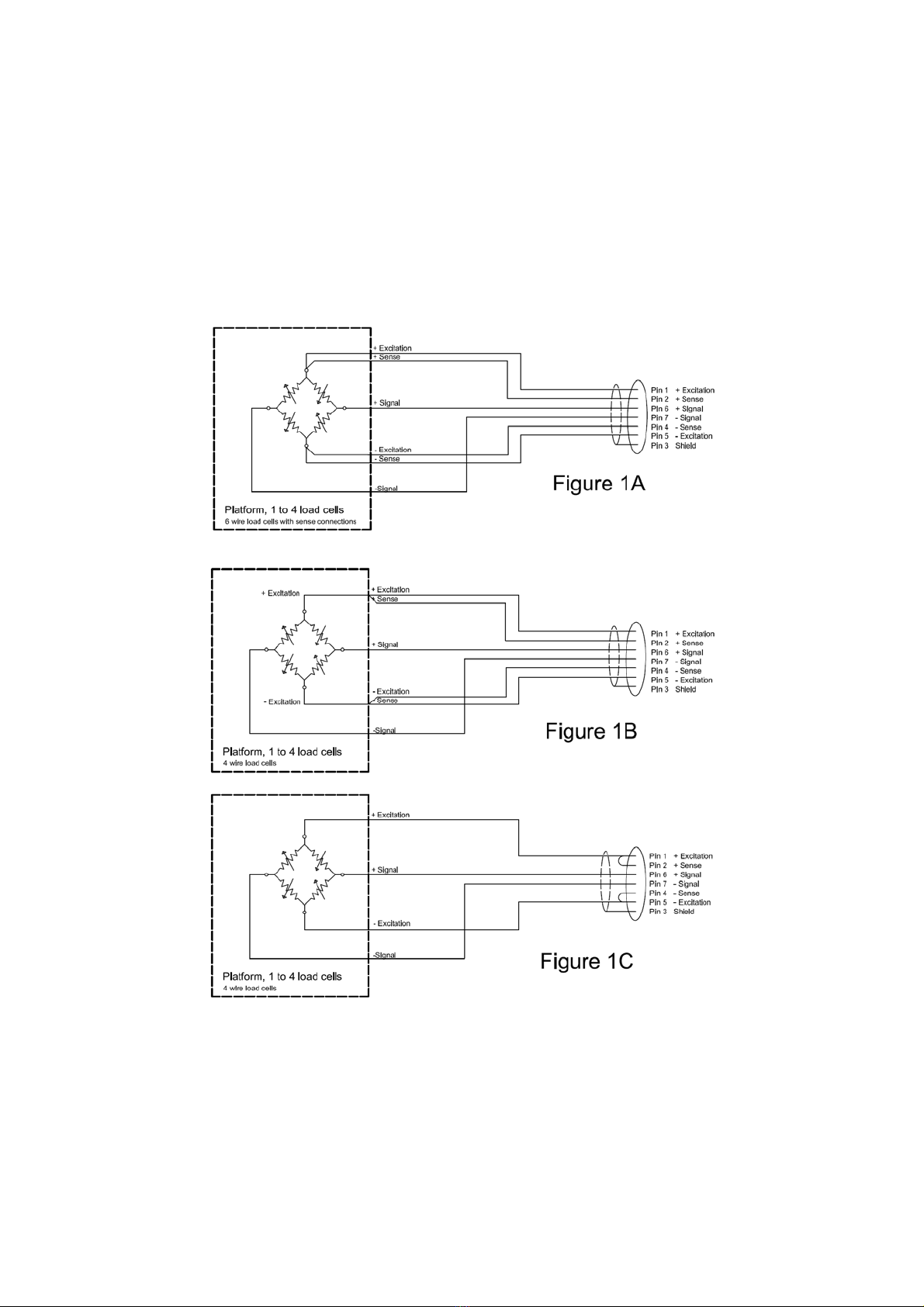

The AE 504 has a connector configured for 4-6 wire load cells. Connect the load
cells/platform to the indicator as shown below. The cable length should be as short as
possible, using a large size wire to minimise errors due to resistance in the leads.
3.3.1 Fixingthecableandtheindicator
Thread the cable through the pillar, then insert the pillar into the scale/ platform base,
fasten the fixed screw, then place the cable through the holder. Insert the holder into the
bracket of the indicator. Fix the load cell connector. Adjust the holder for right position, and
then fasten the plastic screw on the display.


© Adam Equipment Company 2019 7
4.0 KEY DESCRIPTIONS
Keys Functions
[0-9] Numeric entry keys, used to manually enter a value for tare weights, unit
weight, and sample size.
Secondary functions: Used to type letters where necessary; used to add a
decimal point.
[PST/ CE] Clea
r
the preinstall value.
[M+]
A
dd all the quantities and store, the max Total Number of Additions is 99.
[AVG.] On/Off the automatic average function.
[QTY/ PST] Preinstall the High/low Limit values.
[ID] Press this key to enter the ID setting.
[UNITS] Choose the units
[PLU] Used to access any stored PLU weight values
[CE/
BACKLIGHT]
Used to clear numeric totals on the display.
Secondary function: Allows the backlight to be configured to ON/ OFF/ AUTO
[U 1-6] Fetch a stored PLU value directly


© Adam Equipment Company 2019 8
Used to add a decimal point when entering a number on the display
[PRINT/ SAVE] Print the total weight, unit weight, quantity of percent
[SMPL] Used to input the number of items in a sample.
[UNIT W.T.] Used to enter the weight of a sample manually.
[Tare]
Tares the scale. Stores the current weight in memory as a tare value, subtracts
the tare value from the weight and shows the results. This is the net weight.
Entering a value using the keypad will store that as the tare value.
[0/ Zero] Sets the zero point for all subsequent weighing to show zero.
5.0 DISPLAYS
The indicator features one LCD display separated into three. These are “Weight”, “Unit
Weight” and “Count”.
5.1 WEIGHT DISPLAY
: Stability indicator
0 : Zero indicator
Weight: The weight of goods.
Unit weight: The unit weight of goods.
Total Count: The total count of goods.
Tare: Used as tare key in pricing mode
Lo-bat: When battery power lower than 5.6V, it will show.
Kg / Lb / g / oz : Symbols shown for the units
Net: Net weight- The scale has been tared


© Adam Equipment Company 2019 9
5.2 UNIT WEIGHT DISPLAY
This display will show the unit weight of a sample. This value is either input by the user or
computed by the scale. The unit of measurement is grams if grams or kilograms is
selected for the weighing unit, or pounds if pounds is selected.
5.3 COUNT DISPLAY
This display will show the number of items on the scale or the value of the accumulated
count.
5.4 SYMBOL ICONS

 “Z” or Zero: “Zero” indicator “0”
 Tare: “Tare” displays the deduction of the container weight.
 M+: “M+” Totaliser.
 If the piece weight is smaller than “Minimum Sampling Weight”, “ ” will be
displayed. In order to clear the “ ” symbol, increase the size of the sample.
 If the piece weight is smaller than “Minimum Unit Weight”, “ ” will be displayed.
The scale will still weigh even though the piece weight is too small, however this
may affect the count accuracy.
 Press [Q’TY PST] key to enter the H/L Limit value for Quantity Preset in the
weighing mode. ”LIMOF” is used to configure the alarm settings, quantity or weight.
In the unit weight Window, it will show “weight” or “count”, press [M+] key to
change the alarm settings.
6.0 OPERATION
NOTE: AE 504 only
SETTING THE WEIGHING UNIT, lb or kg
The indicator will turn on displaying the last weighing unit selected, either kilograms or
pounds. To change the weighing unit press the [Units] key when the “Unit Weight”
display shows zero. If necessary press the [CE] key to clear the unit weight before
changing.
6.1 ZEROING THE DISPLAY
Press the Zero key to re-zero the display with no load on the weigh pan. If the balance was
damaged or the weight is bigger than the range of the zero, this function will be inactive. It
may be necessary to re-zero the scale over a period of time to account for minor drifting.


© Adam Equipment Company 2019 10
6.2 TARING
 Zero the scale by pressing the [Zero/0] key if necessary. The indicator
“0” will be ON.
 Place a container on the platform and its weight will be displayed.
 Press [Tare] to tare the scale. Once the scale stabilises, it will display the net
weight and the NET sign will be displayed.
 As a product is added, only the weight of the product will be shown. The scale
could be tared a second time if another type of product was to be added to the first
one. Again only the weight that is added after taring will be displayed.
 When the container is removed a negative value will be shown. If the scale was
tared just before removing the container, this value is the gross weight of the
container plus all products those were removed. The indicator “0” will also be
ON because the platform is back to the same condition as it was when the [Zero/
0] key was pressed last.
TARE WEIGHT IS KNOWN (PRE-TARE)

When the pan is empty, press [Tare] key, the display will show “P - TARE”. Input the
weight of the container, press [Tare] key, Pre-tare complete. User can set follow function
ON or OFF in F5 PTE:
In weighing mode, when tare weight is known, input tare weight, then press [Tare] key to
Pre-tare.
Specific operation as follows:
Put the container and weights on the pan, input the container’s weight and press [Tare]
key, the weight window will show the net weight of the weights. Take away the container
and weights, the weight windows will show a negative value. At this time, press [Tare] key
to remove the tare weight value. Now, the weight window back to zero.


© Adam Equipment Company 2019 11
6.2 CHECKWEIGHING
6.3.1 Setting the checkweighing limits
To set the checkweighing limits ensure there is nothing on the scale/ platform and that the
display shows zero.
 Press the [Q’TY/PST] key to bring up the checkweighing display. You should now
see “LIMOF” then “Weight” or “Count” on the display, press the [M+] key in order
to alternate between the two.
 Once selected, press the [Q’TY/PST] key to move to the next setting. “CHLn0d H
L” should now appear on the display.
 Press the [M+] key to set the check alarm configuration, this will position a small
dash on either side of the “H” and “L” or in between. (i.e. H-L, -H L, H L- etc).
There are 6 various customisable alarm options:

 Press [Q’TY/PST] to confirm and move to the next setting. “LIM-Hi” should now
appear on the display with zero digits on the right of the display. Use the numeric
keys [1-9] to manually enter the high check limit. Press [Q’TY/PST] to confirm.
 “Lim-Lo” should now appear on the display with the same zero digits on the right of
the display. Use the numeric keys to enter to low limit and press the [Q’TY/PST]
key to confirm.
- H L The beep is on when the weighing
mass is more than the set high limit.
H - L
The beep is on when the weighing
mass is between the set high and
low limit.
H L -
The beep is on when the weighing
mass is below the set low limit.
- H L -
The beep is on when the weighing
mass is both more than and below
the set limits.
- H - L
The beep is on when the weighing
mass is in between the set limits and
more than the set high limit.
H - L -
The beep is on when the weighing
mass is in between the set limits and
below the set low limit.


© Adam Equipment Company 2019 12
6.4 PARTS COUNTING

6.4.1 The unit weight of object is unknown

Place a sample quantity of items on the scale/ platform, Enter the quantity of items by
using the numeric keys on the indicator, then press the [SMPL] key. Once the scale
stabilises, the quantity will show on the total quantity display and the balance will enter
the counting mode automatically.
6.4.2 The unit weight of object is known
Enter the known weight of the item using the numeric keys on the indicator, Press the
[UNIT W.T.] key, the quantity is shown on the quantity display and enter the counting
mode automatically.
 The larger the sample weight is, the more accurate the quantity will be.
 With both the “Unit weight” and “Quantity” displays showing zero, pressing either
the [UNIT W.T]. Key or the [SMPL] key will recall the latest piece weight value.
 When Press the [UNIT W.T]. key to get the unit weight, if the value which you place
next time is more than 10% of the last sampling value and less than the last
sampling value of present, the balance will automatically re-calibration the unit
weight. User can set this function on /off in “F2 AVG”.
 If the unit weight and quantity all known, the balance will recalculate the unit weight
according the quantity shows in the total quantity display when you press the [UNIT
W.T].
6.4.3 Automatic update of unit weight

The scales will automatically update the unit weight when a sample less than the initial
sample count is added. A beep will be heard when the value is updated. It is wise to check
the quantity is correct when the unit weight has been updated automatically.
The user can turn this function ON/OFF by pressing the AVG key.
6.4.4 Accumulation/ Totalising

The totalising function can be used up to a maximum of 99 times before it must be reset.
The totalising display is limited to seven digits maximum.
When the quantity is shown on the quantity display, Press [M+] Key, and then enters the
totalising function. The quantity display shows “Add XX “, XX means the Total Number of
Additions. After 3 seconds, the scale will return to the counting mode.


© Adam Equipment Company 2019 13
VIEWING ACCUMULATED DATA
When the weight window shows zero, press [M+] key to show the accumulative data. First,
the scale will show total accumulative data as indicated by t – XX in the weighing window.
Press [M+] again, the scale will show all individual stored values as indicated by Add XX in
the weighing window, followed by the stored amount. Press [M+] to view each stored
value.
When the scale shows one of the stored values, press [PST CE] to delete the selected
stored value.
When the scale shows all accumulated data, press [PST CE], all accumulated data will be
deleted.
In weighing mode, press [PST CE], all accumulated will be deleted.
6.5 SETTING THE PLU DATA

In normal weighing mode, use number keypad to input PLU serial number, then press
[PLU], can get the weights name and unit weight of the corresponding weights. The
display will show the item name once and back to normal weighing mode.

6.5.1 Edit the PLU data

In normal weighing mode, press and hold [PLU] key for 3s to enter PLU data edit mode.
The weight window shows “set”, user input the PLU number, then press [PLU] (or press
“U1-U6” key directly), the weight window will show the input PLU number. Now, the scale
enters into unit weight edit mode.
If this PLU number is already stored, the weight window will show the stored unit weight. If
it is a new one, the weight window will show the unit weight which get in normal weighing
mode. The user can edit the unit weight by using keypad.
Press [PLU] again to store the unit weight and enter SKU ID edit. User can use number
and letter keypad to input. SKU ID can include letters, please check the step 6.5.2 for
details on how to input. After inputting ID, press [PLU] to store. When finished, press [CE]
to exit.


© Adam Equipment Company 2019 14
6.5.2 Input letter
Press [.ABC] once, there will have an arrow sign appear on the display point to “ABC”, or
show an “ABC” sign on the display. This means enter to letter input mode.
Now, the user can input a letter by using the numeric keypad. Press [2abc] once, the
display will now show “A” and blink, press once again, the display will show “B”, and so
on. After the letter stops flashing, it means this letter has been inputted. To return to
number input mode, press [.ABC], the letter input sign will also disappear.
6.5.3 Setting by PC (recommended method)
Connect the scale with PC by RS232, open ScaleSetPlu.exe, and choose the right port.

SINGLE PLU SETTING

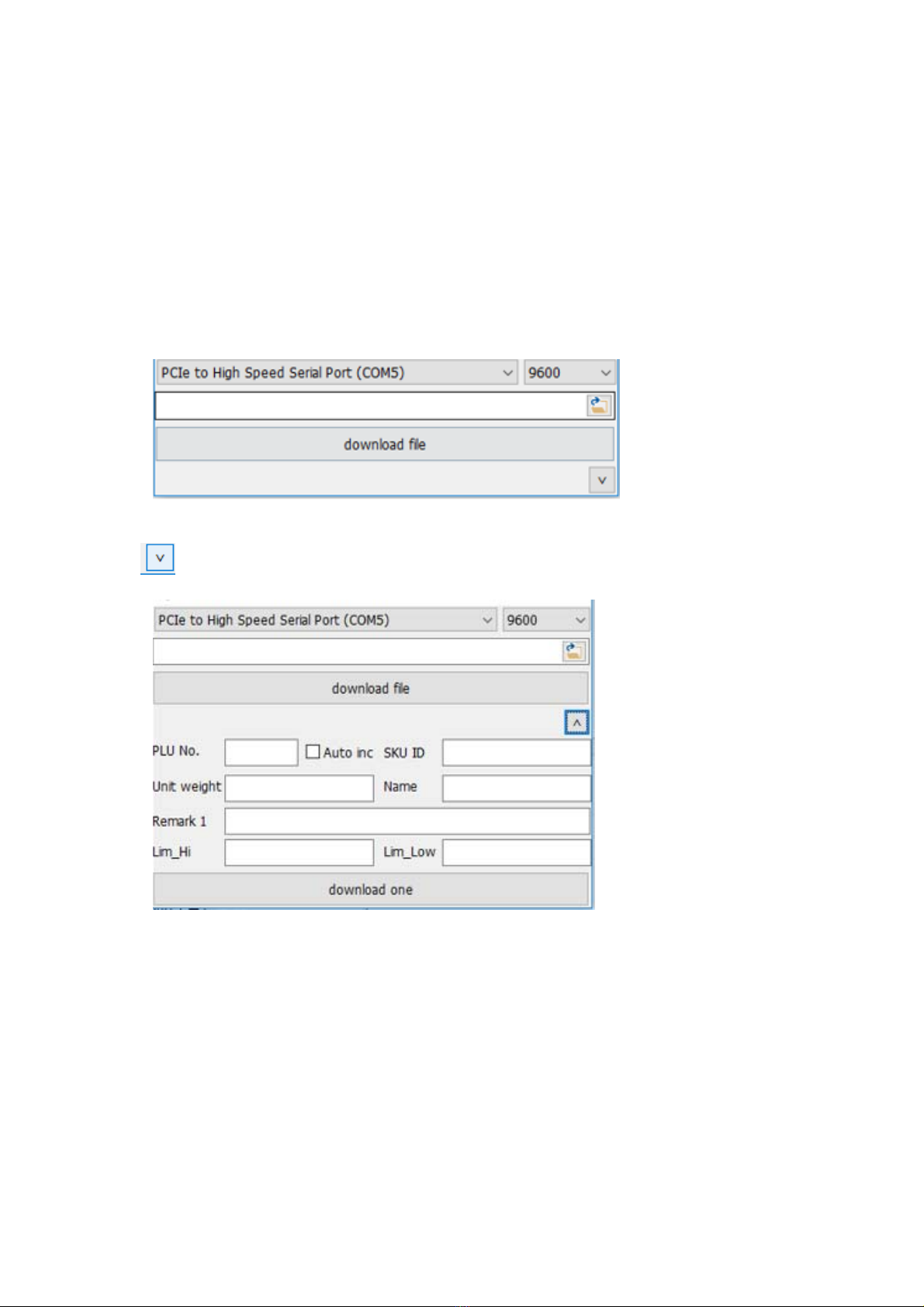

Press , software will show


Input the serial number, unit weight, SKU ID, name as follow picture. if need scale increase
the serial number automatically, please choose “Auto inc”.


© Adam Equipment Company 2019 15


Choose the right com port, Click , if this succeeds, this will show “Success”.



The user can then set the next PLU.
DOWNLOAD MULTIPLE PLU BY TABLE (RECOMMEND)


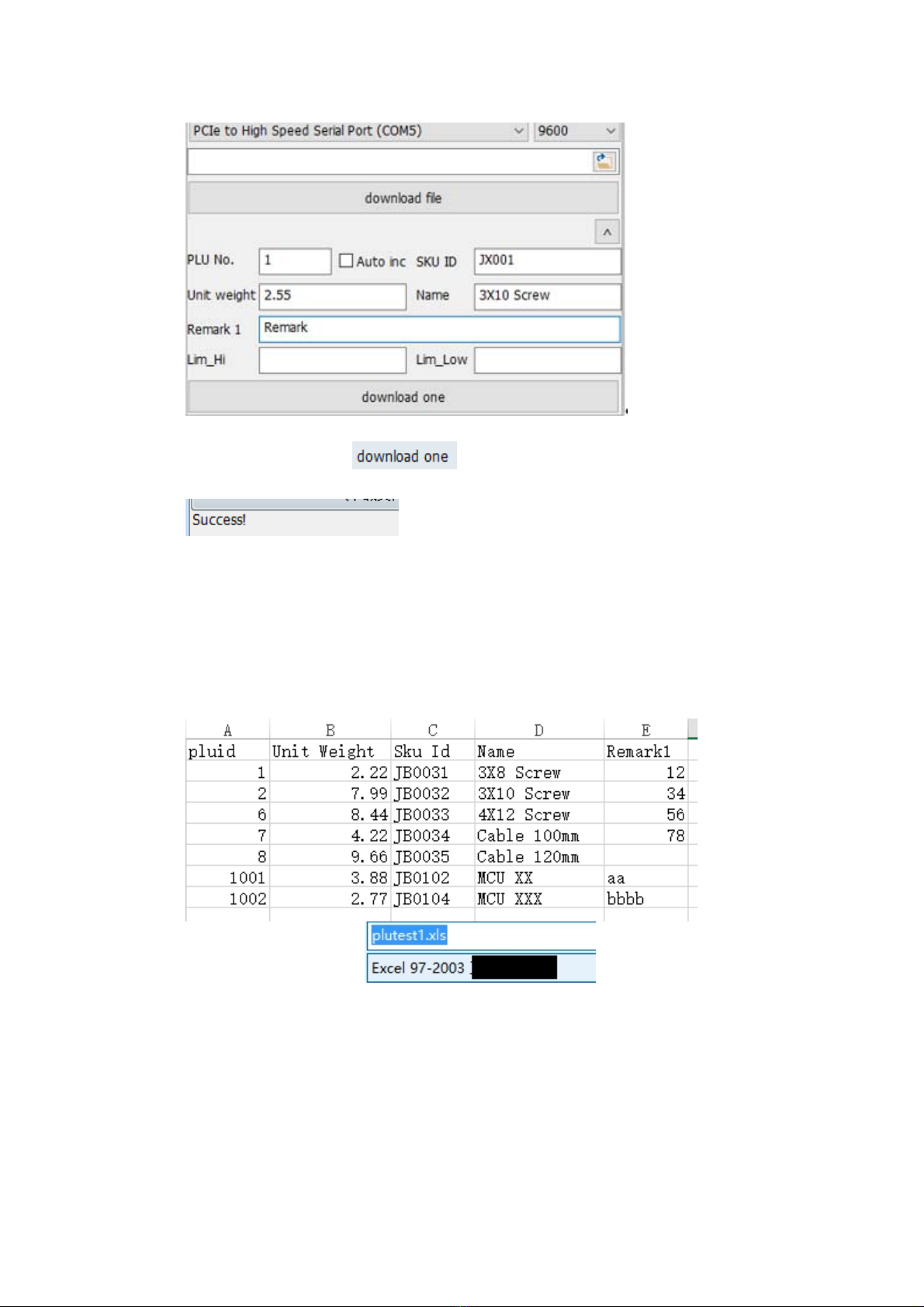

Use table edit software (such as Excel, WPS, Numbers) to new built a file, then input PLU
data by follow format:

Then save as xls file. 


© Adam Equipment Company 2019 16

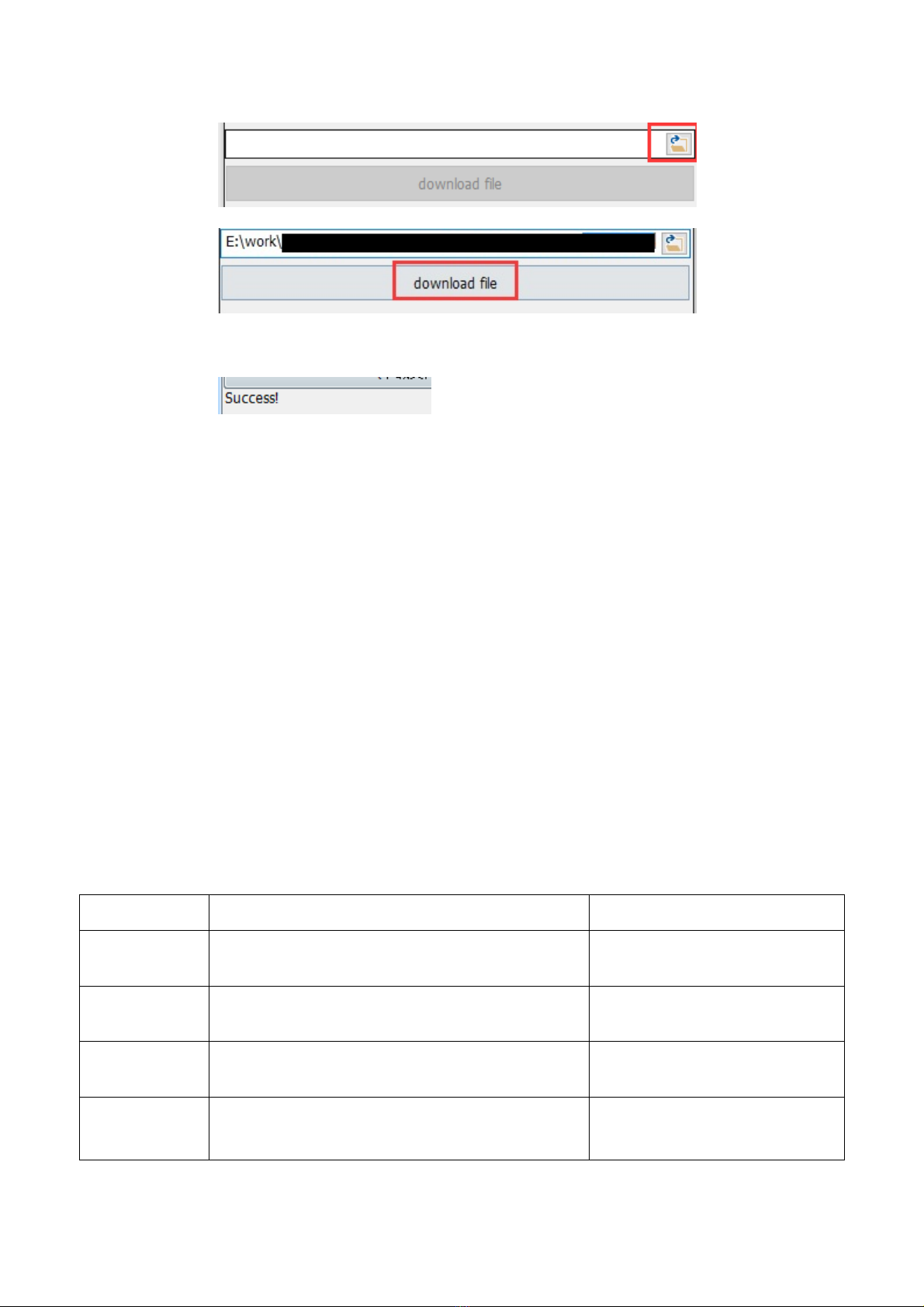

1. In ScaleSetPlu.exe, click ”Open”

2. Choose the right com port, Click “download file”


if succeed, will show “Success”.



7.0 USER PARAMETERS

To access the user parameters menu when in normal weighing, press the [PLU] key and
the [CE/ BACKLIGHT] key at the same time to enter the user parameter setting, the
display will show the first parameter ‘’P1 TRA’’, this is RS 232 communication setting.
In this menu, pressing the [PLU] key will enter the sub parameter setting. Alternatively, the
user can press the number key that links to a corresponding sub parameter setting. For
example, in “T1 FC”, press [3], the display will jump to “T3 bps”. Press the [M+] key use
to choose the right parameter options.

7.1 RS 232 Parameters
The RS232 parameters are divided into two categories: P1 TRA and P2 FUN.
P1 TRA – Communication settings
Parameter Definition Options
T1 FC Communication mode: Continuous transfer
mode, stable transfer mode and response.
1-6
T2 Add Communication address, effective in multi-
machine communication.
1-20
T3 Bps Communication baud rate 2400, 4800, 9600, 19200,
38400, 56000, 115200
T4 Fmt This parameter can be set to: n81 check bit/o71
data bit /e71 stop bit.
N81
O71
E71


© Adam Equipment Company 2019 17
T5 PFM Label format. Set to 0, can print out the format
which named FORMCOIN LP-50. For LP-50,
please choose 0 or 1.
0-19
T6 Chk Turn XOR check on or off. 
T7 FC2 Communication mode: 1-6
T8 PF2 Print functions 1-9

P2 FUN – Other function settings
Parameter Definition Options
F1 BL For setting the backlight ON
OFF
A
uto
F1C SL Setting the sleep time of the backlight in
seconds.
1-45 seconds
F2 ARG For setting the average unit weight function
automatically.
ON
OFF
F3 CST Tare and zero stable waiting time. ON
OFF
F4 MAE Turn ON/OFF next add up when not returning to
zero after the previous add up.
ON
OFF
F5 PTE Set pre-taring ON/OFF when pre-inputting the
tare value.
ON
OFF
F6 UNT Selecting the Weighing Unit Kg, lb, oz, g
F7 FIL Filter speed settings ON
OFF
F8 ZPE To set if the scale can alarm when weight is 0. ON
OFF
F9 FAL On means full alarm mode.
OFF means simple alarm mode.
ON
OFF
F10 BC To set if the Hi-Lo relay runs after stable. ON
OFF
Press ‘’ID’’ to escape and return to normal weighing mode.


© Adam Equipment Company 2019 18
7.2 SYSTEM PARAMETERS
To access system parameters, turn the indicator off, then press and hold down the
CE/Backlight & PLU buttons, and turn on the indicator using the on/off rocker switch. The
indicator will display CA:C3:-3 ------ Using the keypad key in 123456 & then press the
PRINT key, repeated pressing of the PRINT key will cycle through the available options
listed below:
Main- setting Sub- setting setting
CODE Input new password. If user does not want to modify
password, press [PRINT] to enter the next parameter.
P1 FIL
{ Filter }
F1 FIL
Filtering. Pressing the M+ key increases the intensity
of the filter, the higher the filter value the more stable
the weight reading is.
F2 ZEO
Zero track parameter. If the zero point often moves,
user can set this parameter. Pressing the M+ key
increases the zero tracking filtering, however
increasing this value may make it difficult to weigh
small items.
F3 ZTR
Creep tracking parameter. If the connected load cell
suffers from creep, user can set the parameter.
Pressing the M+ key increases the creep tracking
filtering, however increasing this value may make it
difficult to weigh small items.
P2 C-D
{Capacity and
division}
The unit weight window :
CXXXX
XXXX is the capacity. If weigh is more than
capacity+9 d, display will shows over load
The total quantity
window : DXXXX Division value.
dp xxx Open or close the dual division.
CU xx The unit of capacity and calibration.
P3 LIN X
{ Multi-range
calibration }
User can set multi-range calibration on/off here. Note：If user does not want to
use the multi-range calibration, please set X off. If choose on, please remove all
the weights from the pan before doing multi-range calibration.
LINEX
The state of multi-range calibration, X can be 1, 2, 3,
it means setting step. Input the weights value, the put
the right weights to calibrate.
Remark: In the second step, value of weights must
bigger than the first step, and in the third step, value
of weights must bigger than the second step.


© Adam Equipment Company 2019 19
P4 CAL
The total quantity
window : WEIXXXX
Use number key to input the weight value, XXXX is
the value of the weights for calibration. Press [PLU] to
enter the calibration. The display will show the A/D
value, with no weight on the top pan press the PLU
key when the stable indicator is showing
The unit weight window :
LOAD
The total quantity
window : XXXXX
In this step, put on the correct weight, after stable
indicator appear, press [PLU] can complete
calibration.
P5 EC
Calibration parameter record. User can review or use it for setting. When
calibration parameters are lost, user can use this record to calibrate without
weight. Note – we would recommend using P4 Cal setting and doing a fresh
calibration as this is the best method
P1 Rul Calibration parameter （the number is in the unit
weight window, this value affects the weighing
accuracy directly. Please note down this parameter
after calibration. When this parameter lost, user can
input the value by number key which been noted to
calibration without weight. Press [M+] key, the digit of
total weight window will keep blinking. Then input the
value and press [PLU] to store and enter to another
parameter.
P2 Ld0 This is the calibration parameter is for multi-range
calibration.（If user did not do multi-range calibration;
do not need note this parameter. But need set P3 to
OFF.）how to use and set this parameter, it is the
same as standard calibration.
P2 Ld1 The same as Ld0.
P2 Lr0 The same as Ld0.
P2 Lr1 The same as Ld0.
