PTS SERIES
With AE402 Indicator
(P.N. 3106610715, Revision E,April 2011)

Adam Equipment 2011 ©

1 Adam Equipment 2011 ©
Thank you for purchasing the ADAM PTS Pa et Truck.
For your safety and correct operation, p ease read the fo owing instructions
carefu y before using it.
CONTENT
1.0 SAFETY ............................................................................................................................. 3
2.0 INSTRUCTION .................................................................................................................. 5
2.1 SPECIFICATIONS ......................................................................................................... 5
2.2 PACKING LIST.............................................................................................................. 5
3.0 INSTALLATION.................................................................................................................. 8
3.1 AE 402 ASSEMBLY .................................................................................................... 10
4.0 CALIBRATION ................................................................................................................. 13
5.0 TROUBLE SHOOTING .................................................................................................. 14
6.0 MAINTENANCE .............................................................................................................. 15

2 Adam Equipment 2011 ©

3 Adam Equipment 2011 ©
1.0 SAFETY
•To prevent damage to the sca e, p ease read these operating instructions thorough y.

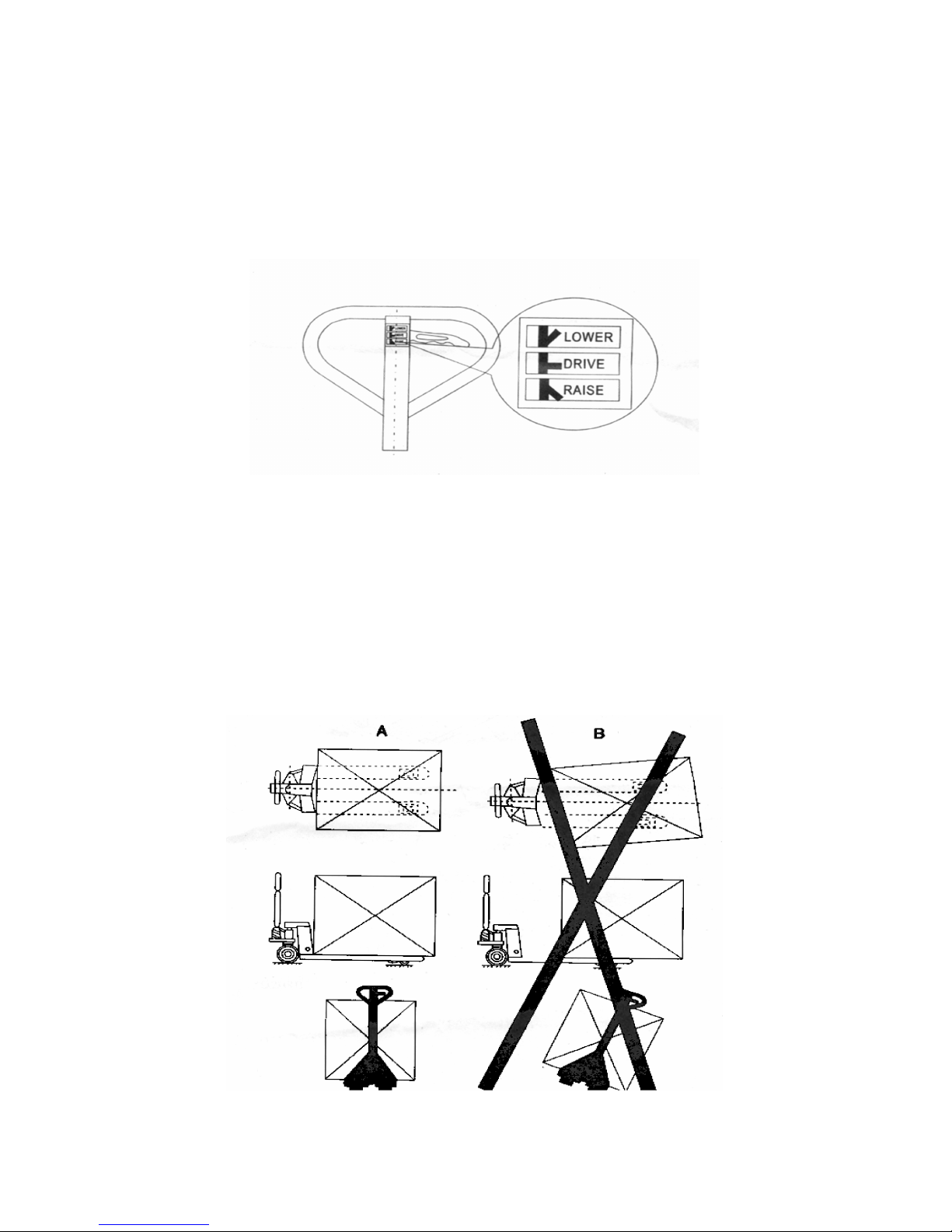

•When using the pa et truck, p ease keep the hand e in the DRIVE position.
•This pa et truck must be operated by trained personne on y.
•Check the pa et truck first before using it making sure that the whee s, hand es and forks
are fitted correct y and secure
•Avoid unsuitab e and uneven f oor surfaces
•P ease wear protective c othing where necessary
•A ow 60cm c earance from the pa et truck when operating.
•Pay attention and focus on the object you are ifting
•Do not over oad.

4 Adam Equipment 2011 ©

5 Adam Equipment 2011 ©
2.0 INSTRUCTION
2.1 S PECIFICATIONS
Common specifications

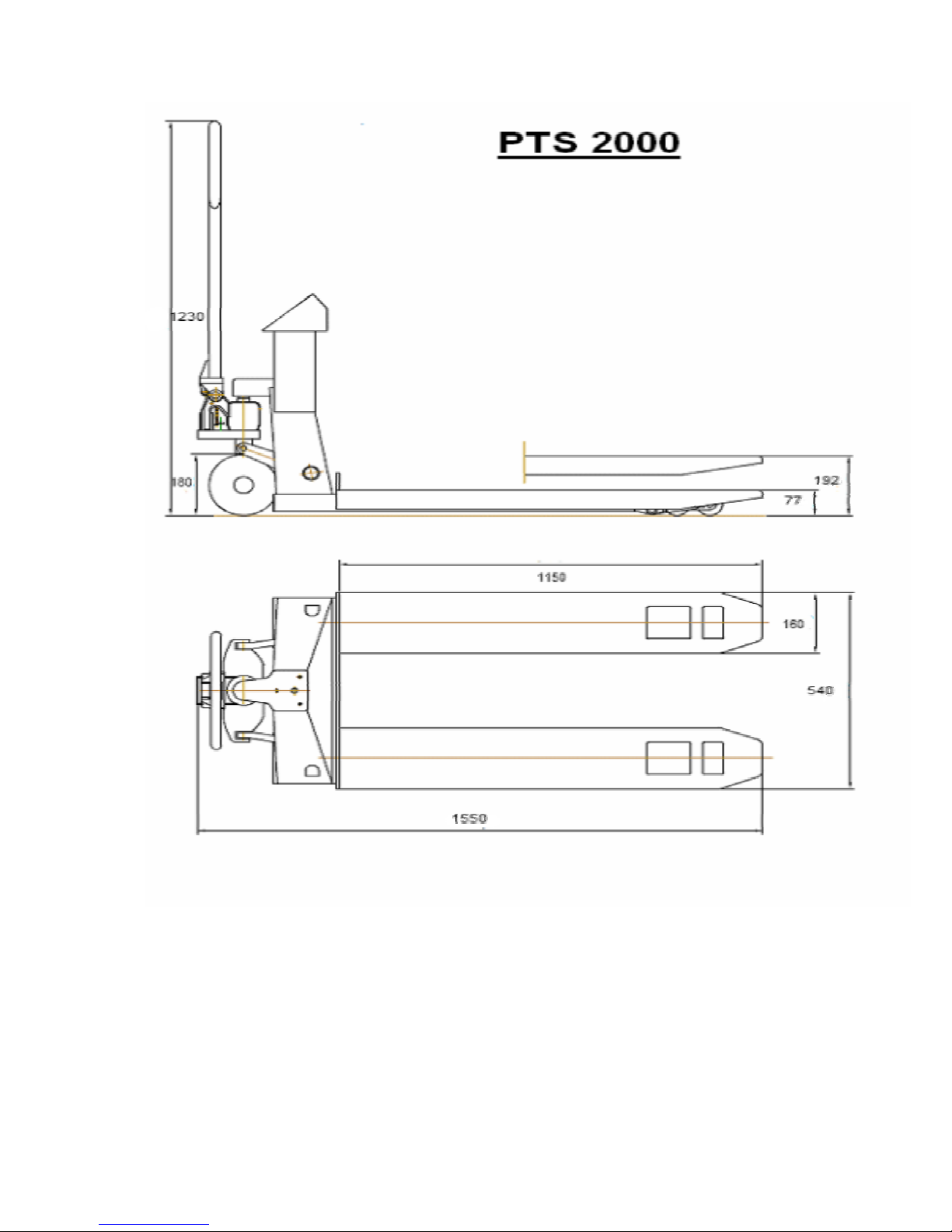

Mode PTS 2000 PTS 5000a
Load ce Capacity 2000 kg 5000Lb
Reso ution 0.5 kg 1Lb
Fork ength 1150mm (45.25“) 1220mm (48”)
Fork Width (each) 160mm (6.3”) 160mm (6.3”)
Fork Width (tota ) 540mm (21.25”) 680mm (26.77”)
Fork Height 77mm increasing to 192mm
(3” – 7.5”)
77mm increasing to 192mm
(3” – 7.5”)
Net Weight 125 kg (275 Lb) 135 kg (297 Lb)
See the User Manua for the Indicator supp ied with the PTS for more
information about the weighing features and operation.
2.2 P ACKIN L IST
Part No. Part name QTY
3101410695
Indicator mounting bracket, upper 1
301177255 M4 x 6 SS Soc Head cap Screw din912-A2
4
3106610715
PTS Manua /Instructions 1
3101010700
M4 A en key 1
3101710929
Ro er pin φ 20 x 86 1
3101710930
Spring p in φ 5 x32 1
3101711228
Sp it Pin φ5×50（ga vanized） 1
3101210931
Hand e 1
2100010935
AE402 indicator assemb y 1
3104010713
AE402 oad ce cab e 1

6 Adam Equipment 2011 ©

7 Adam Equipment 2011 ©

8 Adam Equipment 2011 ©
3.0 INSTALLATION
P ease fo ow the insta ation instructions to ensure correct operation of your
PTS. In transportation the hand e is removed from the truck, this needs to be
insta ed fo owing the instructions be ow:
NOTE: Do not lower the handle down fully until completing the instructions
below.

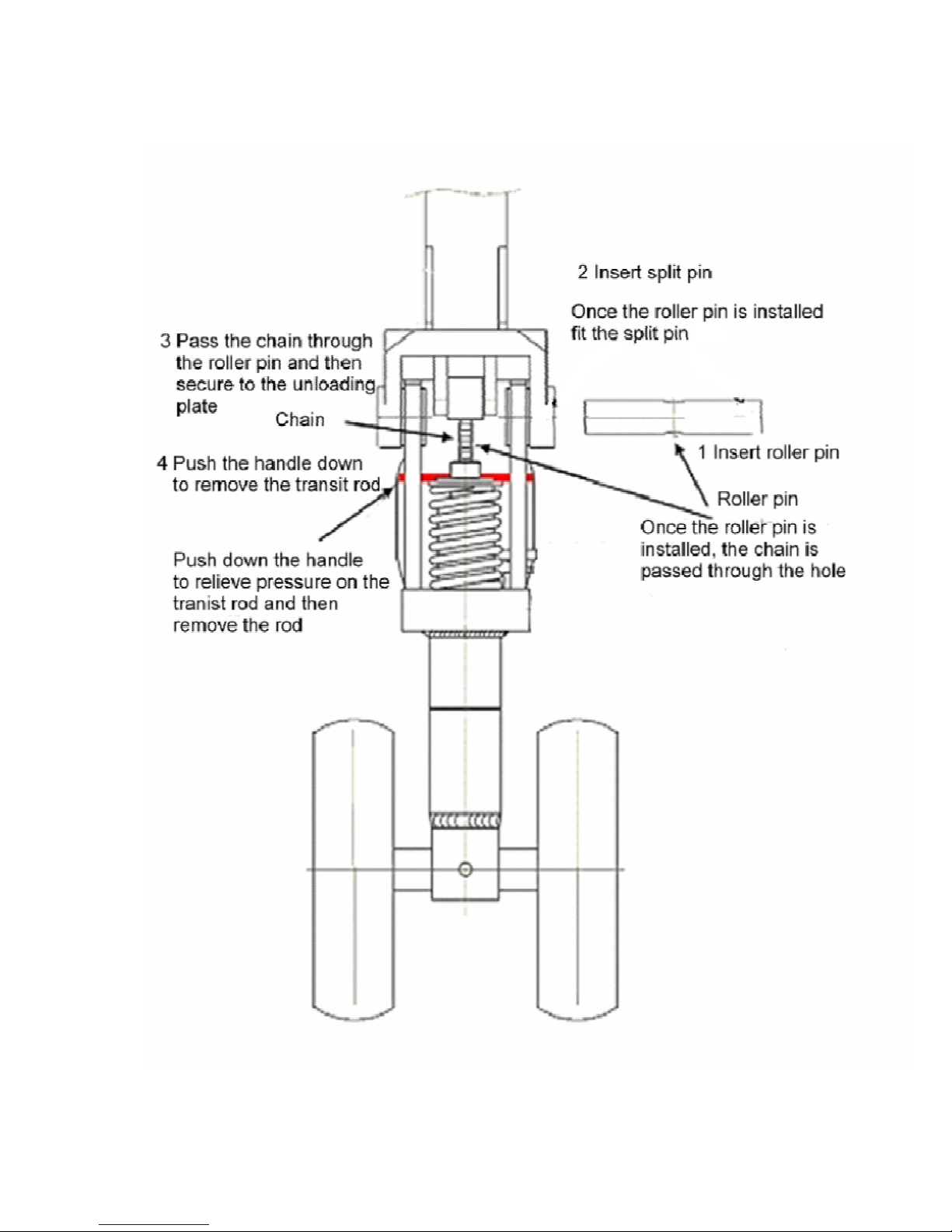

1) Insert the ro er pin into the ho e of ro er rack, securing the hand e to the
frame.
2) Fit the sp it pin through the ho es provided.
3) Pass the chain through the center ho e of the ro er pin. Secure the end of
the chain to the s ot on the end of the un oading p ate.
4) Remove the transit rod before use. Press the hand e down on y far enough to
re ease any pressure on the transit rod, then pu the transit rod free.

9 Adam Equipment 2011 ©

10 Adam Equipment 2011 ©
3.1 AE 402 ASSEMBLY
Rear view of AE 402 Indicator
Fit the PTS to Indicator cab e as shown in the picture be ow:
5 pin connector
fitted here

11 Adam Equipment 2011 ©
The Indicator bracket is fitted to the PTS using 4 x M4 screws as the picture
be ow shows, these shou d be tightened using the A en Key supp ied .
The Indicator cab e goes through the ho e on the bracket and connects to the
Indicator using the 7 pin connector.
M4 x 6 Screws
4 p aces
7 pin connector
fitted here.

12 Adam Equipment 2011 ©
The AE 402 indicator is p aced into the mounting bracket, and secured using
the two p astic fasteners as shown be ow:
P astic fasteners used to
secure Indicator to the
bracket.

13 Adam Equipment 2011 ©
4.0 CALIBRATION
The PTS is factory ca ibrated, p ease refer to the user manua for the indicator
supp ied (AE 402) when further ca ibration when required.

14 Adam Equipment 2011 ©
5.0 TROUBLE SHOOTIN
Fig 1
No.
Prob em Cause So ution
1
Forks cannot ascend
to the maximum
height
Inadequate hydrau ic oi in the chamber. Refi oi chamber. See Figure 1.
2 Forks can not be
raised
No hydrau ic oi .
Oi is not c ean.
Refi oi chamber. See Figure 1 .
Change oi
3 Forks can not
descend
Position of the goods are to one side of the truck
Re ocate oad.
.
4 Oi spi age
Aging or damaged sea s. Ca for Service.
5
Forks descend when
the trigger is not in
descend position
The oi cou d be unc ean
Some parts of the hydrau ic system are damaged.
Change the oi .
Vent the air.
Ca for Service.

15 Adam Equipment 2011 ©
6.0 MAINTENANCE
•P ease check the oi every six months , we suggest you use hydrau ic oi : ISO
VG32
•Whi st in transit air may enter into the hydrau ic pump, this may resu t in the
forks not raising when first used. P ease move the hand e up and down
severa times to a ow air to escape.
•Routine maintenance is necessary. You shou d focus on the whee s and
hand e assemb ies. When the truck is not in use, remove the items on the
forks, and reset the forks to their owest position.
•A the bearings and ax es have been ubricated, p ease check at regu ar
interva s

16 Adam Equipment 2011 ©
WARRANTY INFORMATION
Adam Equipment offers Limited Warranty (Parts and Labour) for the components fai ed due to
defects in materia s or workmanship. Warranty starts from the date of de ivery.
During the warranty period, shou d any repairs be necessary, the purchaser must inform its
supp ier or Adam Equipment Company. The company or its authorised Technician reserves the
right to repair or rep ace the components at any of its workshops depending on the severity of
the prob ems. However, any freight invo ved in sending the fau ty units or parts to the service
centre shou d be borne by the purchaser.
The warranty wi cease to operate if the equipment is not returned in the origina packaging and
with correct documentation for a c aim to be processed. A c aims are at the so e discretion of
Adam Equipment.
This warranty does not cover equipment where defects or poor performance is due to misuse,
accidenta damage, exposure to radioactive or corrosive materia s, neg igence, fau ty
insta ation, unauthorised modifications or attempted repair or fai ure to observe the
requirements and recommendations as given in this User Manua . Additiona y rechargeab e
batteries (where supp ied) are not covered under warranty.
Repairs carried out under the warranty does not extend the warranty period. Components
removed during the warranty repairs become the company property.
The statutory right of the purchaser is not affected by this warranty. The terms of this warranty
is governed by the UK aw. For comp ete detai s on Warranty Information, see the terms and
conditions of sa e avai ab e on our web-site.
