Adaptiv Mini CAM-AU7-AD User manual

1
WWW.ADAPTIV-MULTIMEDIA.COM
012020_V1
CAM-AU7-AD

NON MMI AUDI
2
ABOUT
Adaptiv Mini

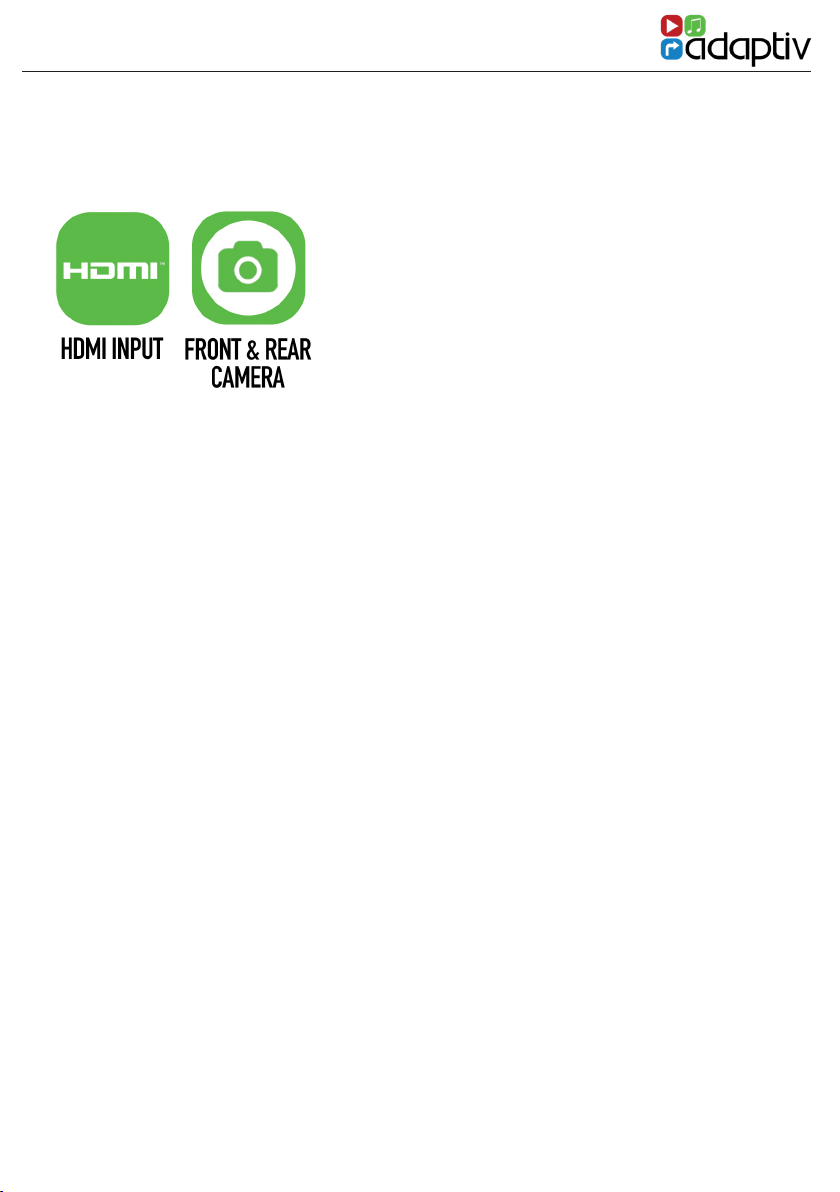

Adaptiv Mini allows HDMI and camera input to the OEM screen. Includes removable
dynamic parking guidelines
This plug and play Mini interface adds HDMI to connect your Apple or Android de-
vice, allowing you to mirror your smartphone display on the vehicle’s original screen.
Inputs for front and rear aftermarket cameras also come as standard with the Mini.
Application
Audi A4 (B8) 2008 - 2015
Audi A5 2009 - 2015
Vehicles with 6.5” colour centre display and Concert head unit
Non-MMI for vehicles with OEM AUX input only
Kit Includes
Adaptiv Interface
Vehicle Harness
Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installa-
tion. The place of installation must be free of moisture and away from heat sources.
Connects2 cannot be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com

3
WWW.ADAPTIV-MULTIMEDIA.COM
CONNECTION DIAGRAM
DIP SWITCH SETTINGS
DIP 1
If the vehicle has OEM
reverse camera
(ON: YES OFF: NO)
DIP 3
If the vehicle has
aftermarket reverse
camera
(ON: YES OFF: NO)
DIP 2
If the vehicle has
aftermarket front
camera
(ON: YES OFF: NO)
DIP 4
No Function
DIP 5
No Function
NOTE:
All connections are made at the
rear of the OEM head unit. No
connections need to be made
directly to the display.

NON MMI AUDI
4
USER GUIDE
HDMI Access
Select Aux In from the OEM source menu.
Hold BUTTON A for 2 seconds to switch between OEM screen and Adaptiv Mini HDMI screen
Rear and Front Camera Access
From either HDMI mode or OEM mode
1. Select reverse gear for reverse camera
2. Deselect reverse gear - will go to after market front camera ( if DIP 2 ON )
To cancel front camera drive over 10 MPH or hold BUTTON B for 2 seconds
Front Camera Access
Hold BUTTON B for 2 seconds to enter the front camera screen ( if DIP 2 is ON )
View Version Number
Hold BUTTON A Button for 8 seconds to enter rmware information screen
Hold BUTTON B to disable the video in motion warning message
Video In Motion Warning - 10 MPH
Button Conguration
Type 1 Type 2
without steering
wheel controls
Dynamic Parking Guidelines
Set to On by default when reversing camera image is active. To toggle off/on, press and hold
the upper wiper button (ii, BUTTON A) for two seconds when reversing camera image is active.
