MasterTop 15420301 User manual

Door Surrounds and Tailgate Bar for
2007-2018 Jeep®Wrangler JK 2 Door
Loss of vehicle control involves risk of death or serious injury, particularly to parts of your body not
restrained within vehicle. This product is intended for weather protection only and should not be relied
upon to contain occupants in the event of an accident or to protect from either ground contact or fall-
ing objects. To reduce risk of accident or injury:
•ALWAYS WEAR SEATBELTS
• Always keep head, arms & body parts within vehicle.
• Fully secure or stow the soft top before driving according to instructions. Never try to latch or fold
soft top while driving. Do not use if damaged or worn.
• Read and follow all instructions & warnings accompanying this product, in your vehicle owner’s
manual and O󰀨 Road Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while installing or maintaining this
product.
Part List:
A) Driver Side Door Surround QTY 1
B) Passenger Side Door Surround QTY 1
Required Tools:
Safety Glasses
This Door Surround and Tailgate Bar kit is designed to t on your 2 Door JK Wrangler when the hard
top or original soft top has been completely removed. Before beginning your installation of this prod-
uct, carefully remove your hard top or current soft top hardware This hardware system is designed
to be used with MasterTop Cable style Bimini Tops, Tonneau cover and Wind Stopper Plus roll bar
curtain.It can also be used with other brands Bimini tops and other accessories.
WARNING
CAUTION
NOTICE
Installation Instructions
Item #15420301
C) Door Surround Knobs QTY 4
D) Tailgate Bar with Clips QTY 1
QTY 1
F) Allen Head Screws
G) 4mm Allen Head Wrench
QTY 2
A)
B)
C)
D)
F)
G)
Assembled Door Surrounds in
Place on Vehicle (2 Door)
H) Trash Bag QTY 1

Important Safety information
Your MasterTop® Door Surrounds and Tailgate bar are intended to provide a mounting platform for fabric accessories or a Mas-
terTop Soft top bow assembly. Before installation, please take a moment to review the following safety information and installation
instructions. Important safety information is generally preceded by one of three signal words indicating the relative risk of injury.The
signal words mean:
a hazardous situation which, if not avoided, could result in death or serious injury. You CAN be KILLED
or SERIOUSLY HURT if you don’t follow instructions.
WARNING
CAUTION
NOTICE
a hazardous situation which, if not avoided, could result in minor or moderate injury. You CAN be mod-
erately HURT and also may su󰀨er property damage if you don’t follow instructions.
Careful attention is required to this instruction or operation but does generally not relate to personal
injury. Damage to your Quadratec® product or other property may result if you don’t follow instructions.
Before you begin Installation:
We are excited that you have chosen the MasterTop Door Surrounds and Tailgate Bar This high quality door surround system is
designed to provide a platform for the installation of a fabric soft top Bow system or soft accessories. Please note that it is important
that you become familiar with the installation process of this top by reading the following instruction sheet and warnings thoroughly.
2
When unpacking, check to make sure all parts are included.
If any part is missing or broken, please call MasterTop customer service at 720-575-5440.
Un-packing and Organizing the Door Surrounds
Separate out the Long Tailgate bar and plastic clips as well
and set aside (Fig 2).
Passanger Side
Door Surround Driver Side Door
Surround
Door Surround Knobs
Put on safety glasses. Carefully remove all product onto
the ground on top of a soft towel. The box contains front
door surroundsand hardware. Carefully remove the
contents of each box organizing them as shown in FIG1
making sure the passenger side and driver’s side
components are separated.
FIG 1
FIG 2
Screws
4mm allen

3
Section 1: Door Surround Assembly
FIG 3
Passenger Side
Over Door Assembly
Passenger Side
Pillar Assembly
Driver Side
Over Door Assembly Driver Side
Pillar Assembly
FIG 5
FIG 8
FIG 7
FIG 6
FIG 9

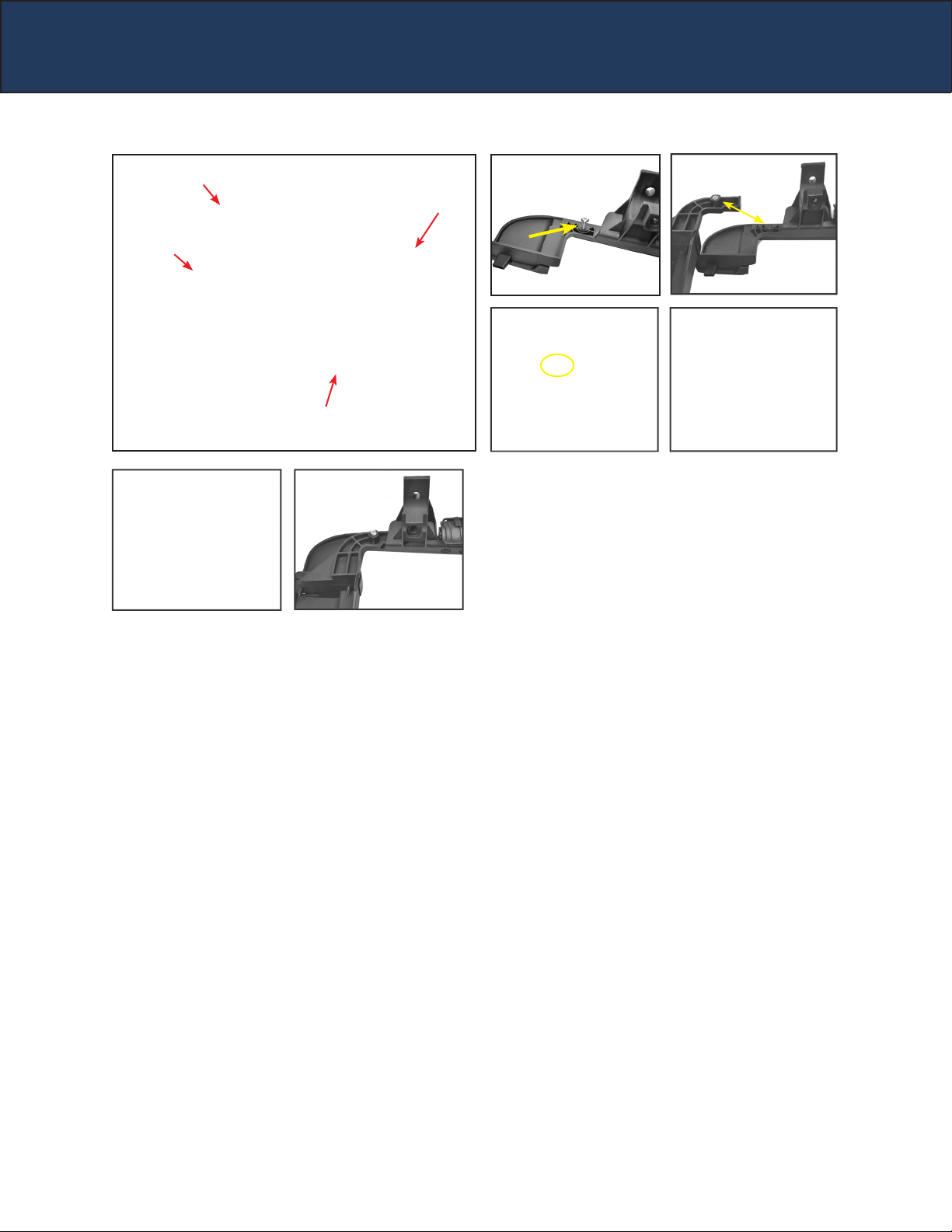

Step 1: Pillar and Over Door Surround Assembly
Locate the Driver’s side over door assembly and the driver’s side pillar assembly shown in FIG3.
In the Driver’s side over door assembly, there is a screw installed for shipping (Fig 4). Remove this screw and set aside. Line up
the Driver’s side over door assembly and the driver’s side Pillar assembly as shown in Fig 5 & 6 making sure the holes line up.
Insert the screw over the top of the hole as shown in Fig 7. Tighten this screw using the included 4mm Allen head tool securing the
two pieces (Fig 8 & 9).
Repeat the above assembly on the Passenger side over door and pillar assemblies.
FIG 4
Knobs

4
Section 1: Door Surround Assembly
FIG 10 FIG 11
FIG 12 FIG 13
FIG 15
FIG 16
“C” Attachment
FIG 14
“C” Attachment
“C” Attachment
Snug against windshield foam seal!

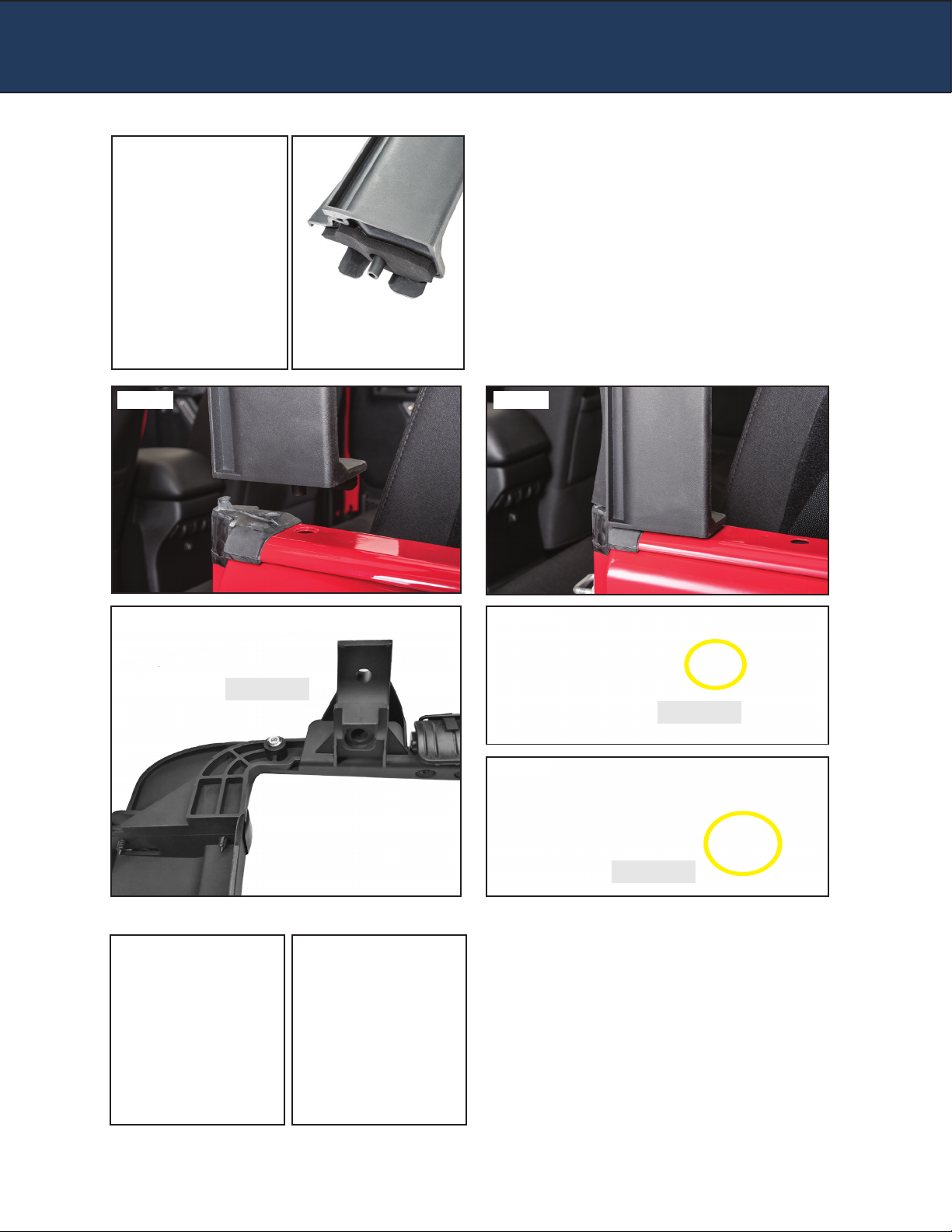

Step 2: Install Door Surrounds to Jeep
Locate the assembled Driver’s side door surround
(Fig10). On the bottom of the vertical pillar portion
of the assembled door surround is a pin (FIG 11) that will be
inserted into the body tub.
Insert this pin into the body tub as shown in FIG's 12 & 13.
After inserting the pin, locate the upper portion of the door
surround “C” attachment and push onto roll bar (FIGs 14 &
15). Make sure the front seal is snug against the windshield
seal as shown in FIG16.
The “C” should t in the cutout of the roll bar pad.
Repeat this procedure on passenger side door surround.
Section 1: Door Surround Assembly
Step 3: Secure Front Door Surrounds to Roll Bar
Locate the two sets of screw knobs . There should be (2) sets
of two knobs. Line up the door surround “C” attachment holes
with the vertical holes in the roll bar. Slip the front knob
through the hole in the front door surround (FIG17). Tighten
the knob securing the front door surround. Repeat this
procedure on the back of the door surround and on the other
side of the vehicle. Finally, tighten all four knobs. All knobs on
both sides of the vehicle should be secured to the roll bar.
This completes the installation of the door surrounds to
your vehicle.
FIG 17 FIG 18

5
Section 2: Installation of Tailgate Bar Brackets and Tailgate Bar
Repeat this procedure on the passenger side. See the soft top
or soft accessory instruction sheet for the proper installation of
the tailgate bar into these brackets with the fabric installed.
Line up with slot on
rear of vehicle Lip on bracket to
outside of vehicle
FIG 19
FIG 20 FIG 22
FIG 21
Step 4: Attaching the Tailgate Brackets and Tailgate Bar
Locate the Tailgate bar and brackets (FIG 19). Locate the
driver’s side bracket (marked on the bracket) with the lip to the
outside of the vehicle(FIG 20) line up the bracket with the slot
in the body tub(FIG 21 & 22) hook the rear portion of the
bracket to the body tub and roll the bracket forward until it
clicks.
Section 3: Installation of Trash Bag
F IG 23
Step 5: Attaching the Trash Bag to the spare tire
Locate the trash Bag (FIG 23). Wrap the long strap wrap around your spare tire as shown in fig's 24 & 25, then tighten it down with
the buckle on the other side of the bag. Fig 26 &27.
F IG 24
F IG 25
F IG 26
F IG 27

6
