Adaptiv Mini CAM-AU6-AD User manual

1
WWW.ADAPTIV-MULTIMEDIA.COM
012020_V1
CAM-AU6-AD

AUDI A3 (TYP 8V) 2013> A4 (TYP B9) 2015>, Q2 2017>
2
ABOUT
Adaptiv Mini
Adaptiv Mini allows HDMI and Camera input to the OEM screen. Includes remova-
ble dynamic parking guidelines
This plug and play Mini interface adds HDMI to connect your Apple or Android de-
vice, allowing you to mirror your smartphone display on the vehicle’s original screen.
Inputs for front and rear aftermarket cameras also come as standard with the Mini.
Application
Audi Q2 2017-UP
Audi A3 (8V) 2013-UP
Audi A4 (B9) 2015-UP
For vehicles with 5.8” or 7” display and OEM AUX input only.
Kit Includes
Adaptiv Interface
Vehicle Harness
Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installa-
tion. The place of installation must be free of moisture and away from heat sources.
Connects2 cannot be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com

3
WWW.ADAPTIV-MULTIMEDIA.COM
CONNECTION DIAGRAM
DIP SWITCH SETTINGS
DIP 1
If the vehicle has OEM
reverse camera
( ON: YES OFF: NO )
DIP 3
If the vehicle has after-
market reverse camera (
ON: YES OFF: NO )
DIP 2
If the vehicle has after-
market front camera (
ON: YES OFF:NO )
DIP 4
A3 5.8” - ON | 7” - OFF
A4/Q2 5.8” - ON | 7” - OFF
DIP 5
A3 5.8” - OFF | 7” - OFF
A4/Q2 5.8” - ON | 7” - ON
NOTE:
All connections are made at the
rear of the OEM head unit. No
connections need to be made
directly to the display.

AUDI A3 (TYP 8V) 2013> A4 (TYP B9) 2015>, Q2 2017>
4

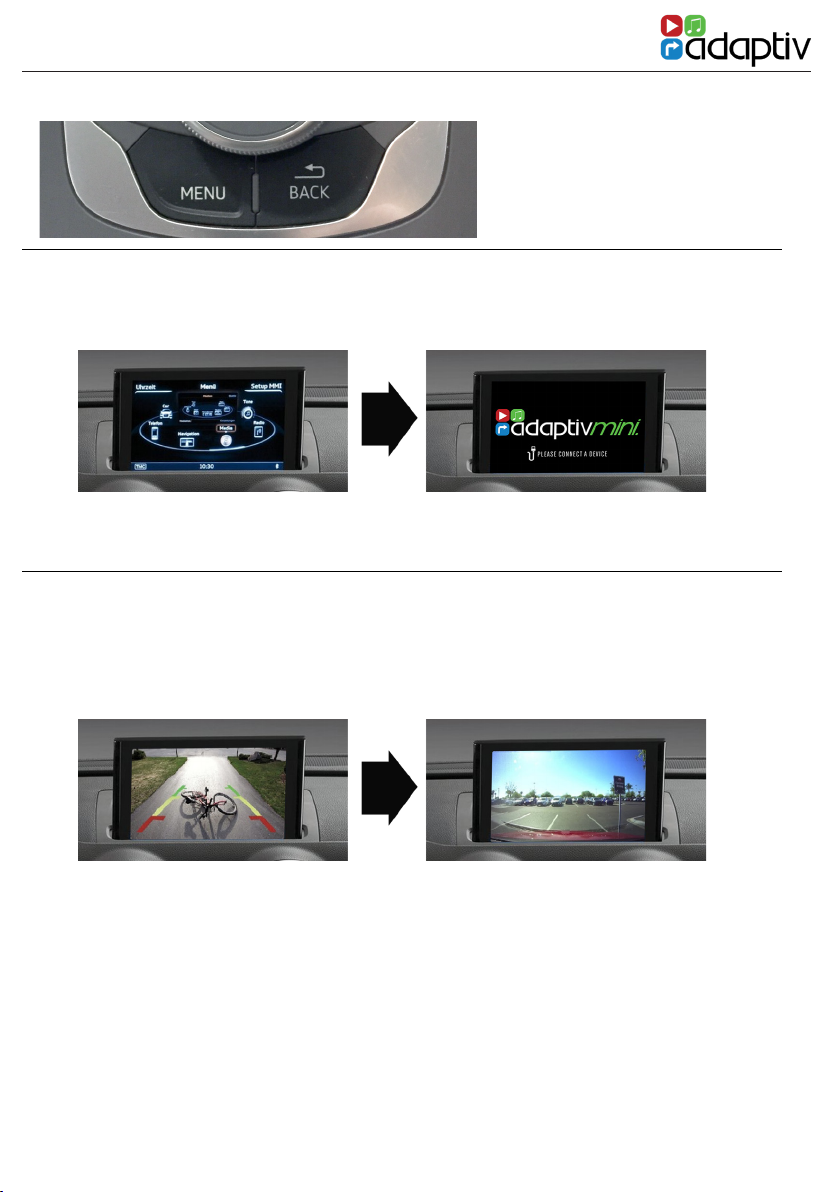

USER GUIDE
HDMI Access
Select Aux In from the OEM source menu.
Hold MENU Button for 2 seconds to switch between OEM screen and Adaptiv Mini HDMI screen
Rear and Front Camera Access
From either HDMI mode or OEM mode
1. Select reverse gear for reverse camera
2. Deselect reverse gear - will go to after market front camera ( if DIP 2 ON )
To cancel front camera drive over 10 MPH or hold BACK Button for 2 seconds
Front Camera Access
Hold BACK Button for 2 seconds to enter the front camera screen ( if DIP 2 is ON )
Press BACK Button to exit front camera
View Version Number
Hold MENU Button for 8 seconds to enter rmware information screen
Hold BACK Button to disable the video in motion warning message
Video In Motion Warning - 10mph
Button Conguration
Dynamic Parking Guidelines
Set to On by default when reversing camera image is active. To toggle off/on, press and hold
the MENU Button for two seconds when reversing camera image is active.
