ADC AD-15 User manual

AD-15/AD-25 Parts Manual
24 VAC Phase 5
1992 thru June 30, 2002
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: [phone] / Fax: [phone]
E-mail: [email protected]
www.amdry.com
ADC Part No. 450107
022292
052997WM/tf

Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble free operation.
ONLY qualified technicians should service this equipment.
OBSERVEALLSAFETYPRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:
DATE OFPURCHASE ____________________________ MODELNO. __________________________________________
RESELLER’S NAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or theADCfactory. When orderingreplacement partsfrom thefactory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at (508)
678-9000. Please specify the dryer model number andserialnumberin addition to the description andpart number,sothat
your order is processed accurately and promptly.
Theillustrationson the following pagesmay not depict your particulardryer exactly. The illustrations areacomposite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
“IMPORTANT NOTE TO PURCHASER”
Information must beobtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.

Table of Contents
AD-15 Control Door Assembly Without Trim
For OPL (Non-Coin) Models Mfd. as of July 19, 1999 ....................................................................3
AD-25 Control Door Assembly Without Trim
For OPL (Non-Coin) Models Mfd. as of November 11, 1998 ..........................................................4
AD-15 High Security Control Door Assembly
For ALL Coin Models
For OPL Models Mfd. prior to July 19, 1999 ...................................................................................5
AD-25 High Security Control Door Assembly
For ALL Coin Models
For OPL Models Mfd. prior to November 11, 1998 .........................................................................6
Phase 5 Coin Microprocessor Control Panel Assembly ...........................................................................7
Phase 5 OPL Microprocessor Control Panel Assembly ...........................................................................8
Phase 5 Coin and OPL Microprocessor Control Box Assembly...............................................................9
AD-15/AD-25 Control Vault Assembly.................................................................................................10
Dual Timer “Tap Touch” Controls
For Models Mfd. as of November 3, 2000 .....................................................................................11
Dual Timer Control Panel Assembly
For Models Mfd. prior to November 3, 2000 .................................................................................12
Non-Microprocessor Coin Meter Control Panel Assembly
For Models Mfd. as of January 25, 2002 ........................................................................................13
Non-Microprocessor Coin Meter Control Panel Assembly
For Models Mfd. prior to January 25, 2002 ....................................................................................14
Non-Microprocessor Control Box Assembly ........................................................................................15
Slide Meter Case Assembly
For Models Mfd. as of March 13, 2001 .........................................................................................16
Slide Meter Case Assembly
For Models Mfd. Between January 13, 1995 and March 13, 2001 .................................................17
Slide Meter Case Assembly
For Models Mfd. prior to January 13, 1995 ....................................................................................18
Main Door “Steel” Assembly ................................................................................................................19
Plastic Main Door Assembly .................................................................................................................20
Main Door Switch Assembly Cold Rolled Steel (CRS) Door .................................................................21
Main Door Switch Assembly
For Models with Plastic Doors........................................................................................................22
AD-15/AD-25 Cold Rolled Steel (CRS) Door Front Panel...................................................................23
AD-15/AD-25 Front Panel Assembly
For Models with Plastic Doors........................................................................................................24
AD-15 Basket (Tumbler)/Support Assembly .........................................................................................25
AD-25 Basket (Tumbler)/Support Assembly .........................................................................................26

Drop Lint Door Assembly Without Trim
For AD-15 OPL Models Mfd. as of July 24, 1999
For AD-25 OPL Models Mfd. as of November 11, 1998 ...............................................................27
Drop Lint Door Assembly With Trim
For ALL Coin Models
For AD-15 OPL Models Mfd. prior to July 24, 1999
For AD-25 OPL Models Mfd. prior to November 11, 1998 .....................................................28, 29
AD-15/AD-25 Lint Trap Assembly .......................................................................................................30
AD-15/AD-25 Basket (Tumbler) Bearing Assembly ..............................................................................31
AD-15/AD-25 Idler Bearing Assembly ...........................................................................................32, 33
AD-15 Motor Mount Assembly ......................................................................................................34, 35
AD-25 Motor Mount Assembly ......................................................................................................36, 37
Sensor Bracket Assemblies ............................................................................................................38, 39
ADG-15 Direct Spark Ignition (DSI) Burner Assembly
For Models Mfd. as of May 20, 2000 ......................................................................................40, 41
ADG-25 Direct Spark Ignition (DSI) Burner Assembly
For Models Mfd. as of May 20, 2000 ......................................................................................42, 43
ADG-15/ADG-25 Direct Spark Ignition (DSI) Burner Assembly
For Models Mfd. prior to May 20, 2000 ..................................................................................44, 45
ADE-15/ADE-25 Electric Oven Assembly......................................................................................46, 47
ADG-15/ADG-25 DSI Johnson Control Module Assembly
For Models Mfd. as of May 20, 2000 ............................................................................................48
ADG-15/ADG-25 Sail Switch/Hi-Limit Assemblies...............................................................................49
Single-Phase (1ø) Motor, Electric Relay Panel Assembly .......................................................................50
3-Phase (3ø) Motor, Electric Relay Panel Assembly ..............................................................................51
Slide Meter Control Box Assembly
For Models Mfd. as of January 13, 1995 ........................................................................................52
Slide Meter Control Box Assembly
For Models Mfd. prior to January 13, 1995 ....................................................................................53
ADS-15/ADS-25 Steam Coil/Air-Operated Steam Damper Assembly ............................................54, 55
ADS-15/ADS-25 Steam Coil/Mechanical Steam Damper Assembly ...............................................56, 57
AD-15/AD-25 Outer Top/Back Guard Assembly .................................................................................58
ADG-15/ADG-25 Heat Reclaimer Assembly ........................................................................................59
Microprocessor Coin Acceptors Listing ................................................................................................60
Coin Meter Replacement Parts .............................................................................................................61
AD-15/AD-25 Transformer Usage Listing for Gas/Steam Dryers...........................................................62
ADE-15/ADE-25 Transformer Usage Listing for Electric Dryers ...........................................................63
ADE-15/ADE-25 Electric Oven Component Application Charts ...........................................................64
AD-15/AD-25 DSI Burner Assembly Specifications .............................................................................65
Additional Parts Available ..................................................................................................................66

3
Telephone: [phone] Fax: [phone]

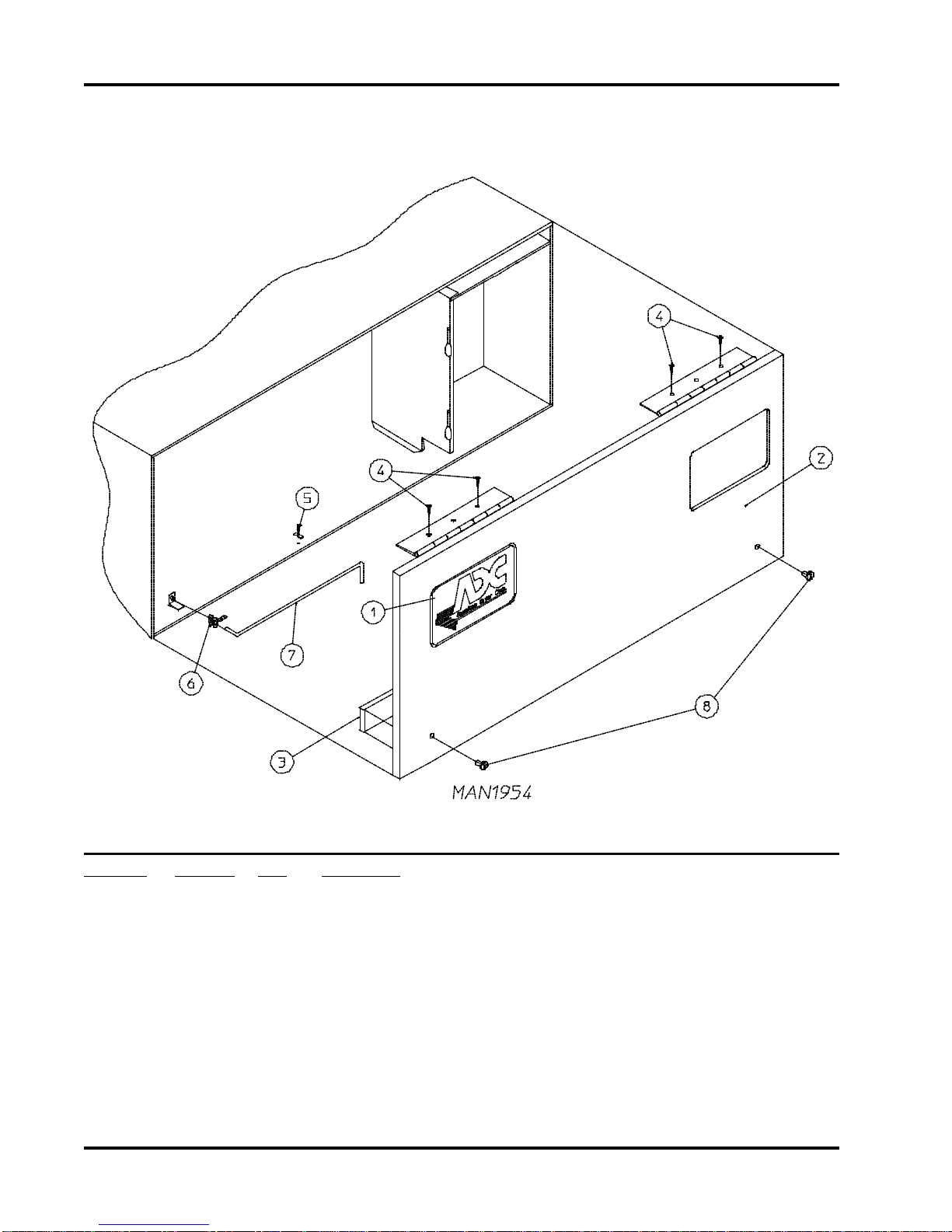

AD-15 Control Door Assembly Without Trim
For OPL (Non-Coin) Models Mfd. as of July 19, 1999
Illus. No. Part No. Qty. Description
1881053 1ADC Logo ONLY (with double adhesive tape)
870011 1Logo Double Tape Kit
2883097* 1Control Door
(includes illus. nos. 2 and 3)
3117604 4Neoprene Sponge Tape (sold by the foot)
4150300 4#10-16 x 1/2” Hex Washer TEK Screw
5102603 1Control Door Rod Support Catch
6102601 1Control Door Retainer Clip
7102502 1Control Door Support Rod
8882541 2Spring Turn Latch Assembly
*Specify color when ordering.

4
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

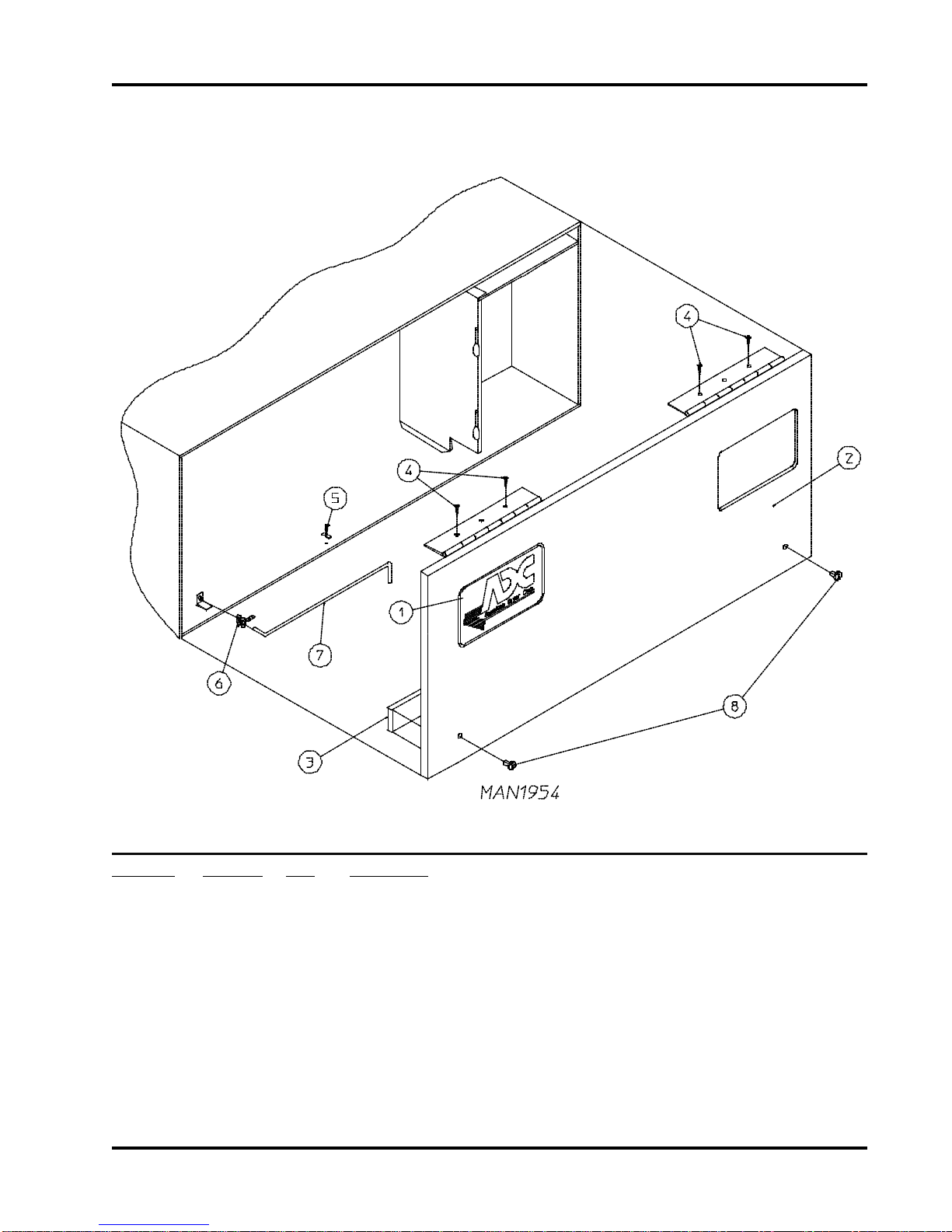

AD-25 Control Door Assembly Without Trim
For OPL (Non-Coin) Models Mfd. as of November 11, 1998
Illus. No. Part No. Qty. Description
1881053 1ADC Logo ONLY (with double adhesive tape)
870011 1Logo Double Tape Kit
2882265* 1Control Door
(includes illus. nos. 2 and 3)
3117604 4Neoprene Sponge Tape (sold by the foot)
4150300 4#10-16 x 1/2” Hex Washer TEK Screw
5102603 1Control Door Rod Support Catch
6102601 1Control Door Retainer Clip
7102502 1Control Door Support Rod
8882541 2Spring Turn Latch Assembly
*Specify color when ordering.

5
Telephone: [phone] Fax: [phone]
AD-15 High Security Control Door Assembly
Illus. No. Part No. Qty. Description
1160015 1High Security MK-100 Lock Assembly with Key (for coin models Only)
160104 1MK-100 Key ONLY
160011 1Special Dummy Lock ONLY (for non-coin models Only)
2160016 1Lock Cam ONLY
3881053 1ADC Logo with Tape
870011 1Double Sided Tape Kit
4800023* 1AD-15 High Security Control Door Assembly with Gray Trim
(includes illus. nos. 4 through 7)
883265* 1AD-15 High Security Control Door Assembly with Black Trim
(includes illus. nos. 4 through 7)
800140 1AD-15 High Security Stainless Steel Control Door Assembly with Gray
Trim Less Lock
(includes illus. nos. 4 through 7)
801197 1AD-15 High Security Stainless Steel Control Door with Black Trim
(includes illus. nos. 4 through 7)
5180200 1AD-15 Top Gray Trim Strip with Lock Hole
180300 1AD-15 Top Black Trim Strip with Lock Hole
6117603 3Suppressor Tape/Gasket (sold by the foot)
7150201 5#10-32 x 1/4” Phillips Round Head Machine Screw
8150300 4#10-16 x 1/2” Hex Washer TEK Screw
9102603 1Control Door Rod Support Catch
10 102601 1Control Door Rod Retainer Clip
11 102502 1Control Door Support Rod
*Specify color when ordering.
For ALL Coin Models
For OPL Models Mfd. prior to July 19, 1999

6
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-25 High Security Control Door Assembly
ForALLCoin Models
For OPL Models Mfd. prior to November 11, 1998
Illus. No. Part No. Qty. Description
1160015 1High Security MK-100 Lock Assembly with Key (for coin models Only)
160104 1MK-100 Key ONLY
160017 1Special Dummy Lock ONLY (for non-coin models Only)
2160016 1Lock Cam ONLY
3881053 1ADC Logo with Tape
870011 1Double Sided Tape Kit
4800022* 1AD-25 High Security Control Door Assembly with Gray Trim
(includes illus. nos. 4 through 7)
800141 1AD-25 High Security Stainless Steel Control Door Assembly with Gray
Trim Less Lock
(includes illus. nos. 4 through 7)
883266* 1AD-25 High Security Control Door Assembly with Black Trim
(includes illus. nos. 4 through 7)
882686 1AD-25 High Security Stainless Steel Control Door Assembly with Black
Trim
(includes illus. nos. 4 through 7)
5180201 1AD-25 Top Gray Trim Strip with Lock Hole
180301 1AD-25 Top Black Trim Strip with Lock Hole
6117603 3Suppressor Tape/Gasket (sold by the foot)
For Models Mfd. as of February 6, 1995
7150201 5#10-32 x 1/4” Phillips Round Head Machine Screw
8150300 4#10-16 x 1/2” Hex Washer TEK Screw
9102600 1Control Door Rod Support Catch
10 102601 1Control Door Rod Retainer Clip
11 102502 1Control Door Support Rod
*Specify color when ordering.

7
Telephone: [phone] Fax: [phone]

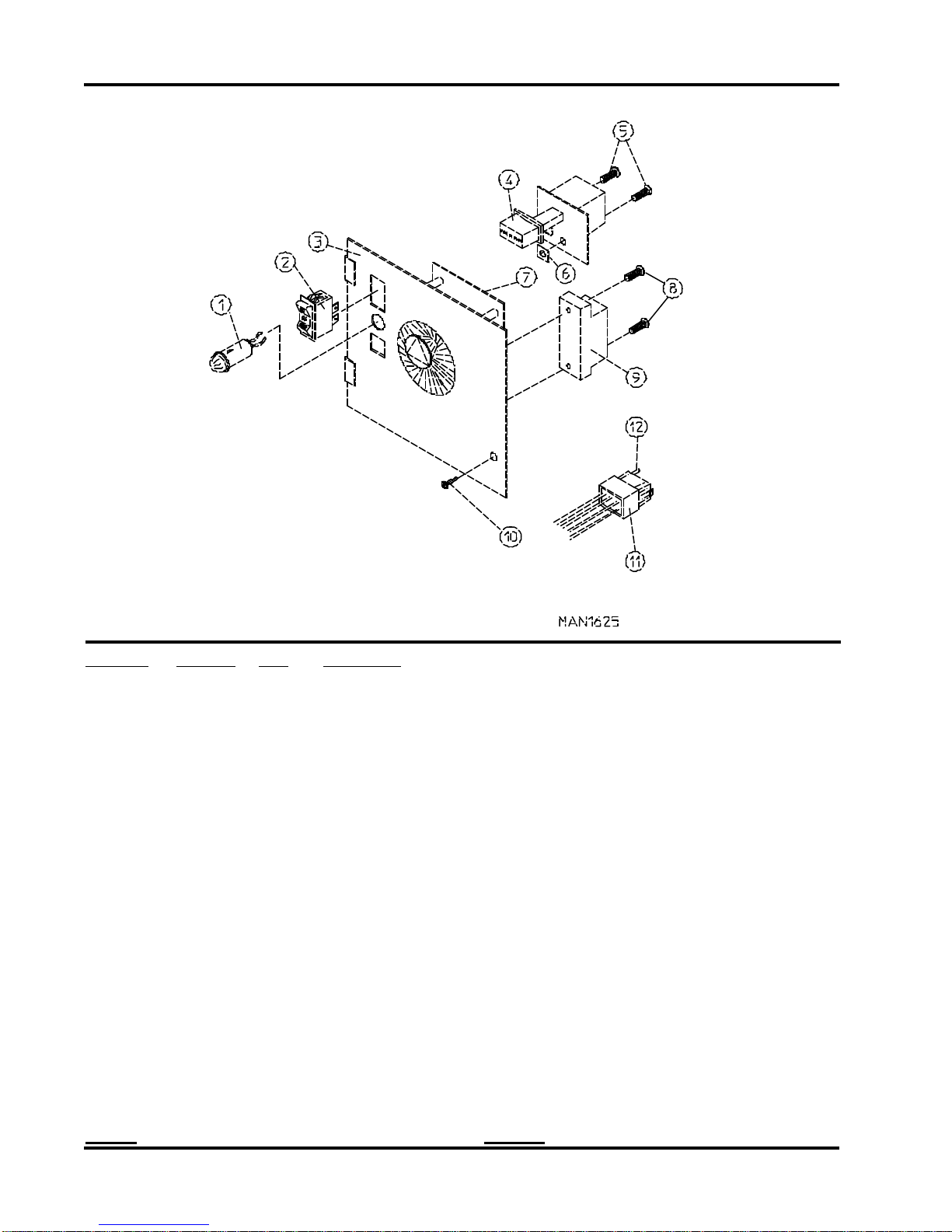

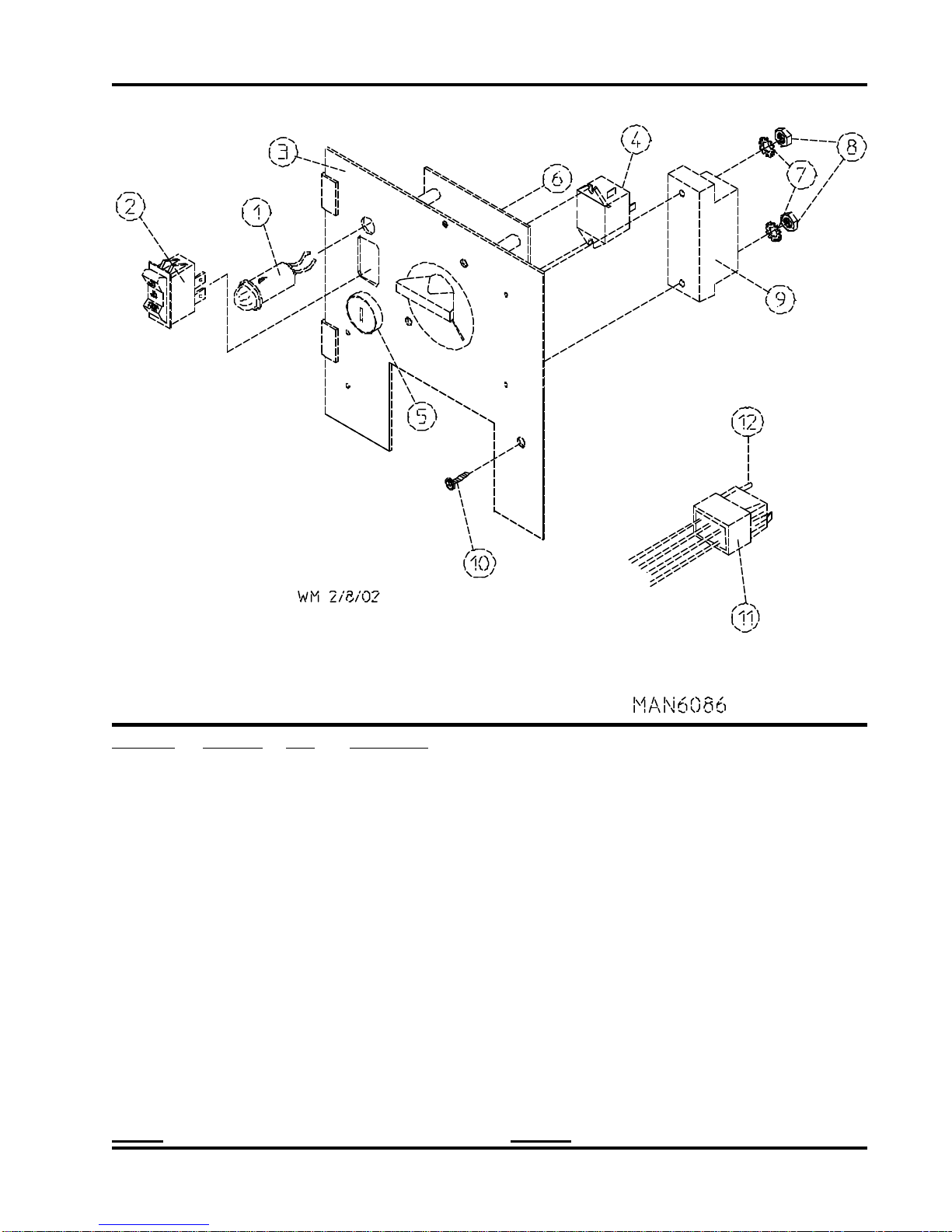

Phase 5 Coin Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1112526 1Coin Keyboard Label Assembly
2 883537 1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)
883538 1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)
883582 1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)
883581 1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)
883539 1 Coin Control Panel ONLY
(for models mfd. as of June 25, 2002)
883540 1 Coin Control Panel ONLYwith Battery Bracket
(for models mfd. as of June 25, 2002)
883580 1 Coin Control Panel ONLY
(for models mfd. prior to June 25, 2002)
883579 1 Coin Control Panel ONLYwith Battery Bracket
(for models mfd. prior to June 25, 2002)
3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
4 137213 1 Phase 5 Coin Controller ONLY
824998 1 Phase 5 Battery Clip
5 153010 2 #6 Star Washer
6 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
7-------- 1Microprocessor Coin Acceptor
(refer to Microprocessor Coin Acceptors Listing on page 60)
8-------- 1Optic Switch ONLY
(refer to Microprocessor Coin Acceptors Listing on page 60)
9 137023 1 Optic Switch Connector ONLY
10 137021 3 Microprocessor Socket ONLY
880772 1 Single Coin Optical Switch Harness
122800 1 Microprocessor (female) Pin Extraction Tool
11 136048 1 1/8-Amp (Slo-Blo) Fuse ONLY
IMPORTANT:Check label on computer chip to verify correct part number for controller.

8
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty. Description
1112535 1OPL English Keyboard Label Assembly
112276 1OPL Stick-On Labels (English Only)...Not Illustrated
112275 13-Language OPL Stick-On Labels...Not Illustrated
(Spanish, Italian, and Hebrew)
112277 13-Language OPL Stick-On Labels...Not Illustrated
(English, Spanish, and Hebrew)
112278 15-Language OPL Stick-On Labels...Not Illustrated
(Italian, Dutch, French, German, and Chinese)
2801255 1Phase 5 Microprocessor Control Panel ONLY
801256 1Phase 5 Microprocessor Control Panel ONLY with Battery Bracket
801206 1Phase 5 OPL Non-Reversing Microprocessor Control Panel Assembly
Complete
(includes illus. nos. 1 through 6)
801207 1Phase 5 OPL Reversing Microprocessor Control Panel Assembly Complete
(includes illus. nos. 1 through 6)
3137222 1Phase 5 OPL Non-Reversing Controller ONLY
137231 1Phase 5 OPL Reversing Controller ONLY
824998 1Phase 5 Battery Clip
4153010 2#6 Star Washer
5150005 2#6-32 x 1/4” Phillips Round Head Machine Screw
6150300 1#10-16 x 1/2” Hex Washer TEK Screw
(for models mfd. as of March 1, 1994)
882541 1Spring Turn Latch (2-piece)...Not Illustrated
(for models mfd. prior to March 1, 1994)
7136048 11/8-Amp (Slo-Blo) Fuse
IMPORTANT:Check label on computer chip to verify correct part number for controller.

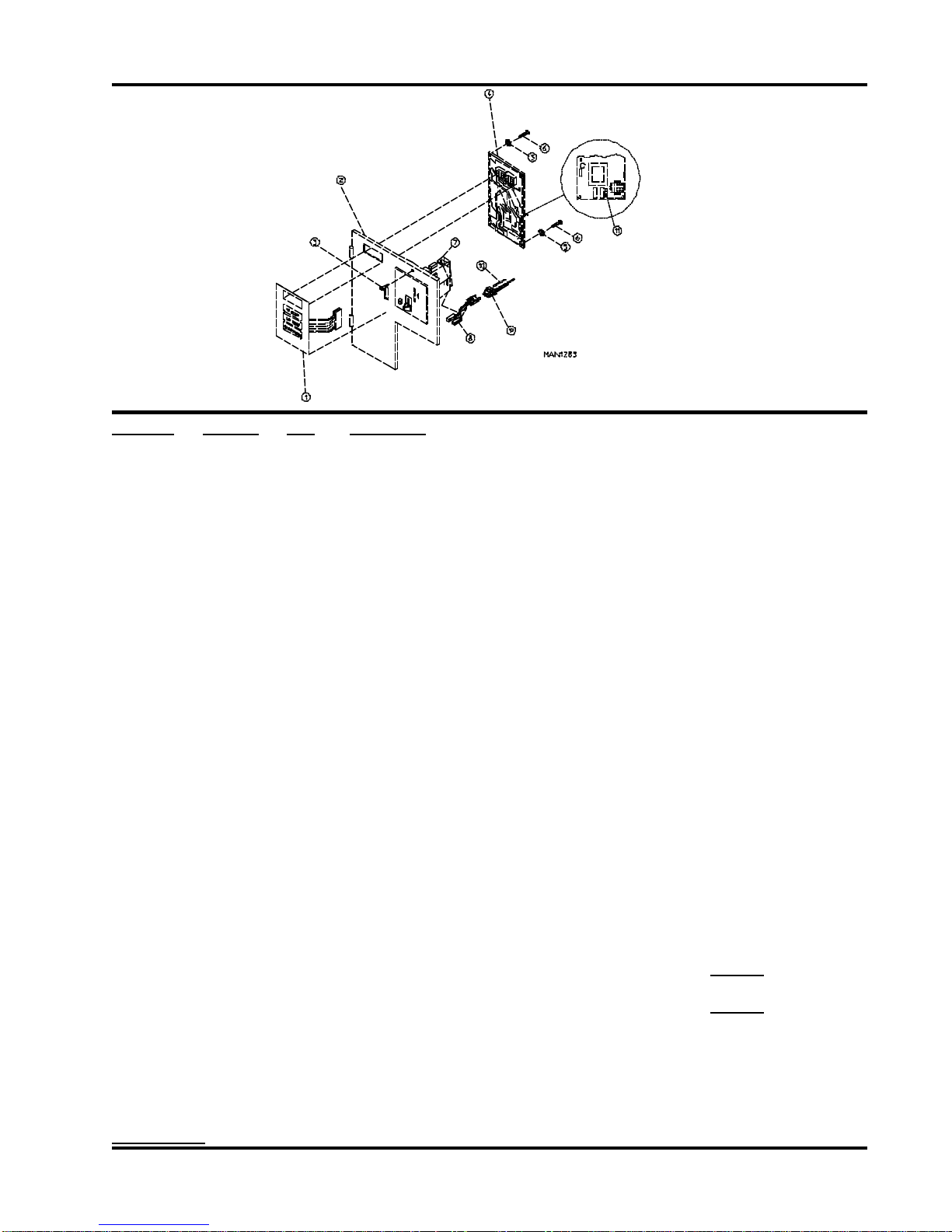

Phase 5 OPL Microprocessor Control Panel Assembly

9
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty. Description
1-------- 124 VAC Control Voltage Transformer
(refer to AD-15/AD-25 Transformer Usage Listing for Gas/Steam
on page 62)
(refer to AD-15/AD-25 Transformer Usage Listing for Electric
Dryers on page 63)
2150300 2#10-16 x 1/2” Hex Washer TEK Screw
3120715 130-Position Terminal Block
4150002 2#6-32 x 1” Phillips Round Head Screw
5151000 2#6-32 Pal Nut
6136057 *1/2-Amp (Slo-Blo) Fuse
7150301 *#8-18 x 7/16” Self Drilling Screw
8136008 *Fuse Block/Strip ONLY
9122641 115-Pin Microprocessor Connector
10 122706 *Sockets ONLY
11 131931 1Steam Valve Relay - 24 VAC
(for mechanical steam damper models Only)
12 150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw
13 137035 1Motor Capacitor
(for mechanical steam damper models Only)
14 323583 1Capacitor Bracket
(for mechanical steam damper models Only)
15 150300 2#10-16 x 1/2” Hex Washer TEK Screw
16 132002 1Transformer
(for mechanical steam damper models 208 volts and higher)
17 150300 2#10-16 x 1/2” Hex Washer TEK Screw
*As required.

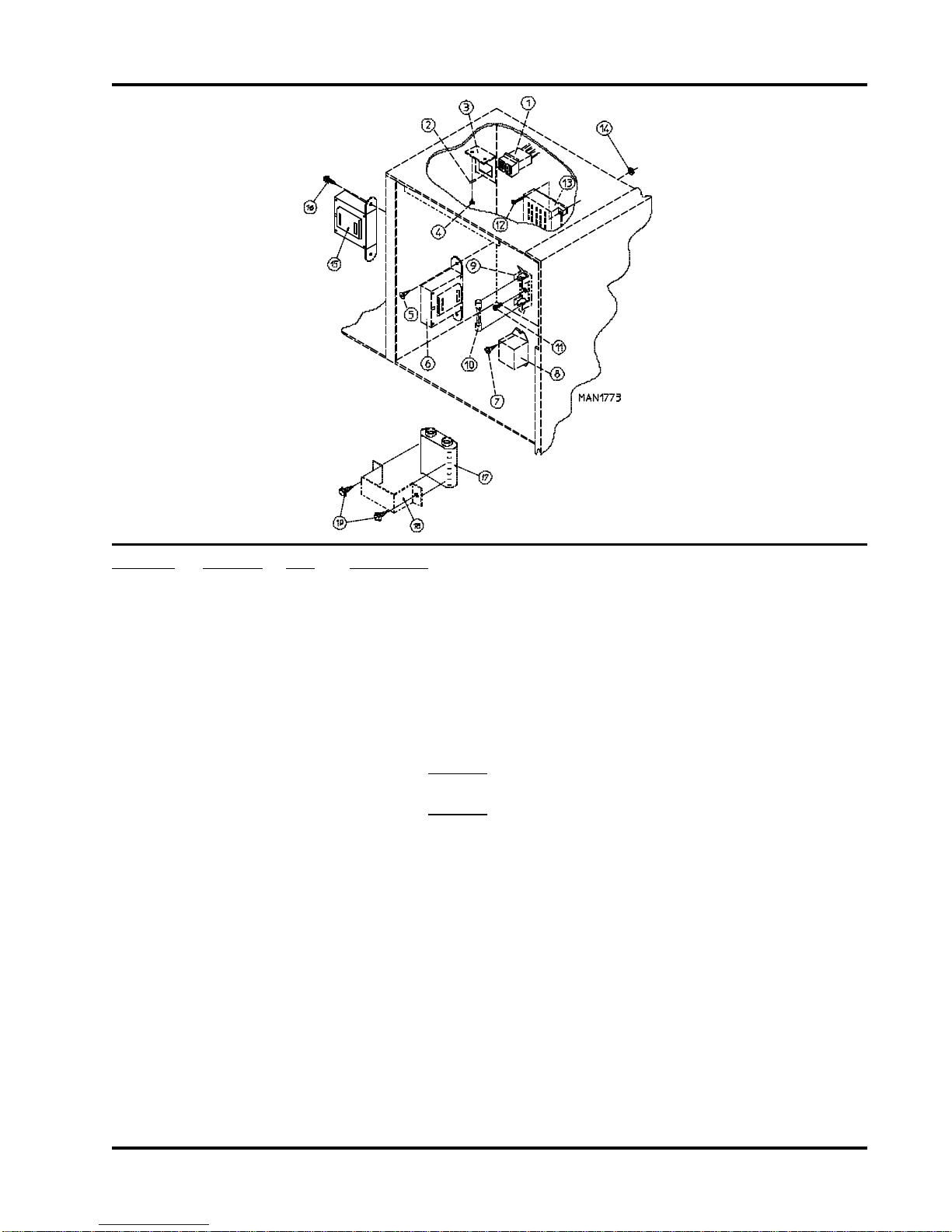

Phase 5 Coin and OPL Microprocessor Control Box Assembly
Dryers

10
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty. Description
1802112 1Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 6)
802117 1Microprocessor Coin Vault ONLY
802110 1Non-Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 6)
802115 1Non-Microprocessor Coin Vault ONLY
2160028 1Cam for 1/4 Turn Lock ONLY
3875061 11/4 Turn Lock with Key and Cam
160105* 11/4 Turn Mer-Pel Key ONLY
4802020 11/4 Turn Coin Box Assembly
(includes illus. nos. 2 through 5)
802019 11/4 Turn Coin Box ONLY without Faceplate
125915 1High Security (Greenwald) Coin Box ONLYwith Key
5802018 11/4 Turn Coin Box Faceplate ONLY
6152014 41/4-20 Free Spin Wash Nut
7102502 1Control Door Support Rod
8102601 1Control Door Rod Retainer Clip
9102603 1Control Door Rod Catch
*Specify key number when ordering.
AD-15/AD-25 Control Vault Assembly

11
Telephone: [phone] Fax: [phone]

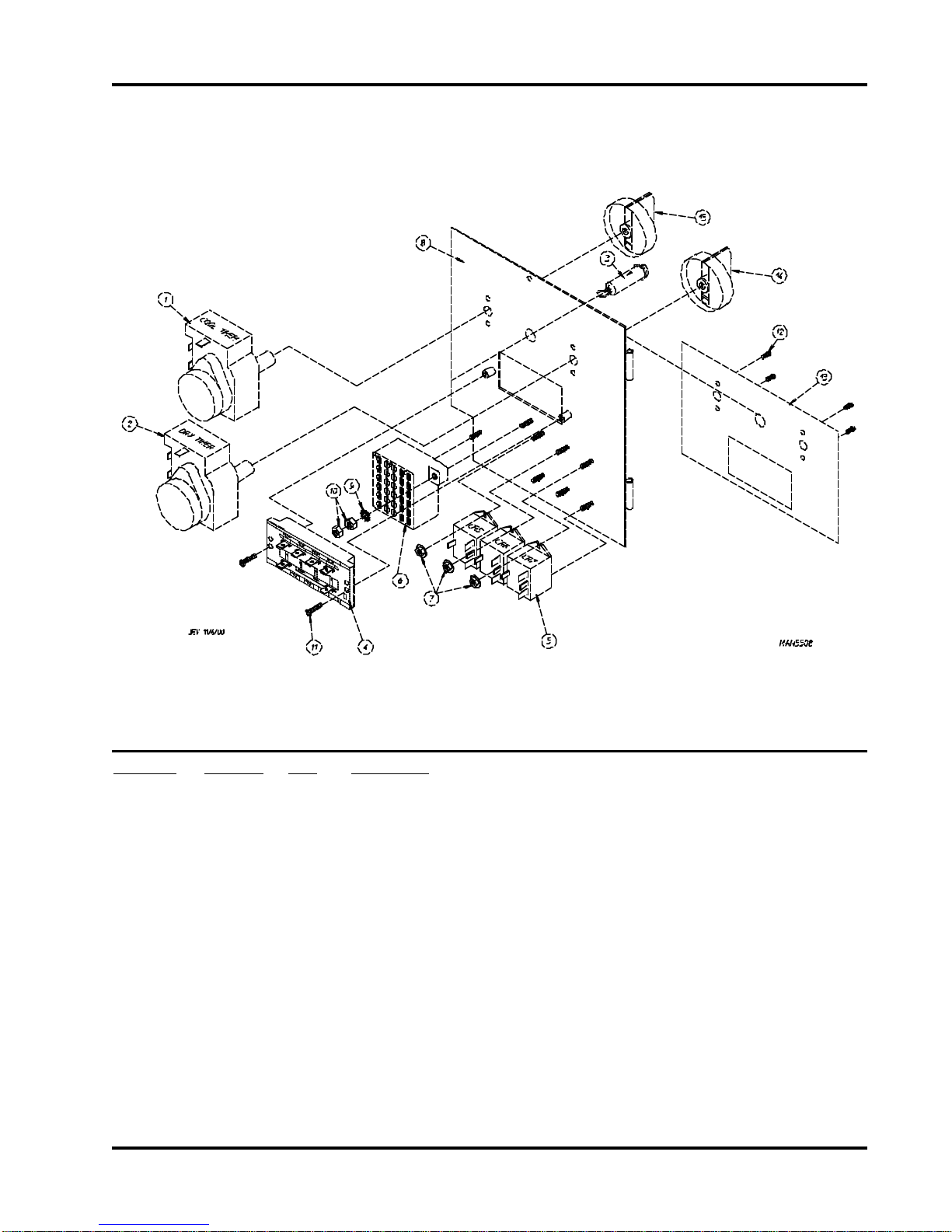

Dual Timer “Tap Touch” Controls
For Models Mfd. as of November 3, 2000
Illus. No. Part No. Qty. Description
1124030 115 Minute Timer - 24 VAC
2124025 160 Minute Timer - 24 VAC
3824175 1Red Pilot Light - 24 VAC
4122301 1“Tap Touch” Switch
5131932 3Relay SPST 24v
6120730 130-Position Terminal Block
7151000 6#6-32 Pal Nut
8882903 1Dual Timer Panel Complete
(includes illus. nos. 1 through 15)
850392 -Dual Timer Panel ONLY
9153010 2#6 Star Washer
10 152000 3#6-32 Hex Nut
11 150207 2#10-24 x 1/2” Phillips Pan Head Machine Screw
12 150110 4#8-32 x 1/4” Phillips Round Head Machine Screw
13 112563 1Dual Timer Panel Overlay
14 124104 1Pure Touch Knob with Red Pointer
15 124105 1Pure Touch Knob with Blue Pointer

12
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty. Description
1123005 1Red Indicator Light - 24 VAC
2122400 1Rocker Heat Selector Switch
3824015 1Dual Timer Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 21)
800051 1Dual Timer Control Panel ONLY
4131917 1Push-To-Start Relay - 24 VAC
5150207 2#10-24 x 1/2” Round Head Machine Screw
6154001 2#10-24 Speed Nut
7152000 2#6-32 Hex Nut
8153010 2#6 Star Washer
9120713 118-Position Terminal Block
10 150002 2#6-32 x 1” Phillips Round Head Machine Screw
11 150110 4#8-32 x 1/4” Phillips Machine Screw
12 150001 2#6-32 x 1/2” Phillips Round Head Machine Screw
13 131931 1Dual Timer Relay - 24 VAC
14 151000 2#6-32 Pal Nut
15 112050 1Dual Timer Label ONLY
16 150415 1#10-16 x 1/2” Phillips Round Head Crimptite Screw
(for models mfd. as of March 1, 1994)
882541 1Spring Turn Latch (2-piece)...Not Illustrated
(for models mfd. prior to March 1, 1994)
17 124103 2Arrow Timer Knob
18 124025 160 Minute Timer - 24 VAC
19 124030 115 Minute Timer - 24 VAC
20 122602 19-Pin Connector ONLY
21 122700 8Pin Terminal ONLY
-- 122801 1Pin/Socket Extraction Tool
Dual Timer Control Panel Assembly
For Models Mfd. prior to November 3, 2000

13
Telephone: [phone] Fax: [phone]
Non-Microprocessor Coin Meter Control Panel Assembly
For Models Mfd. as of January 25, 2002
Illus. No. Part No. Qty. Description
1123005 1Red Indicator Light - 24 VAC
2122400 1Rocker Heat Selector Switch
3824172 1Coin Meter Control Panel Assembly Less Coin Meter
(includes illus. nos. 2 through 5, 7, and 8)
824109 1Coin Meter Control Panel ONLY
4131932 124 VAC Relay
154001 2#10-24 Speed Nut (used on P/N 131932, 24 VAC Relay)
5123225 1Green Push-To-Start Button
6125601 125¢ Coin Meter - 24 VAC (specify timing)
7153010 2#6 Star Washer
8152016 2Hex Nut
9120712 112-Position Terminal Block
10 150300 1#10-16 x 1/2” Hex Washer TEK Screw
11 122602 19-Pin Connector
12 122700 7Pin Terminal ONLY
--- 122801 1Pin Extraction Tool
NOTE: For Coin Meter Replacement Parts refer to page 61.

14
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Non-Microprocessor Coin Meter Control Panel Assembly
For Models Mfd. prior to January 25, 2002
Illus. No. Part No. Qty. Description
1123005 1Red Indicator Light - 24 VAC
2122400 1Rocker Heat Selector Switch
3824020 1Coin Meter Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 6 and 8 through 12)
800054 1Coin Meter Control Panel ONLY
4131917 1Push-To-Start Relay - 24 VAC
5150207 2#10-24 x 1/2” Round Head Machine Screw
6154001 2#10-24 Speed Nut
7* 125601 125¢ Coin Meter - 24 VAC (specify timing)
8150303 2#4 x 3/4” Pan Head “A” Screw
9120712 112-Position Terminal Block
10 150309 1#10-16 x 1/2” Hex Head TEK Crimptite Screw
(for models mfd. as of March 3, 1994)
882541 1Spring Turn Latch (2-piece)...Not Illustrated
(for models mfd. as of March 3, 1994)
11 122602 19-Pin Connector ONLY
12 122700 9Pin Terminal ONLY
--- 122801 1Pin/Socket Extraction Tool
*Consult factory for coin meters not listed.
NOTE: For Coin Meter Replacement Parts refer to page 61.

15
Telephone: [phone] Fax: [phone]
Non-Microprocessor Control Box Assembly
Illus. No. Part No. Qty. Description
1122603 19-Pin Socket Connector
2122701 9Socket Terminal ONLY
122801 1Pin/Socket Extraction Tool
3315010 19-Pin Connector Bracket
4150300 2#10-16 x 1/2” Hex Washer TEK Screw
5150300 2#10-16 x 1/2” Hex Washer TEK Screw
6--------- 124 VAC Control Voltage Transformer
(refer to AD-15/AD-25 Transformer Usage Listing for Gas/Steam
Dryers on page 62)
(refer to ADE-15/ADE-25 Transformer Usage Listing for Electric
Dryers on page 63)
7150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw
8131931 1Steam Valve Relay (for mechanical steam damper models Only) - 24 VAC
9136008 *Fuse Block/Strip ONLY
10** 136057 *1/2-Amp (Slo-Blo) Fuse ONLY
11 150301 *#8-18 x 7/16” Phillips Pan Head TEK Screw
12 150002 2#6-32 x 1” Phillips Round Head Machine Screw
13 120715 130-Position Terminal Block
14 151000 2#6-32 Pal Nut
15 132002 1Transformer (for mechanical steam damper 208 VAC and higher)
16 150300 2#10-16 x 1/2” Hex Washer TEK Screw
17 137035 1Motor Capacitor (for mechanical steam damper models Only)
18 323583 1Capacitor Bracket (for mechanical steam damper models Only)
19 150300 2#10-16 x 1/2” Hex Washer TEK Screw
*As required.
** Check fuse on dryer for verification.

16
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty. Description
1* 160199 1Key ONLY for Slide Meter Lock
2160099 1Lock/Key/Cam and Hardware
3125908 1Slide Meter Accumulator - 24 VAC
4122643 9Mate-N-Lock Pin ONLY
5122642 19-Position Mini-Universal Socket
6152014 41/4-20 Free Spin Wash Nut
7122631 26-Position Connector (mate-n-lock)
8131917 1Push-To Start Relay - 24 VAC
9883034 1White Slide Meter Case
883035 1Coral Blue Slide Meter Case
883036 1Ivory Slide Meter Case
10 122603 19-Position Connector (mate-n-lock)
11 122701 21 Socket Terminal ONLY
12 883165 1Slide Meter Case ONLY with Door Less Lock
13 154203 61/4” Drive Rivet
14 801700 1Slide Meter Extension ONLY with Mirror
(includes illus. nos. 14 and 15)
15 315404 1Stainless Steel Mirror ONLY
16 -------- 1Typical Slide Meter Coin Chute (not available from ADC)
17 123005 1Red Indicator Light - 24 VAC
18 122400 1Rocker Heat Selector Switch
19 -------- 1Typical Slide Meter Coin Box (not available from ADC)
20 801701 1Slide Meter Case Mounting Plate
21 102502 1Control Door Support Rod
22 102601 1Control Door Rod Retainer Clip
23 102603 1Control Door Support Rod Catch
24 883044 1Slide Meter Extension
25 883038 1White Slide Meter Timer Door
883039 1Coral Blue Slide Meter Timer Door
883040 1Ivory Slide Meter Timer Door
*Specify key number when ordering.

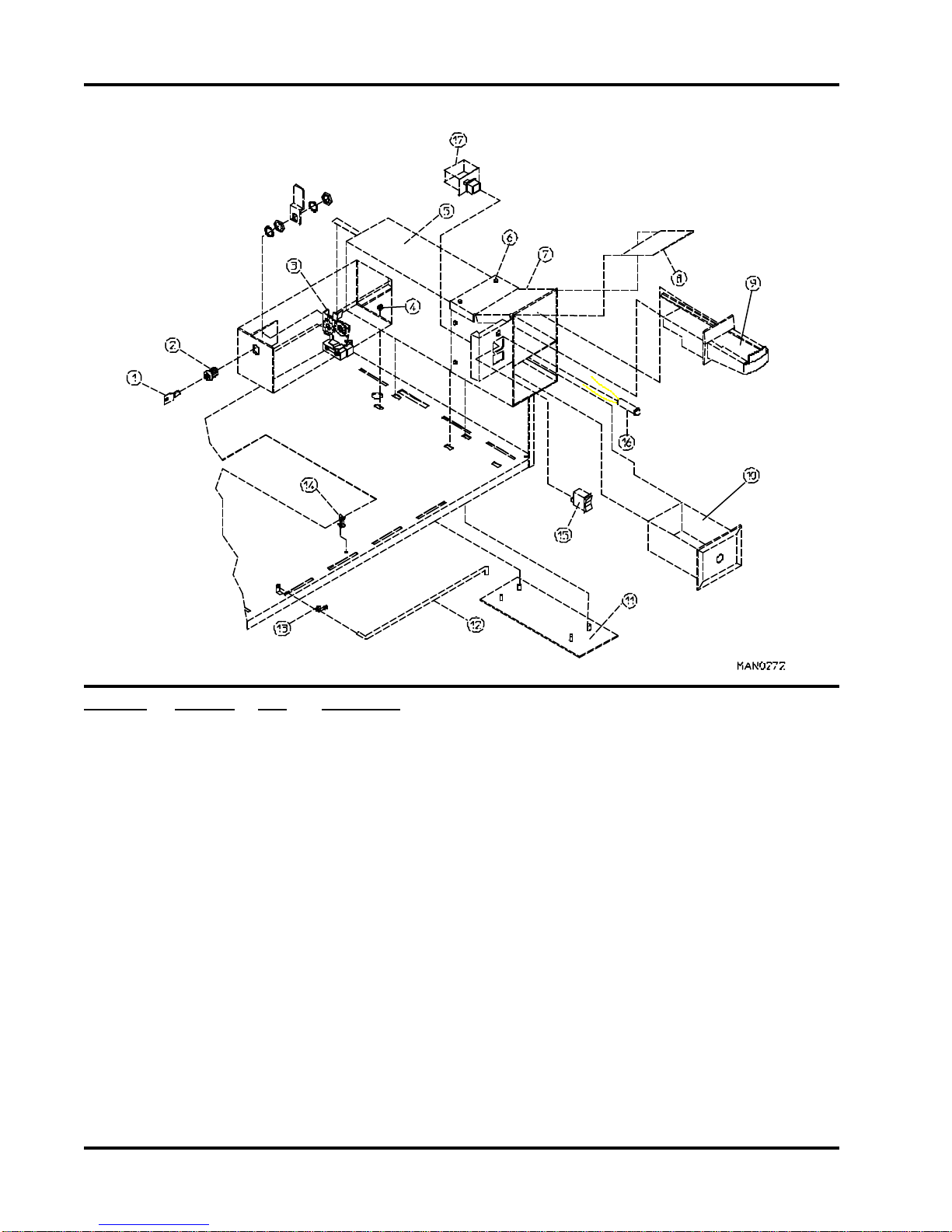

Slide Meter Case Assembly
For Models Mfd. as of March 13, 2001

17
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty. Description
1* 160199 1Key ONLY for Slide Meter Lock
2160099 1Lock/Key/Cam and Hardware
3125908 1Slide Meter Accumulator - 24 VAC
4122643 9Mate-N-Lock Pin ONLY
5122642 19-Position Mini-Universal Socket
6152014 41/4-20 Free Spin Wash Nut
7122631 26-Position Connector (mate-n-lock)
8131917 1Push-To Start Relay - 24 VAC
9881100 1Slide Meter Modular J-Box Assembly
10 122603 19-Position Connector (mate-n-lock)
11 122701 21 Socket Terminal ONLY
12 883165 1Slide Meter Case ONLY with Door Less Lock
13 154203 61/4” Drive Rivet
14 801700 1Slide Meter Extension ONLY with Mirror
(includes illus. nos. 14 and 15)
15 315404 1Stainless Steel Mirror ONLY
16 -------- 1Typical Slide Meter Coin Chute (not available from ADC)
17 123005 1Red Indicator Light - 24 VAC
18 122400 1Rocker Heat Selector Switch
19 -------- 1Typical Slide Meter Coin Box (not available from ADC)
20 801701 1Slide Meter Case Mounting Plate
21 102502 1Control Door Support Rod
22 102601 1Control Door Rod Retainer Clip
23 102603 1Control Door Support Rod Catch
24 883044 1Slide Meter Extension
*Specify key number when ordering.

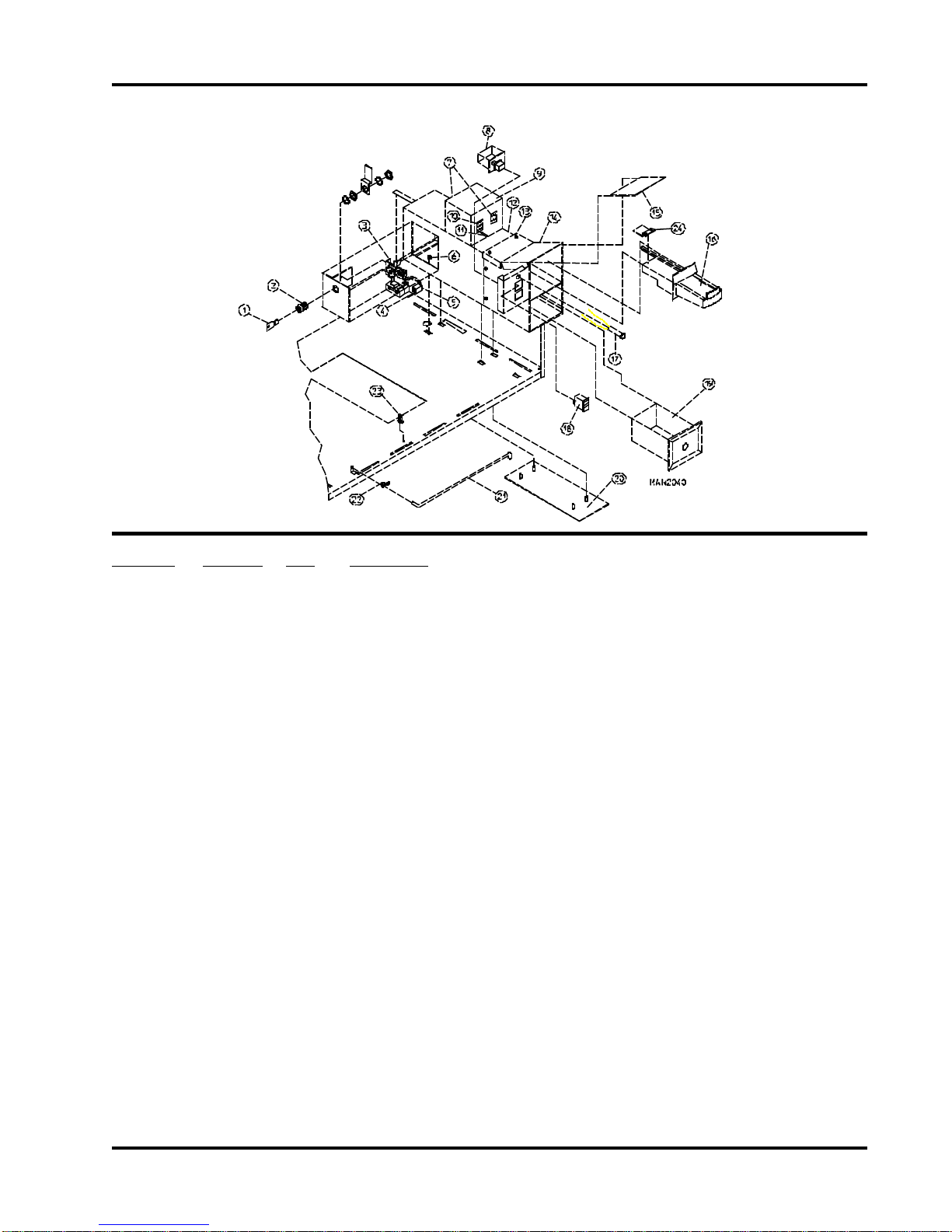

Slide Meter Case Assembly
For Models Mfd. Between January 13, 1995 and March 13, 2001

18
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

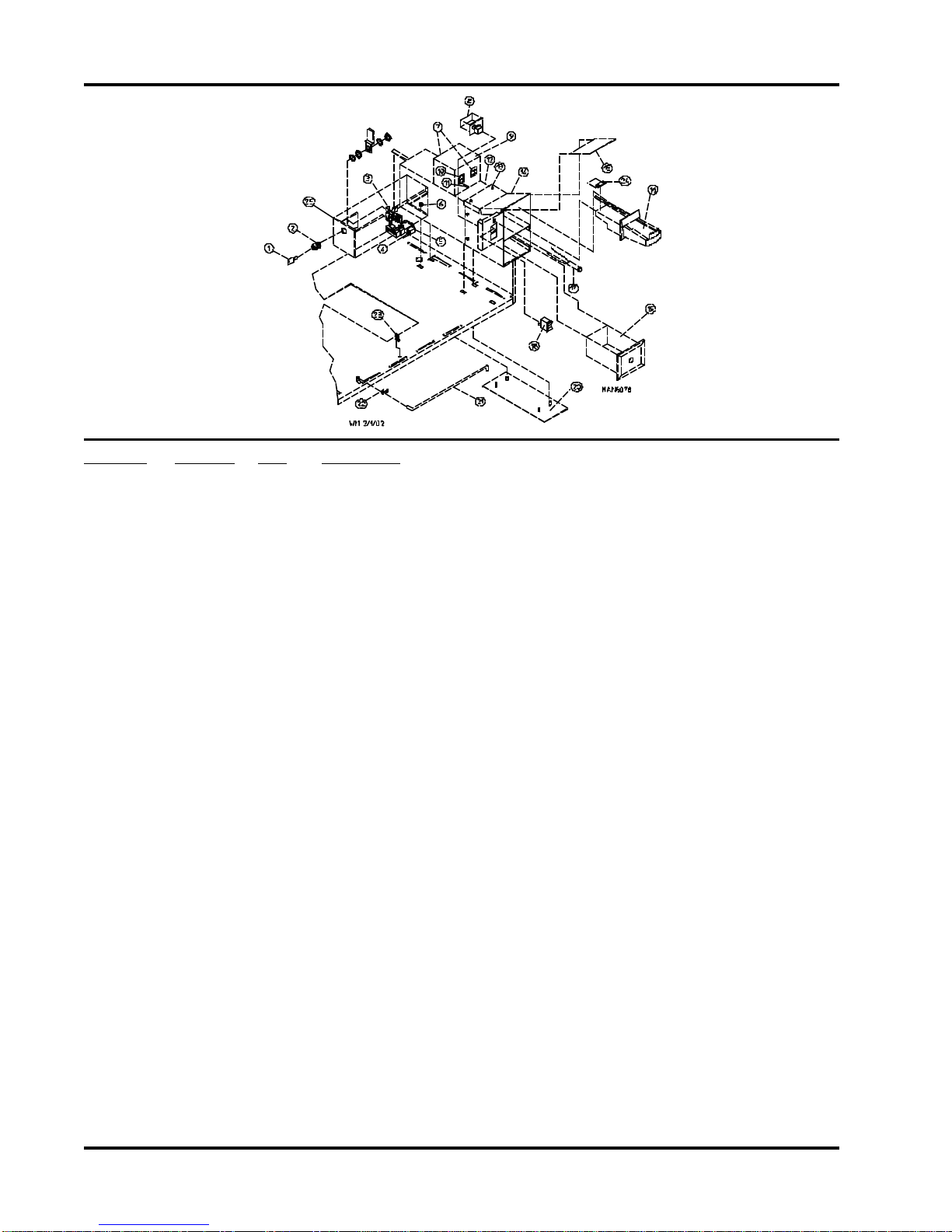

Slide Meter Case Assembly
Illus. No. Part No. Qty. Description
1* 160199 1Key ONLY for Slide Meter Lock
2160099 1Lock/Key/Cam and Hardware
3125908 1Slide Meter Accumulator - 24 VAC
4152014 41/4-20 Free Spin Wash Nut
5883165 1Slide Meter Case ONLY with Door Less Lock
6154203 61/4” Drive Rivet
7801700 1Slide Meter Extension ONLY with Mirror
(includes illus. nos. 14 and 15)
8315404 1Stainless Steel Mirror ONLY
9-------- 1Typical Slide Meter Coin Chute (not available from ADC)
10 -------- 1Typical Slide Meter Coin Box (not available from ADC)
11 801701 1Slide Meter Case Mounting Plate
12 102502 1Control Door Support Rod
13 102601 1Control Door Rod Retainer Clip
14 102600 1Control Door Support Rod Catch
15 122400 1Rocker Heat Selector Switch
16 123005 1Red Indicator Light - 24 VAC
17 131917 1Push-To-Start Relay - 24 VAC
*Specify key number when ordering.
For Models Mfd. prior to January 13, 1995
