ADC AD-115DR User manual

AD-115ES / AD-115DR
ML-115 / ML-115DR
Installation Manual
Phase 7 / Dual Timer / Phase 5 / S.A.F.E. System
ADC Part No. 113202 -27
AVERTISSEMENT:
RISQUE D’INCENDIE OU D’EXPLOSION
Le non-respect des avertissements de
sécurité pourrait entraîner des blessures
graves, la mort ou des dommages
matériels.
– N’entreposer pas et n’utilisez pas
d’essence ni d’autres vapeurs ou
liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
– QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ
●●
●●
●Ne tentez pas d’allumer d’appareil.
●●
●●
●Ne touchez à aucun interrupteur. Ne
vous servez pas des téléphones se
trouvant dans le bâtiment où vous
vous trouvez.
●●
●●
●Évacuez la pièce, le bâtiment ou la zone.
●●
●●
●Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●●
●●
●Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
– L’installation et l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualifié ou par le fournisseur
de gaz.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
●●
●●
●Do not try to light any appliances.
●●
●●
●Do not touch any electrical switch;
do not use any phone in your
building.
●●
●●
●Clear the room, building or area of
all occupants.
●●
●●
●Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
●●
●●
●If you cannot reach your gas
supplier, call the fire department.
– Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
!!
!!
!!!
!!
!
American Dryer Corporation
88 Currant Road, Fall River MA 02720-4781 USA
Telephone: [phone] / Fax: [phone]
e-mail: [email protected] / www.adclaundry.com

Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of efficient, trouble free and, most importantly, safe operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALLSAFETYPRECAUTIONSdisplayedon theequipment orspecifiedin theinstallationmanual includedwith
the dryer.
Thefollowing “FORYOURSAFETYCAUTION”must bepostednear the dryerin aprominent location.
“IMPORTANTNOTETOPURCHASER”
Informationmustbe obtainedfrom your localgas supplier on
the instructions to be followed if the user smells gas. These
instructionsmustbepostedinaprominentlocationnearthedryer.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.
Important
For your convenience, log the following information:
DATEOFPURCHASE ___________________________________________ MODEL NO. ______________________________
RESELLER’SNAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADCfactory. When orderingreplacement partsfrom thefactory,
you canFAX yourorder to ADCat+1 [phone]or telephoneyourorder directlytothe ADCParts Departmentat+1 (269)
923-3000. Pleasespecify thedryer modelnumberandserialnumberin additionto thedescriptionand partnumber,so that
your order is processed accurately and promptly.
These instructions are only valid if the following country code is on the appliance… If this code is not present on the
appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning the
modification of the appliance to the condition of use for the country.
In accordance with EN ISO 3166-1, the names of countries shall be represented by the following codes:
GB United Kingdom
IE Ireland
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet appareil
ou de tout autre appareil.

IMPORTANT
YOUMUSTDISCONNECTANDLOCKOUTTHEELECTRICSUPPLYANDTHEGAS
SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA
(OccupationalSafety and HealthAdministration)STANDARDS.
WARNING
CHILDRENSHOULDNOTBEALLOWEDTOPLAYONORNEARTHEDRYER(S).
CHILDRENSHOULDBESUPERVISEDIFNEARDRYERSINOPERATION.
CAUTION
DRYERSSHOULDNEVERBELEFTUNATTENDEDWHILEINOPERATION.
“Caution:Labelallwirespriorto
disconnection when servicing
controls.Wiring errors can cause
improper operation.”
«Attention:Aumomentde l’entretien des commandes,
étiquetez tous les fils avant de les débrancher. Des
erreursde câblagepeuvententraîner unfonctionnement
inadéquat.»
In the State of Massachusetts, the following installation instructions apply:
■Installations and repairs must be performed by a qualified or licensed contractor, plumber,
or gasfitter qualified or licensed by the State of Massachusetts.
■If using a ball valve, it shall be a T-handle type.
FORYOURSAFETY
DONOTDRYMOPHEADSINTHEDRYER.
DONOTUSEDRYERINTHEPRESENCEOFDRYCLEANINGFUMES.

IMPORTANT
PLEASEOBSERVEALLSAFETYPRECAUTIONSdisplayedontheequipmentand/or
specified in the installation manual included with the dryer.
Dryer mustnotbe installed or stored in an area where it willbe exposed to water or weather.
The wiring diagram for the dryer is located in the front electrical control box area.
IMPORTANT
Dryer must be installed in a location/environment in which the ambient temperature
remains between 40° F (4.44° C) and 130° F (54.44° C).
WARNING
UNDER NO CIRCUMSTANCES should the dryerdoor switches, lint drawerswitch,
or heat safety circuit ever be disabled.
DONOTMODIFYTHISAPPLIANCE.
The dryer must never be operated with any of the back guards, outer tops, or service
panelsremoved. PERSONALINJURYORFIRECOULDRESULT.
DRYERMUSTNEVERBEOPERATEDWITHOUTTHELINTFILTER/SCREENIN
PLACE,EVENIFANEXTERNALLINTCOLLECTIONSYSTEMISUSED.
If the hi-limit switch trips, a service call is required to investigate the reason and
resolve the issue.

SECTIONI
SAFETYPRECAUTIONS .................................................................................................................................................... 2
SECTIONII
SPECIFICATIONS/COMPONENTIDENTIFICATION .................................................................................................... 4
A. AD-115ESSpecifications ........................................................................................................................................4
B. ADG-115DRSpecifications .....................................................................................................................................7

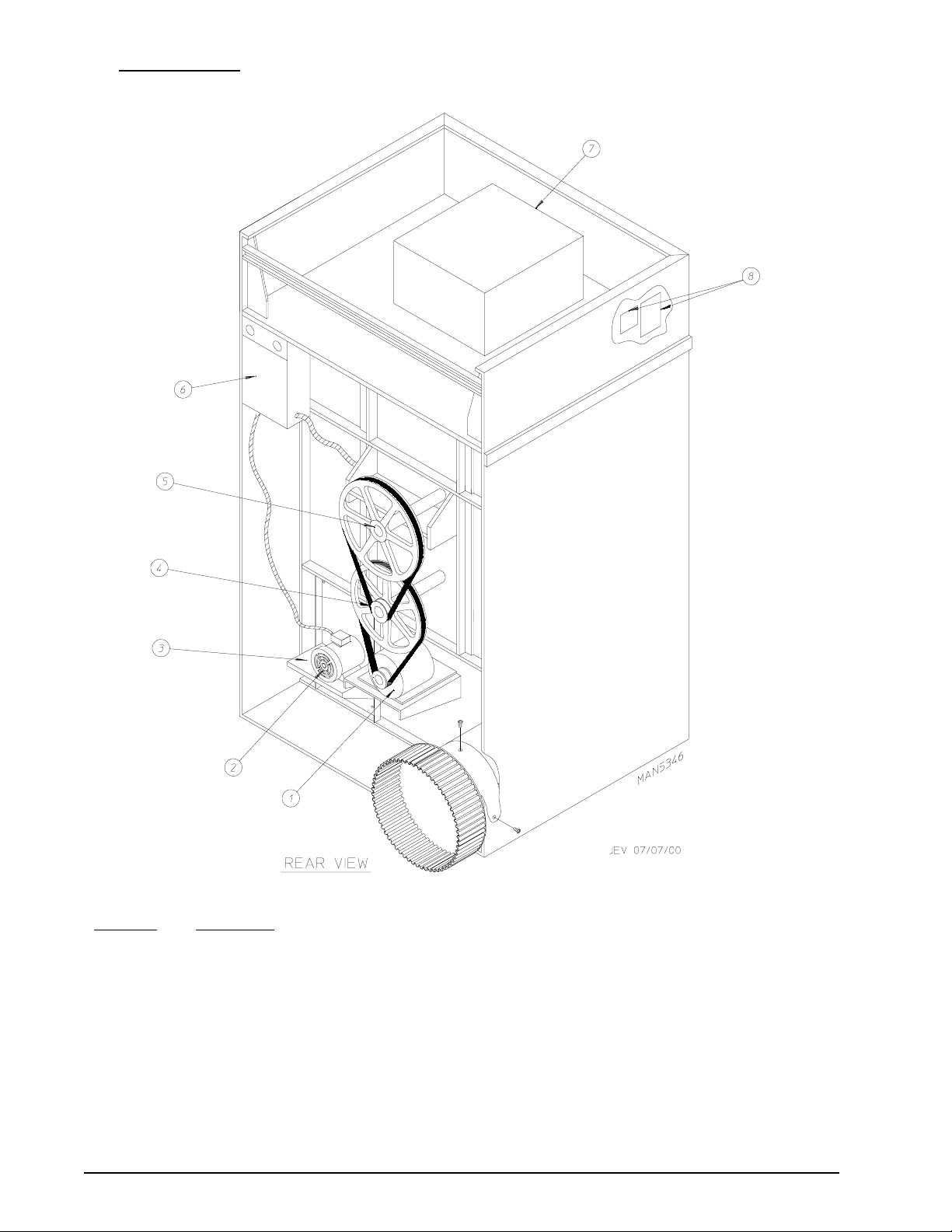

C. Component Identification........................................................................................................................................9
SECTIONIII
INSTALLATIONPROCEDURES .......................................................................................................................................11
A. Location Requirements ......................................................................................................................................... 11
B. Unpacking and Setting Up .................................................................................................................................... 12
C. Dryer Enclosure Requirements ............................................................................................................................. 15
D. FreshAir Supply Requirements ............................................................................................................................ 16
E. Exhaust Requirements ........................................................................................................................................... 17
F. ElectricalInformation ............................................................................................................................................ 23
G. Gas Information ..................................................................................................................................................... 27
H. Steam Information ................................................................................................................................................. 31
I. Water Information ................................................................................................................................................. 34
J. Preparation for Operation and Start-Up ................................................................................................................ 37
K. Preoperational Test ............................................................................................................................................... 38
L. Preoperational Instructions................................................................................................................................... 40
M. Shutdown Instructions ......................................................................................................................................... 41
SECTIONIV
SERVICE/PARTSINFORMATION ................................................................................................................................. 42
A. Service ................................................................................................................................................................... 42
B. Parts....................................................................................................................................................................... 42
SECTIONV
WARRANTYINFORMATION .......................................................................................................................................... 43
A. Returning Warranty Cards .................................................................................................................................... 43
B. Warranty................................................................................................................................................................ 43
C. Returning Warranty Parts...................................................................................................................................... 43
SECTIONVI
ROUTINEMAINTENANCE ............................................................................................................................................... 45
A. Cleaning................................................................................................................................................................. 45
B. Adjustments.......................................................................................................................................................... 46
C. Lubrication ............................................................................................................................................................ 46
SECTIONVII
DATALABELINFORMATION .......................................................................................................................................... 47
SECTIONVIII
PROCEDUREFORFUNCTIONALCHECKOFREPLACEMENTCOMPONENTS....................................................... 48
SECTIONIX
MANUALRESETBURNERHI-LIMITINSTRUCTIONS ................................................................................................. 51
A. Phase 7 .................................................................................................................................................................. 51
B. Dual Timer / Phase 5.............................................................................................................................................. 51
SECTIONX
PROGRAMMING .............................................................................................................................................................. 52
A. Non-CoinProgramming ........................................................................................................................................ 52
B. CoinProgramming ................................................................................................................................................. 53
Table of Contents

2 American Dryer Corp. 113202-27
SECTIONI
SAFETYPRECAUTIONS
WARNING: Foryoursafety,theinformationinthismanualmustbefollowedtominimizetheriskof
fireorexplosionorto prevent propertydamage,personalinjury,orlossoflife.
WARNING: The dryermust never beoperated withanyof thebackguards, outertops, or
servicepanels removed. PERSONALINJURYOR FIRE COULDRESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. DO NOT spray aerosols in the vicinity of this appliance while it is in operation.
3. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event that
the user smells gas. These instructions should be posted in a prominent location.
4. WHAT TO DO IF YOU SMELL GAS:
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALL occupants.
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you cannot reach your gas supplier, call the fire department.
5. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
6. Dryers must be exhausted to the outdoors.
7. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dry only waterwashed fabrics. DONOTdry articles spotted or washedin dry
cleaningsolvents,acombustibledetergent,industrialchemicals,or“allpurpose”cleaner.
EXPLOSIONCOULDRESULT.
WARNING: DONOT dryrags or articlescoated or contaminatedwithgasoline, kerosene, oil,paint,
or wax. EXPLOSIONCOULD RESULT.
WARNING: DONOTdrymopheads. Contaminationby wax orflammablesolventswill create a
firehazard.
WARNING: DONOTuseheatfor drying articlesthatcontain plastic, foam,spongerubber, or
similarlytexturedrubbermaterials. Dryinginaheated tumblermaydamageplasticsor
rubberand may createafire hazard.

113202-27 www.adclaundry.com 3
8. The possible presence of residual quantities of aggressive or decomposed chemicals in the load may produce
damage to the machine and harmful fumes.
9. A program should be established for the inspection and cleaning of lint in the heating unit area, exhaust
ductwork, and inside the dryer. The frequency of inspection and cleaning can best be determined from
experience at each location.
WARNING: Thecollectionoflintinthe burner area andexhaustductworkcouldcreatea fire hazard.
10. For personal safety, the dryer, when installed must be electrically grounded in accordance with local codes
or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1.
NOTE: FailuretoelectricallygroundthedryerproperlywillVOIDTHEWARRANTY.
11. UNDER NO CIRCUMSTANCES should the dryer door switch, lint door switch, or the heat safety
circuit ever be disabled.
WARNING: PERSONALINJURYORFIRECOULDRESULTSHOULDTHEDRYER
DOORSWITCH,LINTDOOR SWITCH,ORTHEHEATSAFETYCIRCUIT
EVERBE DISABLED.
12. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
13. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articlesleftinthedryerafterthedryingandcoolingcycleshavebeencompletedcould
createafire hazard.
14. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE DRYER.
15. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less
than sixty-six percent (66%), 76 lb (34.5 kg), of its rated capacity.
WARNING: YOUMUSTDISCONNECTANDLOCKOUTTHEELECTRIC SUPPLYAND
THEGASSUPPLYORTHESTEAMSUPPLYBEFOREANYCOVERS OR
GUARDSAREREMOVEDFROMTHE MACHINETOALLOWACCESS
FORCLEANING,ADJUSTING,INSTALLATION,ORTESTINGOFANY
EQUIPMENTPEROSHA(OccupationalSafetyandHealthAdministration)
STANDARD.
IMPORTANT: Dryer mustbe installedina location/environmentin whichtheambient
temperatureremains between40° F(4.44° C)and 130°F(54.44° C).
WARNING: Disconnectpowerbeforeresettingthehi-limit. Thehi-limitislocatedon the left side of
theburner box, lookingat theburner from theback of thedryer. Press andrelease and
thehi-limitwillreset.
CE ONLY
IMPORTANT: Thisappliancemustonlybeinstalledandoperatedinthecountryofdestination
indicatedon the dryer’sdataplate. If theapplianceis to beinstalled and operatedin a
countryotherthan the oneindicatedonthe data plate, adataplateamendment must
beobtainedfromAmericanDryerCorporation.
IEC335 applies.

4 American Dryer Corp. 113202-27
MAXIMUM CAPACITY (DRY WEIGHT) 115 lb 52.16 kg
TUMBLER DIAMETER 42” 106.68 cm
TUMBLER DEPTH 41-1/4” 104.78 cm
TUMBLER VOLUME 33.10 cu ft 937.29 L
TUMBLER / DRIVE MOTOR 3/4 hp 0.56 kW
BLOWER / FAN MOTOR 3 hp 2.24 kW
DOOR OPENING (DIAMETER) 31-3/8” 79.69 cm
DOOR SILL HEIGHT 27-1/2” 69.85 cm
WATER CONNECTION 3/4”-11.5 NH
(North America)
3/4” B.S.P.T. (Outside North America)
DRYERS PER 20’/40’ CONTAINER 4 / 8
DRYERS PER 48’/53’ TRUCK 9 / 10
VOLTAGE AVAILABLE 208-575V 3ø 3,4w 50/60 Hz
APPROXIMATE NET WEIGHT 1,260 lb 571.53 kg
APPROXIMATE SHIPPING WEIGHT 1,400 lb 635.03 kg
AIRFLOW 60 Hz 2,100 cfm 59.47 cmm
50 Hz 1,750 cfm 49.55 cmm
HEAT INPUT 343,000 Btu/hr 86,435 kcal/hr
EXHAUST CONNECTION (DIAMETER) 14” 35.56 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
INLET PIPE CONNECTION 1” F.N.P.T.
1” F.B.S.P.T.
(CE and Australia Only)
VOLTAGE AVAILABLE 208-575V 3ø 3,4w 50/60 Hz
APPROXIMATE NET WEIGHT 1,260 lb 571.53 kg
APPROXIMATE SHIPPING WEIGHT 1,400 lb 635.03 kg
AIRFLOW 60 Hz 2,100 cfm 59.47 cmm
50 Hz 1,750 cfm 49.55 cmm
EXHAUST CONNECTION (DIAMETER) 14” 35.56 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
OVEN SIZE
kW Btu/hr kcal/hr
60 204,700 51,600
72 245,700 61,900
VOLTAGE AVAILABLE 208-575V 3ø 3,4w 50/60 Hz
APPROXIMATE NET WEIGHT 1,555 lb 705.34 kg
APPROXIMATE SHIPPING WEIGHT 1,695 lb 768.84 kg
AIRFLOW 60 Hz 2,100 cfm 59.47 cmm
50 Hz 1,750 cfm 49.55 cmm
STEAM CONSUMPTION 365 lb/hr 166 kg/hr
OPERATING STEAM PRESSURE 125 psi max 8.62 bar
EXHAUST CONNECTION (DIAMETER) 14” 35.56 cm
COMPRESSED AIR CONNECTION 1/4” Quick Connection
COMPRESSED AIR VOLUME 0.75 cfh 0.02 cmh
BOILER HORSEPOWER (NORMAL LOAD) 13 Bhp
SUPPLY CONNECTION (1) 1-1/4” N.P.T.
(Female)
RETURN CONNECTION (1) 1-1/4” N.P.T. (Female)
SECTIONII
SPECIFICATIONS/COMPONENTIDENTIFICATION
A. AD-115ES SPECIFICATIONS
ELECTRIC
STEAM*GAS
NOTE: ADCreserves the right to make changes inspecificationsatanytimewithoutnoticeor
obligation.
Shaded areas are stated in metric equivalents 5/31/16
* Air operated steam damper system requires a clean, dry, and regulated 80 PSI +/- 10 PSI (5.51 bar
+/- 0.68 bar) air supply.

113202-27 www.adclaundry.com 5
AD-115ES SPECIFICATIONS – GAS, ELECTRIC, AND STEAM
NOTE: ADCreserves the right to make changes inspecificationsatanytimewithoutnoticeor
obligation.

6 American Dryer Corp. 113202-27
AD-115ES STEAM
WITH OPTIONAL STEEL STEAM COIL
NOTE: ADCreserves the right to make changes inspecificationsatanytimewithoutnoticeor
obligation.

113202-27 www.adclaundry.com 7
B. ADG-115DR SPECIFICATIONS
MAXIMUM CAPACITY (DRY WEIGHT) 115 lb 52.2 kg
TUMBLER DIAMETER 42” 106.7 cm
TUMBLER DEPTH 41-1/4” 104.77 cm
TUMBLER VOLUME 33.1 cu ft 937.28 L
TUMBLER/DRIVE MOTOR 3/4 hp 0.560 kW
BLOWER/FAN MOTOR 3 hp 2.239 kW
DOOR OPENING (DIAMETER) 31-3/8” 79.7 cm
EXHAUST CONNECTION (DIAMETER) 12” 30.48 cm
DRYERS PER 20’/40’ CONTAINER 4 / 8
DRYERS PER 48’/53’ TRUCK 9 / 10
WATER CONNECTION 3/4-11.5 NH
VOLTAGE AVAILABLE 208-575v 3ø 3, 4w 60 Hz
APPROX. NET WEIGHT 1,260 lb 572 kg
APPROX. SHIPPING WEIGHT 1,400 lb 635 kg
HEAT INPUT 300,000 Btu/hr 75,600 kcal/hr
AIRFLOW 1,682 cfm 47.62 cmm
INLET PIPE CONNECTION 3/4” M.N.P.T.
VOLTAGE AVAILABLE
N / A
APPROX. NET WEIGHT
APPROX. SHIPPING WEIGHT
AIRFLOW
EXHAUST CONNECTION (DIAMETER)
COMPRESSED AIR CONNECTION
COMPRESSED AIR VOLUME
OVEN SIZE
kW Btu/hr kcal/hr
VOLTAGE AVAILABLE
N / A
APPROX. NET WEIGHT
APPROX. SHIPPING WEIGHT
COMPRESSED AIR VOLUME
COMPRESSED AIR CONNECTION
AIRFLOW
STEAM CONSUMPTION
OPERATING STEAM PRESSURE
BOILER HP NORMAL LOAD
SUPPLY CONNECTION
RETURN CONNECTION
GASSTEAM
Shaded areas are stated in metric equivalents 1/5/09
ELECTRIC
NOTE: ADCreserves the right to make changes inspecificationsatanytimewithoutnoticeor
obligation.

8 American Dryer Corp. 113202-27
ADG-115DR SPECIFICATIONS – GAS
NOTE: ADCreserves the right to make changes inspecificationsatanytimewithoutnoticeor
obligation.

113202-27 www.adclaundry.com 9
C. COMPONENT IDENTIFICATION
1. Dryer Front View
Illus. No. Description
1 Microprocessor Control and Keypad PanelAssembly (controls)
2 Control (top access) Door Assembly
3 Main DoorAssembly
4 Lint DoorAssembly
5 Lint Drawer
6 Wire Diagram (located behind control door)
7 Top Console (module)Assembly

10 American Dryer Corp. 113202-27
2. Dryer Rear View
Illus. No. Description
1 Tumbler Drive MotorAssembly
2 Blower Motor MountAssembly
3 Impellor (fan/blower)Assembly
4 Idler Bearing MountAssembly
5 Tumbler Bearing MountAssembly
6* Electric Service Relay Box
7 Heating Unit
8 Data Label and Installation Label
* Electric service connections are made in this box.

113202-27 www.adclaundry.com 11
SECTIONIII
INSTALLATIONPROCEDURES
Installation should be performed by competent professional in accordance with local, state, and country codes.
A. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local, state, and country codes. In the absence of
such codes or ordinances the installation must conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code,ANSI Z223.1/NFPA54, or the Natural Gas and Propane Installation Code, CSAB149.1
or LATEST EDITION (for General Installation and Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: “Thedryermustbeinstalledonnoncombustiblefloorsonly.”
2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
3. This dryer is for use in noncombustible locations.
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in Section D).
5. Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer
Enclosure Requirements in Section C).
6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual
(refer to Dryer Enclosure Requirements in Section C).
7. The dryer must be installed with a proper exhaust duct connection to the outside as noted in this manual
(refer to Exhaust Requirements in Section E).
8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual
(refer to Exhaust Requirements in Section E).
IMPORTANT: Dryershouldbe locatedwhereaminimum amount ofexhaustductwillbe necessary.
9. The dryer must be installed with adequate clearance for air openings into the combustion chamber.
CAUTION: Thisdryer produces combustiblelintand must beexhaustedtothe outdoors. Every6
months,inspecttheexhaustductingandremoveanylintbuildup.
IMPORTANT: Dryer mustbe installedina location/environmentin whichtheambient
temperatureremains between40° F(4.44° C)and 130°F(54.44° C).

12 American Dryer Corp. 113202-27
B. UNPACKING AND SETTING UP
Remove protective shipping material (i.e., plastic wrap and optional shipping box) from dryer.
IMPORTANT: Dryermustbetransported and handledinanuprightpositionat ALL times.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid the
dryer, locate and remove the four (4) lag bolts securing the base of the dryer to the wooden skid. One (1) is
located at the rear base (remove the back panel for access), and two (2) are located in the bottom of the lint
chamber. To remove the two (2) lag bolts located in the lint chamber area, remove the lint drawer and the two (2)
Phillips head screws securing the lint door in place.
1. Leveling Dryer
To level dryer, place 4-inch (10.16 cm) square metal shims (refer to the illustration above) or other
suitable material under the base pads. It is suggested that the dryer be tilted slightly to the rear.

113202-27 www.adclaundry.com 13
2. The V-belts are disconnected from the basket drive motor for shipping. Reconnect V-belts, using the
following instructions, before starting the dryer.
a. Remove hardware holding back (belt) guard and remove guard from dryer.
b. Lay one (1) belt into motor sheave (pulley) groove and wind belt into corresponding groove of the idler
pulley by rotating the idler pulley by hand. Rotate the idler pulley an extra turn or two (2) to ensure that
the belt is tracking properly in the motor sheave (pulley) and idler pulley grooves without twisting.
c. Repeat procedure to reconnect the remaining belt.
d. Replace back (belt) guard and hardware.
3. If more headroom is needed when moving dryer into position, the top console (module) may be removed,
usingthefollowinginstructions.
a. Disconnect the ground wire (A) at the rear upper left hand corner of dryer.
b. Remove the eight (8) sets of nuts and washers (B) holding the console (module) to base.
c. Open the control door and control panel, and disconnect the white 15-pin plug connector (C) located in
the base of the control box.
d. Disconnect white plug connector located outside backside of the control box (provides power to heat
circuit).
e. Lift the console (module) off of the dryer base.
IMPORTANT: The dryer mustbe transportedandhandled in an uprightpositionatALLtimes.

14 American Dryer Corp. 113202-27
WARNING
An exhaust duct transition piece is shipped inside of the dryer’s
tumbler and MUST be installed on the dryer’s
exhaust duct, with the hardware provided, BEFORE
location venting is connected to the dryer.
THIS EXHAUST DUCT TRANSITION PIECE
MUST BE INSTALLED FIRST!
Failure to observe this installation requirement may result in
damage to the dryer, create a FIRE HAZARD and will VOID
the manufacturer’s warranty.
012999JEV-GS/cj P/N: 114092
4. Exhaust Transition Piece
Inside the tumbler of this dryer is an exhaust
transition piece that mustbeinstalled on the outlet
of the exhaust before any further venting is
connected:
a. Remove the exhaust transition piece from the
tumbler and place it on the exhaust outlet.
b. Using the screws provided, secure the exhaust
transition piece to the dryer.
NOTE: Itis recommended thatthis joint betaped
aswellasALLotherductjointstoprevent
moistureandlintfromescapingintothe
building.

113202-27 www.adclaundry.com 15
C. DRYER ENCLOSURE REQUIREMENTS
Even though a 12-inch (30.48 cm) clearance is acceptable, it is recommended that the rear of the dryer be
positioned approximately 3 feet (0.91 meters) from the nearest obstruction (i.e., wall) for ease of installation,
maintenance, and service. Bulkheads and partitions should be made from noncombustible materials. The
clearance between the bulkhead header and the dryer must be a minimum of 4-inches (10.16 cm) and must not
extend more than 4-inches (10.16 cm) to the rear of the dryer front. The bulkhead facing must not be closed in
ALL the way to the top of the dryer. A 2-inch (5.08 cm) clearance is required.
NOTE: Bulkheadfacing shouldnot beinstalleduntil after dryerisinplace. Ceiling area must be
locatedaminimum of 12-inches(30.48cm) above thetopof the dryer. Eventhougha
minimumofonly12-inches(30.48cm) is required, 18-inches(45.72cm)ormoreissuggested
forsteamdryers and especiallyincases where sprinklerheadsare over thedryers.
NOTE: Whenfiresprinklersystemsare located above thedryers,aminimumof18-inches(45.72 cm)
abovethedryerconsole (module) is suggested. Dryersmaybepositionedsidewall to
sidewall;however, 1or 2-inches (2.54cmor 5.08cm)is suggested betweendryers(or wall)
foreaseofinstallationandmaintenance. Allowancesmustbemade for the openingand
closingofthecontrolandlintdoors.

16 American Dryer Corp. 113202-27
D. FRESH AIR SUPPLYREQUIREMENTS
This appliance may only be installed in a room that meets the appropriate ventilation requirements specified in the
nationalinstallationregulations.
When the dryer is operating, it draws in room air, heats it, passes this air through the tumbler, and exhausts it out
of the building. Therefore, the room air must be continually replenished from the outdoors. If the make-up air
is inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and sail switch
“fluttering” problems may result, as well as premature motor failure from overheating.
Air supply (make-up air) must be given careful consideration to ensure proper performance of each dryer. An
unrestricted source of air is necessary for each dryer. An airflow of 2,100 cfm (cubic feet per minute) (59.5 cmm
[cubic meters per minute]) must be supplied to each dryer. As a general rule, an unrestricted air entrance from
the outdoors (atmosphere) of a minimum of 3 square feet (0.28 square meters) is required for each dryer.
To compensate for the use of registers or louvers used over the openings, this make-up air area must be
increased by approximately thirty-three percent (33%). Make-up air openings should not be located in an area
directly near where exhaust vents exit the building.
It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to ALL
the dryers. The dryer must be installed with provisions for adequate combustion and make-up air supply.
EXAMPLE: For a bank of six (6) gas dryers, two (2) openings measuring 3 feet by 3 feet (0.91 meters by 0.91
meters) are acceptable.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low pressure areas.
IMPORTANT: Make-up airmustbeprovided from a sourcefreeof dry cleaningsolventfumes.
Make-upairthatiscontaminatedbydrycleaningsolventfumeswillresultin
irreparabledamageto the motorsandother dryer components.
NOTE: Componentfailureduetodrycleaningsolvent fumes willVOIDTHEWARRANTY.
