ADC AD-236 User manual

AD-236 Installation Manual
Phase 7
ADC Part No. 113215-12
AVERTISSEMENT: Assurez-vous de
bien suivre les instructions données dans
cette notice pour réduire au minimum le
risque d’incendie ou d’explosion ou pour
éviter tout dommage matériel, toute
blessure ou la mort.
—Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
●Ne pas tenter d’allumer d’appareils.
●Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
●Évacuez la pièce, le bâtiment ou la
zone.
●Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L’installation et l’entretien doivent être
assurés par un installateur ou un
service d’entretien qualifié ou par le
fournisseur de gaz.
WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
explosion and to prevent property
damage, personal injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
●Do not try to light any appliance.
●Do not touch any electrical switch;
do not use any phone in your
building.
●Clear the room, building or area of
all occupants.
●Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
●If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781 USA
Telephone: [phone] / Fax: [phone]
e-mail: [e-mail]
www.adclaundry.com

We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer
reserves the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and
material, and to change or discontinue models. The illustrations included in this manual may not depict your particular
dryer exactly.
IMPORTANT
For your convenience, log the following information:
DATE OF PURCHASE ________________________________________________________ MODEL NO. ______________
RESELLER’S NAME __________________________________________________________________________________
Serial Number(s) _____________________________________________________________________________________
____________________________________________________________________________________________________
____________________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the
factory, you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts
Department at [phone]. Please specify the dryer model number and serial number in addition to the
description and part number, so that your order is processed accurately and promptly.
These instructions are only valid if the following country code is on the appliance… If this code is not present on the
appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning
the modification of the appliance to the condition of use for the country.
In accordance with EN ISO 3166-1, the names of countries shall be represented by the following codes:
GB United Kingdom
IE Ireland
AD-236
Retain This Manual in a Safe Place for Future Reference
This product embodies advanced concepts in engineering, design, and safety. If this product is properly
maintained, it will provide many years of safe, efficient, and trouble free operation.
Only qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation
manual included with the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the
instructions to be followed if the user smells gas. These
instructions must be posted in a prominent location near the dryer.

IMPORTANT
YOU MUST DISCONNECTAND LOCKOUTTHE ELECTRIC SUPPLYAND THE
GAS SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS
ARE REMOVED FROM THE MACHINE TOALLOWACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA
(Occupational Safety and Health Administration) STANDARDS.
WARNING
CHILDREN SHOULD NOT BE ALLOWED TO PLAY ON OR NEAR THE
DRYER(S).
CHILDREN SHOULD BE SUPERVISED IF NEAR DRYERS IN OPERATION.
CAUTION
DRYERS SHOULD NEVER BE LEFT UNATTENDED WHILE IN OPERATION.
“Caution: Label all wires prior
to disconnection when servicing
controls.Wiring errors can cause
improper operation.”
«Attention: Au moment de l’entretien des commandes,
étiquetez tous les fils avant de les débrancher. Des
erreurs de câblage peuvent entraîner un fonctionnement
inadéquat et dangereux.»
Proposition 65
Use of this product could expose you to substances from fuel combustion
that contain chemicals known to the State of California to cause cancer,
birth defects and other reproductive harm.
In the State of Massachusetts, the following installation instructions apply:
■Installations and repairs must be performed by a qualified or licensed contractor,
plumber, or gasfitter qualified or licensed by the State of Massachusetts.
■If using a ball valve, it shall be a T-handle type.
■A flexible gas connector, when used, must not exceed 3 feet.
!WARNING

IMPORTANT
PLEASEOBSERVEALLSAFETYPRECAUTIONSdisplayedontheequipmentand/
or specified in the installation manual included with the dryer.
Dryer must not be installed or stored in an area where it will be exposed to water or
weather.
The wiring diagram for the dryer is located in the front electrical control box area.
IMPORTANT
Dryer must be installed in a location/environment, which the ambient temperature
remains between 40° F(4.44° C) and 130° F (54.44° C).
FOR YOUR SAFETY
DO NOT DRY MOP HEADS IN THE DRYER.
DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES.
WARNING
UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch,
or heat safety circuit ever be disabled.
DO NOT MODIFY THIS APPLIANCE.
The dryer must never be operated with any of the back guards, outer tops, or service
panels removed. PERSONALINJURY OR FIRE COULD RESULT.
DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN
IN PLACE, EVEN IFAN EXTERNAL LINT COLLECTION SYSTEM IS USED.
If a hi-limit switch trips, a service call is required to investigate the reason and resolve
the issue.

SECTION I
SAFETY PRECAUTIONS ............................................................................................................................. 2
SECTION II
SPECIFICATIONS.......................................................................................................................................... 5
SECTION III
INSTALLATION PROCEDURES ................................................................................................................ 7
A. Unpacking / Setting Up ........................................................................................................................ 7
B. Location Requirements......................................................................................................................... 8
C. Dryer Enclosure Requirements ............................................................................................................ 9

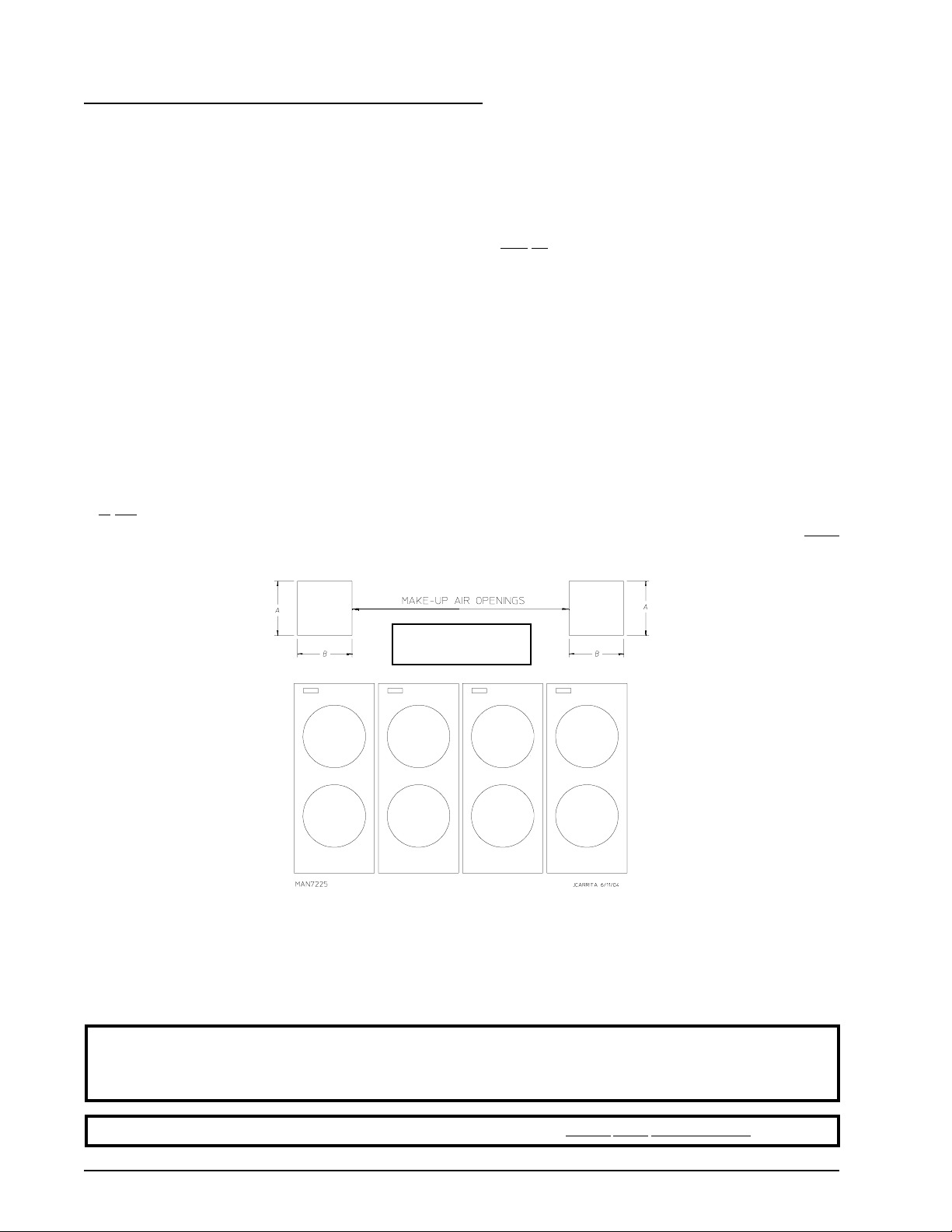

D. Fresh Air Supply Requirements ......................................................................................................... 10
E. Exhaust Requirements ........................................................................................................................ 11
F. Electrical Information......................................................................................................................... 14
G. Gas Information .................................................................................................................................. 18
H. Preparation for Operation / Start-Up ................................................................................................. 23
I. Preoperational Instructions................................................................................................................. 23
J. Shutdown Instructions ........................................................................................................................ 25
SECTION IV
SERVICE / PARTS INFORMATION ........................................................................................................ 26
A. Service ................................................................................................................................................. 26
B. Parts ..................................................................................................................................................... 26
SECTION V
WARRANTY INFORMATION ................................................................................................................... 27
A. Returning Warranty Cards .................................................................................................................. 27
B. Warranty............................................................................................................................................... 27
C. Returning Warranty Parts ................................................................................................................... 27
SECTION VI
ROUTINE MAINTENANCE....................................................................................................................... 29
A. Cleaning............................................................................................................................................... 29
B. Adjustments......................................................................................................................................... 30
C. Lubrication .......................................................................................................................................... 30
SECTION VII
DATA LABEL INFORMATION ................................................................................................................. 31
SECTION VIII
PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT COMPONENTS .................... 32
SECTION IX
COIN PROGRAMMING ............................................................................................................................. 34
NON-COIN PROGRAMMING .................................................................................................................... 35
Table of Contents

2 American Dryer Corp. 113215 - 12
SECTIONI
SAFETYPRECAUTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage, personal injury, or loss of life.
WARNING: The dryermust neverbe operatedwithany of theback guards, outertops,or
servicepanels removed.PERSONALINJURYORFIRE COULDRESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. DO NOT spray aerosols in the vicinity of this appliance while it is in operation.
3. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the
user smells gas. The instructions should be posted in a prominent location.
4. WHAT TO DO IF YOU SMELL GAS:
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALLoccupants.
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you cannot reach your gas supplier, call the fire department.
5. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
6. Dryer(s) must be exhausted to the outdoors.
7. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dry only waterwashed fabrics. DO NOTdry articlesspotted or washedin drycleaning
solvents,a combustible detergent,industrialchemicals,or“allpurpose”cleaner.
EXPLOSIONCOULDRESULT.
WARNING: DONOT dry rags orarticles coated orcontaminated with gasoline,kerosene, oil, paint,
orwax. EXPLOSIONCOULDRESULT.
WARNING: DONOTdrymopheads. Contamination by waxorflammable solvents willcreatea
firehazard.

113215- 12 www.adclaundry.com 3
WARNING: DONOT useheat for dryingarticlesthat contain plastic,foam, sponge rubber, or
similarly textured rubberlike materials. Drying in a heated basket (tumbler) may
damage plastics or rubber and may be a fire hazard.
8. The possible presence of residual quantities of aggressive or decomposed chemicals in the load may produce
damage to the machine and harmful fumes.
9. A program shouldbeestablished for the inspection and cleaning of lint in the burner area, exhaust ductwork,
and area around the back of the dryer. The frequency of inspection and cleaning can best be determined
from experience at each location.
WARNING: Thecollectionof lint in theburnerareaandexhaust ductwork can createa potentialfire
hazard.
10. For personal safety, the dryer must be electrically grounded in accordance with local codes or the National
Electrical Code ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the Canadian Electrical Codes
Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
NOTE: Failure to electrically ground the dryer will VOIDTHE WARRANTY.
11. UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch, or heat safety
circuit ever be disabled.
WARNING: PERSONALINJURYORFIRE COULDRESULT.
12. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
13. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articlesleftinthedryerafter the drying and cooling cycleshave been completed can
createa fire hazard.
14. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE
DRYER.
15. For safety, proper operation, and optimum performances, the dryer must not be operated with a load less
than sixty-six percent (66%), 20 lb (18.14 kg) of its rated capacity.
WARNING: YOUMUSTDISCONNECTAND LOCKOUTTHEELECTRIC SUPPLYAND
THEGAS SUPPLYBEFOREANYCOVERSORGUARDSARE REMOVED
FROMTHEMACHINETOALLOWACCESS FORCLEANING,
ADJUSTING,INSTALLATION,ORTESTINGOFANYEQUIPMENTPER
OSHA(OccupationalSafetyand HealthAdministration)STANDARDS.
IMPORTANT: Dryermustbeinstalled ina location/environment,which theambient
temperatureremains between40°F (4.44°C) and130°F (54.44°C).

4 American Dryer Corp. 113215 - 12
WARNING: Disconnectpowerbeforeresettingthehi-limit. Thehi-limitislocatedonthetopfrontof
thelintbox. Pressandreleaseand the hi-limit willreset.
CE ONLY
IMPORTANT: Thisappliance must only be installed and operated in the country of destination
indicatedon the dryer’s data plate. Ifthe appliance isto beinstalled and operatedin a
countryotherthan the oneindicatedon the dataplate,a data plateamendmentmust
beobtainedfromAmerican Dryer Corporation.
IEC335 applies.
NOTES ____________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________

113215- 12 www.adclaundry.com 5
MAXIMUM CAPACITY (DRY WEIGHT) PER POCKET 30 lb 13.6 kg
TUMBLER DIAMETER 27-1/4” 69.22 cm
TUMBLER DEPTH 3 0 ” 76.2 cm
TUMBLER VOLUME
PER POCKET 10.1 cu ft 286 L
TUMBLER/DRIVE MOTOR
PER POCKET 1/2 hp 0.373 kW
BLOWER/FAN MOTOR
PER POCKET 1/2 hp 0.373 kW
DOOR OPENING
(DIAMETER) 21-1/2” 54.61 cm
DOOR SILL HEIGHT
TOP POCKET / BOTTOM POCKET 51-1/4” / 13-1/2” 130.2 cm / 34.3 cm
WATER CONNECTION N / A
DRYERS PER 20’/40’ CONTAINER 11 / 2 2
DRYERS PER 48’/53’ TRUCK 3 0 / 3 3
VOLTAGE AVAILABLE 120-240V 1,3ø 2,3w 50/60 Hz
APPROXIMATE NET WEIGHT 850 lb 385.5 kg
APPROXIMATE SHIPPING WEIGHT 900 lb 408.2 kg
AIRFLOW
PER POCKET
60 Hz 400 cfm 11.33 cmm
50 Hz 333 cfm 9.44 cmm
HEAT INPUT
PER POCKET 80,000 Btu/hr 20,160 kcal/hr
EXHAUST CONNECTION
(DIAMETER) 8” 20.32 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
INLET PIPE CONNECTION 3/4” M.N.P.T.
VOLTAGE AVAILABLE
N / A
APPROXIMATE NET WEIGHT
APPROXIMATE SHIPPING WEIGHT
AIRFLOW
PER POCKET
EXHAUST CONNECTION (DIAMETER) PER POCKET
COMPRESSED AIR CONNECTION
COMPRESSED AIR VOLUME
OVEN SIZE
PER POCKET
kW Btu/hr kcal/hr
VOLTAGE AVAILABLE
N / A
APPROXIMATE NET WEIGHT
APPROXIMATE SHIPPING WEIGHT
AIRFLOW
PER POCKET
STEAM CONSUMPTION PER POCKET
OPERATING STEAM PRESSURE
EXHAUST CONNECTION
(DIAMETER) PER POCKET
COMPRESSED AIR CONNECTION
COMPRESSED AIR VOLUME
BOILER HORSEPOWER
(NORMAL LOAD) PER POCKET
SUPPLY CONNECTION PER POCKET
RETURN CONNECTION PER POCKET
Shaded areas are stated in metric equivalents 1/25/11
NOTE: ADCreserves the right tomake changes inspecifications at anytime without noticeor
obligation.
SECTIONII
SPECIFICATIONS
GAS
ELECTRIC
STEAM

6 American Dryer Corp. 113215 - 12
SPECIFICATIONS
NOTE: ADCreserves the right tomake changes inspecifications at anytime without noticeor
obligation.

113215- 12 www.adclaundry.com 7
SECTIONIII
INSTALLATIONPROCEDURES
Installation should be performed by competent technicians in accordance with local and state codes. In the
absence of these codes, the installation mustconformto applicableAmerican National Standards:ANSI Z223.1-
LATEST EDITION (National Fuel Gas Code) orANSI/NFPANO. 70-LATEST EDITION (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSAC22.1-1990 or LATEST EDITION
(for Electrical Connections).
A. UNPACKING / SETTING UP
Remove protective shipping material (i.e., plastic wrap and/or optional shipping box) from dryer.
NOTE: Theaccess keys fortheservicedoors are includedintheinformation packet shippedinthe
basket (tumbler). These keys shouldbe removedand putin asafe place,yet made
accessiblebecausetheywillbeneeded throughout variousphases in the installationof the
dryer.
Dryers are shipped with a coin box and coin box faceplate ONLY. The coin box lock is not included and
must be purchased elsewhere or the lock can be ordered as a parts order from the ADC Parts Department at
[phone].
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid
the dryer, locate and remove the four (4) bolts securing the base of the dryer to the wooden skid. Two (2) are
at the rear of the base and two (2) are located in the front. Once the bolts are removed, slide the dryer off of the
skid.
With the skid removed, to make it easier to slide the dryer into its final position, slightly lower ALL the leveling
legs so that the dryer will slide on the legs instead of the base frame. The dryer is equipped with four (4) leveling
legs, one (1) at each corner of the dryer base.

8 American Dryer Corp. 113215 - 12
B. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such
codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST
EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-
M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATESTEDITION (for General
Installation and Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: “Thedryermustbeinstalledonnoncombustiblefloorsonly.”
2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
3. The dryer is for use in noncombustible locations.
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in Section D).
5. Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer
Enclosure Requirements in Section C).
6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual
(refer to Dryer Enclosure Requirements in Section C).
7. The dryer must be installed with a proper exhaust duct connection to the outside as noted in this manual
(refer to Exhaust Requirements in Section E).
8. The dryer must be located in an area where correct exhaust venting can be achieved as noted in this
manual (refer to Exhaust Requirements in Section E).
IMPORTANT: Thedryershouldbelocatedwhereaminimum amount ofexhaustduct will be
necessary.
9. The dryer must be installed with adequate clearance for air openings into the combustion chamber.
CAUTION: Thisdryer produces combustiblelint and mustbeexhausted to theoutdoors. Every 6
months,inspect theexhaustductingandremoveanylintbuild up.
IMPORTANT: Thedryer mustbeinstalledina location/environment,which theambient
temperatureremains between40°F (4.44°C) and130°F (54.44°C).

113215- 12 www.adclaundry.com 9
C. DRYER ENCLOSURE REQUIREMENTS
Bulkheads and partitions must be made of noncombustible materials and must be located a minimum of
12-inches (30.48 cm) above the dryer outer top, except along the front of the dryer which may be partially closed
in if desired. It is suggested that the dryer be positioned about 2 feet (0.61 meters) away from the nearest
obstruction, for ease of installation, maintenance, and service (to be measured from the back guard).
NOTE: Allowancesmustbe madefor opening thecontroldoor.
Dryers may be positioned sidewall to sidewall. However, a 1/16” (1.5875 mm) minimum allowance must be
made for the opening and closing of the control door. Refer to the illustration below for details.
NOTE: Airconsiderationsareimportantforproperandefficientoperation.
IMPORTANT: Whenfiresprinklersystemsarelocatedabovethe dryers, a minimum of 18-inches
(45.72cm) above thedryerconsole (module) isrequired.

10 American Dryer Corp. 113215 - 12
EXAMPLE: For a bank of four (4) dryers, a total make-up air opening of 6 square feet (0.55 square meters) is
required. Two (2) unrestricted openingsmeasuring 18-inches by 24-inches (45.72 cm by 60.96cm) are acceptable.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low pressure areas.
IMPORTANT: Make-upairmustbe providedfroma source freeofdry cleaningsolventfumes.
Make-upair thatiscontaminatedbydrycleaningsolvent fumeswillresultin
irreparabledamageto themotorsand other dryercomponents.
NOTE: Componentfailure due todrycleaningsolventfumeswillVOIDTHEWARRANTY.
D. FRESH AIR SUPPLYREQUIREMENTS
This appliance may only be installed in a room that meets the appropriate ventilation requirements specified in
the national installation regulations.
When the dryer is operating, it draws in room air, heats it, passes this air through the basket (tumbler), and
exhausts it out of the building. Therefore, the room air must becontinually replenished from the outdoors. If the
make-up air is inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and
sail switch “fluttering” problems may result, as well as premature motor failure from overheating.
Air supply (make-up air) must be given careful consideration to ensure proper performance of each dryer. An
unrestricted source of 800 cfm (22.66 cmm) is necessary for each dryer. As a general rule, an unrestricted air
entrance from the outdoors (atmosphere) of a minimum of 1-1/2 square feet (0.41 square meters) is required for
each dryer. The area must be enlarged if louvers or registers cover the openings. The dryer must be installed
with provisions for adequate combustion and make-up air supply.
To compensate for the use of registers or louvers used over the openings, this make-up air must be increased by
approximately thirty-three percent (33%). Make-up air openings should not be located in an area directly near
where exhaust vents exit the building.
It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to ALL
the dryers.
A = 18” (45.72 cm)
B = 24” (60.96 cm)

113215- 12 www.adclaundry.com 11
E. EXHAUST REQUIREMENTS
Exhaust ductwork shouldbe designed and installed by a qualified professional. Improperly sized ductwork will
create excessive back pressure which results in slow drying, increased use of energy, overheating of the dryer,
andshut down of the burnerby the airflow (sail) switches,burner hi-limits, or basket (tumbler)hi-limit thermostats.
The dryer must be installed with a proper exhaust duct connection to the outside.
The design of the flue system shall be such that any condensate formed when operating the appliance from cold
shall either be retained and subsequently re-evaporated or discharged.
CAUTION: Thisdryerproduces combustiblelintand mustbeexhaustedto the outdoors.
CAUTION: IMPROPERLYSIZEDORINSTALLEDEXHAUSTDUCTWORKCAN
CREATEAPOTENTIALFIREHAZARD.
The ductwork should be laid out in such a way that the ductwork travels as directly as possible to the outdoors
with as few turns as possible.
1. Single Dryer Venting
Where possible, it is suggested to provide a separate exhaust duct for each dryer. The exhaust ductwork
should be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as
few turns as possible. It is suggested that the use of 90° turns be avoided; use 30° and/or 45° bends
instead. The radius of the elbows should preferably be 1-1/2 times the diameter of the duct. The shape
of the ductwork is not critical as long as the minimum cross-sectional area is provided.
IMPORTANT: Exhaustbackpressuremeasuredbyamanometer/magnehelicintheexhaustduct
mustbe no less than 0 and must not exceed0.3 in WC (0.74 mb) with both baskets
(tumblers)operating.
NOTE: Itis recommendedthat exhaust orbooster fans notbe used inthe exhaustductworksystem
exceptwherenecessary to maintain exhaustbackpressure (in the exhaustduct)between zero
and0.3inch water columnwithbothbaskets (tumblers) operating. Whereemployed,booster
fansmustnotactivatethedryerairflow proving switch (sail switch)when thedryer isnotin
operation.
It is suggested that the ductwork from each dryer must not exceed 20 feet (6.1 meters) with no more than
two (2) elbows. If the ductwork exceeds 20 feet (6.1 meters) or has numerous elbows, the cross-sectional
area of the ductwork must be increased in proportion to the length or number of elbows in it.
IMPORTANT: Forextended ductwork runs,the cross-sectionalarea of theductwork canonly be
increasedtoanextent. When the ductwork approachesthemaximumlimitsas noted
inthismanual,aprofessionalheating,ventilating,andair-conditioning(HVAC)firm
shouldbeconsultedforproperventinginformation.
NOTE: Asper the NationalFuel Gas Code,“Exhaust ductsforType2clothes dryers shallbe
constructedofsheetmetalorothernoncombustiblematerial. Suchductsshallbeequivalentin
strengthandcorrosionresistance to ducts madeofgalvanizedsheetsteel not less than
0.0195inches(26 gauge [0.5mm])thick.”

12 American Dryer Corp. 113215 - 12
ALLductwork should be smooth inside with no projections from sheet metal screws or other obstructions,
which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be
connected. ALL ductwork joints must be taped to prevent moisture and lint from escaping into the
building. Inspection doors should be installed at strategic points in the exhaust ductwork for periodic
inspection and cleaning of lint from the ductwork.
NOTE: Whentheexhaustductworkpassesthrougha wall, ceiling, orroof madeof combustible
materials,theopening mustbe2-inches(5.08 cm) largerthanthe duct (allthewayaround).
Theductmustbecentered withinthis opening.
Outside Ductwork Protection
To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should
be installed where the exhaust exits the building. If the ductwork travels vertically up through the roof, it
should be protected from the weather by using a 180° turn to point the opening downward. In either case,
allow at least twice the diameter of the duct between the duct opening and the nearest obstruction.
IMPORTANT: DONOTusescreens, louvers, or caps onthe outsideopening ofthe exhaust
ductwork.
2. Multiple Dryer (Common) Venting
If it is not feasible to provide a separate exhaust duct for each dryer, ducts from individual dryers may be
channeled into a “common main duct.” The individual ducts should enter the bottom or the side of the main
duct at an angle not more than 45° in the direction of the airflow. The main duct should be tapered with
the diameter increasing before each individual 8-inch (20.32 cm) duct is added.
IMPORTANT: Nomore thaneight (8)dryers should beconnected toone (1)main common duct
(refertotheillustrationonthefollowingpage).
The main duct may be any shape as long as the minimum cross-sectional area is provided. The illustration
on the following page shows the minimum cross-sectional area for multiple dryer venting. These figures
must be increased in proportion as the result of whatever changes or additions are made to this ductwork
run. Two examples are if ductwork length from last dryer to where duct exits the building exceeds limits
noted (20 feet [6.1 meters]) or, if ductwork runs from last dryer to where duct exits the building has more
than one (1) elbow (including outside protection).

113215- 12 www.adclaundry.com 13
NOTE: Refertotheillustrationbelowforexamplesofmultipledryer(common)venting.
IMPORTANT: Forextended ductwork runs,the cross-sectionalarea of theductwork canonly be
increasedtoanextent. When the ductwork approachesthemaximumlimitsas noted
inthismanual,aprofessionalheating,ventilating,andair-conditioning(HVAC)firm
shouldbeconsultedforproperventinginformation.
IMPORTANT: Exhaustbackpressuremeasuredbyamanometer/magnehelicintheexhaustduct
mustbe no less than 0 and must not exceed0.3 in WC (0.74 mb) with both baskets
(tumblers)operating.
NOTE: Itis recommendedthat exhaust orbooster fans notbe used inthe exhaustductworksystem
exceptwherenecessary to maintain exhaustbackpressure (in the exhaustduct)between zero
and0.3inch water columnwithbothbaskets (tumblers) operating. Whereemployed,booster
fansmustnotactivatethedryerairflow proving switch (sail switch)when thedryer isnotin
operation.
The ductwork should be smooth inside with no projections from sheet metal screws or other obstructions,
which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be
connected. ALLductwork joints mustbe taped to prevent moisture and lint from escaping into the building.
Inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and
cleaning of lint from the ductwork.
NOTE: Whentheexhaustductworkpassesthrougha wall, ceiling, orroof madeof combustible
materials,theopening mustbe2-inches(5.08 cm) largerthanthe duct (allthewayaround).
Theductmustbecenteredwithinthis opening.
To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should
be installed where the exhaust exits the building. If the exhaust ductwork travels vertically up through the
roof, it shouldbe protected from the weather by using a 180° turn to point the opening downward. In either
case, allow at least twice the diameter of the duct between the duct opening and nearest obstruction.

14 American Dryer Corp. 113215 - 12
F. ELECTRICAL INFORMATION
1. ElectricalRequirements
ALLelectrical connections must bemade by a properly licensedand competent electrician. This is to
ensure that the electrical installation is adequate and conforms to local and state regulations or codes. In the
absence of such codes, ALL electrical connections, materials, and workmanship must conform to the
applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in
Canada, the Canadian Electrical Codes Parts 1 & 2 CSAC22.1-1990 or LATEST EDITION.
IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements
stipulated in this manual can result in personal injury or component failure.
NOTE: Component failure due to improper installation will VOIDTHEWARRANTY.
Each pocket should be connected to an independently protected branch circuit. The dryer must be
connected with copper wire only. DO NOT use aluminum wire, it could create a fire hazard. The
copper conductor wire/cable must be of proper ampacity and insulation in accordance with electric codes
for making ALL service connections.
NOTE: The use of aluminum wire will VOIDTHE WARRANTY.
IMPORTANT: Aseparate protected circuit mustbe provided to each pocket.
NOTE: An individual ground circuit must be provided to each dryer, do not daisy chain.
IMPORTANT: The dryer must be connected to the electric supply shown on the data label. In
thecase of 208VACor 240 VAC,the supply voltagemust matchthe electric service
specificationsofthedata label exactly.
IMPORTANT: The wire size must be properly sized to handle the related current.
WARNING: 208VACAND 240VACARENOTTHE SAME. Any damage done to dryer
componentsdue toimpropervoltageconnectionswillautomaticallyVOIDTHE
WARRANTY.
NOTE: Component failure due to improper voltage application willVOIDTHEWARRANTY.
NOTE: ADCreserves the right tomake changes inspecifications at anytime without noticeor
obligation.

113215- 12 www.adclaundry.com 15
GAS MODELS
ELECTRICAL SERVICE SPECIFICATIONS (PER POCKET)
IMPORTANT:
NOTES: A.
B.
C.
208 VAC AND 240 VAC ARE NOT THE SAME. When ordering,
specify exact voltage.
When fuses are used they must be dual element, time delay, current
limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse
value, by applying either local and/or National Electrical Codes to
listed appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) motor curve type
ONLY. For others, calculate/verify correct breaker size according to
appliance amp draw rating and type of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE PHASE WIRE
SERVICE
APPROX.
AMP DRAW CIRCUIT
BREAKER
60 Hz 50 Hz
120 1ø 2 8.7 — 15
208 1ø 2 5.2 — 15
240 1ø 2 4.8 4.7 15
208 3ø 3 3.0 — 15
240 3ø 3 3.2 — 15
12/5/14
3. Grounding
A ground (earth) connection must be provided and installed in accordance with state and local codes. In
the absence of these codes, grounding must conform to applicable requirements of the National Electrical
CodeANSI/NFPANO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable
Canada Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The
ground connection may be to a proven earth ground at the location service panel.
For added personal safety, when possible, it is suggested that a separate ground wire (sized per local codes)
be connected from the ground connection of the dryer to a grounded cold water pipe. DO NOT ground to
a gas pipe or hot water pipe. The grounded cold water pipe must have metal-to-metal connection ALL
the way to the electrical ground. If there are any nonmetallic interruptions, such as, a meter, pump, plastic,
rubber, or other insulating connectors, they must be jumped out with no. 4 copper wire and securely
clamped to bare metal at both ends.
IMPORTANT: Forpersonal safetyand properoperation, thedryer must be grounded.
Provisions are made for ground connection in each dryer at the electrical service connection area.
2. Electrical Service Specifications

16 American Dryer Corp. 113215 - 12
4. Electrical Connections
A wiring diagram is located inside the control box for connection data.
If local codes permit, power to the dryer can be made by the use of a flexible U.L. listed power cord/pigtail
(wire size must conform to rating of dryer), or the dryer can be hard wired directly to the service breaker
panel. In both cases, a strain relief must be installed where the wiring enters the dryer.
IMPORTANT: Aseparate protected circuit mustbe provided to each pocket.
Single-Phase (1ø) Hookup
The electrical input connections on ALL single-phase (1ø) dryers are made into the junction box located at
the upper rear of the dryer. A separate circuit servicing each pocket must be provided.
