ADC ES35 User manual

ES35
Service Manual
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: [phone] / Fax: [phone]
E-mail: [e-mail] / [e-mail]
www.amdry.com
ADC Part No. 450325-1

2 American Dryer Corp. 450325- 1
Retain This Manual in a Safe Place for Future Reference
This product embodies advanced concepts in engineering, design, and safety. If this product is properly
maintained, it will provide many years of safe, efficient, and trouble free operation.
Only qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation
manual included with the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the
instructions to be followed if the user smells gas. These
instructions must be posted in a prominent location near the dryer.
We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer
reserves the right to make changes from time to time, without notice or obligation, in prices, specifications,
colors, and material, and to change or discontinue models. The illustrations included in this manual may
not depict your particular dryer exactly.
IMPORTANT
For your convenience, log the following information:
DATE OF PURCHASE ________________________________________________________ MODEL NO. ______________
RESELLER’S NAME __________________________________________________________________________________
SERIAL NUM ER(S) __________________________________________________________________________________
____________________________________________________________________________________________________
____________________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts
from the factory, you can FAX your order to ADC at [phone] or telephone your order directly to the
ADC Parts Department at [phone] or contact [e-mail]. Please specify the dryer model
number and serial number in addition to the description and part number, so that your order is processed
accurately and promptly.
ES35

450325- 1 www.amdry.com 3
Table of Contents _______________
List of Acronyms ______________________
L.P. Liquid Propane
OSHA Occupational Sa ety and Health Administration
T.E.F.C. Totally Enclosed, Fan-Cooled
IMPORTANT
You must disconnect and lockout the electric
supply and the gas supply or the steam supply
be ore any covers or guards are removed rom
the machine to allow access or cleaning,
adjusting, installation, or testing o any
equipment per OSHA standards.
Please observe all sa ety precautions displayed
on the equipment and speci ied in the
installation manual included with the dryer.
FOR YOUR SAFETY
Do not store or use gasoline or other lammable
vapors and liquids in the vicinity o this or any
other appliance.
Do not dry mop heads in the dryer.
Do not use dryer in the presence o dry cleaning
umes.
CAUTION
Dryers should never be le t unattended while
in operation.
“Caution: Label all wires prior to disconnection
when servicing controls. Wiring errors can
cause improper operation.”
«Attention: Au moment de l’entretien des
commandes, étiquetez tous les ils avant de les
débrancher. Des erreurs de câblage peuvent
entraîner un onctionnement inadéquat et
dangereux.»
WARNING
Children should not be allowed to play on or
near the dryers.
Children should be supervised i near dryer(s)
in operation.
The dryer must never be operated with any o
the back guards, outer tops, or service panels
removed. Personal injury or ire could result.
The dryer must never be operated without the
lint ilter or screen in place, even i an external
lint collection system is used.
The wiring diagram or the dryer is located in
the ront electrical control box area.
Important Information ................................. 4
A. Sa ety Precautions ..................................................... 4
Routine Maintenance................................... 6
A. Cleaning ...................................................................... 6
B. Adjustments ................................................................ 7
Installation Requirements........................... 8
A. Enclosure, Air Supply, and Exhaust Requirements ... 8
B. Electrical and Gas Requirements .............................. 8
C. Operational Service Check Procedure ...................... 9
Description of Parts .................................. 10
A. Control Panel (Microprocessor) ............................... 10
B. Globar ....................................................................... 10
C. Gas Burner Assembly ............................................... 10
D. Drive Motor ............................................................... 11
E. Motorized Impellor (Blower Motor) ........................... 11
F. Tumbler ..................................................................... 11
G. Main Door Switch ...................................................... 12
H. Sail Switch (Gas Models Only) ................................. 12
I. Hi-Limit (Gas Models Only) ...................................... 12
J. Automatic Reset Thermostat .................................... 12
K. Lint Drawer ............................................................... 12
L. Lint Drawer Switch .................................................... 13
M. Reversing Relay Location ........................................ 13
Servicing.................................................... 14
Introduction .................................................................... 14
A. Computer Controls ................................................... 14
B. Glo-Bar Controls ....................................................... 16
C. Thermostats .............................................................. 19
D. Sail Switch Assembly (Gas Models Only) ................ 19
E. Front Panel and Main Door Assemblies .................. 20
F. To Replace Lint Drawer Switch ................................ 25
Faults ......................................................... 29
Events ........................................................ 30
Technical Information ............................... 31
A. Data Label ................................................................ 31
B. Using A Manometer .................................................. 32
C. Tool List ..................................................................... 32

4 American Dryer Corp. 450325- 1
SECTION I
IMPORTANT INFORMATION
A. SAFETY PRECAUTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury, or loss of life.
The dryer must never be operated with any of the back guards, outer tops, or
service panels removed. PERSONAL INJURY OR FIRE COULD RESULT.
1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
2. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the user
smells gas. The instructions should be posted in a prominent location.
3. WHAT TO DO IF YOU SMELL GAS...
a. Do not try to light any appliance.
b. Do not touch any electrical switch.
c. Do not use any phone in your building.
d. Clear the room, building, or area of all occupants.
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you cannot reach your gas supplier, call the fire department.
4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
5. Dryer(s must be exhausted to the outdoors.
6. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or cleaning
method, should not be dried in it.
WARNING: Dry only water washed fabrics. Do not dry articles spotted or washed in dry cleaning
solvents, a combustible detergent, or “all purpose” cleaner. EXPLOSION COULD
RESULT.
Do not dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint, or
wax. EXPLOSION COULD RESULT.
Do not dry mop heads. Contamination by wax or flammable solvents will create a fire
hazard.
Do not use heat for drying articles that contain plastic, foam, sponge rubber, or similarly
textured rubber materials. Drying in a heated tumbler may damage plastics or rubber
and may be a fire hazard.
7. A program should be established for the inspection and cleaning of lint in the heating unit area, exhaust ductwork,
and inside the dryer. The frequency of inspection and cleaning can best be determined from experience at each
location.
WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire
hazard.
8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the National
Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2
CSA C22.1-1990 or LATEST EDITION.

450325- 1 www.amdry.com 5
NOTE: Failure to do so will void the warranty.
9. Under no circumstances should the dryer door switches, lint door switch, heat safety circuit ever be disabled.
WARNING: PERSONAL INJURY OR FIRE COULD RESULT.
10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
11. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can
create a fire hazard.
12. Do not operate steam dryers with more than 125 PSI (8.61 bars steam pressure. Excessive steam pressure
can damage steam coil and/or harm personnel.
13. Replace leaking flexible hoses or other steam fixtures immediately. Do not operate the dryer with leaking
flexible hoses. PERSONAL INJURY MAY RESULT.
14. READ AND FOLLOW ALL CAUTION AND DIRECTION LA ELS ATTACHED TO THE DRYER.
WARNING: YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND THE GAS
SUPPLY OR THE STEAM SUPPLY EFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA
STANDARDS.

6 American Dryer Corp. 450325- 1
SECTION II
ROUTINE MAINTENANCE
A. CLEANING
A program or schedule should be established for periodic inspection, cleaning, and removal of lint from various areas
of the dryer, as well as throughout the ductwork system. The frequency of cleaning can best be determined from
experience at each location. Maximum operating efficiency is dependent upon proper air circulation. The accumulation
of lint can restrict this airflow. If the guidelines in this section are met, an ADC dryer will provide many years of
efficient, trouble free, and most importantly, safe operation.
WARNING: LINT FROM MOST FA RICS IS HIGHLY COM USTI LE. THE ACCUMULATION OF
LINT CAN CREATE A POTENTIAL FIRE HAZARD.
KEEP DRYER AREA CLEAR AND FREE FROM COM USTI LE MATERIALS,
GASOLINE, AND OTHER FLAMMA LE VAPORS AND LIQUIDS.
NOTE: Suggested time intervals shown are for average usage which is considered six to eight
operational (running hours per day.
Clean lint drawer and screen every third or fourth load.
NOTE: Frequency can best be determined at each location.
DAILY
Beginning of each work shift.
Clean lint from the drawer and screen. Inspect lint screen and replace if torn.
WEEKLY
Clean lint accumulation from lint chamber, thermostat, and microprocessor temperature sensor (sensor bracket
area.
WARNING: To avoid the hazard of electrical shock, discontinue electrical supply to the dryer.
STEAM DRYERS
Clean steam coil fins using compressed air and a vacuum cleaner with brush attachment.
NOTE: When cleaning steam coil fins, be careful not to bend the fins. If the fins are bent,
straighten by using a fin comb, which is available from local air conditioning supply houses.
90 DAYS
Remove lint from tumbler, drive motors, and surrounding areas. Remove lint from gas valve burner area with a
dusting brush or vacuum cleaner attachment.
NOTE: To prevent damage, avoid cleaning and/or touching the ignitor/globar probe assembly.
Remove lint accumulation from inside control box and at rear area behind control box.

450325- 1 www.amdry.com 7
6 MONTHS
Inspect and remove lint accumulation in customer furnished exhaust ductwork system and from dryer’s internal
exhaust ducting.
NOTE: THE ACCUMULATION OF LINT IN THE EXHAUST DUCTWORK CAN CREATE A
POTENTIAL FIRE HAZARD.
DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR. CHECK
CUSTOMER FURNISHED BACK DRAFT DAMPERS IN THE EXHAUST DUCTWORK.
INSPECT AND REMOVE ANY LINT ACCUMULATION, WHICH CAN CAUSE THE
DAMPER TO BIND OR STICK.
A back draft damper that is sticking partially closed can result in slow drying and shutdown
of heat circuit safety switches or thermostats.
When cleaning the dryer cabinet(s , avoid using harsh abrasives. A product intended for
the cleaning of appliances is recommended.
B. ADJUSTMENTS
7 DAYS AFTER INSTALLATION AND EVERY 6 MONTHS THEREAFTER
Inspect bolts, nuts, screws, grounding connections, and nonpermanent gas connections (unions, shutoff valves, and
orifices . Motor and drive belts should be examined. Cracked or seriously frayed belts should be replaced. Complete
operational check of controls and valves. Complete operational check of all safety devices (door switches, lint
drawer switch, sail switch, burner and hi-limit thermostats .

8 American Dryer Corp. 450325- 1
SECTION III
INSTALLATION REQUIREMENTS
Installation should be performed by competent technicians in accordance with local and state codes. In the absence
of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1-LATEST
EDITION (National Fuel Gas Code or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical Code or in Canada,
the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas or CAN/CGA-
B149.2-M91 (L.P. Gas or LATEST EDITION (for General Installation and Gas Plumbing or Canadian Electrical
Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION (for Electrical Connections .
A. ENCLOSURE, AIR SUPPLY, AND EXHAUST REQUIREMENTS
NOTE: The following information is very brief and general. For a detailed description, refer to the
Installation Manual supplied with the dryer.
Bulkheads and partitions around the dryer should be made of noncombustible materials. Allowances should be
made for the opening and closing of the control door and lint drawer. Also, allowances should be made in the rear for
ease of maintenance. (Refer to the appropriate Installation Manual for recommended distances and minimum
allowances required.
When the dryer is operating, it draws in room air, heats it, passes this air through the tumbler, and exhausts it out of
the building. Therefore, the room air must be continually replenished from the outdoors. If the make-up air is
inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and sail switch “fluttering”
problems on gas dryers may result, and you also could have premature motor failure from overheating. The air
supply must be given careful consideration to insure proper performance of each dryer.
IMPORTANT: Make-up air must be provided from a source free of dry cleaning fumes. Make-up air
that is contaminated by dry cleaning fumes will result in irreparable damage to the
motors and other dryer components.
Exhaust ductwork should be designed and installed by a competent technician. Improperly sized ductwork will create
excessive back pressure, which will result in slow drying, increased use of energy, and shutdown of the burner by the
airflow (sail switch, burner hi-limit or lint chamber hi-heat protector thermostat. (Refer to the appropriate Installation
Manual for more details.
CAUTION: IMPROPERLY SIZED OR INSTALLED EXHAUST DUCTWORK CAN CREATE A
POTENTIAL FIRE HAZARD.
B. ELECTRICAL AND GAS REQUIREMENTS
It is your responsibility to have all electrical connections made by a properly licensed and competent electrician to
assure that the electrical installation is adequate and conforms to local and state regulations or codes. In the absence
of such codes, all electrical connections, materials, and workmanship must conform to the applicable requirements
of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes
Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
IMPORTANT: Failure to comply with these codes or ordinances and/or the requirements stipulated
in this manual can result in personal injury or component failure.

450325- 1 www.amdry.com 9
The gas dryer installation must meet the American National Standard...National Fuel Gas Code ANSI Z223.1-LATEST
EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1 M91 (Natural Gas or CAN/CGA-B149.2-
M91 (L.P. Gas or LATEST EDITION, as well as local codes and ordinances and must be done by a qualified
professional.
NOTE: Undersized gas piping will result in ignition problems and slow drying and can create a
safety hazard.
The dryer must be connected to the type of gas (natural or L.P. indicated on the dryer data label. If this information
does not agree with the type of gas available, contact the reseller who sold the dryer or contact the factory.
The gas input ratings shown on the dryer data label are for elevations up to 2,000 feet (609.6 meters , unless
elevation requirements of over 2,000 feet (609.6 meters were specified at the time the dryer order was placed with
the factory. The adjustment for dryers in the field for elevations over 2,000 feet (609.6 meters is made by changing
the burner orifices. If this adjustment is necessary, contact the reseller who sold the dryer or contact the factory.
NOTE: Any burner changes must be made by a qualified technician.
C. OPERATIONAL SERVICE CHECK PROCEDURE
1. Turn on electric power to the dryer.
2. To start dryer:
a. Display will read “Select Cycle.”
b. Press “E” on the keypad of the microprocessor controller (computer .
c. The dryer will start, and the display will show cycle type and minutes remaining.
3. Make a complete operational check of all the operating controls to assure that the timing is correct, temperature
selection switches are functioning, etc.
4. Make a complete operational check of all safety-related circuits: door switch(es , hi-limit thermostat, sail switch,
cycling thermostats, etc.
5. For gas dryers a gas pressure test should be taken at the gave valve pressure tap of each dryer to assure that
the water column pressure is correct and consistent.
NOTE: Water column pressure requirements (measured at the pressure tap on the gas valve
body :
Natural Gas ________________ 3.5 Inches (8.7 mb Water Column.
L.P. Gas ___________________ 10.5 Inches (26.1 mb Water Column.
6. If computer program changes are required, refer to the Phase 8 Non-Coin Operator’s Manual (ADC P/N 112725
for details.
7. The dryer should be operated through one complete cycle to assure that no further adjustments are necessary
and that all components are functioning properly.

10 American Dryer Corp. 450325- 1
SECTION IV
DESCRIPTION OF PARTS

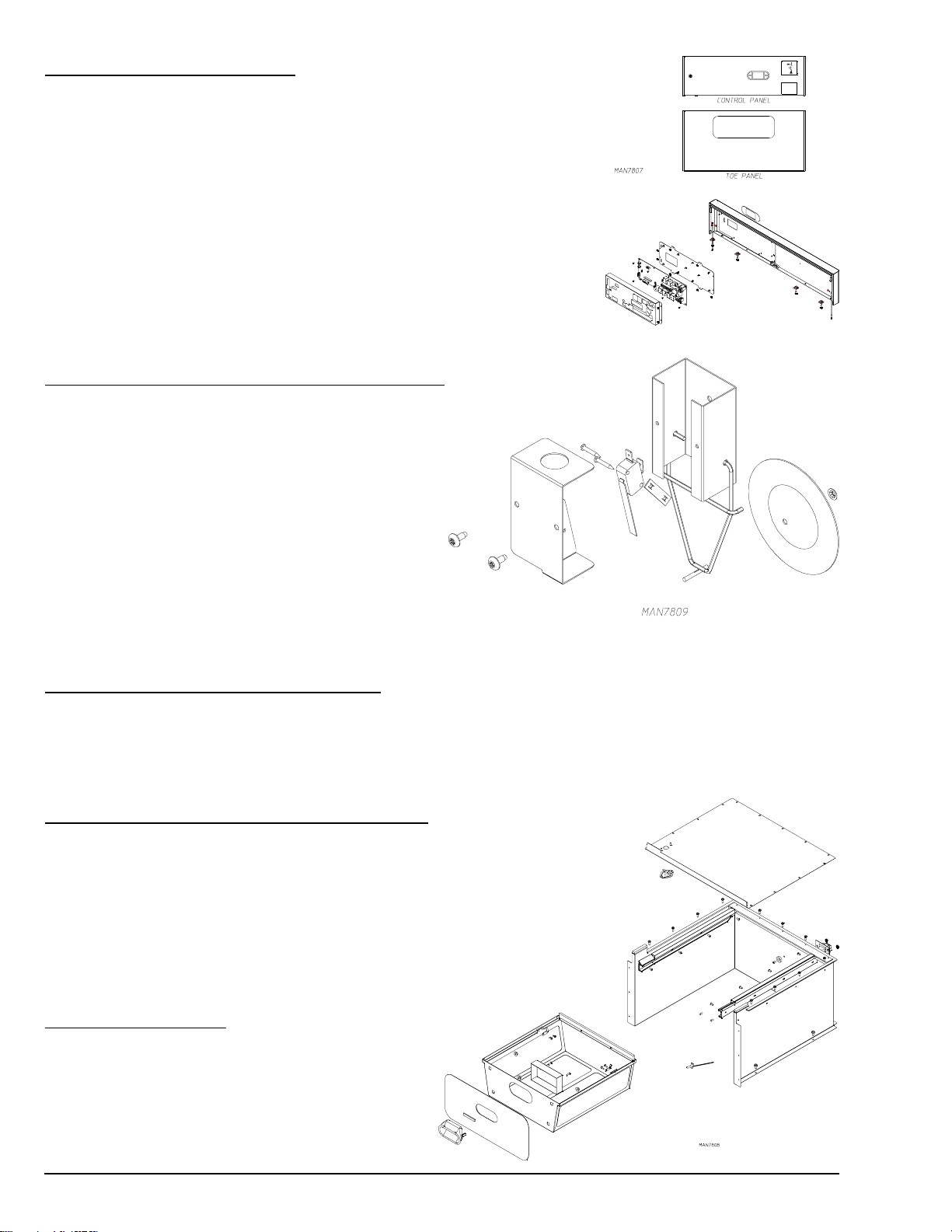

A. CONTROL PANEL (MICROPROCESSOR
Lifting the control door will reveal the control panel assembly.
Opening the control panel will allow access to the major components
which include the computer board and keypad. The keypad inputs
to the computer what temperature and program has been selected.
The computer controls the entire operation of the dryer. It accepts
inputs and gives outputs to various parts throughout the dryer.
B. GLOBAR
The globar is a 120 VAC device. When the Globar meets
its peak radiant heat the I-R sensor “infrared sensor” senses
the heat and powers the gas valve.

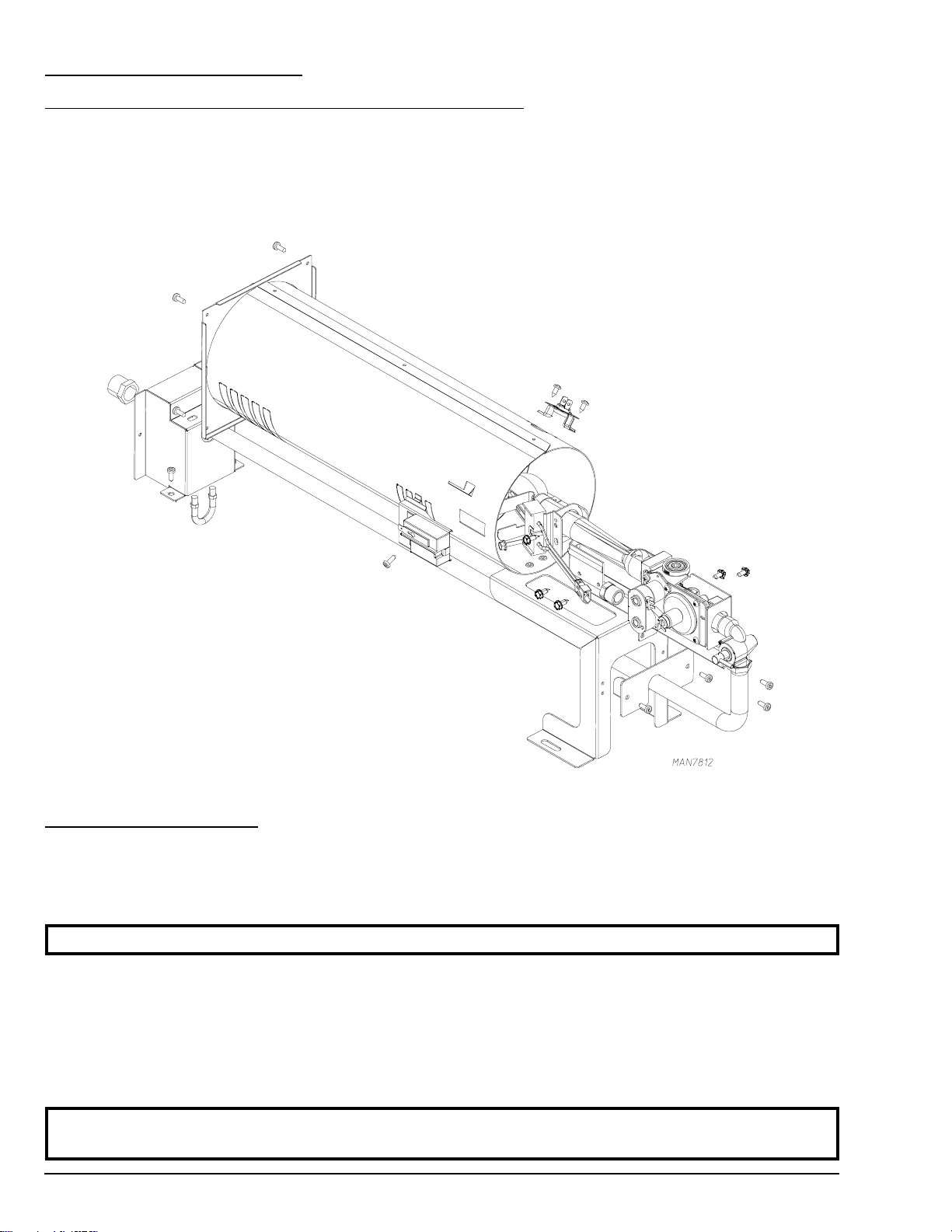

C. GAS BURNER ASSEMBLY
Gas heated dryers are equipped with a gas burner assembly consisting of one burner tube, one gas valve, Glo-Bar
infrared sensor. The inlet piping enters through the rear of the dryer on the right-hand side (viewing from the front
and runs to the front of the dryer where the gas valve is located.
